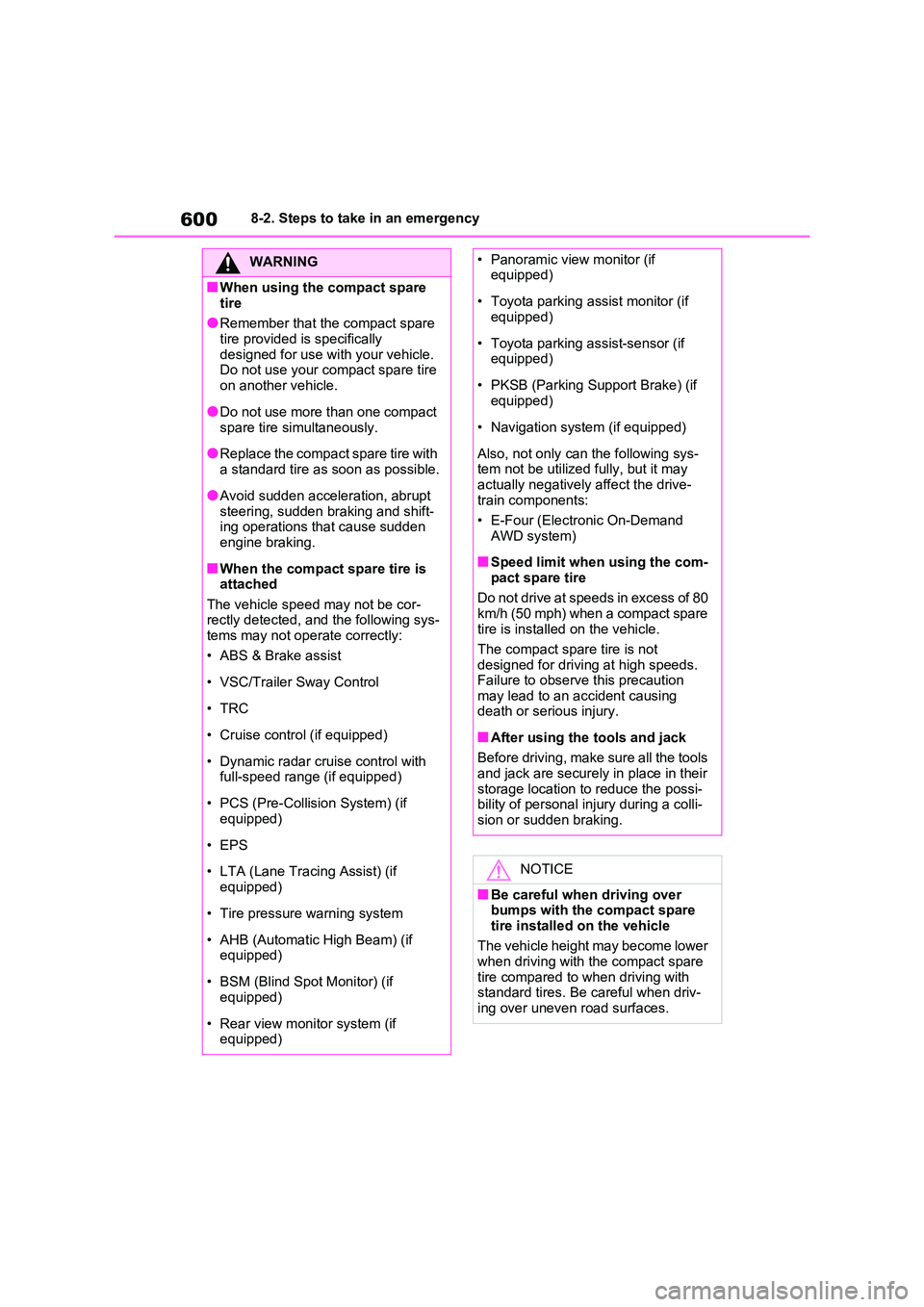

6008-2. Steps to take in an emergency
WARNING
■When using the compact spare
tire
●Remember that the compact spare tire provided is specifically
designed for use with your vehicle.
Do not use your compact spare tire on another vehicle.
●Do not use more than one compact
spare tire simultaneously.
●Replace the compact spare tire with
a standard tire as soon as possible.
●Avoid sudden acceleration, abrupt
steering, sudden braking and shift - ing operations that cause sudden
engine braking.
■When the compact spare tire is
attached
The vehicle speed may not be cor - rectly detected, and the following sys -
tems may not oper ate correctly:
• ABS & Brake assist
• VSC/Trailer Sway Control
•TRC
• Cruise control (if equipped)
• Dynamic radar cruise control with
full-speed range (if equipped)
• PCS (Pre-Collision System) (if
equipped)
• EPS
• LTA (Lane Tracing Assist) (if
equipped)
• Tire pressure warning system
• AHB (Automatic High Beam) (if equipped)
• BSM (Blind Spot Monitor) (if equipped)
• Rear view monitor system (if equipped)
• Panoramic view monitor (if equipped)
• Toyota parking assist monitor (if equipped)
• Toyota parking assist-sensor (if equipped)
• PKSB (Parking Support Brake) (if equipped)
• Navigation system (if equipped)
Also, not only can the following sys-
tem not be utilized fully, but it may actually negatively affect the drive-
train components:
• E-Four (Electro nic On-Demand AWD system)
■Speed limit when using the com - pact spare tire
Do not drive at speeds in excess of 80
km/h (50 mph) when a compact spare tire is installed on the vehicle.
The compact spare tire is not
designed for driving at high speeds. Failure to observe this precaution
may lead to an accident causing
death or serious injury.
■After using the tools and jack
Before driving, make sure all the tools and jack are securely in place in their
storage location to reduce the possi -
bility of personal i njury during a colli- sion or sudden braking.
NOTICE
■Be careful when driving over
bumps with the compact spare
tire installed on the vehicle
The vehicle height may become lower
when driving with the compact spare
tire compared to w hen driving with standard tires. Be careful when driv-
ing over uneven road surfaces.

637
9
9-2. Customization
Vehicle specifications

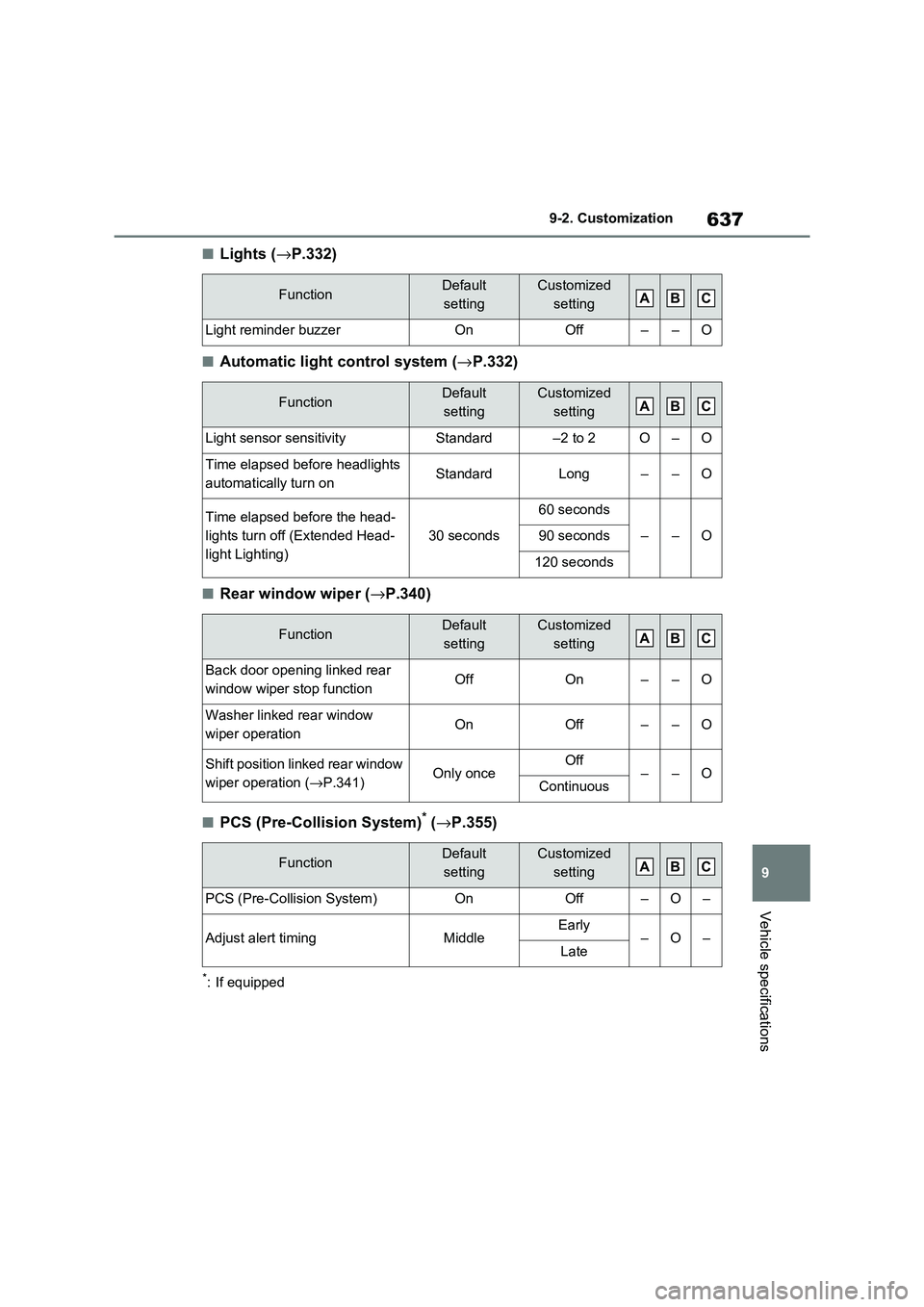

■Lights ( →P.332)
■Automatic light control system (→P.332)
■Rear window wiper (→P.340)
■PCS (Pre-Collision System)* (→P.355)
*: If equipped
FunctionDefault
setting
Customized
setting
Light reminder buzzerOnOff––O
FunctionDefault
setting
Customized
setting
Light sensor sensitivityStandard–2 to 2O–O
Time elapsed before headlights
automatically turn onStandardLong––O
Time elapsed before the head -
lights turn off (Extended Head -
light Lighting)
30 seconds
60 seconds
––O90 seconds
120 seconds
FunctionDefault
setting
Customized
setting
Back door opening linked rear
window wiper stop functionOffOn––O
Washer linked rear window
wiper operationOnOff––O
Shift position linked rear window
wiper operation ( →P.341)Only onceOff––OContinuous
FunctionDefault
setting
Customized
setting
PCS (Pre-Collision System)OnOff–O–
Adjust alert timingMiddleEarly–O–Late
ABC
ABC
ABC
ABC

639
9
9-2. Customization
Vehicle specifications

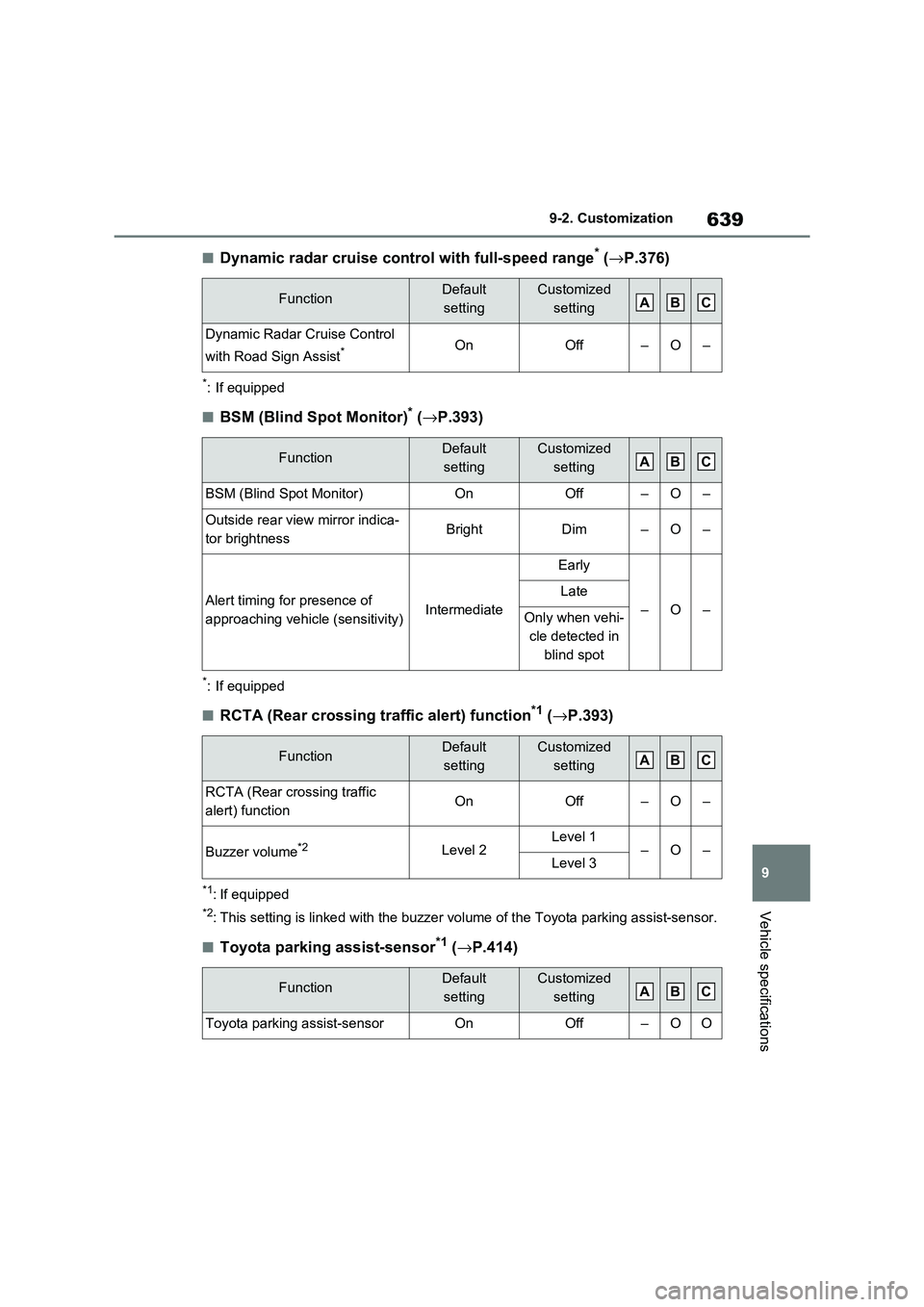

■Dynamic radar cruise contro l with full-speed range* (→P.376)
*: If equipped
■BSM (Blind Spot Monitor)* (→P.393)
*: If equipped
■RCTA (Rear crossing traffic alert) function*1 (→P.393)
*1: If equipped
*2: This setting is linked with the buzzer volume of the Toyota parking assist-sensor.
■Toyota parking assist-sensor*1 (→P.414)
FunctionDefault
setting
Customized
setting
Dynamic Radar Cruise Control
with Road Sign Assist*OnOff–O–
FunctionDefault
setting
Customized
setting
BSM (Blind Spot Monitor)OnOff–O–
Outside rear vie w mirror indica-
tor brightnessBrightDim–O–
Alert timing for presence of
approaching vehicle (sensitivity)Intermediate
Early
–O–
Late
Only when vehi -
cle detected in
blind spot
FunctionDefault
setting
Customized
setting
RCTA (Rear crossing traffic
alert) functionOnOff–O–
Buzzer volume*2Level 2Level 1–O–Level 3
FunctionDefault
setting
Customized
setting
Toyota parking assist-sensorOnOff–OO
ABC
ABC
ABC
ABC

647What to do if... (Troubleshooting)
way. (→P.605)
 Is the 12-volt battery dis-
charged? ( →P.606)
 Is the power switch in ON? If you
cannot release the shift lever by
depressing the brake pedal with
the power switch in ON.
( →P.323)
 It is locked automatically to pre-
vent theft of the vehicle.
( →P.318)
 Is the window lock switch
pressed?
The power window except for the
one at the driver’s seat cannot
be operated if the window lock
switch is pressed. ( →P.293)
 The auto power off function will
be operated if the vehicle is left
in ACC or ON (the hybrid system
is not operating) for a period of
time. ( →P.320)
 The seat belt reminder light is
flashing
Are the driver and the passengers
wearing the seat belts? ( →P.575, 576)
The parking brake indicator is on
Is the parking brake released?
( →P.326)
Depending on the situation, other
types of warning buzzer may also
sound. ( →P.568, 578)
 Did anyone inside the vehicle
open a door during setting the
alarm?
The sensor detects it and the
alarm sounds. ( →P.78)
To stop the alarm, turn the power
switch to ON or star t the hybrid system.
Is the message displayed on the
multi-information display?
Check the message on the multi-
information display. ( →P.578)
 When a warning light turns on or
a warning message is displayed,
The shift lever cannot be
shifted from P even if you
depress the brake pedal
The steering wheel cannot
be turned after the hybrid
system is stopped
The windows do not open or
close by operating the
power window switches
The power switch is turned
off automatically
A warning buzzer sounds
during driving
An alarm is activated and the
horn sounds (if equipped)
A warning buzzer sounds
when leaving the vehicle
A warning light turns on or a
warning message is dis -
played

649Alphabetical Index
