2704-3. Adjusting the seats

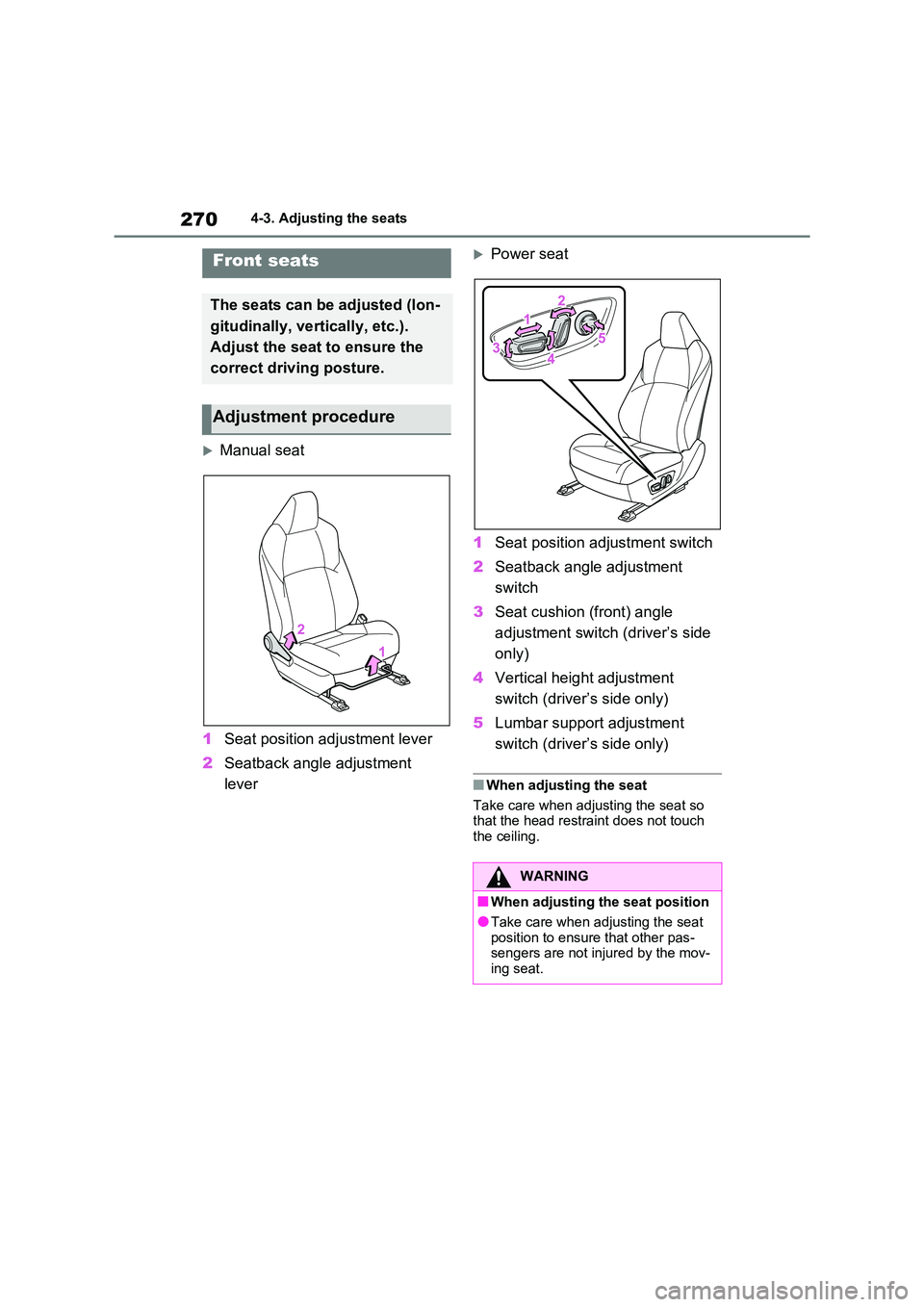

4-3.Adjusting the seats
Manual seat
1 Seat position adjustment lever
2 Seatback angle adjustment
lever
Power seat
1 Seat position adjustment switch
2 Seatback angle adjustment
switch
3 Seat cushion (front) angle
adjustment switch (driver’s side
only)
4 Vertical height adjustment
switch (driver ’s side only)
5 Lumbar support adjustment
switch (driver ’s side only)
■When adjusting the seat
Take care when adjusting the seat so
that the head restra int does not touch
the ceiling.
Front seats
The seats can be adjusted (lon -
gitudinally, vertically, etc.).
Adjust the seat to ensure the
correct driving posture.
Adjustment procedure
WARNING
■When adjusting the seat position
●Take care when adjusting the seat
position to ensure that other pas -
sengers are not injured by the mov - ing seat.

2744-3. Adjusting the seats
will be overwritten.
■Recall procedure
1 Check that the shift lever is in P.
2 Turn the power switch to ON.
3 Press one of the buttons for the
driving position you want to
recall until the buzzer sounds.
■To stop the position recall opera -
tion part-way through
Perform any of the following:
●Press the “SET” button.
●Press button “1” or “2”.
●Operate any of the seat adjustment switches.
■Seat positions that can be memo -
rized ( →P.270)
The adjusted positions other than the position adjusted by lumbar support
switch can be recorded.
■Operating the driving position
memory after turning the power switch to OFF
Recorded seat positions can be acti -
vated up to 180 s econds after the driver’s door is o pened and another 60
seconds after it is closed again.
■In order to correctly use the driving
position memory function
If a seat position is already in the fur-
thest possible position and the seat is
operated in the same direction, the recorded position may be slightly differ -
ent when it is recalled.
■When recalling the driving position
Take care when recalling the driving position so that the head restraint does
not touch the ceiling.
■If the 12-volt battery is discon -
nected
The memorized posi tions are erased.
■Registering procedure
Record your drivin g position to but-
ton “1” or “2” before performing the
following:
Carry only the key you want to reg -
ister, and then cl ose the driver’s
door.
If 2 or more keys are in the vehicle,
the driving posi tion cannot be
WARNING
■Seat adjustment caution
Take care during se at adjustment so
that the seat does not strike the rear passenger or squeeze your body
against the steering wheel.
Registering/recall/canceling
an electronic key to driving
position (memory recall
function)
