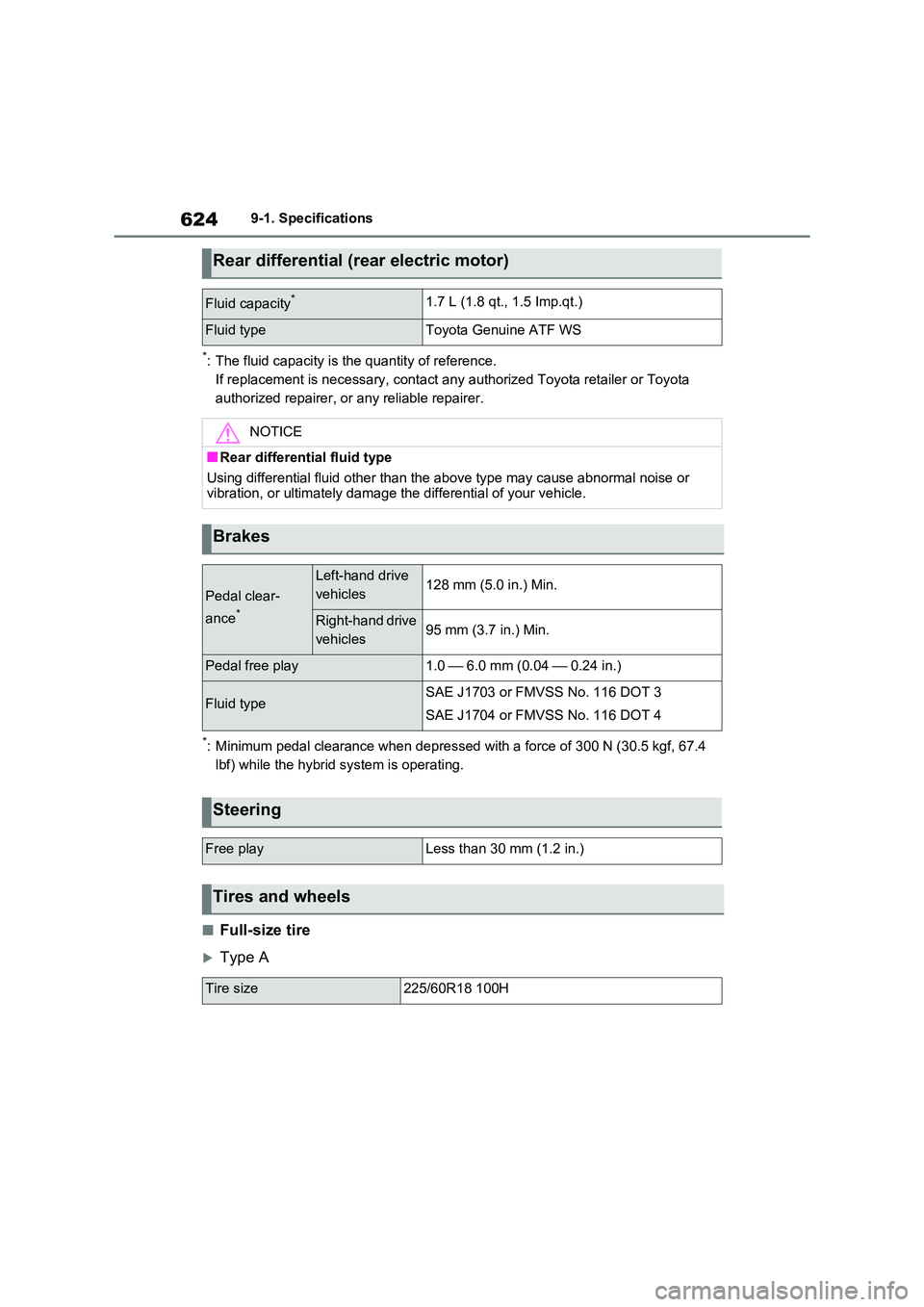

6249-1. Specifications
*: The fluid capacity is the quantity of reference.
If replacement is necessary, cont act any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer.
*: Minimum pedal clearance when depr essed with a force of 300 N (30.5 kgf, 67.4
lbf) while the hybri d system is operating.
■Full-size tire
Type A
Rear differential (rear electric motor)
Fluid capacity*1.7 L (1.8 qt., 1.5 Imp.qt.)
Fluid typeToyota Genuine ATF WS
NOTICE
■Rear differential fluid type
Using differential fluid other than the above type may cause abnormal noise or vibration, or ultimate ly damage the differential of your vehicle.
Brakes
Pedal clear-
ance*
Left-hand drive
vehicles128 mm (5.0 in.) Min.
Right-hand drive
vehicles95 mm (3.7 in.) Min.
Pedal free play1.0 ⎯ 6.0 mm (0.04 ⎯ 0.24 in.)
Fluid typeSAE J1703 or FMVSS No. 116 DOT 3
SAE J1704 or FMVSS No. 116 DOT 4
Steering
Free playLess than 30 mm (1.2 in.)
Tires and wheels
Tire size225/60R18 100H

653Alphabetical Index
If a warning light turns on ........... 568
If a warning message is displayed
................................................. 578
If the 12-volt batt ery is discharged
................................................. 606
If the electronic key does not operate
properly .................................... 604
If the fuel filler door cannot be
opened..................................... 603
If the hybrid system will not start 601
If the vehicle is trapped in rising
water ........................................ 561
If you have a flat tire........... 582, 593
If you lose your keys .................. 603
If you think something is wrong.. 566
If your vehicle becomes stuck .... 615
If your vehicle has to be stopped in
an emergency .......................... 560
If your vehicle needs to be towed
................................................. 563
If your vehicle overheats ............ 611
Emergency brake signal .............. 439
Emergency flashers ..................... 560
Emergency tire puncture repair kit
..................................................... 582
Energy monitor ............................. 195
Engine
Compartment ............................. 501
Exhaust gas precautions.............. 47
Hood .......................................... 498
How to start the hybrid system... 317
Identification number.................. 619
If the hybrid system will not start 601
If your vehicle has to be stopped in
an emergency .......................... 560
Overheating ............................... 611
Power switch .............................. 317
Engine coolant
Capacity ................ ..................... 622
Checking .................................... 503
High coolant temperature warning
light .......................................... 569
Preparing and ch ecking before win-
ter ............................................. 445
Warning light ..............................569
Engine coolant temperature gauge
..................................................... 174
Engine oil
Capacity .....................................621
Checking .................................... 501
Preparing and ch ecking before win-
ter ............................................. 445
Warning light ..............................569
EPS (Electric Power Steering)
Function .....................................438
Warning light ..............................570
EV/HV mode selection switch........ 86
EV driving range ...........................102
EV mode .......................................... 85
Exhaust gas precautions ............... 47
Extended Headlight Lighting system
..................................................... 333
F
Flat tire ...................................582, 593
Tire pressure war ning system ....511
Floor mats ....................................... 32
Fluid
Brake .......................................... 624
Hybrid transmission.................... 623
Rear differential ..........................624
Washer ....................................... 505
Fog lights
Replacing light bulbs ..................548
Switch.........................................337
Wattage ......................................626
Footwell lights............................... 465
Front fog lights
Replacing light bulbs ..................548
Switch.........................................337
Wattage ......................................626
Front passenger’s seat belt reminder
