5589-1. Specifications
emission control system may be
adversely affected.
The malfunction indicator lamp on
the instrument cluster may come on.
If this happens, contact your Toyota
dealer for service.
■If your engine knocks
●Consult your Toyota dealer.
●You may occasionally notice light
knocking for a short time while
accelerating or driving uphill. This
is normal and there is no need for
concern.
NOTICE
■Notice on fuel quality
●Do not use impro per fuels. If
improper fuels are used, the
engine will be damaged.
●Do not use leaded gasoline.
Leaded gasoline can cause
damage to your vehicle’s three-
way catalytic converters caus-
ing the emission control system
to malfunction.
●Do not use gasohol other than
the type previously stated.
Other gasohol may cause fuel
system damage or vehicle per-
formance problems.
●Using unleaded gasoline with
an octane number or rating
lower than the l evel previously
stated will cause persistent
heavy knocking.
At worst, this will lead to engine
damage.
■Fuel-related poor driveability
If poor driveability (poor hot start-
ing, vaporization, engine knock-
ing, etc.) is encountered after
using a different type of fuel, dis-
continue the use of that type of
fuel.
■When refueling with gasohol
Take care not to s pill gasohol. It
can damage your vehicle’s paint.

5639-1. Specifications
9
Vehicle specifications
■Temperature A, B, C
The temperature grades are A
(the highest), B, and C, repre-
senting the tire’s resistance to
the generation of heat and its
ability to dissipate heat when
tested under controlled condi-
tions on a specified indoor labo-
ratory test wheel.
Sustained high temperature can
cause the material of the tire to
degenerate and reduce tire life, and
excessive temperature can lead to
sudden tire failure.
Grade C corresponds to a level of performance which all passenger
car tires must meet under the Fed-
eral Motor Vehicle Safety Standard
No. 109.
Grades B and A represent higher
levels of performance on the labo-
ratory test wheel than the minimum
required by law.
Warning: The temperature grades
of a tire assume tha
t it is properly
inflated and not overloaded.
Excessive speed, underinflation, or
excessive loading, either sepa-
rately or in combination, can cause
heat buildup and possible tire fail-
ure.

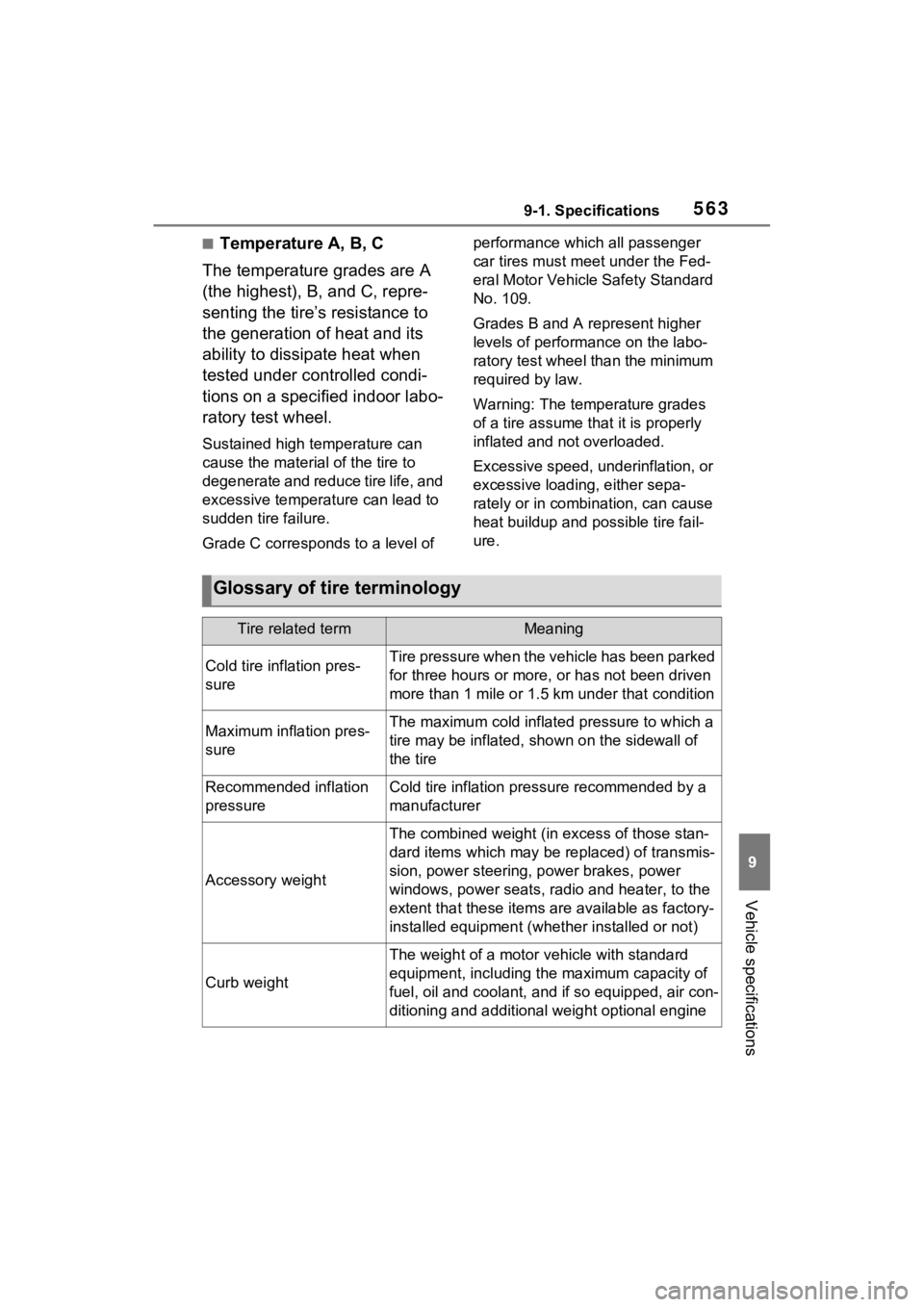

Glossary of tire terminology
Tire related termMeaning
Cold tire inflation pres-
sureTire pressure when the vehicle has been parked
for three hours or more, or has not been driven
more than 1 mile or 1.5 km under that condition
Maximum inflation pres-
sureThe maximum cold inflated pressure to which a
tire may be inflated, shown on the sidewall of
the tire
Recommended inflation
pressureCold tire inflation pressure recommended by a
manufacturer
Accessory weight
The combined weight (in excess of those stan-
dard items which may be replaced) of transmis-
sion, power steering, power brakes, power
windows, power seats, radio and heater, to the
extent that these items are available as factory-
installed equipment (whether installed or not)
Curb weight
The weight of a motor vehicle with standard
equipment, including th e maximum capacity of
fuel, oil and coolant, and if so equipped, air con-
ditioning and additional weight optional engine

Alphabetical Index601
Charging equipment ............... 99
Charging indicator ................ 100
Charging messages ............. 152
Charging precautions ........... 126
Charging procedure ............. 123
Charging schedule function.. 130
Charging time may increase 115
High voltage components....... 87
How to charge ...................... 123
Information related to charging display ................................ 119
Opening and closing the charging port lid.................. 100
Power sources precautions .. 113
Power sources th at can be used
........................................... 111
Safety functions.................... 120
When charging cannot be car- ried out ............................... 147
Charging port ........................... 99 If the charging port lid does not open ................................... 108
Locking and unlocking.......... 107
Opening and closing ............ 100
Child-protector ....................... 202
Child restraint s ystem ............. 51
Fixed with a LATCH system ... 60
Fixed with a seat belt ............. 55
Front passenger occupant clas- sification system ................... 44
Points to remember ................ 51
Riding with children ................ 50
Types of child restraint system installation met hod ............... 53
Using an anchor bracket ........ 62
Child safety ............................... 50 12-volt battery precautions................. 466, 543
Airbag precautions ................. 39
Back door precautions ......... 203
Charging precautions ........... 120
Child restraint system............. 53 Heated steering wheel and seat
heater precautio ns..............407
How your child should wear the seat belt ................................30
Moon roof precautions..........250
Panoramic moon roof precau- tions ....................................254
Power window lock switch ....248
Power window precautions...247
Rear door child-protectors ....202
Seat belt extender precautions .............................................30
Seat belt precautions..............29
Seat heater precautions .......407
Cleaning ..........................444, 447 Aluminum wheels .................444
DC/DC Converter air intake vent
...........................................486
Exterior .................................444
Front camera ........................310
Interior ..................................447
Radar sensor ........................310
Seat belts .............................447
Water-repellent coating ........445
Clock ........................................169
Coat hooks ..............................435
Condenser ............. ..................463
Console box ............................414
Consumption screen ..............187
Coolant Capacity ...............................553
Checking ..............................462
Preparing and checking before winter ..................................387
Warning light ........................512
Cooling system .......................462 Engine overheating ..............544
Hybrid system overheating ...546
Cruise control Dynamic radar cruise control with full-speed range ..........336
Cup holders.............................414

Alphabetical Index603
Eco drive mode ...................... 377
EDR (Event data recorder)......... 8
E-Four (Electronic On-Demand AWD system) ........................ 381
Elapsed time ........................... 176
Electric motor Location.................................. 76
Specification ......................... 552
Electric Power Steering (EPS) Function ............................... 381
Warning light ........................ 513
Electronically Controlled Brake System (ECB) ....................... 380
Electronic key Battery-saving function......... 218
If the electronic key does not operate properly ................. 537
Replacing the battery ........... 493
Electronic sunshade .............. 252 Jam protection function ........ 253
Operation ............................. 252
Emergency, in case of If a warning buzzer sounds .. 511
If a warning light turns on ..... 511
If a warning message is dis-played................................. 523
If the 12-volt battery is dis- charged .............................. 539
If the electronic key does not operate properly ................. 537
If the fuel filler door cannot be opened ............................... 536
If the hybrid sy stem will not start
........................................... 534
If the vehicle is trapped in rising water .................................. 506
If you have a flat tire ............. 527
If you lose your keys ............ 536
If you think something is wrong ........................................... 509
If your vehicle becomes stuck ........................................... 548 If your vehicle has to be stopped
in an emergency .................505
If your vehicle needs to be towed ...........................................507
If your vehicle ove rheats ......544
Emergency flashers ...............504
Energy monitor .......................187
Engine Compartment........................460
Exhaust gas precautions ........49
Hood .....................................457
How to start the hybrid system...........................................279
Identification number ............551
If the hybrid sys tem will not start
...........................................534
If your vehicle has to be stopped in an emergency .................505
Overheating ..........................544
Power switch ........................279
Engine coolant Capacity ...............................553
Checking ..............................462
High coolant temperature warn-ing light ...............................512
Preparing and checking before winter ..................................387
Warning light ........................512
Engine oil Capacity ...............................552
Checking ..............................460
Preparing and checking before winter ..................................387
Warning light ........................512
Enhanced Vehicle Stability Con- trol (Enhanced VSC ) .............381
Enhanced VSC (Enhanced Vehi- cle Stability Control).............381
EPS (Electric Po wer Steering)
Function................................381
Warning light ........................513
EV/HV mode selection switch .78

Alphabetical Index605
Heated steering wheel ......... 407
Hybrid battery (traction battery)........................................... 115
Outside rear view mirrors ..... 398
Seat heaters ......................... 407
High coolant temperature warn- ing light ................................. 512
High mounted stoplight Replacing light bulbs ............ 497
High voltage components ....... 87
Hill-start assist control .......... 381
Hood ........................................ 457 Warning message ................ 523
Hooks Cargo hooks ......................... 417
Coat hooks ........................... 435
Retaining hooks (floor mat) .... 26
Horn ......................................... 232
HV mode .................................... 77
Hybrid battery (tr action battery)
Charging............................... 123
Location.................................. 87
Specification ......................... 552
Hybrid battery (traction battery) charge mode ........................... 79
Hybrid system ACC...................................... 283
Acoustic Vehicle Alerting System............................................. 85
Brake Override System ........ 259
Drive-Start Control ............... 259
Emergency shut off system .... 91
Energy monitor/consumption screen ................................ 187
High voltage components....... 87
How to start the hybrid system ........................................... 279
Hybrid System Indicator ....... 165
If the hybrid sy stem will not start
........................................... 534
If your vehicle has to be stopped in an emergency................. 505 Ignition switch (power switch)
...........................................279
Overheating ..........................544
Plug-in hybrid system precau- tions ......................................87
Plug-in hybrid vehicle driving tips .............................................92
Power (ignition) switch .........279
Regenerative braking .............82
Starting the hybrid system ....279
Hybrid System Indicator ........165
Hybrid transmissio n ...............285
S mode .................................288
I
I/M test .....................................454
Identification Engine ..................................551
Vehicle..................................550
Ignition switch (power switch) ...............................................279Auto power off fun ction.........283
Changing the power switch modes.................................283
If your vehicle has to be stopped in an emergency .................505
Starting the hybrid system ....279
Immobilizer system ..................72
Indicators ................................160
Initialization Items to initialize ...................582
Maintenance .........................451
Moon roof .............................250
Panoramic moon r oof ...........253
Power back door ..................212
Power windows ....................246
Tire pressure warning system ...........................................474
Inside rear view m irror ...233, 234
Instrument panel light control ...............................................169
Interior lights...........................410

Alphabetical Index607
M
MaintenanceDo-it-yourself maintenance .. 455
General maintenance ........... 451
Maintenance data................. 550
Maintenance requirements... 450
Malfunction indicator lamp.... 512
Menu icons ............................. 171
Meter “ODO TRIP” switch .............. 169
Clock .................................... 169
Head-up display ................... 182
Indicators.............................. 163
Instrument panel light control169
Meter control switches ......... 171
Multi-information display ...... 170
Settings ........................ 177, 570
Units ............................. 179, 570
Warning lights .............. 161, 511
Warning messages ...... 181, 523
Meter control switches .......... 171
Mirrors Digital Rear-view Mirror........ 234
Inside rear view mirror.......... 233
Outside rear view mirror defog-gers .................................... 398
Outside rear view mirrors ..... 244
Vanity mirrors ....................... 420
Moon roof Door lock linked moon roof oper-ation ................................... 249
Jam protection function ........ 249
Operation ............................. 249
Warning message ................ 250
Multi-information display Audio system-linked display . 175
BSM (Blind Spot Monitor)..... 347
Changing the display............ 171
Display contents ................... 170
Driving information display ... 172
Driving support system informa- tion display .........................175
Dynamic radar cruise control with full-speed range ..........336
Energy monitor/consumption screen.................................187
Hybrid System Indicator .......167
Intuitive parking assist-sensor ...........................................356
Language .....................179, 570
LTA (Lane Traci ng Assist) ....328
Menu icons ...........................171
Meter control switches..........171
Navigation system-linked display ...........................................175
Parking Support Brake function ...........................................365
PCS (Pre-Collisio n System) .315
Pop-up display......................179
RSA (Road Sign Assist) .......333
Settings ........................177, 570
Suggestion function ......181, 570
Tire pressure ...... ..................471
Units .............................179, 570
Vehicle information display...176
Warning message display ....181
Warning messages ...............523
“My Room Mode” ...................144
N
Navigation system-linked display ...............................................175
Noise from under ve hicle...........6
Normal mode...........................377
O
Odometer.................................165 “ODO TRIP” switch ...............169
“ODO TRIP”switch .................169
Oil Engine oil..............................552
Opener

Alphabetical Index613
Vanity mirrors ......................... 420
Vehicle data recordings ............. 7
Vehicle identification number550
Vehicle Stability Control (VSC)............................................... 381
Ventilators (seat ventilators) . 407
VSC (Vehicle Stability Control) ............................................... 381
W
Warning buzzers Approach warning ................ 343
Brake hold ............................ 517
Brake Override System ........ 517
Brake system ....................... 511
BSM OFF indicator............... 516
Charging system .................. 511
Downshifting................. 287, 288
Drive-Start Control ............... 517
Electric power steering ......... 513
High coolant temperature ..... 512
Hybrid system overheat ....... 512
Intuitive parking assist OFF indi-cator ................................... 515
Intuitive parking assist .......... 356
Low engine oil pressure ....... 512
LTA (Lane Tracing Assist).... 323
LTA indicator ........................ 514
Open door ............................ 202
Open hood ........................... 202
Open window ....................... 247
PKSB OFF indicato r ............. 515
Pre-collision warning ............ 315
Radar cruise control ............. 343
RCTA (Rear Cross Traffic Alert) ........................................... 347
RCTA OFF indicator............. 516
RSA (Road Sign Assist) ....... 333
Seat belt reminde r ........ 518, 519
Shift position................. 287, 288
Vehicle sway warning........... 327
Warning lights ABS ......................................513
Brake hold operated indicator
...........................................517
Brake Override System ........517
Brake system ........................511
BSM OFF indicator ...............516
Charging system ..................511
Driver’s seat be lt reminder light
...........................................518
Drive-Start Control ................517
Electric power steering .........513
Engine ..................................512
Front passenger’s seat belt reminder light......................518
High coolant temperature .....512
Hybrid system overheat ........512
Intuitive parking assist OFF indi- cator ...................................515
Low engine oil pressure .......512
Low fuel level........................518
LTA indicator ........................514
Malfunction indica tor lamp ....512
Parking brake indicator.........517
PCS warning light .................514
PKSB (Parking Support Brake) ...........................................515
PKSB OFF indicator .............515
RCTA OFF indicator .............516
Rear passengers’ seat belt reminder lights ....................519
Seat belt reminder light 518, 519
Slip indicator .........................516
SRS ......................................513
Tire pressure ...... ..................518
Warning messages .................523
Washer Checking ..............................465
Low washer fluid warning mes-sage............................465, 523
Preparing and checking before winter ..................................387
Switch ...........................301, 304

616

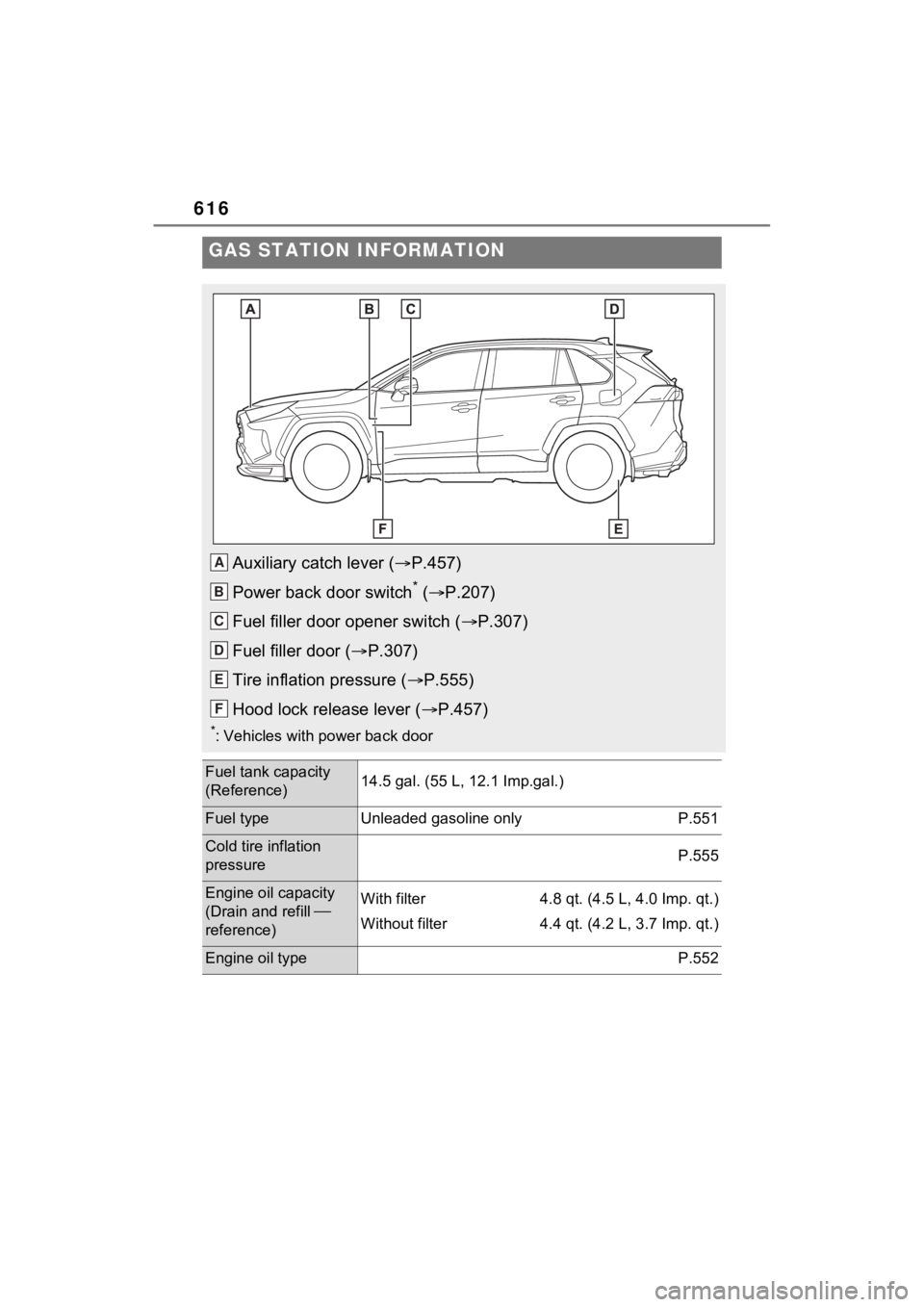

GAS STATION INFORMATION
Auxiliary catch lever (P.457)
Power back door switch
* (  P.207)
Fuel filler door opener switch ( P.307)
Fuel filler door ( P.307)
Tire inflation pressure ( P.555)
Hood lock release lever ( P.457)
*: Vehicles with power back door
Fuel tank capacity
(Reference)14.5 gal. (55 L, 12.1 Imp.gal.)
Fuel typeUnleaded gasoline onlyP.551
Cold tire inflation
pressureP.555
Engine oil capacity
(Drain and refill 
reference)With filter
Without filter4.8 qt. (4.5 L , 4.0 Imp. qt.)
4.4 qt. (4.2 L , 3.7 Imp. qt.)
Engine oil typeP.552
A
B
C
D
E
F
