turn signal bulb TOYOTA RAV4 PRIME 2022 Owners Manual

15Pictorial index
Precautions against winter season ......................................P.382
To prevent freezing (windshield wiper de-icer)
*...................P.397
Precautions against car wash
(Rain-sensing windshield wipers)
*.......................................P.441
Replacing the wiper insert .................................... ...............P.483
Fuel filler door ............................................... .....................P.304
Refueling method ............................................... ..................P.304
Fuel type/fuel tan k capacity .................................................P.547
Charging port .................................................. .....................P.99
Charging method ................................................ .................P.114
Tires ....................................................................................P.464
Tire size/inflation pressure ................................... ................P.551
Winter tires/tire chain ........................................ ...................P.382
Checking/rotation/tire pressure warning system
*.................P.464
Coping with flat tires......................................... ....................P.522
Hood ....................................................................................P.453
Opening ........................................................ .......................P.453
Engine oil ..................................................... ........................P.548
Coping with overheat ........................................... ................P.539
Warning messages ..............................................................P.518
Headlights..................................................... ......................P.293
Turn signal lights ...............................................................P.286
Parking lights .....................................................................P.293
Daytime running lights .. ....................................................P.293
Side marker lights ............................................. .................P.293
LED accessory lights
*........................................................P.293
Stop lights/tail lights ........................................ ..................P.293
Light bulbs of the exterior lights for driving
(Replacing method: P.492, Watts: P.552)
E
F
G
H
I
J
K
L
M
N
O

2865-2. Driving procedures
■S mode
●You can choose from 6 levels of
accelerating force and engine
braking force.
●A lower shift range will provide
greater accelerating force and
engine braking force than a higher
shift range, and the engine revolu-
tions will also increase.
●To prevent the e ngine from over-
revving, upshifti ng may automati-
cally occur when the shift range is
3 or lower.
●When the shift range is 4 or lower,
holding the shift lever toward “+”
sets the shift range to 6.
■Downshifting restriction warn-
ing buzzer
To help ensure safety and driving
performance, downshifting opera-
tion may sometimes b e restricted. In
some circumstances, downshifting
may not be possible even when the
shift lever or paddle shift switches (if
equipped) is operated. (A buzzer
will sound twice.)
■If the “S” indicator does not
come on or the “D” indicator is
displayed even after shifting the
shift lever to S
This may indicate a malfunction in
the transmission system. Have the
vehicle inspected by your Toyota
dealer immediately. (In this situa-
tion, the transmissi on will operate in
the same manner as when the shift
lever is in D.)
1 Right turn
2 Lane change to the right
(move the lever partway and
release it)
The right hand s ignals will flash 3
times.
3 Lane change to the left
(move the lever partway and
release it)
The left hand signals will flash 3
times.
4Left turn
■Turn signals can be operated
when
The power switch is in ON.
■If the indicator flashes faster
than usual
Check that a light bulb in the front or
rear turn signal lights has not
Turn signal lever
Operating instructions

4927-3. Do-it-yourself maintenance
1Using a Phillips-head screw-
driver, turn bolt A in either
direction.
Remember the turning direc-
tion and the number of turns.
2 Turn bolt B the same number
of turns and in the same
direction as step 1.
If the headlight cannot be adjusted
using this procedure, take the vehi-
cle to your Toyota dealer to adjust
the headlight aim.
Check the wattage of the light
bulb to be replaced. ( P.552)
Rear
Rear turn signal lights
Back-up lights
■Lights that need to be
replaced by your Toyota
dealer
 Headlights
Adjusting the headlight
aimLight bulbs
You may replace the follow-
ing bulbs by yourself. The
difficulty level of replace-
ment varies depending on
the bulb. If necessary bulb
replacement seems difficult
to perform, contact your
Toyota dealer.
For more information about
replacing other light bulbs,
contact your Toyota dealer.
Preparing for light bulb
replacement
Bulb location
A
B

4937-3. Do-it-yourself maintenance
7
Maintenance and care
Front turn signal lights
 Daytime running lights and
parking lights
 Front side marker lights
 LED accessory lights (if
equipped)
 Side turn signal lights
 Tail lights
 Stop lights
 Rear side marker lights
 High mounted stoplight
 License plate lights
 Outer foot lights (if equipped)
■LED lights
The lights other than the following
lights each consist of a number of
LEDs. If any of the LEDs burn out,
take your vehicle to your Toyota
dealer to have the light replaced.
●Rear turn signal lights
●Back-up lights
■Condensation build-up on the
inside of the lens
Temporary condensation build-up
on the inside of the light lens does
not indicate a malfunction. Contact
your Toyota dealer for more infor-
mation in the following situations:
●Large drops of water have built up
on the inside of the lens.
●Water has built up inside the light.
■When replacing an electronic
component, such as a lights,
etc.
 P.490
■Rear turn signal lights
1 Open the back door and
remove the cover.
2 Remove the screws and
remove the unit.
Remove the lamp assembly by pull-
ing it directly ba ckward from the
rear of the vehicle.
3 Turn the bulb base counter-
clockwise.
Replacing light bulb

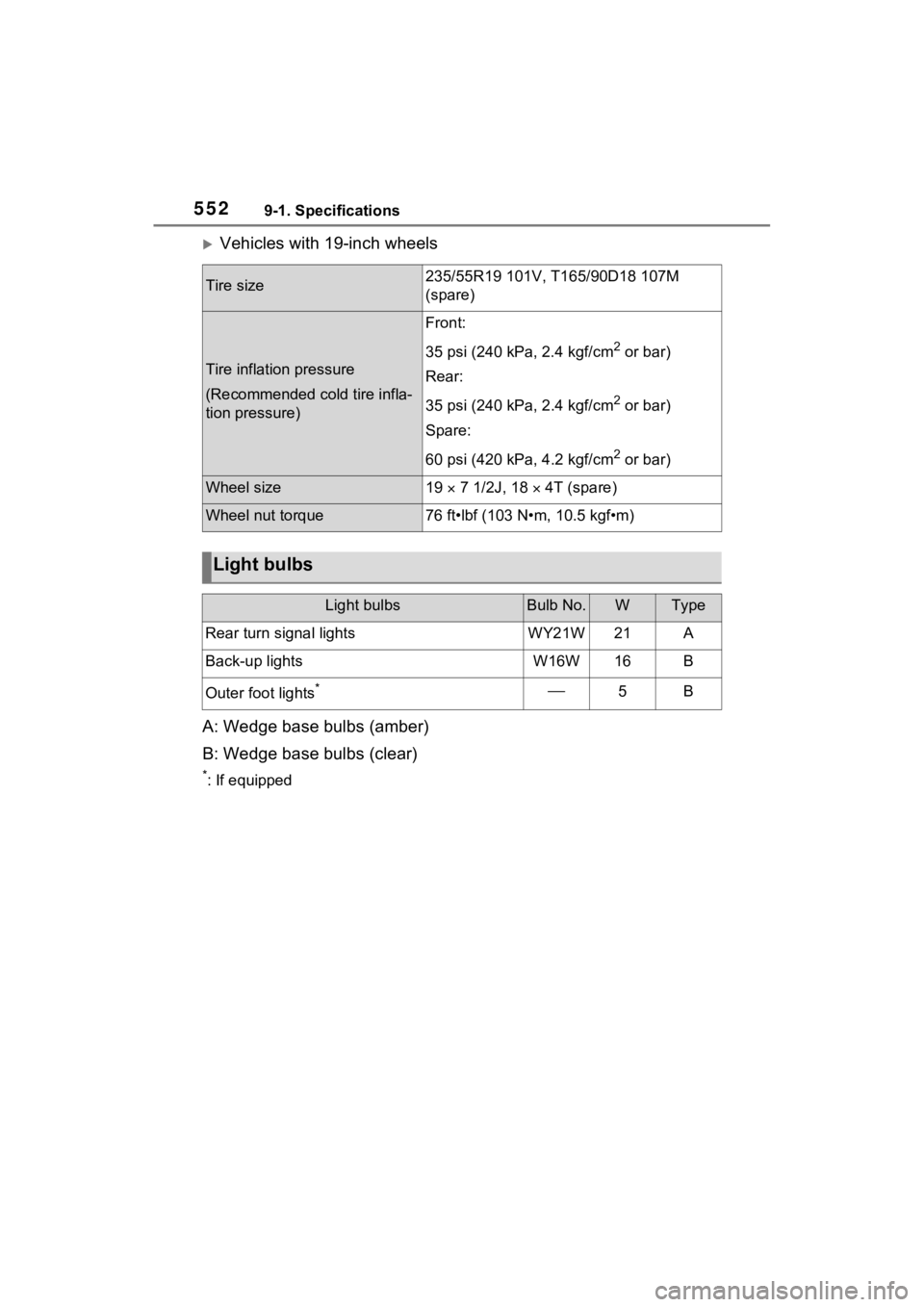

5529-1. Specifications
Vehicles with 19-inch wheels
A: Wedge base bulbs (amber)
B: Wedge base bulbs (clear)
*: If equipped
Tire size235/55R19 101V, T165/90D18 107M
(spare)
Tire inflation pressure
(Recommended cold tire infla-
tion pressure)
Front:
35 psi (240 kPa, 2.4 kgf/cm
2 or bar)
Rear:
35 psi (240 kPa, 2.4 kgf/cm
2 or bar)
Spare:
60 psi (420 kPa, 4.2 kgf/cm
2 or bar)
Wheel size19  7 1/2J, 18  4T (spare)
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)
Light bulbs
Light bulbsBulb No.WType
Rear turn signal lightsWY21W21A
Back-up lightsW16W16B
Outer foot lights*5B

602Alphabetical Index
Event data recorder (EDR)......... 8
EV mode .................................... 77
Exhaust gas precautions ......... 44
F
Flat tire .................................... 522Tire pressure warning system........................................... 467
Floor mats ................................. 26
Fluid Brake ............................ 460, 551
Hybrid transmission.............. 550
Rear differential .................... 550
Washer ................................. 461
Footwell lights ..... ................... 404
Front passenger’s seat belt reminder light ....................... 513
Front passenger occupant clas- sification system .................... 44
Front seat concentrated airflow mode (S-FLOW) .................... 396
Front seat heaters .................. 401
Front seats .............................. 222 Adjustment ........................... 222
Cleaning ............................... 443
Correct driving posture ........... 27
Driving position memory....... 225
Head restraints ..................... 228
Memory recall function ......... 226
Seat heaters ......................... 401
Seat position memory .......... 225
Seat ventilators .................... 401
Front side marker lights ........ 293 Light switch .......................... 293
Replacing light bulbs ............ 492
Front turn signal lights Replacing light bulbs ............ 492
Turn signal lever................... 286
Fuel Capacity ............................... 547
Fuel gauge ........................... 165
Gas station information ........ 624 Information .........
..................553
Refueling ..............................304
Type .............................547, 553
Warning light ........................513
Fuel consumption information Average fuel consumption ....189
Current fuel consumption .....189
Fuel filler door.........................305 If the fuel filler door cannot be opened ...............................531
Opener .................................305
Refueling ..............................304
Fuses .......................................489
G
Garage door opene r ...............432
Gas station information .........624
Glove box ................................408
H
Headlights ...............................293 Automatic High Beam (AHB) 296
Light switch...........................293
Replacing light bulbs ............492
Headlights aim ........................491 Headlight aim instructions for Canadian owners ...............590
Head restraints .......................228
Head-up display ......................182
Heated steering wheel............401
Heaters Automatic air conditioning sys-tem .....................................390
Heated steering wheel..........401
Hybrid battery (tr action battery)
...........................................115
Outside rear view mirrors .....392
Seat heaters ....... ..................401
High coolant temperature warn- ing light..................................507
High mounted stoplight

604Alphabetical Index
Vehicle-equipped jack .......... 523
Jack handle ............................. 523
Jam protection function Electronic sunshade ............. 251
Moon roof ............................. 247
Panoramic moon roof ........... 251
Power back door .................. 209
Power windows .................... 244
K
Keyless entrySmart key system................. 217
Wireless remote control ....... 196
Keys ......................................... 194 Battery-saving function......... 218
Electronic key ....................... 194
If the electronic key does not operate properly ................. 532
If you lose your keys ............ 531
Key number plate ................. 194
Keyless entry................ 196, 217
Mechanical key .................... 196
Power switch ........................ 277
Replacing the battery ........... 487
Warning buzzer .................... 217
Wireless remote control key . 196
Knee airbags ............................. 34
L
Lane Tracing Assist (LTA) ..... 321 Operation ............................. 321
Warning messages .............. 330
Language (multi-information dis- play) ............................... 179, 566
LATCH anchors ........................ 60
LED accessory lights ............. 294 Replacing light bulbs ............ 492
Lever Auxiliary catch lever ............. 453
Hood lock release lever........ 453
Shift lever ............................. 282 Turn signal lever .
..................286
Wiper lever ...................299, 302
License plate lights Light switch...........................293
Replacing light bulbs ............492
Light bulbs Replacing .............................492
Wattage ................................552
Lights Automatic High Beam (AHB) 296
Emergency flasher switch ....498
Front interior lights................404
Headlight switch ...................293
Illuminated entry system .......405
Interior lights .........................404
Luggage compartment light 205, 209
Personal lights ......................405
Rear interior light ..................405
Replacing light bulbs ............492
Turn signal lever . ..................286
Vanity lights ..........................414
Wattage ................................552
Load capacity..........................266
LTA (Lane Tracing Assist) .....321 Operation..............................321
Warning messages ...............330
Luggage compartment light 205, 209
Luggage cover ........................412M
Maintenance Do-it-yourself maintenance ..451
General maintenance ...........447
Maintenance data .................546
Maintenance requirements ...446
Malfunction indicator lamp ....507
Menu icons ..............................171
Meter “ODO TRIP” switch ...............169
Clock ....................................169

Alphabetical Index607
Door lock linked window opera-tion ..................................... 245
Jam protection function ........ 244
Operation ............................. 244
Window lock switch .............. 246
Pre-Collision System (PCS) Enabling/disabling the pre-colli-sion system ........................ 315
Function ............................... 313
Warning light ........................ 509
Warning message ........ 311, 521
Predictive efficient drive .......... 85
R
Radar cruise control Dynamic radar cruise control with full-speed range .......... 334
Radiator ................................... 459
RCTA (Rear Cross Traffic Alert) RCTA Function............. 345, 351
Warning message ................ 347
Rear Cross Traffic Alert (RCTA) ............................................... 345
Rear passengers’ seat belt reminder light ....................... 514
Rear seat ................................. 223 Folding down the rear seatbacks........................................... 224
Head restraints ..................... 228
Seat heaters ......................... 402
Rear side marker lights Light switch .......................... 293
Replacing light bulbs ............ 492
Rear turn signal lights Replacing light bulbs ............ 492
Turn signal lever................... 286
Wattage ................................ 552
Rear view mirror Digital Rear-view Mirror........ 232
Inside rear view mirror.......... 231
Outside rear view mirrors ..... 242
Rear window defogger ........... 392 Rear window wiper .................302
Refueling ............
.....................304
Capacity ...............................547
Fuel types .....................547, 553
If the fuel filler door cannot be opened ...............................531
Opening the fuel tank cap ....305
Regenerative braking ...............82
Remote Air Conditioning System ...............................................399
Replacing Electronic key battery ...........487
Fuses....................................489
Light bulbs ............................492
Tires .....................................522
Wiper insert ..........................483
Reporting safety defects for Canadian owners ..................581
Reporting safety defects for U.S. owners ...................................580
Resetting the message indicat- ing maintenance is required 447
Road accident cautions ...........89
Road Sign Assist ....................331
RSA (Road Sign Assist) .........331
S
Safety Connect .........................65
Seat belt reminder light..513, 514
Seat belts...................................29 Adjusting the seat belt shoulder anchor height........................31
Automatic Locking Retractor (ALR) ....................................31
Child restraint sys tem installation
.............................................55
Cleaning and maintaining the seat belt ..............................443
Emergency Locking Retractor (ELR) ....................................31
How to wear your seat belt .....30
How your child should wear the

608Alphabetical Index
seat belt................................ 30
Pregnant women, proper seat belt use................................. 29
Reminder light and buzzer . 513, 514
Seat belt extender .................. 30
Seat belt instructions for Cana- dian owners ........................ 581
Seat belt pretensioners .......... 32
SRS warning light................. 508
Seat heaters ............................ 401
Seating capacity ............. 266, 546
Seat position memory ............ 225
Seats Adjustment precautions 222, 223
Adjustment ................... 222, 223
Armrest................................. 422
Child seats/child restraint system installation ............................ 51
Cleaning ............................... 443
Driving position memory....... 225
Folding down the rear seatbacks ........................................... 224
Head restraint....................... 228
Properly sitting in the seat ...... 27
Seat heaters ......................... 401
Seat position memory .......... 225
Seat ventilators .................... 401
Seat ventilators ...................... 401
Secondary Collision Brake .... 376
Sensor Automatic headlight system . 294
Automatic High Beam (AHB) 296
BSM (Blind Spot Monitor)..... 348
Digital Rear-view Mirror........ 236
Front camera ........................ 307
Inside rear view mirror.......... 232
Intuitive parking assist .......... 355
LTA (Lane Tracing Assist).... 321
Parking Support Brake function (rear-crossing vehicles) ...... 348
Parking Support Brake function (static objects) ....................355
Radar sensor ........................307
Rain-sensing windshield wipers ...........................................301
RCTA ....................................348
Toyota Safety Sense 2.0 ......307
Service plug ..............................87
Service reminder message ....447
Shift lever ................................282 If th e s hif t le ver ca n no t b e s hif te d from P .................................284
Shift lock system ....................284
Side airbags ..............................34
Side doors ............. ..................198
Side marker lights Light switch...........................293
Replacing light bulbs ............492
Side mirrors ............................242 Adjustment ...........................242
BSM (Blind Spot M onitor) .....346
Folding..................................242
Heaters .................................392
Outside rear view mirror defog- gers ....................................392
Side turn signal lights Replacing light bulbs ............492
Turn signal lever . ..................286
Side windows ..........................244
Smart key system ...................217 Antenna location...................217
Entry functions..............198, 204
Starting the hybrid system ....277
Warning message . ...............518
Snow tires ...............................382
“SOS” button ............................65
Spare tire Storage location ...................523
Spark plug ...............................550
Specifications .........................546
Speedometer ...........................165
Sport mode..............................372
SRS airbags ..............................34

610Alphabetical Index
Tire pressure warning systemFunction ............................... 467
Initializing ............................. 469
Installing tire pressure warning valves and transmitters ...... 469
Registering ID codes ............ 471
Warning light ........................ 513
Tires ......................................... 464 Chains .................................. 384
Checking .............................. 464
Glossary ............................... 559
If you have a flat tire ............. 522
Inflation pressure.................. 474
Information ........................... 555
Replacing ............................. 522
Rotating tires ........................ 466
Size ...................................... 551
Snow tires ............................ 382
Spare tire.............................. 522
Tire identification number ..... 556
Tire inflation pressure display function............................... 467
Tire pressure warning system ........................................... 467
Uniform Tire Quality Grading 558
Warning light ........................ 513
Tools .............. .......................... 523
Top tether strap ... ..................... 62
Total load capacity ......... 263, 266
Towing Dinghy towing....................... 276
Towing eyelet ....................... 523
Trailer sway control .............. 376
Trailer towing........................ 267
Toyota Safety Sen se 2.0 ........ 307
Automatic High Beam (AHB) 296
Dynamic radar cruise control with full-speed range .......... 334
LTA (Lane Tracing Assist).... 321
PCS (Pre-Collision System) . 313
RSA (Road Sign Assist) ....... 331
TRAC (Traction Control) ........ 376 Traction battery (Hybrid battery)
Charging .................................99
Location ..................................87
Specification .........................548
Traction Control (TRAC) ........376
Traction motor (electric motor)76
Trailer sway contro l................376
Trailer towing ..........................267
Trail Mode................................374
Transmission Driving mode select switch ...372
Hybrid transmission ..............282
Trip meters ..............................165
Turn signal lights Replacing light bulbs ............492
Turn signal lever . ..................286
Wattage ................................552
U
USB charging ports ................415
Utility vehicle pre cautions .....385
V
Vanity lights
Vanity lights ..........................414
Vanity mirrors .........................414
Vehicle data recordings .............7
Vehicle identification number546
Vehicle Stability Control (VSC) ...............................................376
Ventilators (seat ventilators) .401
VSC (Vehicle Stab ility Control)
...............................................376
W
Warning buzzers Approach warning ................341
Brake hold ............................512
Brake Override System ........512
Brake system ........................506
