Vehicle status information and indicators
The average fuel economy selected
by “Fuel Economy” on the
screen is displayed. (P.191)
*1: Use the displayed fuel consump-
tion as a reference only.
*2: Average fuel economy since the function was reset can be reset
by pressing and holding .
*3: Average fuel economy after starting is reset each time the
hybrid system stops.
■Electricity consumption
When the unit is set to “MPH”:
Electricity consum ption is the con-
sumption rate of the electricity when
EV driving is performed and equiva-
lent to the fuel c onsumption for the
gasoline vehicles. F or this vehicle,
driven distance per kWh of electric-
ity consumed (“mile s/kWh”) is dis-
played as electricity consumption on
each screen.
When the unit is set to “km/h”:
Electricity consum ption is the con-
sumption rate of the electricity when
EV driving is performed and equiva-
lent to the fuel c onsumption for the
gasoline vehicles. F or this vehicle,
electricity consumed per 100 km
(“kWh/100 km”) i s displayed as
electricity consumption on each
screen.
Displays a reference operation
range for using the accelerator
pedal according to driving condi-
tions, and a score result that
evaluates the current driving
status. ECO Accelerator Guidance
“Eco Score”
■ECO Accelerator Guidance
ECO area
Shows that the vehicle is being
driven in an Eco-friendly manner.
Power area
Shows that an Eco-friendly driving
range is being exceeded (during full
power driving etc.).
Current acceleration
Reference operation range
A zone is displayed in blue under
the Eco area which can be used as
a reference operation range for
using the accelerator pedal accord-
ing to driving conditions such as
starting off and cruising.
The ECO Accelerator Guidance
display changes according to the
driving status, such as when start-
ECO Accelerator Guid-
ance/“Eco Score”
[ˆ[¦[²[c[–[¦[²[µ[¨
[–[·[¤[µ[·
[–[·[²[³
[†[µ[¸[¬[¶[¨
A
B
A
B
C
D

2023-1. Instrument cluster
ing off or cruising.
It is easier to drive in an Eco-
friendly manner by driving accord-
ing to the display showing the
accelerator pedal operations and
staying within the reference opera-
tion range.
■“Eco Score”
The driving status for the follow-
ing 3 situations are evaluated in
5 levels: Smooth start-off accel-
eration (“Start”), driving without
sudden acceleration (“Cruise”)
and smooth stopping (“Stop”).
Each time the vehicle is
stopped, a score result is dis-
played out of a perfect score of
100 points.
Score result
“Start”
“Cruise”
“Stop”
3 situations are displayed with
each icon while driving. How to read the bar display:
After starting off, “Eco Score” dis-
play does not start until the vehicle
speed exceeds approximately
19mph (30km/h).
The “Eco Score” is
reset each time
the vehicle starts off to start a new
evaluation.
■ECO Accelerator Guid-
ance/“Eco Score” will not oper-
ate when
The ECO Accelerator Guid-
ance/“Eco Score” will not operate in
the following situations:
●The Hybrid System Indicator is not
operating.
●The vehicle is bei ng driven using
the dynamic radar cruise control
with full-speed range.
EV driving ratio after starting
Displays the percentage of EV driv-
ing since the hybrid system was
A
B
C
D
6FRUH%DUGLVSOD\
8QUDWHG
/RZ
+LJK
EV Ratio/EV Driving Ratio
A

2033-1. Instrument cluster
3
Vehicle status information and indicators
started.*
Elapsed time after starting
Displays the elapsed time since
hybrid system was started.
*
*
: It is reset each time the hybrid system stops.
Select to display the operational
status of the following systems:
 Dynamic radar cruise control
with full-speed range
*
( P.366)
 LTA (Lane Tracing Assist)
( P.351)
Select to display the following
navigation system-linked infor-
mation.
 Route guidance to destination
 Street name
 Compass
Select to enable selection of an
audio source or track on the
meter using the meter control
switches.
■Drive information
2 items that are selected using
the “Drive Info Items” setting
(average speed and distance)
can be displayed vertically.
Use the displayed information as a
reference only.
• “Average Speed”: Displays the average vehicle speed
since hybrid system start
*
• “Distance”: Displays the dis-tance driven since hybrid sys-
tem start
*
• “Total Time”: Displays elapsed time since hybrid sys-
tem start
*
*: These items are r eset each time
the hybrid system stops.
■Trip information
2 items that are selected using
the “TRIP A Items” or “TRIP B
Items” setting (average speed
and distance) can be displayed
vertically.
Use the displayed information as a
reference only.
• “Average Speed”: Displays the average vehicle speed
since the display was reset
*
• “Distance”: Displays the dis-
tance driven since the display
was reset
*
• “Total Time”: Displays elapsed time since the display
was reset
*
Driving support system
information display
Navigation system-linked
display (if equipped)
Audio system-linked dis-
play
B
'ULYLQJLQIRU\
PDWLRQGLV
SOD\

2043-1. Instrument cluster
*: To reset, display the desired item and press and hold .
 P.212

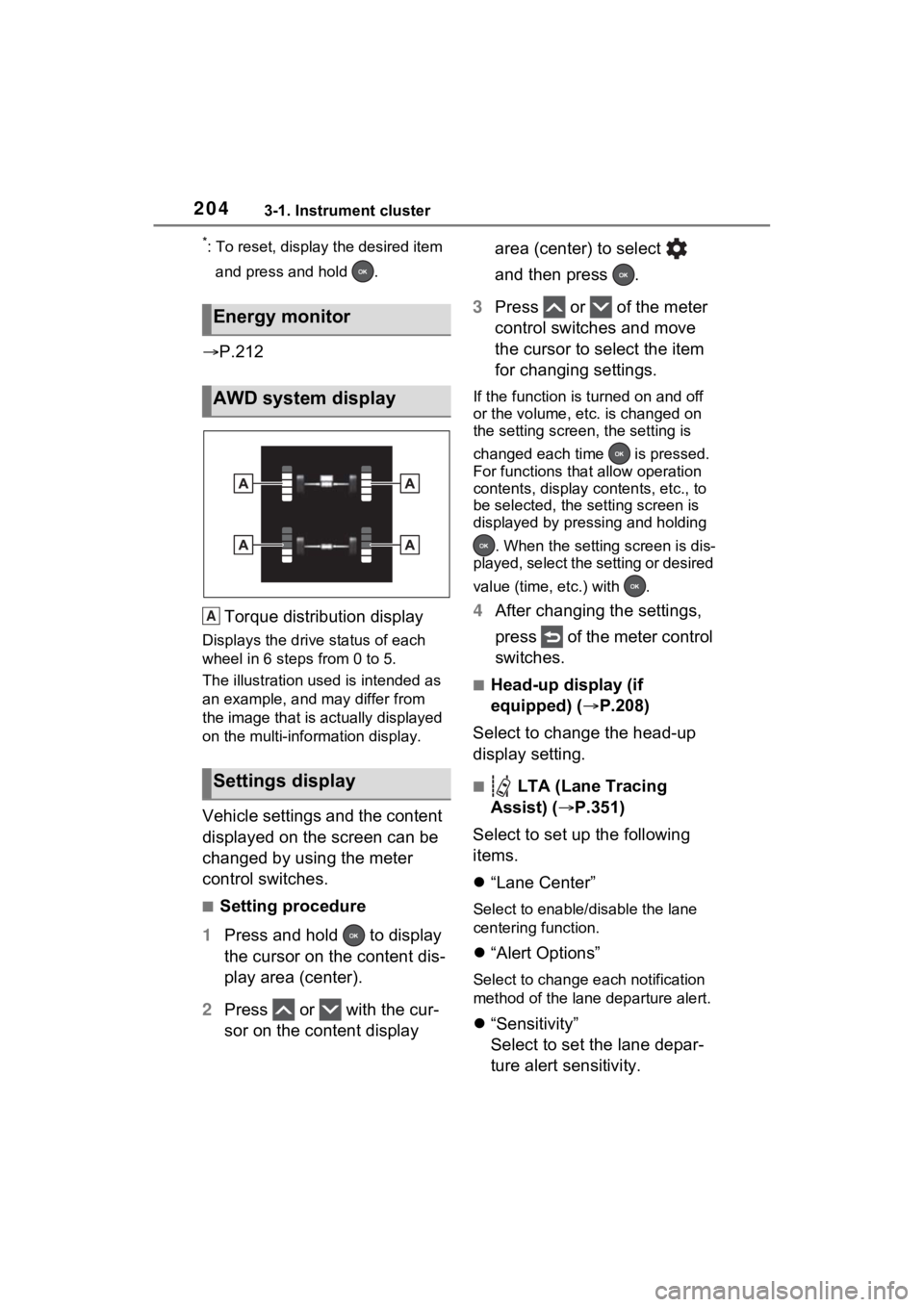

Torque distribution display
Displays the drive status of each
wheel in 6 steps from 0 to 5.
The illustration used is intended as
an example, and may differ from
the image that is actually displayed
on the multi-info rmation display.
Vehicle settings and the content
displayed on the screen can be
changed by using the meter
control switches.
■Setting procedure
1 Press and hold to display
the cursor on the content dis-
play area (center).
2 Press or with the cur-
sor on the content display area (center) to select
and then press .
3 Press or of the meter
control switches and move
the cursor to select the item
for changing settings.
If the function is turned on and off
or the volume, etc. is changed on
the setting screen, the setting is
changed each time is pressed.
For functions that allow operation
contents, display contents, etc., to
be selected, the setting screen is
displayed by pressing and holding
. When the setting screen is dis-
played, select the setting or desired
value (time, etc.) with .
4 After changing the settings,
press of the meter control
switches.
■Head-up display (if
equipped) ( P.208)
Select to change the head-up
display setting.
■ LTA (Lane Tracing
Assist) ( P.351)
Select to set up the following
items.
 “Lane Center”
Select to enable /disable the lane
centering function.
 “Alert Options”
Select to change each notification
method of the lane departure alert.
“Sensitivity”
Select to set the lane depar-
ture alert sensitivity.
Energy monitor
AWD system display
Settings display
A

2053-1. Instrument cluster
3
Vehicle status information and indicators
“Sway Warning”
Select to enable/disable the vehicle
sway warning.
“Sway Sensitivity”
Select to set the vehicle sway
warning sensitivity.
■ BSM (Blind Spot Moni-
tor) ( P.378)
Select to set up the following
items.
 BSM (Blind Spot Monitor)
on/off
Select to enable/disable the
BSM system.
 “Sensitivity”
Select to change the alert tim-
ing for an approaching vehi-
cle.
 “Brightness”
Select to switch the bright-
ness of the outside rear view
mirror indicators. ( P.379)
■ PCS (Pre-Collision Sys-
tem)
Select to set up the following
items.
 PCS on/off
Select to enable/disable the
pre-collision system.
 “Sensitivity”
Select to change the pre-colli-
sion warning timing.
■ Intuitive parking
assist ( P.387)
Select to set up the following
items. 
Intuitive parking assist on/off
Select to enable/disable the
intuitive parking assist.
 “Volume”
Select to set the volume of the
buzzer which sounds when
the intuitive parking assist is
operated.
■ RCTA (Rear Cross Traf-
fic Alert) ( P.383)
Select to set up the following
items.
 RCTA (Rear Cross Traffic
Alert) on/off
Select to enable/disable the
RCTA system.
 “Volume”
Select to set the volume of the
buzzer which sounds when
the RCTA is operated.
■ PKSB (Parking Sup-
port Brake System)
( P.395)
Select to enable/disable the
Parking Support Brake function.
■ RSA (Road Sign
Assist) (if equipped)
( P.363)
Select to set up the following
items.
 Road Sign Assist on/off
Select to enable /disable the RSA
system.
 “Notification Method”
Select to change each notification
method used to notify the driver

2063-1. Instrument cluster
when the system recognizes
excess speed and Do Not Enter
sign.
 “Notification Level”
Select to change e ach notification
level used to notify the driver when
the system recognizes a speed limit
sign.
■ Vehicle Settings
 “Charging Settings”
Select to set up the following items.
• “Charging Schedule”
Select to register or change the
charging schedule. ( P.128)
• “Charging Current”
Select to change the charging cur-
rent. ( P.111)
• “Battery Cooler”
Select to enable/disable the bat-
tery cooler. ( P.114)
• “Battery Heater”
Select to enable/disable the bat-
tery heater. ( P.113)
 DRCC
Select to change the curve speed
reduction function setting.
 PBD (Power Back Door)
( P.229)
Select to set up the following items.
• System settings
Select to enable/disable the power
back door system.
• “Hands Free”
Select to enable/disable the Hands
Free Power Back Door.
• “Opening Adjustment” Select the open position when
power back door is fully open.
•“Volume”
Select to set the volume of the
buzzer which sounds when the
power back door system operates.

“TPWS” (Tire Pressure Warn-
ing System) (if equipped)
( P.500)
• “Setting Pressure”
Select to initialize the tire pres-
sure warning system.
• “Identifying Each Wheel & Posi- tion”
Select to change the tire pressure
warning system sensor ID code
set. To enable this function, a
second set of tire pressure warn-
ing system sensor ID codes must
be registered by a Toyota dealer.
For information regarding chang-
ing the registered ID code set,
contact your Toyota dealer.
• “Pressure unit setting” Select to change the units of
measure displayed.
 Rear Seat Reminder
( P.224)
Select to enable/disable the
rear seat reminder function.
■ Settings
 “Language”
Select to change the lan-
guage on the multi-informa-
tion display.
 “Units”
Select to change the unit of
measure for fuel consump-
tion.

2073-1. Instrument cluster
3
Vehicle status information and indicators
Meter Type
Select to change the meter
type setting.
 Meter Style
Select to change the meter
style.
 Dial Type
Select to change dial type.
( P.178)
Depending on the selected dial
type, this item will not be displayed.
 EV indicator
Select to enable/disable the
EV indicator.
 Fuel Economy
Select to change the display
on Fuel Economy. ( P.199)
 “Hybrid System”
Select to enable/disable refer-
ence operation range.
 “Power Consumption”
Select to change the display on
Power Consumption. ( P.199)
 Drive Info
Select to change displayed
items on drive information dis-
play. ( P.202)
 “Calendar”
Select to set up the calender. This
can only be set if GPS calibration of
clock is turned off in the multimedia
system settings.
Pop-Up Display
Select to enable/disable the
pop-up displays, which may
appear in some situations.
 Default Settings Select to reset the meter dis-
play settings.
■Suspension of the settings dis-
play
●In the following situations, opera-
tion of the settings display will be
temporarily suspended.
• When a warning message appears on the multi-information
display
• When the vehicle begins to move
●Settings for functions not
equipped to the vehicle are not
displayed.
●When a function is turned off, the
related settings for that function
are not selectable.
Select to display warning mes-
sages and measures to be
taken if a malfunction is
detected. ( P.552)
WARNING
■Cautions during setting up
the display
As the hybrid system needs to be
operating during setting up the
display, ensure that the vehicle is
parked in a place with adequate
ventilation. In a closed area such
as a garage, exhaust gases
including harmful carbon monox-
ide (CO) may collect and enter
the vehicle. This may lead to
death or a serious health hazard.
NOTICE
■During setting up the display
To prevent 12-vo lt battery dis-
charge, ensure that the hybrid
system is operating while setting
up the display features.
Warning message display

2083-1. Instrument cluster
Displays suggestions to the
driver in the following situations.
To select a response to a dis-
played suggestion, use the
meter control switches.
■Suggestion to enable the
power back door (if
equipped)
If the power back door system is
disabled on the screen and
the power back door switch on
the instrument panel is oper-
ated, a suggestion message will
be displayed asking if you wish
to enable the power back door
system. To enable the power
back door system, select “Yes”.
After enabling the power back
door system, press the power
back door switch again to open
or close the power back door.
■Suggestion to turn on the
headlights
If the headlights turn off, and the
vehicle speed is 5 km/h (3 mph)
or higher for a certain amount of
time when the surroundings are
dark, a suggestion message will
be displayed.
■Suggestion to turn off the
headlights
If the headlights are left on for a
certain amount of time with the
headlight switch in after the power switch has been turned
off, a suggestion message will
be displayed asking if you wish
to turn the headlights off.
To turn the headlights off, select
“Yes”.
If a front door is
opened after the
power switch is tu rned off, this sug-
gestion message will not be dis-
played.
To close all of the power win-
dows, select “Yes”.
■Customization
Some functions can be customized.
(Customizable features: P.599)
Convenience Services
(Suggestion function)

2093-1. Instrument cluster
3
Vehicle status information and indicators
*: If equipped
Illustrations used in this text are
intended as examples, and may dif-
fer from the image that is actually
displayed by the head-up display.
Driving support system infor-
mation/navigation system-
linked display area (if
equipped) ( P.210)
Shift position display
area/RSA (Road Sign Assist)
display area (if equipped)
( P.309, 363)
Vehicle speed display
Hybrid System Indica- tor/tachometer (
P.212)
■Head-up display will operate
when
The power switch is in ON.
■When using the head-up dis-
play
The head-up display may seem
dark or hard to see when viewed
through sunglasses, especially
polarized sunglasses. Adjust the
brightness of the head-up display or
remove your sunglasses.
■Street name display (vehicles
with navigation system)
Only street names which are
included in the map data will be dis-
played.
Head-up display*
The head-up display proj-
ects a variety of driving-
related information and the
operating state of the driv-
ing support systems on the
windshield.
System components
A
B
C
D
:$51,1*
■When using the head-up dis-
play
●Check that the position and
brightness of the head-up dis-
play image does not interfere
with safe driving. Incorrect
adjustment of the image’s posi-
tion or brightness may obstruct
the driver’s view and lead to an
accident, resulting in death or
serious injury.
●Do not continuously look at the
head-up display while driving as
you may fail to see pedestrians,
objects on the road, etc. ahead
of the vehicle.

2103-1. Instrument cluster
Vehicle settings and the content
displayed on the head-up dis-
play can be changed by using
the meter control switches.
(P.191, 203)
1 Operate the meter control
switches and select on
the multi-information display.
2 Operate or of the
meter control switches and
select “HUD Main” to set up
the following items.
■Enabling/disabling the
head-up display
Press to enable/disable the
head-up display.
■Changing the head-up dis-
play settings
Press and hold to display the
setting screen and change the
following settings:
 Brightness and vertical posi-
tion of the head-up display
Select to adjust the brightness or
vertical position of the head-up dis-
play.
Display content
Select to change the display
between the following:
• No content
• Hybrid System Indicator
• Tachometer
Select to enable/d isable the follow-
ing items:

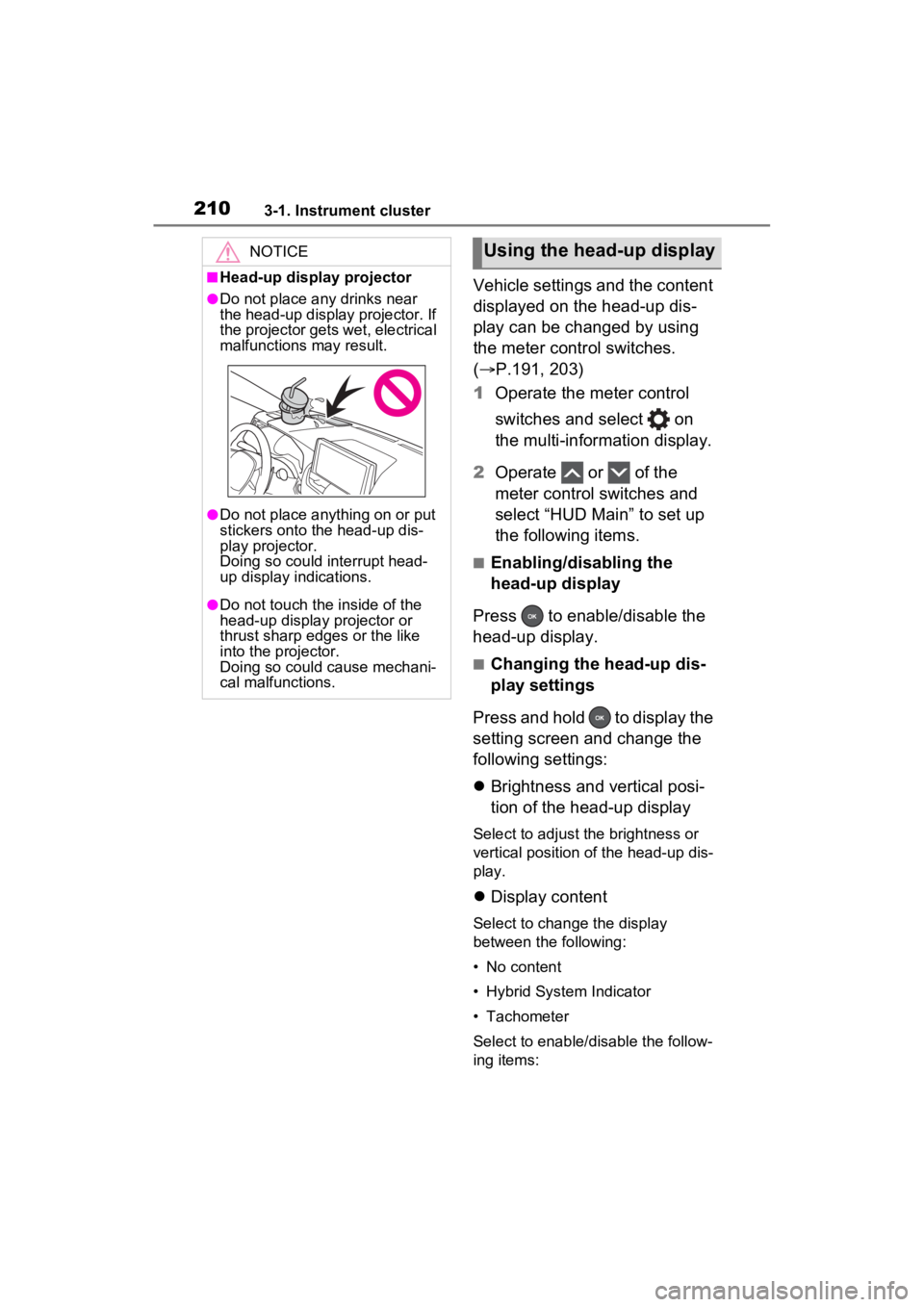

NOTICE
■Head-up display projector
●Do not place any drinks near
the head-up display projector. If
the projector gets wet, electrical
malfunctions may result.
●Do not place anything on or put
stickers onto the head-up dis-
play projector.
Doing so could interrupt head-
up display indications.
●Do not touch the inside of the
head-up display projector or
thrust sharp edges or the like
into the projector.
Doing so could cause mechani-
cal malfunctions.
Using the head-up display
