SPECIFICATIONS
Specifications
Dimensions and weights398
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Engine 399
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
Fuel 399
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Service specifications 399
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Tires 402
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . .
Fuses 402
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . .
SECTION 8

04_SEQUOIA_U (L/O 0309)
399
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
Model:2UZ− FE
Type: 8 cylinder V type, 4 cycle, gasoline
Bore and stroke, mm (in.): 94.0 84.0 (3.70 3.31)
Displacement, cm
3 (cu. in.):
4664 (284.5) Fuel type:
Unleaded gasoline, Octane Rating 87
(Research Octane Number 91) or higher
Fuel tank capacity, L (gal., Imp. gal.): 98.5 (26, 21.6) ENGINE
Valve clearance (engine cold), mm (in.):
Intake 0.15—0.25 (0.006—0.010)
Exhaust 0.25—0.35 (0.010—0.014)
Spark plug type: DENSO K20R −U
NGK BKR6EYA
Spark plug gap, mm (in.): 0.8 (0.031)
ENGINE LUBRICATION
Oil capacity (drain and refill),
L (qt., Imp. qt.): With filter 6.2 (6.5, 5.5)
Without filter 5.7 (6.0, 5.0)
“Toyota Genuine Motor Oil” is f illed in
your Toyota vehicle. Use Toyota approved
“Toyota Genuine Motor Oil” or equivalent
to satisfy the following grade and
viscosity.
Engine FuelService specifications

04_SEQUOIA_U (L/O 0309)
400
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
Oil grade:API grade SL “Energy −Conserving” or
ILSAC multigrade engine oil
Recommended oil viscosity: SAE 5W −30
Outside temperature
Please contact your Toyota dealer for fur-
ther details. COOLING SYSTEM
Total capacity, L (qt., Imp. qt.):
With rear heater 13.4 (14.1, 11.8)
Without rear heater 11.7 (12.4, 10.2)
Coolant type:
“Toyota Super Long Life Coolant” is
filled in your Toyota vehicle at factory
fill. In order to avoid technical problems,
only use “Toyota Super Long Life Cool-
ant” or similar high quality ethylene gly-
col based non −silicate, non− amine, non−
nitrite, and non− borate coolant with
long− life hybrid organic acid technology.
Do not use plain water alone.
Please contact your Toyota dealer for
further details.
BATTERY
Open voltage∗ at 20 C (68 F):
12.6—12.8 V Fully charged
12.2—12.4 V Half charged
11.8—12.0 V Discharged
∗: Voltage that is checked 20 minutes af- ter the key is removed with all the
lights turned off
Charging rates: 5 A max. AUTOMATIC TRANSMISSION
Fluid capacity (drain and refill),
L (qt., Imp. qt.):
Up to 2.0 (2.1, 1.8)
Fluid type: Toyota Genuine ATF Type T −IV
Change automatic transmission fluid only
as necessary.
Generally, it is necessary to change
automatic transmission fluid only if your
vehicle is driven under one of the Special
Operating Conditions listed in your
“Scheduled Maintenance Guide” or
“Owner ’s Manual Supplement”. When
changing the automatic transmission fluid,
use only “Toyota Genuine ATF Type T −IV”
(ATF JWS3309 or NWS6500) to aid in
assuring optimum transmission perfor-
mance.
Notice: Using automatic transmission
fluid other than “Toyota Genuine ATF
Type TIV” may cause deterioration in
shift quality, locking up of your trans-
mission accompanied by vibration, and
ultimately damage the automatic trans-
mission of your vehicle.
Please contact your Toyota dealer for fur-
ther details.

04_SEQUOIA_U (L/O 0309)
401
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
TRANSFER
Oil capacity, L (qt., Imp. qt.):1.2 (1.3, 1.1)
Oil type: Gear oil API GL −4 or GL −5
Recommended oil viscosity: SAE 75W −90
DIFFERENTIAL
Oil capacity, L (qt., Imp. qt.): Front1.15 (1.2, 1.0)
Rear 3.65 (3.9, 3.3)
Oil type: Hypoid gear oil API GL −5
Recommended oil viscosity:
FrontSAE 75W −90
Rear Synthetic oil SAE 75W −140
CHASSIS LUBRICATION
Propeller shafts: Spiders and slide yokes
Lithium base chassis grease, NLGI
No.2 BRAKES
Minimum pedal clearance when depressed
with the force of 490 N (50 kgf, 110 lbf)
with the engine stopping and after de-
pressing the brake pedal several times,
mm (in.):
113 (4.5)
Pedal free play, mm (in.): 1—6 (0.04—0.24)
Pad wear limit, mm (in.): 1.0 (0.04)
Lining wear limit, mm (in.): 1.0 (0.04)
Parking brake adjustment when depressed
with the force of 300 N (31 kgf, 67 lbf): 6—9 clicks
Fluid type: SAE J1703 or FMVSS No.116 DOT 3
STEERING
Wheel free play: Less than 30 mm (1.2 in.)
Power steering fluid type: Automatic transmission fluid DEXRON II
or III

04_SEQUOIA_U (L/O 0309)
402
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
Engine compartment

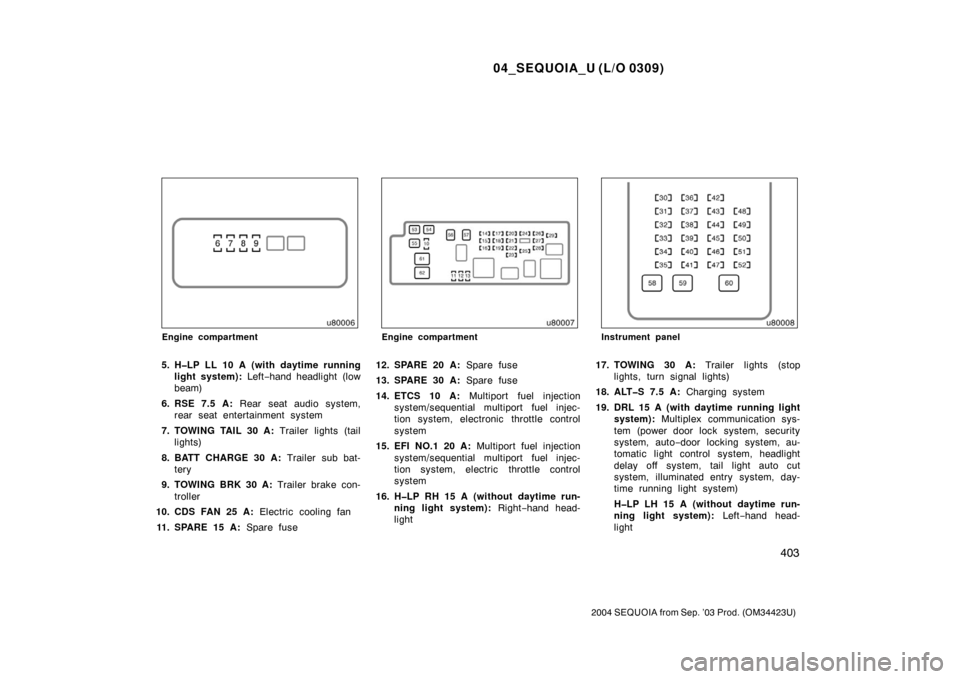

Fuses (type A)1. HLP RH 10 A (with daytime running light system): Right−hand headlight
(high beam)
2. HLP LH 10 A (with daytime running light system): Left−hand headlight
(high beam)
3. STA 7.5 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system, electronic throttle control sys-
tem
4. HLP RL 10 A (with daytime running light system): Right−hand headlight
(low beam)
Tires
Ti r e siz e Ti r e inf lat ion pr es s ur e
kPa (kgf/cm
2 or bar, psi)
Front Rear
P245/70R16
P265/70R16 220 (2.2, 32) 240 (2.4, 35)
220 (2.2, 32) 220 (2.2, 32) Wheel size
16 7J
16 7J or 7JJ
NOTE: For a complete information on tires (e.g. replacing tires or replacing wheels), see “Checking tire inflation pressure” through “Aluminum
wheel precautions”, pages 375 through 383, in Section 7 −2.
W h eel nu t to rq u e, N⋅ m (kg f⋅m, ft ⋅lbf):
11 0 ( 11 . 5 , 8 3 )
Tire size, cold tire inflation pressure and wheel size:
P265/65R17 220 (2.2, 32) 220 (2.2, 32) 17
7 1/ 2J J
Fuses

04_SEQUOIA_U (L/O 0309)
403
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
Engine compartment
5. HLP LL 10 A (with daytime runninglight system): Left−hand headlight (low
beam)
6. RSE 7.5 A: Rear seat audio system,
rear seat entertainment system
7. TOWING TAIL 30 A: Trailer lights (tail
lights)
8. BATT CHARGE 30 A: Trailer sub bat-
tery
9. TOWING BRK 30 A: Trailer brake con-
troller
10. CDS FAN 25 A: Electric cooling fan
11. SPARE 15 A: Spare fuse
Engine compartment
12. SPARE 20 A: Spare fuse
13. SPARE 30 A: Spare fuse
14. ETCS 10 A: Multiport fuel injection
system/se quential multiport fuel injec-
tion system, electronic throttle control
system
15. EFI NO.1 20 A: Multiport fuel injection
system/se quential multiport fuel injec-
tion system, electric throttle control
system
16. HLP RH 15 A (without daytime run- ning light system): Right−hand head-
light
Instrument panel
17. TOWING 30 A: Trailer lights (stop
lights, turn signal lights)
18. ALTS 7.5 A: Charging system
19. DRL 15 A (with daytime running light system): Multiplex communication sys-
tem (power door lock system, security
system, auto −door locking system, au-
tomatic light control system, headlight
delay off system, tail light auto cut
system, illuminated entry system, day-
time running light system)
HLP LH 15 A (without daytime run-
ning light system): Left−hand head-
light

04_SEQUOIA_U (L/O 0309)
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
I
Publication No. OM34423U
Part No. 01999-34423
Printed in Japan 01−0309 −00
Quick index
 If a service reminder indicator or warning buzzer comes on 134 . . . . . . . .
 If your vehicle will not start 328 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. .
 If your engine stalls while driving 331 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
 If you cannot increase the engine speed 331 . . . . . . . . . . . . . . . . . . . . . . . . . . .
 If your vehicle overheats 332 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
 If you have a flat tire 333 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . .
 If your vehicle needs to be towed 343 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
 Tips for driving during break −in period 285 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
 How to start the engine 310 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
 General maintenance 359 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . .
Gas station information
Fuel type:
UNLEADED gasoline, Octane Rating 87 (Research Octane Number 91)
or higher
See page 285 for detailed information.
Fuel tank capacity:
98.5 L (26 gal., 21.6 lmp. gal.)
Engine oil:
API grade SL “Energy −Conserving” or ILSAC multigrade engine oil is recom-
mended.
See page 371 for detailed information.
Automatic transmission fluid: Toyota Genuine Type T −IV
See page 400 for detailed information.
Tire information: See pages 375 through 383.
Tire inflation pressure: See page 402.
