engine TOYOTA SEQUOIA 2004 1.G Owner's Manual

04_SEQUOIA_U (L/O 0309)
137
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
(d) Discharge Warning Light
This light warns that the battery is being
discharged.
If it comes on while you are driving, there
is a problem somewhere in the charging
system.
The engine ignition will continue to oper-
ate, however, until the battery is dis-
charged. Turn off the air conditioning,
blower, radio, etc., and drive directly to
the nearest Toyota dealer or repair shop.
NOTICE
Do not continue driving if the engine
drive belt is broken or loose.
(e) Malfunction Indicator Lamp
This lamp comes on when the ignition
key is turned to the “ON” position and
goes off after the engine starts. This
means that the warning light system is
operating properly.
If the lamp remains on or the lamp
comes on while driving, first check the
followings.
Empty fuel tank
If the fuel tank is empty, refuel immedi-
ately.
Loose fuel tank cap
If the fuel tank cap is loose, securely
tighten it.
These cases are temporary malfunctions.
The malfunction indicator lamp will go off
after taking several driving trips.
If the lamp will not go off even after the
several trips, contact your Toyota dealer
as soon as possible.
If the fuel tank is not empty or the fuel
tank cap is not loose...
There is a problem somewhere in the
engine, emission control system, elec-
tronic throttle control system, automatic
transmission electrical system or warn-
ing light system itself.
Contact your Toyota dealer as soon as
possible to service the vehicle.
If the engine speed does not increase with
the accelerator pedal depressed down,
there may be a problem somewhere in
your electronic throttle control system.
At this time, vibration may occur. Howev-
er, if you depress the accelerator pedal
more firmly and slowly, you can drive your
vehicle at low speeds. Have your vehicle
checked by your Toyota dealer as soon as
possible. Even if the abnormality of the electronic
throttle control system is corrected during
low speed driving, the system may not be
recovered until the engine is stopped and
the ignition key is turned to “ACC” or
“LOCK” position.
CAUTION
Be especially careful to prevent erro-
neous pedal operation.
Emissions inspection and maintenance
(I/M) programs
We recommend you to contact your
Toyota dealer to check your vehicle’s
emission control system and OBD
(On
−Board Diagnostics) system before
taking your vehicle for a state emission
inspection.
For details, see “Emissions Inspection and
Maintenance (I/M) programs” on page 362
in Section 6.

04_SEQUOIA_U (L/O 0309)
139
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
In the following cases, contact your Toyota
dealer:
The warning light does not come on
after the ignition key is turned to “ON”.
The warning light remains on after the
ignition key is turned to “ON”.
The warning light comes on while driv-
ing.
(i) Open Door Warning Light
This light remains on until all the side
doors and back door are completely
closed.
(j) SRS Warning Light
This light will come on when the igni-
tion key is turned to the “ON” position.
After about 6 seconds, the light will go
off. This means the system of the air-
bag and front seat belt pretensioner are
operating properly.
The warning light system monitors the air-
bag sensor assembly, front airbag sen-
sors, side and curtain shield airbag sen-
sors, front seat belt pretensioner
assemblies, inflators, warning light, inter-
connecting wiring and power sources. If either of the following conditions occurs,
this indicates a malfunction somewhere in
the parts monitored by the warning light
system. Contact your Toyota dealer as
soon as possible to service the vehicle.
The light does not come on when the
ignition key is turned to “ON” or re-
mains on.
The light comes on or flashes while
driving.
(k) Unengaged “Park” Warning Light
This light warns that the transmission
“Park” mechanism is not engaged. If the
front drive control lever is in the “N” posi-
tion while the selector lever is in the “P”
position, the transmission will disengage
and the wheels will not lock.
CAUTION
To restore the park function, shift the
front drive control lever out of “N”,
or the vehicle can move.
(l) Automatic Transmission Fluid Tem- perature Warning Light
This light warns that the automatic trans-
mission fluid temperature is too high.
If this light comes on while you are driv-
ing, slow down and pull off the road. Stop
the vehicle at a safe place and put the
selector lever in “P”. With the engine id-
ling, wait until the light goes off. If the
light goes off, you may start the vehicle
again. If the light does not go off, call a
Toyota dealer or qualified repair shop for
assistance.
NOTICE
Continued driving with the warning
light on may damage the automatic
transmission.
(m) Low Windshield Washer Fluid Level Warning Light
This light warns that the windshield wash-
er fluid level is too low. Add washer fluid
at your earliest opportunity. (For instruc-
tions, see “Adding washer fluid” on page
389 in Section 7 −3.)

04_SEQUOIA_U (L/O 0309)
140
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
(n) Key Reminder Buzzer
This buzzer reminds you to remove the
key when you open the driver ’s door with
the ignition key in the “ACC” or “LOCK”
position.CHECKING SERVICE REMINDER
INDICATORS (except the low fuel level
warning light and low windshield
washer fluid level warning light)
1. Apply the parking brake.
2. Open one of the side doors or back door.
The open door warning light should
come on.
3. Close the door. The open door warning light should go
off.
4. Turn the ignition key to “ON”, but do not start the engine.
All the service reminder indicators ex-
cept the open door warning light should
come on. The “ABS” and “VSC/TRAC”
warning lights, “TRAC OFF” (two −wheel
drive models) or “VSC OFF” (four −
wheel drive models) indicator light and
slip indicator light go off after a few
seconds. The SRS warning light goes
off after about 6 seconds.
5. Place the front drive control lever in “N” position and the selector lever in
“P” position.
The unengaged “Park” warning light
should come on. 6. Shift the front drive control lever out of
“N”.
The unengaged “Park” warning light
should go off.
If any service reminder indicator or warn-
ing buzzer does not function as described
above, have it checked by your Toyota
dealer as soon as possible.

04_SEQUOIA_U (L/O 0309)
142
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
“START”—Starter motor on. The key
will return to the “ON” position when
released.
For starting tips, see page 309 in Section
3.
“ON”—Engine on and all accessories
on.
This is the normal driving position.
“ACC”—Accessories such as the radio
operate, but the engine is off.
If you leave the key in the “ACC” or
“LOCK” position and open the driver’s
door, a buzzer will remind you to remove
the key.“LOCK”—Engine is off and the steering
wheel is locked. The key can be re-
moved only at this position.
You must push in the key to turn it from
“ACC” to the “LOCK” position. The selec-
tor lever must be in the “P” position be-
fore pushing the key.
Once you remove the key, the engine im-
mobilizer system is automatically set. (See
“Engine immobilizer system” on page 12
in Section 1−
2.)
When starting the engine, the key may
seem stuck at the “LOCK” position. To
free it, first be sure the key is pushed all
the way in, and then rock the steering
wheel slightly while turning the key gently.
NOTICE
Do not leave the key in the “ON”
position if the engine is not running.
The battery will discharge and the
ignition could be damaged.
Ignition switch with steering
lock

04_SEQUOIA_U (L/O 0309)
143
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
Your automatic transmission has a shift
lock system to minimize the possibility of
incorrect operation. This means you can
only shift out of “P” position when the
brake pedal is depressed (with the ignition
switch in the “ON” or “ACC” position and
the selector lever pulled toward you).

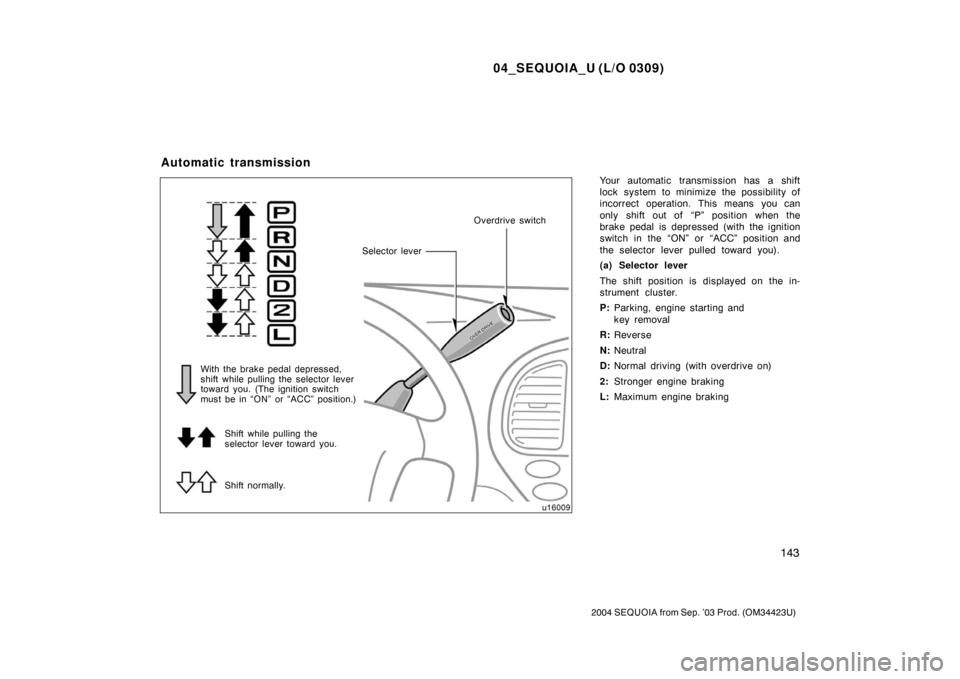

(a) Selector lever
The shift position is displayed on the in-
strument cluster.
P:Parking, engine starting and
key removal
R: Reverse
N: Neutral
D: Normal driving (with overdrive on)
2: Stronger engine braking
L: Maximum engine braking
Automatic transmission
With the brake pedal depressed,
shift while pulling the selector lever
toward you. (The ignition switch
must be in “ON” or “ACC” position.)
Shift while pulling the
selector lever toward you.
Shift normally. Selector lever
Overdrive switch

04_SEQUOIA_U (L/O 0309)
144
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
(b) Overdrive switch
You can select either third gear (with
overdrive off) or fourth gear (with over-
drive on) by pushing this switch.
To turn the overdrive off, push the switch.
The “O/D OFF” indicator light should come
on. To turn the overdrive on again, push
the switch again. The “O/D OFF” indicator
light should go off.
Always drive your vehicle with the over-
drive on for better fuel economy and
quieter driving.
If the engine is turned off when the over-
drive is off and restarted, the overdrive
will be on automatically.When the cruise control is being used,
even if you downshift the transmission by
pushing and releasing the overdrive
switch, engine braking will not be enabled
because the cruise control is not can-
celled.
For ways to decrease the vehicle speed,
see “Cruise control” on page 159 in this
Section.
(c) Normal driving
1. Start the engine as instructed in “How to start the engine” on page 310 in
Section 3. The transmission must be in
“P” or “N”.
When the front drive control lever is in
“L4” (low −speed position, four −wheel
drive), the driving pattern selector setting
has no effect on gear shift timing. (See
“Four −wheel drive system” on page 147 in
this Section for information of the front
drive control lever.)
2. With your foot holding down the brake pedal, shift the selector lever to “D”.
When the lever is in the “D” position, the
automatic transmission system will select
the most suitable gear for running condi-
tions such as normal cruising, hill climb-
ing, hard towing, etc. Always turn the overdrive on for better
fuel economy and quieter driving. If the
engine coolant temperature is low or when
the front drive control lever is in “L4”
(low
−speed position, four −wheel drive), the
transmission will not shift into the over-
drive gear even with the overdrive on.
(See “Four −wheel drive system” on page
147 in this Section for information of the
front drive control lever.)
CAUTION
Never put your foot on the accelera-
tor pedal while shifting.
3. Release the parking brake and brake pedal. Depress the accelerator pedal
slowly for smooth starting.
If the automatic locking operation linked to
shift lever position is set, all doors are
automatically locked when the shift lever
is moved out of “P” position after the
ignition switch is turned to the “ON” posi-
tion and all the doors are closed. For
details, see “—Automatic door locking and
unlocking functions” on page 16 in Section
1 −2.

04_SEQUOIA_U (L/O 0309)
145
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
(d) Using engine braking
To use engine braking, you can downshift
the transmission as follows:
Push the overdrive switch. The “O/D
OFF” indicator light will come on and
the transmission will downshift to third
gear.
Shift into the “2” position. The trans-
mission will downshift to second gear
when the vehicle speed drops down to
or lower than the following speed, and
stronger engine braking will be en-
abled.Tw o −wheel drive models
110 km/h (68 mph)
Four −wheel drive models
Front drive control lever in “H”
(2WD) or “H” (4WD) 110 km/h (68 mph)
Front drive control lever in “L4” 39 km/h (24 mph)
Shift into the “L” position. The trans-
mission will downshift to first gear
when the vehicle speed drops down to
or lower than the following speed, and
maximum engine braking will be en-
abled.
Tw o −wheel drive models
55 km/h (34 mph)
Four −wheel drive models
Front drive control lever in “H”
(2WD) or “H” (4WD) 55 km/h (34 mph)
Front drive control lever in “L4” 10 km/h (5 mph)
When the cruise control is being used,
even if you downshift the transmission by
pushing and releasing the overdrive
switch, engine braking will not be enabled
because the cruise control is not can-
celled.
For ways to decrease the vehicle speed,
see “Cruise control” on page 159 in this
Section.CAUTION
Be careful when downshifting on a
slippery surface. Abrupt shifting
could cause the vehicle to spin or
skid.
(e) Using the “2” and “L”, positions
The “2” and “L” positions are used for
strong engine braking as described pre-
viously.
With the selector lever in “2” or “L”, you
can start the vehicle in motion as with the
lever in “D”.
With the selector lever in “2”, the vehicle
will start in first gear and automatically
shift to second gear.
With the selector lever in “L”, the trans-
mission is engaged in first gear.

04_SEQUOIA_U (L/O 0309)
146
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
NOTICE
Be careful not to overrev the en-
gine. Watch the tachometer to keep
engine rpm from going into the red
zone. The approximate maximum al-
lowable speed for each position is
given above for your reference:
Twowheel drive models “2” 110 km/h (68 mph) . . . . . . .
“L” 60 km/h (38 mph) . . . . . . . .
Fourwheel drive models Front drive control lever in “H”
(2WD) or “H” (4WD)“2” 110 km/h (68 mph) . . . . . . .
“L” 60 km/h (38 mph) . . . . . . . .
Front drive control lever in “L4” “2” 45 km/h (28 mph) . . . . . . . .
“L” 25 km/h (16 mph) . . . . . . . .
 Do not continue hill climbing or
hard towing for a long time in the
“2” or “L” position. This may cause
severe automatic transmission dam-
age from overheating. To prevent
such damage, “D” position should
be used in hill climbing or hard
towing.
(f) Backing up
1. Bring the vehicle to a complete stop.
2. With the brake pedal held down with your foot, shift the selector lever to the
“R” position.
NOTICE
Never shift into reverse while the ve-
hicle is moving.
(g) Parking
1. Bring the vehicle to a complete stop.
2. With the brake pedal pressed down, fully depress the parking brake pedal
to apply the parking brake securely.
3. With the brake pedal pressed down, shift the selector lever to the “P” posi-
tion.
CAUTION
Never attempt to move the selector
lever into “P” position under any cir-
cumstances while the vehicle is mov-
ing. Serious mechanical damage and
loss of vehicle control may result.
If the automatic unlocking operation linked
to shift lever position is set, all doors are
automatically unlocked when the selector
lever is moved to “P” position after the
ignition switch is turned to “ON” position.
For details, see “—Automatic door locking
and unlocking functions” on page 16 in
Section 1 −2.
(h) Good driving practice
If the transmission repeatedly shifts up
and down between third gear and over-
drive when climbing a gentle slope, the
overdrive should be turned off. Be sure
to turn the switch on immediately after-
ward.
When towing a trailer, in order to main-
tain engine braking efficiency, do not
use overdrive.
CAUTION
Always keep your foot on the brake
pedal while stopped with the engine
running. This prevents the vehicle
from creeping.

04_SEQUOIA_U (L/O 0309)
147
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
NOTICE
Always use the brake pedal or the
parking brake to hold the vehicle on
an upgrade. Do not attempt to hold
the vehicle using the accelerator ped-
al, as this can cause the transmission
to overheat.
“H” (2WD) MODE
“H” (4WD) MODE (center
differential unlock) or “L4”
MODE (center differential
unlock)
“H” (4WD) MODE (center
differential lock) or “L4”
MODE (center differential
lock)
Use the front drive control lever, “4WD”
switch and center differential lock
switch to select the transfer and center
differential modes.
The “H” and “L4” position of the front
drive control lever provide either lock or
unlock the mode of the center differential.
Use the center differential lock system if
your wheels get stuck in a ditch, or when
you are driving on a slippery or bumpy
surface. When the center differential is
locked, the vehicle stability control system
is automatically turned off and the center
differential lock and “VSC OFF” indicator
lights come on because the function that
controls engine performance interferes
with the process of freeing your wheels.
NOTICE
As soon as the center differential lock
switch is turned on, the “VSC OFF”
indicator light comes on. After the
wheels are out of the ditch or off the
slippery or bumpy surface, turn the
center differential lock switch off.
Make sure that the center differential
lock indicator light and “VSC OFF”
indicator light turn off.
Fourwheel drive system—
(a) Front drive control

04_SEQUOIA_U (L/O 0309)
149
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
Advice for driving on slippery roads in
“L4” (low speed position) mode
If you shift the front drive control lever to
“L4” and the automatic transmission lever
to “2” when you drive in steep off−road
areas, the output of the brake can be
controlled effectively by the active traction
control system, which assists the driver to
control the driving power of 4 wheels.
Use the “L” position of the automatic
transmission lever for maximum power
and traction when your wheels get stuck
or when you drive down a steep incline.
In the following cases, the output of the
brake can be controlled by the active trac-
tion control system if the engine speed is
under 3000 rpm (normally engine speed is
under 3000 rpm when the wheels get un-
stuck).
The front drive control lever in the “L4”
position and the automatic transmission
lever in the “L” position or the automat-
ic transmission lever in the “D” or “2”
with the transmission downshifting to
the first gear
The front drive control lever in the “L4”
position and the automatic transmission
lever in the “R” position (As for the automatic transmission lever
positions, see “Automatic transmission” in
this Section.)
The A.D.D. can be engaged or disen-
gaged by the shifting operations des-
cribed in “(c) Shifting procedure”.
You should drive in four
−wheel drive for
at least 16 km (10 miles) each month.
This will assure that the front drive com-
ponents are lubricated.
(b) A.D.D. (automatic
disconnecting differential)
