TOYOTA SEQUOIA 2004 1.G Workshop Manual

04_SEQUOIA_U (L/O 0309)
43
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
CAUTION
To reduce the risk of sliding under
the lap belt during a collision, avoid
reclining the seatback any more than
needed. The seat belts provide maxi-
mum protection in a frontal or rear
collision when the driver and the
front passenger are sitting up straight
and well back in the seats. If you are
reclined, the lap belt may slide past
your hips and apply restraint forces
directly to the abdomen. In the event
of a frontal collision, the more the
seat is reclined, the greater the risk
of personal injury.

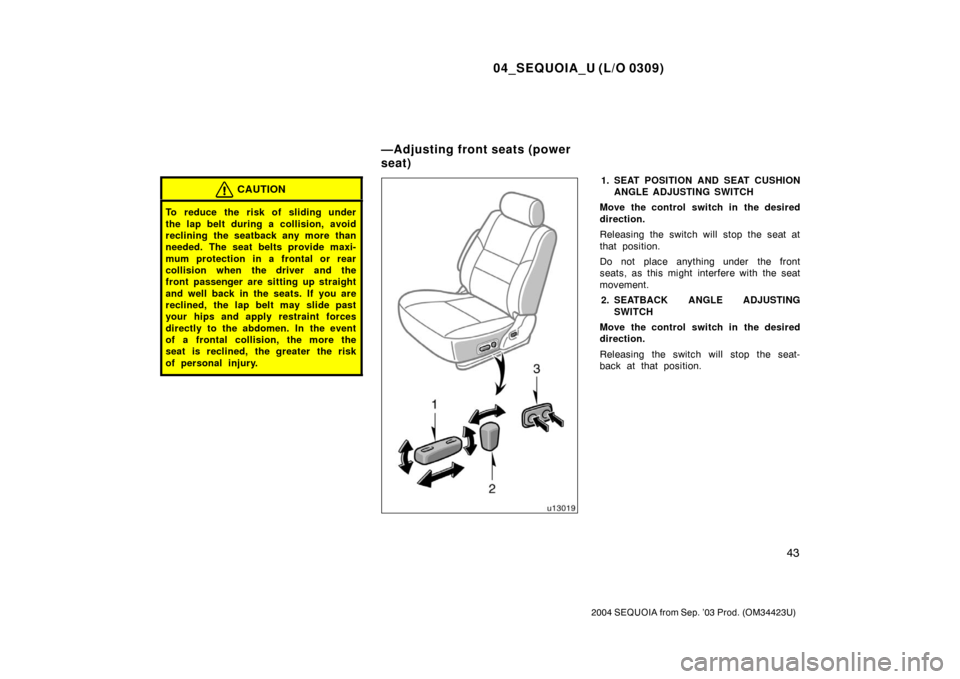

1. SEAT POSITION AND SEAT CUSHIONANGLE ADJUSTING SWITCH
Move the control switch in the desired
direction.
Releasing the switch will stop the seat at
that position.
Do not place anything under the front
seats, as this might interfere with the seat
movement. 2. SEATBACK ANGLE ADJUSTING SWITCH
Move the control switch in the desired
direction.
Releasing the switch will stop the seat-
back at that position.
—Adjusting front seats (power
seat)

04_SEQUOIA_U (L/O 0309)
44
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
CAUTION
To reduce the risk of sliding under
the lap belt during a collision, avoid
reclining the seatback any more than
needed. The seat belts provide maxi-
mum protection in a frontal or rear
collision when the driver and the
front passenger are sitting up straight
and well back in the seats. If you are
reclined, the lap belt may slide past
your hips and apply restraint forces
directly to the abdomen. In the event
of a frontal collision, the more the
seat is reclined, the greater the risk
of personal injury.
3. SEAT LUMBAR SUPPORTADJUSTING SWITCH
Push the control switch in the desired
direction.
The amount of lumber support will change
while the switch is pushed.

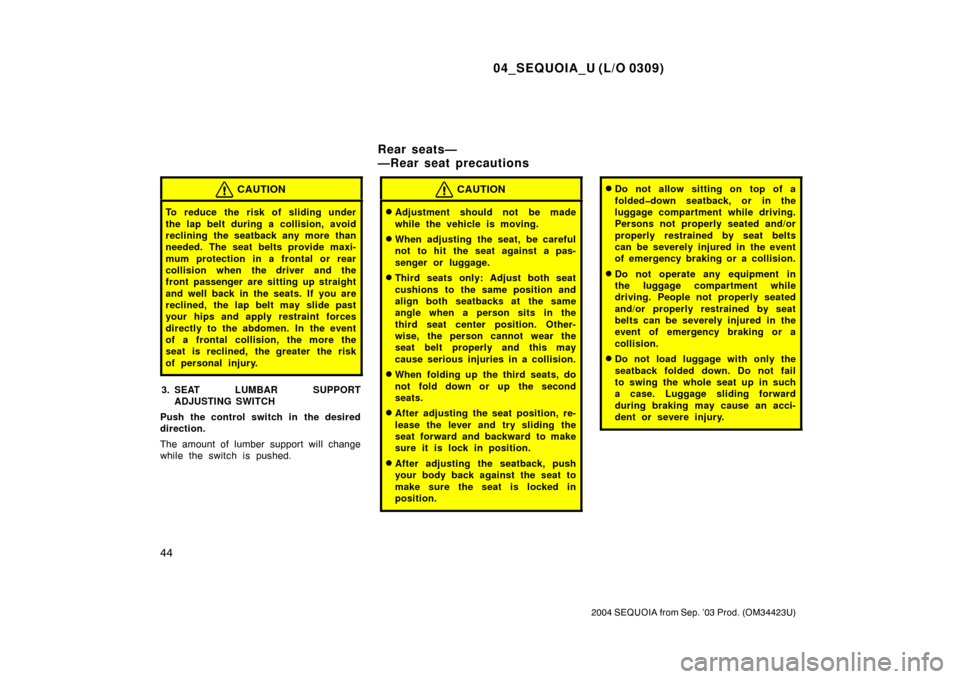

CAUTION
Adjustment should not be made
while the vehicle is moving.
When adjusting the seat, be careful
not to hit the seat against a pas-
senger or luggage.
Third seats only: Adjust both seat
cushions to the same position and
align both seatbacks at the same
angle when a person sits in the
third seat center position. Other-
wise, the person cannot wear the
seat belt properly and this may
cause serious injuries in a collision.
When folding up the third seats, do
not fold down or up the second
seats.
After adjusting the seat position, re-
lease the lever and try sliding the
seat forward and backward to make
sure it is lock in position.
After adjusting the seatback, push
your body back against the seat to
make sure the seat is locked in
position.
Do not allow sitting on top of a
foldeddown seatback, or in the
luggage compartment while driving.
Persons not properly seated and/or
properly restrained by seat belts
can be severely injured in the event
of emergency braking or a collision.
Do not operate any equipment in
the luggage compartment while
driving. People not properly seated
and/or properly restrained by seat
belts can be severely injured in the
event of emergency braking or a
collision.
Do not load luggage with only the
seatback folded down. Do not fail
to swing the whole seat up in such
a case. Luggage sliding forward
during braking may cause an acci-
dent or severe injury.
Rear seats—
—Rear seat precautions

04_SEQUOIA_U (L/O 0309)
45
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
When returning seats to their origi-
nal position, observe the following
precautions in order to prevent per-
sonal injury in a collision or sud-
den stop:
Be careful not to get your hands or
feet pinched in the seat.
Make sure the seat is securely
locked by pushing forward and rear-
ward on the top of the seatback or
by trying to pull up the edge of the
bottom cushion. Failure to do so
will prevent the seat belt from oper-
ating properly.
Make sure the seat belts are not
twisted or caught under the seat
and are arranged in their proper
position and are ready to use.
Folding the seats up will enlarge the lug-
gage compartment. See “—Stowage pre-
cautions” on page 305 in Section 2 for
precautions when loading luggage.

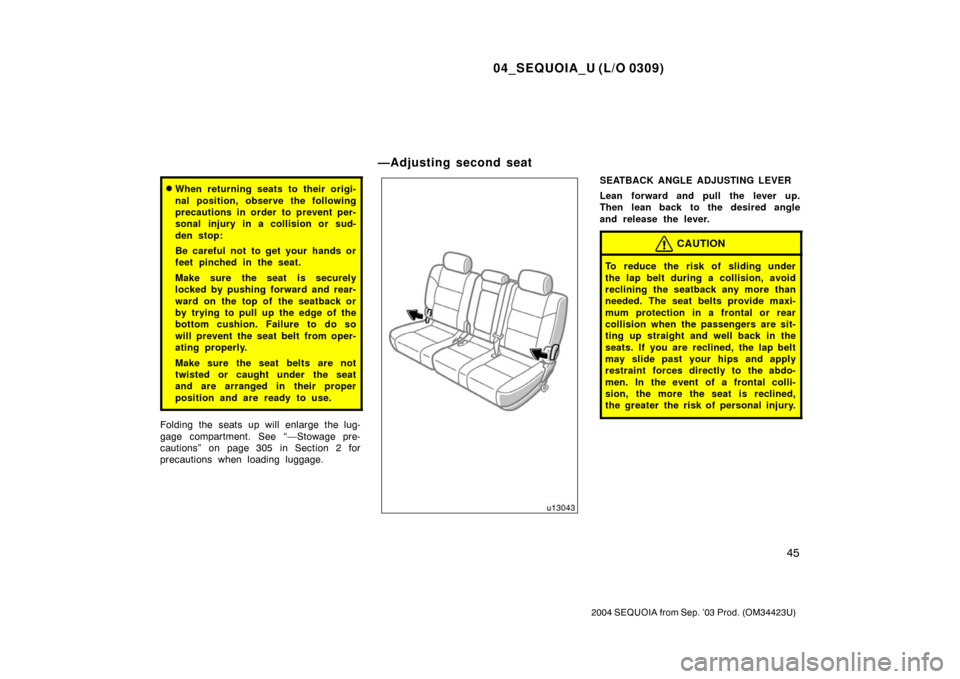

SEATBACK ANGLE ADJUSTING LEVER
Lean forward and pull the lever up.
Then lean back to the desired angle
and release the lever.
CAUTION
To reduce the risk of sliding under
the lap belt during a collision, avoid
reclining the seatback any more than
needed. The seat belts provide maxi-
mum protection in a frontal or rear
collision when the passengers are sit-
ting up straight and well back in the
seats. If you are reclined, the lap belt
may slide past your hips and apply
restraint forces directly to the abdo-
men. In the event of a frontal colli-
sion, the more the seat is reclined,
the greater the risk of personal injury.
—Adjusting second seat

04_SEQUOIA_U (L/O 0309)
46
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)

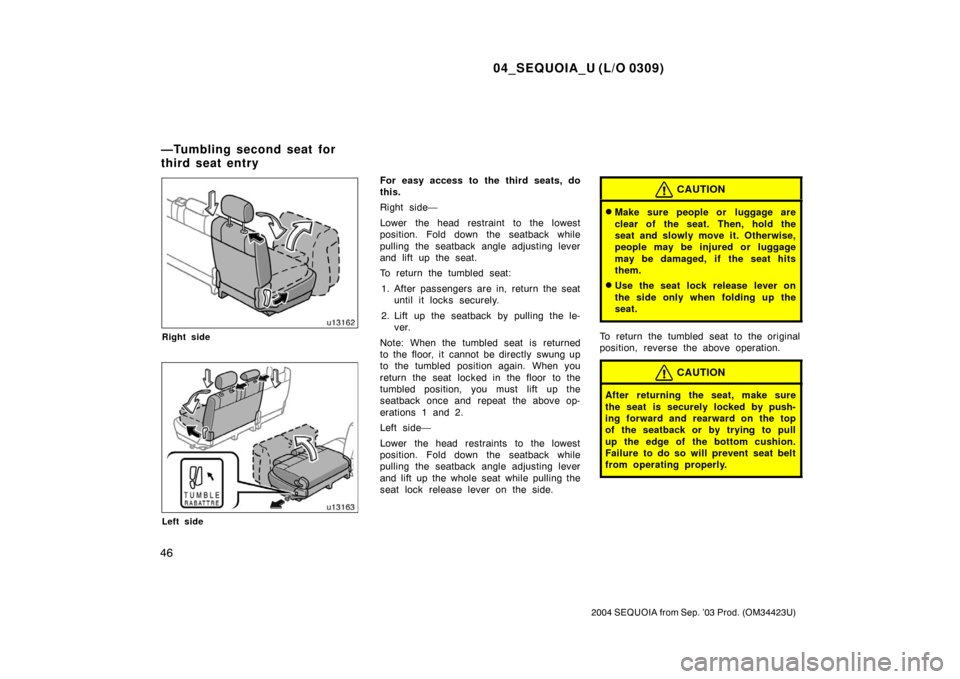

Right side
Left side
For easy access to the third seats, do
this.
Right side—
Lower the head restraint to the lowest
position. Fold down the seatback while
pulling the seatback angle adjusting lever
and lift up the seat.
To return the tumbled seat:1. After passengers are in, return the seat until it locks securely.
2. Lift up the seatback by pulling the le- ver.
Note: When the tumbled seat is returned
to the floor, it cannot be directly swung up
to the tumbled position again. When you
return the seat locked in the floor to the
tumbled position, you must lift up the
seatback once and repeat the above op-
erations 1 and 2.
Left side—
Lower the head restraints to the lowest
position. Fold down the seatback while
pulling the seatback angle adjusting lever
and lift up the whole seat while pulling the
seat lock release lever on the side.CAUTION
Make sure people or luggage are
clear of the seat. Then, hold the
seat and slowly move it. Otherwise,
people may be injured or luggage
may be damaged, if the seat hits
them.
Use the seat lock release lever on
the side only when folding up the
seat.
To return the tumbled seat to the original
position, reverse the above operation.
CAUTION
After returning the seat, make sure
the seat is securely locked by push-
ing forward and rearward on the top
of the seatback or by trying to pull
up the edge of the bottom cushion.
Failure to do so will prevent seat belt
from operating properly.
—Tumbling second seat for
third seat entry

04_SEQUOIA_U (L/O 0309)
47
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)

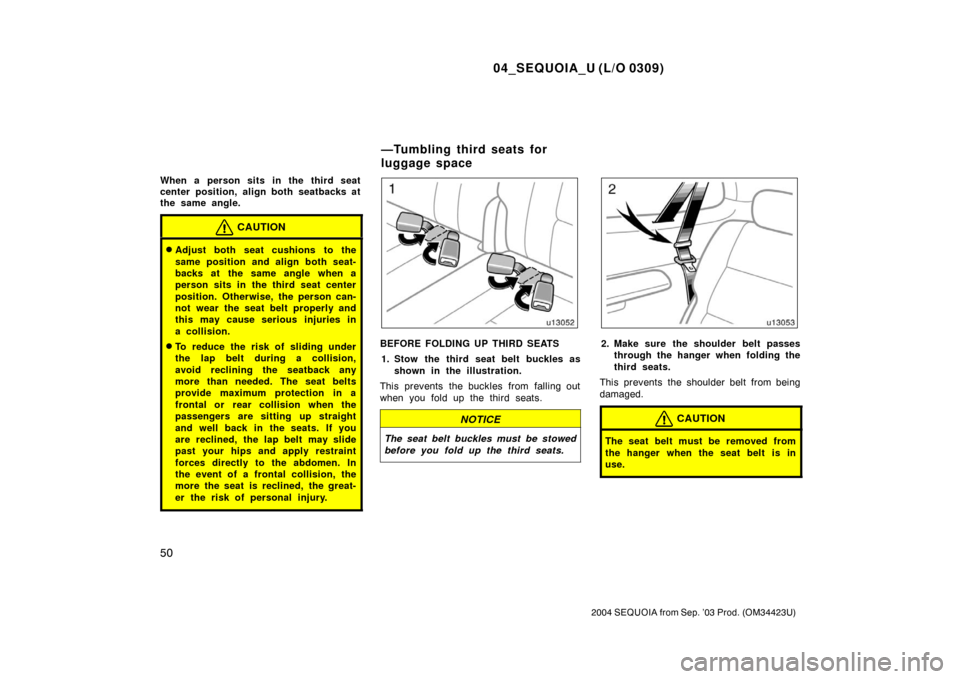

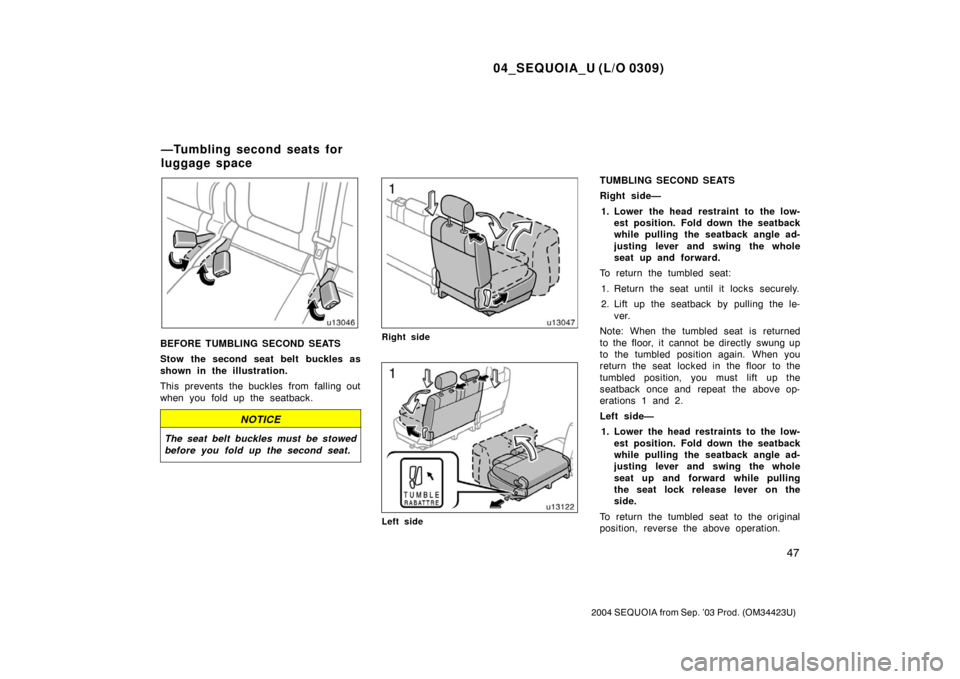

BEFORE TUMBLING SECOND SEATS
Stow the second seat belt buckles as
shown in the illustration.
This prevents the buckles from falling out
when you fold up the seatback.
NOTICE
The seat belt buckles must be stowed
before you fold up the second seat.
Right side
Left side
TUMBLING SECOND SEATS
Right side—1. Lower the head restraint to the low- est position. Fold down the seatback
while pulling the seatback angle ad-
justing lever and swing the whole
seat up and forward.
To return the tumbled seat:
1. Return the seat until it locks securely.
2. Lift up the seatback by pulling the le- ver.
Note: When the tumbled seat is returned
to the floor, it cannot be directly swung up
to the tumbled position again. When you
return the seat locked in the floor to the
tumbled position, you must lift up the
seatback once and repeat the above op-
erations 1 and 2.
Left side— 1. Lower the head restraints to the low- est position. Fold down the seatback
while pulling the seatback angle ad-
justing lever and swing the whole
seat up and forward while pu lling
the seat lock release lever on the
side.
To return the tumbled seat to the original
position, reverse the above operation.
—Tumbling second seats for
luggage space

04_SEQUOIA_U (L/O 0309)
48
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)

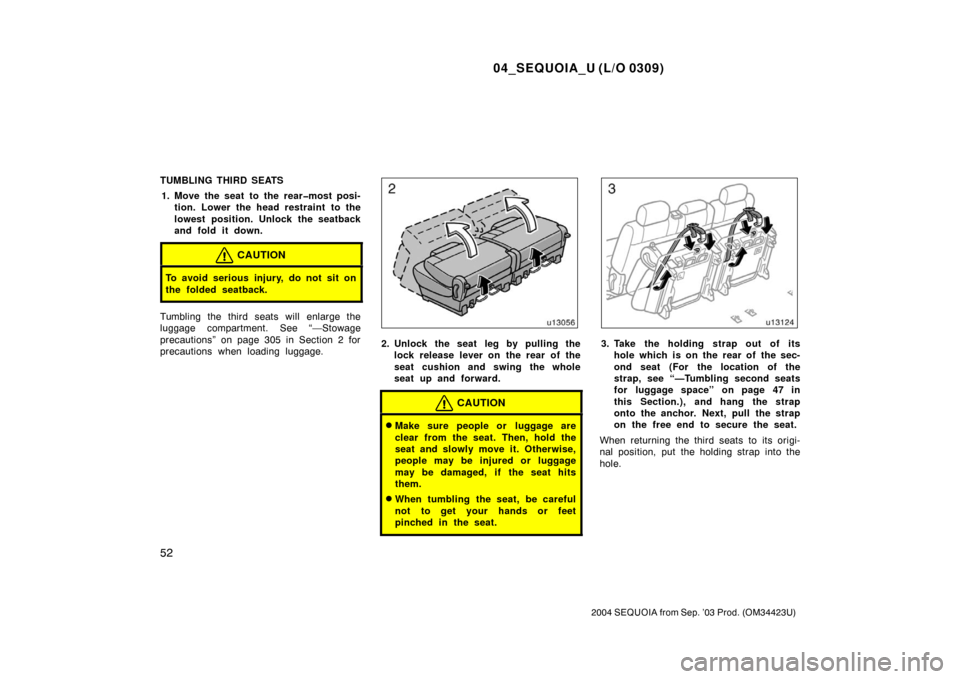

CAUTION
Make sure people or luggage are
clear of the seat. Then, hold the
seat and slowly move it. Otherwise,
people may be injured or luggage
may be damaged, if the seat hits
them.
To avoid serious injury, do not sit
on the folded seatback.
Left side only—Use the seat lock
release lever on the side only when
folding up the seat.
Vehicles without third seats—Folding up
the rear seats will enlarge the luggage
compartment. See “—Stowage precautions”
on page 305 in Section 2 for precautions
when loading luggage.

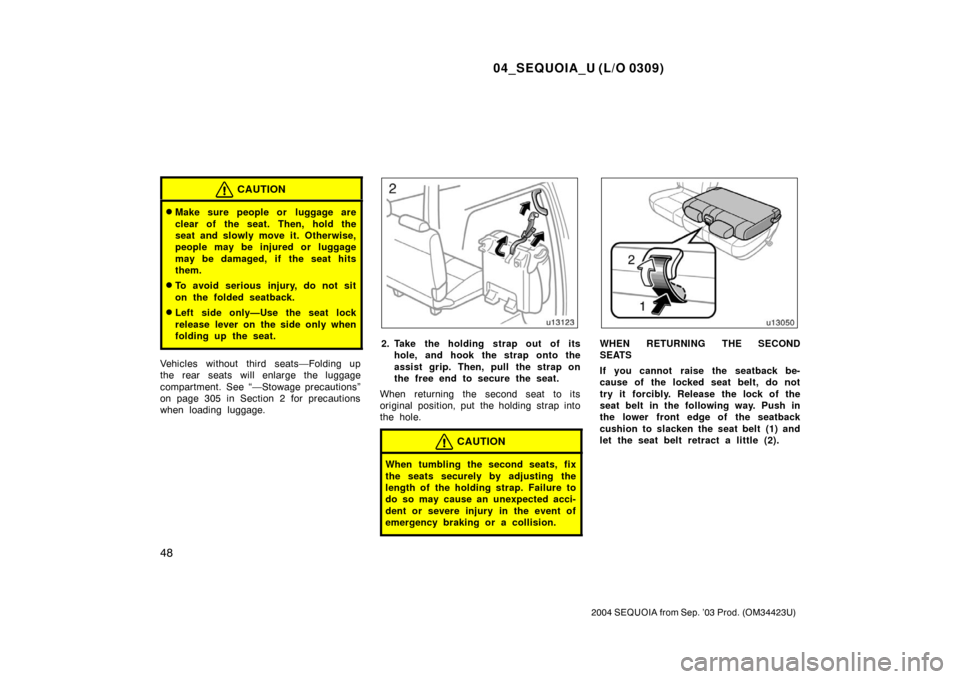

2. Take the holding strap out of itshole, and hook the strap onto the
assist grip. Then, pull the strap on
the free end to secure the seat.
When returning the second seat to its
original position, put the holding strap into
the hole.
CAUTION
When tumbling the second seats, fix
the seats securely by adjusting the
length of the holding strap. Failure to
do so may cause an unexpected acci-
dent or severe injury in the event of
emergency braking or a collision.
WHEN RETURNING THE SECOND
SEATS
If you cannot raise the seatback be-
cause of the locked seat belt, do not
try it forcibly. Release the lock of the
seat belt in the following way. Push in
the lower front edge of the seatback
cushion to slacken the seat belt (1) and
let the seat belt retract a little (2).

04_SEQUOIA_U (L/O 0309)
49
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
CAUTION
When returning seats to their original
position, observe the following pre-
cautions in order to prevent personal
injury in a collision or sudden stop:
Be careful not to get your hands or
feet pinched in the seat.
Make sure the seat is securely
locked by pushing forward and rear-
ward on the top of the seatback or
by trying to pull up the edge of the
bottom cushion. Failure to do so
will prevent the seat belt from oper-
ating properly.
Make sure the seat belts are not
twisted or caught in the seatback
and are arranged in their proper
position and are ready to use.

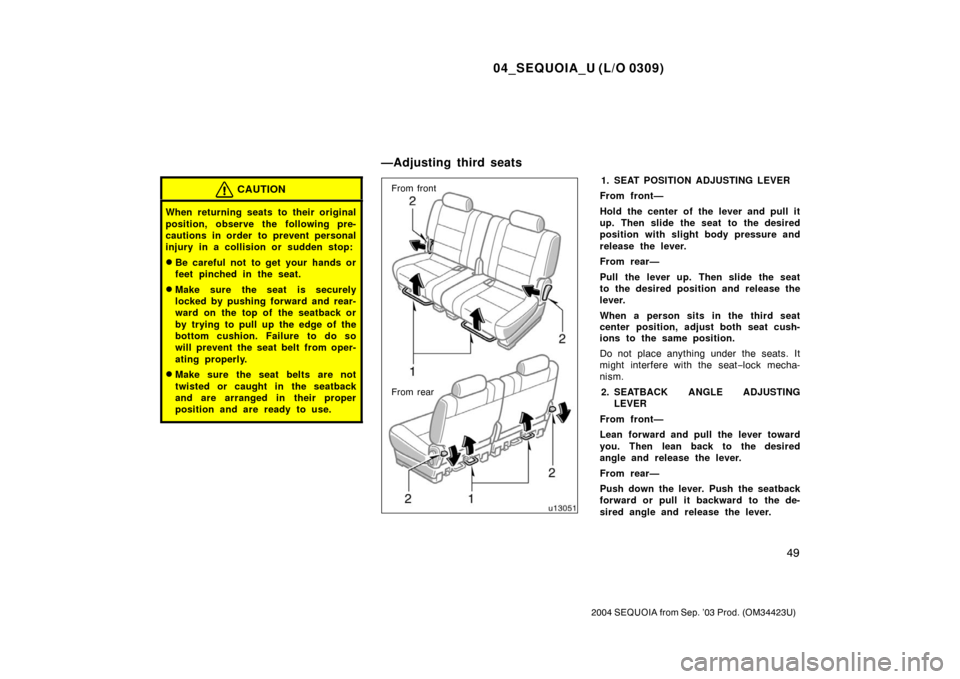

From front
From rear1. SEAT POSITION ADJUSTING LEVER
From front—
Hold the center of the lever and pull it
up. Then slide the seat to the desired
position with slight body pressure and
release the lever.
From rear—
Pull the lever up. Then slide the seat
to the desired position and release the
lever.
When a person sits in the third seat
center position, adjust both seat cush-
ions to the same position.
Do not place anything under the seats. It
might interfere with the seat −lock mecha-
nism.
2. SEATBACK ANGLE ADJUSTING LEVER
From front—
Lean forward and pull the lever toward
you. Then lean back to the desired
angle and release the lever.
From rear—
Push down the lever. Push the seatback
forward or pull it backward to the de-
sired angle and release the lever.

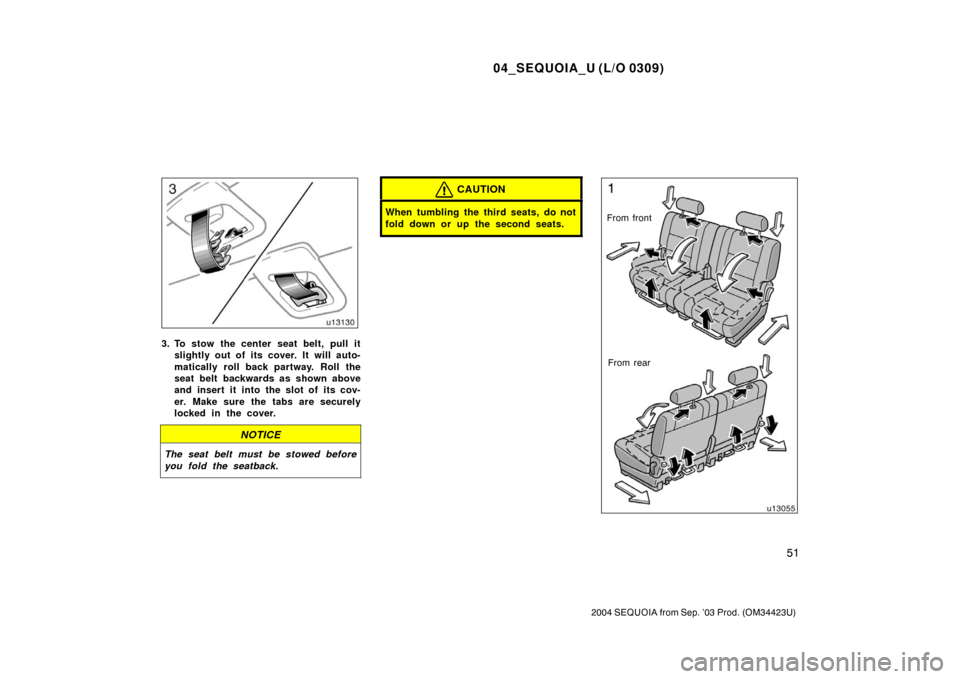

—Adjusting third seats

04_SEQUOIA_U (L/O 0309)
50
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
When a person sits in the third seat
center position, align both seatbacks at
the same angle.
CAUTION
Adjust both seat cushions to the
same position and align both seat-
backs at the same angle when a
person sits in the third seat center
position. Otherwise, the person can-
not wear the seat belt properly and
this may cause serious injuries in
a collision.
To reduce the risk of sliding under
the lap belt during a collision,
avoid reclining the seatback any
more than needed. The seat belts
provide maximum protection in a
frontal or rear collision when the
passengers are sitting up straight
and well back in the seats. If you
are reclined, the lap belt may slide
past your hips and apply restraint
forces directly to the abdomen. In
the event of a frontal collision, the
more the seat is reclined, the great-
er the risk of personal injury.BEFORE FOLDING UP THIRD SEATS1. Stow the third seat belt buckles as shown in the illustration.
This prevents the buckles from falling out
when you fold up the third seats.
NOTICE
The seat belt buckles must be stowed
before you fold up the third seats.
2. Make sure the shoulder belt passes through the hanger when folding the
third seats.
This prevents the shoulder belt from being
damaged.
CAUTION
The seat belt must be removed from
the hanger when the seat belt is in
use.
—Tumbling third seats for
luggage space

04_SEQUOIA_U (L/O 0309)
51
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
3. To stow the center seat belt, pull itslightly out of its cover. It will auto-
matically roll back partway. Roll the
seat belt backwards as shown above
and insert it into the slot of its cov-
er. Make sure the tabs are securely
locked in the cover.
NOTICE
The seat belt must be stowed before
you fold the seatback.
CAUTION
When tumbling the third seats, do not
fold down or up the second seats.From front
From rear

04_SEQUOIA_U (L/O 0309)
52
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
TUMBLING THIRD SEATS1. Move the seat to the rearmost posi- tion. Lower the head restraint to the
lowest position. Unlock the seatback
and fold it down.
CAUTION
To avoid serious injury, do not sit on
the folded seatback.
Tumbling the third seats will enlarge the
luggage compartment. See “—Stowage
precautions” on page 305 in Section 2 for
precautions when loading luggage.
2. Unlock the seat leg by pulling thelock release lever on the rear of the
seat cushion and swing the whole
seat up and forward.
CAUTION
Make sure people or luggage are
clear from the seat. Then, hold the
seat and slowly move it. Otherwise,
people may be injured or luggage
may be damaged, if the seat hits
them.
When tumbling the seat, be careful
not to get your hands or feet
pinched in the seat.
3. Take the holding strap out of itshole which is on the rear of the sec-
ond seat (For the location of the
strap, see “—Tumbling second seats
for luggage space” on page 47 in
this Section.), and hang the strap
onto the anchor. Next, pull the strap
on the free end to secure the seat.
When returning the third seats to its origi-
nal position, put the holding strap into the
hole.
