TOYOTA SEQUOIA 2004 1.G Owners Manual

04_SEQUOIA_U (L/O 0309)
83
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)

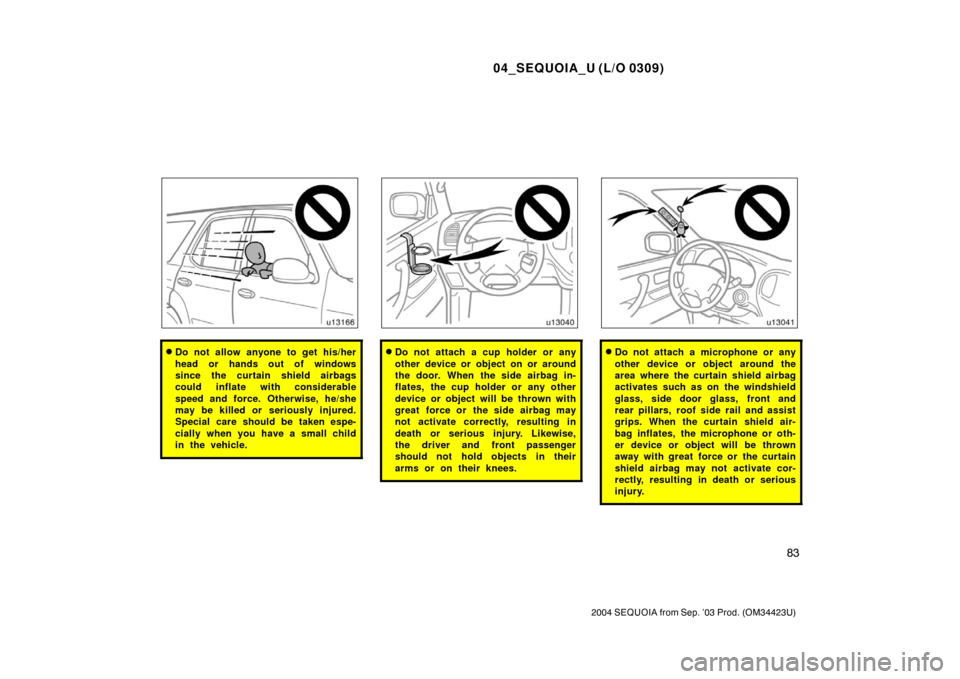

Do not allow anyone to get his/her
head or hands out of windows
since the curtain shield airbags
could inflate with considerable
speed and force. Otherwise, he/she
may be killed or seriously injured.
Special care should be taken espe-
cially when you have a small child
in the vehicle.Do not attach a cup holder or any
other device or object on or around
the door. When the side airbag in-
flates, the cup holder or any other
device or object will be thrown with
great force or the side airbag may
not activate correctly, resulting in
death or serious injury. Likewise,
the driver and front passenger
should not hold objects in their
arms or on their knees.Do not attach a microphone or any
other device or object around the
area where the curtain shield airbag
activates such as on the windshield
glass, side door glass, front and
rear pillars, roof side rail and assist
grips. When the curtain shield air-
bag inflates, the microphone or oth-
er device or object will be thrown
away with great force or the curtain
shield airbag may not activate cor-
rectly, resulting in death or serious
injury.

04_SEQUOIA_U (L/O 0309)
84
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
Do not use seat accessories which
cover the parts where the side air-
bags inflate. Such accessories may
prevent the side airbags from acti-
vating correctly, causing death or
serious injury.
Do not modify or replace the seats
or upholstery of the seats with side
airbags. Such changes may prevent
the side airbag system from activat-
ing correctly, disable the system or
cause the side airbags to inflate ac-
cidentally, resulting in death or seri-
ous injury.
Do not disassemble or repair the
front and rear pillars and roof side
rails containing the curtain shield
airbags. Such changes may disable
the system or cause the curtain
shield airbags to inflate accidental-
ly, resulting in death or serious in-
jury.
Failure to follow these instructions
can result in death or serious injury.
Consult your Toyota dealer about any
repair and modification.
NOTICE
Do not perform any of the following
changes without consulting your
Toyota dealer. Such changes can
interfere with proper operation of the
SRS side airbag and curtain shield
airbag system in some cases.
 Installation of electronic devices
such as a mobile twoway radio,
cassette tape player or compact
disc player
 Modification of the suspension sys-
tem
 Modification of the side structure of
the passenger compartment
 Repairs made on or near the con-
sole
This indicator comes on when the igni-
tion key is turned to the “ON” position.
It goes off after about 6 seconds. This
means the SRS side airbags and curtain
shield airbags are operating properly.
This warning light system monitors the
airbag sensor assembly, front airbag sen-
sors, side and curtain shield airbag sensor
assemblies, seat belt pretensioner assem-
blies, inflators, warning light, interconnect-
ing wiring and power sources. (For details,
see “Service reminder indicators and
warning buzzers” on page 134 in Section
1−6.)

04_SEQUOIA_U (L/O 0309)
85
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
If any of the following conditions occurs,
this indicates a malfunction of the airbags
or seat belt pretensioners. Contact your
Toyota dealer as soon as possible.
When the ignition key is turned to the
“ON” position, the light does not come
on, remains on or flashes.
The light comes on or starts flashing
while driving.
In the following cases, contact your Toyota
dealer as soon as possible:
Any of the SRS side airbags and cur-
tain shield airbags have been inflated.
The portion of the doors (shaded in the
illustration) was involved in an accident
that was not severe enough to cause
the SRS side airbags and curtain
shield airbags to inflate.
The surface of the seats with the side
airbag (shaded in the illustration) is
scratched, cracked, or otherwise dam-
aged.
The portion of the front pillars or roof
side rail garnish (padding) containing
the curtain shield airbags inside
(shaded in the illustration) is scratched,
cracked, or otherwise damaged.
NOTICE
Do not disconnect the battery cables
before contacting your Toyota dealer.

04_SEQUOIA_U (L/O 0309)
86
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
Toyota strongly urges the use of ap-
propriate child restraint systems for
children.
The laws of all 50 states in the U.S.A.
and Canada now require the use of a
child restraint system.
Your vehicle conforms to SAE J1819.
If a child is too large for a child restraint
system, the child should sit in the rear
seat and must be restrained using the
vehicle’s seat belt. See “Seat belts” on
page 59 in this Section for details.

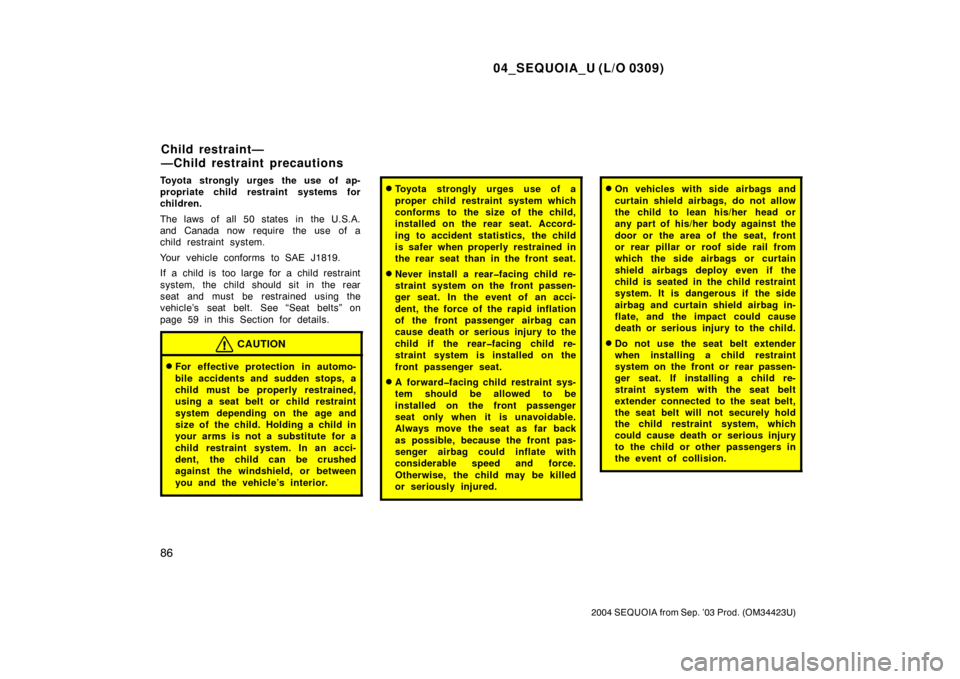

CAUTION
For effective protection in automo-
bile accidents and sudden stops, a
child must be properly restrained,
using a seat belt or child restraint
system depending on the age and
size of the child. Holding a child in
your arms is not a substitute for a
child restraint system. In an acci-
dent, the child can be crushed
against the windshield, or between
you and the vehicle’s interior.
Toyota strongly urges use of a
proper child restraint system which
conforms to the size of the child,
installed on the rear seat. Accord-
ing to accident statistics, the child
is safer when properly restrained in
the rear seat than in the front seat.
Never install a rearfacing child re-
straint system on the front passen-
ger seat. In the event of an acci-
dent, the force of the rapid inflation
of the front passenger airbag can
cause death or serious injury to the
child if the rearfacing child re-
straint system is installed on the
front passenger seat.
A forwardfacing child restraint sys-
tem should be allowed to be
installed on the front passenger
seat only when it is unavoidable.
Always move the seat as far back
as possible, because the front pas-
senger airbag could inflate with
considerable speed and force.
Otherwise, the child may be killed
or seriously injured.
On vehicles with side airbags and
curtain shield airbags, do not allow
the child to lean his/her head or
any part of his/her body against the
door or the area of the seat, front
or rear pillar or roof side rail from
which the side airbags or curtain
shield airbags deploy even if the
child is seated in the child restraint
system. It is dangerous if the side
airbag and curtain shield airbag in-
flate, and the impact could cause
death or serious injury to the child.
Do not use the seat belt extender
when installing a child restraint
system on the front or rear passen-
ger seat. If installing a child re-
straint system with the seat belt
extender connected to the seat belt,
the seat belt will not securely hold
the child restraint system, which
could cause death or serious injury
to the child or other passengers in
the event of collision.
Child restraint—
—Child restraint precautions

04_SEQUOIA_U (L/O 0309)
87
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
Make sure you have complied with
all installation instructions provided
by the child restraint manufacturer
and that the system is properly se-
cured. If it is not secured properly,
it may cause death or serious injury
to the child in the event of a sud-
den stop or accident.A child restraint system for a small
child or baby must itself be properly
restrained on the seat with the lap por-
tion of the lap/shoulder belt. You must
carefully consult the manufacturer ’s
instructions which accompany the child
restraint system.
To provide proper restraint, use a child
restraint system following the manufactur-
er ’s instructions about the appropriate age
and size of the child for the child restraint
system.
Install the child restraint system correctly
following the instructions provided by its
manufacturer of the system. General
directions are also provided under the fol-
lowing illustrations.
The child restraint system should be
installed on the rear seat. According to
accident statistics, the child is safer when
properly restrained in the rear seat than
in the front seat.
When not using the child restraint system,
keep it secured with the seat belt or place
it somewhere other than the passenger
compartment. This will prevent it from in-
juring passengers in the event of a sud-
den stop or accident.Child restraint systems are classified into
the following 3 types depending on the
child’s age and size.
(A) Infant seat
(B) Convertible seat
(C) Booster seat
Install the child restraint system following
the instructions provided by its manufac-
turer.
Your vehicle has anchor brackets for se-
curing the top strap of a child restraint
system.
For instructions about how to use the an-
chor bracket, see “—Using a top strap” on
page 98 in this Section.
The child restraint lower anchorages ap-
proved for your vehicle may also be used.
See “—Installation with child restraint low-
er anchorages” on page 102 in this Sec-
tion.
—Child restraint system
—Types of child restraint
system

04_SEQUOIA_U (L/O 0309)
88
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
(A) Infant seat
(B) Convertible seat
(C) Booster seat(A) INFANT SEAT INSTALLATION
An infant seat must be used in rear
facing position only.
—Installation with seat belt

04_SEQUOIA_U (L/O 0309)
89
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)

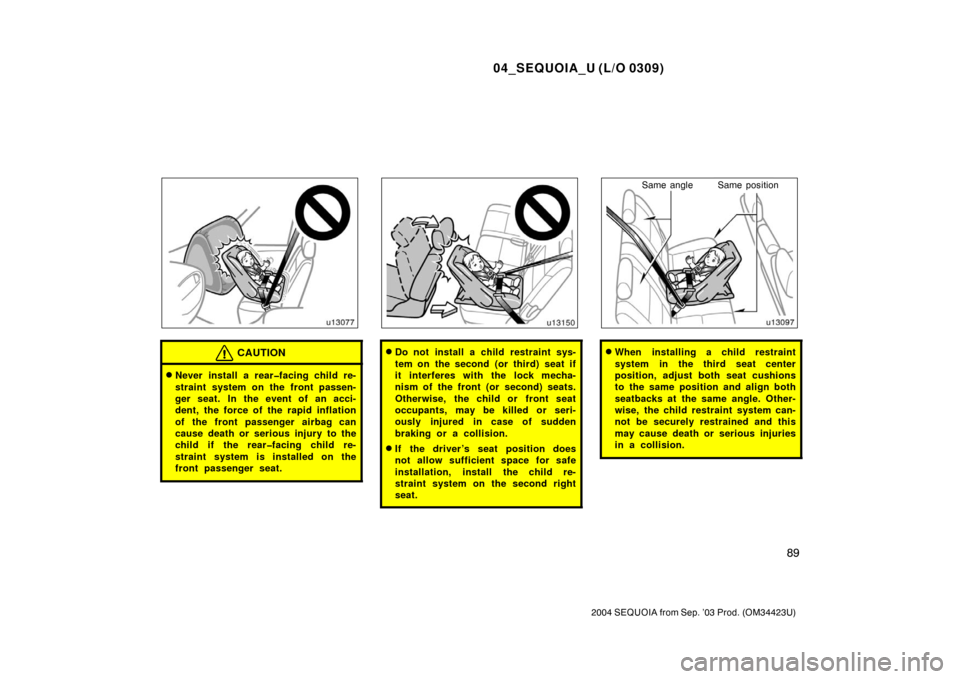

CAUTION
Never install a rearfacing child re-
straint system on the front passen-
ger seat. In the event of an acci-
dent, the force of the rapid inflation
of the front passenger airbag can
cause death or serious injury to the
child if the rearfacing child re-
straint system is installed on the
front passenger seat.
Do not install a child restraint sys-
tem on the second (or third) seat if
it interferes with the lock mecha-
nism of the front (or second) seats.
Otherwise, the child or front seat
occupants, may be killed or seri-
ously injured in case of sudden
braking or a collision.
If the driver ’s seat position does
not allow sufficient space for safe
installation, install the child re-
straint system on the second right
seat.
Same position
Same angle
When installing a child restraint
system in the third seat center
position, adjust both seat cushions
to the same position and align both
seatbacks at the same angle. Other-
wise, the child restraint system can-
not be securely restrained and this
may cause death or serious injuries
in a collision.

04_SEQUOIA_U (L/O 0309)
90
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)

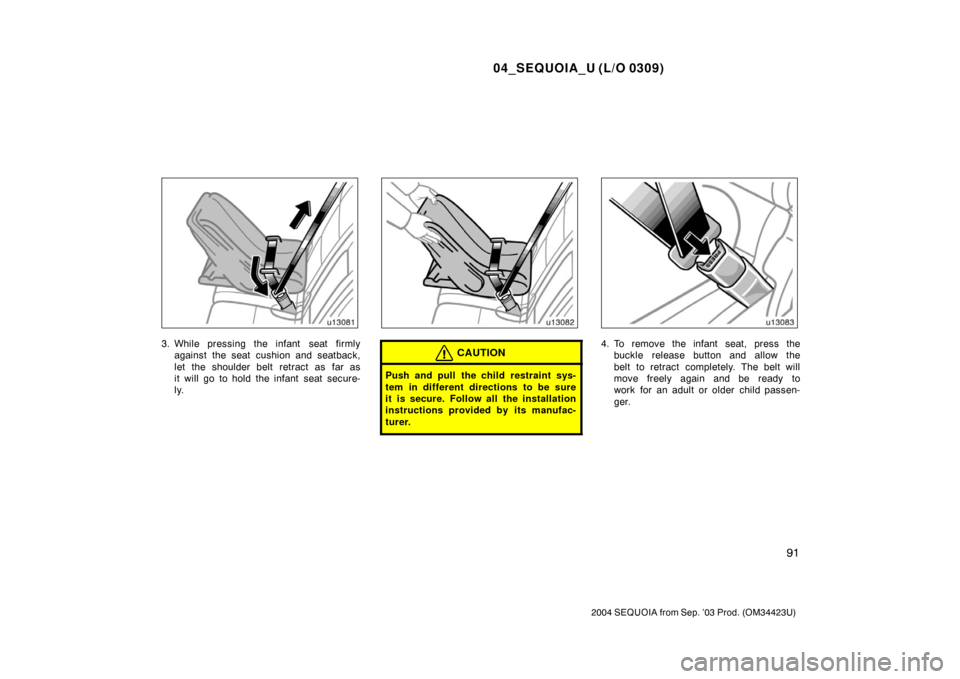

1. Run the lap and shoulder belt throughor around the infant seat following the
instructions provided by its manufactur-
er and insert the tab into the buckle
taking care not to twist the belt. Keep
the lap portion of the belt tight.

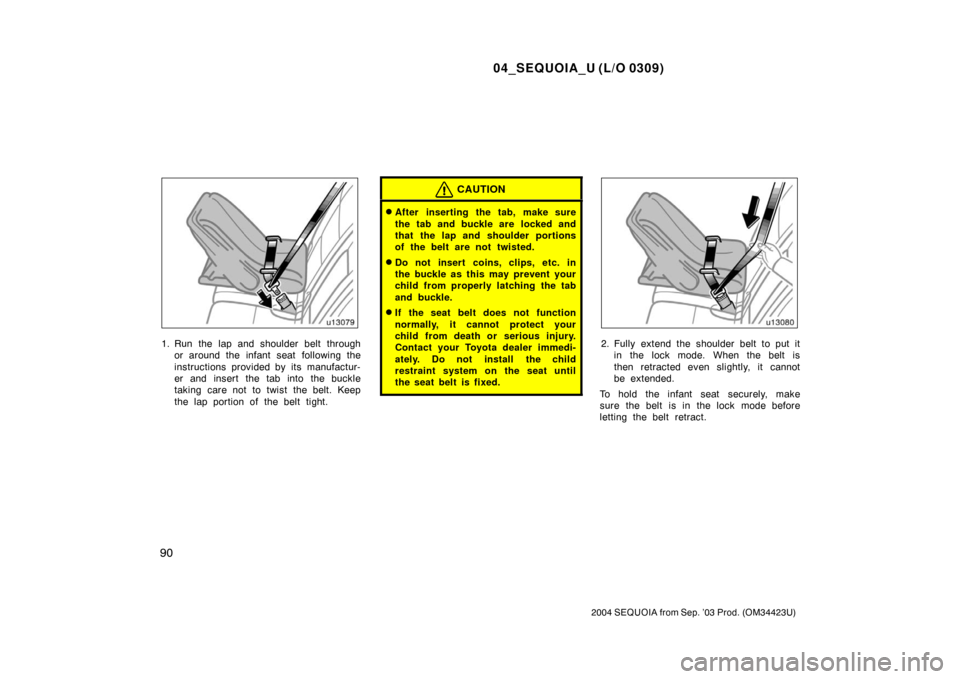

CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.
If the seat belt does not function
normally, it cannot protect your
child from death or serious injury.
Contact your Toyota dealer immedi-
ately. Do not install the child
restraint system on the seat until
the seat belt is fixed.
2. Fully extend the shoulder belt to put itin the lock mode. When the belt is
then retracted even slightly, it cannot
be extended.
To hold the infant seat securely, make
sure the belt is in the lock mode before
letting the belt retract.

04_SEQUOIA_U (L/O 0309)
91
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
3. While pressing the infant seat firmlyagainst the seat cushion and seatback,
let the shoulder belt retract as far as
it will go to hold the infant seat secure-
ly.CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.
4. To remove the infant seat, press thebuckle release button and allow the
belt to retract completely. The belt will
move freely again and be ready to
work for an adult or older child passen-
ger.

04_SEQUOIA_U (L/O 0309)
92
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
(B) CONVERTIBLE SEAT INSTALLATION
A convertible seat must be used in for-
wardfacing or rearfacing position de-
pending on the age and size of the
child. When installing, follow the
manufacturer ’s instructions about the
applicable age and size of the child as
well as directions for installing the
child restraint system.CAUTION
Never install a rearfacing child re-
straint system on the front passen-
ger seat. In the event of an acci-
dent, the force of the rapid inflation
of the front passenger airbag can
cause death or serious injury to the
child if the rearfacing child re-
straint system is installed on the
front passenger seat.
Move seat fully back
A forwardfacing child restraint sys-
tem should be allowed to be
installed on the front passenger
seat only when it is unavoidable.
Always move the seat as far back
as possible, because the front pas-
senger airbag could inflate with
considerable speed and force.
Otherwise, the child may be killed
or seriously injured.
