engine TOYOTA SEQUOIA 2004 1.G Scheduled Maintenance Guide

Maintenance Log: SUVs and Trucks
Scheduled Maintenance Logs24

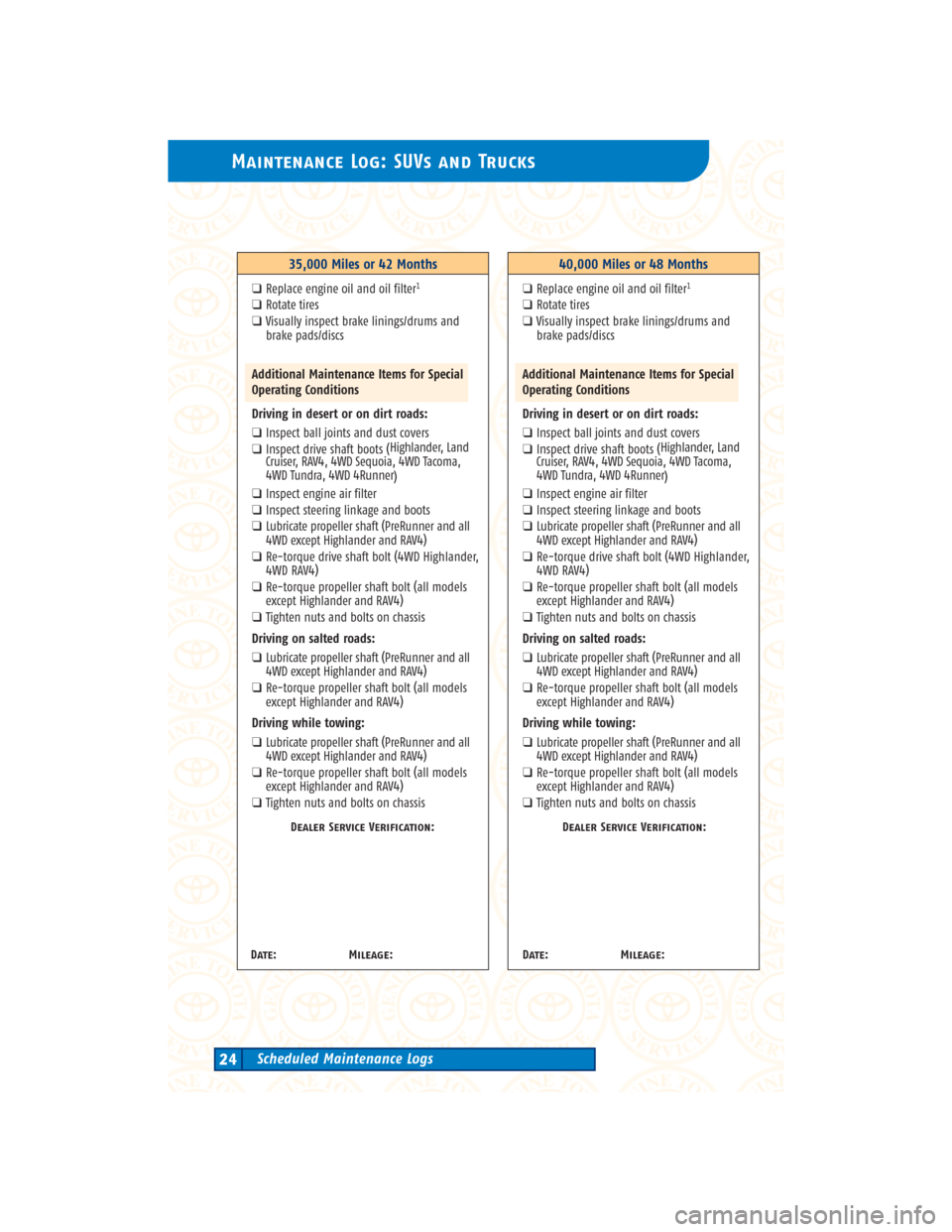

35,000 Miles or 42 Months
❑Replace engine oil and oil filter1
❑Rotate tires
❑Visually inspect brake linings/drums and
brake pads/discs
Additional Maintenance Items for Special
Operating Conditions
Driving in desert or on dirt roads:
❑Inspect ball joints and dust covers
❑Inspect drive shaft boots (Highlander, Land
Cruiser, RAV4, 4WD Sequoia, 4WD Tacoma,
4WD Tundra, 4WD 4Runner
)
❑Inspect engine air filter
❑Inspect steering linkage and boots
❑Lubricate propeller shaft (PreRunner and all
4WD except Highlander and RAV4)
❑Re-torque drive shaft bolt (4WD Highlander,
4WD RAV4)
❑Re-torque propeller shaft bolt (all models
except Highlander and RAV4)
❑Tighten nuts and bolts on chassis
Driving on salted roads:
❑Lubricate propeller shaft (PreRunner and all
4WD except Highlander and RAV4)
❑Re-torque propeller shaft bolt (all models
except Highlander and RAV4)
Driving while towing:
❑Lubricate propeller shaft (PreRunner and all
4WD except Highlander and RAV4)
❑Re-torque propeller shaft bolt (all models
except Highlander and RAV4)
❑Tighten nuts and bolts on chassis
40,000 Miles or 48 Months
❑Replace engine oil and oil filter1
❑Rotate tires
❑Visually inspect brake linings/drums and
brake pads/discs
Additional Maintenance Items for Special
Operating Conditions
Driving in desert or on dirt roads:
❑Inspect ball joints and dust covers
❑Inspect drive shaft boots (Highlander, Land
Cruiser, RAV4, 4WD Sequoia, 4WD Tacoma,
4WD Tundra, 4WD 4Runner
)
❑Inspect engine air filter
❑Inspect steering linkage and boots
❑Lubricate propeller shaft (PreRunner and all
4WD except Highlander and RAV4)
❑Re-torque drive shaft bolt (4WD Highlander,
4WD RAV4)
❑Re-torque propeller shaft bolt (all models
except Highlander and RAV4)
❑Tighten nuts and bolts on chassis
Driving on salted roads:
❑Lubricate propeller shaft (PreRunner and all
4WD except Highlander and RAV4)
❑Re-torque propeller shaft bolt (all models
except Highlander and RAV4)
Driving while towing:
❑Lubricate propeller shaft (PreRunner and all
4WD except Highlander and RAV4)
❑Re-torque propeller shaft bolt (all models
except Highlander and RAV4)
❑Tighten nuts and bolts on chassis
Dealer Service Verification:
Date: Mileage: Dealer Service Verification:
Date: Mileage:

Maintenance Log: SUVs and Trucks
Scheduled Maintenance Logs25
__ Rear differential oil (all models except
2WD Highlander and 2WD RAV4)
__ Steering gear box
__ Steering linkage and boots
__ Transfer case oil (4WD Highlander,
4WD RAV4)
1Reset the oil replacement reminder (“MAINT REQD”) light after replacing engine oil, if vehicle is equipped with this light.

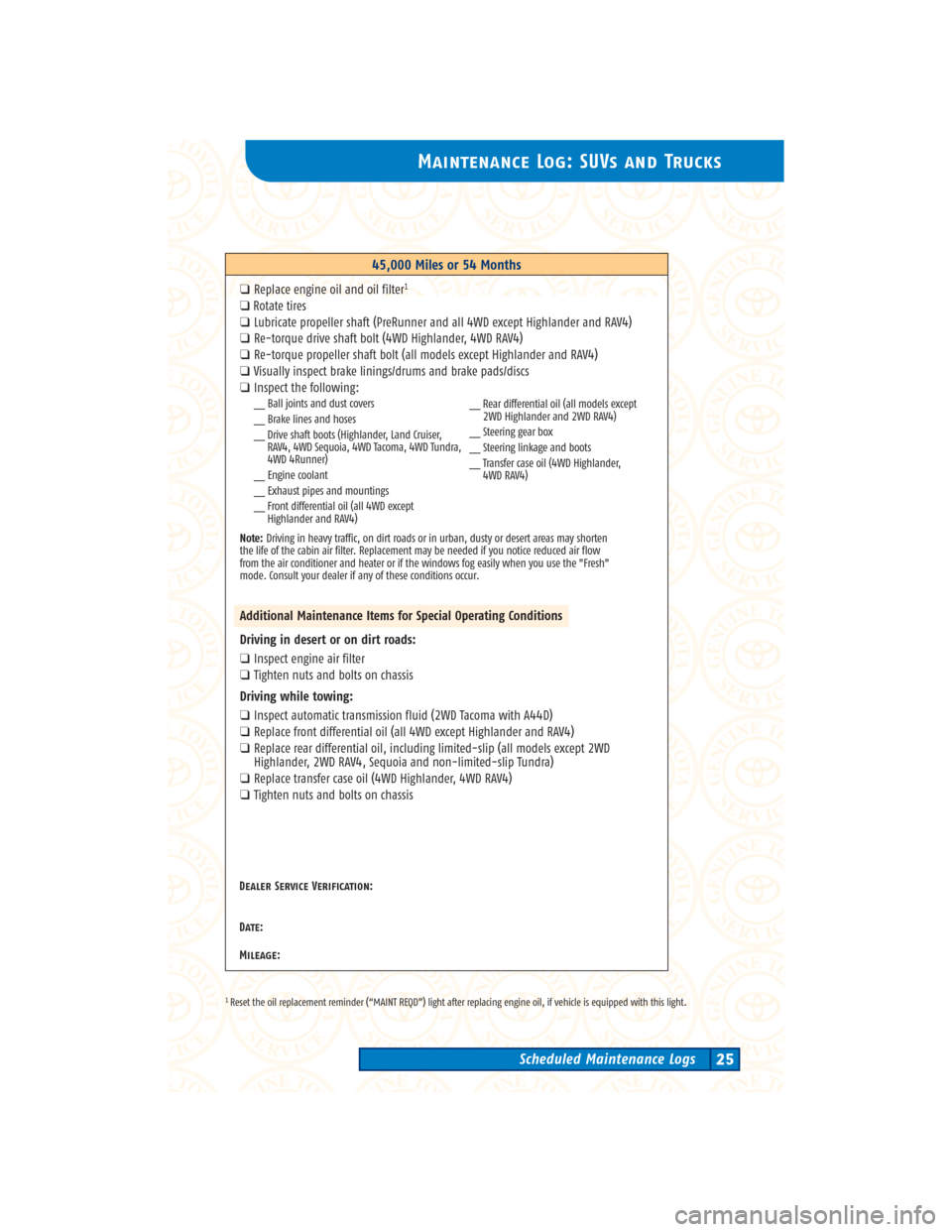

45,000 Miles or 54 Months
❑Replace engine oil and oil filter1
❑Rotate tires
❑Lubricate propeller shaft (PreRunner and all 4WD except Highlander and RAV4)
❑Re-torque drive shaft bolt (4WD Highlander, 4WD RAV4)
❑Re-torque propeller shaft bolt (all models except Highlander and RAV4)
❑Visually inspect brake linings/drums and brake pads/discs
❑Inspect the following:
__ Ball joints and dust covers
__ Brake lines and hoses
__ Drive shaft boots (Highlander, Land Cruiser,
RAV4, 4WD Sequoia, 4WD Tacoma, 4WD Tundra,
4WD 4Runner)
__ Engine coolant
__ Exhaust pipes and mountings
__ Front differential oil (all 4WD except
Highlander and RAV4)
Note: Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may shorten
the life of the cabin air filter. Replacement may be needed if you notice reduced air flow
from the air conditioner and heater or if the windows fog easily when you use the "Fresh"
mode. Consult your dealer if any of these conditions occur.
Additional Maintenance Items for Special Operating Conditions
Driving in desert or on dirt roads:
❑Inspect engine air filter
❑Tighten nuts and bolts on chassis
Driving while towing:
❑Inspect automatic transmission fluid (2WD Tacoma with A44D)
❑Replace front differential oil (all 4WD except Highlander and RAV4)
❑Replace rear differential oil, including limited-slip (all models except 2WD
Highlander, 2WD RAV4, Sequoia and non-limited-slip Tundra)
❑Replace transfer case oil (4WD Highlander, 4WD RAV4)
❑Tighten nuts and bolts on chassis
Dealer Service Verification:
Date:
Mileage:

Maintenance Log: SUVs and Trucks
Scheduled Maintenance Logs26
50,000 Miles or 60 Months
❑Replace engine oil and oil filter1
❑Rotate tires
❑Visually inspect brake linings/drums and
brake pads/discs
Additional Maintenance Items for Special
Operating Conditions
Driving in desert or on dirt roads:
❑Inspect ball joints and dust covers
❑Inspect drive shaft boots (Highlander, Land
Cruiser, RAV4, 4WD Sequoia, 4WD Tacoma,
4WD Tundra, 4WD 4Runner
)
❑Inspect engine air filter
❑Inspect steering linkage and boots
❑Lubricate propeller shaft (PreRunner and all
4WD except Highlander and RAV4)
❑Re-torque drive shaft bolt (4WD Highlander,
4WD RAV4)
❑Re-torque propeller shaft bolt (all models
except Highlander and RAV4)
❑Tighten nuts and bolts on chassis
Driving on salted roads:
❑Lubricate propeller shaft (PreRunner and all
4WD except Highlander and RAV4)
❑Re-torque propeller shaft bolt (all models
except Highlander and RAV4)
Driving while towing:
❑Lubricate propeller shaft (PreRunner and all
4WD except Highlander and RAV4)
❑Re-torque propeller shaft bolt (all models
except Highlander and RAV4)
❑Tighten nuts and bolts on chassis
55,000 Miles or 66 Months
❑Replace engine oil and oil filter1
❑Rotate tires
❑Visually inspect brake linings/drums and
brake pads/discs
Additional Maintenance Items for Special
Operating Conditions
Driving in desert or on dirt roads:
❑Inspect ball joints and dust covers
❑Inspect drive shaft boots (Highlander, Land
Cruiser, RAV4, 4WD Sequoia, 4WD Tacoma,
4WD Tundra, 4WD 4Runner
)
❑Inspect engine air filter
❑Inspect steering linkage and boots
❑Lubricate propeller shaft (PreRunner and all
4WD except Highlander and RAV4)
❑Re-torque drive shaft bolt (4WD Highlander,
4WD RAV4)
❑Re-torque propeller shaft bolt (all models
except Highlander and RAV4)
❑Tighten nuts and bolts on chassis
Driving on salted roads:
❑Lubricate propeller shaft (PreRunner and all
4WD except Highlander and RAV4)
❑Re-torque propeller shaft bolt (all models
except Highlander and RAV4)
Driving while towing:
❑Lubricate propeller shaft (PreRunner and all
4WD except Highlander and RAV4)
❑Re-torque propeller shaft bolt (all models
except Highlander and RAV4)
❑Tighten nuts and bolts on chassis
Dealer Service Verification:
Date: Mileage: Dealer Service Verification:
Date: Mileage:

Maintenance Log: SUVs and Trucks
Scheduled Maintenance Logs27
__ Exhaust pipes and mountings
__ Fuel lines and connections, fuel tank band
and fuel tank vapor vent system hoses
__ Fuel tank cap gasket
__ Manual transmission oil (RAV4, Tundra,
all Tacomas except PreRunner)
__ Radiator core and condenser
__ Rear differential oil (all models except
2WD Highlander and 2WD RAV4)
__ Steering gear box
__ Steering linkage and boots
__ Transfer case oil (all 4WD models)
1Reset the oil replacement reminder (“MAINT REQD”) light after replacing engine oil, if vehicle is equipped with this light.2Required under the terms of the Emission Control Warranty.3Inspect thickness measurement and disc runout.4Applies to Land Cruiser, Sequoia, Tacoma/Tundra with 5VZ-FE and Tundra/4Runner with 2UZ-FE. Inspect at 60,000 miles
or 72 months, whichever comes first. Required only for vehicles in California, Massachusetts and New York.
5Initial inspection at 60,000 miles/72 months. Inspect every 15,000 miles/18 months thereafter.
60,000 Miles or 72 Months
❑Replace engine oil and oil filter1❑Replace engine air filter
❑Rotate tires❑Replace cabin air filter (if equipped)
❑Lubricate drive shaft bushing (Land Cruiser)
❑Lubricate propeller shaft (PreRunner and all 4WD except Highlander and RAV4)
❑Lubricate wheel bearings (Land Cruiser, 2WD Tacoma)
❑Replace limited-slip differential oil, if equipped (4WD Highlander, Land Cruiser,
4WD RAV4, 4WD Tacoma, 2WD Tundra)
❑Replace spark plugs (all models except Highlander and Land Cruiser)
2
❑Re-torque drive shaft bolt (Highlander, 4WD RAV4)
❑Re-torque propeller shaft bolt (all models except Highlander and RAV4)
❑Inspect the following:
__ Automatic transmission fluid
__ Ball joints and dust covers
__ Brake lines and hoses
__ Brake linings/drums and brake pads/discs
3
__ Charcoal canister4
__ Drive belts5
__Drive shaft boots (Highlander, Land Cruiser,
RAV4, 4WD Sequoia, 4WD Tacoma,
4WD Tundra, 4WD 4Runner)
__ Engine coolant
__ Engine valve clearance
__ Front differential oil (4WD models,
Highlander, RAV4)
Additional Maintenance Items for Special Operating Conditions
Driving in desert or on dirt roads:
❑Tighten nuts and bolts on chassis
Driving while towing:
❑Replace front differential oil (Highlander, RAV4 and all 4WD models)
❑Replace rear differential oil, including limited-slip (all models except 2WD
Highlander and 2WD RAV4)
❑Replace transfer case oil (4WD models)
❑Replace transmission fluid or oil
❑Tighten nuts and bolts on chassis
Dealer Service Verification:
Date:
Mileage:

Maintenance Log: SUVs and Trucks
Scheduled Maintenance Logs28
65,000 Miles or 78 Months
❑Replace engine oil and oil filter1
❑Rotate tires
❑Visually inspect brake linings/drums and
brake pads/discs
Additional Maintenance Items for Special
Operating Conditions
Driving in desert or on dirt roads:
❑Inspect ball joints and dust covers
❑Inspect drive shaft boots (Highlander, Land
Cruiser, RAV4, 4WD Sequoia, 4WD Tacoma,
4WD Tundra, 4WD 4Runner
)
❑Inspect engine air filter
❑Inspect steering linkage and boots
❑Lubricate propeller shaft (PreRunner and all
4WD except Highlander and RAV4)
❑Re-torque drive shaft bolt (4WD Highlander,
4WD RAV4)
❑Re-torque propeller shaft bolt (all models
except Highlander and RAV4)
❑Tighten nuts and bolts on chassis
Driving on salted roads:
❑Lubricate propeller shaft (PreRunner and all
4WD except Highlander and RAV4)
❑Re-torque propeller shaft bolt (all models
except Highlander and RAV4)
Driving while towing:
❑Lubricate propeller shaft (PreRunner and all
4WD except Highlander and RAV4)
❑Re-torque propeller shaft bolt (all models
except Highlander and RAV4)
❑Tighten nuts and bolts on chassis
70,000 Miles or 84 Months
❑Replace engine oil and oil filter1
❑Rotate tires
❑Visually inspect brake linings/drums and
brake pads/discs
Additional Maintenance Items for Special
Operating Conditions
Driving in desert or on dirt roads:
❑Inspect ball joints and dust covers
❑Inspect drive shaft boots (Highlander, Land
Cruiser, RAV4, 4WD Sequoia, 4WD Tacoma,
4WD Tundra, 4WD 4Runner
)
❑Inspect engine air filter
❑Inspect steering linkage and boots
❑Lubricate propeller shaft (PreRunner and all
4WD except Highlander and RAV4)
❑Re-torque drive shaft bolt (4WD Highlander,
4WD RAV4)
❑Re-torque propeller shaft bolt (all models
except Highlander and RAV4)
❑Tighten nuts and bolts on chassis
Driving on salted roads:
❑Lubricate propeller shaft (PreRunner and all
4WD except Highlander and RAV4)
❑Re-torque propeller shaft bolt (all models
except Highlander and RAV4)
Driving while towing:
❑Lubricate propeller shaft (PreRunner and all
4WD except Highlander and RAV4)
❑Re-torque propeller shaft bolt (all models
except Highlander and RAV4)
❑Tighten nuts and bolts on chassis
Dealer Service Verification:
Date: Mileage: Dealer Service Verification:
Date: Mileage:

Maintenance Log: SUVs and Trucks
Scheduled Maintenance Logs29
__ Front differential oil (all 4WD except
Highlander and RAV4)
__ Rear differential oil (all models except
2WD Highlander and 2WD RAV4)
__ Steering gear box
__ Steering linkage and boots
__ Transfer case oil (4WD Highlander,
4WD RAV4)
1Reset the oil replacement reminder (“MAINT REQD”) light after replacing engine oil, if vehicle is equipped with this light.
75,000 Miles or 90 Months
❑Replace engine oil and oil filter1
❑Rotate tires
❑Lubricate propeller shaft (PreRunner and all 4WD except Highlander and RAV4)
❑Re-torque drive shaft bolt (4WD Highlander, 4WD RAV4)
❑Re-torque propeller shaft bolt (all models except Highlander and RAV4)
❑Visually inspect brake linings/drums and brake pads/discs
❑Inspect the following:
__ Ball joints and dust covers
__ Brake lines and hoses
__ Drive belts
__ Drive shaft boots (Highlander, Land Cruiser,
RAV4, 4WD Sequoia, 4WD Tacoma, 4WD Tundra,
4WD 4Runner)
__ Engine coolant
__ Exhaust pipes and mountings
Note: Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may shorten
the life of the cabin air filter. Replacement may be needed if you notice reduced air flow
from the air conditioner and heater or if the windows fog easily when you use the "Fresh"
mode. Consult your dealer if any of these conditions occur.
Additional Maintenance Items for Special Operating Conditions
Driving in desert or on dirt roads:
❑Inspect engine air filter
❑Tighten nuts and bolts on chassis
Driving while towing:
❑Inspect automatic transmission fluid (2WD Tacoma with A44D)
❑Replace front differential oil (all 4WD except Highlander and RAV4)
❑Replace rear differential oil, including limited-slip (all models except 2WD
Highlander, 2WD RAV4, Sequoia and non-limited-slip Tundra)
❑Replace transfer case oil (4WD Highlander, 4WD RAV4)
❑Tighten nuts and bolts on chassis
Dealer Service Verification:
Date:
Mileage:

5,000-Mile Maintenance Intervals
7,500-Mile Maintenance IntervalsTo determine the appropriate maintenance
interval for your vehicle, see page 16.
Dealer Service Verification:
Date: Mileage:
Scheduled Maintenance Logs48
Dealer Service Verification:
Maintenance Log: SUVs and Trucks
Scheduled Maintenance Logs30
80,000 Miles or 96 Months
❑Replace engine oil and oil filter1
❑Rotate tires
❑Visually inspect brake linings/drums and
brake pads/discs
Additional Maintenance Items for Special
Operating Conditions
Driving in desert or on dirt roads:
❑Inspect ball joints and dust covers
❑Inspect drive shaft boots (Highlander, Land
Cruiser, RAV4, 4WD Sequoia, 4WD Tacoma,
4WD Tundra, 4WD 4Runner
)
❑Inspect engine air filter
❑Inspect steering linkage and boots
❑Lubricate propeller shaft (PreRunner and all
4WD except Highlander and RAV4)
❑Re-torque drive shaft bolt (4WD Highlander,
4WD RAV4)
❑Re-torque propeller shaft bolt (all models
except Highlander and RAV4)
❑Tighten nuts and bolts on chassis
Driving on salted roads:
❑Lubricate propeller shaft (PreRunner and all
4WD except Highlander and RAV4)
❑Re-torque propeller shaft bolt (all models
except Highlander and RAV4)
Driving while towing:
❑Lubricate propeller shaft (PreRunner and all
4WD except Highlander and RAV4)
❑Re-torque propeller shaft bolt (all models
except Highlander and RAV4)
❑Tighten nuts and bolts on chassis
85,000 Miles or 102 Months
❑Replace engine oil and oil filter1
❑Rotate tires
❑Visually inspect brake linings/drums and
brake pads/discs
Additional Maintenance Items for Special
Operating Conditions
Driving in desert or on dirt roads:
❑Inspect ball joints and dust covers
❑Inspect drive shaft boots (Highlander, Land
Cruiser, RAV4, 4WD Sequoia, 4WD Tacoma,
4WD Tundra, 4WD 4Runner
)
❑Inspect engine air filter
❑Inspect steering linkage and boots
❑Lubricate propeller shaft (PreRunner and all
4WD except Highlander and RAV4)
❑Re-torque drive shaft bolt (4WD Highlander,
4WD RAV4)
❑Re-torque propeller shaft bolt (all models
except Highlander and RAV4)
❑Tighten nuts and bolts on chassis
Driving on salted roads:
❑Lubricate propeller shaft (PreRunner and all
4WD except Highlander and RAV4)
❑Re-torque propeller shaft bolt (all models
except Highlander and RAV4)
Driving while towing:
❑Lubricate propeller shaft (PreRunner and all
4WD except Highlander and RAV4)
❑Re-torque propeller shaft bolt (all models
except Highlander and RAV4)
❑Tighten nuts and bolts on chassis
Dealer Service Verification:
Date: Mileage: Dealer Service Verification:
Date: Mileage:

5,000-Mile Maintenance Intervals
7,500-Mile Maintenance IntervalsTo determine the appropriate maintenance
interval for your vehicle, see page 16.
Dealer Service Verification:
Date:
Mileage:
Dealer Service Verification:
Maintenance Log: SUVs and Trucks
Scheduled Maintenance Logs31
__ Fuel lines and connections, fuel tank band
and fuel tank vapor vent system hoses
__ Fuel tank cap gasket
__ Manual transmission oil (RAV4, Tundra, all
Tacomas except PreRunner)
__ Radiator core and condenser
__ Rear differential oil (all models except
2WD Highlander and 2WD RAV4)
__ Steering gear box
__ Steering linkage and boots
__ Transfer case oil (all 4WD models)
1Reset the oil replacement reminder (“MAINT REQD”) light after replacing engine oil, if vehicle is equipped with this light.2Required under the terms of the Emission Control Warranty3Applies to Highlander with 3MZ-FE, Land Cruiser, Sequoia, Tundra, Tacoma with 5VZ-FE and 4Runner with 2UZ-FE.4Inspect thickness measurement and disc runout.
90,000 Miles or 108 Months
❑Replace engine oil and oil filter1❑Replace engine air filter
❑Rotate tires❑Replace cabin air filter (if equipped)
❑Lubricate drive shaft bushing (Land Cruiser)
❑Lubricate propeller shaft (PreRunner and all 4WD except Highlander and RAV4)
❑Lubricate wheel bearings (Land Cruiser, 2WD Tacoma)
❑Replace limited-slip differential oil, if equipped (Land Cruiser, 4WD Tacoma,
2WD Tundra)
❑Replace spark plugs (4Runner w/ 1GR-FE, Sequoia, Tacoma, Tundra)
2
❑Replace timing belt3
❑Re-torque drive shaft bolt (4WD Highlander, 4WD RAV4)
❑Re-torque propeller shaft bolt (all models except Highlander and RAV4)
❑Inspect the following:
__ Automatic transmission fluid
__ Ball joints and dust covers
__ Brake lines and hoses
__ Brake linings/drums and brake pads/discs
4
__ Drive belts
__ Drive shaft boots (Highlander, Land Cruiser,
RAV4, 4WD Sequoia, 4WD Tacoma,
4WD Tundra, 4WD 4Runner)
__ Engine coolant
__ Exhaust pipes and mountings
__ Front differential oil (4WD models,
Highlander and RAV4)
Additional Maintenance Items for Special Operating Conditions
Driving in desert or on dirt roads:
❑Tighten nuts and bolts on chassis
Driving while towing:
❑Replace automatic transmission fluid (2WD Tacoma with A44D)
❑Replace front differential oil (2WD RAV4 with manual transmission, all 4WD models
except RAV4 with automatic transmission and Highlander)
❑Replace manual transmission oil (RAV4, Tundra, all Tacomas except PreRunner)
❑Replace rear differential oil, including limited-slip (all models except 2WD
Highlander and 2WD RAV4)
❑Replace transfer case oil (4WD models)
❑Tighten nuts and bolts on chassis
Dealer Service Verification:
Date:
Mileage:

Maintenance Log: SUVs and Trucks
Scheduled Maintenance Logs32
95,000 Miles or 114 Months
❑Replace engine oil and oil filter1
❑Rotate tires
❑Visually inspect brake linings/drums and
brake pads/discs
Additional Maintenance Items for Special
Operating Conditions
Driving in desert or on dirt roads:
❑Inspect ball joints and dust covers
❑Inspect drive shaft boots (Highlander, Land
Cruiser, RAV4, 4WD Sequoia, 4WD Tacoma,
4WD Tundra, 4WD 4Runner
)
❑Inspect engine air filter
❑Inspect steering linkage and boots
❑Lubricate propeller shaft (PreRunner and all
4WD except Highlander and RAV4)
❑Re-torque drive shaft bolt (4WD Highlander,
4WD RAV4)
❑Re-torque propeller shaft bolt (all models
except Highlander and RAV4)
❑Tighten nuts and bolts on chassis
Driving on salted roads:
❑Lubricate propeller shaft (PreRunner and all
4WD except Highlander and RAV4)
❑Re-torque propeller shaft bolt (all models
except Highlander and RAV4)
Driving while towing:
❑Lubricate propeller shaft (PreRunner and all
4WD except Highlander and RAV4)
❑Re-torque propeller shaft bolt (all models
except Highlander and RAV4)
❑Tighten nuts and bolts on chassis
100,000 Miles or 120 Months
❑Replace engine oil and oil filter1
❑Rotate tires
❑Replace engine coolant2
❑Visually inspect brake linings/drums and
brake pads/discs
Additional Maintenance Items for Special
Operating Conditions
Driving in desert or on dirt roads:
❑Inspect ball joints and dust covers
❑Inspect drive shaft boots (Highlander, Land
Cruiser, RAV4, 4WD Sequoia, 4WD Tacoma,
4WD Tundra, 4WD 4Runner
)
❑Inspect engine air filter
❑Inspect steering linkage and boots
❑Lubricate propeller shaft (PreRunner and all
4WD except Highlander and RAV4)
❑Re-torque drive shaft bolt (4WD Highlander,
4WD RAV4)
❑Re-torque propeller shaft bolt (all models
except Highlander and RAV4)
❑Tighten nuts and bolts on chassis
Driving on salted roads:
❑Lubricate propeller shaft (PreRunner and all
4WD except Highlander and RAV4)
❑Re-torque propeller shaft bolt (all models
except Highlander and RAV4)
Driving while towing:
❑Lubricate propeller shaft (PreRunner and all
4WD except Highlander and RAV4)
❑Re-torque propeller shaft bolt (all models
except Highlander and RAV4)
❑Tighten nuts and bolts on chassis
Dealer Service Verification:
Date: Mileage: Dealer Service Verification:
Date: Mileage:

Maintenance Log: SUVs and Trucks
Scheduled Maintenance Logs33
1Reset the oil replacement reminder (“MAINT REQD”) light after replacing engine oil, if vehicle is equipped with this light.2Initial replacement at 100,000 miles/120 months. Replace every 50,000 miles/60 months thereafter. See page 37
for additional information.
105,000 Miles or 126 Months
❑Replace engine oil and oil filter1
❑Rotate tires
❑Lubricate propeller shaft (PreRunner and all 4WD except Highlander and RAV4)
❑Re-torque drive shaft bolt (4WD Highlander, 4WD RAV4)
❑Re-torque propeller shaft bolt (all models except Highlander and RAV4)
❑Visually inspect brake linings/drums and brake pads/discs
❑Inspect the following:
__ Ball joints and dust covers
__ Brake lines and hoses
__ Drive belts
__ Drive shaft boots (Highlander, Land Cruiser,
RAV4, 4WD Sequoia, 4WD Tacoma, 4WD Tundra,
4WD 4Runner)
__ Engine coolant
__ Exhaust pipes and mountings
Note: Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may shorten
the life of the cabin air filter. Replacement may be needed if you notice reduced air flow
from the air conditioner and heater or if the windows fog easily when you use the "Fresh"
mode. Consult your dealer if any of these conditions occur.
Additional Maintenance Items for Special Operating Conditions
Driving in desert or on dirt roads:
❑Inspect engine air filter
❑Tighten nuts and bolts on chassis
Driving while towing:
❑Inspect automatic transmission fluid (2WD Tacoma with A44D)
❑Replace front differential oil (all 4WD except Highlander and RAV4)
❑Replace rear differential oil, including limited-slip (all models except 2WD
Highlander, 2WD RAV4, Sequoia and non-limited-slip Tundra)
❑Replace transfer case oil (4WD Highlander, 4WD RAV4)
❑Tighten nuts and bolts on chassis
Dealer Service Verification:
Date:
Mileage:
__ Front differential oil (all 4WD except
Highlander and RAV4)
__ Rear differential oil (all models except
2WD Highlander and 2WD RAV4)
__ Steering gear box
__ Steering linkage and boots
__ Transfer case oil (4WD Highlander,
4WD RAV4)
