engine TOYOTA SEQUOIA 2004 1.G Scheduled Maintenance Guide

Maintenance Log: SUVs and Trucks
Scheduled Maintenance Logs34
110,000 Miles or 132 Months
❑Replace engine oil and oil filter1
❑Rotate tires
❑Visually inspect brake linings/drums and
brake pads/discs
Additional Maintenance Items for Special
Operating Conditions
Driving in desert or on dirt roads:
❑Inspect ball joints and dust covers
❑Inspect drive shaft boots (Highlander, Land
Cruiser, RAV4, 4WD Sequoia, 4WD Tacoma,
4WD Tundra, 4WD 4Runner
)
❑Inspect engine air filter
❑Inspect steering linkage and boots
❑Lubricate propeller shaft (PreRunner and all
4WD except Highlander and RAV4)
❑Re-torque drive shaft bolt (4WD Highlander,
4WD RAV4)
❑Re-torque propeller shaft bolt (all models
except Highlander and RAV4)
❑Tighten nuts and bolts on chassis
Driving on salted roads:
❑Lubricate propeller shaft (PreRunner and all
4WD except Highlander and RAV4)
❑Re-torque propeller shaft bolt (all models
except Highlander and RAV4)
Driving while towing:
❑Lubricate propeller shaft (PreRunner and all
4WD except Highlander and RAV4)
❑Re-torque propeller shaft bolt (all models
except Highlander and RAV4)
❑Tighten nuts and bolts on chassis
115,000 Miles or 138 Months
❑Replace engine oil and oil filter1
❑Rotate tires
❑Visually inspect brake linings/drums and
brake pads/discs
Additional Maintenance Items for Special
Operating Conditions
Driving in desert or on dirt roads:
❑Inspect ball joints and dust covers
❑Inspect drive shaft boots (Highlander, Land
Cruiser, RAV4, 4WD Sequoia, 4WD Tacoma,
4WD Tundra, 4WD 4Runner
)
❑Inspect engine air filter
❑Inspect steering linkage and boots
❑Lubricate propeller shaft (PreRunner and all
4WD except Highlander and RAV4)
❑Re-torque drive shaft bolt (4WD Highlander,
4WD RAV4)
❑Re-torque propeller shaft bolt (all models
except Highlander and RAV4)
❑Tighten nuts and bolts on chassis
Driving on salted roads:
❑Lubricate propeller shaft (PreRunner and all
4WD except Highlander and RAV4)
❑Re-torque propeller shaft bolt (all models
except Highlander and RAV4)
Driving while towing:
❑Lubricate propeller shaft (PreRunner and all
4WD except Highlander and RAV4)
❑Re-torque propeller shaft bolt (all models
except Highlander and RAV4)
❑Tighten nuts and bolts on chassis
Dealer Service Verification:
Date: Mileage: Dealer Service Verification:
Date: Mileage:

Maintenance Log: SUVs and Trucks
Scheduled Maintenance Logs35
__ Exhaust pipes and mountings
__ Fuel lines and connections, fuel tank band
and fuel tank vapor vent system hoses
__ Fuel tank cap gasket
__ Manual transmission oil (RAV4, Tundra,
all Tacomas except PreRunner)
__ Radiator core and condenser
__ Rear differential oil (all models except
2WD Highlander and 2WD RAV4)
__ Steering gear box
__ Steering linkage and boots
__ Transfer case oil (all 4WD models)
1Reset the oil replacement reminder (“MAINT REQD”) light after replacing engine oil, if vehicle is equipped with this light.2Required under the terms of the Emission Control Warranty.3Inspect thickness measurement and disc runout.4Applies to Land Cruiser, Sequoia, Tacoma/Tundra with 5VZ-FE and Tundra/4Runner with 2UZ-FE. Inspect at 60,000 miles or
72 months, whichever comes first. Required only for vehicles in California, Massachusetts and New York.
120,000 Miles or 144 Months
❑Replace engine oil and oil filter1❑Replace engine air filter
❑Rotate tires❑Replace cabin air filter (if equipped)
❑Lubricate drive shaft bushing (Land Cruiser)
❑Lubricate propeller shaft (PreRunner and all 4WD except Highlander and RAV4)
❑Lubricate wheel bearings (Land Cruiser, 2WD Tacoma)
❑Replace limited-slip differential oil, if equipped (4WD Highlander, Land Cruiser, 4WD
RAV4, 4WD Tacoma, 2WD Tundra)
❑Replace spark plugs (all models)
2
❑Re-torque drive shaft bolt (Highlander, 4WD RAV4)
❑Re-torque propeller shaft bolt (all models except Highlander and RAV4)
❑Inspect the following:
__ Automatic transmission fluid
__ Ball joints and dust covers
__ Brake lines and hoses
__ Brake linings/drums and brake pads/discs
3
__ Charcoal canister4
__ Drive belts
__Drive shaft boots (Highlander, Land Cruiser,
RAV4, 4WD Sequoia, 4WD Tacoma,
4WD Tundra, 4WD 4Runner)
__ Engine coolant
__ Engine valve clearance
__ Front differential oil (4WD models,
Highlander, RAV4)
Additional Maintenance Items for Special Operating Conditions
Driving in desert or on dirt roads:
❑Tighten nuts and bolts on chassis
Driving while towing:
❑Replace front differential oil (Highlander, RAV4 and all 4WD models)
❑Replace rear differential oil, including limited-slip (all models except 2WD
Highlander and 2WD RAV4)
❑Replace transfer case oil (4WD models)
❑Replace transmission fluid or oil
❑Tighten nuts and bolts on chassis
Dealer Service Verification:
Date:
Mileage:

Explanation of Maintenance Items
Scheduled Maintenance Logs37
Differential Oil
Replace at specified intervals. When performing inspections, check each
component for signs of leakage. If you discover any leakage, have it repaired
by a qualified technician immediately.
Drive Belts
Inspect for cracks, excessive wear and oiliness. Check the belt tension and
adjust if necessary. Replace the belts if they are damaged.
Drive Shaft Boots
Check the drive shaft boots and clamps for cracks, deterioration and damage.
Replace any deteriorated or damaged parts and, if necessary, repack the grease.
Selected models also require periodic inspection of the drive shaft bolt for proper
torque. A qualified technician should perform these operations.
Engine Air Filter
Replace at specified intervals. When performing inspections, check for damage,
excessive wear and oiliness, and replace if necessary.
Engine Coolant
Drain and flush the cooling system and refill with an ethylene-glycol type
coolant. Inspect the radiator, condenser and/or intercooler for leaves, dirt and
insects and clean if necessary. Inspect hoses and connections for corrosion and
leaks. Tighten connections and replace parts as necessary. A qualified technician
should perform these operations.
Note:Your Toyota is equipped with Genuine Toyota Super Long-Life Coolant. The
replacement intervals for engine coolant recommended in this booklet are based
on replacement with Genuine Toyota Super Long-Life Coolant or similar high-
quality non-silicate, non-amine, non-borate ethylene-glycol coolant with
long-life hybrid organic acid technology (i.e., a combination of low phosphates
and organic acids). If another type of ethylene-glycol coolant is used, replace-
ment intervals may be different.
Engine Oil and Oil Filter
Replace the oil filter and drain and refill the engine oil at specified intervals.
For recommended oil grade and viscosity, refer to the Owner’s Manual.

Explanation of Maintenance Items
Scheduled Maintenance Logs38
Engine Valve Clearance
Inspect for excessive lifter noise and engine vibration and adjust if necessary.
A qualified technician should perform this operation.
Exhaust Pipes and Mountings
Visually inspect the exhaust pipes, muffler and hangers for cracks, deterioration
and damage. Start the engine and listen carefully for any exhaust gas leakage.
Tighten connections or replace parts as necessary.
Fuel Lines and Connections, Fuel Tank Band and
Fuel Tank Vapor Vent System Hoses
Visually inspect for corrosion, damage, cracks and loose or leaking connections.
Tighten connections or replace parts as necessary.
Fuel Tank Cap Gasket
Visually inspect for cracks, deterioration and damage and replace if necessary.
Nuts and Bolts on Chassis and Body
Re-tighten the seat-mounting bolts and front/rear suspension member retaining
bolts to specified torque.
Propeller Shaft
Lubricate the propeller shaft spiders and slide yokes with lithium-base chassis grease
and the double cardan joint with molybdenum-disulfide lithium-base chassis grease,
and re-torque the bolt. Only a qualified technician should re-torque the bolt.
Radiator Core and Condenser
Inspect for debris and signs of damage. Have any problem repaired immediately
by a qualified technician.
Spark Plugs
Replace at specified intervals. Install new plugs of the same type as originally
equipped. A qualified technician should perform this operation.
Steering Gear Box
Inspect for signs of leakage. If you discover any leakage, have it repaired imme-
diately by a qualified technician.

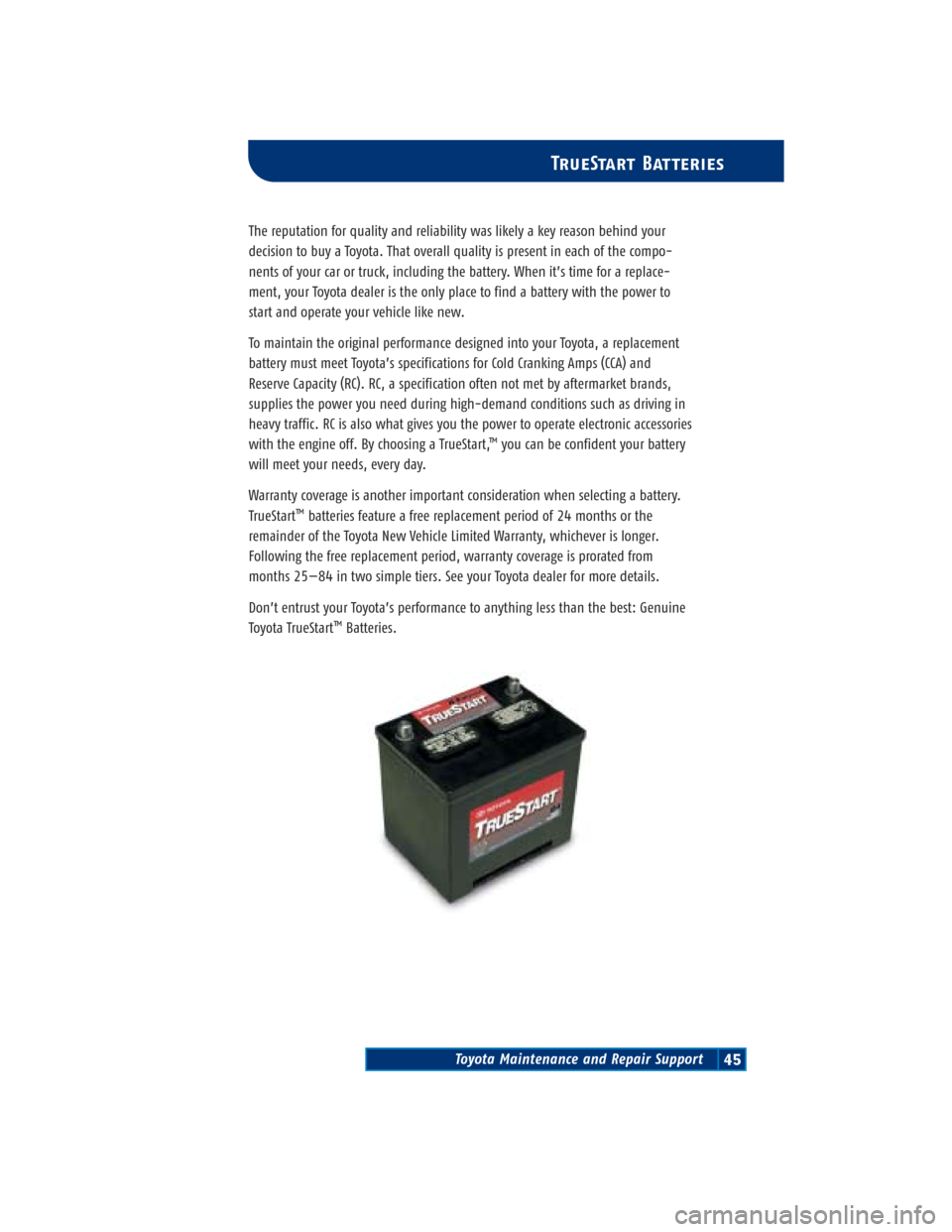

Toyota Maintenance and Repair Support45
TrueStart Batteries
The reputation for quality and reliability was likely a key reason behind your
decision to buy a Toyota. That overall quality is present in each of the compo-
nents of your car or truck, including the battery. When it’s time for a replace-
ment, your Toyota dealer is the only place to find a battery with the power to
start and operate your vehicle like new.
To maintain the original performance designed into your Toyota, a replacement
battery must meet Toyota’s specifications for Cold Cranking Amps (CCA) and
Reserve Capacity (RC). RC, a specification often not met by aftermarket brands,
supplies the power you need during high-demand conditions such as driving in
heavy traffic. RC is also what gives you the power to operate electronic accessories
with the engine off. By choosing a TrueStart,
™you can be confident your battery
will meet your needs, every day.
Warranty coverage is another important consideration when selecting a battery.
TrueStart
™batteries feature a free replacement period of 24 months or the
remainder of the Toyota New Vehicle Limited Warranty, whichever is longer.
Following the free replacement period, warranty coverage is prorated from
months 25—84 in two simple tiers. See your Toyota dealer for more details.
Don’t entrust your Toyota’s performance to anything less than the best: Genuine
Toyota TrueStart
™Batteries.

Toyota Maintenance and Repair Support48
Do-It-Yourself Products
When it’s time to replace key wear items on your vehicle, don’t settle for less
than Genuine Toyota Parts. Available exclusively through Toyota dealerships,
Genuine Toyota Parts meet the highest standards of quality and performance and
are built to exact factory specifications. Here are a few of your vehicle’s compo-
nents that are particularly subject to wear and some benefits of replacing them
with Genuine Toyota Parts.
Genuine Toyota Platinum and Iridium Spark Plugs*
•Designed to last at least 60,000 miles.
•Provide the maximum spark required by Toyota’s high-compression engines.
•Resist fouling and misfires for more efficient conbustion and better fuel economy.
Genuine Toyota Brake Pads
•Friction materials selected for optimum performance when matched with
Toyota brake drums or rotors.
•Precision-machined backing plates allow pads to move freely within the
calipers for smooth, efficient braking.
Genuine Toyota Wiper Inserts
•Cut to match the exact length and shape of your vehicle’s wiper blades for a
proper and secure fit.
•Constructed of compression-molded natural rubber — not synthetic — for
superior wiping performance.
Always use the right spark plugs for your engine. The wrong plugs can have a
negative impact on fuel economy and overall engine performance.*

Toyota Maintenance and Repair Support49
Do-It-Yourself Products
Genuine Toyota Chemicals
Toyota offers a complete line of products to help you keep your Toyota looking and
running like new. To safeguard your vehicle’s appearance, you’ll find everything
from fabric spot remover and glass cleaner to liquid car wash and touch-up paint.
When it’s time to get under the hood (or under the car), products such as fuel
injector cleaner, brake fluid and silicone spray will help you get the job done.
All of these products are formulated specifically for use with Toyota vehicles, so you
can be confident you’re giving your vehicle the best care possible, inside and out.
Genuine Toyota Super Long-Life Antifreeze/Coolant
Genuine Toyota Super Long-Life Antifreeze/Coolant is the same high-quality,
factory-fill product found in new Toyotas. You’ll know it by its distinctive pink
color. It provides maximum protection and durability without the use of harmful
silicates. And because it’s compatible with non-metallic materials, it helps extend
the life of water-pump seals. Don’t trust your engine to anything less than the
best: Genuine Toyota Super Long-Life Antifreeze/Coolant.
Genuine Toyota Motor Oil
Your Toyota’s engine features highly advanced technology to ensure superior
performance, reliability and fuel economy. Genuine Toyota Motor Oil is formulated
with a special combination of lube-base stocks and an additive blend to maxi-
mize the benefits of this technology. Make sure you’re getting the most out of
your engine by always putting the best into it: Genuine Toyota Motor Oil.
