ii
Important information about this manual
For safety reasons, this manual indicates
items requiring particular attention with the
following marks.
CAUTION
This is a warning against anything
which may cause injury to people if the
warning is ignored. You are informed
about what you must or must not do in
order to reduce the risk of injury to
yourself and others.
NOTICE
This is a warning against anything
which may cause damage to the ve-
hicle or its equipment if the warning is
ignored. You are informed about what
you must or must not do in order to
avoid or reduce the risk of damage to
your vehicle and its equipment.
INFORMATION
This provides additional information.
Initial screen
When you start the engine or turn the ignition
switch to the “ACC” position, the initial
screen appears and the system begins
operating.
CAUTION
When the vehicle is stopped with the
engine running, always apply the park-
ing brake for safety.
After a few seconds, the “CAUTION” screen
appears.
Touch either “English” or
“Français” to select a language. Read
and follow the instructions.
When you touch the
“I Agree” switch
on the screen, the map screen appears.
You can access this screen when you push
the
“INFO” button and touch the “Lan-
guage”
switch. Then you can select a lan-
guage.

34
— Destination input by
“Previous”
Touch the “Previous” switch on the
“Destination” screen.
The previous starting point and up to 99 pre-
viously set destinations are displayed on the
screen.
Touch the switch of the desired destina-
tion. The screen changes and displays the
map location of the selected destination
and the route preference. (See “ — Enter-
ing destination” on page 38.)
“Date”: To list the previous destinations in or-
der of registered date.
“Name”: To list the previous destinations in
alphabetical order.
INFORMATION
You can delete the list of previous des-
tinations while your vehicle is stopped,
if you no longer need them. (See page
91.)
— Destination input by “Map”
Touch the “Map” switch on the “Destina-
tion” screen.
The screen changes and displays the map
location that was previously displayed
just before the destination input operation
and the route preference. (See “ — Enter-
ing destination” on page 38.)
INFORMATION
Guidance starts if you touch the “En-
ter” switch even while driving. Howev-
er, the cursor cannot be moved.

38
Starting route guidance —
— Entering destination
After you input the destination, the screen
changes and displays the map location of
the selected destination and the route
preference.
SCREEN A
1. When you touch an arrow facing the
desired point, the map scrolls in that
direction. When you release your finger,
scrolling stops.
2. To set the destination and display
SCREEN B, touch the
“Enter” switch.
When the destination is already set, the
“Add to ” switch and the “Replace
” switch are displayed.
“Add to
”: To add a destination.“Replace
”: To delete the existing destina-
tions and set a new one.
“Change”: To change the route preference.
(See page 39.)
“Info.”: If this switch is displayed on the top
of the screen, touch the switch to see name,
address, and phone number, etc.
SCREEN B
3. To start guidance, touch the
“Guide”switch.
“3 Routes”: To select the desired route from
three possible routes. (See page 39.)
“Route”: To change the route. (See pages
42 and 44.)
INFORMATION
Guidance can be suspended or re-
sumed. (See page 62.)
If you keep touching the
“Guide”switch until a beep sounds, Demo
mode will start.

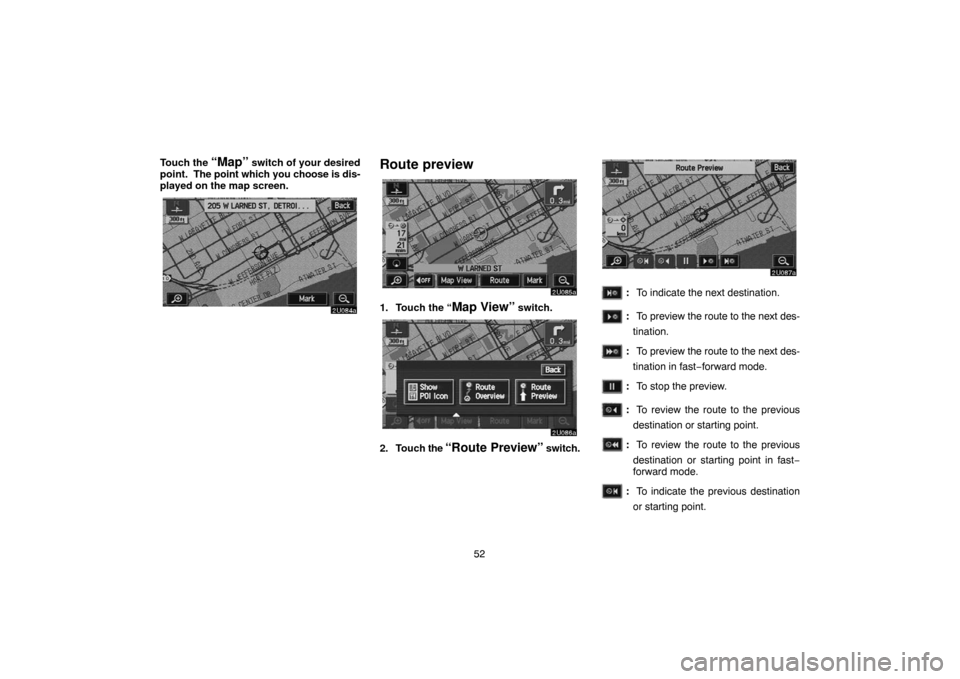

52 Touch the
“Map” switch of your desired
point. The point which you choose is dis-
played on the map screen.Route preview
1. Touch the “Map View” switch.
2. Touch the “Route Preview” switch.
:To indicate the next destination.
:To preview the route to the next des-
tination.
:To preview the route to the next des-
tination in fast−forward mode.
:To stop the preview.
:To review the route to the previous
destination or starting point.
:To review the route to the previous
destination or starting point in fast−
forward mode.
:To indicate the previous destination
or starting point.

11 9

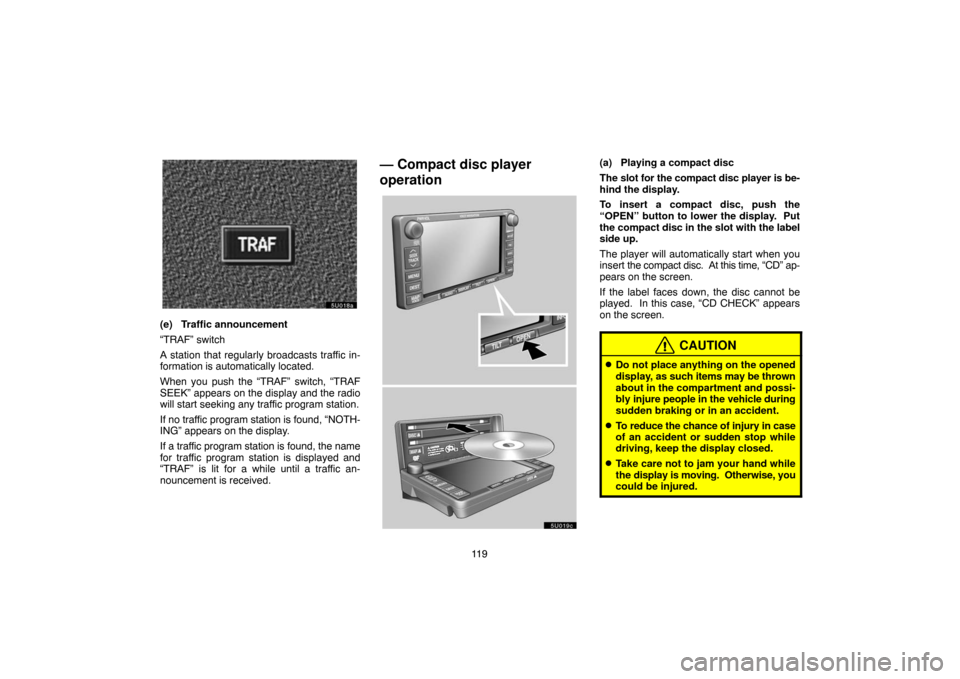

(e) Traffic announcement
“TRAF” switch
A station that regularly broadcasts traffic in-
formation is automatically located.
When you push the “TRAF” switch, “TRAF
SEEK” appears on the display and the radio
will start seeking any traffic program station.
If no traffic program station is found, “NOTH-
ING” appears on the display.
If a traffic program station is found, the name
for traffic program station is displayed and
“TRAF” is lit for a while until a traffic an-
nouncement is received.
— Compact disc player
operation(a) Playing a compact disc
The slot for the compact disc player is be-
hind the display.
To insert a compact disc, push the
“OPEN” button to lower the display. Put
the compact disc in the slot with the label
side up.
The player will automatically start when you
insert the compact disc. At this time, “CD” ap-
pears on the screen.
If the label faces down, the disc cannot be
played. In this case, “CD CHECK” appears
on the screen.
CAUTION
Do not place anything on the opened
display, as such items may be thrown
about in the compartment and possi-
bly injure people in the vehicle during
sudden braking or in an accident.
To reduce the chance of injury in case
of an accident or sudden stop while
driving, keep the display closed.
Take care not to jam your hand while
the display is moving. Otherwise, you
could be injured.

127 (e) Operating a DVD video disc
NOTE: The playback condition of some
DVD video discs may be determined by a
DVD video software producer. This DVD
player plays a disc as the software pro-
ducer intended. So some functions may
not work properly. Be sure to read the in-
struction manual for the DVD video disc
separately provided. For the detailed in-
formation about DVD video discs, see “(h)
DVD player and DVD video disc informa-
tion”.
Precautions on DVD video disc
When recording with a DVD video or video
CD, audio tracks may not record in some
cases while the menu is displayed. As audio
will not play in this case, verify that the video
tracks are playing and then activate playback.
When playback of a disc is completed:
If an audio CD is playing, the first track
starts.
If a DVD video or video CD is playing,
playback will stop or the menu screen will
be displayed.
The title/chapter number and playback time
display may not appear while playing back
certain DVD video discs.
CAUTION
Conversational speech on some DVDs
is recorded at a low volume to empha-
size the impact of sound effects. If you
adjust the volume assuming that the
conversations represent the maximum
volume level that the DVD will play, you
may be startled by louder sound effects
or when you change to a different audio
source. The louder sounds may have a
significant impact on the human body or
pose a driving hazard. Keep this in mind
when you adjust the volume.
This “DVD Hint!” screen appears when the
video screen is first displayed after you
turn the ignition key to “ACC” or “ON”.
Touch “OK” when you read the message.

129 “Hide Keys” switch: Touching this will turn
off the controls from the screen.
If “
” appears on the screen when you touch
a control, the operation relevant to the control
is not permitted.
DESCRIPTION OF DVD CONTROLS
Top page of DVD video controls
“Menu” and “Top Menu”: If you touch any
of the above controls, the menu screen for
DVD video appears. (For the operation, see
the manual that come with the DVD video disc
provided separately.)
“
”: The menu control key appears on the
screen. (See page 130.)
“
”: Touching this will pause the video
screen. When you touch this again, the video
screen advances frame by frame.
“”: Touching this will fast reverse during
playback and reverse slowly during pause.
“”: Touching this switch will resume normal
play after stop or pause.
“”: Touching this will fast forward during
playback and forward slowly during pause.
Second page of DVD video controls
“Set Up”: The initial set up screen appears.
(See page 133.)
“Search”: The title search screen appears.
(See page 130.)“Return”: Touching this will display the pre-
determined scene and start playing from
there.
“Audio”: The audio changing screen ap-
pears. (See page 132.)
“Sub Title”: The subtitle changing screen
appears. (See page 131.)
“Angle”: The angle selection screen ap-
pears. (See page 132.)
Top page of DVD audio controls
“Top Menu”: If you touch this switch, the
menu screen for DVD audio appears. (For
operation, refer to the DVD audio disc manual
that is provided separately.)
“Audio”: The audio changing screen ap-
pears. (See page 132.)
“
”: The menu control key appears on the
screen. (See page 130.)
“
”: Touch this switch to pause the disc.
“”: Touching this will fast reverse.
“”: Touching this will resume normal play
after stop or pause.
“”: Touching this will fast forward.
Second page of DVD audio controls
“Set Up”: The initial set up screen appears.
(See page 133.)
“Search”: The group search screen ap-
pears. (See page 130.)
“Return”: Touching this will display the pre-
determined scene and start playing from
there.
“Still Prev.”: Touch this switch to reverse the
still pictures. (See page 131.)
“Still Next”: Touch this switch to forward the
still pictures. (See page 131.)
“Sub Title”: The subtitle changing screen
appears. (See page 131.)
“Angle”: The angle selection screen ap-
pears. (See page 132.)
