window TOYOTA SEQUOIA 2005 1.G User Guide

05_SEQUOIA_U (L/O 0409)
29
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)

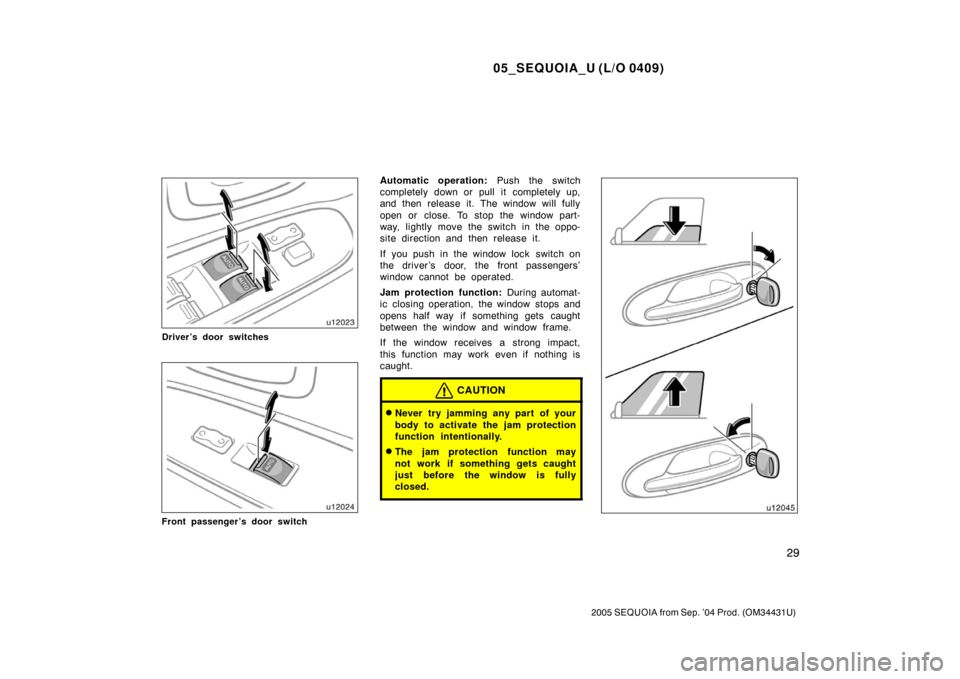

Driver’s door switches
Front passenger’s door switch
Automatic operation: Push the switch
completely down or pull it completely up,
and then release it. The window will fully
open or close. To stop the window part-
way, lightly move the switch in the oppo-
site direction and then release it.
If you push in the window lock switch on
the driver ’s door, the front passengers’
window cannot be operated.
Jam protection function: During automat-
ic closing operation, the window stops and
opens half way if something gets caught
between the window and window frame.
If the window receives a strong impact,
this function may work even if nothing is
caught.
CAUTION
Never try jamming any part of your
body to activate the jam protection
function intentionally.
The jam protection function may
not work if something gets caught
just before the window is fully
closed.

05_SEQUOIA_U (L/O 0409)
30
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
OPERATING FROM OUTSIDE
The front windows can be opened and
closed with the key operation in the driv-
er ’s door keyhole.
To open: Turn the key fully backward and
hold it.
After the door is unlocked, the window
begins to open. To stop the window part-
way, release the key.
To close: Turn the key fully forward and
hold it.
After the door is locked, the window be-
gins to close. To stop the window partway,
release the key.
This feature can be disabled. For details,
contact your Toyota dealer.

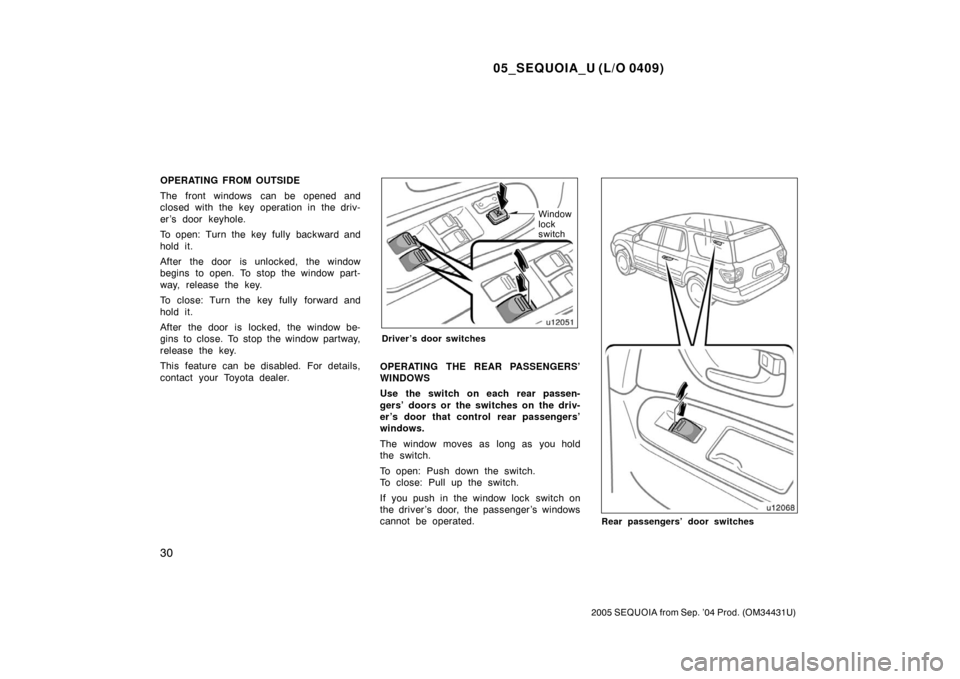

Window
lock
switch
Driver’s door switches
OPERATING THE REAR PASSENGERS’
WINDOWS
Use the switch on each rear passen-
gers’ doors or the switches on the driv-
er ’s door that control rear passengers’
windows.
The window moves as long as you hold
the switch.
To open: Push down the switch.
To close: Pull up the switch.
If you push in the window lock switch on
the driver ’s door, the passenger ’s windows
cannot be operated.
Rear passengers’ door switches

05_SEQUOIA_U (L/O 0409)
31
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
CAUTION
To avoid serious personal injury, you
must do the following.
Before you close the power win-
dows, always make sure there is
nobody around the power windows.
You must also make sure the
heads, hands and other parts of the
bodies of all occupants are kept
completely inside the vehicle. If
someone’s neck, head or hands get
caught in a closing window, it
could result in a serious injury.
When anyone closes the power win-
dows, make sure he or she oper-
ates the windows safely.
When small children are in the ve-
hicle, never let them use the power
window switches without supervi-
sion. Use the window lock switch to
prevent them from making unex-
pected use of the switches.
Be sure to remove the ignition key
when you leave your vehicle.
Never leave anyone (particularly a
small child) alone in your vehicle,
especially with the ignition key still
inserted. Otherwise, he/she could
use the power window switches and
get trapped in a window. Unat-
tended person (particularly a small
child) can be involved in a serious
accident.
OPERATING FROM INSIDE
The back window can be operated with
the switch on the instrument panel.
The ignition key must be in the “ON” posi-
tion.
Key off operation: If the both front doors
are closed, the window works for 43 sec-
onds even after the ignition switch is
turned off. It stops working when the ei-
ther front door is opened.
To open: Push the switch on the “
”
side. The back window will fully open au-
tomatically. To stop the window partway,
push either side of the switch.
Power back window

05_SEQUOIA_U (L/O 0409)
32
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
When you quickly push and release the
switch, the back window will open while
the switch is depressed and stop when
released.
To close: Push the switch on the “
”
side. The back window will fully close au-
tomatically. To stop the window partway,
push either side of the switch.
When you quickly push and release the
switch, the back window will close while
the switch is depressed and stop when
released.
You can also open the back window when
the back window wiper is working. At that
time, the wiper stops working until the
window is closed again.
If the back window is not fully closed, the
back window wiper, washer, and defogger
will not work. (See “Back window wiper
and washer” on page 154 and “Back win-
dow and outside rear view mirror defog-
gers” on page 154 in Section 1 −5.) Jam protection function:
During automat-
ic closing operation, the window stops and
opens slightly if something gets caught
between the window and window frame.
If the window receives a strong impact,
this function may work even if nothing is
caught.
CAUTION
Never try jamming any part of your
body to activate the jam protection
function intentionally.
The jam protection function may
not work if something gets caught
just before the window is fully
closed.
If the battery is disconnected or run
down, the back window may not operate
automatically and the jam protection func-
tion will not function correctly after you
reconnect, replace or recharge the battery.
In any of these cases, you should normal-
ize the back window.
To normalize the back window, close the
window fully by the power back window
switch. If the window has already been
closed, open it slightly and then fully
close it using the power back window
switch.
Make sure that the back window opens
and closes automatically. If the back win-
dow cannot be operated properly, have it
checked by your Toyota dealer.

05_SEQUOIA_U (L/O 0409)
33
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
OPERATING FROM OUTSIDE
The back window can be opened and
closed with the key operation in the back
door keyhole.
To open: Turn the key fully counterclock-
wise and hold it.
After the door is unlocked, the window
begins to open. To stop the window part-
way, release the key.
To close: Turn the key fully clockwise and
hold it.
After the door is locked, the window be-
gins to close. To stop the window partway,
release the key.
This door key linked function can be
erased. For details, contact your Toyota
dealer.
You can also open the back window when
the back window wiper is working. At the
time, the wiper stops working until the
window is closed again.
If the back window is not fully closed, the
back window wiper, washer, and defogger
will not work. (See “Back window wiper
and washer” on page 154 and “Back win-
dow and outside rear view mirror defog-
gers” on page 154 in Section 1−5.)CAUTION
To avoid serious personal injury, you
must do the following.
Before you close the power back
window, always make sure there is
nobody around the power back win-
dow. You must also make sure the
heads, hands and other parts of the
bodies of all occupants are kept
completely inside the vehicle. If
someone’s neck, head or hands get
caught in a closing window, it
could result in a serious injury.
When anyone closes the power
back window, make sure he or she
operates the window safely.
When small children are in the ve-
hicle, never let them use the power
back window switch without super-
vision.
Be sure to remove the ignition key
when you leave your vehicle.

05_SEQUOIA_U (L/O 0409)
34
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
Never leave anyone (particularly a
small child) alone in your vehicle,
especially with the ignition key still
inserted. Otherwise, he/she could
use the power back window switch
and get trapped in a window. Unat-
tended person (particularly a small
child) can be involved in a serious
accident.
Keep the back window closed while
driving. This not only keeps the
luggage from being thrown out but
also prevents exhaust gases from
entering the vehicle.
Vehicles with wireless remote control sys-
tem—
To open the back window with the wire-
less remote control transmitter, see
“—Opening back window” on page 22 in
this Section.
LOCKING AND UNLOCKING WITH KEY
Insert the key into the keyhole and turn
it.
To lock: Turn the key clockwise.
To unlock: Turn the key counterclockwise.
All the doors lock and unlock simulta-
neously with back door.
To open the back door, pull the lever.
The back door will be controlled by oper-
ating the power door lock switch.
The back door window can be opened or
closed with the key operation in the back
door keyhole. (For details, see “Power
back window” on page 31 in this Section.)When closing the back door, the inside
strap can be used to make the reach
easier.
To close the back door, lower it and press
down on it. After closing the back door,
try pulling it up to make sure it is secure-
ly closed.
See “—Stowage precautions” on page 358
in Section 2 for precautions when loading
luggage.
Back door

05_SEQUOIA_U (L/O 0409)
35
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
CAUTION
Keep the back window and back door
closed while driving. This not only
keeps the luggage from being thrown
out but also prevents exhaust gases
from entering the vehicle.
NOTICE
To prevent damage to the back door
dampers, do not apply any force,
paint or let any other foreign matter
on them.
Driver’s side
Passenger’s side
LOCKING AND UNLOCKING WITH
POWER BACK DOOR LOCK SWITCH
Push the switch.
To lock: Push the switch down on the
front side.
To unlock: Push the switch down on the
rear side.
Operating the power door lock switch si-
multaneously locks or unlocks the back
door. (See “Side doors” on page 24 in this
Section.)
Vehicles with wireless remote control sys-
tem—
To lock or unlock the back door, see
“Wireless remote control” on page 18 in
this Section.

05_SEQUOIA_U (L/O 0409)
36
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
To open the hood:1. Pull the hood lock release lever. The hood will spring up slightly.
CAUTION
Before driving, be sure that the hood
is closed and securely locked. Other-
wise, the hood may open unexpected-
ly while driving and an accident may
occur.
2. In front of the vehicle, pull up theauxiliary catch l ever and lift the
hood.
Before closing the hood, check to see that
you have not forgotten any tools, rags,
etc. Then lower the hood make sure it
locks into place. If necessary, press down
gently on the front edge to lock it.To deter vehicle theft, the system is
designed to sound an alarm if any of
the side doors, back door or hood is
forcibly unlocked or opened or the bat-
tery terminal is disconnected and then
reconnected when the vehicle is locked.
On some models, the alarm also
sounds, when someone attempts to
break the side windows.
The alarm blows the horn intermittently
and flashes the headlights and tail lights.
Hood Theft deterrent system

05_SEQUOIA_U (L/O 0409)
37
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
Indicator light
Glass breakage sensor (on some models)
SETTING THE SYSTEM1. Turn the ignition key to the “LOCK” position and remove it.
The indicator light will start flashing when
the key is removed from the ignition
switch. (See “Engine immobilizer system”
on page 16 in this Section for details.) 2. Have all passengers get out of the vehicle.
3. Close and lock all the side doors, back door and hood.
The indicator light will remain on when all
the side doors, back door and hood are
closed and locked.
The system will automatically be set after
30 seconds. When the system is set, the
indicator light will start flashing again.
4. After making sure the indicator light starts flashing, you may leave the ve-
hicle.
Never leave anyone in the vehicle when
you set the system, because unlocking
from the inside will activate the system. WHEN THE SYSTEM IS SET
Activating the system
The system will sound the alarm under
the following conditions:
If any of the side doors is unlocked or
opened without the key or wireless re-
mote control transmitter, or if the back
door or hood is forcibly opened
If the battery terminal is disconnected
and then reconnected
Vehicles with the glass breakage sensor—
The side windows are tapped or bro-
ken.
The indicator light will come on when the
system is activated.
If the alarm has been activated and the
key is not in the ignition switch, all the
side doors and back door will re −lock au-
tomatically.
After one minute, the alarm will automati-
cally stop and the indicator light will starts
flashing again.

05_SEQUOIA_U (L/O 0409)
38
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
Reactivating the alarm
Once set, the system automatically resets
the alarm after the alarm stops.
The alarm will activate again under the
same circumstances described in
“Activating the system”.
Stopping the alarm
The alarm will be stopped by the following
two ways:
Turn the ignition key from the “LOCK”
to “ON” position.
Unlock any of the side doors or back
door with the key or wireless remote
control transmitter.
These ways cancel the system at the
same time. TESTING THE SYSTEM
1. Open all the windows.
2. Set the system as described above. The side doors and back door should
be locked with the key or wireless re-
mote control transmitter. Be sure to
wait until the indicator light goes off or
starts flashing.
3. Unlock any side door from the inside. The system should activate the alarm.
4. Stop the alarm as described above.
5. Repeat this operation for the other doors and hood. When testing the
hood, also check that the system is
activated when the battery terminal is
disconnected and then reconnected.
If the system does not work properly,
have it checked by your Toyota dealer.
This indicates that the fuel filler door
is on the left side of your vehicle.
Fuel tank cap
