TOYOTA SEQUOIA 2005 1.G Owners Manual

05_SEQUOIA_U (L/O 0409)
301
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
—Air flow selector settings

05_SEQUOIA_U (L/O 0409)
302
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)

05_SEQUOIA_U (L/O 0409)
303
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Other equipment
Multi−information display 304
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Clock 315
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . .
Cigarette lighter and ashtrays 315
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power outlets 316
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Power outlet 317
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Glove box 318
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Garage door opener box 319
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Auxiliary boxes 321
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Rear console box 324
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
Note pad holder 325
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Coin holder 326
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Compact disc and cassette tape holder 327
. . . . . . . . . . . . . . . . . . . . . . .
Removable console box 328
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
.
Cup holders 330
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Tie −down hooks 331
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Grocery bag hooks 332
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Cargo net hooks 332
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Roof luggage carrier 332
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
Floor mat 333
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
SECTION 1 10

05_SEQUOIA_U (L/O 0409)
304
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
1. “E/M” button
2. Garage door opener buttons
3. “MODE” button
4. Garage door opener indicator
5. Outside temperature and cruiseinformation display
6. Compass
Multiinformation display—

05_SEQUOIA_U (L/O 0409)
305
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
Operate the multiinformation display
with the ignition switch on.
When the ignition switch is turned to
“ON”, the last previously used mode dis-
played just before the ignition switch is
turned off will appear.
When the instrument panel lights are
turned on, the brightness of the display
may be reduced.
—Before using the
multiinformation display
Indication
English/U.S.
Customary
System (E) Metric (M) Outside
temperature
F
 C Instantaneous fuel consumption/
Average fuel consumption
MPG
L/100 km Distance to empty
MI
km
“E/M” button
This button is used to switch between English/U.S. Customary System and
metric units.
Each time you push this button, the displa y switches. This is also linked to the
multi −information display and the front and rear air conditioning displays. The display
variations are as follows;
The initial mode will be English/U.S. Customary System units, however, if the unit
is switched to metric and ignition switch is off, it will display metric units when the
ignition switch is turned to on.

05_SEQUOIA_U (L/O 0409)
306
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
“MODE” button
This button is used to select the item.
Every time you push the “MODE” button,
the display toggles.
For more details, see “—Outside tempera-
ture and cruise information display” on
page 309 in this Section.
CAUTION
Do not adjust the display while the
vehicle is moving. Be sure to adjust
the display only when the vehicle is
stopped.
The garage door opener (\b
Universal Transceiver) is manufactured
under license from HomeLink\b and can
be programmed to operate garage
doors, gates, entry doors, door locks,
home lighting systems, and security
systems, etc.
(a) Programming the HomeLink
\b
The HomeLink\b in your vehicle has 3
buttons and you can store one program
for each button.
To ensure correct programming into the
HomeLink
\b, install a new battery in the
hand− held transmitter prior to program-
ming.
The battery side of the hand −held trans-
mitter must be pointed away from the
HomeLink
\b during the programming pro-
cess.
For Canadian users, follow the procedure
in “Programming an entrance gate/pro-
gramming all devices in the Canadian
market”.
1. Decide which of 3 HomeLink
\b buttons
you want to program. Push and hold
down one of the buttons until the indi-
cator corresponding to the selected
channel begins to flash.
—Garage door opener

05_SEQUOIA_U (L/O 0409)
307
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
2. Place your hand−held garage transmit-
ter 25 to 75 mm (1 to 3 in.) away from
the surface of the HomeLink
\b.
Keep the indicator light on the HomeLink
\b
in view while programming. 3. Simultaneously press and hold the hand− held garage transmitter button
along with the selected HomeLink
\b but-
ton.
4. When the indicator light on the HomeLink
\b changes from a slow to a
rapid flash after 20 seconds, you can
release both buttons.
5. Test the operation of the HomeLink
\b by
pressing the newly programmed button.
If programming a garage door opener,
check to see if the garage door opens
and closes.
If the garage door does not operate, iden-
tify if your garage transmitter is of the
“Rolling Code” type. Press and hold the
programmed HomeLink
\b button. The ga-
rage door has the rolling code feature if
the indicator light (on the HomeLink
\b)
flashes rapidly and then remains lit after
2 seconds. If your garage transmitter is
the “Rolling C ode” type, proceed to the
heading “Programming a rolling code sys-
tem”. 6. Repeat steps 2 through 5 for each re-
maining HomeLink
\b button to program
another device.
Programming a rolling code system
If your device is “Rolling Code”
equipped, it is necessary to follow
steps 1 through 4 under the heading
“Programming the HomeLink
\b” before
proceeding with the steps listed below.
1. Locate the “training” button on the ceil- ing mounted garage door opener motor.
The exact location and color of the
button may vary by brand of garage
door opener. Refer to the owner ’s
guide supplied by the garage door
opener manufacturer for the location of
this “training” button.
2. Press the “training” button on the ceil- ing mounted garage door opener motor.
Following this step, you have 30 seconds
in which to initiate step 3 below. 3. Press and release the vehicle’s pro- grammed HomeLink
\b button twice. The
garage door may open. If the door
does open, the programming process is
complete. If the door does not open,
press and release the button a third
time. This third press and release will
complete the programming process by
opening the garage door. The ceiling mounted garage door opener
motor should now recognize the
HomeLink
\b unit and be able activate the
garage door up/down.
4. Repeat steps 1 through 3 for each re- maining HomeLink
\b button to program
another rolling code system.
Programming an entrance gate/program-
ming all devices in the Canadian market 1. Decide which of the 3 HomeLink
\b but-
tons you want to program.
2. Place your hand− held gate/device
transmitter 25 to 75 mm (1 to 3 in.)
away from the surface of the
HomeLink
\b.
Keep the indicator light on the HomeLink
\b
in view while programming. 3. Press and hold the selected HomeLink
\b button.
4. Continuously press and release ( cycle)
the hand− held gate/device transmitter
button every two seconds until step 5
is complete.
5. When the indicator light on the HomeLink
\b changes from a slow to a
rapid flash after 20 seconds, you can
release both buttons.

05_SEQUOIA_U (L/O 0409)
308
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
6. Test the operation of the HomeLink\b by
pressing the newly programmed button.
Check to see if the gate/device oper-
ates correctly.
7. Repeat steps 1 through 6 for each re- maining HomeLink
\b button to program
another device.
Programming other devices
To program other devices such as home
security systems, home door locks or
lighting, contact your authorized Toyota
dealer for assistance.
Reprogramming a button
Individual HomeLink
\b buttons cannot be
erased, however, to reprogram a single
button, follow the procedure “Programming
the HomeLink
\b”.
(b) Operating the HomeLink
\b
To operate the HomeLink\b, press the
appropriate HomeLink\b button to activate
the programmed device. The HomeLink\b
indicator light should come on. The
HomeLink\b continues to send the signal
for up to 20 seconds as long as the
button is pressed. (c) Erasing the entire HomeLink
\b
memory (all three programs)
To erase all previously programmed codes
at one time, press and hold down the 2
outside buttons for 20 seconds until the
indicator light flashes.
If you sell your vehicle, be sure to erase
the programs stored in the HomeLink
\b
memory.
CAUTION
When programming the HomeLink\b
Universal Transceiver, you may be
operating a garage door or other
device. Make sure people and ob-
jects are out of the way of the ga-
rage door or other device to pre-
vent potential harm or damage.
Do not use this HomeLink\b Univer-
sal Transceiver with any garage
door opener that lacks the safety
stop and reverse feature as re-
quired by federal safety standards.
(This includes any garage door
opener model manufactured before
April 1, 1982.) A garage door open-
er which cannot detect an object
(signaling the door to stop and re-
verse), does not meet current feder-
al safety standards. Using a garage
door opener without these features
increases risk of serious injury or
death.

05_SEQUOIA_U (L/O 0409)
309
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
This device complies with Part 15 of the
FCC Rules and with RSS−210 of the IC
Rules. Operation is subject to the fol-
lowing two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference
that may cause undesired operation.
WARNING: This transmitter has been
tested and complies with FCC and IC
rules. Changes or modifications not
expressly approved by the party re-
sponsible for compliance could void
the user’s authority to operate the

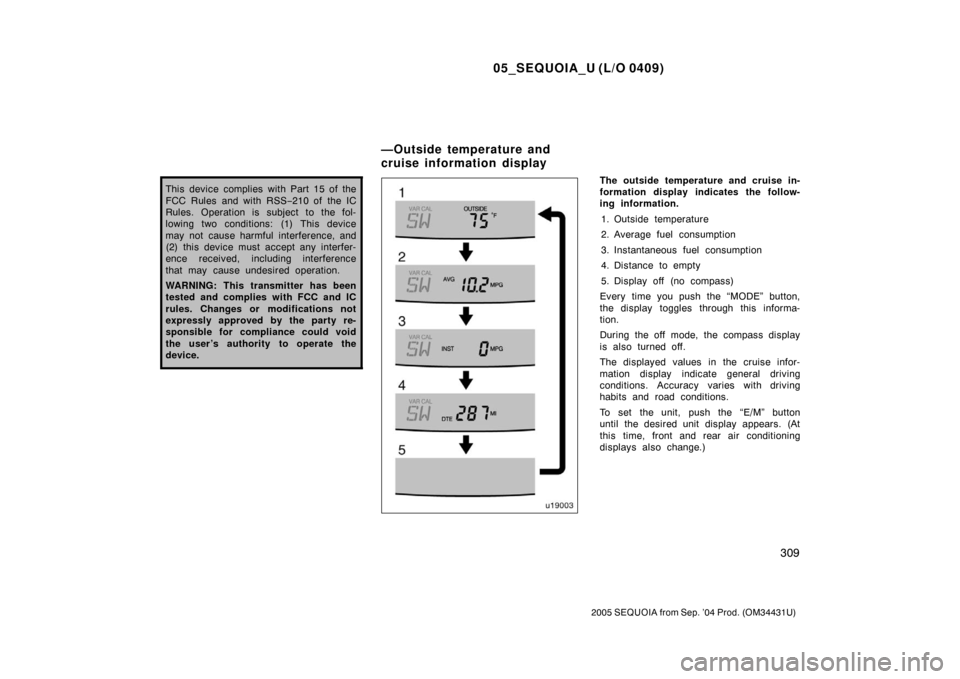

device.The outside temperature and cruise in-
formation display indicates the follow-
ing information.
1. Outside temperature
2. Average fuel consumption
3. Instantaneous fuel consumption
4. Distance to empty
5. Display off (no compass)
Every time you push the “MODE” button,
the display toggles through this informa-
tion.
During the off mode, the compass display
is also turned off.
The displayed values in the cruise infor-
mation display indicate general driving
conditions. Accuracy varies with driving
habits and road conditions.
To set the unit, push the “E/M” button
until the desired unit display appears. (At
this time, front and rear air conditioning
displays also change.)
—Outside temperature and
cruise information display

05_SEQUOIA_U (L/O 0409)
310
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
1. Outside temperature
The outside temperature display indi-
cates the outside air temperature.
The displayed value is updated every 1
second.
The displayed temperature ranges from
− 30 C ( −22 F) up to 50 C (122 F).
If an abnormality exists in the connection
of the outside air temperature sensor,
“ −− C” (“ −−F”) will appear on the display.
If “ −−C” (“ −−F”) appears on the display,
contact your Toyota dealer.
There may be a case that “−− C” (“ −−F”)
appears momentarily when the ignition is
quickly turned to “ON”. It is normal if it
goes out soon.
2. Average fuel consumption (“AVG”)
Average fuel consumption is calculated
and displayed based on total driving
distance and total fuel consumption
with the engine running.
The displayed value is updated every 1
seconds.
To reset the calculations, return the mode
to “AVG” and push and hold the “MODE”
and “E/M” button simultaneously for 2 sec-
onds. 3. Instantaneous fuel consumption
(“INST”)
The instantaneous fuel consumption is
calculated and displayed based on dis-
tance and fuel consumption for 1 sec-
onds with the engine running.
The displayed value is updated every 1
seconds.
Note that an accurate figure may not be
shown in the following cases.
The vehicle is stopped with the engine
running. (The display will indicate the
extremely high fuel consumption.)
The vehicle is driving down a long
slope, applying the engine brake. (The
display will indicate the extremely low
fuel consumption.)
The calculation is reset when the ignition
switch is turned off. 4. Distance to empty (“DTE”)
The distance the vehicle can travel with
the remaining fuel is calculated and
displayed based on the quantity of re-
maining fuel and past fuel consumption.
The displayed value is updated every 1
second. Every time you refuel the vehicle, the cal-
culation is reset.
The actual driving range varies with driv-
ing habits and road conditions. If fuel con-
sumption is good, the driving range will be
longer than indicated. If fuel consumption
is poor, the driving range will be shorter
than indicated.
