TOYOTA SEQUOIA 2005 1.G Owners Manual

05_SEQUOIA_U (L/O 0409)
321
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
If the center panel does not contact your
garage door opener transmitter:
Check to see if spacer is on the cor-
rect pin.
Attach another spacer to the top of
original spacer. Check operation. If re-
quired, continue to add spacers until
contact is achieved.
If the transmitter is clattering during driv-
ing, fill in a piece of felt or pad to prevent
the transmitter from clattering.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden
stop, always keep the garage door
opener box closed while driving.
Keep the remaining spacers away
from children.
To use the auxiliary bo xes, open the
lids as shown in the following illustra-
tions.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden
stop, always keep the auxiliary box
closed while driving.
Type A and B—As these holder are
designed for holding a light object
such as an eyeglass, do not place
any heavy objects in them. Heavy
objects may cause the holder to
open and the contents to fly out
resulting in injuries.
NOTICE
Type A and B—During hot weather,
the interior of the vehicle becomes
very hot. Do not leave anything flam-
mable or deformable such as a light-
er, glasses, etc. inside.
Auxiliary boxes—

05_SEQUOIA_U (L/O 0409)
322
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
Type A (over head console with electric
moon roof)
Type B (over head console without elec-
tric moon roof)
Type C (rear side trim)
Type D (rear right side panel—without
rear air conditioning system)
Type E (rear left side panel)

05_SEQUOIA_U (L/O 0409)
323
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
The auxiliary box type E is equipped
with a strap to hold the third seat cen-
ter head restraint.
Store the head restraint in the auxiliary
box when it is not is use. Storing proce-
dures are as follows:
1. Store the removed head restraint, withits legs in the hole, in the auxiliary
box.2. Attach the straps.
Make sure the head restraint is securely
held in place.

05_SEQUOIA_U (L/O 0409)
324
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
To release the straps, push on both sides
of the buckle and pull apart.
UPPER TRAY
To access the upper tray, raise the con-
sole box lid while pushing the lock re-
lease button.
Rear console box

05_SEQUOIA_U (L/O 0409)
325
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
CONSOLE BOX
To access the rear console box, pull up
the console box lid while pushing the
lock release button.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the console box closed
while driving.
The note pad holder is designed to
hold small paper such as note pads.
To use the holder, raise the console box
upper lid while pushing the lock release
button.
CAUTION
Do not write on the note pad holder
while the vehicle is moving.
Do not place anything else on the
note pad holder. Such items may be
thrown about in the compartment
and possibly cause injury during
sudden braking or an accident.
To reduce the chance of injury in
case of an accident or a sudden
stop while driving, keep the console
box upper lid closed when it is not
in use.
Note pad holder

05_SEQUOIA_U (L/O 0409)
326
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)

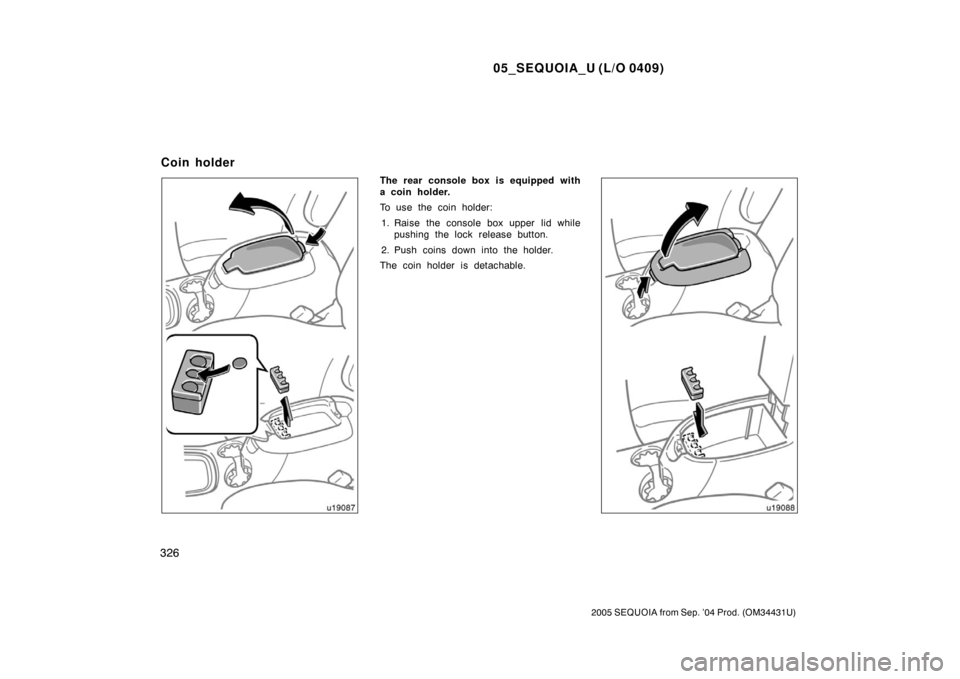

The rear console box is equipped with
a coin holder.
To use the coin holder:1. Raise the console box upper lid while pushing the lock release button.
2. Push coins down into the holder.
The coin holder is detachable.
Coin holder

05_SEQUOIA_U (L/O 0409)
327
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)

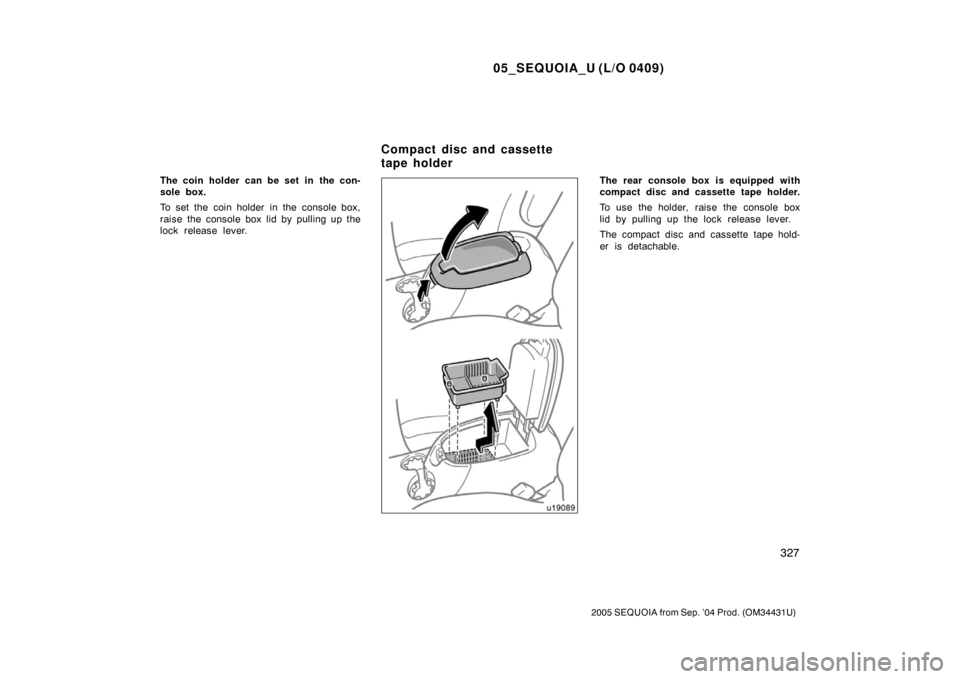

The coin holder can be set in the con-
sole box.
To set the coin holder in the console box,
raise the console box lid by pulling up the
lock release lever.The rear console box is equipped with
compact disc and cassette tape holder.
To use the holder, raise the console box
lid by pulling up the lock release lever.
The compact disc and cassette tape hold-
er is detachable.
Compact disc and cassette
tape holder

05_SEQUOIA_U (L/O 0409)
328
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)

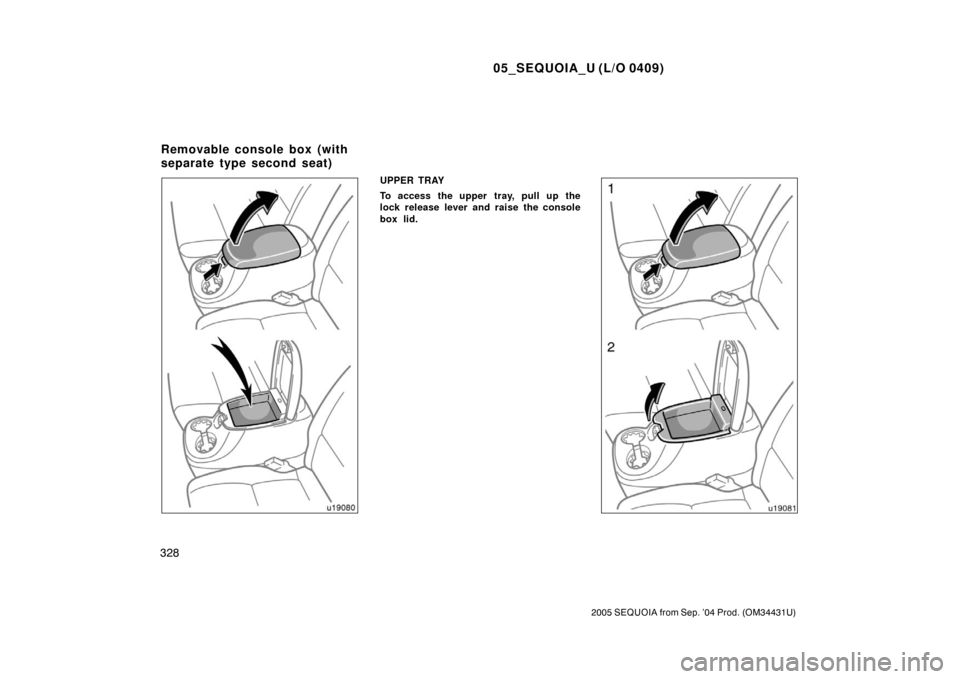

UPPER TRAY
To access the upper tray, pull up the
lock release lever and raise the console
box lid.
Removable console box (with
separate type second seat)

05_SEQUOIA_U (L/O 0409)
329
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)

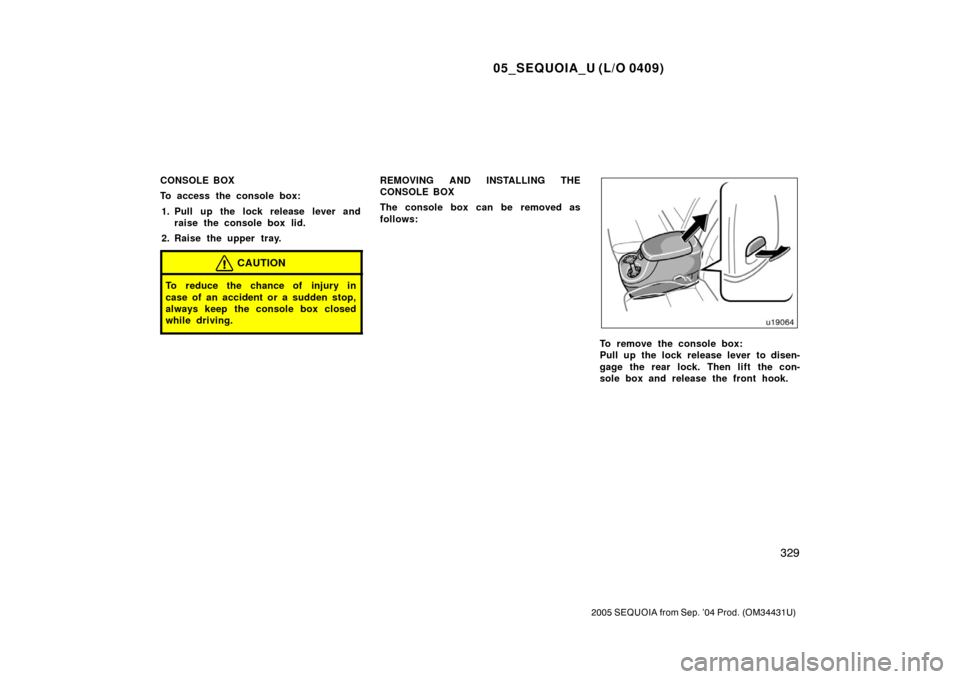

CONSOLE BOX
To access the console box:1. Pull up the lock release lever and raise the console box lid.
2. Raise the upper tray.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the console box closed
while driving.
REMOVING AND INSTALLING THE
CONSOLE BOX
The console box can be removed as
follows:
To remove the console box:
Pull up the lock release lever to disen-
gage the rear lock. Then lift the con-
sole box and release the front hook.

05_SEQUOIA_U (L/O 0409)
330
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
To install the console box:1. Install the front hook in the front striker of the console box under
tray.
2. Rotate down straight and push down to engage the rear lock.
CAUTION
Be careful not to get your hands or
feet pinched in the console box.
Make sure the console box is se-
curely locked by pushing forward,
rearward, upward and sideways.
Failure to do so may cause an un-
expected accident or severe injury
in the event of emergency braking
or a collision.
The cup holder is designed for holding
cups or drinkcans securely. To use
them, observe the following illustra-
tions.
CAUTION
Do not place anything else other
than cups or drinkcans in the cup
holder, as such items may be
thrown about and possibly injure
people in the vehicle during sudden
braking or in an accident.
Type A only—to reduce the chance
of injury in case of an accident or
a sudden stop while driving, keep
the cup holder closed when it is
not in use.
NOTICE
Type A only—As this holder is de-
signed for holding soft cups only, do
not place too heavy a cup, drinkcan
or bottle in it.
C u p ho ld ers
