airbag disable TOYOTA SEQUOIA 2005 1.G Owners Manual

05_SEQUOIA_U (L/O 0409)
45
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)

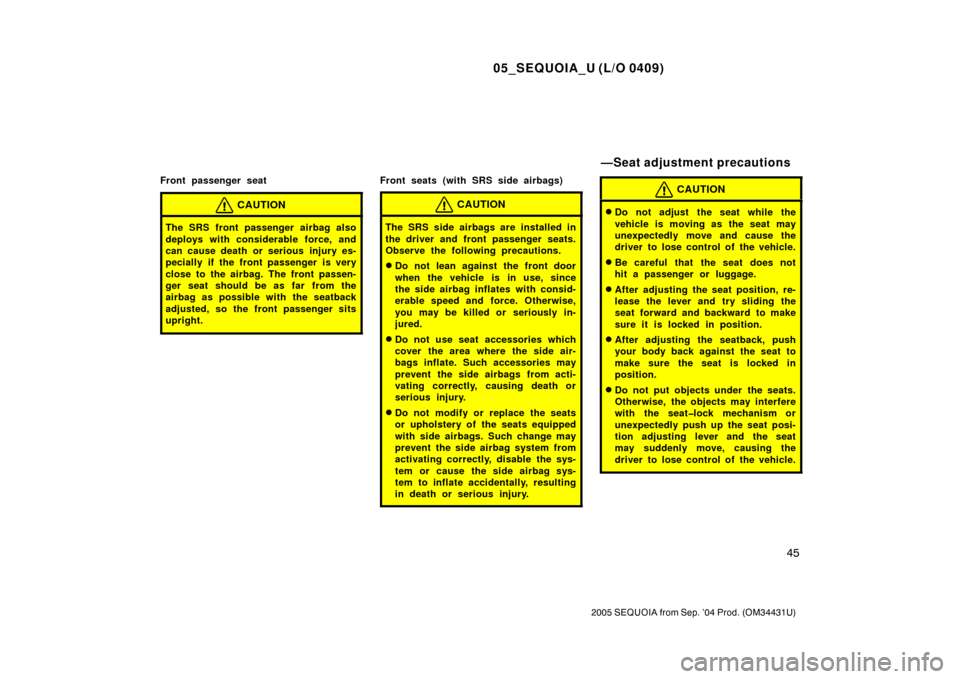

Front passenger seat
CAUTION
The SRS front passenger airbag also
deploys with considerable force, and
can cause death or serious injury es-
pecially if the front passenger is very
close to the airbag. The front passen-
ger seat should be as far from the
airbag as possible with the seatback
adjusted, so the front passenger sits
upright.
Front seats (with SRS side airbags)
CAUTION
The SRS side airbags are installed in
the driver and front passenger seats.
Observe the following precautions.
Do not lean against the front door
when the vehicle is in use, since
the side airbag inflates with consid-
erable speed and force. Otherwise,
you may be killed or seriously in-
jured.
Do not use seat accessories which
cover the area where the side air-
bags inflate. Such accessories may
prevent the side airbags from acti-
vating correctly, causing death or
serious injury.
Do not modify or replace the seats
or upholstery of the seats equipped
with side airbags. Such change may
prevent the side airbag system from
activating correctly, disable the sys-
tem or cause the side airbag sys-
tem to inflate accidentally, resulting
in death or serious injury.
CAUTION
Do not adjust the seat while the
vehicle is moving as the seat may
unexpectedly move and cause the
driver to lose control of the vehicle.
Be careful that the seat does not
hit a passenger or luggage.
After adjusting the seat position, re-
lease the lever and try sliding the
seat forward and backward to make
sure it is locked in position.
After adjusting the seatback, push
your body back against the seat to
make sure the seat is locked in
position.
Do not put objects under the seats.
Otherwise, the objects may interfere
with the seatlock mechanism or
unexpectedly push up the seat posi-
tion adjusting lever and the seat
may suddenly move, causing the
driver to lose control of the vehicle.
—Seat adjustment precautions

05_SEQUOIA_U (L/O 0409)
85
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
The seat belt pretensioners are controlled
by the airbag sensor assembly. The airbag
sensor assembly consists of a safing sen-
sor and airbag sensor.
When the seat belt pretensioners are acti-
vated, an operating noise may be heard
and a small amount of non−toxic gas may
be released. This does not indicate that
a fire is occurring. This gas is normally
harmless.
Once the seat belt pretensioners have
been activated, the seat belt retractors
remain locked.
CAUTION
Do not modify, remove, strike or open
the seat belt pretensioner assemblies,
airbag sensor or surrounding area or
wiring. Failure to follow these instruc-
tions may prevent the seat belt pre-
tensioners from activating correctly,
cause sudden operation of the system
or disable the system, which could
result in death or serious injury. Con-
sult your Toyota dealer about any re-
pair and modification.
NOTICE
Do not perform any of the following
changes without consulting your
Toyota dealer. Such changes can
interfere with proper operation of the
front seat belt pretensioners in some
cases.
 Installation of electronic devices
such as a mobile twoway radio,
cassette tape player or compact
disc player
 Repairs on or near the front seat
belt retractor assemblies
 Modification of the suspension sys-
tem
 Modification of the front end struc-
ture
 Attachment of a grille guard (bull
bar, kangaroo bar, etc.), snowplow,
winches or any other equipment to
the front end
 Repairs made on or near the front
fenders, front end structure or con-
sole
This indicator comes on when the igni-
tion key is turned to the “ON” position.
It goes off after about 6 seconds. This
means the front seat belt pretensioners
are operating properly.

05_SEQUOIA_U (L/O 0409)
91
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)
Do not put anything or any part of
your body on or in front of the
dashboard or steering wheel pad
that houses the front airbag sys-
tem. They might restrict inflation or
cause death or serious injury as
they are projected rearward by the
force of the deploying airbags. Like-
wise, the driver and front passenger
should not hold objects in their
arms or on their knees.
Do not modify or remove any wir-
ing. Do not modify, remove, strike
or open any components such as
the steering wheel pad, steering
wheel, column cover, dashboard
near the front passenger airbag,
front passenger airbag cover, front
passenger airbag or airbag sensor
assembly. Doing so may prevent the
front airbag system from activating
correctly, cause sudden activation
of the system or disable the sys-
tem, which could result in death or
serious injury.
Failure to follow these instructions
can result in death or serious injury.
Consult your Toyota dealer about any
repair and modification.
If you wish to modify your vehicle for
a person with physical disability, con-
sult your Toyota dealer. It may dan-
gerously interfere with the SRS front
airbags operation.NOTICE
Do not perform any of the following
changes without consulting your
Toyota dealer. Such changes can in-
terfere with proper operation of the
SRS front airbag system in some
cases.
 Installation of electronic devices
such as a mobile twoway radio,
cassette tape player or compact
disc player
 Modification of the suspension sys-
tem
 Modification of the front end struc-
ture
 Attachment of a grille guard (bull
bar, kangaroo bar, etc.), snowplow,
winches or any other equipment to
the front end
 Repairs made on or near the front
fenders, front end structure, con-
sole, steering column, steering
wheel, dashboard near the front
passenger airbag or front passen-
ger ’s seat

05_SEQUOIA_U (L/O 0409)
100
2005 SEQUOIA from Sep. ’04 Prod. (OM34431U)

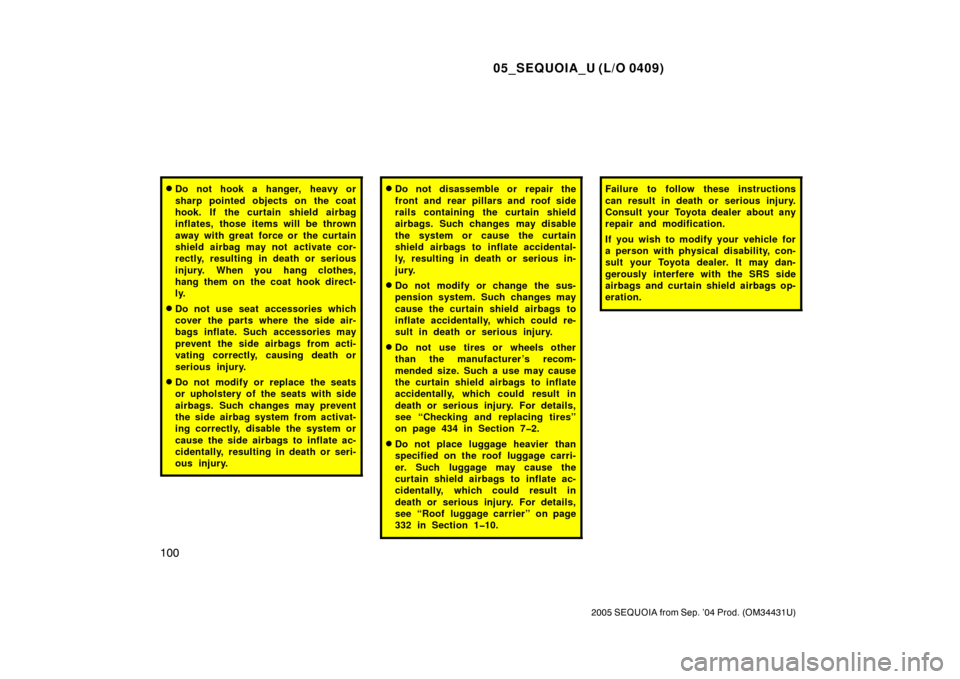

Do not hook a hanger, heavy or
sharp pointed objects on the coat
hook. If the curtain shield airbag
inflates, those items will be thrown
away with great force or the curtain
shield airbag may not activate cor-
rectly, resulting in death or serious
injury. When you hang clothes,
hang them on the coat hook direct-
ly.
Do not use seat accessories which
cover the parts where the side air-
bags inflate. Such accessories may
prevent the side airbags from acti-
vating correctly, causing death or
serious injury.
Do not modify or replace the seats
or upholstery of the seats with side
airbags. Such changes may prevent
the side airbag system from activat-
ing correctly, disable the system or
cause the side airbags to inflate ac-
cidentally, resulting in death or seri-
ous injury.
Do not disassemble or repair the
front and rear pillars and roof side
rails containing the curtain shield
airbags. Such changes may disable
the system or cause the curtain
shield airbags to inflate accidental-
ly, resulting in death or serious in-
jury.
Do not modify or change the sus-
pension system. Such changes may
cause the curtain shield airbags to
inflate accidentally, which could re-
sult in death or serious injury.
Do not use tires or wheels other
than the manufacturer ’s recom-
mended size. Such a use may cause
the curtain shield airbags to inflate
accidentally, which could result in
death or serious injury. For details,
see “Checking and replacing tires”
on page 434 in Section 72.
Do not place luggage heavier than
specified on the roof luggage carri-
er. Such luggage may cause the
curtain shield airbags to inflate ac-
cidentally, which could result in
death or serious injury. For details,
see “Roof luggage carrier” on page
332 in Section 110.
Failure to follow these instructions
can result in death or serious injury.
Consult your Toyota dealer about any
repair and modification.
If you wish to modify your vehicle for
a person with physical disability, con-
sult your Toyota dealer. It may dan-
gerously interfere with the SRS side
airbags and curtain shield airbags op-
eration.
