TOYOTA SEQUOIA 2006 1.G Owners Manual

’06_SEQUOIA_U (L/O 0508)
121

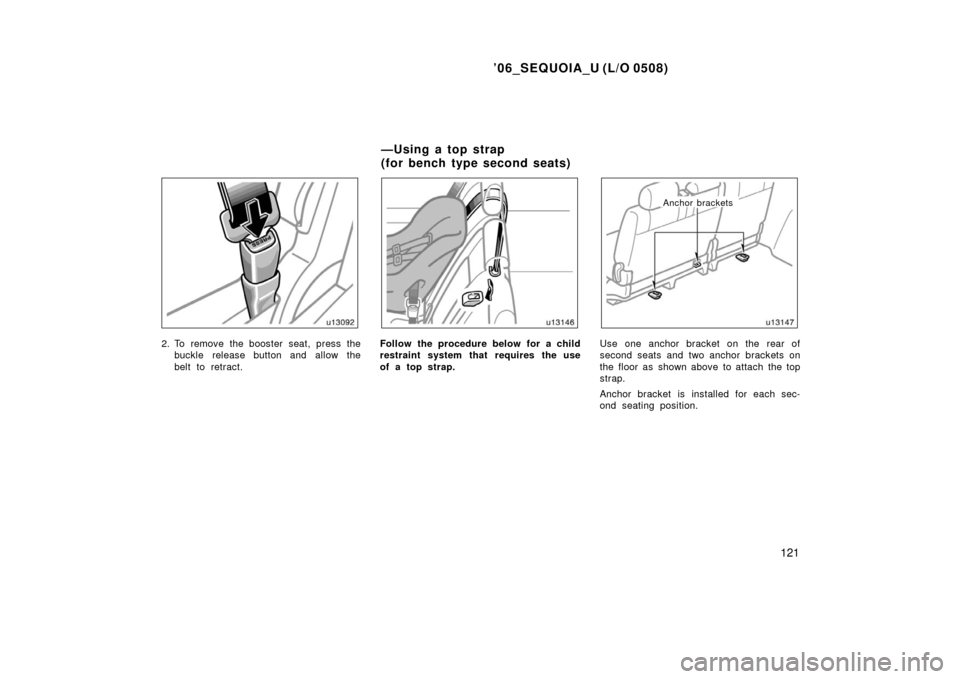

2. To remove the booster seat, press thebuckle release button and allow the
belt to retract.Follow the procedure below for a child
restraint system that requires the use
of a top strap.
Anchor brackets
Use one anchor bracket on the rear of
second seats and two anchor brackets on
the floor as shown above to attach the top
strap.
Anchor bracket is installed for each sec-
ond seating position.
— U sin g a to p st rap
(for bench type second seats)

’06_SEQUOIA_U (L/O 0508)
122
TO USE THE ANCHOR BRACKETS:1. Remove the head restraint.Outside position
Center position
2. Fix the child restraint system with the seat belt.
Latch the hook onto the anchor
bracket and tighten the top strap.
For instructions to install the child re-
straint system, see “Child restraint” on
page 107 in this Section.
CAUTION
Make sure the top strap is securely
latched, and check that the child re-
straint system is secure by pushing
and pulling it in different directions.
Follow all the installation instructions
provided by its manufacturer.

’06_SEQUOIA_U (L/O 0508)
123

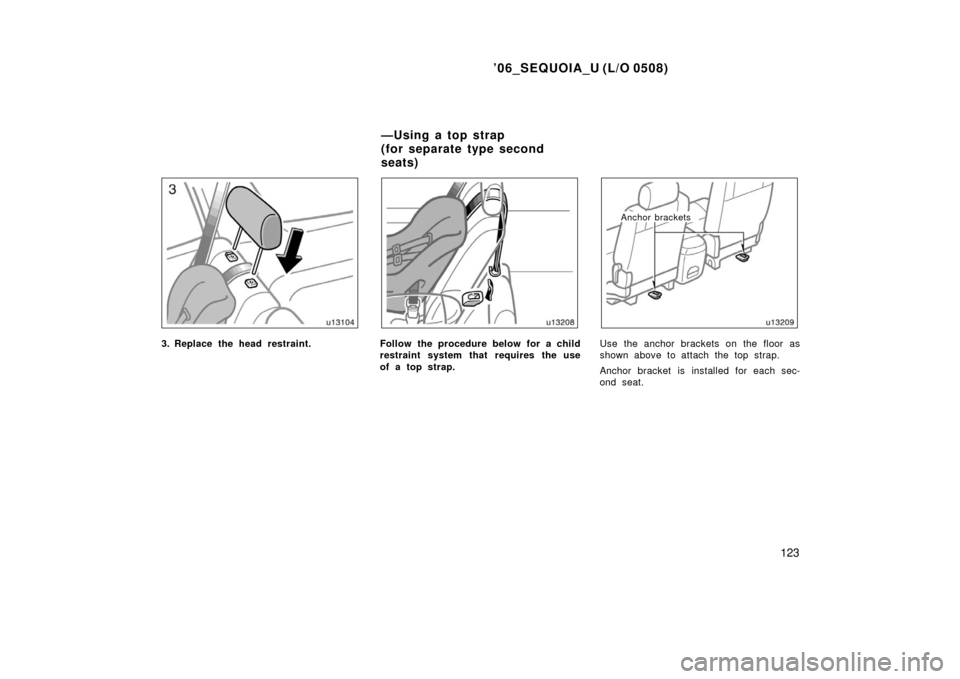

3. Replace the head restraint.Follow the procedure below for a child
restraint system that requires the use
of a top strap.
Anchor brackets
Use the anchor brackets on the floor as
shown above to attach the top strap.
Anchor bracket is installed for each sec-
ond seat.
— U sin g a to p st rap
(for separate type second
seats)

’06_SEQUOIA_U (L/O 0508)
124
TO USE THE ANCHOR BRACKETS:1. Remove the head restraint.2. Fix the child restraint system with the seat belt.
Latch the hook onto the anchor
bracket and tighten the top strap.
For instructions to install the child re-
straint system, see “Child restraint” on
page 107 in this Section.
CAUTION
Make sure the top strap is securely
latched, and check that the child re-
straint system is secure by pushing
and pulling it in different directions.
Follow all the installation instructions
provided by its manufacturer.
3. Replace the head restraint.

’06_SEQUOIA_U (L/O 0508)
125
Follow the procedure below for a child
restraint system that requires the use
of a top strap.
Anchor brackets
Symbol mark
Use the anchor brackets on the back of
the third seats to attach the top strap.
Anchor bracket is installed for right side
and center seating positions.
This symbol indicates the locations of
user ready anchor brackets.TO USE THE ANCHOR BRACKET (right
side):
1. Remove the head restraint.
— U sin g a to p st rap
(for third seats)

’06_SEQUOIA_U (L/O 0508)
126

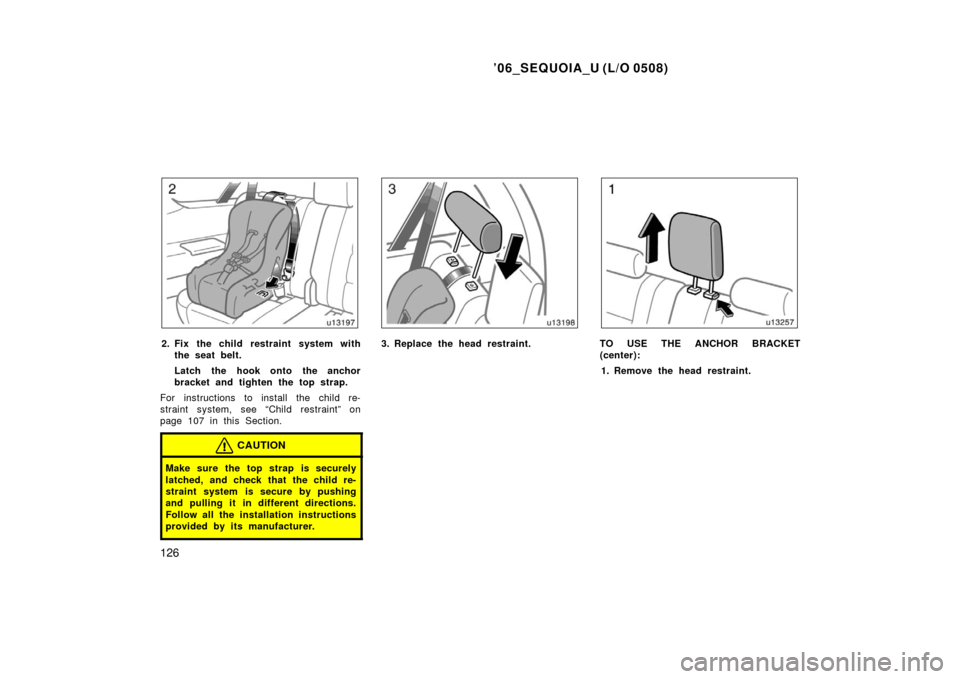

2. Fix the child restraint system withthe seat belt.
Latch the hook onto the anchor
bracket and tighten the top strap.
For instructions to install the child re-
straint system, see “Child restraint” on
page 107 in this Section.
CAUTION
Make sure the top strap is securely
latched, and check that the child re-
straint system is secure by pushing
and pulling it in different directions.
Follow all the installation instructions
provided by its manufacturer.
3. Replace the head restraint.TO USE THE ANCHOR BRACKET
(center): 1. Remove the head restraint.

’06_SEQUOIA_U (L/O 0508)
127

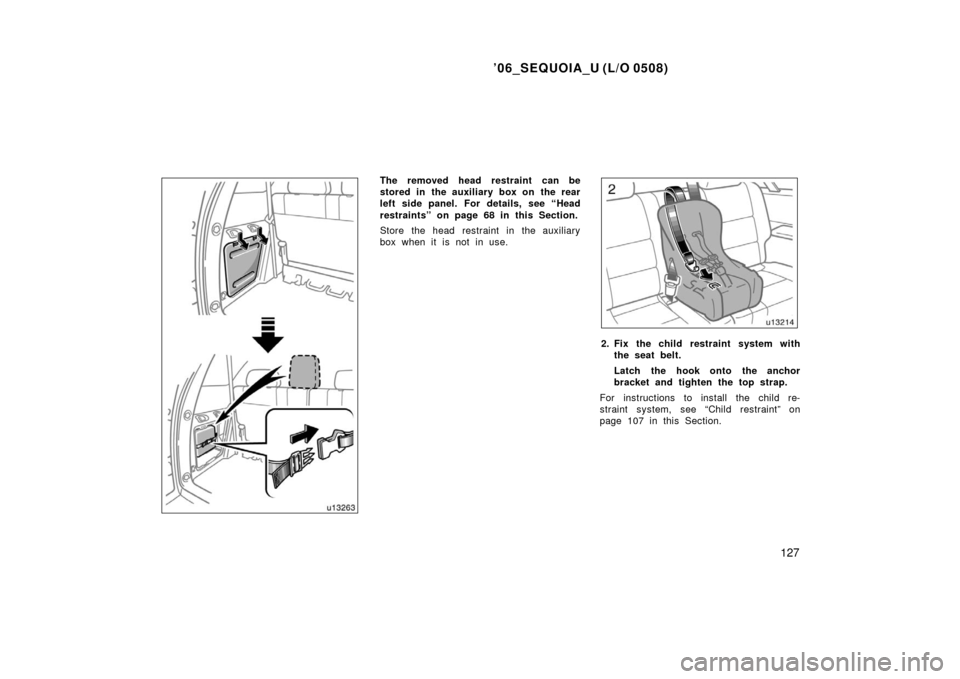

The removed head restraint can be
stored in the auxiliary box on the rear
left side panel. For details, see “Head
restraints” on page 68 in this Section.
Store the head restraint in the auxiliary
box when it is not in use.
2. Fix the child restraint system withthe seat belt.
Latch the hook onto the anchor
bracket and tighten the top strap.
For instructions to install the child re-
straint system, see “Child restraint” on
page 107 in this Section.

’06_SEQUOIA_U (L/O 0508)
128

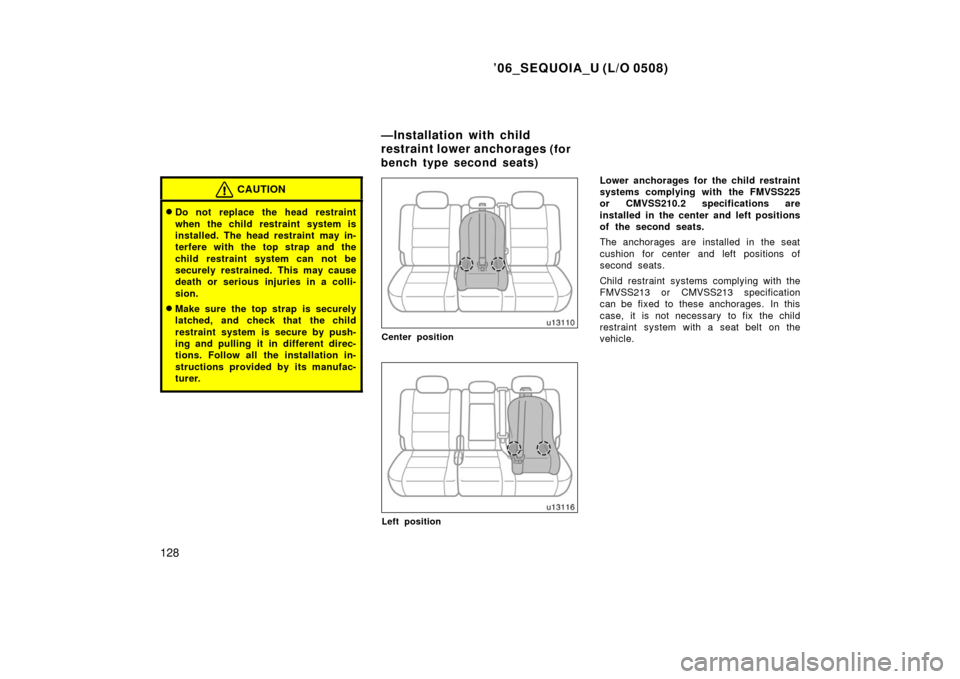

CAUTION
Do not replace the head restraint
when the child restraint system is
installed. The head restraint may in-
terfere with the top strap and the
child restraint system can not be
securely restrained. This may cause
death or serious injuries in a colli-
sion.
Make sure the top strap is securely
latched, and check that the child
restraint system is secure by push-
ing and pulling it in different direc-
tions. Follow all the installation in-
structions provided by its manufac-
turer.
Center position
Left position
Lower anchorages for the child restraint
systems complying with the FMVSS225
or CMVSS210.2 specifications are
installed in the center and left positions
of the second seats.
The anchorages are installed in the seat
cushion for center and left positions of
second seats.
Child restraint systems complying with the
FMVSS213 or CMVSS213 specification
can be fixed to these anchorages. In this
case, it is not necessary to fix the child
restraint system with a seat belt on the
vehicle.
—Installation with child
restraint lower anchorages
(for
bench type second seats)

’06_SEQUOIA_U (L/O 0508)
129

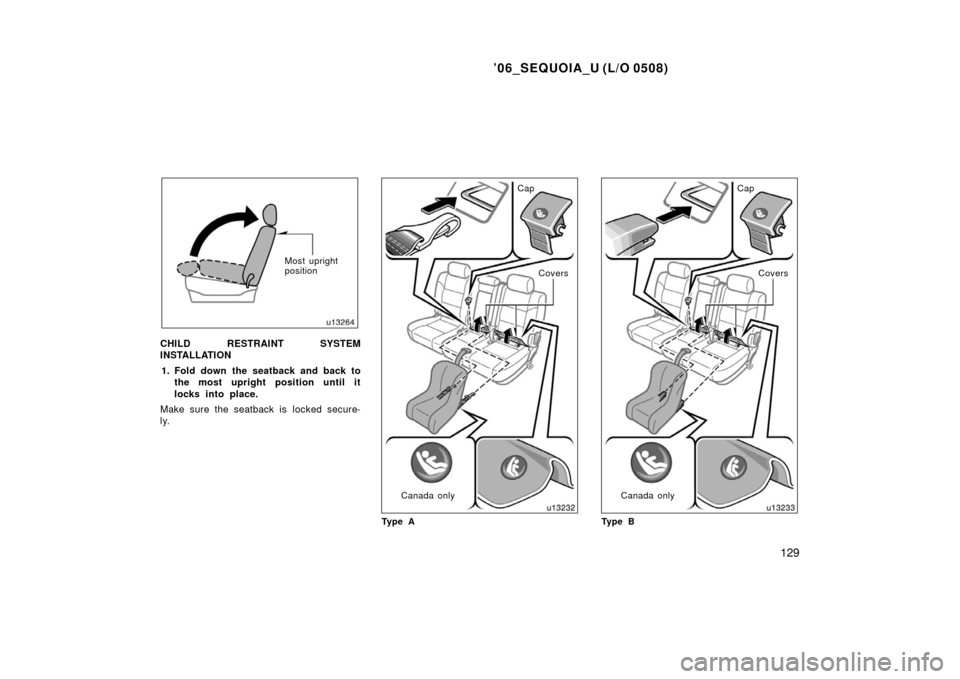

Most upright
position
CHILD RESTRAINT SYSTEM
INSTALLATION1. Fold down the seatback and back to the most upright position until it
locks into place.
Make sure the seatback is locked secure-
ly.
Canada only Covers
Cap
Ty p e ACanada only Covers
Cap
Ty p e B

’06_SEQUOIA_U (L/O 0508)
130
2. Left side: Turn up the cover for thelower anchorages. Confirm the posi-
tion of the lower anchorages below
the button on the cover.
Center: Turn up the cover for the left
lower anchorage and remove the cap
for the right lower anchorage. Con-
firm the position of the lower an-
chorages below the button on the
cover.
3. Type A—Latch the hooks of lower straps onto the anchorages and
tighten the lower straps.
Type B—Latch the buckles onto the
anchorages.
For owners in Canada— The symbol on
a child restraint system indicates the pres-
ence of a lower connector system.
If your child restraint system has a top
strap, it should be anchored. (For the
installation of the top strap, see “—Using
a top strap (for bench type second seats)”
on page 121 in this Section.)
For installation details, refer to the instruc-

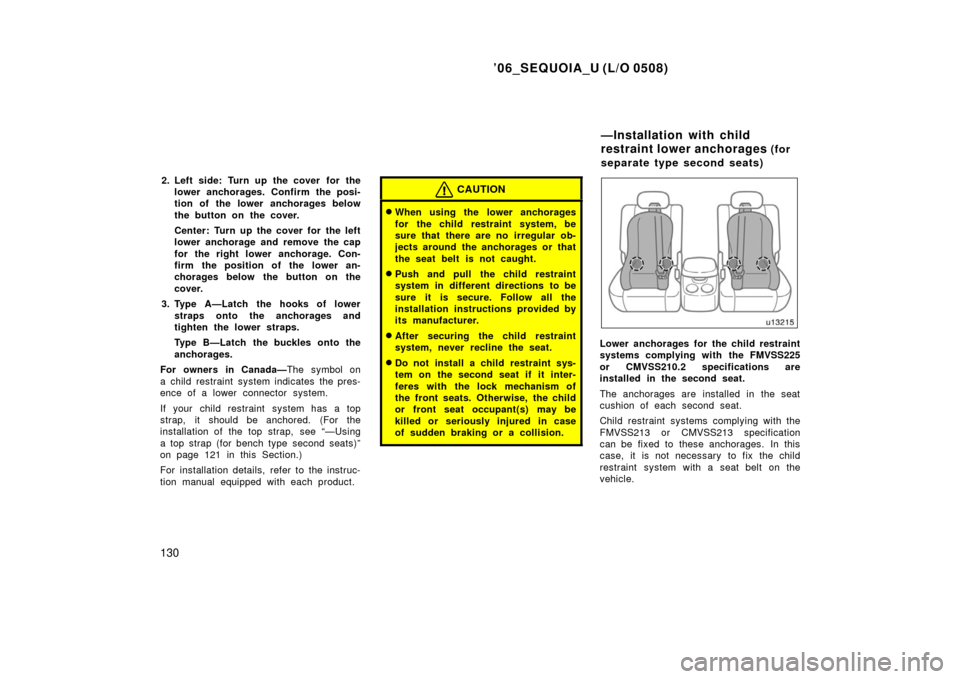

tion manual equipped with each product.CAUTION
When using the lower anchorages
for the child restraint system, be
sure that there are no irregular ob-
jects around the anchorages or that
the seat belt is not caught.
Push and pull the child restraint
system in different directions to be
sure it is secure. Follow all the
installation instructions provided by
its manufacturer.
After securing the child restraint
system, never recline the seat.
Do not install a child restraint sys-
tem on the second seat if it inter-
feres with the lock mechanism of
the front seats. Otherwise, the child
or front seat occupant(s) may be
killed or seriously injured in case
of sudden braking or a collision.
Lower anchorages for the child restraint
systems complying with the FMVSS225
or CMVSS210.2 specifications are
installed in the second seat.
The anchorages are installed in the seat
cushion of each second seat.
Child restraint systems complying with the
FMVSS213 or CMVSS213 specification
can be fixed to these anchorages. In this
case, it is not necessary to fix the child
restraint system with a seat belt on the
vehicle.
—Installation with child
restraint lower anchorages
(for
separate type second seats)
