141
To block the glare from the front when the
main sun visor is swung to the lateral
side (position 2), swing down the sub vi-
sor.
CAUTION
Do not extend the plate at the end of
the sun visor when the visor is in the
position 1. It can cover the antiglare
inside rear view mirror and obstruct
the rear view.
To use the vanity mirrors, swing down
the sun visor and open the cover.
On some models, the vanity light comes
on when you open the cover.
—Vanity mirrors

’06_SEQUOIA_U (L/O 0508)
142

’06_SEQUOIA_U (L/O 0508)
143
OPERATION OF INSTRUMENTS AND
CONTROLS
Lights, Wipers and Defogger
Headlights and turn signals144
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Emergency flashers 148
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Instrument panel light control 148
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front fog lights 149
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Personal lights 149
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Center interior and personal lights 150
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Center interior light 151
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Luggage compartment light 152
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ignition switch light 152
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Windshield wipers and washer 153
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Back window wiper and washer 154
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Back window and outside rear view mirror defoggers 154
. . . . . . . . . . .
SECTION 1 5

’06_SEQUOIA_U (L/O 0508)
144
HEADLIGHTS
To turn on the following lights: Twist
the headlight/turn signal lever knob.
Position 1—Parking, tail, license plate,
side marker and instrument panel lights
Some models for Canada—The tail light
indicator (green light) on the instrument
panel will tell you that the tail lights are
on.
Position 2—Headlights and all of the
above
Some models for the U.S.A.—The head-
light low beam indicator light (green light)
on the instrument panel will tell you that
the low beams are on.Position 3 (“AUTO”)—Headlights and/or all
of the lights in position 1
They automatically turn on or off depend-
ing on the darkness of the surroundings.
Manually twist the knob to the position 2
to turn on the headlights if they are need-
ed immediately when entering a dark tun-
nel, parking structure, etc.The automatic light control sensor is on
the top of the driver’s side instrument
panel.
Do not place anything on the instrument
panel, and/or do not affix anything on the
windshield to block this sensor.
Headlights and turn signals
(with automatic light control
system)

’06_SEQUOIA_U (L/O 0508)
145
The lights automatically turn off after 30
seconds when all the side doors and back
door are closed with the ignition key in
the “ACC” or “LOCK” position and the le-
ver at position 2.
The lights also automatically turn off when
the driver ’s door is opened with the lever
at position 1.
If the doors are locked by the wireless
remote control transmitter, the lights auto-
matically turn off immediately.
To turn them on again, turn the key to the
“ON” position or actuate the headlight
switch.
If you are going to park for over one
week, make sure the headlight switch is
off.
The time before the headlights turn off
can be changed. For details, contact your
Toyota dealer.
NOTICE
To prevent the battery from being dis-
charged, do not leave the lights on
for a long period when the engine is
not running.
Daytime running light system (all mod-
els sold in Canada and some models
sold in the U.S.A.)
The headlights turn on when the parking
brake is released with the engine started,
even with the light switch in the “OFF”
position. They will not go off until the
ignition switch is turned off.
To turn on the other exterior lights and
instrument panel lights, twist the knob to
position 1.
Under the daytime running light system,
the headlights turn on at reduced intensity.
Twist the knob to position 2 to turn to full
intensity for driving at night.
HighLow beams—For high beams, turn
the headlights on and push the lever away
from you (position 1). Pull the lever to-
ward you (position 2) for low beams.
The headlight high beam indicator light
(blue light) on the instrument panel will
tell you that the high beams are on.
Flashing the high beam headlights
(position 3)—Pull the lever all the way
back. The high beam headlights turn off
when you release the lever.
You can flash the high beam headlights
with the knob turned to “OFF”.

’06_SEQUOIA_U (L/O 0508)
146
TURN SIGNALS
To signal a turn, push the headlight/
turn signal lever up or down to position
1.
The key must be in the “ON” position.
The lever automatically returns after you
make a turn, but you may have to return
it by hand after you change lanes.
To signal a lane change, move the lever
up or down to the pressure point (position
2) and hold it.
If the turn signal indicator lights (green
lights) on the instrument panel flash faster
than normal, a front or rear turn signal
bulb is burned out.HEADLIGHTS
To turn on the following lights: Twist
the headlight/turn signal lever knob.
Position 1—Parking, tail, license plate,
side marker and instrument panel lights
Position 2—Headlights and all of the
aboveThe lights automatically turn off after 30
seconds when all the side doors and back
door are closed with the ignition key in
the “ACC” or “LOCK” position and the le-
ver at position 2.
The lights also automatically turn off when
the driver ’s door is opened with the lever
at position 1.
If the doors are locked by the wireless
remote control transmitter, the lights auto-
matically turn off immediately.
To turn them on again, turn the key to the
“ON” position or actuate the headlight
switch.
If you are going to park for over one
week, make sure the headlight switch is
off.
The timing for the headlights turning off
can be changed. For details, contact your
Toyota dealer.
NOTICE
To prevent the battery from being dis-
charged, do not leave the lights on
for a long period when the engine is
not running.
Headlights and turn signals
(without automatic light
control system)

’06_SEQUOIA_U (L/O 0508)
147
Daytime running light system (all mod-
els sold in Canada and some models
sold in the U.S.A.)
The headlights turn on at reduced intensi-
ty when the parking brake is released with
the engine started, even with the light
switch in the “OFF” position. They will not
go off until the ignition switch is turned
off.
To turn on the other exterior lights and
instrument panel lights, twist the knob to
position 1.
Twist the knob to position 2 to turn to full
intensity for driving at night.
HighLow beams—For high beams, turn
the headlights on and push the lever away
from you (position 1). Pull the lever to-
ward you (position 2) for low beams.
The headlight high beam indicator light
(blue light) on the instrument panel will
tell you that the high beams are on.
Flashing the high beam headlights
(position 3)—Pull the lever all the way
back. The high beam headlights turn off
when you release the lever.
You can flash the high beam headlights
with the knob turned to “OFF”.TURN SIGNALS
To signal a turn, push the headlight/
turn signal lever up or down to position
1.
The key must be in the “ON” position.
The lever automatically returns after you
make a turn, but you may have to return
it by hand after you change lanes.
To signal a lane change, move the lever
up or down to the pressure point (position
2) and hold it.
If the turn signal indicator lights (green
lights) on the instrument panel flash faster
than normal, a front or rear turn signal
bulb is burned out.

’06_SEQUOIA_U (L/O 0508)
148
To turn on the emergency flashers,
push the switch.
All the turn signal lights will flash. To turn
them off, push the switch once again.
Turn on the emergency flashers to warn
other drivers if your vehicle must be
stopped where it might be a traffic hazard.
Always pull as far off the road as pos-
sible.
The turn signal light switch will not work
when the emergency flashers are operat-
ing.
NOTICE
To prevent the battery from being dis-
charged, do not leave the switch on
longer than necessary when the en-
gine is not running.
To adjust the brightness of the instru-
ment panel lights, turn the knob.
Emergency flashersInstrument panel light control

’06_SEQUOIA_U (L/O 0508)
149
To turn on the front fog lights, twist
the band of the headlight and turn sig-
nal switch lever. They will come on
only when the headlights are on low
beam.To turn on the personal light, push the
switch. To turn the light off, push the
switch once again.
ILLUMINATED ENTRY SYSTEM
When the center interior light switch is in
the “DOOR” position and any of the side
doors is opened, the personal light will
come on. After all the side doors are
closed, the light remains on for a certain
time before fading out.
However, in the following cases, the light
goes out immediately:
All the side doors are closed when the
ignition key is in the “ACC” or “ON”
position.
The ignition key is turned to the “ACC”,
“ON” or “START” position after all the
side doors are closed.
All the doors are locked when the light
is still on.
When all the doors are unlocked using
either the key or the wireless remote con-
trol transmitter simultaneously, the light
come on for about 15 seconds before fad-
ing out.
The following adjustments can be made in
this system. For details, contact your
Toyota dealer.
Cancelling the door key or wireless re-
mote control transmitter linked opera-
tion
Changing the timing for the light turn-
ing off
To prevent the battery being discharged,
the light will automatically turn off when
the key is removed and the door is left
opened with the center interior light switch
in “DOOR” position for 20 minutes or
more.
For details about center interior light, see
“Center interior and personal lights” on
page 150 or “Center interior light” on page
151 in this Section.
Front fog lights Personal lights

’06_SEQUOIA_U (L/O 0508)
150

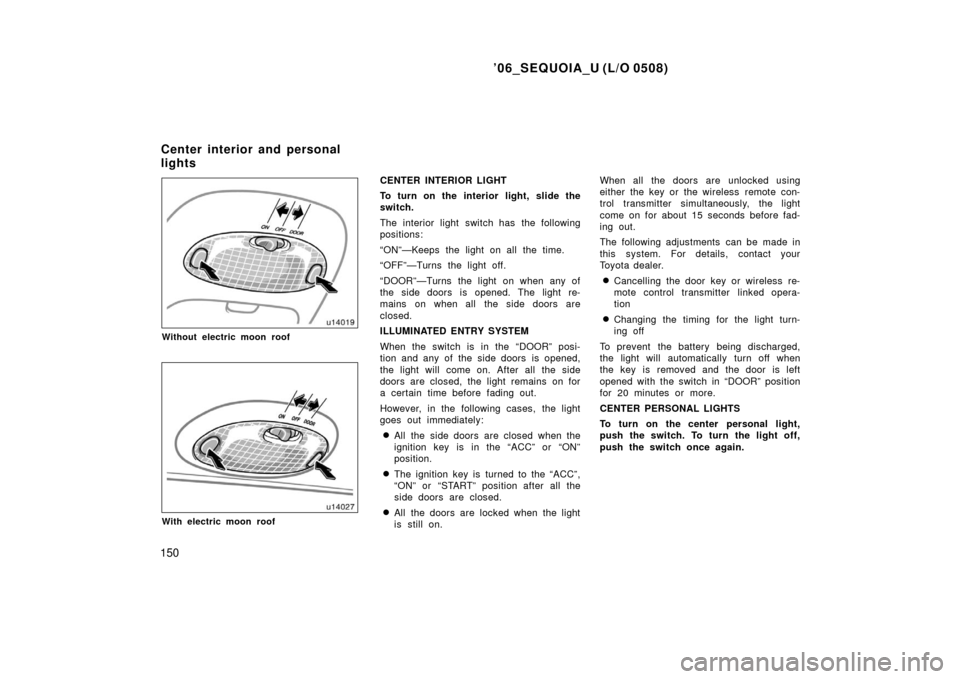

Without electric moon roof
With electric moon roof
CENTER INTERIOR LIGHT
To turn on the interior light, slide the
switch.
The interior light switch has the following
positions:
“ON”—Keeps the light on all the time.
“OFF”—Turns the light off.
“DOOR”—Turns the light on when any of
the side doors is opened. The light re-
mains on when all the side doors are
closed.
ILLUMINATED ENTRY SYSTEM
When the switch is in the “DOOR” posi-
tion and any of the side doors is opened,
the light will come on. After all the side
doors are closed, the light remains on for
a certain time before fading out.
However, in the following cases, the light
goes out immediately:
All the side doors are closed when the
ignition key is in the “ACC” or “ON”
position.
The ignition key is turned to the “ACC”,
“ON” or “START” position after all the
side doors are closed.
All the doors are locked when the light
is still on.When all the doors are unlocked using
either the key or the wireless remote con-
trol transmitter simultaneously, the light
come on for about 15 seconds before fad-
ing out.
The following adjustments can be made in
this system. For details, contact your
Toyota dealer.
Cancelling the door key or wireless re-
mote control transmitter linked opera-
tion
Changing the timing for the light turn-
ing off
To prevent the battery being discharged,
the light will automatically turn off when
the key is removed and the door is left
opened with the switch in “DOOR” position
for 20 minutes or more.
CENTER PERSONAL LIGHTS
To turn on the center personal light,
push the switch. To turn the light off,
push the switch once again.
Center interior and personal
lights
