key TOYOTA SEQUOIA 2006 1.G Owner's Manual

’06_SEQUOIA_U (L/O 0508)
41
OPERATING FROM INSIDE
To operate the moon roof, use the
switches between the personal lights.
The moon roof works when the ignition
switch is in the “ON” position.
The sun shade can be opened or closed
by hand.
Sliding operation—
To open: Push the “SLIDE” switch on the
“ ” (rear) side.
The roof will open and stop partway 135
mm (5.3 in.) from the fully opened posi-
tion. When you push “ ” (rear) side
again, the moon roof will open fully. To
stop the roof partway, push the same side
or “ ” (front) side while the roof is mov-
ing.
As driving with the moon roof opened fully
will cause wind throbs, we recommend
you to drive with the moon roof partway
135 mm (5.3 in.) from the fully opened
position.
The sun shade will be opened together
with the roof.
To close: Push the “SLIDE” switch on the
“  ” (front) side. The roof will fully close. To stop the roof
partway, push the same side or “
” (rear)
side briefly.
Tilting operation—
To tilt up: Push the “TILT” switch on the
“UP” side.
To lower: Push the “TILT” switch on the
opposite side of “UP”.
You may stop the moon roof at any de-
sired position. The roof will move while
the switch is being pushed and stop when
released.
Key off operation: If all the doors are
closed, it works for 43 seconds even after
the ignition switch is turned off. It stops
working when any of the doors is opened.
Jam protection function: If something
gets caught between the moon roof and
frame during closing operation, the moon
roof stops and opens half way.
If the moon roof receives a strong impact,
this function may work even if nothing is
caught.

’06_SEQUOIA_U (L/O 0508)
42
OPERATING FROM OUTSIDE
The moon roof can be opened and closed
with the key operation in the driver’s door
keyhole.
To open: Turn the key fully backward and
hold it.
After the door is unlocked, the moon roof
begins to open. To stop in the middle,
return the key.
To close: Turn the key fully forward and
hold it.
After the door is locked, the moon roof
begins to close. To stop in the middle,
return the key.
This door key linked operation for sliding
operation can be erased or changed into
the door key linked operation for tilting
operation. For details, contact your Toyota

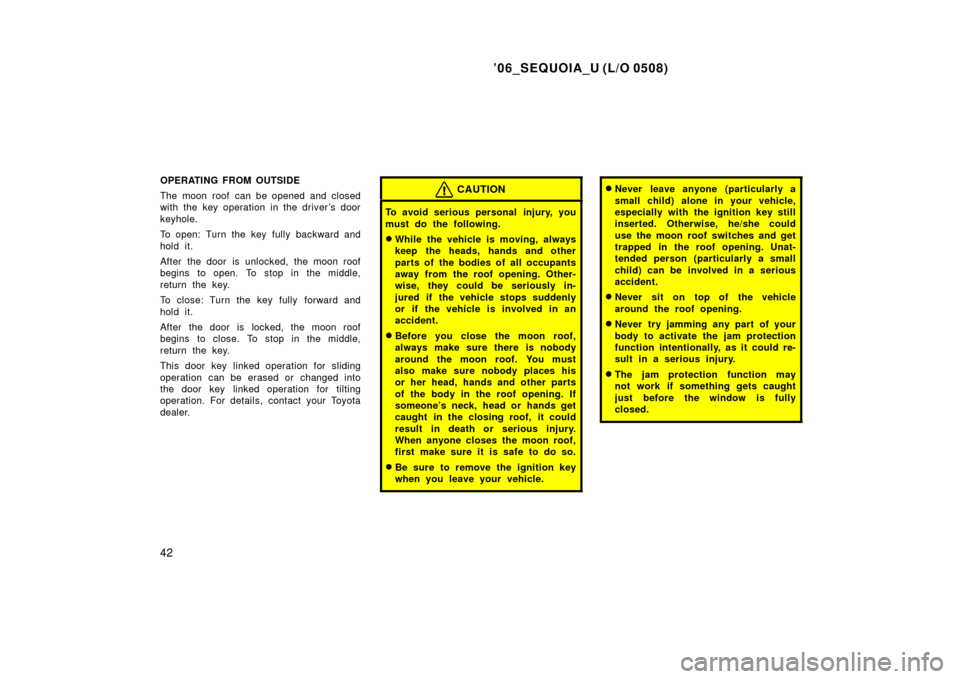

dealer.CAUTION
To avoid serious personal injury, you
must do the following.
While the vehicle is moving, always
keep the heads, hands and other
parts of the bodies of all occupants
away from the roof opening. Other-
wise, they could be seriously in-
jured if the vehicle stops suddenly
or if the vehicle is involved in an
accident.
Before you close the moon roof,
always make sure there is nobody
around the moon roof. You must
also make sure nobody places his
or her head, hands and other parts
of the body in the roof opening. If
someone’s neck, head or hands get
caught in the closing roof, it could
result in death or serious injury.
When anyone closes the moon roof,
first make sure it is safe to do so.
Be sure to remove the ignition key
when you leave your vehicle.
Never leave anyone (particularly a
small child) alone in your vehicle,
especially with the ignition key still
inserted. Otherwise, he/she could
use the moon roof switches and get
trapped in the roof opening. Unat-
tended person (particularly a small
child) can be involved in a serious
accident.
Never sit on top of the vehicle
around the roof opening.
Never try jamming any part of your
body to activate the jam protection
function intentionally, as it could re-
sult in a serious injury.
The jam protection function may
not work if something gets caught
just before the window is fully
closed.

’06_SEQUOIA_U (L/O 0508)
48
CAUTION
Avoid reclining the seatback any
more than needed. The seat belts pro-
vide maximum protection in a frontal
or rear collision when the driver and
the front passenger are sitting up
straight and well back in the seats. If
you are reclined, the lap belt may
slide past your hips and apply re-
straint forces directly to the abdomen
or your neck may contact the shoul-
der belt. In the event of a frontal
collision, the more the seat is re-
clined, the greater the risk of death
or personal injury.
3. SEAT LUMBAR SUPPORTADJUSTING SWITCH
Push the control switch in the desired
direction.
The amount of lumbar support will change
while the switch is pushed.
Vehicles with the driving position memory
system—The position of the driver’s seat
and outside rear view mirrors can be
memorized. For details, see “Driving posi-
tion memory system” on page 48 in this
Section. This system can memorize the position
of the driver’s seat and outside rear
view mirrors, and recall them at the
touch of a button.
Buttons “1” and “2” can memorize two
separate positions.
SETTING THE DRIVING POSITION
The key must be in the “ON” position and
the shift lever is in the “P” position.
1. Adjust the driver ’s seat and outside rear view mirrors to the desired
position.
2. While pushing the “SET” button, push button “1” or “2” until a beep
is heard.
The system can memorize up to 2 posi-
tions by repeating the above steps. If step
2 is performed when both buttons “1” and
“2” are memorized, the previous position
will be erased and a new position will be
set.
Driving position memory
system

’06_SEQUOIA_U (L/O 0508)
49
To make only slight changes to an already
memorized position, the easiest way is to
first activate the memorized position, then
make the desired changes and perform
step 2 above.
RECALLING THE MEMORIZED POSITION
When you push button “1” or “2”, a
beep will sound and the driving posi-
tion will be automatically adjusted to
the position recorded for that button.
The memorized position can be recalled
under the following conditions:
The ignition key is in the “ON position
and the shift lever is in the “P” posi-
tion.
The key is not in the ignition switch
and less than 30 seconds have passed
since opening the driver ’s door.To stop the operation, push any driving
position memory button.
To reactivate the system, push the button
“1” or “2” again.
If the vehicle’s battery is disconnected,
the memory will be erased and the posi-
tions will have to be set again.
CAUTION
Do not start the vehicle while the
adjustment are being made.
Take care not to select the wrong
button, or the seat could strike the
rear passenger or hit your body
against the steering wheel. If this
happens, you can stop the move-
ment by pressing another driving
position memory switch, or de-
pressing the brake pedal.

’06_SEQUOIA_U (L/O 0508)
71
Front seats
Second seats (bench type)
To use the armrest, do this.
Front seats—Pull the armrest down as
shown in the illustration.
Second seats (bench type)—Pull the arm-
rest out as shown in the illustration.
NOTICE
To prevent damage to the armrest,
avoid putting heavy loads on it.
To turn on the seat heater, push the
switches (“L” switch for the driver ’s
seat and “R” switch for the front pas-
senger ’s seat).
At this time, the indicator light will illumi-
nate to indicate the seat heater is operat-
ing.
The seat heater switches have the follow-
ing positions.
“HI”—High heating temperature
“LO”—Low heating temperature
The key must be in the “ON” position to
operate seat heaters.
Pushing lightly on the opposite side will
turn it off.
ArmrestsSeat heaters

’06_SEQUOIA_U (L/O 0508)
77
CAUTION
Make sure the both buckles are cor-
rectly located and securely latched.
Failure to properly match the buckle
and tab may cause severe injury in
case of an accident or a collision.
To release the concave end tab, insert the
key into the hole on buckle 1 (with light
gray buckle release button) and allow the
belt to retract.CAUTION
Do not use the center seat belt of the
third seats with either buckle re-
leased. Fastening only the shoulder
belt or lap belt may cause severe per-
sonal injury in case of sudden brak-
ing or a collision.

’06_SEQUOIA_U (L/O 0508)
85
The seat belt pretensioners are controlled
by the airbag sensor assembly. The airbag
sensor assembly consists of a safing sen-
sor and airbag sensor.
When the seat belt pretensioners are acti-
vated, an operating noise may be heard
and a small amount of non−toxic gas may
be released. This does not indicate that
a fire is occurring. This gas is normally
harmless.
Once the seat belt pretensioners have
been activated, the seat belt retractors
remain locked.
CAUTION
Do not modify, remove, strike or open
the seat belt pretensioner assemblies,
airbag sensor or surrounding area or
wiring. Failure to follow these instruc-
tions may prevent the seat belt pre-
tensioners from activating correctly,
cause sudden operation of the system
or disable the system, which could
result in death or serious injury. Con-
sult your Toyota dealer about any re-
pair and modification.
NOTICE
Do not perform any of the following
changes without consulting your
Toyota dealer. Such changes can
interfere with proper operation of the
front seat belt pretensioners in some
cases.
 Installation of electronic devices
such as a mobile twoway radio,
cassette tape player or compact
disc player
 Repairs on or near the front seat
belt retractor assemblies
 Modification of the suspension sys-
tem
 Modification of the front end struc-
ture
 Attachment of a grille guard (bull
bar, kangaroo bar, etc.), snowplow,
winches or any other equipment to
the front end
 Repairs made on or near the front
fenders, front end structure or con-
sole
This indicator comes on when the igni-
tion key is turned to the “ON” position.
It goes off after about 6 seconds. This
means the front seat belt pretensioners
are operating properly.

’06_SEQUOIA_U (L/O 0508)
86
This warning light system monitors the
airbag sensor assembly, front airbag sen-
sors, side and curtain shield airbag sen-
sors, curtain shield airbag sensors, driv-
er ’s seat position sensor, driver ’s seat belt
buckle switch, front passenger occupant
classification system and indicator light,
front passenger ’s seat belt buckle switch,
seat belt pretensioner assemblies, inflat-
ors, “RSCA OFF” indicator light, intercon-
necting wiring and power sources. (For
details, see “Service reminder indicators
and warning buzzers” on page 162 in Sec-
tion 1−6.)
If any of the following conditions occurs,
this indicates a malfunction of the airbags
or seat belt pretensioners. Contact your
Toyota dealer as soon as possible.
The light does not come on when the
ignition key is turned to the “ON” posi-
tion or remains on for more than 6
seconds.
The light comes on or starts flashing
while driving.
If any seat belt does not retract or can
not be pulled out due to a malfunction
or activation of the relevant seat belt
pretensioner.
The seat belt pretensioner assembly or
surrounding area has been damaged.
In the following cases, contact your Toyota
dealer as soon as possible:
The front of the vehicle (shaded in the
illustration) was involved in an accident
that was not severe enough to cause
the seat belt pretensioners to operate.
Either seat belt pretensioner assembly
or surrounding area is scratched,
cracked, or otherwise damaged.
The SRS (Supplemental Restraint Sys-
tem) front airbags are designed to pro-
vide further protection for the driver
and front passenger in addition to the
primary safety protection provided by
the seat belts.
Your vehicle is equipped with “ADVANCED
AIRBAGS” designed based on US motor
vehicle safety standards (FMVSS208). The
airbag system controls airbag deployment
power for the driver and front passenger.
The driver airbag system consists of the
driver seat’s position sensor etc. The front
passenger ’s airbag system consists of the
front passenger occupant classification
sensor etc.
SRS driver airbag and front
passenger airbag

’06_SEQUOIA_U (L/O 0508)
92
This indicator comes on when the igni-
tion key is turned to the “ON” position.
It goes off after about 6 seconds. This
means the SRS front airbags are oper-
ating properly.This warning light system monitors the
airbag sensor assembly, front airbag sen-
sors, side and curtain shield airbag sen-
sors, curtain shield airbag sensors, driv-
er ’s seat position sensor, driver ’s seat belt
buckle switch, front passenger occupant
classification system and indicator light,
front passenger ’s seat belt buckle switch,
seat belt pretensioner assemblies, inflat-
ors, “RSCA OFF” indicator light, intercon-
necting wiring and power sources. (For
details, see “Service reminder indicators
and warning buzzers” on page 162 in Sec-
tion 1
−6.)
If any of the following conditions occurs,
this indicates a malfunction of the airbags
or seat belt pretensioners. Contact your
Toyota dealer as soon as possible.
The light does not come on when the
ignition key is turned to the “ON” posi-
tion or remains on for more than 6
seconds.
The light comes on or starts flashing
while driving.
The SRS warning light will come on and
front passenger occupant classification in-
dicator light will indicate “OFF” if there is
a malfunction in the front passenger occu-
pant classification system.
In the following cases, contact your Toyota
dealer as soon as possible:
The SRS front airbags have been in-
flated.
The front of the vehicle (shaded in the
illustration) was involved in an accident
that was not severe enough to cause
the SRS front airbags to inflate.
The pad section of the steering wheel
or front passenger airbag cover
(shaded in the illustration) is scratched,
cracked, or otherwise damaged.

’06_SEQUOIA_U (L/O 0508)
101
NOTICE
Do not perform any of the following
changes without consulting your
Toyota dealer. Such changes can
interfere with proper operation of the
SRS side airbag and curtain shield
airbag system in some cases.
Installation of electronic devices
such as a mobile twoway radio,
cassette tape player or compact
disc player
 Modification of the side structure of
the passenger compartment
 Repairs made on or near the con-
sole or front seat
This indicator comes on when the igni-
tion key is turned to the “ON” position.
It goes off after about 6 seconds. This
means the SRS side airbags and curtain
shield airbags are operating properly. This warning light system monitors the
airbag sensor assembly, front airbag sen-
sors, side and curtain shield airbag sen-
sors, curtain shield airbag sensors, driv-
er ’s seat position sensor, driver ’s seat belt
buckle switch, front passenger occupant
classification system and indicator light,
front passenger ’s seat belt buckle switch,
seat belt pretensioner assemblies, inflat-
ors, “RSCA OFF” indicator light, intercon-
necting wiring and power sources. (For
details, see “Service reminder indicators
and warning buzzers” on page 162 in Sec-
tion 1
−6.)
If any of the following conditions occurs,
this indicates a malfunction of the airbags
or seat belt pretensioners. Contact your
Toyota dealer as soon as possible.
The light does not come on when the
ignition key is turned to the “ON” posi-
tion or remains on for more than 6
seconds.
The light comes on or starts flashing
while driving.
The SRS warning light will come on and
front passenger occupant classification in-
dicator light will indicate “OFF” if there is
a malfunction in the front passenger occu-
pant classification system.
