TOYOTA SEQUOIA 2007 1.G Owners Manual

1212007 SEQUOIA from Aug. ’07 Prod. (OM34462U)
u13096
To install the booster seat:
Sit the child on a booster seat. Run the
lap and shoulder belt through or around
the booster seat and across the child fol-
lowing the instructions provided by its
manufacturer and insert the tab into the
buckle taking care not to twist the belt.
Make sure the shoulder belt is correctly
across the child’s shoulder and that the
lap belt is positioned as low as possible
on the child’s hips. See “Seat belts” on
page 73 in this Section for details.
CAUTION
Always make sure the shoulder belt
is positioned across the center of
child’s shoulder. The belt should be
kept away from child’s neck, but
not falling off child’s shoulder.
Otherwise, the child may be killed
or seriously injured in case of sud-
den braking or a collision.
Both highpositioned lap belts and
loosefitting belts could cause
death or serious injuries due to
sliding under the lap belt during a
collision or other unintended event.
Keep the lap belt positioned as low
on a child’s hips as possible.
For child’s safety, do not place the
shoulder belt under child’s arm.
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.
If the seat belt does not function
normally, it cannot protect your
child from death or serious injury.
Contact your Toyota dealer immedi-
ately. Do not install the child
restraint system on the seat until
the seat belt is fixed.

1222007 SEQUOIA from Aug. ’07 Prod. (OM34462U)
u13092
To remove the booster seat:
Press the buckle release button and allow
the belt to retract.
u13146
Follow the procedure below for a child
restraint system that requires the use
of a top strap.
u13147
Anchor brackets
Use one anchor bracket on the rear of
second seats and two anchor brackets on
the floor as shown above to attach the top
strap.
Anchor bracket is installed for each sec-
ond seating position.
— U sin g a to p st rap
(for bench type second seats)

1232007 SEQUOIA from Aug. ’07 Prod. (OM34462U)
u13102
TO USE THE ANCHOR BRACKETS:1. Remove the head restraint.
u13148
Outside position
u13142
Center position
2. Fix the child restraint system with the seat belt.
Latch the hook onto the anchor
bracket and tighten the top strap.
For instructions to install the child re-
straint system, see “Child restraint” on
page 108 in this Section.
CAUTION
Make sure the top strap is securely
latched, and check that the child re-
straint system is secure by pushing
and pulling it in different directions.
Follow all the installation instructions
provided by its manufacturer.

1242007 SEQUOIA from Aug. ’07 Prod. (OM34462U)
u13104
3. Replace the head restraint.
u13208
Follow the procedure below for a child
restraint system that requires the use
of a top strap.
u13209
Anchor brackets
Use the anchor brackets on the floor as
shown above to attach the top strap.
Anchor bracket is installed for each sec-
ond seat.
— U sin g a to p st rap
(for separate type second
seats)

1252007 SEQUOIA from Aug. ’07 Prod. (OM34462U)
u13210
TO USE THE ANCHOR BRACKETS:1. Remove the head restraint.
u13211
2. Fix the child restraint system with the seat belt.
Latch the hook onto the anchor
bracket and tighten the top strap.
For instructions to install the child re-
straint system, see “Child restraint” on
page 108 in this Section.
CAUTION
Make sure the top strap is securely
latched, and check that the child re-
straint system is secure by pushing
and pulling it in different directions.
Follow all the installation instructions
provided by its manufacturer.
u13212
3. Replace the head restraint.

1262007 SEQUOIA from Aug. ’07 Prod. (OM34462U)
u13195
Follow the procedure below for a child
restraint system that requires the use
of a top strap.
u13213
Anchor brackets
Symbol mark
Use the anchor brackets on the back of
the third seats to attach the top strap.
Anchor bracket is installed for right side
and center seating positions.
This symbol indicates the locations of
user ready anchor brackets.
u13196
TO USE THE ANCHOR BRACKET (right
side):
1. Remove the head restraint.
— U sin g a to p st rap
(for third seats)

1272007 SEQUOIA from Aug. ’07 Prod. (OM34462U)
u13197
2. Fix the child restraint system withthe seat belt.
Latch the hook onto the anchor
bracket and tighten the top strap.
For instructions to install the child re-
straint system, see “Child restraint” on
page 108 in this Section.
CAUTION
Make sure the top strap is securely
latched, and check that the child re-
straint system is secure by pushing
and pulling it in different directions.
Follow all the installation instructions
provided by its manufacturer.
u13198
3. Replace the head restraint.
u13257
TO USE THE ANCHOR BRACKET
(center): 1. Remove the head restraint.

1282007 SEQUOIA from Aug. ’07 Prod. (OM34462U)

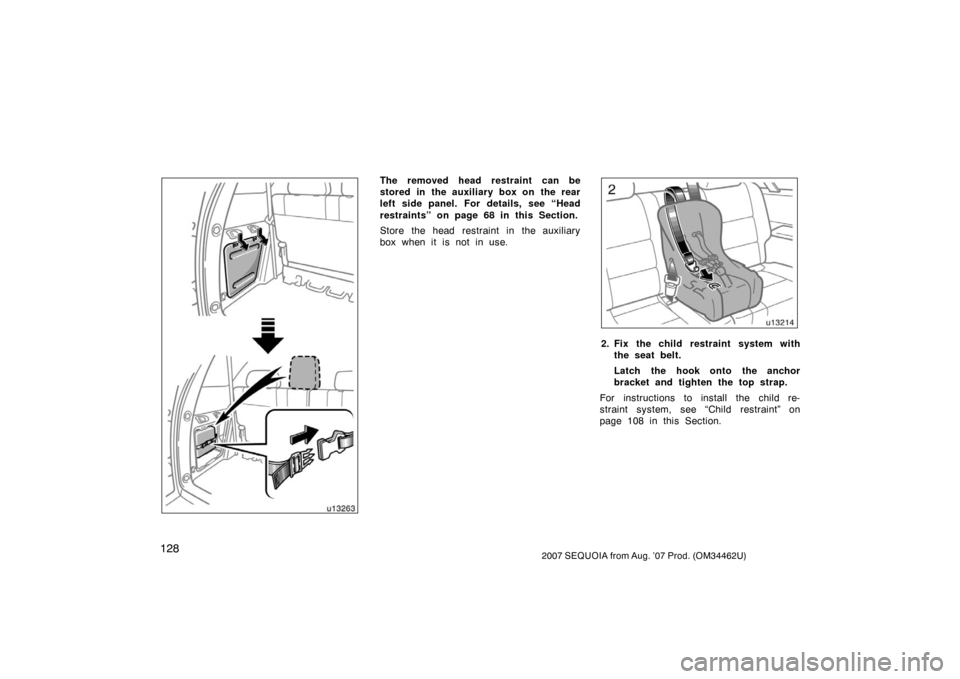

u13263
The removed head restraint can be
stored in the auxiliary box on the rear
left side panel. For details, see “Head
restraints” on page 68 in this Section.
Store the head restraint in the auxiliary
box when it is not in use.
u13214
2. Fix the child restraint system withthe seat belt.
Latch the hook onto the anchor
bracket and tighten the top strap.
For instructions to install the child re-
straint system, see “Child restraint” on
page 108 in this Section.

1292007 SEQUOIA from Aug. ’07 Prod. (OM34462U)

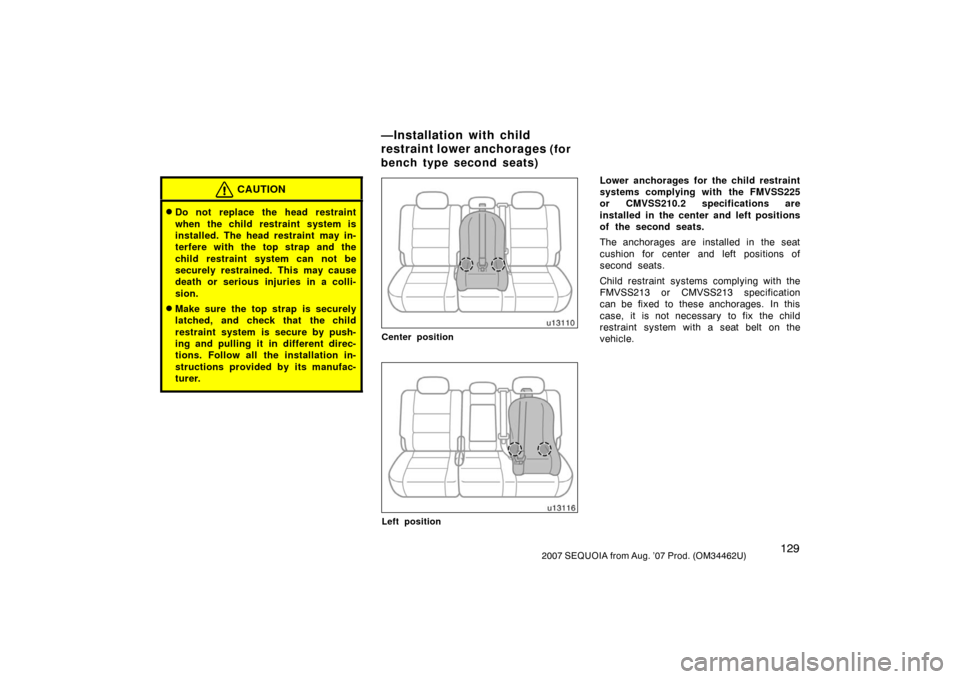

CAUTION
Do not replace the head restraint
when the child restraint system is
installed. The head restraint may in-
terfere with the top strap and the
child restraint system can not be
securely restrained. This may cause
death or serious injuries in a colli-
sion.
Make sure the top strap is securely
latched, and check that the child
restraint system is secure by push-
ing and pulling it in different direc-
tions. Follow all the installation in-
structions provided by its manufac-
turer.
u13110
Center position
u13116
Left position
Lower anchorages for the child restraint
systems complying with the FMVSS225
or CMVSS210.2 specifications are
installed in the center and left positions
of the second seats.
The anchorages are installed in the seat
cushion for center and left positions of
second seats.
Child restraint systems complying with the
FMVSS213 or CMVSS213 specification
can be fixed to these anchorages. In this
case, it is not necessary to fix the child
restraint system with a seat belt on the
vehicle.
—Installation with child
restraint lower anchorages
(for
bench type second seats)

1302007 SEQUOIA from Aug. ’07 Prod. (OM34462U)

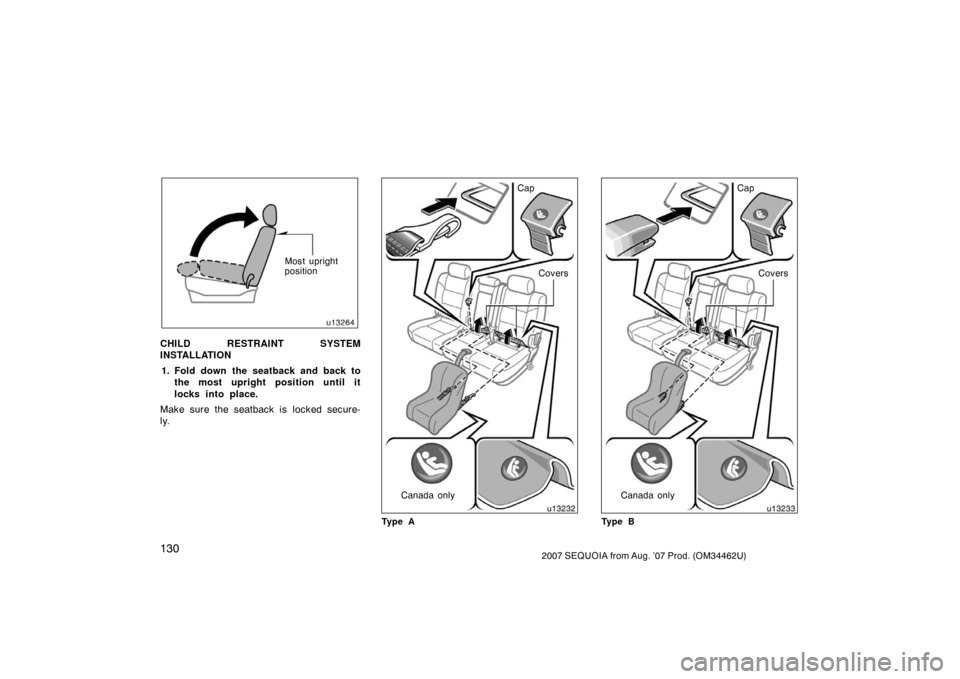

u13264Most upright
position
CHILD RESTRAINT SYSTEM
INSTALLATION1. Fold down the seatback and back to the most upright position until it
locks into place.
Make sure the seatback is locked secure-
ly.u13232
Canada only Covers
Cap
Ty p e A
u13233
Canada only Covers
Cap
Ty p e B
