TOYOTA SEQUOIA 2007 1.G Quick Reference Guide

MN 00452-PRG07-SEQ
Printed in USA 07/06
2007
Pocket Reference Guide
Customer Experience Center
1-800-331-4331

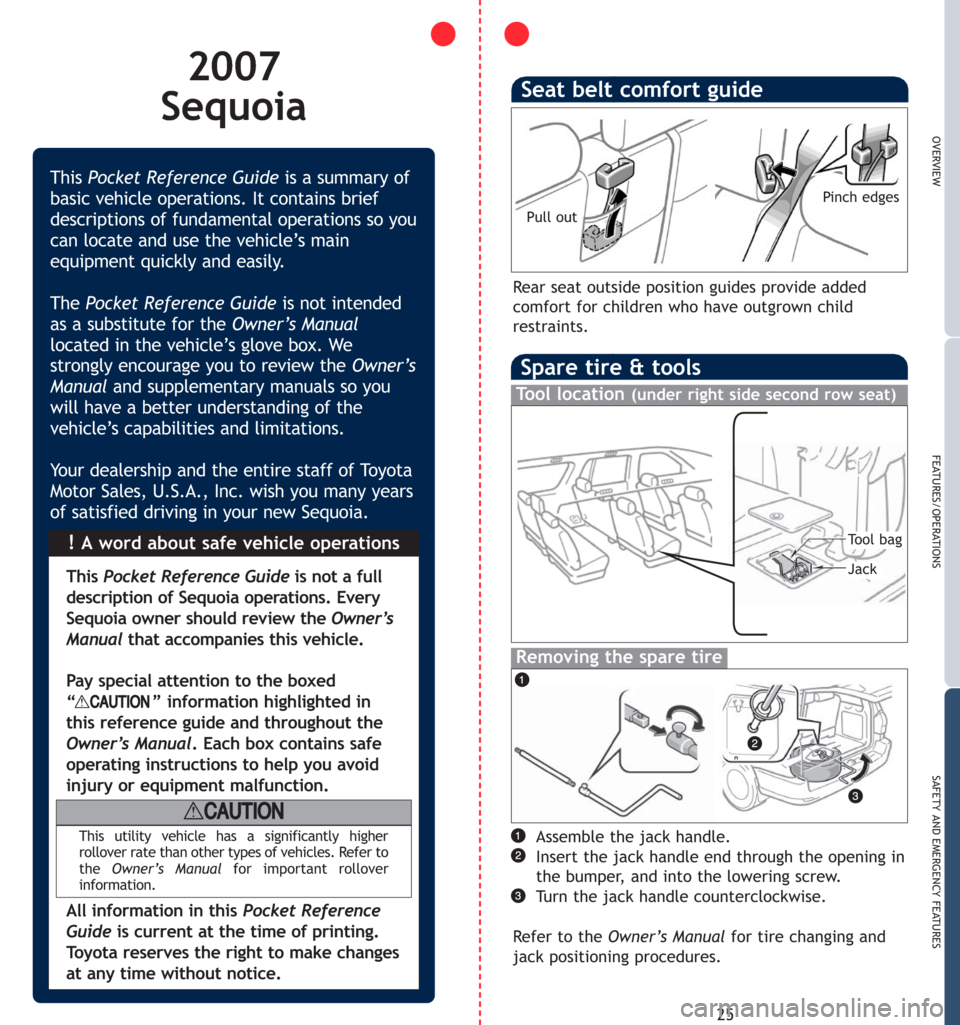

Spare tire & tools
Tool location (under right side second row seat)
Removing the spare tire
25
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Assemble the jack handle.
Insert the jack handle end through the opening in
the bumper, and into the lowering screw.
Turn the jack handle counterclockwise.
Refer to the Owner’s Manualfor tire changing and
jack positioning procedures.
!A word about safe vehicle operations This Pocket Reference Guideis a summary of
basic vehicle operations. It contains brief
descriptions of fundamental operations so you
can locate and use the vehicle’s main
equipment quickly and easily.
The Pocket Reference Guideis not intended
as a substitute for theOwner’s Manual
located in the vehicle’s glove box. We
strongly encourage you to review theOwner’s
Manual and supplementary manuals so you
will have a better understanding of the
vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota
Motor Sales, U.S.A., Inc. wish you many years
of satisfied driving in your new Sequoia.
This Pocket Reference Guideis not a full
description of Sequoia operations. Every
Sequoia owner should review the Owner’s
Manualthat accompanies this vehicle.
Pay special attention to the boxed
“ ” information highlighted in
this reference guide and throughout the
Owner’s Manual. Each box contains safe
operating instructions to help you avoid
injury or equipment malfunction.
All information in this Pocket Reference
Guideis current at the time of printing.
Toyota reserves the right to make changes
at any time without notice.
This utility vehicle has a significantly higher
rollover rate than other types of vehicles. Refer to
the Owner’s Manualfor important rollover
information.
2007
Sequoia
Tool bag
Jack
Seat belt comfort guide
Pull out
Right front seat
Pinch edges
Rear seat outside position guides provide added
comfort for children who have outgrown child
restraints.

1Programmable by customer. Refer to the Owner’s
Manual for instructions and more information.
2Visit your Toyota dealer for information on
customizing this feature.
3HomeLink®is a registered trademark of Johnson Controls, Inc.
OVERVIEWEngine maintenance8Fuel tank door release and cap 7Hood release 7Indicator symbols 4-5Instrument cluster 4Instrument panel 2-3
Keyless entry26
FEATURES/OPERATIONSAir Conditioning/Heating 15Audio system16-17Auto lock functions1, 29Automatic Transmission9Clock 22Cruise control 21Cup holders19
Door locks 22Four-wheel drive10Light control-Instrument panel 21Lights2&turn signals13Mirrors-Power side view12Moonroof220Multi-information display (HomeLink®)314Parking brake10Power outlets 20Rear seat entertainment system18Seat adjustments-Front11Seat adjustments-Rear11Seat heaters14Seats-Head restraints12Tilt steering wheel 22Windows218Window-Rear219
Windshield wiper & washer12
SAFETY AND EMERGENCY FEATURESDoors-Child safety locks 23Seat belt comfort guide 25Seat belts 23Seat belts-Shoulder belt anchor 24Spare tire & tools 25
Tire Pressure Wa r n i n g System reset 24
1
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
INDEX
ItemPage no.

3
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
2
OVERVIEW
Power back window switch
Driving position memory switches1
Headlight, turn signal and front fog light1controls
Ignition switch
Wiper and washer controls
Automatic transmission shift lever
Emergency flasher switch
Automatic Transmission shift position “L” switch
(“SHIFT L” switch)
Audio system or navigation system
1, 2
Front/Rear Air Conditioning controls
Front passenger occupant classification indicator/
Front passenger seat belt reminder light
Back window and outside rearview mirror
defogger
1switch
Clock
Cup holder
Glass breakage sensor
1
115V AC Power outlet ON/OFF switch1
Height control switch1
Height control mode select switch1
Ashtray
12 DC Power outlet cigarette lighter
Front drive control switches
1
“TRAC OFF” (Tr a c t i o n Control “OFF”)1
Center differential lock switch1
Cruise control
Tire Pressure Wa r n i n g System reset switch
(below steering column)
Steering wheel audio control
1
Tilt steering lock release
“RSCA OFF” (Roll Sensing of Curtain shield
Airbags “OFF”) switch
1
Instrument panel light control
1If equipped2For details, refer to the “Navigation System
Owner’s Manual.”
Instrument panel
Two-wheel drive models
Four-wheel drive models

5
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
4
OVERVIEW
Headlight high beam indicator
Automatic Transmission indicator

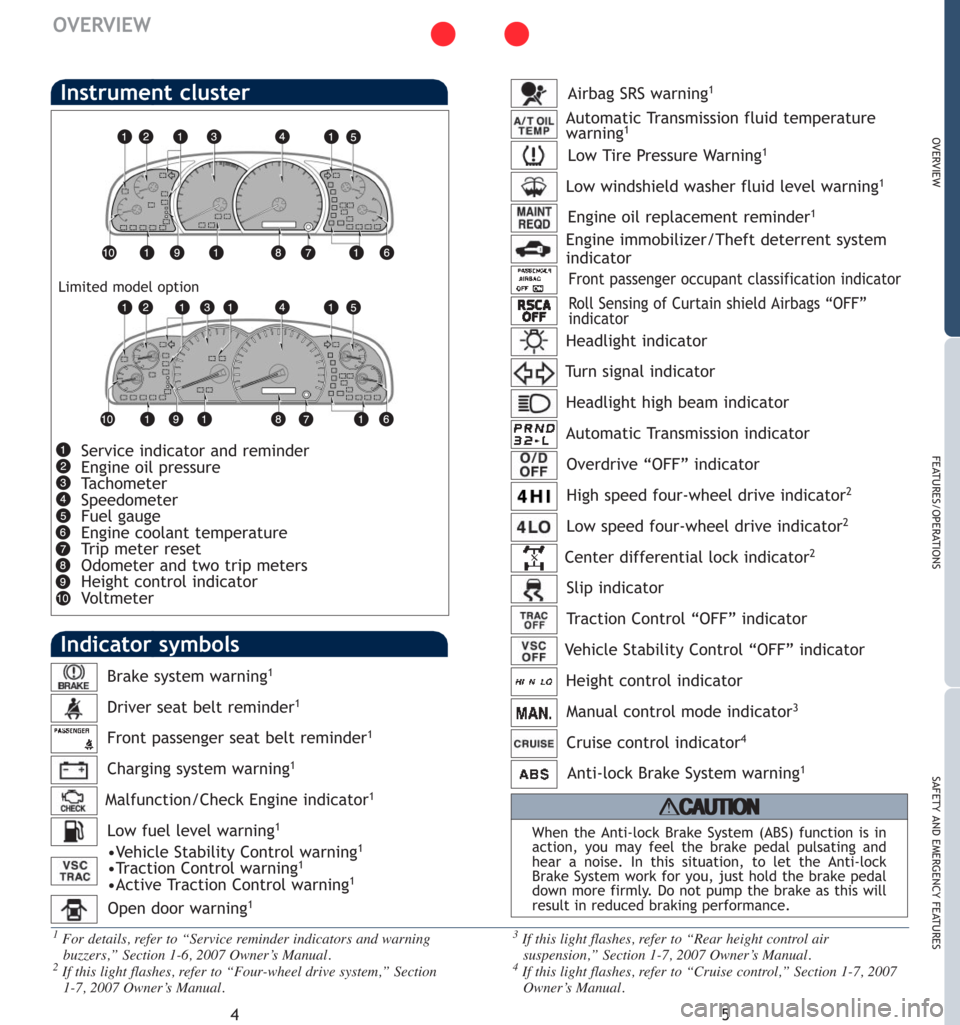

Instrument cluster
Center differential lock indicator2
Driver seat belt reminder1
Front passenger seat belt reminder1
Charging system warning1
Low fuel level warning1
Brake system warning1
Anti-lock Brake System warning1
Malfunction/Check Engine indicator1
When the Anti-lock Brake System (ABS) function is in
action, you may feel the brake pedal pulsating and
hear a noise. In this situation, to let the Anti-lock
Brake System work for you, just hold the brake pedal
down more firmly. Do not pump the brake as this will
result in reduced
braking performance.
Indicator symbols
Overdrive “OFF” indicator
High speed four-wheel drive indicator
2
Low speed four-wheel drive indicator2
Slip indicator
Vehicle Stability Control “OFF” indicator
Height control indicator
Manual control mode indicator
3
Cruise control indicator4
Roll Sensing of Curtain shield Airbags “OFF”
indicator
Headlight indicator
Open door warning1
Airbag SRS warning1
Automatic Transmission fluid temperature
warning1
Low Tire Pressure Wa r n i n g1
Engine immobilizer/Theft deterrent system
indicator
Front passenger occupant classification indicator
•Vehicle Stability Control warning1
•Tr a c t i o n Control warning1
•Active Tr a c t i o n Control warning1
Tu r n signal indicator
Tr a c t i o n Control “OFF” indicator
1For details, refer to “Service reminder indicators and warning
buzzers,” Section 1-6, 2007 Owner’s Manual.
2If this light flashes, refer to “Four-wheel drive system,” Section
1-7, 2007 Owner’s Manual.
3If this light flashes, refer to “Rear height control air
suspension,” Section 1-7, 2007 Owner’s Manual.
4If this light flashes, refer to “Cruise control,” Section 1-7, 2007
Owner’s Manual.
Service indicator and reminder
Engine oil pressure
Tachometer
Speedometer
Fuel gauge
Engine coolant temperature
Tr i p meter reset
Odometer and two trip meters
Height control indicator
Vo l t m e t e r
Limited model option
Low windshield washer fluid level warning1
Engine oil replacement reminder1

7
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
6
OVERVIEW
NOTE:After unlocking, if a door is not opened within
30 seconds, all doors will relock for safety.

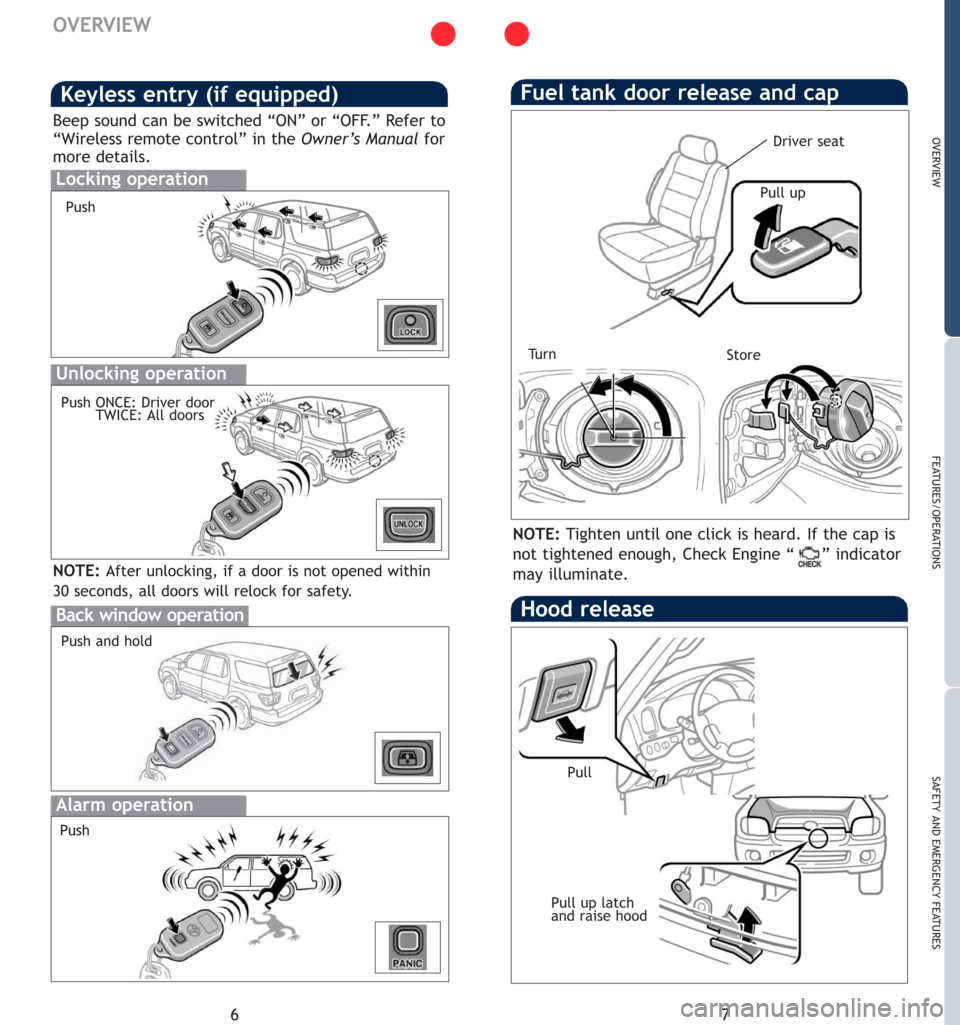

Alarm operation
Keyless entry (if equipped)
Locking operation
Unlocking operation
Back window operation
Beep sound can be switched “ON” or “OFF.” Refer to
“Wireless remote control” in the Owner’s Manualfor
more details.
Push
PushPush ONCE: Driver door
TWICE: All doors
Push and hold
Fuel tank door release and cap
Pull up
Tu r n
Store
Hood release
Pull
Pull up latch
and raise hood
Driver seat
NOTE:Tighten until one click is heard. If the cap is
not tightened enough, Check Engine “ ” indicator
may illuminate.

89
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
FEATURES/OPERATIONS

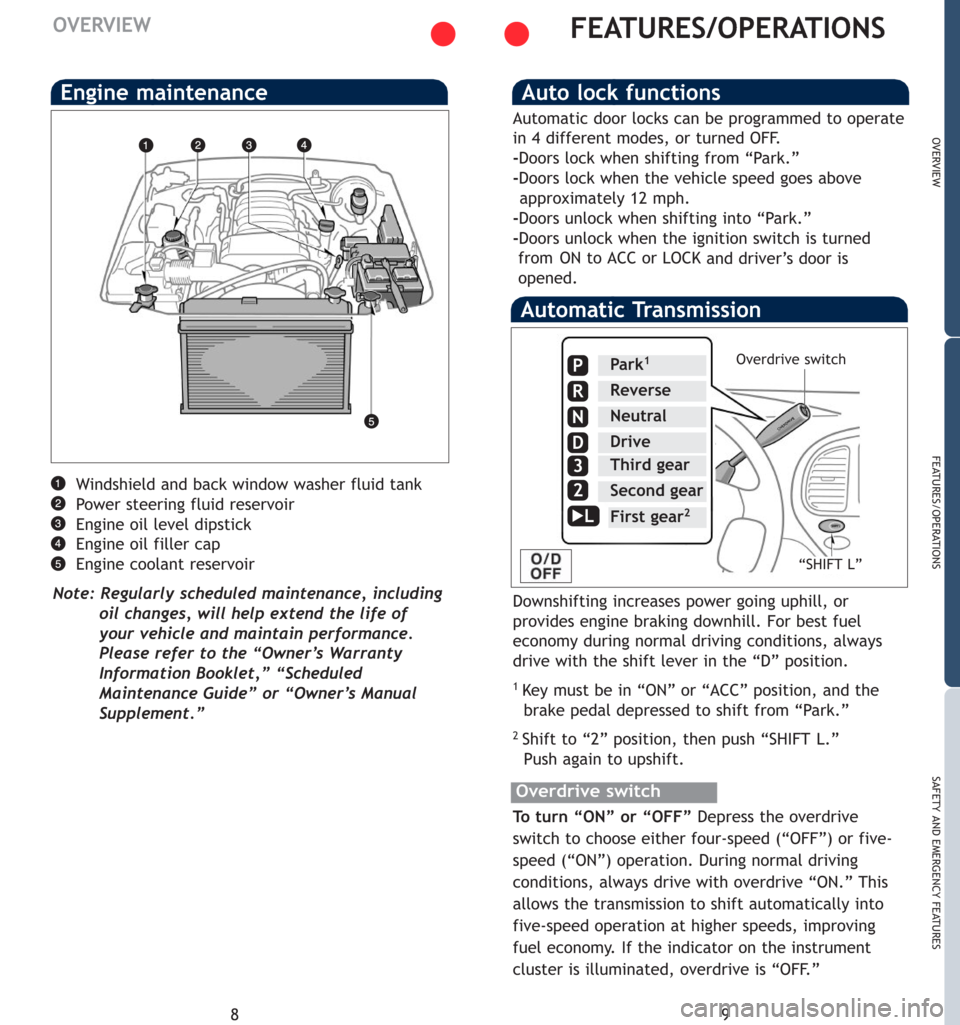

Automatic Transmission
P
R
N
D
2
L
Park1
Reverse
Neutral
Drive
3Third gear
Second gear
Overdrive switch
Overdrive switch
To t u r n “ON” or “OFF”Depress the overdrive
switch to choose either four-speed (“OFF”) or five-
speed (“ON”) operation. During normal driving
conditions, always drive with overdrive “ON.” This
allows the transmission to shift automatically into
five-speed operation at higher speeds, improving
fuel economy. If the indicator on the instrument
cluster is illuminated, overdrive
is “OFF.”
“SHIFT L”
Auto lock functions
Automatic door locks can be programmed to operate
in 4 different modes, or turned OFF.
-Doors lock when shifting from “Park.”
-Doors lock when the vehicle speed goes above
approximately 12 mph.
-Doors unlock when shifting into “Park.”
-Doors unlock when the ignition switch is turned
from ON to ACC or LOCK
and driver’s door is
opened.
Downshifting increases power going uphill, or
provides engine braking downhill. For best fuel
economy during normal driving conditions, always
drive with the shift lever in the “D” position.
1Key must be in “ON” or “ACC” position, and the
brake pedal depressed to shift from “Park.”
2Shift to “2” position, then push “SHIFTL.”
Push again to upshift.
OVERVIEW
Windshield and back window washer fluid tank
Power steering fluid reservoir
Engine oil level dipstick
Engine oil filler cap
Engine coolant reservoir
Note: Regularly scheduled maintenance, including
oil changes, will help extend the life of
your vehicle and maintain performance.
Please refer to the
“Owner’s Warranty
Information Booklet,” “Scheduled
Maintenance Guide” or “Owner’s Manual
Supplement.”
Engine maintenance
First gear2

10
FEATURES/OPERATIONS
11
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

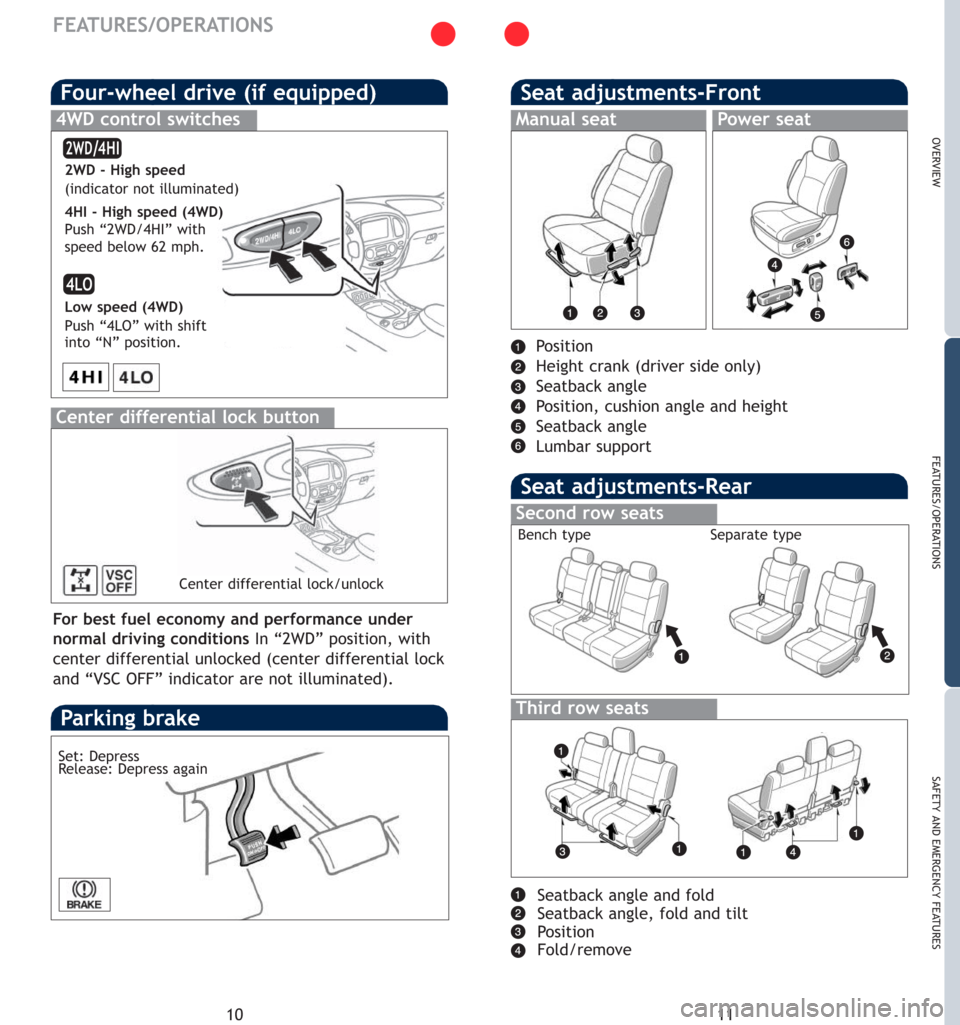

Seat adjustments-Front
Position
Height crank (driver side only)
Seatback angle
Position, cushion angle and height
Seatback angle
Lumbar support
Manual seatPower seat
Seat adjustments-Rear
Seatback angle and fold
Seatback angle, fold and tilt
Position
Fold/remove
Second row seats
Bench type Separate type
Third row seats
4WD control switches
Four-wheel drive (if equipped)
2WD4HI
4LO
Low speed (4WD)
Push “4LO” with shift
into “N” position.
Center differential lock button
For best fuel economy and performance under
normal driving conditionsIn “2WD” position, with
center differential unlocked (center differential lock
and “VSC OFF” indicator are not illuminated).
Center differential lock/unlock
Parking brake
Set: Depress
Release: Depress again 2WD - High speed
(indicator not illuminated)
4HI - High speed (4WD)
Push “2WD/4HI” with
speed below 62 mph.

12
FEATURES/OPERATIONS
13
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

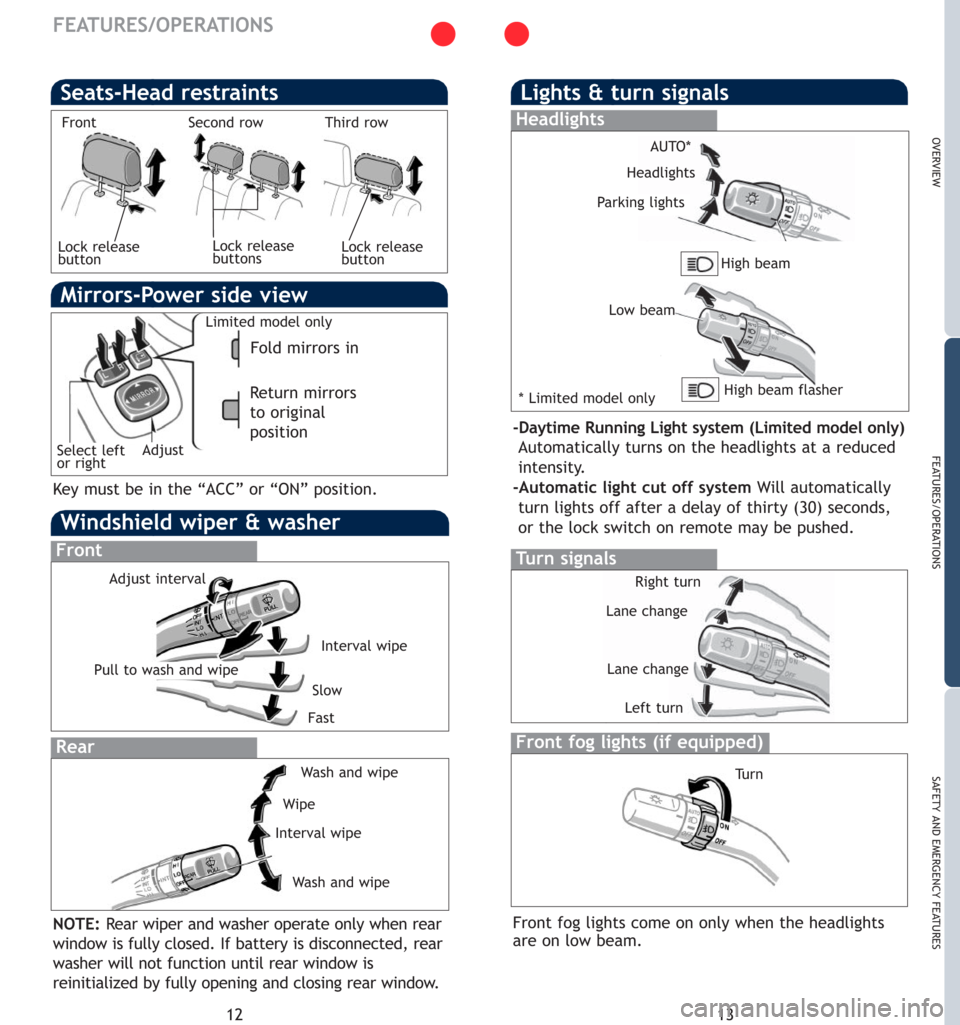

Windshield wiper & washer
Interval wipe
Slow
Fast Adjust interval
Front
Rear
Wa s h and wipe
Wipe
Interval wipe
Wa s h and wipe
Mirrors-Power side view
Fold mirrors in
Return mirrors
to original
position
Limited model only
AdjustSelect left
or right
Key must be in the “ACC” or “ON” position.
Lights & turn signals
Tu r n signals
Headlights
AUTO*
High beam flasher
*Limited model only Low beam
Front fog lights (if equipped)
Headlights
-Daytime Running Light system (Limited model only)
Automatically turns on the headlights at a reduced
intensity.
-Automatic light cut off system Will automatically
turn lights off after a delay of thirty (30) seconds,
or the lock switch on remote may be pushed.
Front fog lights come on only when the headlights
are
on low beam.
Parking lights
High beam
Right turn
Tu r n Lane change
Lane change
Left turn
Pull to wash and wipe
NOTE: Rear wiper and washer operate only when rear
window is fully closed. If battery is disconnected, rear
washer will not function until rear window is
reinitialized by fully opening and closing rear window.
Seats-Head restraints
Front Second row Third row
Lock release
buttonLock release
buttonsLock release
button

Rear
Front
15
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

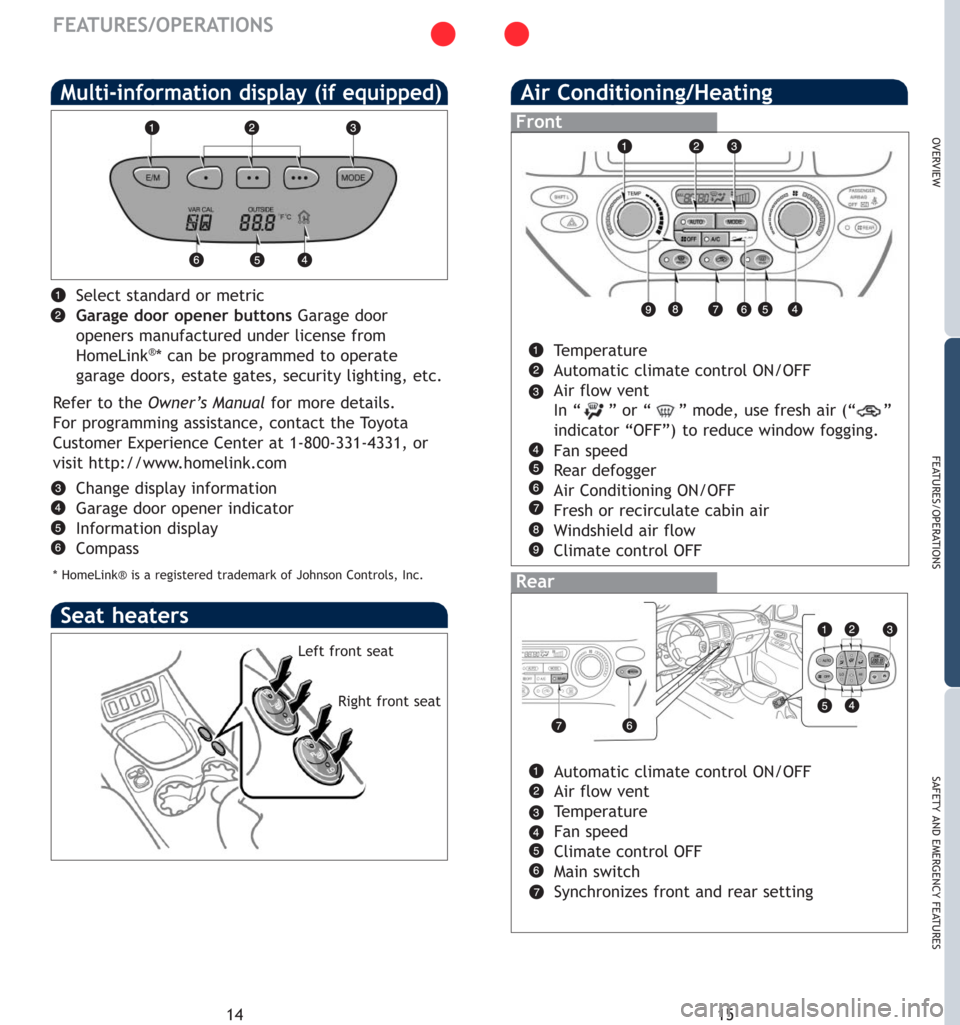

14
FEATURES/OPERATIONS
Air Conditioning/Heating
Temperature
Automatic climate control ON/OFF
Air flow vent
Fan speed
Rear defogger
Air Conditioning ON/OFF
Fresh or recirculate cabin air
Windshield air flow
Climate control OFF
Automatic climate control ON/OFF
Air flow vent
Temperature
Fan speed
Climate control OFF
Main switch
Synchronizes front and rear setting
In “ ” or “ ” mode, use fresh air (“ ”
indicator “OFF”)to reduce window fogging.
Multi-information display (if equipped)
Select standard or metric
Garage door opener buttons Garage door
openers manufactured under license from
HomeLink
®*can be programmed to operate
garage doors, estate gates, security lighting, etc.
Refer to the Owner’s Manualfor more details.
For programming assistance, contact the To y o t a
Customer Experience Center at 1-800-331-4331, or
visit http://www.homelink.com
Change display information
Garage door opener indicator
Information display
Compass
*HomeLink® is a registered trademark of Johnson Controls, Inc.
Seat heaters
Left front seat
Right front seat
