Overview of instruments and controls
Instrument panel overview2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

Instrument cluster overview 8
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Indicator symbols on the instrument panel 10
. . . . . . . . . . . . . . . . . . . . . .
SECTION 1 1

22007 SEQUOIA from Aug. ’07 Prod. (OM34462U)

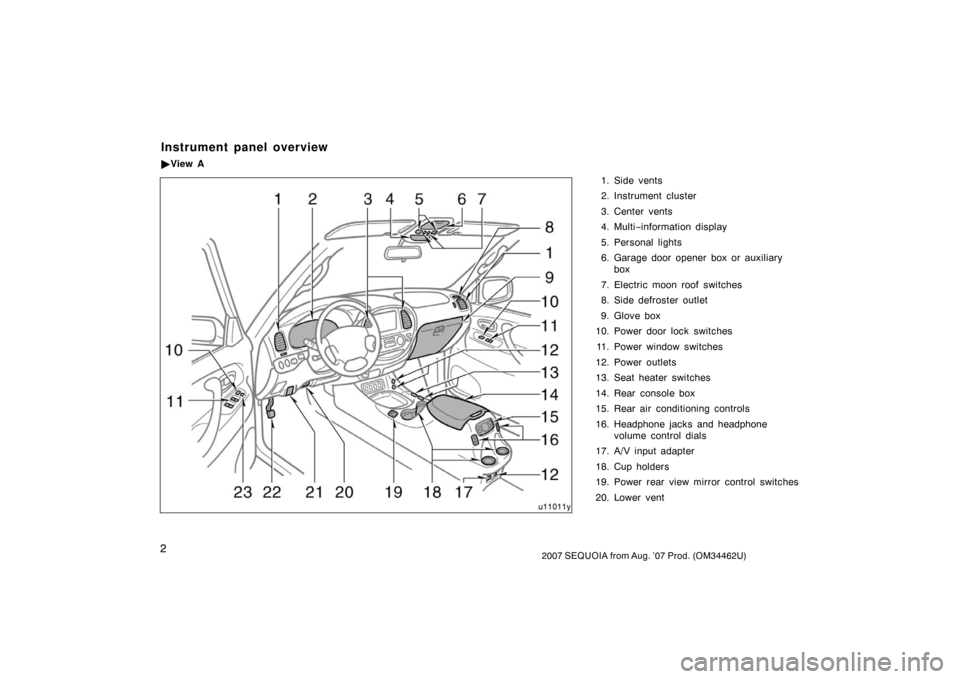

1. Side vents
2. Instrument cluster
3. Center vents
4. Multi−information display
5. Personal lights
6. Garage door opener box or auxiliary box
7. Electric moon roof switches
8. Side defroster outlet
9. Glove box
10. Power door lock switches
11. Power window switches
12. Power outlets
13. Seat heater switches
14. Rear console box
15. Rear air conditioning controls
16. Headphone jacks and headphone volume control dials
17. A/V input adapter
18. Cup holders
19. Power rear view mirror control switches
20. Lower vent
Instrument panel overview
 View A
u11011y

32007 SEQUOIA from Aug. ’07 Prod. (OM34462U)
21. Hood lock release lever
22. Parking brake pedal
23. Window lock switch

42007 SEQUOIA from Aug. ’07 Prod. (OM34462U)
1. Power back window switch
2. Driving position memory switches
3. Headlight, turn signal and front foglight switches
4. Ignition switch
5. Wiper and washer switches
6. Automatic transmission selector lever
7. Emergency flasher switch
8. Automatic transmission shift position “L” switch (“SHIFT L” switch)
9. Audio system or navigation system including audio system (For the
navigation system, see the separate
“Navigation System Owner ’s Manual”.)
10. Air conditioning controls 11. Front passenger occupant classification indicator light/front passenger ’s seat
belt reminder light
12. Back window and outside rear view mirror defogger switch
13. Clock
14. Cup holder
15. Glass breakage sensor
16. Power outlet main switch
17. Height control switch

View B (twowheel drive models)
u11016y

52007 SEQUOIA from Aug. ’07 Prod. (OM34462U)
18. Height control mode select switch
19. Ashtray
20. Cigarette lighter
21. Traction control off switch (“TRAC OFF” switch)
22. Cruise control switch
23. Tire pressure warning system reset switch
24. Audio remote control switches
25. Tilt steering lock release lever
26. Roll sensing of curtain shield airbags off switch
27. Instrument panel light control knob

62007 SEQUOIA from Aug. ’07 Prod. (OM34462U)
1. Power back window switch
2. Driving position memory switches
3. Headlight, turn signal and front foglight switches
4. Ignition switch
5. Wiper and washer switches
6. Automatic transmission selector lever
7. Emergency flasher switch
8. Automatic transmission shift position “L” switch (“SHIFT L” switch)
9. Audio system or navigation system including audio system (For the
navigation system, see the separate
“Navigation System Owner ’s Manual”.)
10. Air conditioning controls 11. Front passenger occupant classification indicator light/front passenger ’s seat
belt reminder light
12. Back window and outside rear view mirror defogger switch
13. Clock
14. Cup holder
15. Glass breakage sensor
16. Power outlet main switch
17. Height control switch

View B (fourwheel drive models)
u11017y

72007 SEQUOIA from Aug. ’07 Prod. (OM34462U)
18. Height control mode select switch
19. Ashtray
20. Cigarette lighter
21. Front drive control switches
22. Center differential lock switch
23. Cruise control switch
24. Tire pressure warning system resetswitch
25. Audio remote control switches
26. Tilt steering lock release lever
27. Roll sensing of curtain shield airbag off switch
28. Instrument panel light control knob

82007 SEQUOIA from Aug. ’07 Prod. (OM34462U)
u11014

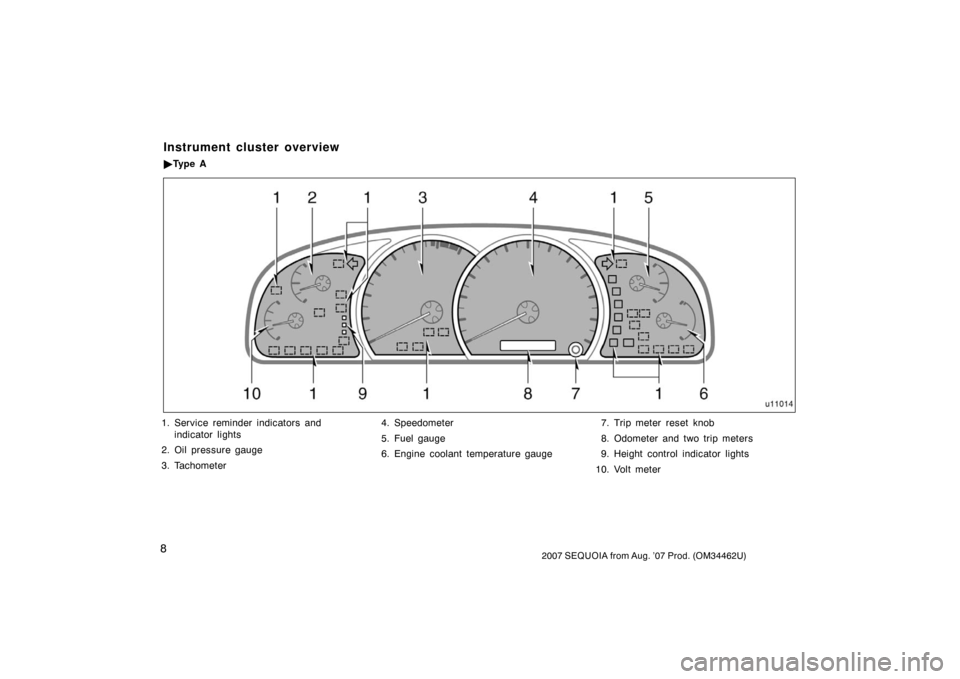

1. Service reminder indicators andindicator lights
2. Oil pressure gauge
3. Tachometer 4. Speedometer
5. Fuel gauge
6. Engine coolant temperature gauge
7. Trip meter reset knob
8. Odometer and two trip meters
9. Height control indicator lights
10. Volt meter
Instrument cluster overview
 Ty p e A

92007 SEQUOIA from Aug. ’07 Prod. (OM34462U)
u11015

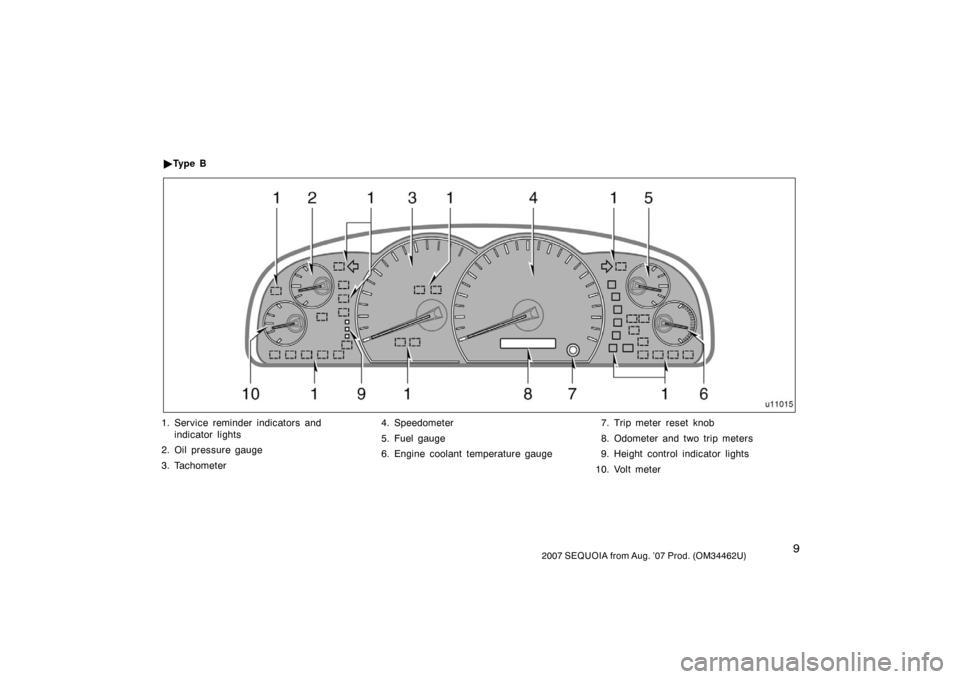

1. Service reminder indicators andindicator lights
2. Oil pressure gauge
3. Tachometer 4. Speedometer
5. Fuel gauge
6. Engine coolant temperature gauge
7. Trip meter reset knob
8. Odometer and two trip meters
9. Height control indicator lights
10. Volt meter

Ty p e B

102007 SEQUOIA from Aug. ’07 Prod. (OM34462U)
or
Driver ’s seat belt reminder light∗1
Charging system warning light∗1
Low fuel level warning light∗1
Brake system warning light∗1
Malfunction indicator lamp∗1
Anti −lock brake system warning light∗
1
Automatic transmission fluid temperature
warning light (four −wheel drive models)∗
1
SRS warning light∗1
Open door warning light∗1
Low windshield washer fluid level warning
light∗1
Front passenger ’s seat belt reminder light∗1
Vehicle stability control system/traction control
system (two −wheel drive models) or active
traction control system (four −wheel drive
models) warning light
∗ 1
Tire pressure warning light∗1
Engine oil replacement reminder light∗1
Indicator symbols on the instrument panel
