TOYOTA SEQUOIA 2007 1.G Owners Manual

1922007 SEQUOIA from Aug. ’07 Prod. (OM34462U)
“LO” (low) mode—
Tw o−wheel drive models—The vehicle
height is about 15 mm (0.6 in.) lower at
rear than “N” mode height.
Four −wheel drive models—The vehicle
height is about 30 mm (1.2 in.) lower at
rear than “N” mode height.
This mode allows for easy access to the
vehicle (getting in and out) and easy load-
ing and unloading.
This mode is available when the vehicle
speed is 12 km/h (7 mph) or less.
NOTICE
Use “LO” mode when the vehicle is
stopped. Otherwise, when the vehicle
speed exceeds 12 km/h (7 mph), “N”
mode is selected automatically. Prop-
er caution should be taken in places
where the overhead height is limited.
(b) Vehicle height mode changing con- dition
To change the vehicle height, it is neces-
sary to meet the following conditions.
The engine should be running.
The manual control mode indicator light
should go off.
When selecting a mode, there is a ve-
hicle speed limit. Refer to the following
table.
Yes = The mode can be selected.
No = The mode cannot be selected.
“LO”
mode“N”
mode“HI”
mode
12 km/h
(7 mph) or
less
Ye sYe sYe s
30 km/h
(18 mph) or
less
NoYe sYe s
Over
30 km/h
(18 mph)
NoYe sNo
However, when you are driving on bumpy
roads, which may cause the suspension to
fully elongate, the rear height control air
suspension may not operate.
If the vehicle height is adjusted on the
slope, or with the selector lever in a posi-
tion other than “P” or “N” while the vehicle
is stopped, you may hear a sound caused
by the expansion and contraction of the
propeller shaft. This does not indicate a
malfunction.

1932007 SEQUOIA from Aug. ’07 Prod. (OM34462U)
u16037
(c) Vehicle height adjustment
To change the mode, push the height
control switch on either side of “”
(higher) or “ ” (lower).
The height control indicator light indicates
which mode is selected. (See “(d) Indica-
tor lights” described below.)
Selecting “HI” mode—
Push the height control switch on the “ ”
side when the vehicle speed is 30 km/h
(18 mph) or less.
To change “N” mode to “HI”, push the
switch once. To change “LO” mode to “HI”,
push the
switch twice.
Selecting “N” mode—
To change “HI” mode to “N”, push the
height control switch on the “ ” side
once.
If the underbody of the vehicle has
touched the surface on bumpy roads, the
vehicle height cannot be lowered with the
height control switch.
To change “LO” mode to “N”, push the
height control switch on the “ ” side
once.
Selecting “LO” mode—
Push the height control switch on the “ ”
side while the vehicle is stopped.
To change “N” mode to “LO”, push the
switch once.
To change “HI” mode to “LO”, push the
switch twice.
If the underbody of the vehicle has
touched the surface on bumpy roads, the
vehicle height cannot be lowered with the
height control switch. Even if the engine is stopped while the
vehicle height is being lowered, the opera-
tion continues for up to 35 seconds. If,
within this 35 seconds, any of the side
doors or the back door is opened, opera-
tion will continue for a further 15 seconds.
When adjusting the vehicle height with
one or more doors open, make sure that
there is nothing that might come into con-
tact with the vehicle body or around the
doors.

1942007 SEQUOIA from Aug. ’07 Prod. (OM34462U)
NOTICE
If the vehicle height is changed fre-
quently when the vehicle is heavily
loaded, the compressor may over-
heat, causing the vehicle height ad-
justment operation to stop.
 Before you lower the vehicle height
with the height control switch,
check under the vehicle to make
sure nothing to damage the vehicle
or no one to be injured is there and
that the underbody of the vehicle
does not touch the ground.
 After unloading, the height of a ve-
hicle equipped with the rear height
control air suspension becomes
slightly higher than the normal ve-
hicle height. Take sufficient care
where the overhead height is re-
stricted.
 Do not select “LO” mode for bumpy
roads. If the underbody of the ve-
hicle touches the road surface, the
vehicle may be damaged.
If you attempt to adjust the vehicle height
with anything such as snow, ice, or stones
in contact with the vehicle body, the ve-
hicle height may not change. In this case,
stop the vehicle, press the height control
mode select switch, and check that manu-
al control mode indicator light comes on.
Then, remove the obstruction.
CAUTION
If you drive through water, set the
vehicle height to “HI” with the height
control switch and then change to
manual control mode by pushing the
height control mode select switch. Do
not exceed 30 km/h (18 mph) or “HI”
mode will automatically change to
“N” mode. Do not drive through water
deeper than about 700 mm (28 in.)
even if the vehicle height is in “HI”
mode.
NOTICE
When jacking up or insta lling tire
chains, be sure to set manual con-
trol mode by pushing the height
control mode select switch and stop
the engine. Otherwise, the vehicle
height may change because of the
automatic leveling function, result-
ing in an accident.
 If your vehicle must be towed, set
the vehicle height to “N” and
change to manual control mode.
Otherwise, the vehicle height may
change because of the automatic
leveling function, resulting in an ac-
cident.
 If your vehicle gets stuck in a
ditch, set manual control mode by
pushing the height control mode se-
lect switch. Otherwise, the vehicle
height may change because of the
automatic leveling function, result-
ing in an accident.

1952007 SEQUOIA from Aug. ’07 Prod. (OM34462U)
u16039

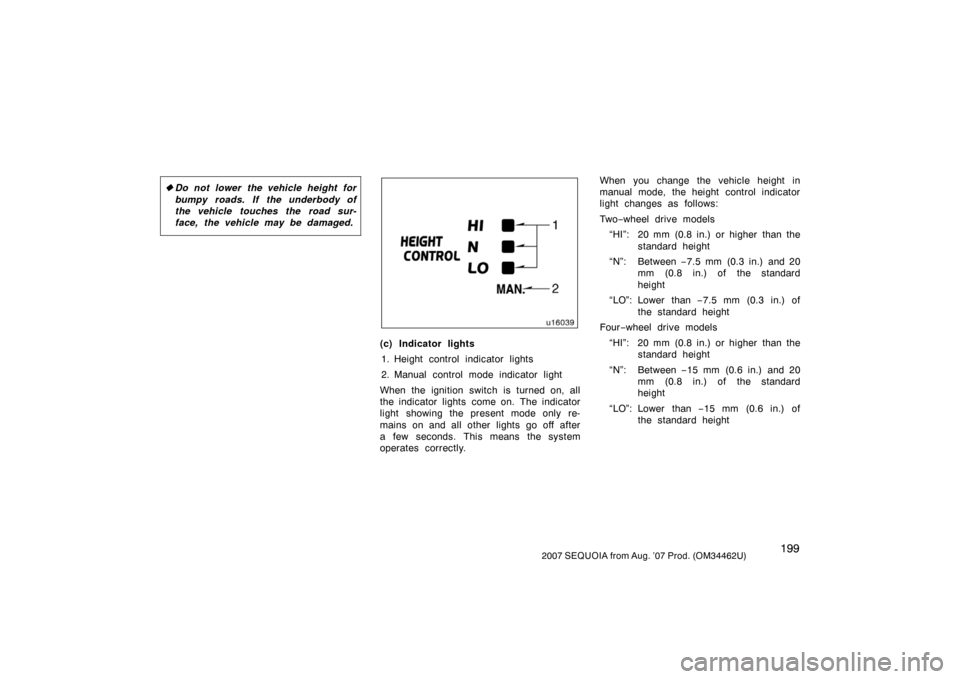

(d) Indicator lights1. Height control indicator lights
2. Manual control mode indicator light
When the ignition switch is turned on, all
the indicator lights come on. The indicator
light showing the present mode only re-
mains on and all other lights go off after
a few seconds. This means the system
operates correctly.
u16041
If you change the vehicle height mode,
the indicator lights change as follows:
When changing the vehicle height from
“N” mode to “HI”: 1. The “N” mode indicator light goes off and the “HI” mode indicator light blinks.
2. After the vehicle height control reaches “HI” mode, the “HI” mode indicator light
remains on. If the underbody of the vehicle has
touched the surface on bumpy roads or
the area around the rear suspension is
coated with ice, the vehicle height cannot
be changed with the height control switch.
In this case, move the vehicle or remove
the ice around the rear suspension. The
vehicle height will change to the selected
mode, after a while, when the ignition
switch is turned to the “ON” position.
In the following cases, there is a problem
somewhere in you rear height control air
suspension. Although there is no problem
to continue normal driving, have the rear
height control air suspension checked by
your Toyota dealer as soon as possible.
The height control indicator light and
manual control mode indicator light do
not come on when the ignition switch
is turned on.
The manual control mode indicator light
blinks.

1962007 SEQUOIA from Aug. ’07 Prod. (OM34462U)
(e) Parking and stopping tips
If you immediately stop the engine to park
the vehicle after off−road driving, the ve-
hicle height is lowered slightly as the ve-
hicle becomes cool. When parking, make
sure there is nothing that will be in con-
tact with the underbody of the vehicle.
When you start the engine, the vehicle
returns to the previous height.
If you park the vehicle for a long time,
the vehicle height may be gradually low-
ered. When parking for a long time, make
sure there is nothing that will be in con-
tact with the underbody of the vehicle.
When you start the engine, the vehicle
returns to the previous height.
If you stop the engine, the vehicle height
may change in accordance with the
change in the temperature. When you
start the engine, the vehicle returns to the
previous height. (f) Rear height control failure warning
If there is a problem somewhere in the
rear height control air suspension, “N”
mode is automatically selected. If this oc-
curs, the manual control mode indicator
light blinks and the vehicle height control
cannot be activated until the malfunction
is corrected. If this is the case, bring your
vehicle to your Toyota dealer as soon as
possible and have it checked.
u16047
(a) Selecting manual control mode
To select manual control mode, push
the height control mode select switch
with the vehicle stopped. The manual
control mode indicator light comes on
and the vehicle height is fixed at the
current height. The height can be ad-
justed by pushing the height control
switch.
The selected height is memorized in the
system even after the engine is stopped.
If you push the height control mode select
switch again, the manual control mode in-
dicator light goes out and automatic con-
trol mode is selected.
—Manual control mode

1972007 SEQUOIA from Aug. ’07 Prod. (OM34462U)
In manual control mode, the automatic lev-
eling function is turned off. When the ve-
hicle height is changed because of the
conditions (load etc.), you can adjust the
vehicle height with the height control
switch.
In manual control mode, if the vehicle
speed exceeds 30 km/h (18 mph), auto-
matic control mode is activated and “N” is
selected automatically.
If you attempt to adjust the vehicle height
with anything such as snow, ice, or stones
in contact with the vehicle body, the ve-
hicle height may not change. In this case,
stop the vehicle and remove the obstruc-
tion.
CAUTION
If you drive through water, set the
vehicle height to “HI” with the height
control switch and then change to
manual control mode by pushing the
height control mode select switch. Do
not exceed 30 km/h (18 mph) or “HI”
mode will automatically change to
“N” mode. Do not drive through water
deeper than about 700 mm (28 in.)
even if the vehicle height is in “HI”
mode.
NOTICE
When jacking up or insta lling tire
chains, be sure to set manual con-
trol mode by pushing the height
control mode select switch and stop
the engine. Otherwise, the vehicle
height may change because of the
automatic leveling function, result-
ing in an accident.
 If your vehicle must be towed, set
the vehicle height to “N” in auto-
matic control mode, then select
manual control mode by pushing
the height control mode select
switch. Otherwise, the vehicle
height may change because of the
automatic leveling function, result-
ing in an accident.
 If your vehicle gets stuck in a
ditch, set manual control mode with
the height control mode select
switch. Otherwise, the vehicle
height may change because of the
automatic leveling function, result-
ing in an accident.
u16037
(b) Vehicle height adjustment
To change the vehicle height in manual
mode, push the height control switch
on either side of “ ” (higher) or “”
(lower).
A higher vehicle height is suitable when
driving on bumpy roads and through water.
A lower vehicle height allows for easy
access to the vehicle (getting in and out)
and easy loading and unloading.
When you are driving on bumpy roads,
which may cause the suspension to fully
elongate, the rear height control air sus-
pension may not operate.

1982007 SEQUOIA from Aug. ’07 Prod. (OM34462U)
To raise the vehicle height—
Push the “” side of the switch for two
seconds or more. Each time you push the
switch, the vehicle height increases. When
the vehicle height is about 20 mm (0.8
in.) higher than the standard height, the
“HI” indicator light comes on.
The maximum selectable height is about
40 mm (1.6 in.) higher than the standard
height.
To lower the vehicle height—
Push the “ ” side of the switch. Each
time you push the switch, the vehicle
height decreases.
Tw o −wheel drive models—
When the vehicle height is about 7.5 mm
(0.3 in.) lower than the standard height,
the “LO” indicator light comes on.
The minimum selectable height is about
15 mm (0.6 in.) lower than the standard
height.
Four −wheel drive models—
When the vehicle height is about 15 mm
(0.6 in.) lower than the standard height,
the “LO” indicator light comes on.
The minimum selectable height is about
30 mm (1.2 in.) lower than the standard
height. If the underbody of the vehicle has
touched the surface on bumpy roads, the
vehicle height cannot be lowered with the
height control switch.
When adjusting the vehicle height with
one or more doors open, make sure that
there is nothing that might come into con-
tact with the vehicle body or around the
doors.
If the vehicle height is adjusted on the
slope, or with the selector lever in a posi-
tion other than “P” or “N” while the vehicle
is stopped, you may hear a sound caused
by the expansion and contraction of the
propeller shaft. This does not indicate a
malfunction.
CAUTION
The higher vehicle height should be
only set for severe offroad driving
conditions. Because the vehicle’s cen-
ter of gravity is higher in this setting,
the vehicle may become unstable
when turning abruptly, resulting in an
accident.
NOTICE

When lowering the vehicle, the ve-
hicle must be stopped. Otherwise,
when the vehicle speed exceeds 30
km/h (18 mph), automatic control
mode is activated and “N” is se-
lected automatically. Proper caution
should be taken in places where the
overhead height is limited.
 If the vehicle height is changed fre-
quently when the vehicle is heavily
loaded, the compressor may over-
heat, causing the vehicle height ad-
justment operation to stop.
 Before you lower the vehicle height
with the height control switch,
check under the vehicle to make
sure nothing to damage the vehicle
or no one to be injured is there and
that the underbody of the vehicle
does not touch the ground.
 After unloading, the height of a ve-
hicle equipped with the rear height
control air suspension becomes
slightly higher than the normal ve-
hicle height. Take sufficient care
where the overhead height is re-
stricted.

1992007 SEQUOIA from Aug. ’07 Prod. (OM34462U)
Do not lower the vehicle height for
bumpy roads. If the underbody of
the vehicle touches the road sur-
face, the vehicle may be damaged.
u16039
(c) Indicator lights
1. Height control indicator lights
2. Manual control mode indicator light
When the ignition switch is turned on, all
the indicator lights come on. The indicator
light showing the present mode only re-
mains on and all other lights go off after
a few seconds. This means the system
operates correctly. When you change the vehicle height in
manual mode, the height control indicator
light changes as follows:
Tw o
−wheel drive models
“HI”: 20 mm (0.8 in.) or higher than the standard height
“N”: Between −7.5 mm (0.3 in.) and 20
mm (0.8 in.) of the standard
height
“LO”: Lower than −7.5 mm (0.3 in.) of
the standard height
Four −wheel drive models
“HI”: 20 mm (0.8 in.) or higher than the standard height
“N”: Between −15 mm (0.6 in.) and 20
mm (0.8 in.) of the standard
height
“LO”: Lower than −15 mm (0.6 in.) of
the standard height

2002007 SEQUOIA from Aug. ’07 Prod. (OM34462U)
In the following cases, there is a problem
somewhere in you rear height control air
suspension. Although there is no problem
to continue normal driving, have the rear
height control air suspension checked by
you Toyota dealer as soon as possible.
The height control indicator light and
manual control mode indicator light do
not come on when the ignition switch
is turned on.
The manual control mode indicator light
blinks.
(d) Parking and stopping tips
If you immediately stop the engine to park
the vehicle after off −road driving, the ve-
hicle height is lowered slightly as the ve-
hicle becomes cool. When parking, make
sure there is nothing that will be in con-
tact with the underbody of the vehicle.
If you park the vehicle for a long time,
the vehicle height may be gradually low-
ered. When parking for a long time, make
sure there is nothing that will be in con-
tact with the underbody of the vehicle.
If you stop the engine, the vehicle height
may change in accordance with the
change in the temperature. (e) Rear height control failure warning
If there is a problem somewhere in the
rear height control air suspension, the
manual control mode indicator light blinks.
If this is the case, change to the automat-
ic control mode by pushing the height
control mode select switch, and bring your
vehicle to your Toyota dealer as soon as
possible to have it checked.
The tire pressure warning system warns
you that the tire inflation pressure is
low.
The tire pressure warning system is not
a substitute for checking normal tire infla-
tion pressure. Check the tire inflation
pressure with a tire pressure gauge regu-
larly.
CAUTION
The warning system may not activate
immediately if blowout or sudden air
loss should occur.
Tire pressure warning system

2012007 SEQUOIA from Aug. ’07 Prod. (OM34462U)

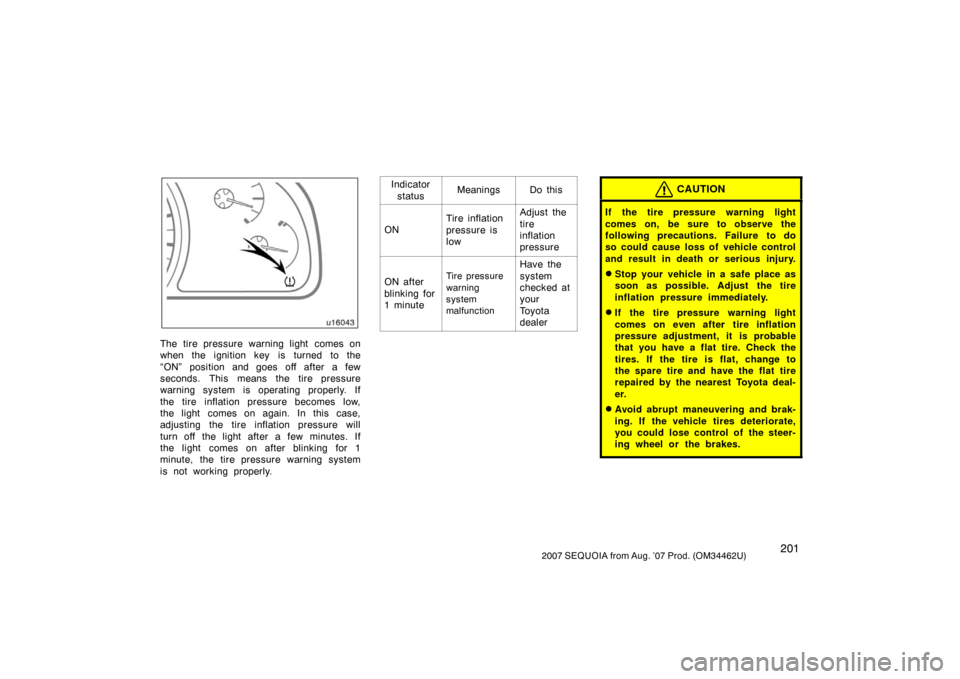

u16043
The tire pressure warning light comes on
when the ignition key is turned to the
“ON” position and goes off after a few
seconds. This means the tire pressure
warning system is operating properly. If
the tire inflation pressure becomes low,
the light comes on again. In this case,
adjusting the tire inflation pressure will
turn off the light after a few minutes. If
the light comes on after blinking for 1
minute, the tire pressure warning system
is not working properly.Indicator
status
MeaningsDo this
ON
Tire inflation
pressure is
lowAdjust the
tire
inflation
pressure
ON after
blinking for
1 minuteTire pressure
warning
system
malfunction
Have the
system
checked at
your
To y o t a
dealer
CAUTION
If the tire pressure warning light
comes on, be sure to observe the
following precautions. Failure to do
so could cause loss of vehicle control
and result in death or serious injury.
Stop your vehicle in a safe place as
soon as possible. Adjust the tire
inflation pressure immediately.
If the tire pressure warning light
comes on even after tire inflation
pressure adjustment, it is probable
that you have a flat tire. Check the
tires. If the tire is flat, change to
the spare tire and have the flat tire
repaired by the nearest Toyota deal-
er.
Avoid abrupt maneuvering and brak-
ing. If the vehicle tires deteriorate,
you could lose control of the steer-
ing wheel or the brakes.
