612007 SEQUOIA from Aug. ’07 Prod. (OM34462U)
u13263
The removed head restraint can be
stored in the auxiliary box on the rear
left side panel. For details, see “Head
restraints” on page 68 in this Section.
Store the head restraint in the auxiliary
box when it is not in use.
u13184
2. Lower the outside head restraint tothe lowest position.

622007 SEQUOIA from Aug. ’07 Prod. (OM34462U)
u13185
From front
From rear
3. Move the seat to the rearmost posi-tion. Unlock the seatback and fold it
down.
CAUTION
To avoid death or serious injury, do
not sit on the folded seatback.u13186
4. Unlock the seat leg by pulling thelock release lever on the rear of the
seat cushion and swing the whole
seat up and forward.
See “—Stowage precautions” on page 364
in Section 2 for precautions when loading
luggage.

632007 SEQUOIA from Aug. ’07 Prod. (OM34462U)
CAUTION
Make sure people or luggage are
clear from the seat. Then, hold the
seat and slowly move it. Otherwise,
people may be injured or luggage
may be damaged, if the seat hits
them.
When tumbling the seat, be careful
not to get your hands or feet
pinched in the seat.
u13258
5. Take the holding strap out of itshole which is on the rear of the sec-
ond seat (For the location of the
strap, see “—Tumbling second seats
for luggage space (bench type)” on
page 53 or “—Tumbling second seats
for luggage space (separate type)”
on page 56 in this Section.), and
hook the strap into the hollow on
the underside of the seat cushion.
Next, pull the strap on the free end
to secure the seat.
When returning the third seats to its origi-
nal position, put the holding strap into the
hole.
CAUTION
When tumbling the third seats, fix
the seats securely by adjusting the
length of the holding strap. Failure
to do so may cause an unexpected
accident, death or severe injury in
the event of emergency braking or
a collision.
When returning seats to their origi-
nal position, observe the following
precautions in order to prevent
death or personal injury in a colli-
sion or sudden stop:
Be careful not to get your hands or
feet pinched in the seat.
Make sure the seat is securely
locked by pushing forward and rear-
ward on the top of the seatback or
by trying to pull up the edge of the
bottom cushion. Failure to do so
will prevent the seat belt from oper-
ating properly.
Make sure the seat belts are not
twisted or caught under the seat
and are arranged in their proper
position and are ready to use.

642007 SEQUOIA from Aug. ’07 Prod. (OM34462U)
u13052
BEFORE REMOVING THIRD SEATS1. Stow the third seat belt buckles as shown in the illustration.
NOTICE
To prevent damage to the seat belt
buckles, they must be stowed before
you tumble the seatback.
u13053
2. Pass the third seat belts through thehangers.
This prevents the shoulder belt from being
damaged.
CAUTION
The seat belt must be removed from
the hanger when the seat belts is in
use.
u13131
3. To stow the center seat belt, pull it slightly out of its cover. It will auto-
matically roll back partway. Roll the
seat belt backwards as shown above
and insert it into the slot of its cov-
er. Make sure the tabs are securely
locked in the cover.
NOTICE
The seat belt must be stowed before
you fold the seatback.
—Removing third seats

652007 SEQUOIA from Aug. ’07 Prod. (OM34462U)
u13257

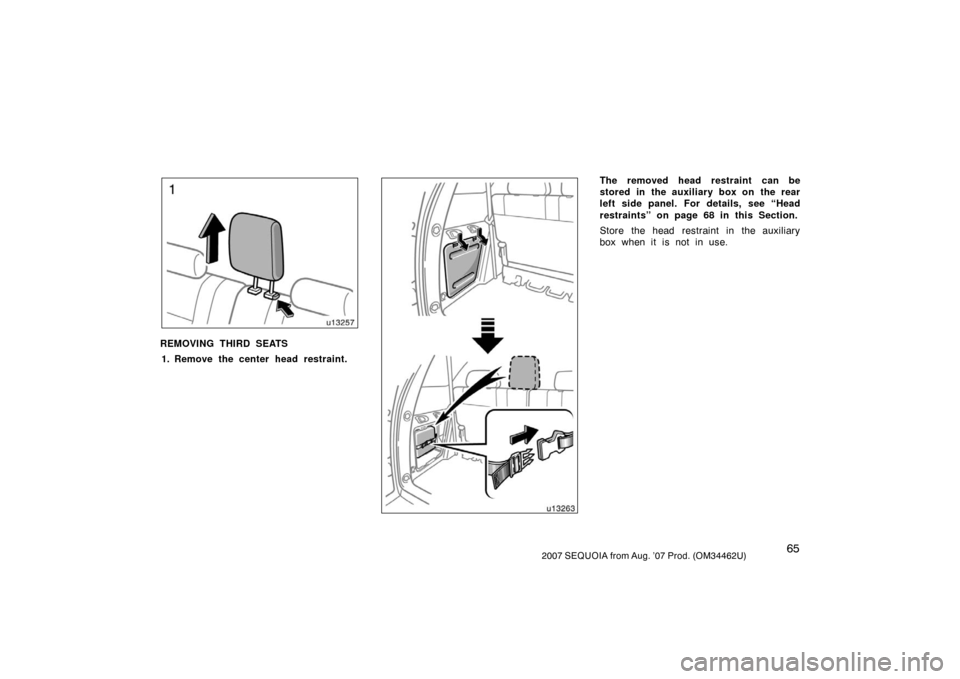

REMOVING THIRD SEATS1. Remove the center head restraint.u13263
The removed head restraint can be
stored in the auxiliary box on the rear
left side panel. For details, see “Head
restraints” on page 68 in this Section.
Store the head restraint in the auxiliary
box when it is not in use.

662007 SEQUOIA from Aug. ’07 Prod. (OM34462U)
u13184

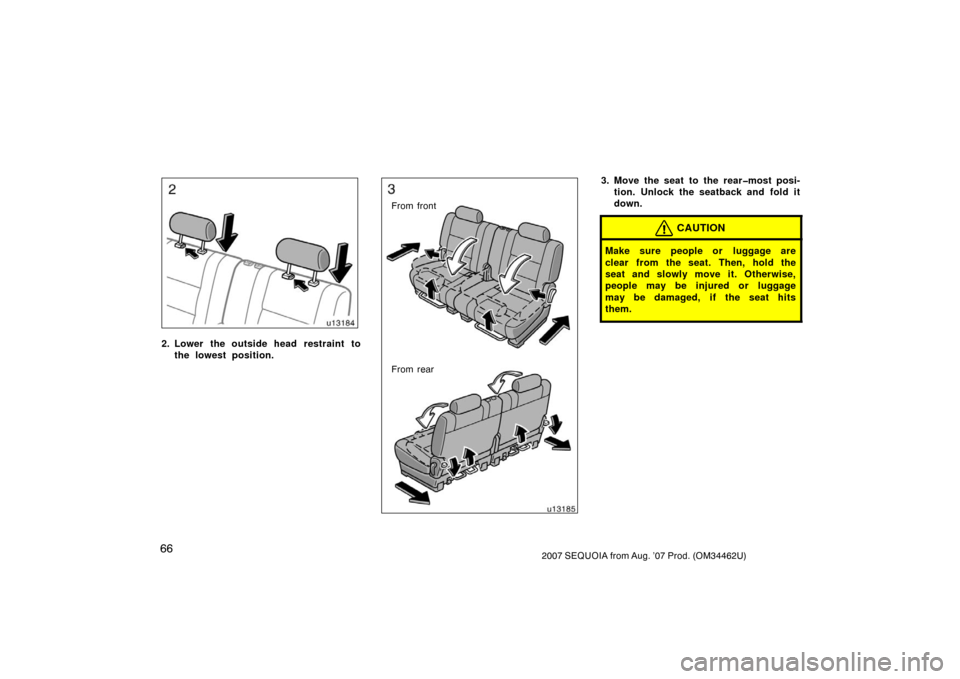

2. Lower the outside head restraint tothe lowest position.u13185
From front
From rear
3. Move the seat to the rearmost posi-tion. Unlock the seatback and fold it
down.
CAUTION
Make sure people or luggage are
clear from the seat. Then, hold the
seat and slowly move it. Otherwise,
people may be injured or luggage
may be damaged, if the seat hits
them.

672007 SEQUOIA from Aug. ’07 Prod. (OM34462U)

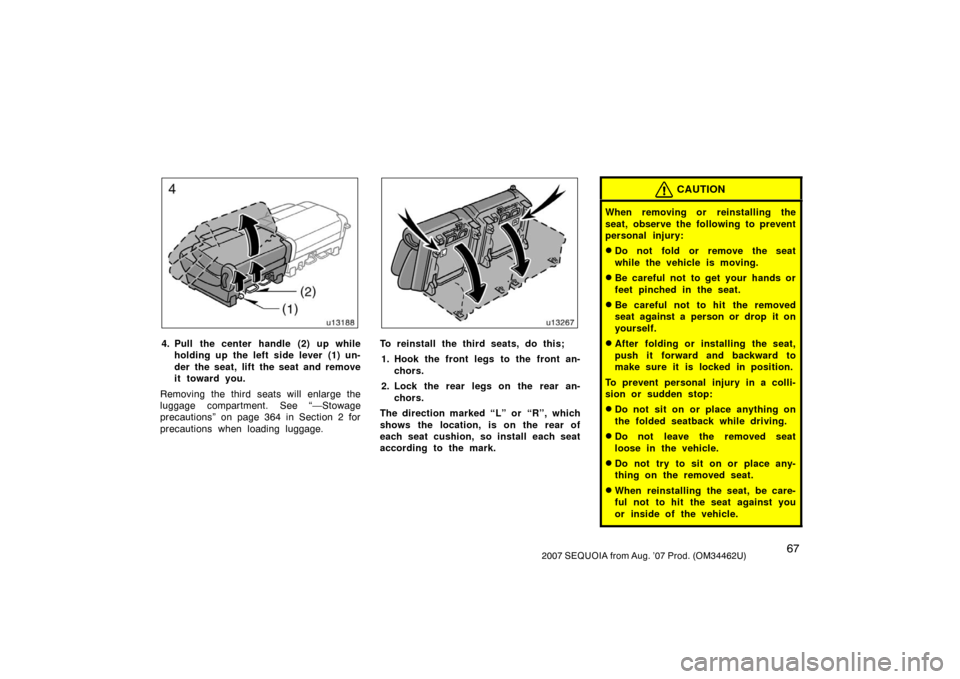

u13188
4. Pull the center handle (2) up whileholding up the left side lever (1) un-
der the seat, lift the seat and remove
it toward you.
Removing the third seats will enlarge the
luggage compartment. See “—Stowage
precautions” on page 364 in Section 2 for
precautions when loading luggage.
u13267
To reinstall the third seats, do this; 1. Hook the front legs to the front an- chors.
2. Lock the rear legs on the rear an- chors.
The direction marked “L” or “R”, which
shows the location, is on the rear of
each seat cushion, so install each seat
according to the mark.
CAUTION
When removing or reinstalling the
seat, observe the following to prevent
personal injury:
Do not fold or remove the seat
while the vehicle is moving.
Be careful not to get your hands or
feet pinched in the seat.
Be careful not to hit the removed
seat against a person or drop it on
yourself.
After folding or installing the seat,
push it forward and backward to
make sure it is locked in position.
To prevent personal injury in a colli-
sion or sudden stop:
Do not sit on or place anything on
the folded seatback while driving.
Do not leave the removed seat
loose in the vehicle.
Do not try to sit on or place any-
thing on the removed seat.
When reinstalling the seat, be care-
ful not to hit the seat against you
or inside of the vehicle.

682007 SEQUOIA from Aug. ’07 Prod. (OM34462U)
When reinstalling the seat, make
sure the seat is securely locked by
pushing forward and rearward on
the top of the seatback or by trying
to pull up the edge of the bottom
cushion. Failure to do so will pre-
vent the seat belt from operating
properly.
Install each seat in the same posi-
tion from which it was removed.
Failure to do so will prevent third
seat occupants from using seat
belts properly.
Do not reinstall the seat with its
back facing forward.
Make sure the seat is securely
locked in the proper position.
NOTICE
Avoid putting heavy loads on the re-
moved seat. The metallic tips of the
seat leg may be damaged and the
seat cannot be reinstalled.
u13120

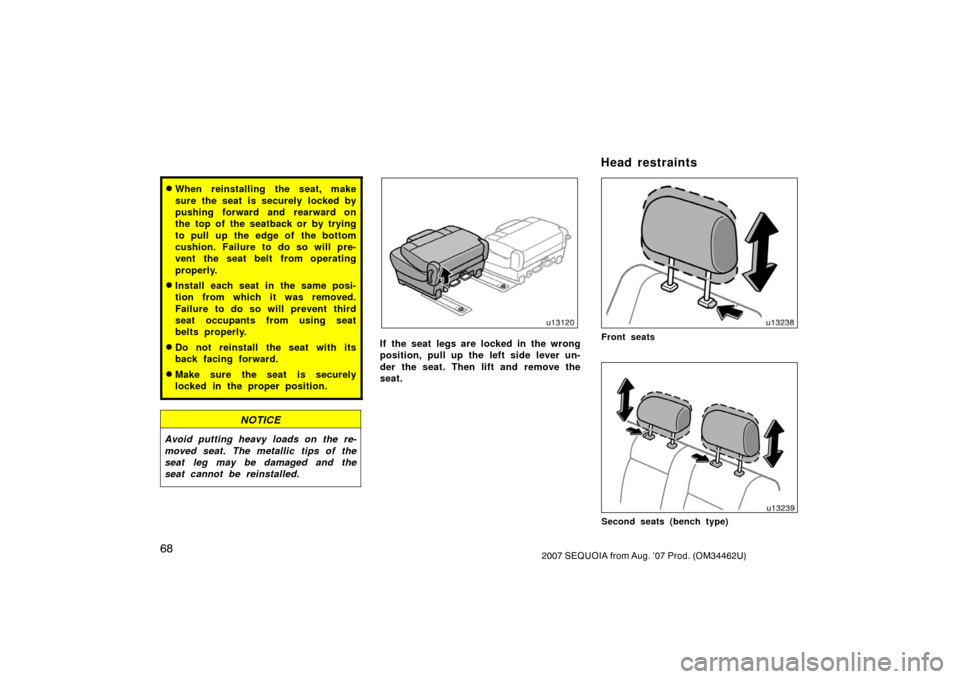

If the seat legs are locked in the wrong
position, pull up the left side lever un-
der the seat. Then lift and remove the
seat.
u13238
Front seats
u13239
Second seats (bench type)
Head restraints

692007 SEQUOIA from Aug. ’07 Prod. (OM34462U)

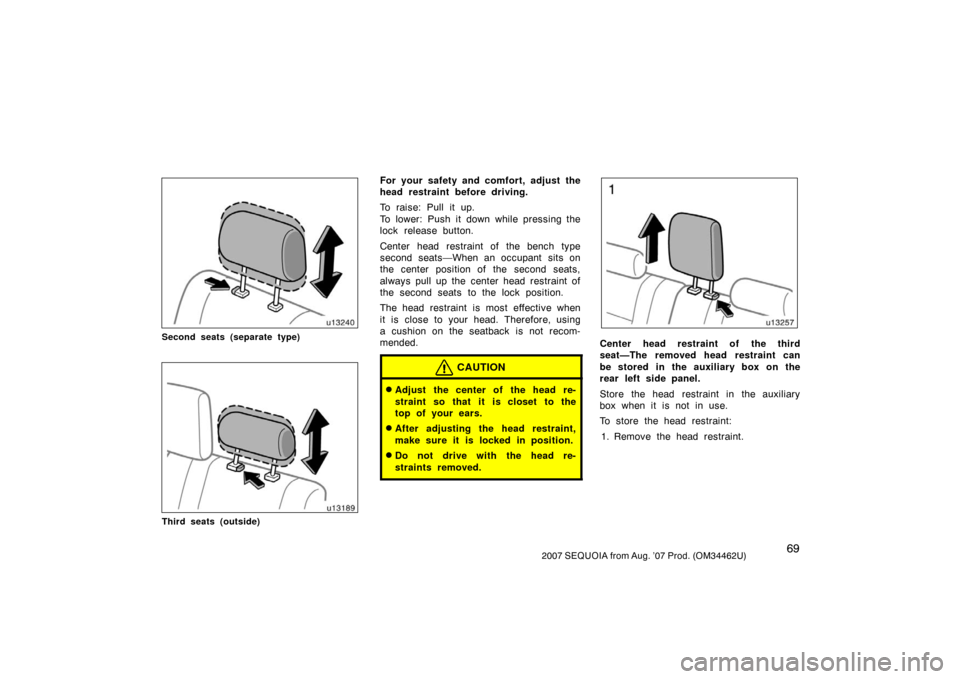

u13240
Second seats (separate type)
u13189
Third seats (outside)
For your safety and comfort, adjust the
head restraint before driving.
To raise: Pull it up.
To lower: Push it down while pressing the
lock release button.
Center head restraint of the bench type
second seats—When an occupant sits on
the center position of the second seats,
always pull up the center head restraint of
the second seats to the lock position.
The head restraint is most effective when
it is close to your head. Therefore, using
a cushion on the seatback is not recom-
mended.
CAUTION
Adjust the center of the head re-
straint so that it is closet to the
top of your ears.
After adjusting the head restraint,
make sure it is locked in position.
Do not drive with the head re-
straints removed.
u13257
Center head restraint of the third
seat—The removed head restraint can
be stored in the auxiliary box on the
rear left side panel.
Store the head restraint in the auxiliary
box when it is not in use.
To store the head restraint:1. Remove the head restraint.

702007 SEQUOIA from Aug. ’07 Prod. (OM34462U)
u13268

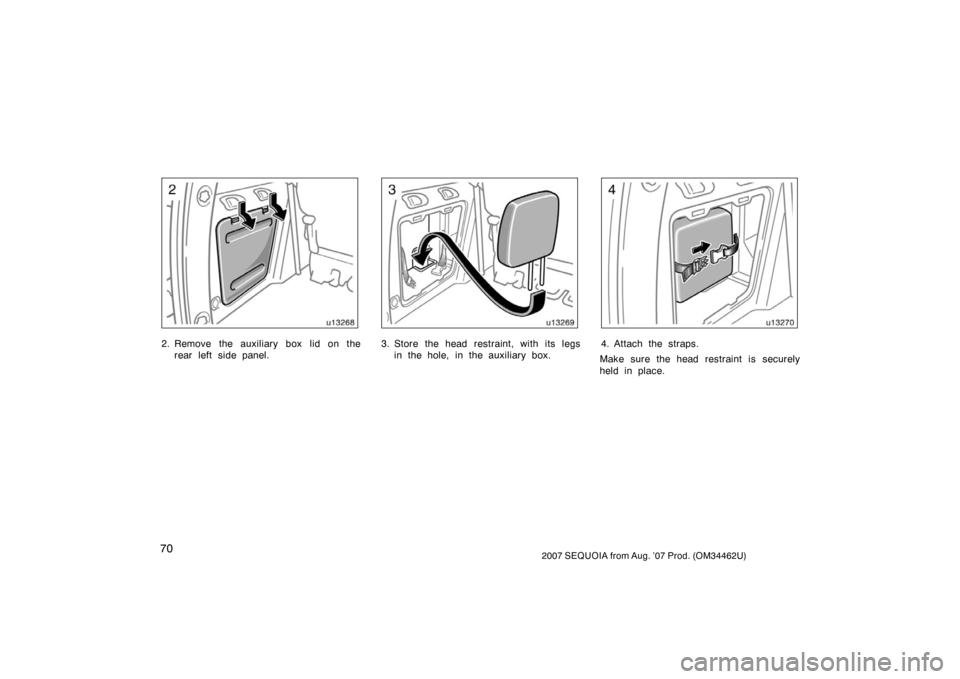

2. Remove the auxiliary box lid on therear left side panel.
u13269
3. Store the head restraint, with its legsin the hole, in the auxiliary box.
u13270
4. Attach the straps.
Make sure the head restraint is securely
held in place.
