display TOYOTA SEQUOIA 2008 2.G Navigation Manual

OTHER FUNCTIONS
149

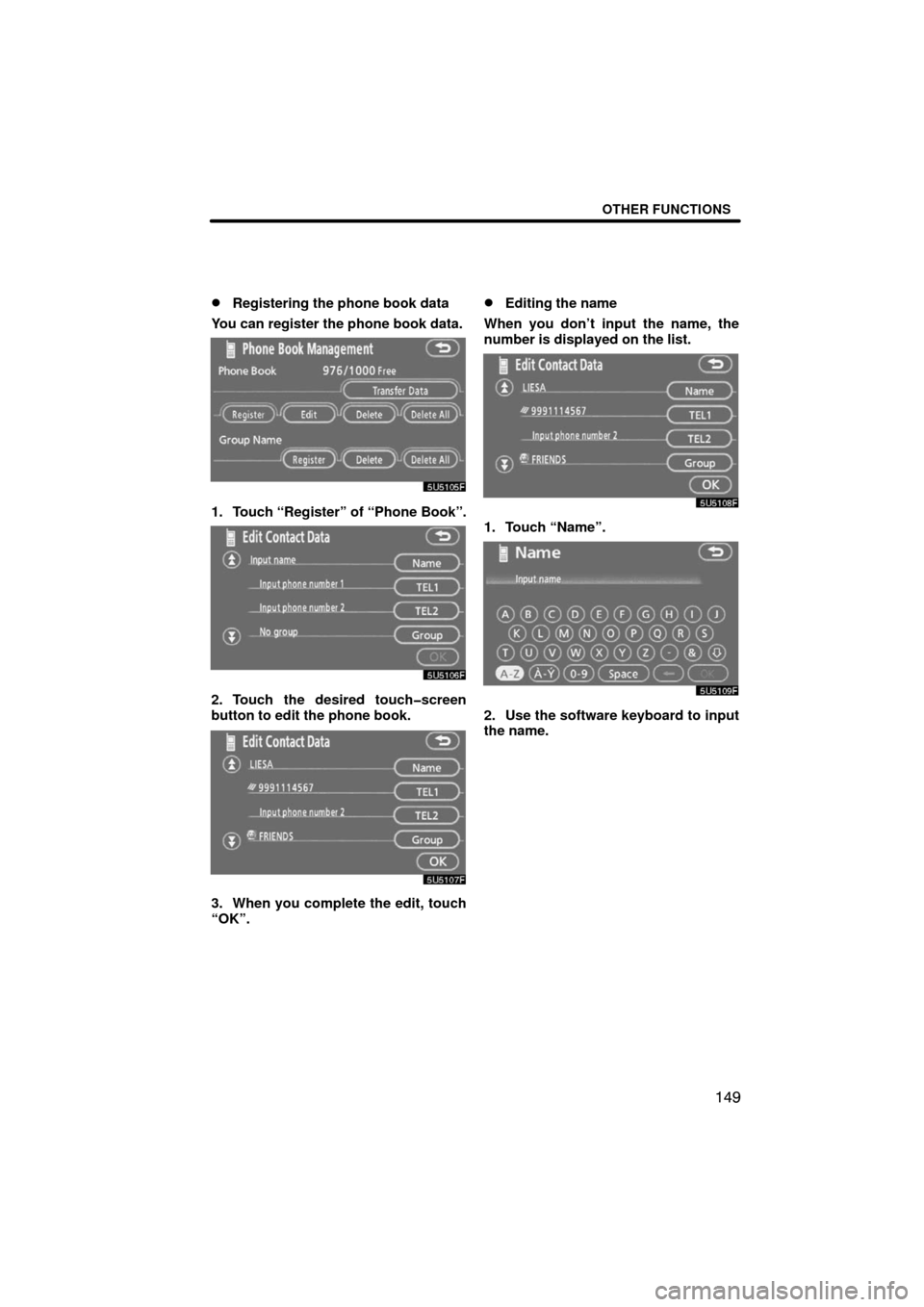

Registering the phone book data
You can register the phone book data.
5U5105F
1. Touch “Register” of “Phone Book”.
5U5106F
2. Touch the desired touchscreen
button to edit the phone book.
5U5107F
3. When you complete the edit, touch
“OK”.
Editing the name
When you don’t input the name, the
number is displayed on the list.
5U5108F
1. Touch “Name”.
5U5109F
2. Use the software keyboard to input
the name.

OTHER FUNCTIONS
150

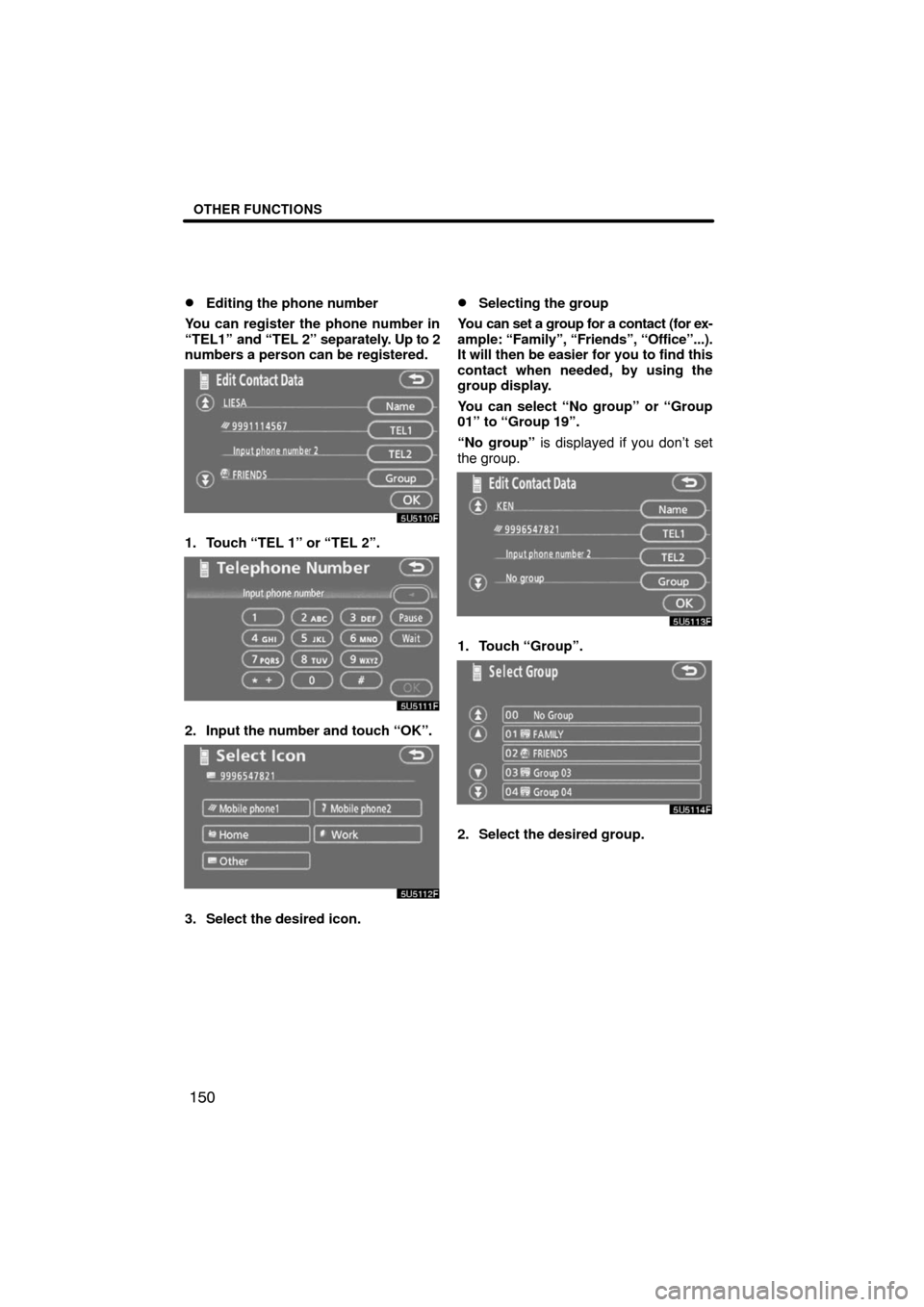

Editing the phone number
You can register the phone number in
“TEL1” and “TEL 2” separately. Up to 2
numbers a person can be registered.
5U5110F
1. Touch “TEL 1” or “TEL 2”.
5U5111F
2. Input the number and touch “OK”.
5U5112F
3. Select the desired icon.
Selecting the group
You can set a group for a contact (for ex-
ample: “Family”, “Friends”, “Office”...).
It will then be easier for you to find this
contact when needed, by using the
group display.
You can select “No group” or “Group
01” to “Group 19”.
“No group” is displayed if you don’t set
the group.
5U5113F
1. Touch “Group”.
5U5114F
2. Select the desired group.

OTHER FUNCTIONS
154

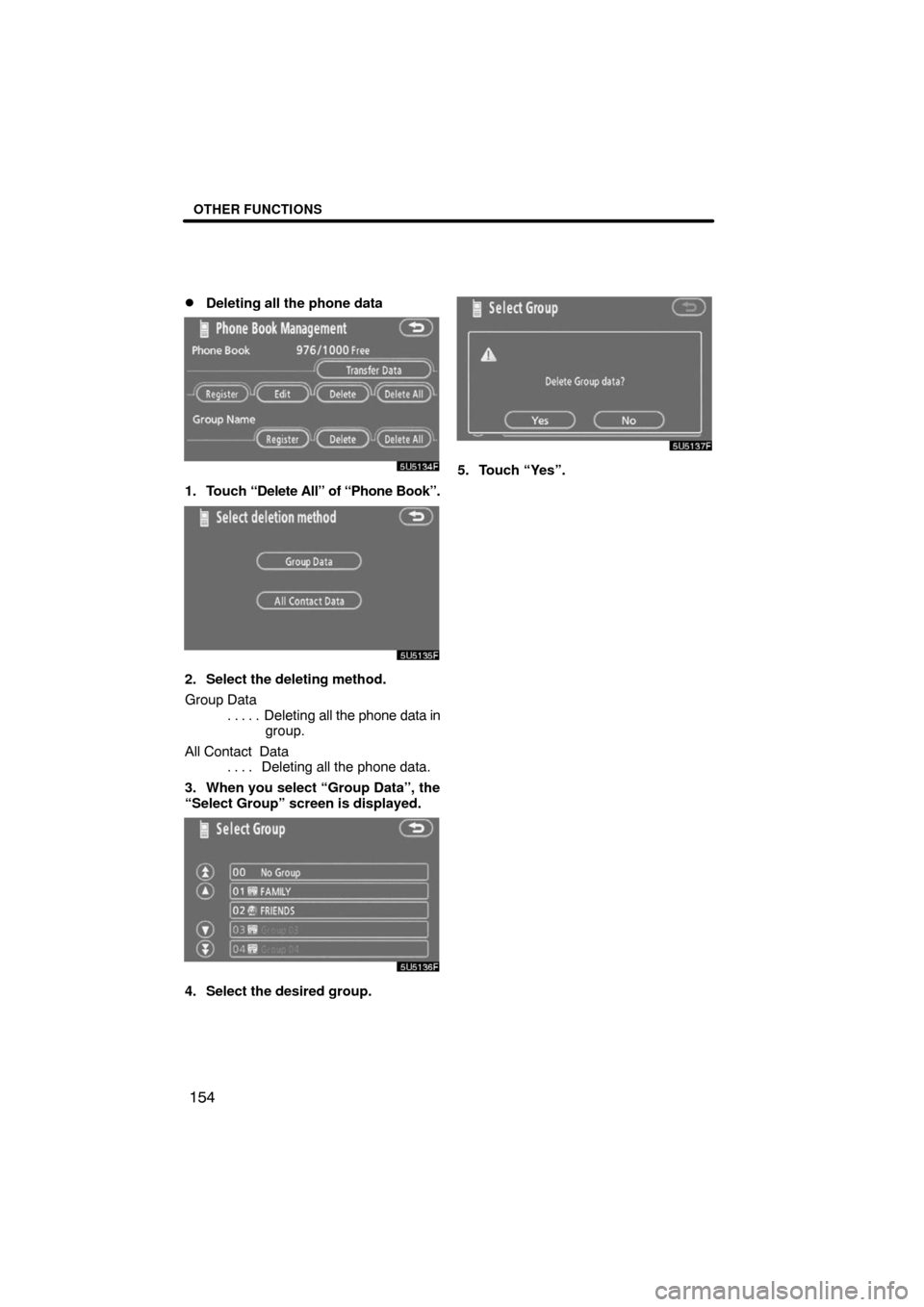

Deleting all the phone data
5U5134F
1. Touch “Delete All” of “Phone Book”.
5U5135F
2. Select the deleting method.
Group Data
Deleting all the phone data in . . . . .
group.
All Contact Data
Deleting all the phone data. . . . .
3. When you select “Group Data”, the
“Select Group” screen is displayed.
5U5136F
4. Select the desired group.
5U5137F
5. Touch “Yes”.

OTHER FUNCTIONS
160

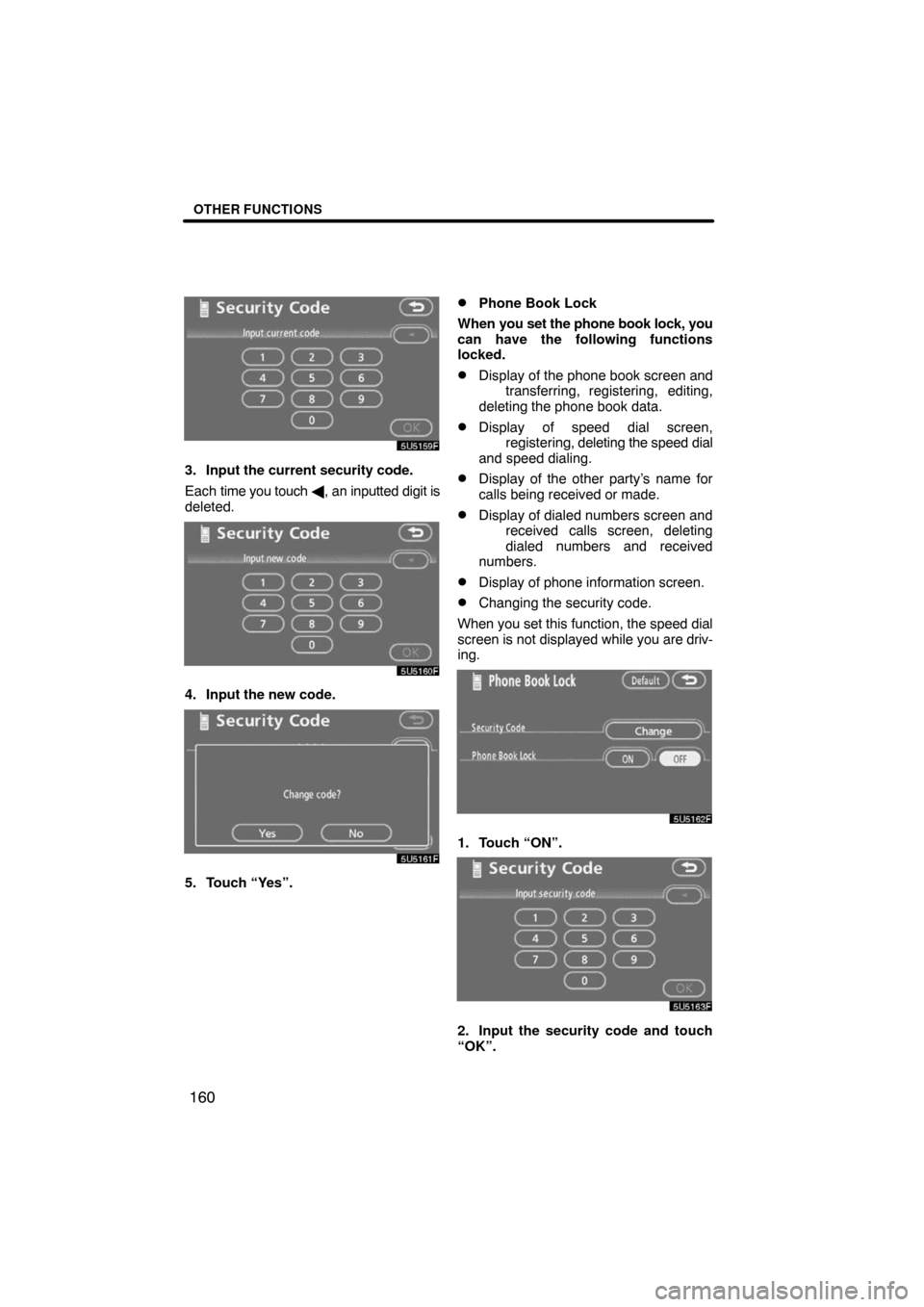

5U5159F
3. Input the current security code.
Each time you touch , an inputted digit is
deleted.
5U5160F
4. Input the new code.
5U5161F
5. Touch “Yes”.
Phone Book Lock
When you set the phone book lock, you
can have the following functions
locked.
Display of the phone book screen and
transferring, registering, editing,
deleting the phone book data.
Display of speed dial screen,
registering, deleting the speed dial
and speed dialing.
Display of the other party’s name for
calls being received or made.
Display of dialed numbers screen and
received calls screen, deleting
dialed numbers and received
numbers.
Display of phone information screen.
Changing the security code.
When you set this function, the speed dial
screen is not displayed while you are driv-
ing.
5U5162F
1. Touch “ON”.
5U5163F
2. Input the security code and touch
“OK”.

OTHER FUNCTIONS
161

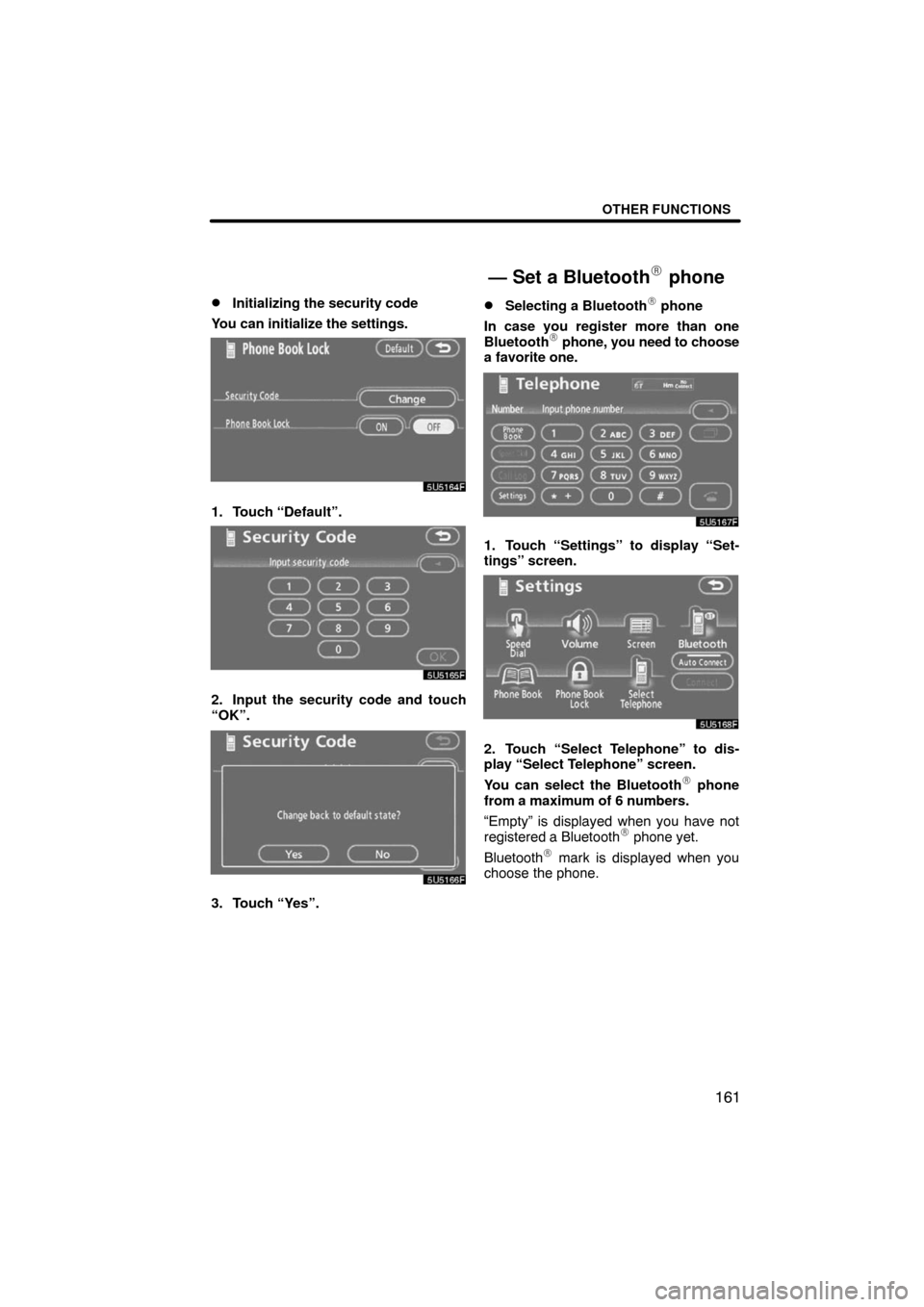

Initializing the security code
You can initialize the settings.
5U5164F
1. Touch “Default”.
5U5165F
2. Input the security code and touch
“OK”.
5U5166F
3. Touch “Yes”.
Selecting a Bluetooth phone
In case you register more than one
Bluetooth
 phone, you need to choose
a favorite one.
5U5167F
1. Touch “Settings” to display “Set-
tings” screen.
5U5168F
2. Touch “Select Telephone” to dis-
play “Select Telephone” screen.
You can select the Bluetooth
 phone
from a maximum of 6 numbers.
“Empty” is displayed when you have not
registered a Bluetooth
 phone yet.
Bluetooth
 mark is displayed when you
choose the phone.
— Set a Bluetooth phone

OTHER FUNCTIONS
162

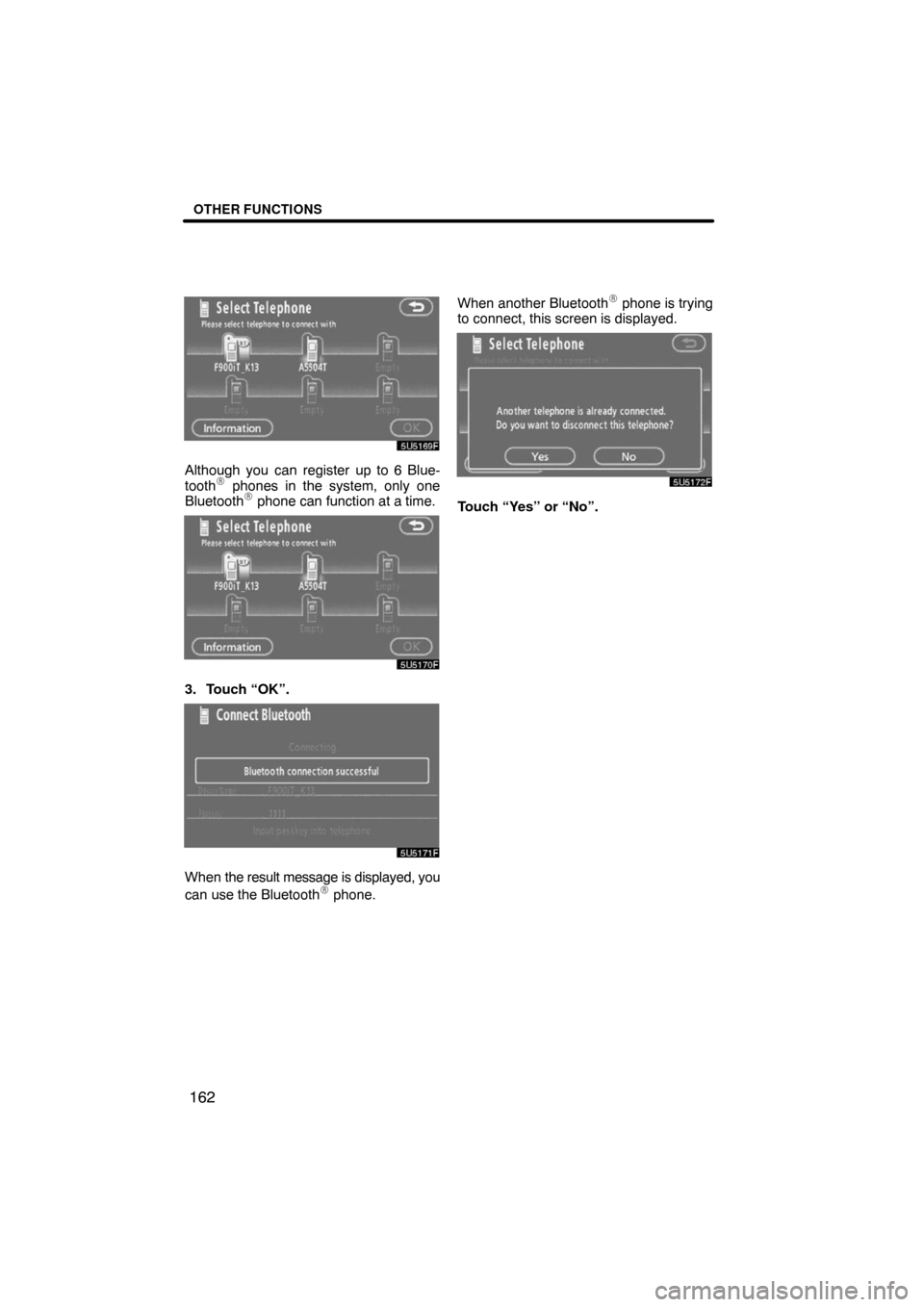

5U5169F
Although you can register up to 6 Blue-
tooth phones in the system, only one
Bluetooth phone can function at a time.
5U5170F
3. Touch “OK”.
5U5171F
When the result message is displayed, you
can use the Bluetooth phone.When another Bluetooth
 phone is trying
to connect, this screen is displayed.
5U5172F
Touch “Yes” or “No”.

OTHER FUNCTIONS
163
Displaying Bluetooth information
You can see or set the information of the
Bluetooth
 phone on the system.
Device Name
The name of Bluetooth
 phone . . .
which is displayed on the screen.
You can change it into a desired
name.
Bluetooth
∗ Device Address
The address peculiar to the system. . . .
You cannot change it.
∗: Bluetooth is a registered trademark of
Bluetooth SIG. Inc.

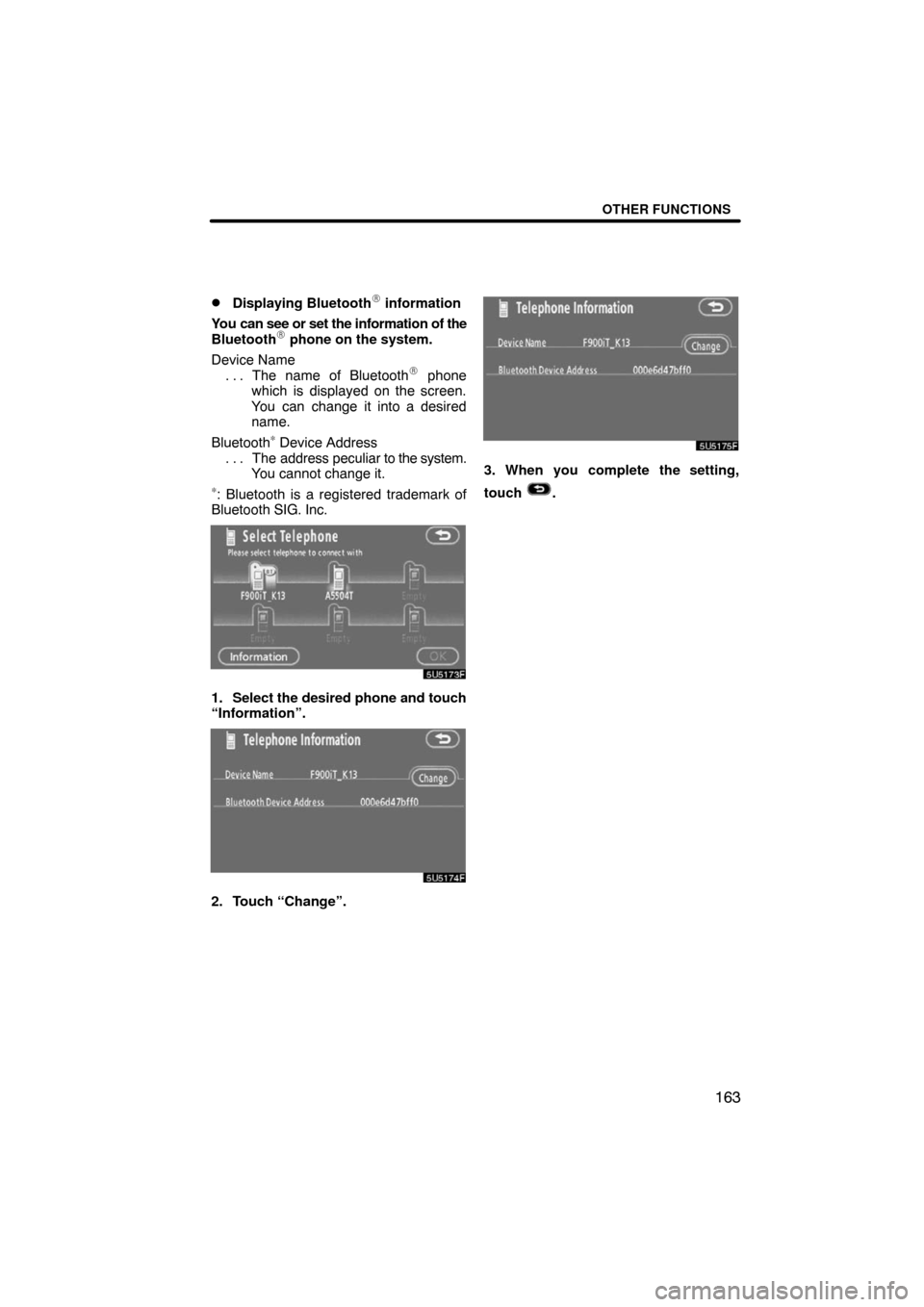

5U5173F
1. Select the desired phone and touch
“Information”.
5U5174F
2. Touch “Change”.
5U5175F
3. When you complete the setting,
touch
.

OTHER FUNCTIONS
164

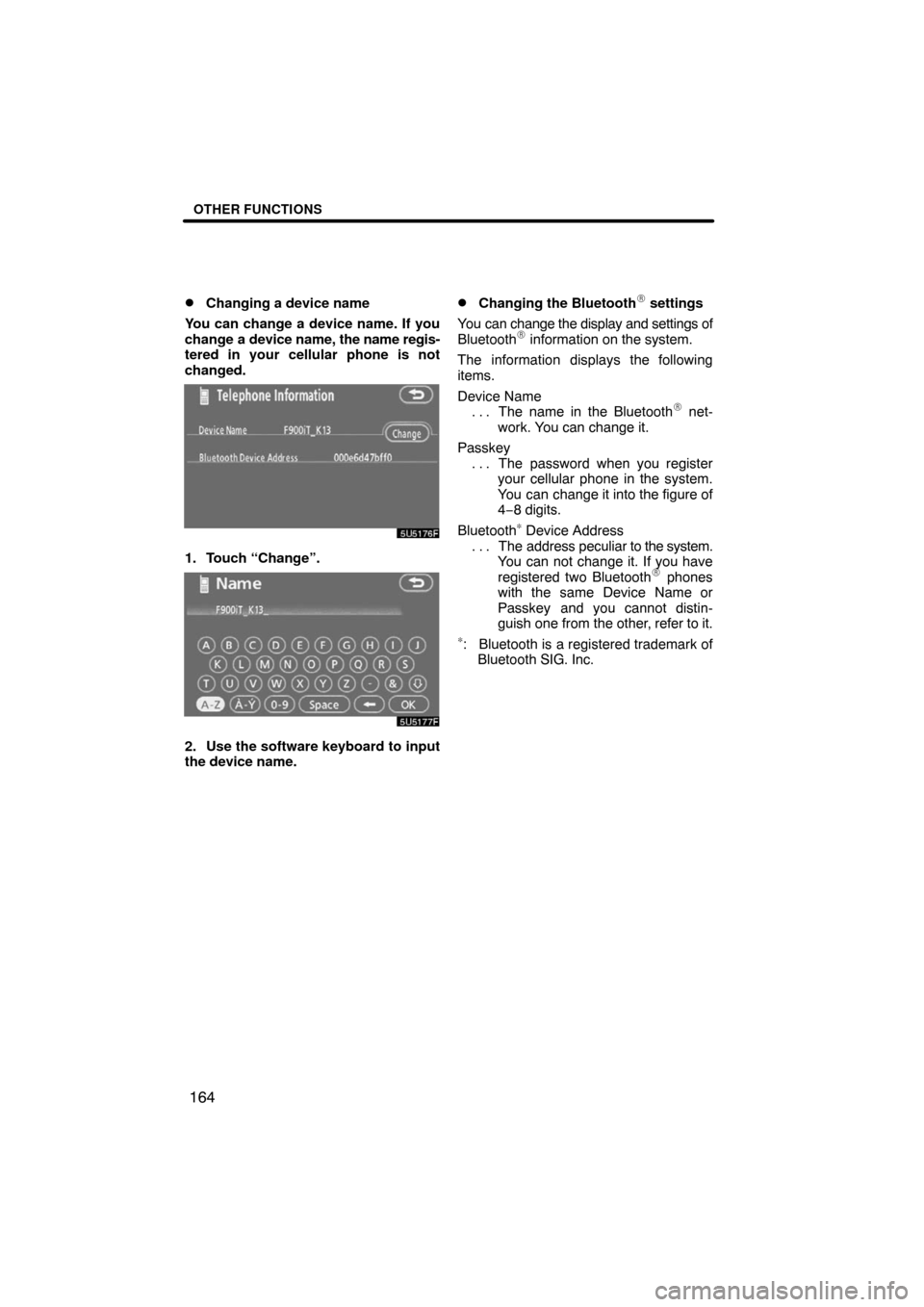

Changing a device name
You can change a device name. If you
change a device name, the name regis-
tered in your cellular phone is not
changed.
5U5176F
1. Touch “Change”.
5U5177F
2. Use the software keyboard to input
the device name.
Changing the Bluetooth settings
You can change the display and settings of
Bluetooth
 information on the system.
The information displays the following
items.
Device Name
The name in the Bluetooth
 net- . . .
work. You can change it.
Passkey
The password when you register . . .
your cellular phone in the system.
You can change it into the figure of
4−8 digits.
Bluetooth
∗ Device Address
The address peculiar to the system. . . .
You can not change it. If you have
registered two Bluetooth
 phones
with the same Device Name or
Passkey and you cannot distin-
guish one from the other, refer to it.
∗: Bluetooth is a registered trademark of
Bluetooth SIG. Inc.

OTHER FUNCTIONS
167
Displaying the information of the
Bluetooth phone you delete
You can display the information of the
Bluetooth
 phone before you delete it
and you can make sure whether the
telephone you delete is correct or not.
5U5188F
1. Select the telephone you want to
display the information about.
5U5A90F
2. When you complete confirming it,
touch
.The speech command system enables
you to operate the navigation system
and audio system by giving a com-
mand.
XS00307
1. Push the talk switch.
A beep sounds and on screen message is
displayed with an indicator at the top left.
Speech command system

OTHER FUNCTIONS
168
5U5190F
2. Give a command while an indicator
is shown on the display. If you want to
check the command list, touch “Help”
to display the Help screen. (See “Help
screen” on page 170.) When you touch
“Cancel”, the previous screen returns.
If the navigation system does not respond
or the confirmation screen does not disap-
pear, please push the talk switch and try
again.
If no command is given, a beep sounds
and the indicator disappears 6 seconds
later.
If the system does not recognize your
speech, the system will respond with this
message (“System does not recognize
this command, please rephrase your
command.”). Start the operation from the
beginning.
XS00305
Microphone (Type A)
XS00306
Microphone (Type B)
It is unnecessary to speak directly into
the microphone when giving a com-
mand.
