display TOYOTA SEQUOIA 2008 2.G Navigation Manual

ADVANCED FUNCTIONS
108
Popup message
When the “Pop−up Message” is turned on,
the Pop−up message will be displayed.
To turn the “Pop−up Message” on:
1. Push the “MENU” button.
2. Touch “Setup” on the “Menu”
screen.
Then touch
twice to display page 3 of
the “Setup” screen.
4U5076F
3. Touch “ON” of “Popup Message”.
The selected button is highlighted.
4. Touch “OK”.When the “Pop−up Message” is turned off,
following messages are not displayed.
4U5077F
This message appears when the system is
in the POI mode and the map scale is 1
mile (1.6 km) or greater.
4U5078F
The message appears when the map is
switched to the dual map screen mode.

ADVANCED FUNCTIONS
109
Current position/tire change calibra-
tion
The current vehicle position mark can be
adjusted manually. Miscalculation of the
distance caused by tire replacement can
also be adjusted.
1. Push the “MENU” button.
2. Touch “Setup” on the “Menu”
screen.
Then touch
twice to display page 3 of
the “Setup” screen.
4U5079F
3. Touch “Adjust” of “Calibration”.
4U5080F
4. Touch the desired touchscreen
button.
INFORMATION
For additional information on the ac-
curacy of a current vehicle position,
see “Limitations of the navigation
system” on page 248.
POSITION/DIRECTION CALIBRATION
When driving, the current vehicle position
mark will be automatically corrected by
GPS signals. If GPS reception is poor due
to location, you can manually adjust the
current vehicle position mark.
4U5081F
1. Touch “Position/Direction”.
4U5082F
2. Touch the eight directional touch
screen button to move the cursor
to
the desired point on the map.

ADVANCED FUNCTIONS
11 0
3. Touch “Enter”.
4U5083F
4. Touch either or to adjust the
direction of the current vehicle position
mark.
5. Touch “Enter”.
The map screen will be displayed.TIRE CHANGE CALIBRATION
The tire change calibration function will be
used when replacing the tires. This func-
tion will adjust the miscalculation caused
by the circumference difference between
the old and new tires. If this procedure is
not performed when tires are replaced, the
current vehicle position mark may be incor-
rectly displayed.
4U5084F
To perform a distance calibration
procedure, touch “Tire Change” on the
“Calibration” screen.
The message appears and the quick dis-
tance calibration is automatically started.
A few seconds later, a map screen will be
displayed.

OTHER FUNCTIONS
11 2
When the Navigation System is turned on,
the “Information” screen displays when it is
time to replace a part or certain compo-
nents. (See page 17.)
XS00303
1. Push the “INFO” button.
5U5001aF
2. Touch “Maintenance”.
5U5002F
3. Touch the desired touchscreen
button.
For details of each touch−screen button,
see “INFORMATION ITEMS” on page 113.
“Delete All”: To cancel all conditions
which have been inputted.
“Reset All”: To reset the item which has
satisfied a condition.
“Set Dealer”: To register or edit dealer in-
formation. (See “ — Dealer setting” on
page 114.)
If “ON” is selected, the system gives main-
tenance information with the “Information”
screen when the system is turned on. (See
page 17.)
If “OFF” is selected, the “Information”
screen is disabled.
When the vehicle needs to be serviced, the
touch−screen button color will change to
orange.
Maintenance information —
— Maintenance information
setting

OTHER FUNCTIONS
11 4
It is possible to register a dealer in the sys-
tem. With dealer information registered,
route guidance to the dealer is available.
1. Push the “INFO” button.
2. Touch “Maintenance” on the
“Information” screen.
3. Touch “Set Dealer” on the
“Maintenance” screen.
5U5004F
4. If the dealer has not been registered,
enter the location of the dealer in the
same way as for a destination search.
(See “Destination search” on page 35.)
When “Set Dealer” registration is finished,
the “Edit Dealer” screen will be displayed.
5U5005F
5. Touch the touchscreen button to
be edited.
“Dealer”: To enter the name of a dealer.
(See page 115.)
“Contact”: To enter the name of a dealer
member. (See page 115.)
“Location”: To set a location. (See page
115.)
“Phone #”: To set a telephone number.
(See page 116.)
“Delete Dealer”: To delete the dealer in-
formation displayed on the screen.
“Enter
”: To set the displayed dealer as
a destination. (See “Starting route
guidance” on page 55.)
— Dealer setting

OTHER FUNCTIONS
11 5
To edit “Dealer” or “Contact”
1. Touch “Dealer” or “Contact” on the
“Edit Dealer” screen.

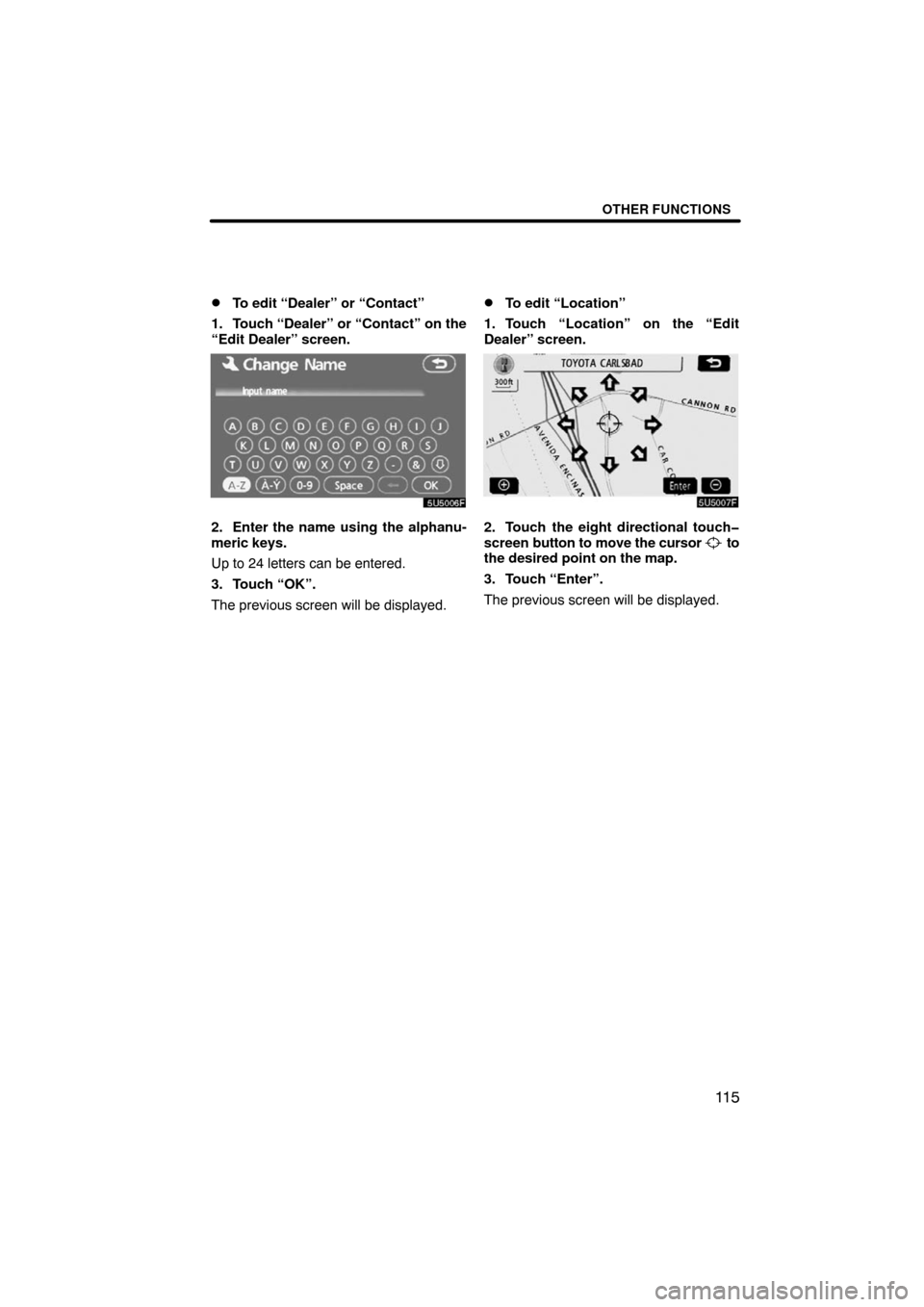

5U5006F
2. Enter the name using the alphanu-
meric keys.
Up to 24 letters can be entered.
3. Touch “OK”.
The previous screen will be displayed.
To edit “Location”
1. Touch “Location” on the “Edit
Dealer” screen.
5U5007F
2. Touch the eight directional touch
screen button to move the cursor
to
the desired point on the map.
3. Touch “Enter”.
The previous screen will be displayed.

OTHER FUNCTIONS
11 6
To edit “Phone #” (telephone num-
ber)
1. Touch “Phone #” on the “Edit
Dealer” screen.
5U5008F
2. Enter the number using numeral
keys.
3. Touch “OK”.
The previous screen will be displayed.It is possible to enter memos for particular
dates on the calendar. The system informs
you of the memo entry when the system is
turned on. (See page 17.)
Memos can also be used for route guid-
ance if the memo has been registered with
location information.
XS00303
1. Push the “INFO” button.
5U5009aF
2. Touch “Calendar”.
Calendar with memo —

OTHER FUNCTIONS
11 7
5U5010F
On this screen, the current date is high-
lighted in yellow.
or : To change month.
or : To change year.
“Today”: To display the current month cal-
endar (if another month will be displayed).
“List”: To display the list of registered me-
mos. (See “ — Memo list” on page 119.)
Touching a date button on the “Calendar”
screen displays the “Memo” screen.
5U5011F
Memos can be edited by touching the list
button. (See “ — Editing a memo” on page
119.)
“Add Memo”: To add a memo. (See “ —
Adding a memo” on page 118.)
“Mark ”: To change the color of the mark
displayed next to the date. To default the
mark color, touch “Delete” on the “Mark
color” screen.
“Date ”: To change the color of the date.
To default the date color, touch “Delete”
on the “Date color” screen.
“Prev. Day”: To go to the “Memo” screen
of the previous date.
“Today”: To go to the “Memo” screen for
the current day.
“Next Day”: To go to the “Memo” screen
of the next date.

OTHER FUNCTIONS
11 9
The registered memo can be edited.
1. Push the “INFO” button.
2. Touch “Calendar” on the
“Information” screen.
3. Touch the day you want to edit a
memo on the “Calendar” screen.
5U5016F
4. Touch the memo to be edited.
5U5017F
5. Touch the item to be edited.
“Memo”: To edit a memo. (See “ —
Adding a memo” on page 118.)
“Location”: To change a registered loca-
tion. (See “ — Adding a memo” on page
118.)
“Enter
”: To set the registered location
as a destination. (See “Starting route
guidance” on page 55.)
“Delete”: To delete the memo.It is possible to display a memo list by set-
ting a condition.
1. Push the “INFO” button.
2. Touch “Calendar”.
3. Touch “List” on the “Calendar”
screen.
5U5018F
4. Touch the desired search condition
to list the memos.
“This Week”: To display the list of memos
for the current week.
“This Month”: To display the list of me-
mos for the current month.
“Future”: To display a list of future me-
mos.
“Past”: To display the list of past memos.
“All”: To display the list of all memos.
“Period”: To display the list of memos for
a specified period. (See page 120.)
— Editing a memo— Memo list

OTHER FUNCTIONS
120

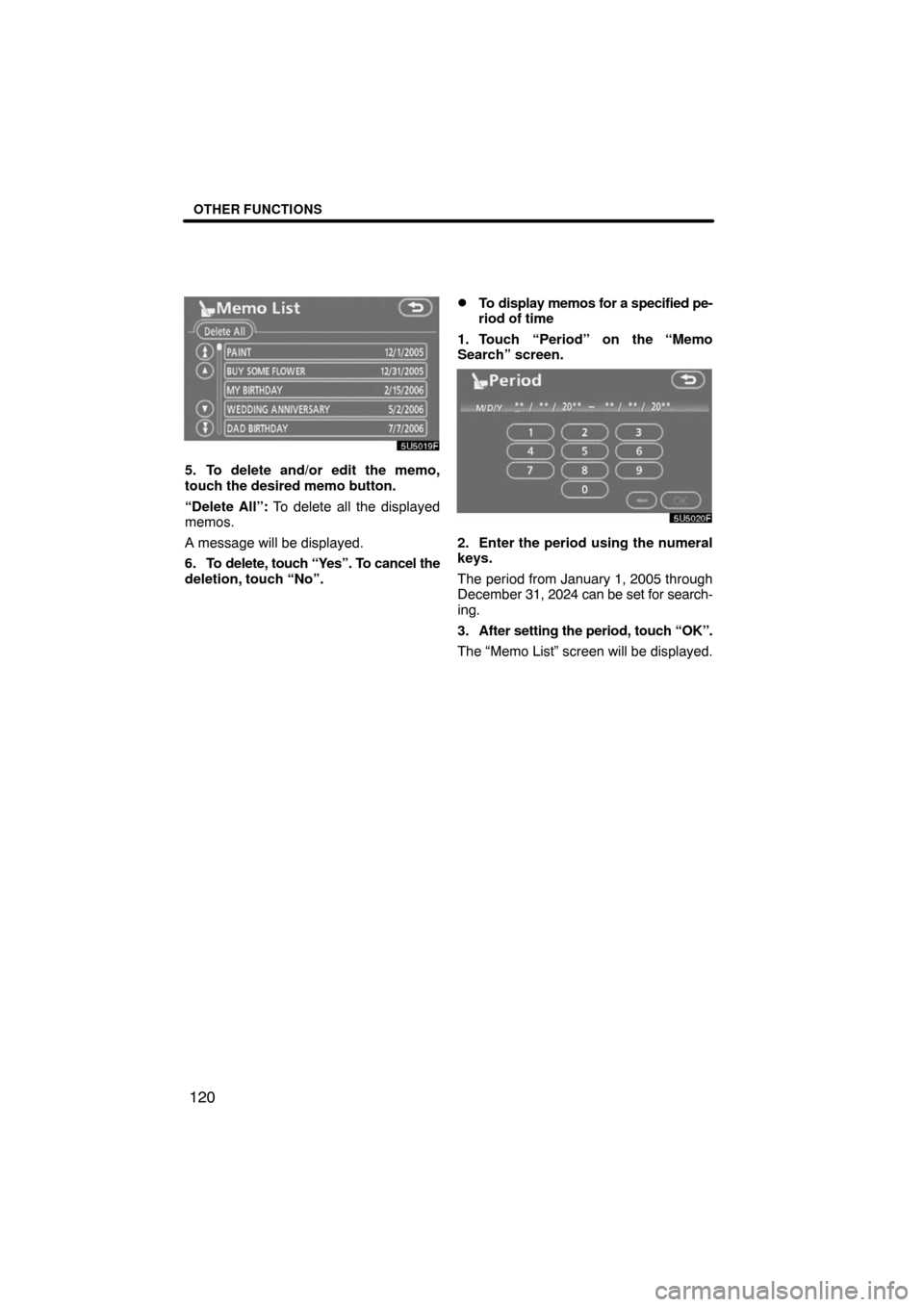

5U5019F
5. To delete and/or edit the memo,
touch the desired memo button.
“Delete All”: To delete all the displayed
memos.
A message will be displayed.
6. To delete, touch “Yes”. To cancel the
deletion, touch “No”.
To display memos for a specified pe-
riod of time
1. Touch “Period” on the “Memo
Search” screen.
5U5020F
2. Enter the period using the numeral
keys.
The period from January 1, 2005 through
December 31, 2024 can be set for search-
ing.
3. After setting the period, touch “OK”.
The “Memo List” screen will be displayed.
