TOYOTA SEQUOIA 2008 2.G Owners Manual

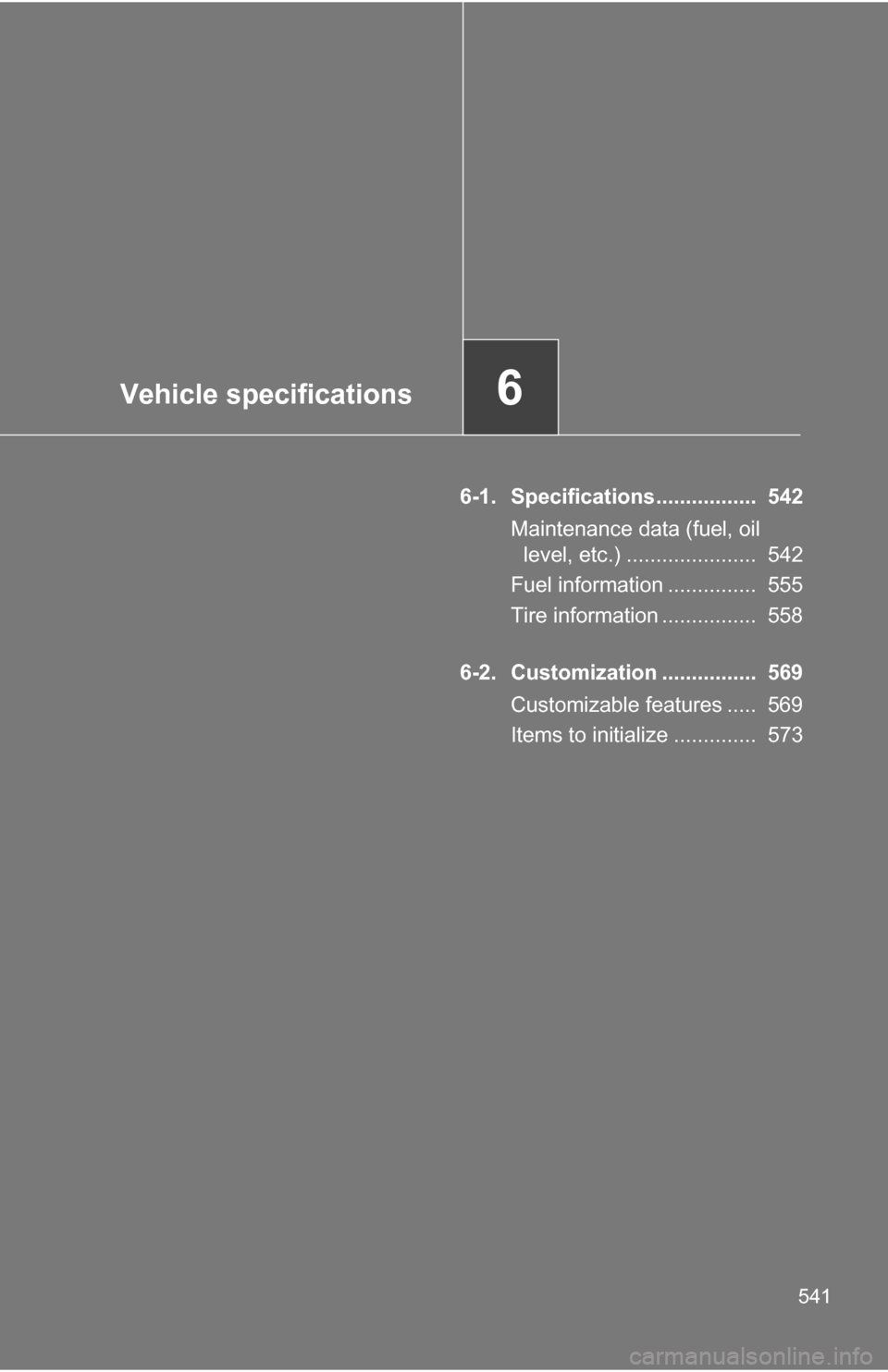

Vehicle specifications6
541
6-1. Specifications................. 542Maintenance data (fuel, oil level, etc.) ...................... 542
Fuel information ............... 555
Tire information ................ 558
6-2. Customization ................ 569 Customizable features ..... 569
Items to initialize .............. 573

542
6-1. Specifications

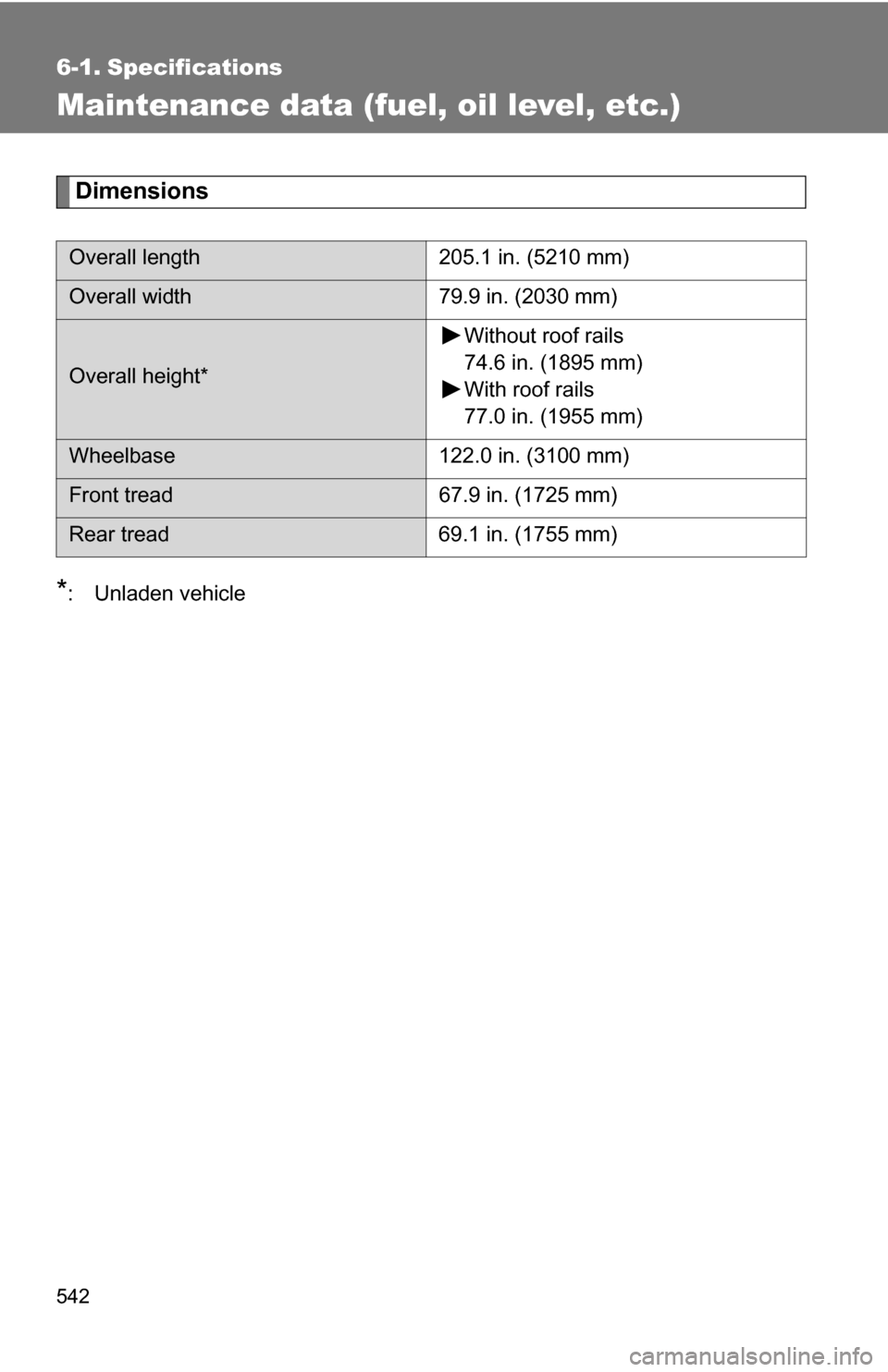

Maintenance data (fuel, oil level, etc.)
Dimensions
*: Unladen vehicle
Overall length205.1 in. (5210 mm)
Overall width79.9 in. (2030 mm)
Overall height* Without roof rails
74.6 in. (1895 mm)
With roof rails
77.0 in. (1955 mm)
Wheelbase
122.0 in. (3100 mm)
Front tread 67.9 in. (1725 mm)
Rear tread69.1 in. (1755 mm)

543
6-1. Specifications
6
Vehicle specifications

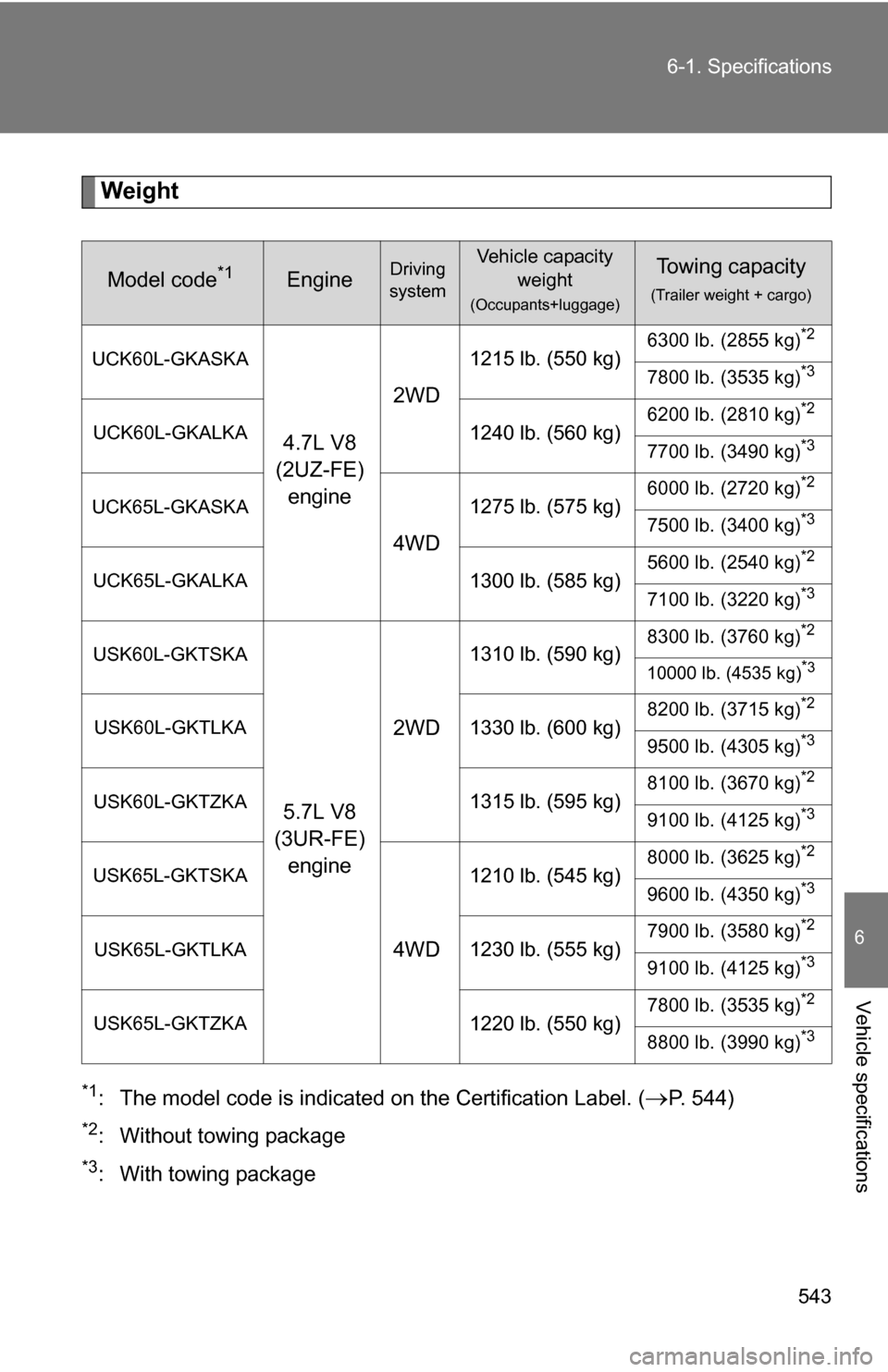

Weight
*1: The model code is indicated on the Certification Label. (P. 544)
*2: Without towing package
*3: With towing package
Model code*1EngineDriving
systemVehicle capacity weight
(Occupants+luggage)
Towing capacity
(Trailer weight + cargo)
UCK60L-GKASKA
4.7L V8
(2UZ-FE) engine 2WD
1215 lb. (550 kg)6300 lb. (2855 kg)*2
7800 lb. (3535 kg)*3
UCK60L-GKALKA1240 lb. (560 kg)6200 lb. (2810 kg)*2
7700 lb. (3490 kg)*3
UCK65L-GKASKA
4WD
1275 lb. (575 kg)6000 lb. (2720 kg)*2
7500 lb. (3400 kg)*3
UCK65L-GKALKA1300 lb. (585 kg)5600 lb. (2540 kg)*2
7100 lb. (3220 kg)*3
USK60L-GKTSKA
5.7L V8
(3UR-FE) engine 2WD
1310 lb. (590 kg)8300 lb. (3760 kg)*2
10000 lb. (4535 kg)*3
USK60L-GKTLKA1330 lb. (600 kg)8200 lb. (3715 kg)*2
9500 lb. (4305 kg)*3
USK60L-GKTZKA1315 lb. (595 kg)8100 lb. (3670 kg)*2
9100 lb. (4125 kg)*3
USK65L-GKTSKA
4WD
1210 lb. (545 kg)8000 lb. (3625 kg)*2
9600 lb. (4350 kg)*3
USK65L-GKTLKA1230 lb. (555 kg)7900 lb. (3580 kg)*2
9100 lb. (4125 kg)*3
USK65L-GKTZKA1220 lb. (550 kg)7800 lb. (3535 kg)*2
8800 lb. (3990 kg)*3

544 6-1. Specifications
Vehicle identification■ Vehicle identification number
The vehicle identificati on number (VIN) is the legal identifier for your
vehicle. This is the primary identification number for your Toyota. It is
used in registering the ownership of your vehicle.
This number is stamped on the
top left of the instrument panel.
This number is also on the
Certification Label.

545
6-1. Specifications
6
Vehicle specifications
■

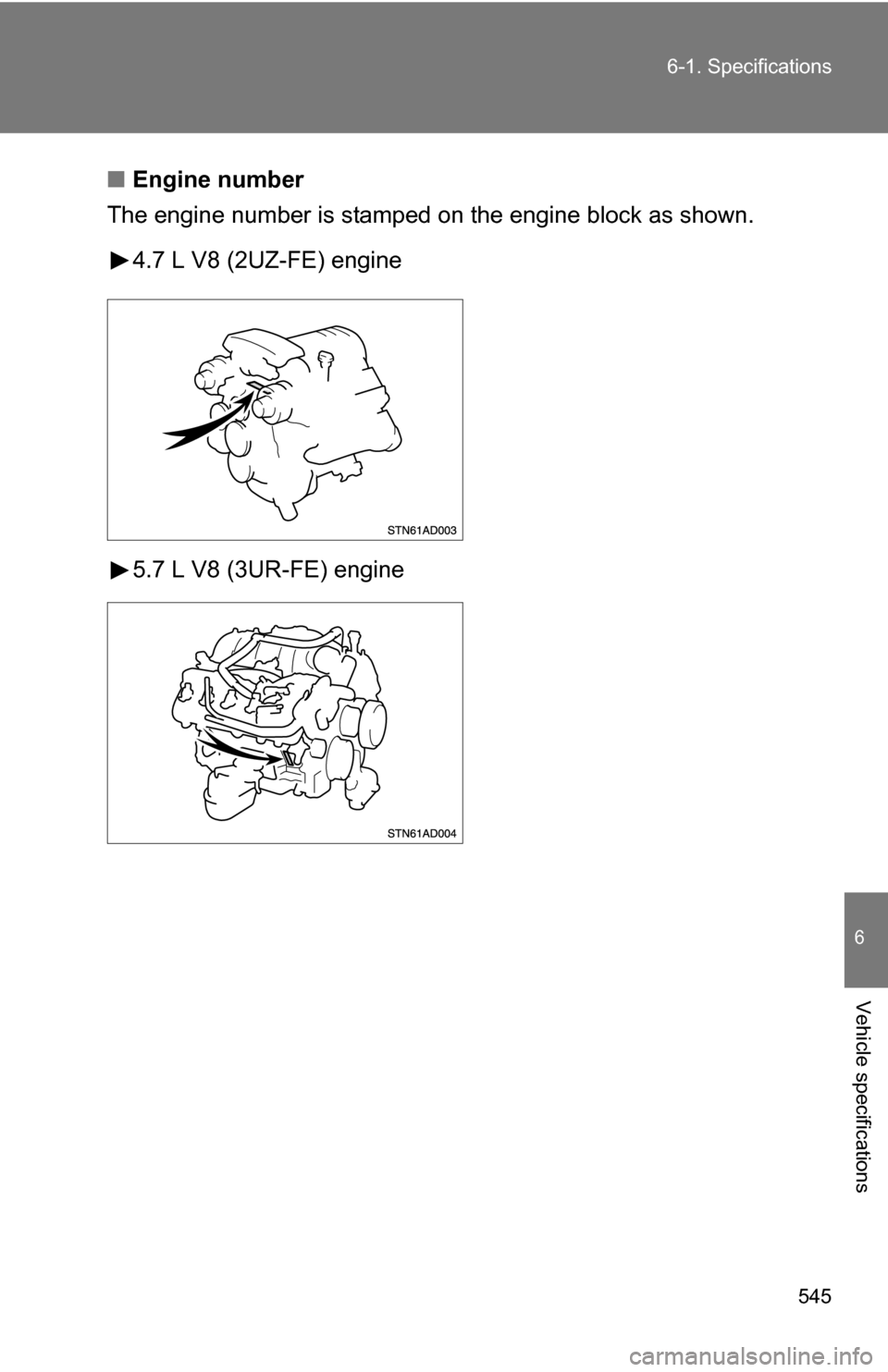

Engine number
The engine number is stamped on the engine bl ock as shown.
4.7 L V8 (2UZ-FE) engine
5.7 L V8 (3UR-FE) engine

546 6-1. Specifications

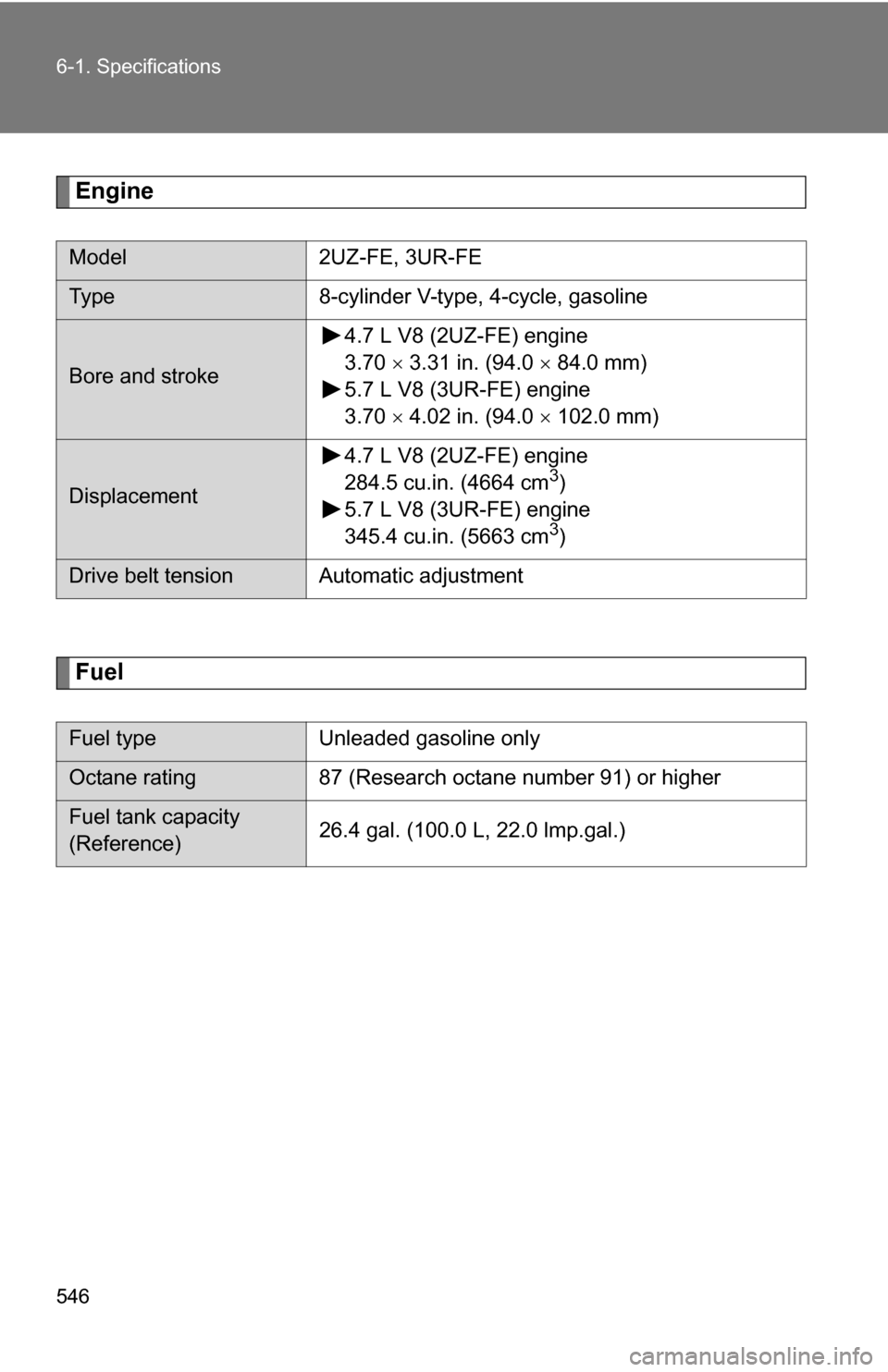

Engine
Fuel
Model2UZ-FE, 3UR-FE
Type 8-cylinder V-type, 4-cycle, gasoline
Bore and stroke 4.7 L V8 (2UZ-FE) engine
3.70 
3.31 in. (94.0  84.0 mm)
5.7 L V8 (3UR-FE) engine
3.70  4.02 in. (94.0  102.0 mm)
Displacement 4.7 L V8 (2UZ-FE) engine
284.5 cu.in. (4664 cm3)
5.7 L V8 (3UR-FE) engine
345.4 cu.in. (5663 cm
3)
Drive belt tension Automatic adjustment
Fuel type Unleaded gasoline only
Octane rating 87 (Research octane number 91) or higher
Fuel tank capacity
(Reference) 26.4 gal. (100.0 L, 22.0 lmp.gal.)

547
6-1. Specifications
6
Vehicle specifications

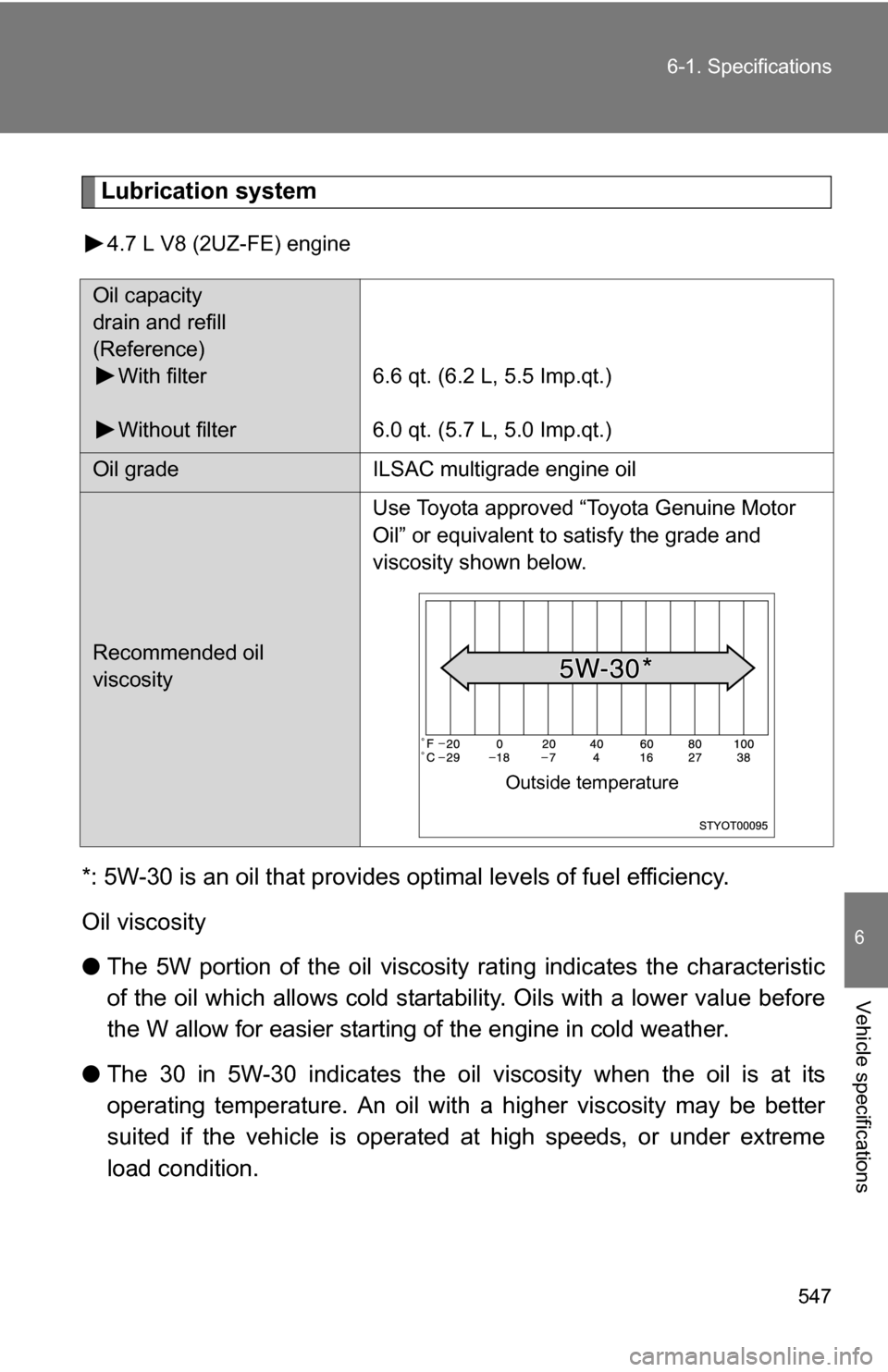

Lubrication system
4.7 L V8 (2UZ-FE) engine
*: 5W-30 is an oil that provides
optimal levels of fuel efficiency.
Oil viscosity
● The 5W portion of the oil viscosity rating indicates the characteristic
of the oil which allows cold startab ility. Oils with a lower value before
the W allow for easier starting of the engine in cold weather.
● The 30 in 5W-30 indicates the oil viscosity when the oil is at its
operating temperature. An oil with a higher viscosity may be better
suited if the vehicle is operated at high speeds, or under extreme
load condition.
Oil capacity
drain and refill
(Reference) With filter
Without filter 6.6 qt. (6.2 L, 5.5 Imp.qt.)
6.0 qt. (5.7 L, 5.0 Imp.qt.)
Oil grade
ILSAC multigrade engine oil
Recommended oil
viscosity Use Toyota approved “Toyota Genuine Motor
Oil” or equivalent to satisfy the grade and
viscosity shown below.
Outside temperature

548 6-1. Specifications

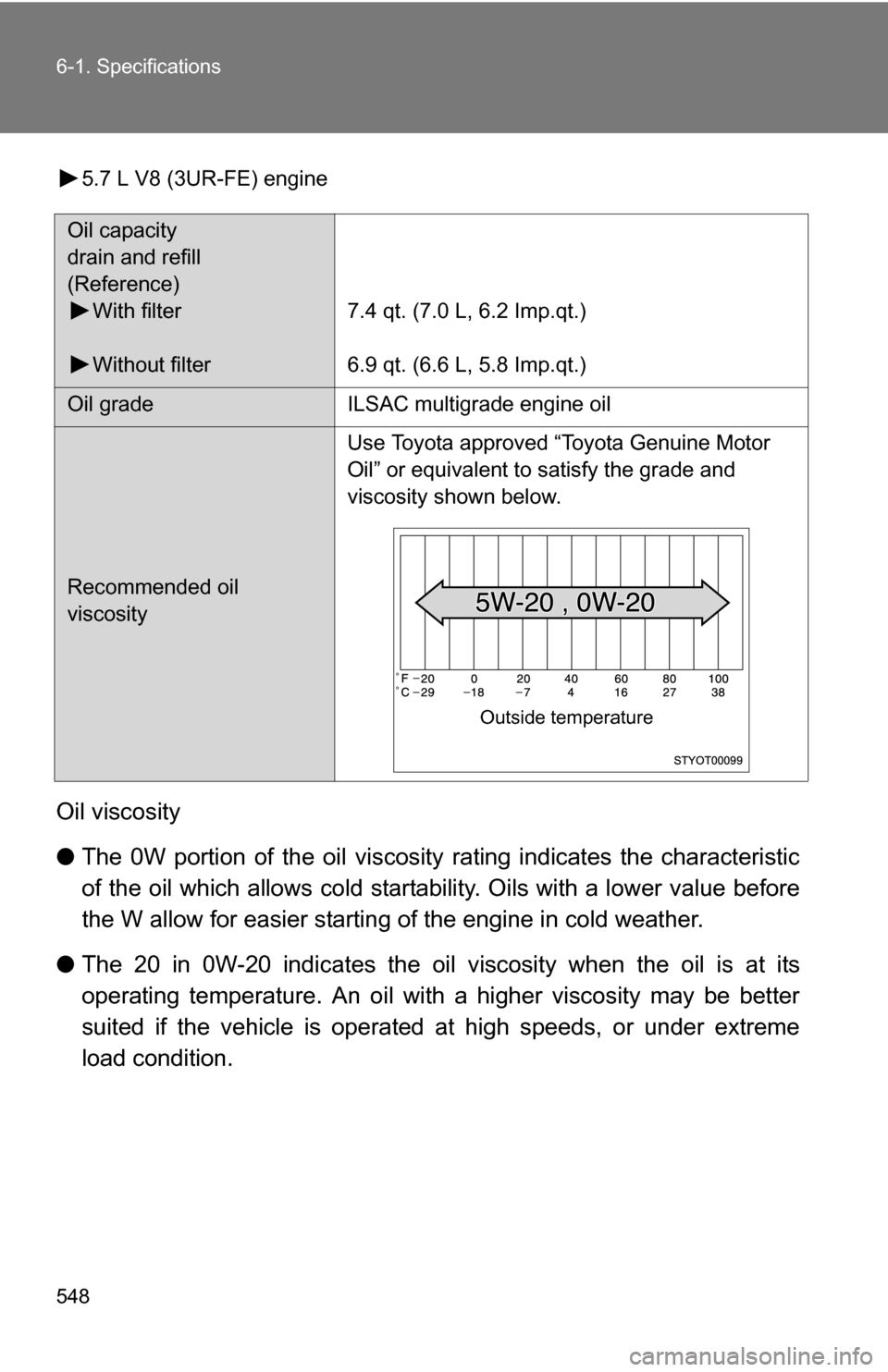

5.7 L V8 (3UR-FE) engine
Oil viscosity
●The 0W portion of the oil viscosity rating indicates the characteristic
of the oil which allows cold startab ility. Oils with a lower value before
the W allow for easier starting of the engine in cold weather.
● The 20 in 0W-20 indicates the oil viscosity when the oil is at its
operating temperature. An oil with a higher viscosity may be better
suited if the vehicle is operated at high speeds, or under extreme
load condition.
Oil capacity
drain and refill
(Reference)
With filter
Without filter 7.4 qt. (7.0 L, 6.2 Imp.qt.)
6.9 qt. (6.6 L, 5.8 Imp.qt.)
Oil grade
ILSAC multigrade engine oil
Recommended oil
viscosity Use Toyota approved “Toyota Genuine Motor
Oil” or equivalent to satisfy the grade and
viscosity shown below.
Outside temperature

549
6-1. Specifications
6
Vehicle specifications

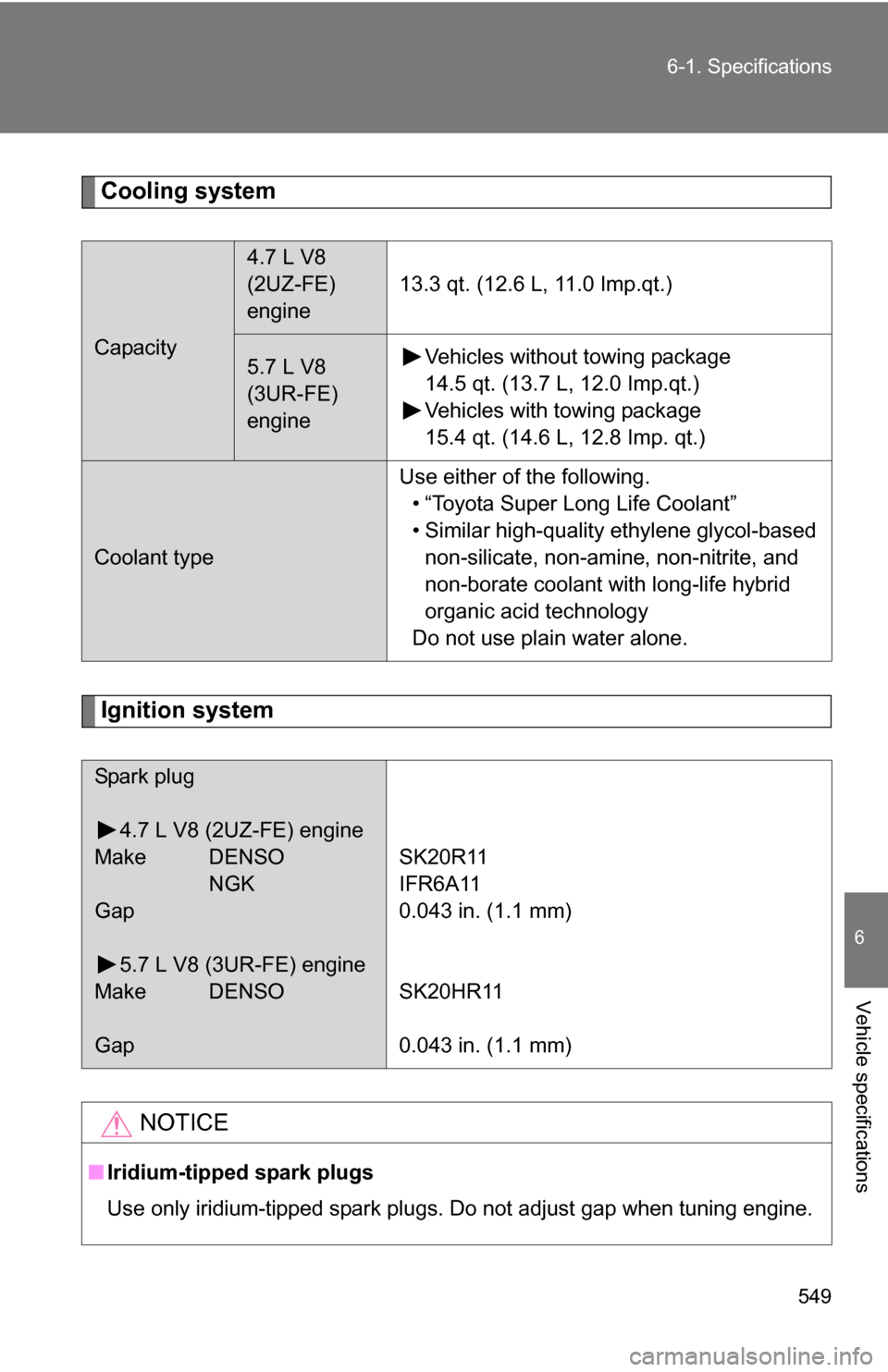

Cooling system
Ignition system
Capacity
4.7 L V8
(2UZ-FE)
engine
13.3 qt. (12.6 L, 11.0 Imp.qt.)
5.7 L V8
(3UR-FE)
engine Vehicles without towing package
14.5 qt. (13.7 L, 12.0 Imp.qt.)
Vehicles with towing package
15.4 qt. (14.6 L, 12.8 Imp. qt.)
Coolant type Use either of the following.
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-silicate, non-amine, non-nitrite, and
non-borate coolant with long-life hybrid
organic acid technology
Do not use plain water alone.
Spark plug
4.7 L V8 (2UZ-FE) engine
Make DENSO NGK
Gap
5.7 L V8 (3UR-FE) engine
Make DENSO
Gap SK20R11
IFR6A11
0.043 in. (1.1 mm)
SK20HR11
0.043 in. (1.1 mm)
NOTICE
■
Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust gap when tuning engine.

550 6-1. Specifications

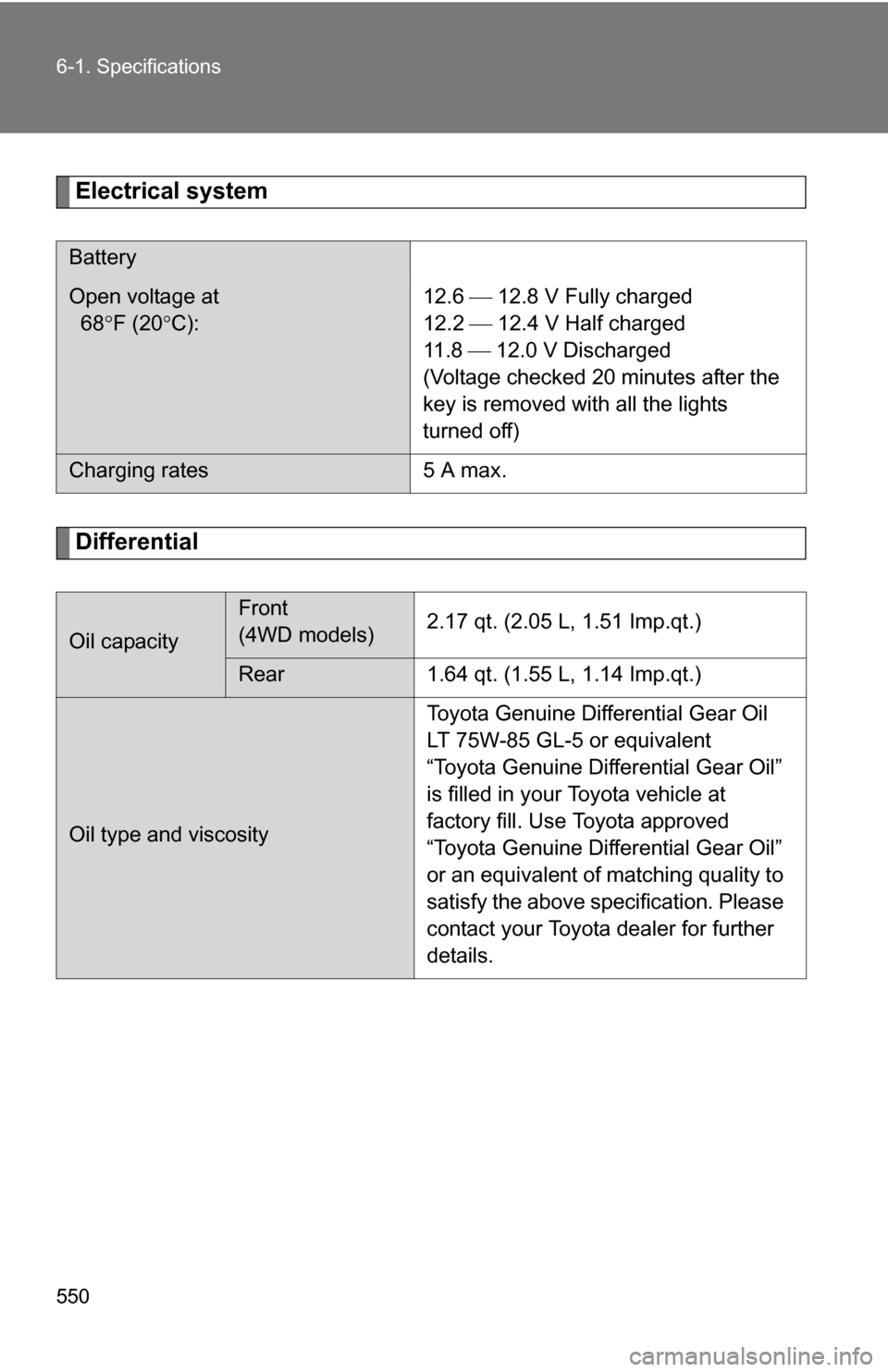

Electrical system
Differential
Battery
Open voltage at
68F (20 C): 12.6  12.8 V Fully charged
12.2  12.4 V Half charged
11 . 8
 12.0 V Discharged
(Voltage checked 20 minutes after the
key is removed with all the lights
turned off)
Charging rates 5 A max.
Oil capacity
Front
(4WD models)2.17 qt. (2.05 L, 1.51 Imp.qt.)
Rear
1.64 qt. (1.55 L, 1.14 Imp.qt.)
Oil type and viscosity Toyota Genuine Differential Gear Oil
LT 75W-85 GL-5 or equivalent
“Toyota Genuine Differential Gear Oil”
is filled in your Toyota vehicle at
factory fill. Use Toyota approved
“Toyota Genuine Differential Gear Oil”
or an equivalent of matching quality to
satisfy the above specification. Please
contact your Toyota dealer for further
details.
