4-3. Do-it-yourself maintenance

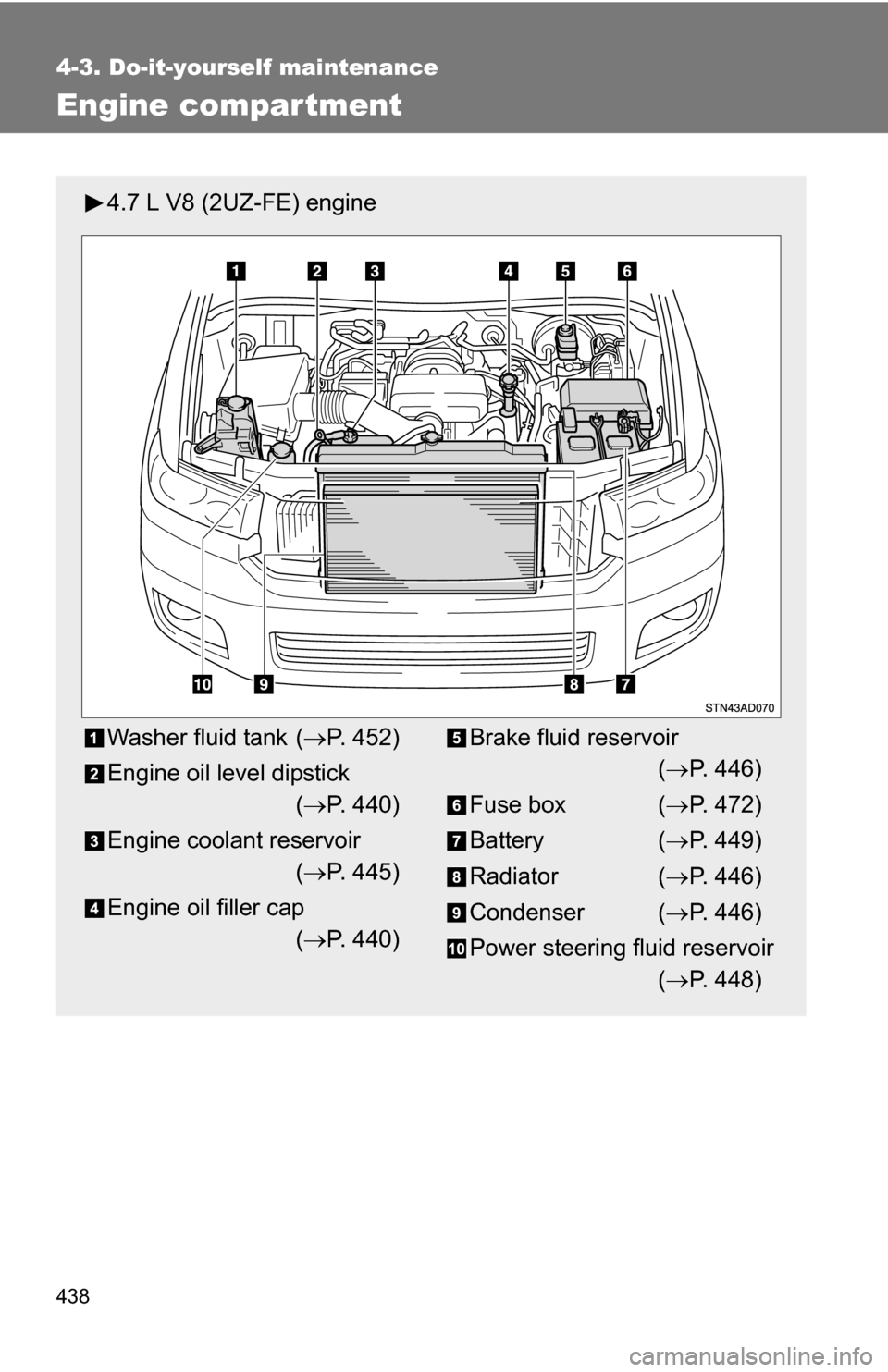

Engine compar tment
4.7 L V8 (2UZ-FE) engine
Washer fluid tank (P. 452)
Engine oil level dipstick ( P. 440)
Engine coolant reservoir ( P. 445)
Engine oil filler cap ( P. 440)Brake fluid reservoir
( P. 446)
Fuse box ( P. 472)
Battery ( P. 449)
Radiator ( P. 446)
Condenser ( P. 446)
Power steering fluid reservoir ( P. 448)

439
4-3. Do-it-yourself maintenance
4
Maintenance and care

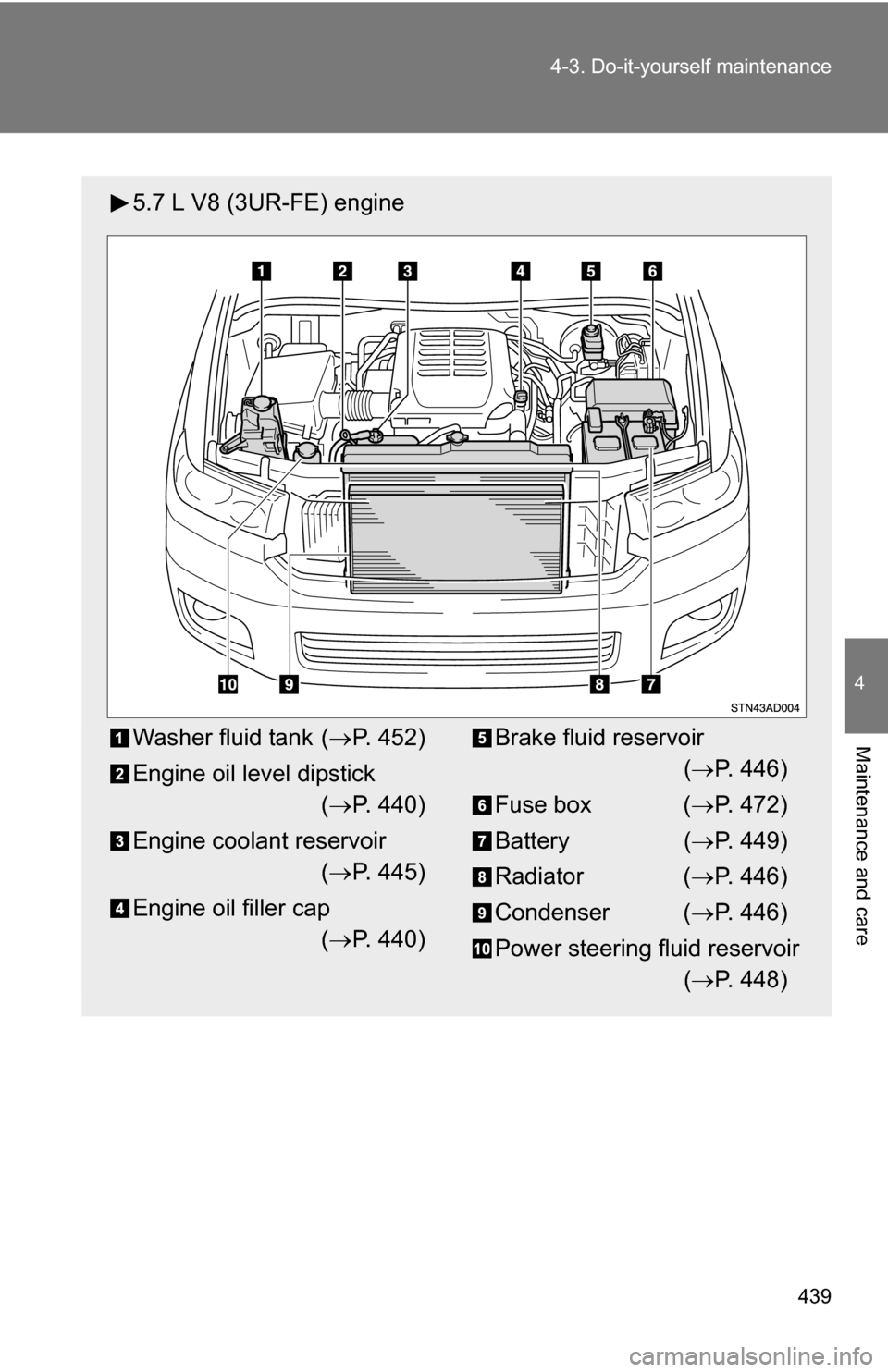

5.7 L V8 (3UR-FE) engine
Washer fluid tank (
P. 452)
Engine oil level dipstick ( P. 440)
Engine coolant reservoir ( P. 445)
Engine oil filler cap ( P. 440)Brake fluid reservoir
( P. 446)
Fuse box ( P. 472)
Battery ( P. 449)
Radiator ( P. 446)
Condenser ( P. 446)
Power steering fluid reservoir ( P. 448)

474 4-3. Do-it-yourself maintenance

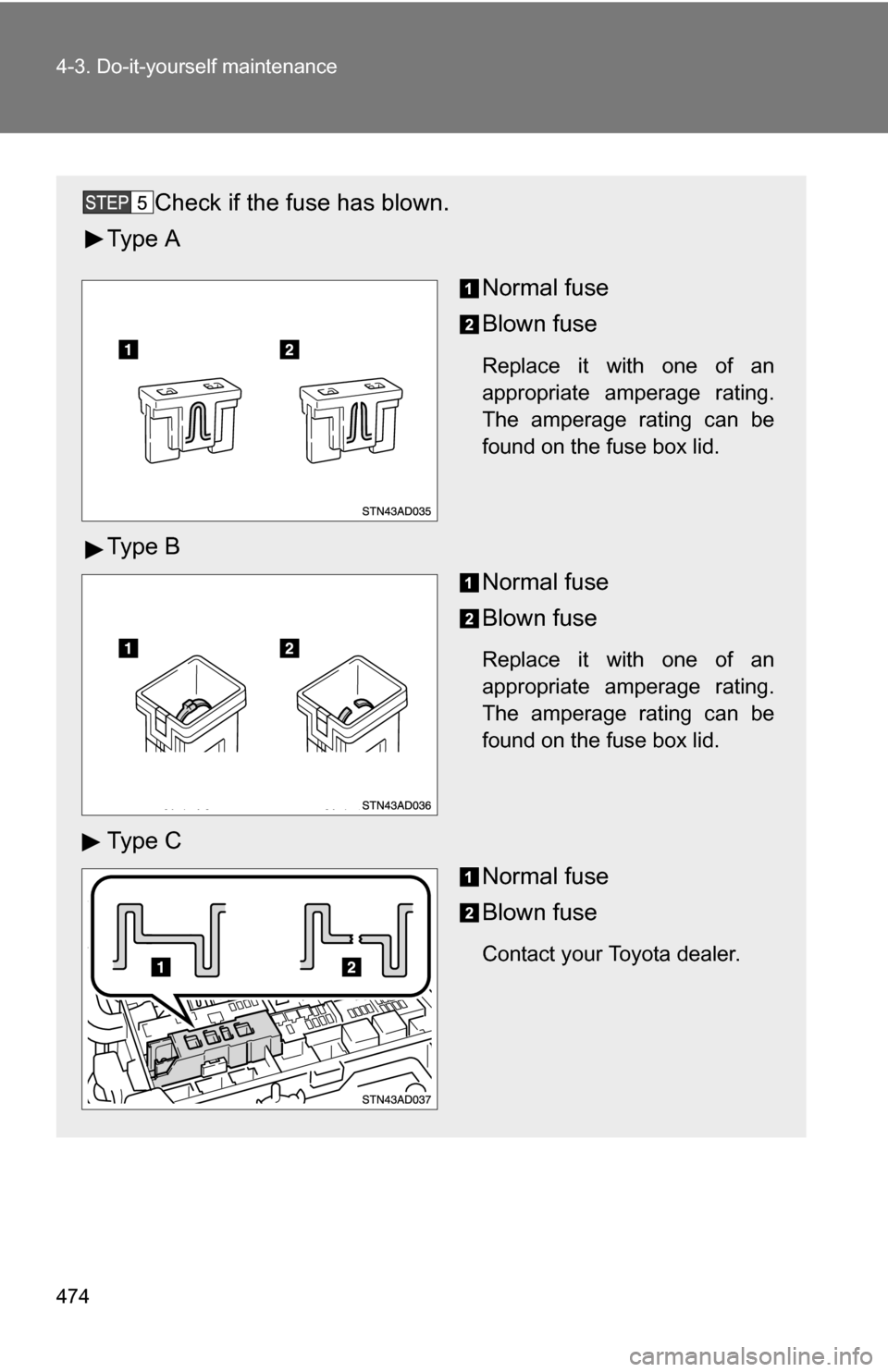

Check if the fuse has blown.
Ty p e A
Normal fuse
Blown fuse
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid.
Ty p e BNormal fuse
Blown fuse
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid.
Ty p e CNormal fuse
Blown fuse
Contact your Toyota dealer.

481
4-3. Do-it-yourself maintenance
4
Maintenance and care

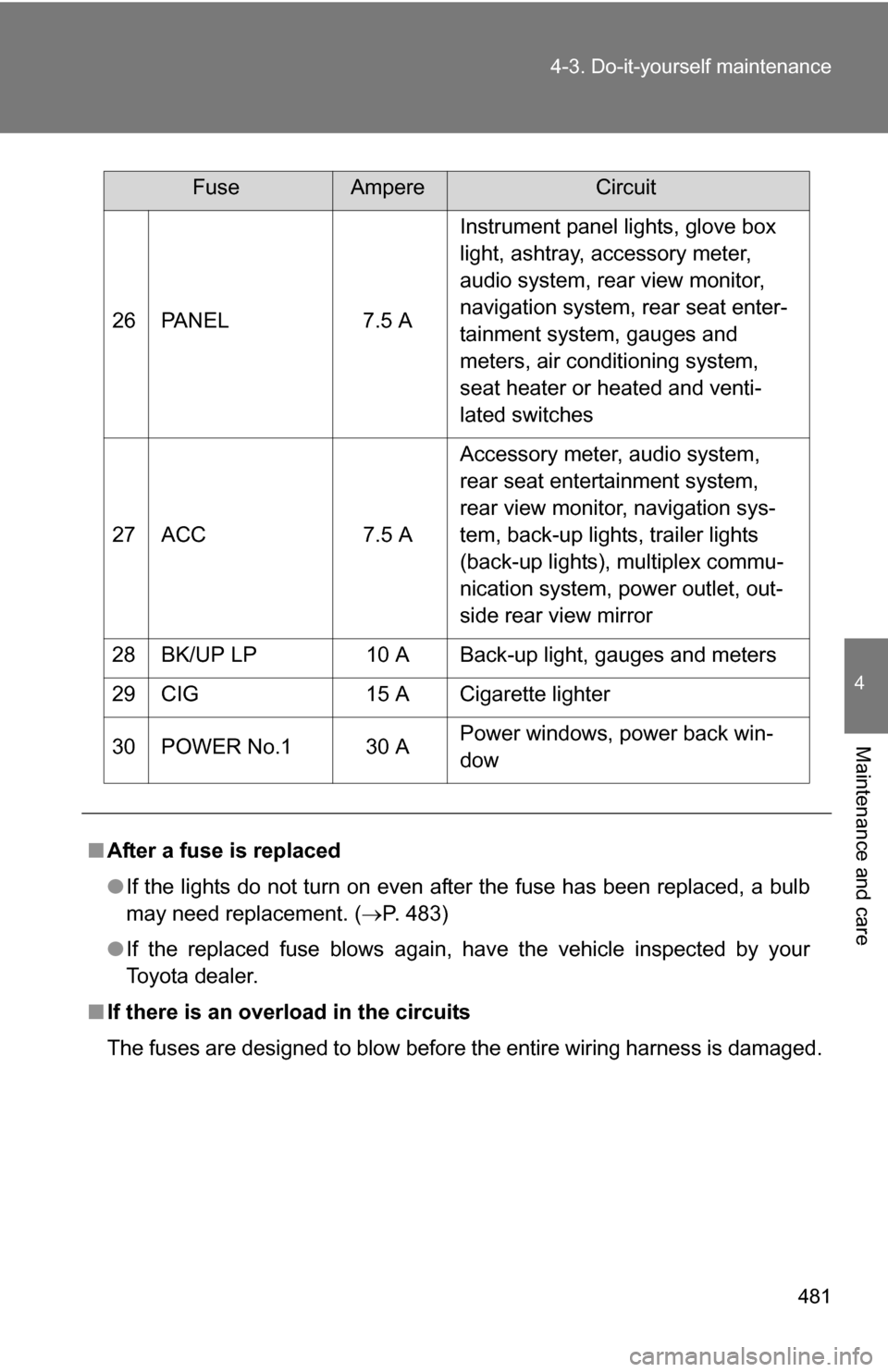

26 PANEL
7.5 AInstrument panel lights, glove box
light, ashtray, accessory meter,
audio system, rear view monitor,
navigation system, rear seat enter-
tainment system, gauges and
meters, air conditioning system,
seat heater or heated and venti-
lated switches
27 ACC 7.5 AAccessory meter, audio system,
rear seat entertainment system,
rear view monitor, navigation sys-
tem, back-up lights, trailer lights
(back-up lights), multiplex commu-
nication system, power outlet, out-
side rear view mirror
28 BK/UP LP 10 A Back-up light, gauges and meters
29 CIG 15 A Cigarette lighter
30 POWER No.1 30 A Power windows, power back win-
dow
■ After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacement. ( P. 483)
● If the replaced fuse blows again, have the vehicle inspected by your
Toyota dealer.
■ If there is an overload in the circuits
The fuses are designed to blow before the entire wiring harness is damaged.
FuseAmpereCircuit

482 4-3. Do-it-yourself maintenance
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage, and possibly a fire or injury.
●Never use a fuse of a higher amperage rating than indicated, or use any
other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
This can cause extensive damage or even fire.
● Do not modify the fuse or the fuse box.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your Toy-
ota dealer as soon as possible.
