display TOYOTA SEQUOIA 2008 2.G Quick Reference Guide

1
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Engine maintenance 10Fuel tank door release and cap 9Hood release 9Indicator symbols 6-7Instrument cluster 5Instrument panel 2-4Keyless entry18
Light control-Instrument panel 10
Accessory meter 31Air Conditioning/Heating 22-23Audio 24-25Auto lock functions112Automatic Transmission 11Cruise control 20Cup holders 31Door locks 28Door-Power back 19Dynamic Laser Cruise Control 27Four-wheel drive 12Garage door opener (HomeLink®)326Lights1& turn signals 17Moonroof 20Multi-information display228Parking brake 15Power outlets-12V DC 30Power outlets-115V AC 30Rear seat entertainment system 25Seat adjustments-Front 13Seat adjustments-Rear 14Seat ventilators/Heaters 23Seats-Folding second row seats 15Seats-Folding third row seats 16Seats-Head restraints 13Steering wheel switches 26Tilt and telescopic steering wheel 21“TOW/HAUL” switch 11Telephone controls (Bluetooth®)29“VSC OFF” button 21Window-Back19Windows 18
Windshield wipers & washers 18
Doors-Child safety locks 33Seat belts 32Seat belts-Shoulder belt anchor 32Spare tire & tools 33
Tire Pressure Warning System 32
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
1Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and
more information.
3HomeLink®is a registered trademark of Johnson Controls, Inc.
2008 Sequoia Quick Reference Guide

4 Emergency flasher button
Multi-information display control button
1 and/or accessory meter
control button
Four-wheel drive control switch
Height control switch
1
AVS button1
“TOW/HAUL” button1
Center differential lock/unlock switch
Intuitive parking assist button1
Accessory meter
Theft deterrent system/Engine immobilizer indicator
Audio system
2
Air Conditioning controls
12V DC Power outlet
Seat heater
1and ventilator1controls
Cigarette lighter
AUX audio jack
Outside rearview mirrors
1/Back window defogger/Windshield wiper
de-icer1button
1If equipped2Vehicles with navigation system: for details, refer to the “Navigation
System Owner’s Manual.”
OVERVIEW
Center panel area

5
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Instrument cluster
Tachometer
Speedometer
Service indicator and reminder
Fuel gauge
Vo l t m e t e r
Engine oil pressure gauge
Engine coolant temperature
Odometer/Trip meter and trip meter reset button
Multi-information display
Odometer and two trip meters
Automatic Transmission shift position indicator
Automatic Transmission shift range display
Automatic Transmission fluid temperature gauge
With multi-information display
Without multi-information display

Front Air Conditioning
Fan speed
Automatic climate control ON
Adjusting the temperature setting will cause the airflow vents, air
intake and fan to adjust automatically.
Air Conditioning ON/OFF
Temperature (driver side)
Windshield airflow (fresh air only)
Airflow vent
Temperature (front passenger side)
“SYNC” button
Indicator ON:Synchronize temperature settings for driver, front
passenger and rear seats.
Indicator OFF:Separate temperature settings for driver, front
passenger and rear seats.
Outside rearview mirror/Back window defogger or windshield wiper
de-icer (if equipped)
Rear Air Conditioning ON/OFF
Temperature (rear passenger area*)
Fresh or recirculated cabin air
Climate control OFF
* To change the rear seat setting, press the “REAR” button.
22
FEATURES/OPERATIONS
Air Conditioning/Heating
In “ ” mode, use fresh air (“ ” indicator “OFF”) to reduce
window fogging.
Control panel
Display

23
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

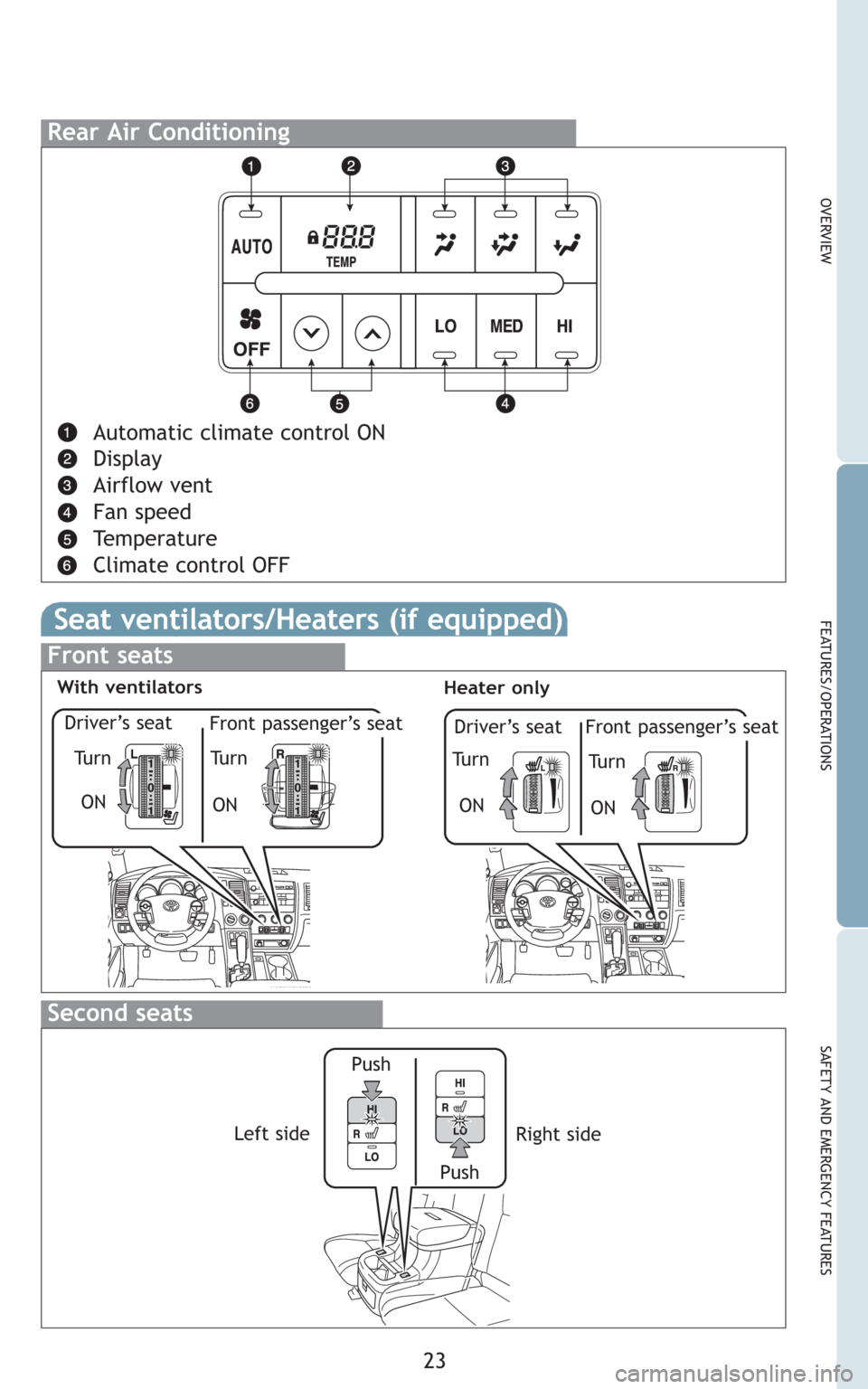

Rear Air Conditioning
Automatic climate control ON
Display
Airflow vent
Fan speed
Temperature
Climate control OFF
Seat ventilators/Heaters (if equipped)
Front seats
Second seats
Left sideRight side
Tu r n Driver’s seat
Front passenger’s seat
ON Tu r n
ON
Tu r n Driver’s seat
Front passenger’s seat
ON Tu r n
ON
Heater onlyWith ventilators
Push Push

28
FEATURES/OPERATIONS
Door locks
Lock
Unlock
Multi-information display (if equipped)
Push “INFO” to change information in the following:
(1) Zoom display of odometer and trip meter
(2) Average gas mileage
(3) Current gas mileage
(4) Miles left on remaining fuel
(5) Running time from engine start
(6) Average vehicle speed
Push “SETUP US/M” to customize to the following settings:
(1) UNIT
(2) KEYLESS ENTRY FEEDBACK
(3) KEYLESS ENTRY RELOCK TIMER
(4) KEYLESS ENTRY ALL DOORS UNLOCK
(5) DOOR AUTO LOCKING
(6) DOOR AUTO UNLOCKING
(7) HEADLAMPS AUTO OFF TIMER
(8) COURTESY LAMPS OFF TIMER
(9) DEFAULT SETTING

31
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Cup holders
Front
Rear
Front console Back of the front console
Rear side trimRear console box (if equipped)
Accessory meter
Outside temperature/Cruise information display (if equipped)
Clock
Hour set
Minute set
Change information (if equipped)
“SELECT RESET” button (if equipped)
“SETUP US/M” button to customize unit
Refer to your Owner’s Manualfor complete details on this system before
attempting to use it.
