AUDIO/VIDEO SYSTEM
191
XS00311

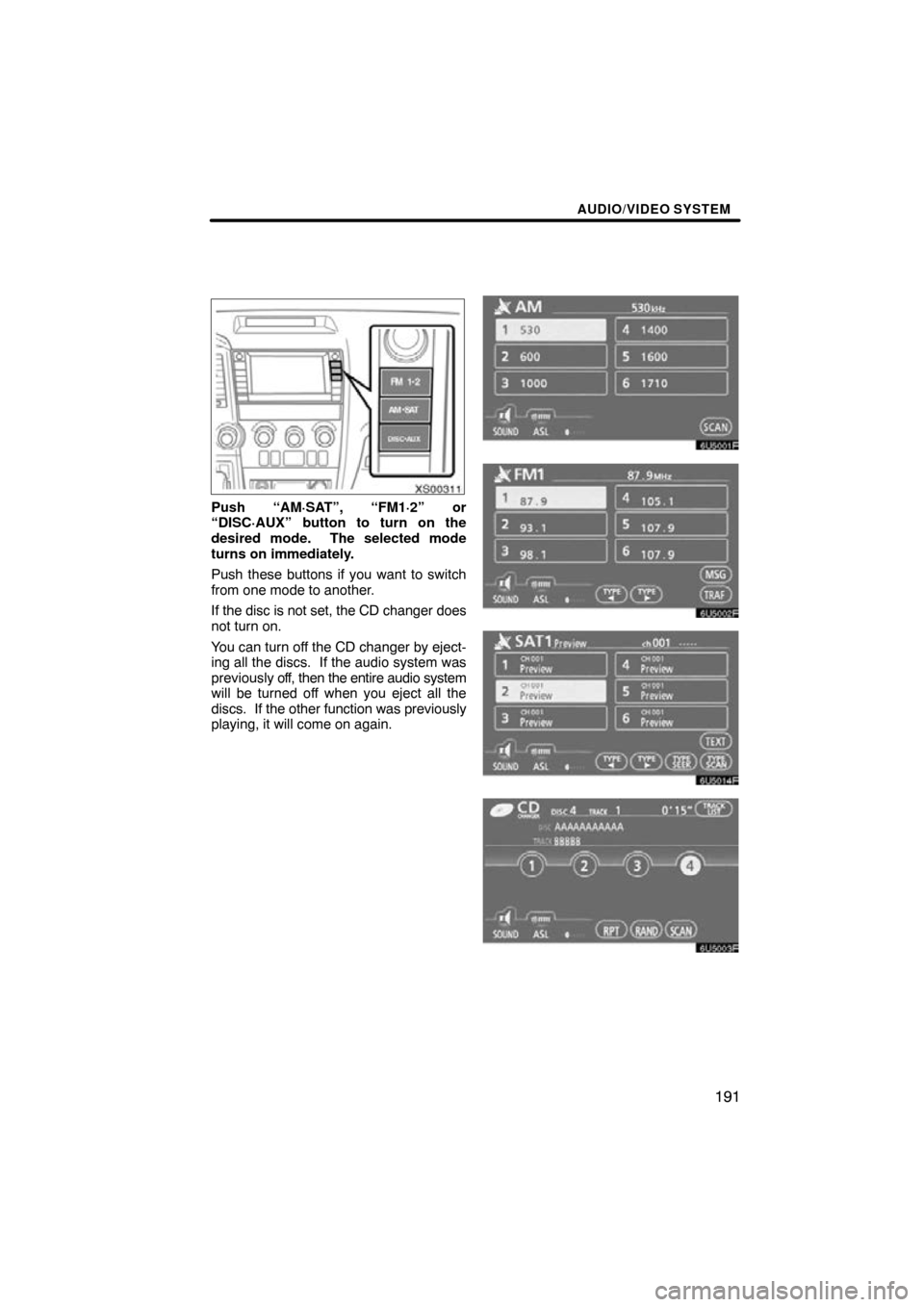

Push “AM·SAT”, “FM1·2” or
“DISC·AUX” button to turn on the
desired mode. The selected mode
turns on immediately.
Push these buttons if you want to switch
from one mode to another.
If the disc is not set, the CD changer does
not turn on.
You can turn off the CD changer by eject-
ing all the discs. If the audio system was
previously off, then the entire audio system
will be turned off when you eject all the
discs. If the other function was previously
playing, it will come on again.
6U5001F
6U5002F
6U5014F
6U5003F

AUDIO/VIDEO SYSTEM
192
6U5004F
The touchscreen buttons for radio, CD
changer and DVD player operation are
displayed on the function touch
screen button display screen when the
audio control mode is selected. Touch
them lightly and directly on the screen.
The selected switch is highlighted.
INFORMATION
If the system does not respond to a
touch of a touchscreen button,
move your finger away from the
screen and then touch it again.
You cannot operate dimmed
touchscreen buttons.
Wipe off fingerprints on the surface
of the display using a glass clean-
ing cloth.
(c) Automatic sound levelizer (ASL)
When the audio sound becomes diffi-
cult to be heard due to road noise, wind
noise or other noises while driving, the
system adjusts to the optimum volume
according to the noise level. To turn
this function on, touch “ASL” on the au-
dio control screen.
(d) Tone and balance
Tone
How good an audio program sounds to you
is largely determined by the mix of the
treble, midrange, and bass levels. In fact,
different kinds of music and vocal pro-
grams usually sound better with different
mixes of treble, mid −range, and bass.
Balance
A good balance of the left and right stereo
channels and of the front and rear sound
levels is also important.
Keep in mind that if you are listening to a
stereo recording or broadcast, changing
the right/left balance will increase the vol-
ume of one group of sounds while de-
creasing the volume of another.
1. Push the “AUDIO” button.
6U5002aF
2. Touch “SOUND” to display the
sound adjustment screen.

AUDIO/VIDEO SYSTEM
193
6U5005F

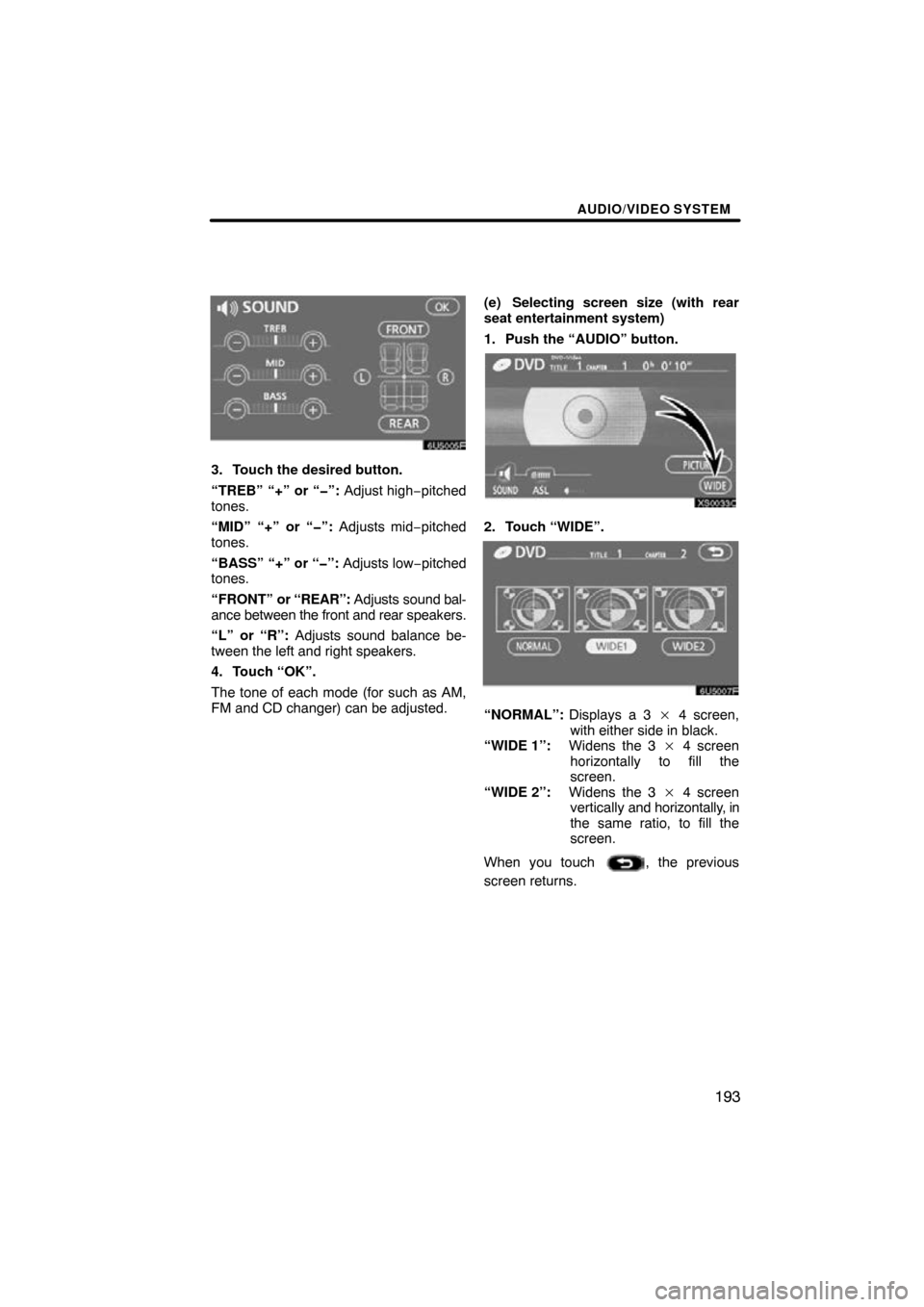

3. Touch the desired button.
“TREB” “+” or “”: Adjust high−pitched
tones.
“MID” “+” or “”: Adjusts mid−pitched
tones.
“BASS” “+” or “”: Adjusts low −pitched
tones.
“FRONT” or “REAR”: Adjusts sound bal-
ance between the front and rear speakers.
“L” or “R”: Adjusts sound balance be-
tween the left and right speakers.
4. Touch “OK”.
The tone of each mode (for such as AM,
FM and CD changer) can be adjusted. (e) Selecting screen size (with rear
seat entertainment system)
1. Push the “AUDIO” button.
XS00330
2. Touch “WIDE”.
6U5007F
“NORMAL”:
Displays a 3  4 screen,
with either side in black.
“WIDE 1”: Widens the 3  4 screen
horizontally to fill the
screen.
“WIDE 2”: Widens the 3  4 screen
vertically and horizontally, in
the same ratio, to fill the
screen.
When you touch
, the previous
screen returns.

AUDIO/VIDEO SYSTEM
194
(f) Your CD changer
When you insert a disc, touch “LOAD” and
gently push the disc in with the label side
up. This CD changer can store up to four
discs. The changer will play from track 1
through to the end of the disc. Then it will
play from track 1 of the next disc.
The changer is intended for use with 12 cm
(4.7 in.) discs only.
XS00312

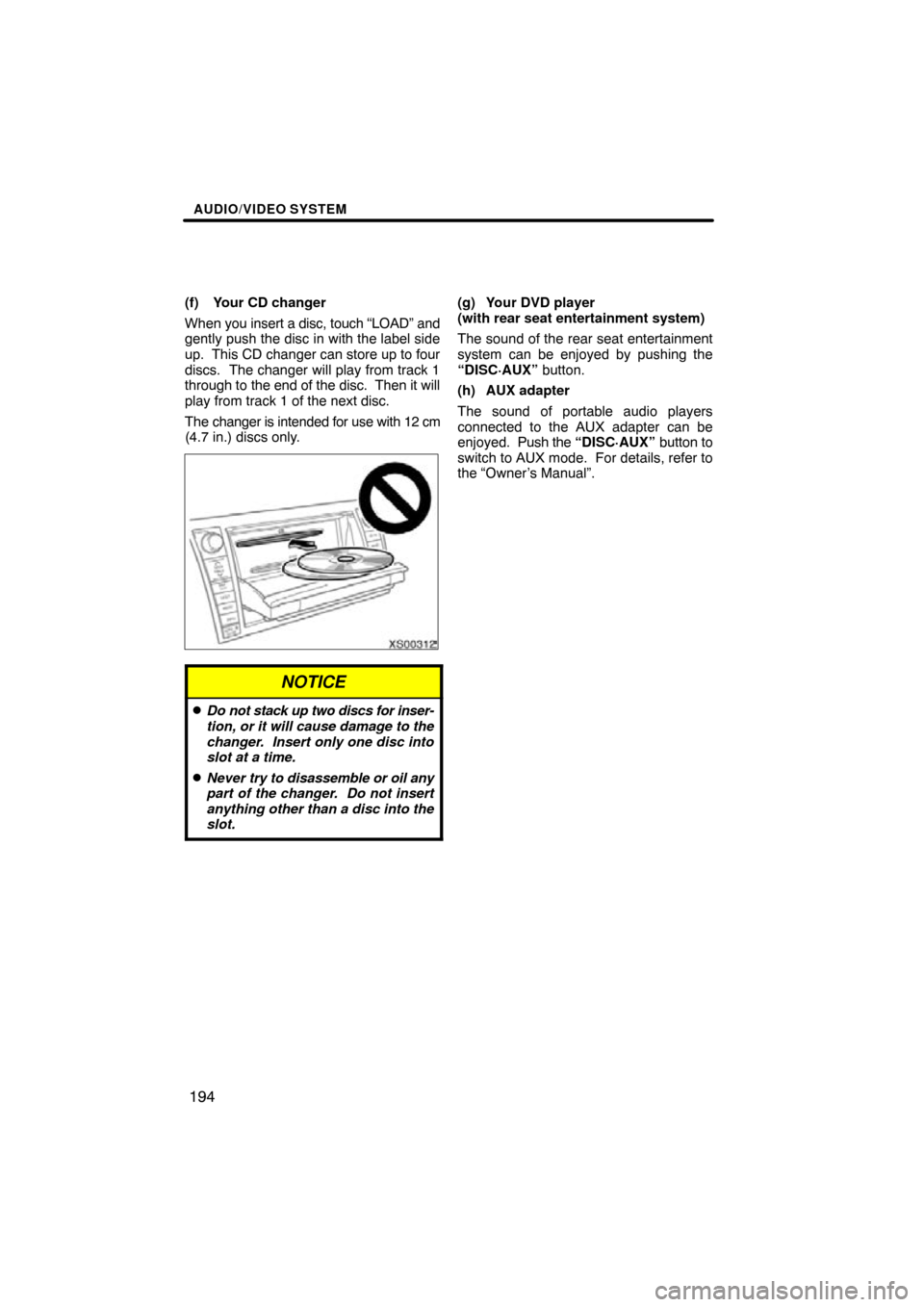

NOTICE
Do not stack up two discs for inser-
tion, or it will cause damage to the
changer. Insert only one disc into
slot at a time.
Never try to disassemble or oil any
part of the changer. Do not insert
anything other than a disc into the
slot.
(g) Your DVD player
(with rear seat entertainment system)
The sound of the rear seat entertainment
system can be enjoyed by pushing the
“DISC·AUX” button.
(h) AUX adapter
The sound of portable audio players
connected to the AUX adapter can be
enjoyed. Push the “DISC·AUX” button to
switch to AUX mode. For details, refer to
the “Owner’s Manual”.

AUDIO/VIDEO SYSTEM
195
XS00313
(a) Listening to the radio
Push these buttons to choose either an
AM or FM station.
“AM”, “FM1” or “FM2” appears on the
screen.
If your vehicle is equipped with a satellite
radio broadcast system, when you push
the “AM·SAT” button, “AM”, “SAT1”,
“SAT2”, “SAT3” station appears on the
display. For details about satellite radio
broadcast, see “—Radio operation (XM

Satellite Radio broadcast)” on page 199.
XS00314
Turn the knob clockwise to step up the
station band or counterclockwise to
step down.
Your radio automatically changes to stereo
reception when a stereo broadcast is re-
ceived. “ST” appears on the screen. If the
signal becomes weak, the radio reduces
the amount of channel separation to pre-
vent the weak signal from creating noise.
If the signal becomes extremely weak, the
radio switches from stereo to mono recep-
tion. In this case, “ST” disappears from the
screen.
— Radio operation

AUDIO/VIDEO SYSTEM
196
6U5008F
(b) Presetting a station
1. Tune in the desired station.
2. Touch one of the touchscreen but-
tons (1 — 6) you want and hold it until
a beep is heard. This sets the station to
the touchscreen button and the fre-
quency appears on the touchscreen
button.
Each radio mode (AM, FM1 or FM2) can
store up to 6 stations. To change the pre-
set station to a different one, follow the
same procedure.
The preset station memory is cancelled
when the power source is interrupted by
battery disconnection or a blown fuse. (c) Selecting a station
Tune in the desired station using
one of the
following methods.
Preset tuning: Touch the touch−screen
button (1 — 6) for the station you want.
The touch−screen button is highlighted
and the station frequency appears on the
screen.
Seek tuning: Push the “SEEK/TRACK”
button on either side. The radio will begin
seeking up or down for a station of the
nearest frequency and will stop on recep-
tion. Each time you push the button, the
stations will be searched automatically
one after another.
To scan all the frequencies: Touch
“SCAN” on the screen or push the
“SCAN” button briefly. “SCAN” appears
on the screen. The radio will find the next
station and stay there for a few seconds,
and then scan again. To select a station,
touch “SCAN” or push the “SCAN” but-
ton again.
To scan the preset stations: Touch
“SCAN” on the screen or push the
“SCAN” button for longer than a second.
“P. SCAN” appears on the screen. The ra-
dio will tune in the next preset station, stay
there for a few seconds, and then move to
the next preset station. To select a station,
touch “SCAN” or push the “SCAN” but-
ton again.

AUDIO/VIDEO SYSTEM
197
(d) Radio Data System
Your audio system is equipped with Radio
Data Systems (RDS). RDS mode pro-
vides you to receive text messages from
radio stations that utilize RDS transmit-
ters.
When RDS is on, the radio can
— only select stations of a particular pro-
gram type,
— display messages from radio stations,
— search for a stronger signal station.
RDS features are available for the use only
on FM stations which broadcast RDS in-
formation.
6U5009F
“TYPE   ”
If the system receives no RDS stations,
“NO PTY” appears on the display.
Each time you touch “TYPE  ” or “TYPE
 ”, the program type changes as in the
following:
ROCK
MISC (Miscellaneous)
INFORM (Information)
EASY LIS (Easy listening)
CLS/JAZZ (Classical music and Jazz)
R & B (Rhythm and Blues)
RELIGION
ALARM (Emergency message)

AUDIO/VIDEO SYSTEM
198
6U5010F
“TYPE SEEK”
When a program is set, “TYPE SEEK” ap-
pears. Touch the switch and the system
starts to seek the station in the relevant
program type.
If any type program station is not found,
“NOTHING” appears on the display.
6U5060F
“MSG” (MESSAGE)
If the system receives a radio text from
RDS station, “MSG” appears on the dis-
play. Touch “MSG”, and a text message
is displayed on the screen. This function
is available only when the vehicle is not
moving.
When you touch “MSG OFF”, the display
returns.

AUDIO/VIDEO SYSTEM
199
6U5012F
(e) Traffic announcement
“TRAF”
A station that regularly broadcasts traffic
information is automatically located.
When you touch “TRAF”, “TRAF SEEK”
appears on the display and the radio will
start seeking any traffic program station.
If no traffic program station is found,
“NOTHING” appears on the display.
If a traffic program station is found, the
name for traffic program station is dis-
played for a while until a traffic announce-
ment is received. To listen to a satellite radio broadcast in
your
vehicle, an additional genuine T oyota
satellite receiver and antenna (or equiva-
lents) must be purchased and installed. A
subscription to the XM
 Satellite Radio
service is also necessary.
(a) How to subscribe to an XM
 Satel-
lite Radio
An XM
 Satellite Radio is a tuner designed
exclusively to receive broadcasts provided
under a separate subscription. Availability
is limited to the 48 contiguous U.S. states
and 10 Canadian provinces.
How to subscribe:
You must enter into a separate service
agreement with the XM
 Satellite Radio in
order to receive satellite broadcast pro-
gramming in the vehicle. Additional activa-
tion and service subscription fees apply
that are not included in the purchase price
of the vehicle and optional digital satellite
tuner.
For complete information on subscription
rates and terms, or to subscribe to the XM

Satellite Radio,
U.S.A.—
Visit on the web at www.xmradio.com
or
call 1 −800− 967−2346.
Canada—
Visit on the web at www .xmradio.ca
or call
1−877−438−9677.
The XM
 Satellite Radio is solely responsi-
ble for the quality, availability and content
of the satellite radio services provided,
which are subject to the terms and condi-
tions of the XM
 Satellite Radio customer
service agreement.
Customers should have their radio ID
ready; the radio ID can be found by tuning
to “channel 000” on the radio. For details,
see “Displaying the radio ID” below.
All fees and programming are the respon-
sibility of the XM
 Satellite Radio and are
subject to change.
—Radio operation
(XM Satellite Radio
broadcast)

AUDIO/VIDEO SYSTEM
200
Satellite tuner technology notice:
Toyota’s satellite radio tuners are awarded
Type Approval Certificates from XM
 Sat-
ellite Radio Inc. as proof of compatibility
with the services offered by the XM
 Satel-
lite Radio.
(b) Displaying the radio ID
Each XM
 tuner is identified with a unique
radio ID. You will need the radio ID when
activating XM
 service or when reporting a
problem.
If you select the “CH 000” using the
“TUNE” knob, the ID code of 8 alphanu-
meric characters appears. If you select
another channel, display of the ID code is
canceled. The channel(000) alternates the
display between the radio ID and the spe-
cific radio ID code. (c) Listening to satellite radio
XS00315
Push the “AM·SAT” button to choose
either an AM station or an SAT
channel.
Besides “AM”, “SAT1”, “SAT2” or “SAT3”
appears on the display.
XS00314
Turn this knob to select the next or pre-
vious channel.
If you turn continuously, you can rapidly
scroll forward or down through the chan-
nels.
