1

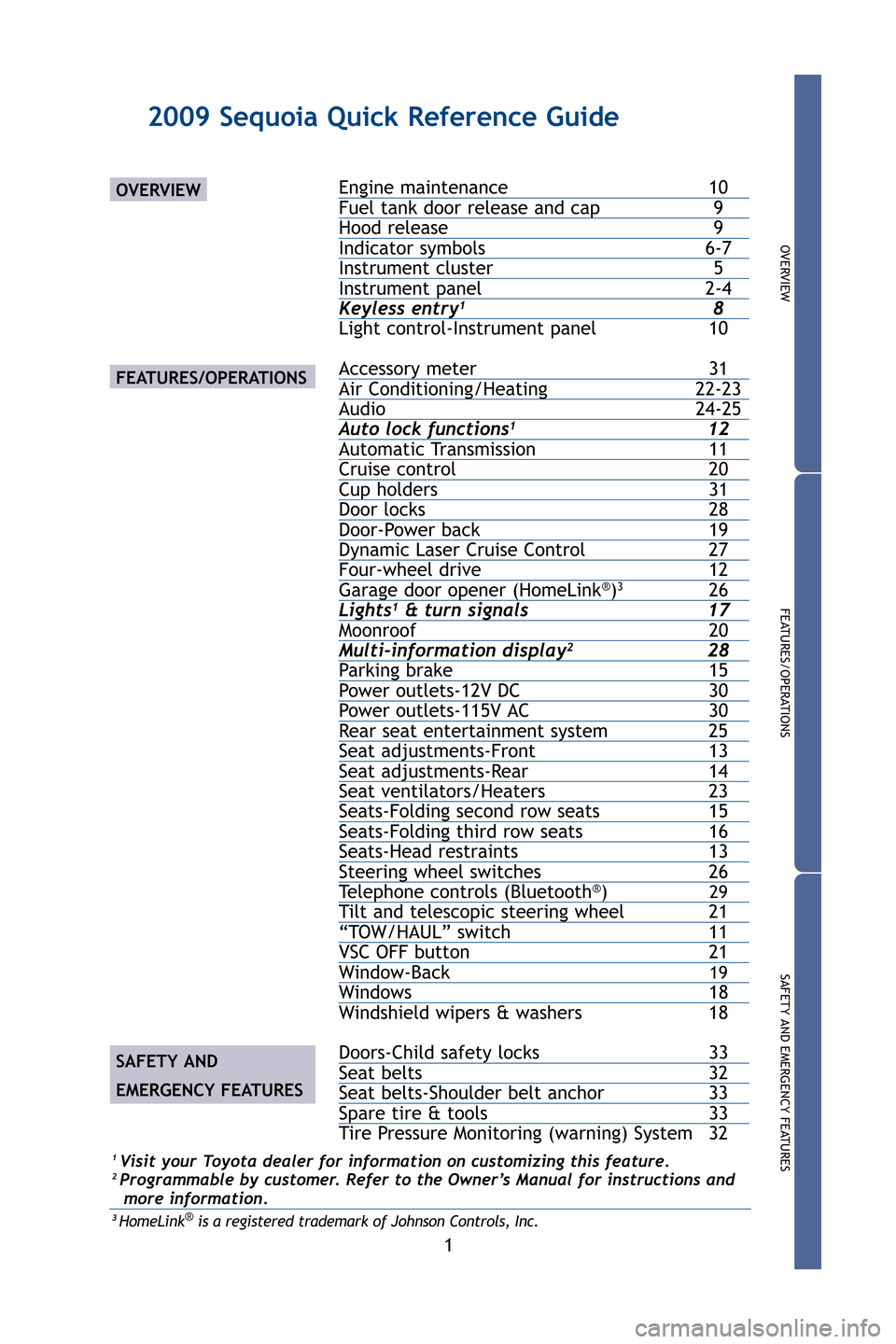

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Engine maintenance10Fuel tank door release and cap9Hood release 9Indicator symbols6-7Instrument cluster 5Instrument panel2-4Keyless entry18
Light control-Instrument panel 10
Accessory meter 31Air Conditioning/Heating22-23Audio24-25Auto lock functions112Automatic Transmission 11Cruise control 20Cup holders31Door locks 28Door-Power back19Dynamic Laser Cruise Control27Four-wheel drive 12Garage door opener (HomeLink®)326Lights1& turn signals17Moonroof 20Multi-information display228Parking brake15Power outlets-12V DC 30Power outlets-115V AC30Rear seat entertainment system25Seat adjustments-Front 13Seat adjustments-Rear14Seat ventilators/Heaters 23Seats-Folding second row seats15Seats-Folding third row seats16Seats-Head restraints 13Steering wheel switches26Te l e p h o n e controls (Bluetooth®)29Tilt and telescopic steering wheel 21“TOW/HAUL” switch 11VSC OFF button 21Window-Back19Windows 18
Windshield wipers & washers 18
Doors-Child safety locks 33Seat belts32Seat belts-Shoulder belt anchor33Spare tire & tools33
Tire Pressure Monitoring (warning) System 32
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
1Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and
more information.
3HomeLink®is a registered trademark of Johnson Controls, Inc.
2009 Sequoia Quick Reference Guide
412xxxM2.qxd 7/16/08 4:14 PM Page 1

2
OVERVIEW
Instrument panel

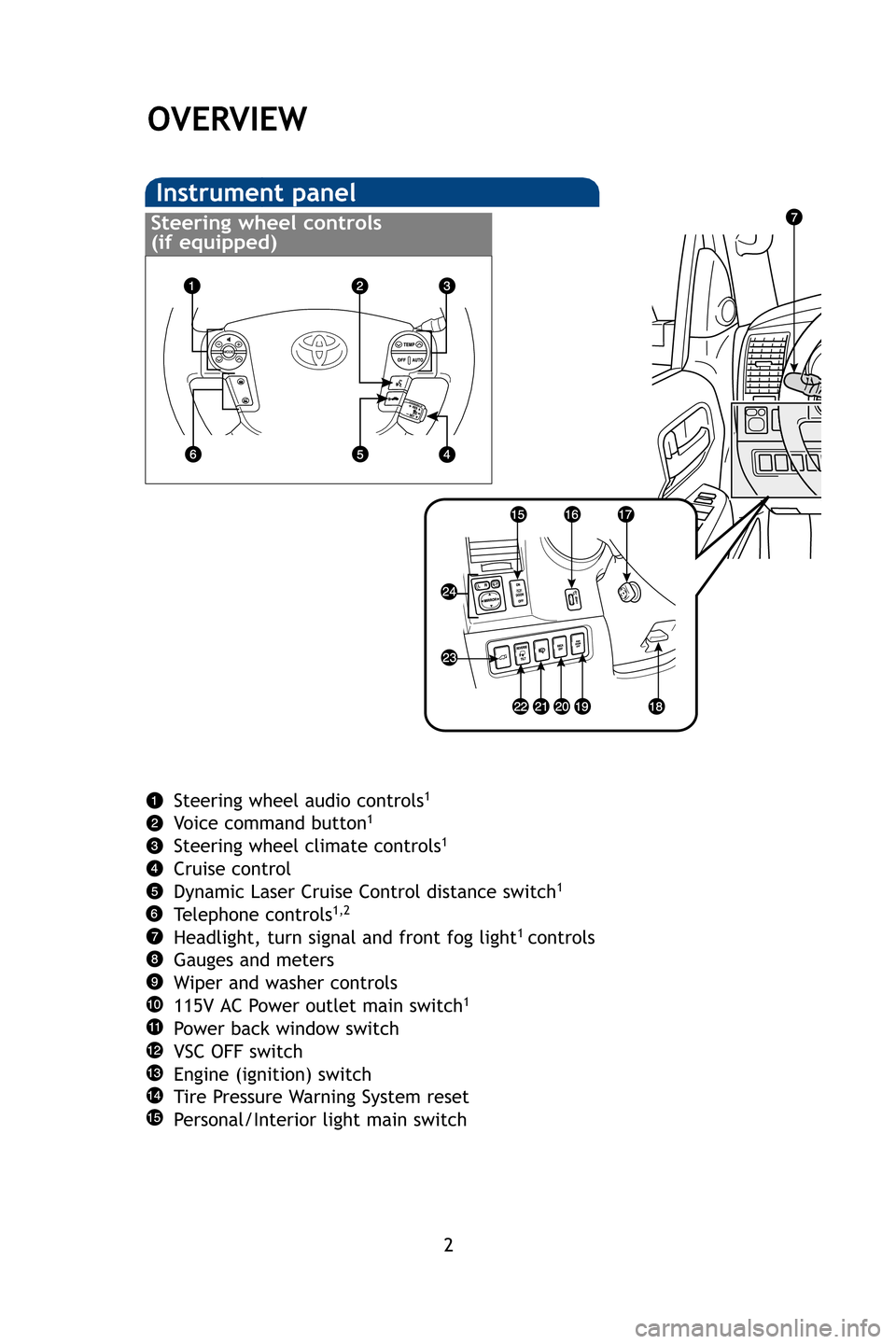

Steering wheel audio controls1
Voice command button1
Steering wheel climate controls1
Cruise control
Dynamic Laser Cruise Control distance switch1
Telephone controls1,2
Headlight, turn signal and front fog light1 controls
Gauges and meters
Wiper and washer controls
115V AC Power outlet main switch
1
Power back window switch
VSC OFF switch
Engine (ignition) switch
Tire Pressure Warning System reset
Personal/Interior light main switch
Steering wheel controls
(if equipped)
412xxxM2.qxd 7/16/08 4:14 PM Page 2

3
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Instrument panel light control
Tilt and telescopic steering control switch1
Tilt and telescopic steering control lever1
Power back door main switch1
Roll Sensing of Curtain shield Airbag OFF switch
Headlight cleaner1
REVERSE TILT (side mirrors) switch1
Power back door button1
Power rearview mirror controls

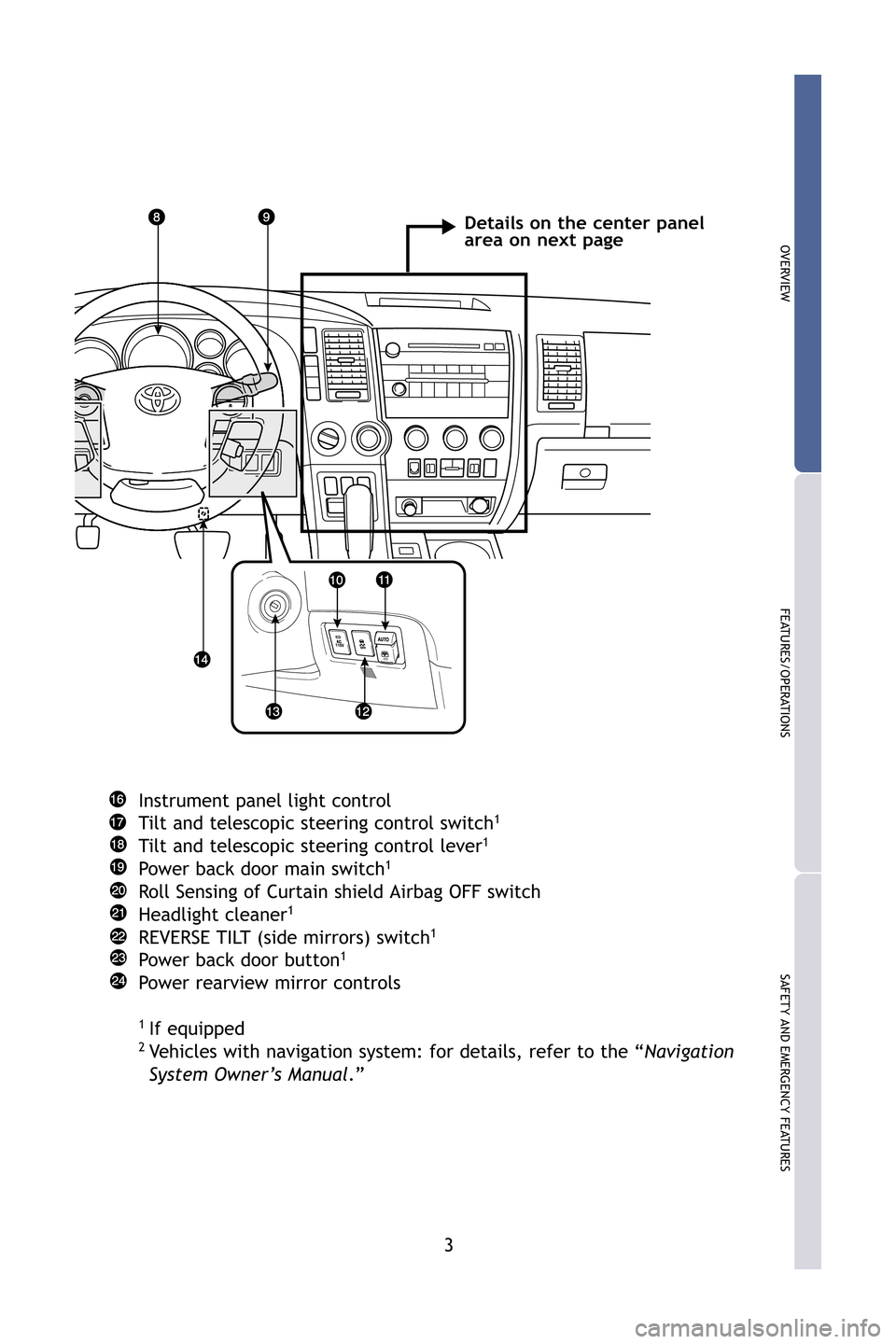

1If equipped2Vehicles with navigation system: for details, refer to the “Navigation
System Owner’s Manual .”
Details on the center panel
area on next page
412xxxM2.qxd 7/16/08 4:14 PM Page 3

4
Accessory meter
Theft deterrent system/Engine immobilizer indicator
Audio system
2
Air Conditioning controls
Outside rearview mirrors1/Back window defogger/Windshield wiper
de-icer1button
12V DC Power outlet
Seat heater
1and ventilator1controls
Cigarette lighter
AUX audio jack
Height control switch
1
AVS button1
“TOW/HAUL” button1
Center differential lock/unlock switch1
Four-wheel drive control switch1
Intuitive parking assist button1
Multi-information display control button1 and/or accessory meter
control button1
Emergency flasher button
1If equipped2Vehicles with navigation system: for details, refer to the “ Navigation
System Owner’s Manual .”
OVERVIEW

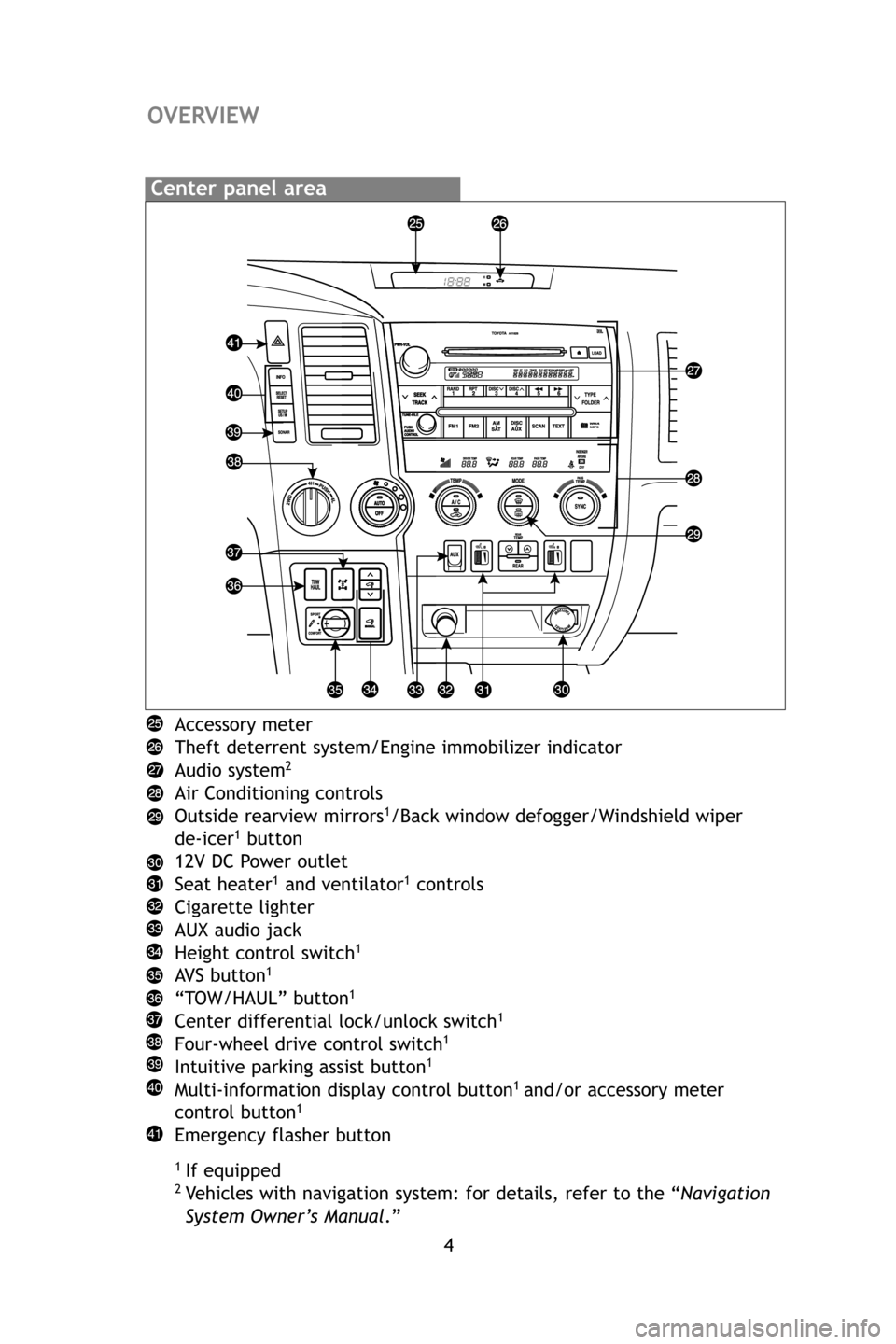

Center panel area
412xxxM2.qxd 7/16/08 4:14 PM Page 4

5
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Instrument cluster

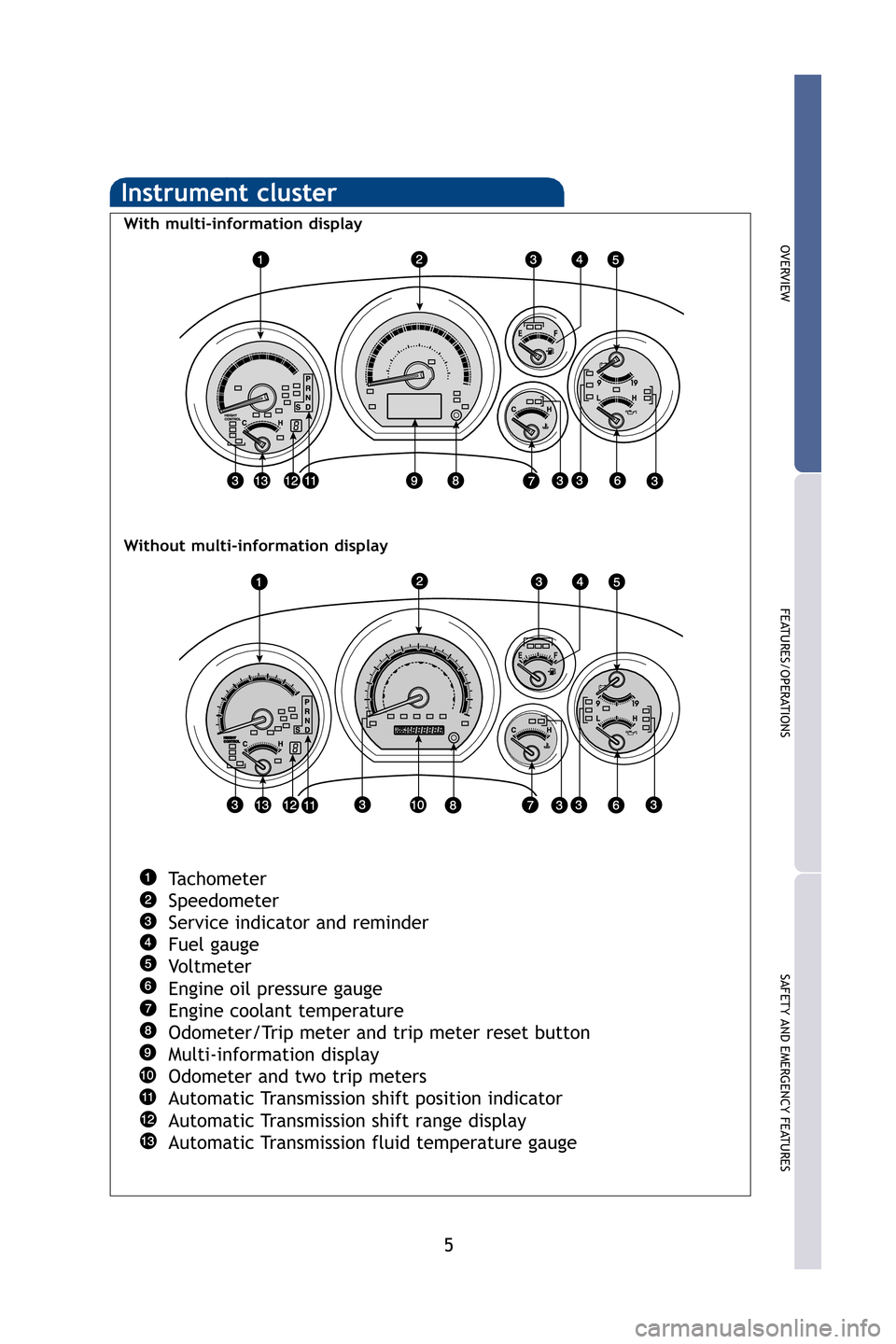

Tachometer
Speedometer
Service indicator and reminder
Fuel gauge
Vo l t m e t e r
Engine oil pressure gauge
Engine coolant temperature
Odometer/Trip meter and trip meter reset button
Multi-information display
Odometer and two trip meters
Automatic Transmission shift position indicator
Automatic Transmission shift range display
Automatic Transmission fluid temperature gauge
With multi-information display
Without multi-information display
412xxxM2.qxd 7/16/08 4:14 PM Page 5

6
Indicator symbols

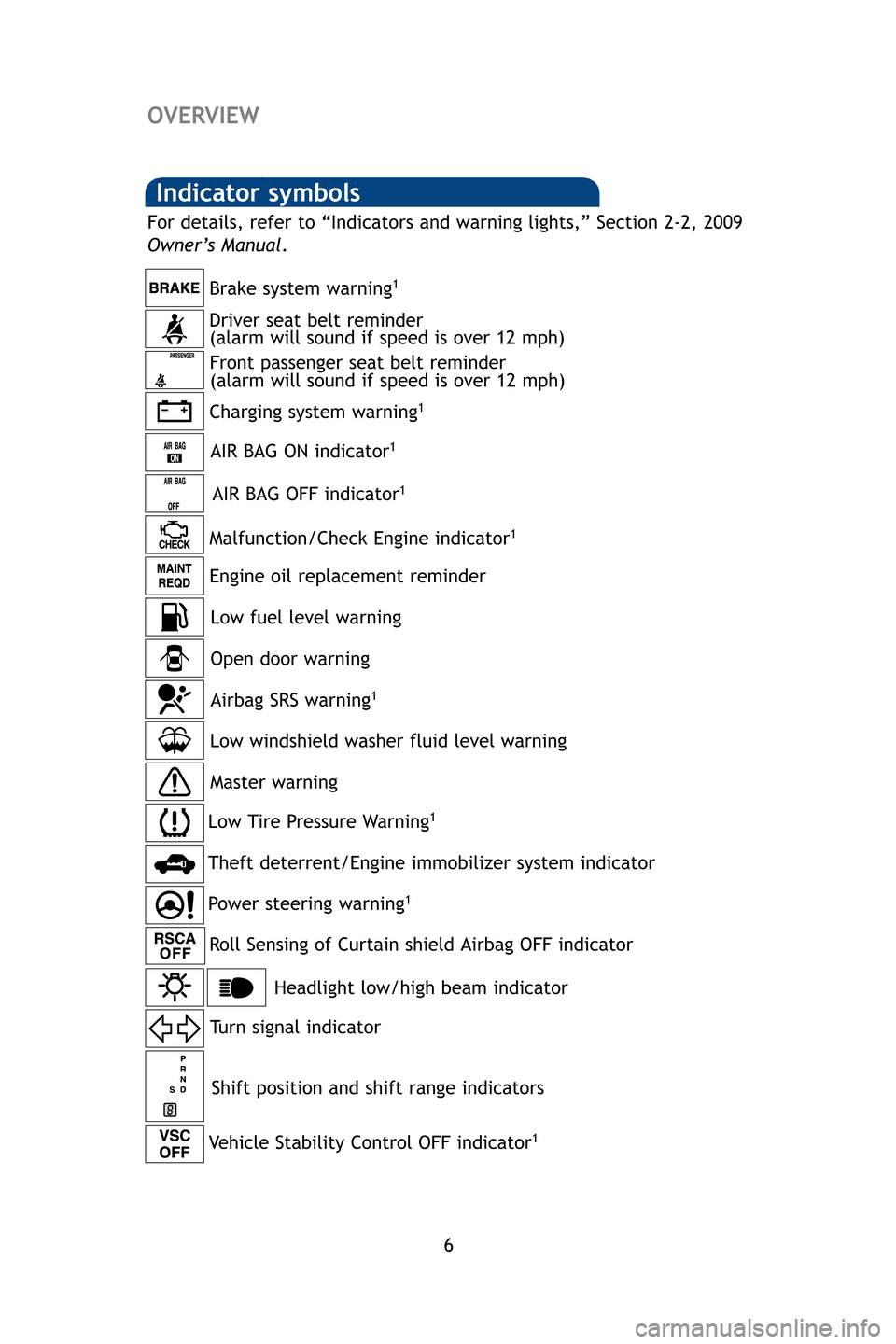

Charging system warning1
Brake system warning1
AIR BAG ON indicator1
Driver seat belt reminder
(alarm will sound if speed is over 12 mph)Front passenger seat belt reminder
(alarm will sound if speed is over 12 mph)
AIR BAG OFF indicator1
For details, refer to “Indicators and warning lights,” Section 2-2\
, 2009
Owner’s Manual .
Headlight low/high beam indicator
Turn signal indicator
Low Tire Pressure Warning1
Power steering warning1
Open door warning
Airbag SRS warning1
Master warning
Theft deterrent/Engine immobilizer system indicator Malfunction/Check Engine indicator
1
Engine oil replacement reminder
Low fuel level warning
Roll Sensing of Curtain shield Airbag OFF indicator
Shift position and shift range indicators
Vehicle Stability Control OFF indicator1
Low windshield washer fluid level warning
OVERVIEW
412xxxM2.qxd 7/16/08 4:14 PM Page 6

7
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

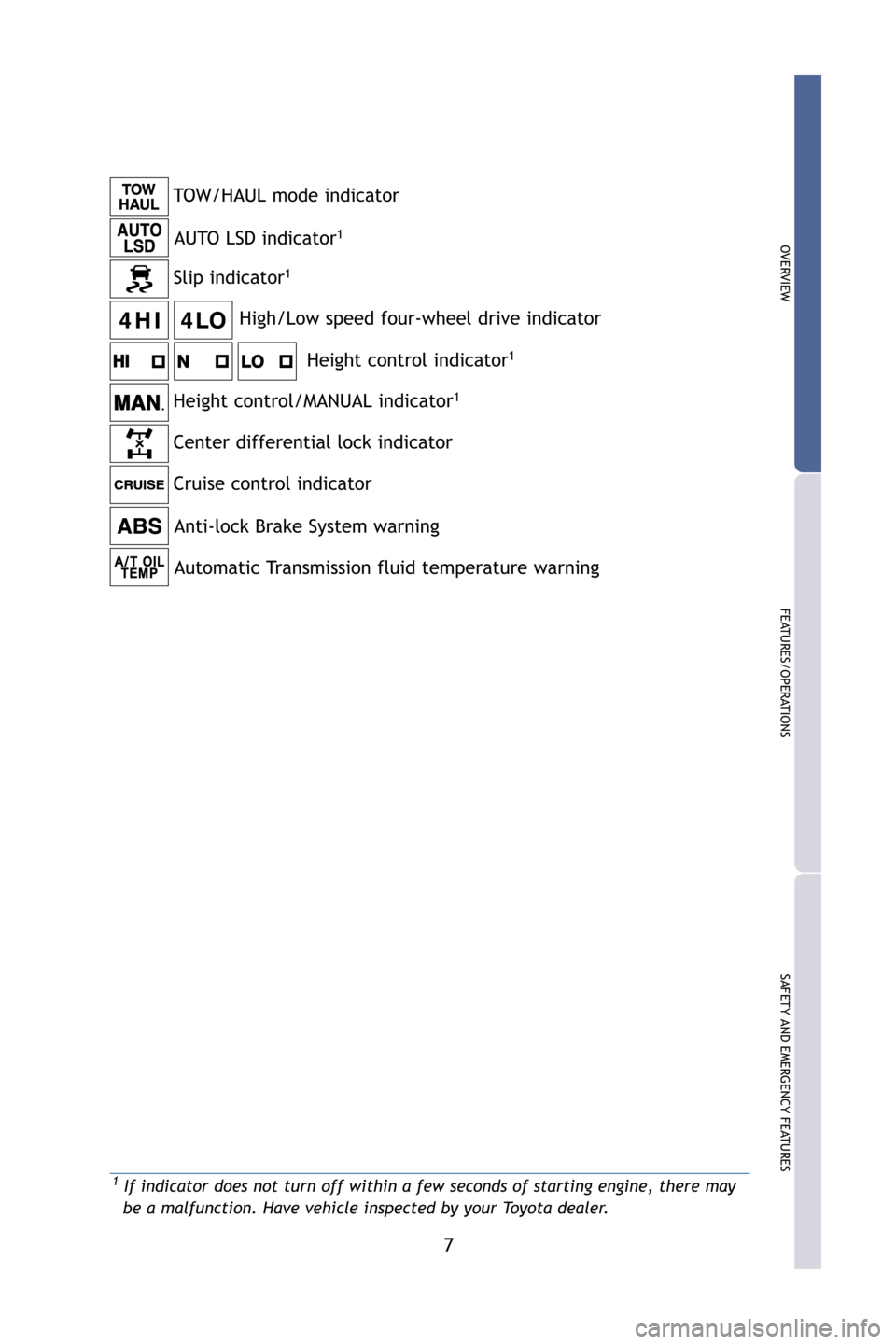

Anti-lock Brake System warning
Slip indicator1
High/Low speed four-wheel drive indicator
Center differential lock indicator
Cruise control indicator AUTO LSD indicator
1
TOW/HAUL mode indicator
Height control indicator1
Height control/MANUAL indicator1
1If indicator does not turn off within a few seconds of starting engine, \
there may
be a malfunction. Have vehicle inspected by your Toyota dealer.
Automatic Transmission fluid temperature warning
412xxxM2.qxd 7/16/08 4:14 PM Page 7

8
OVERVIEW
Keyless entry

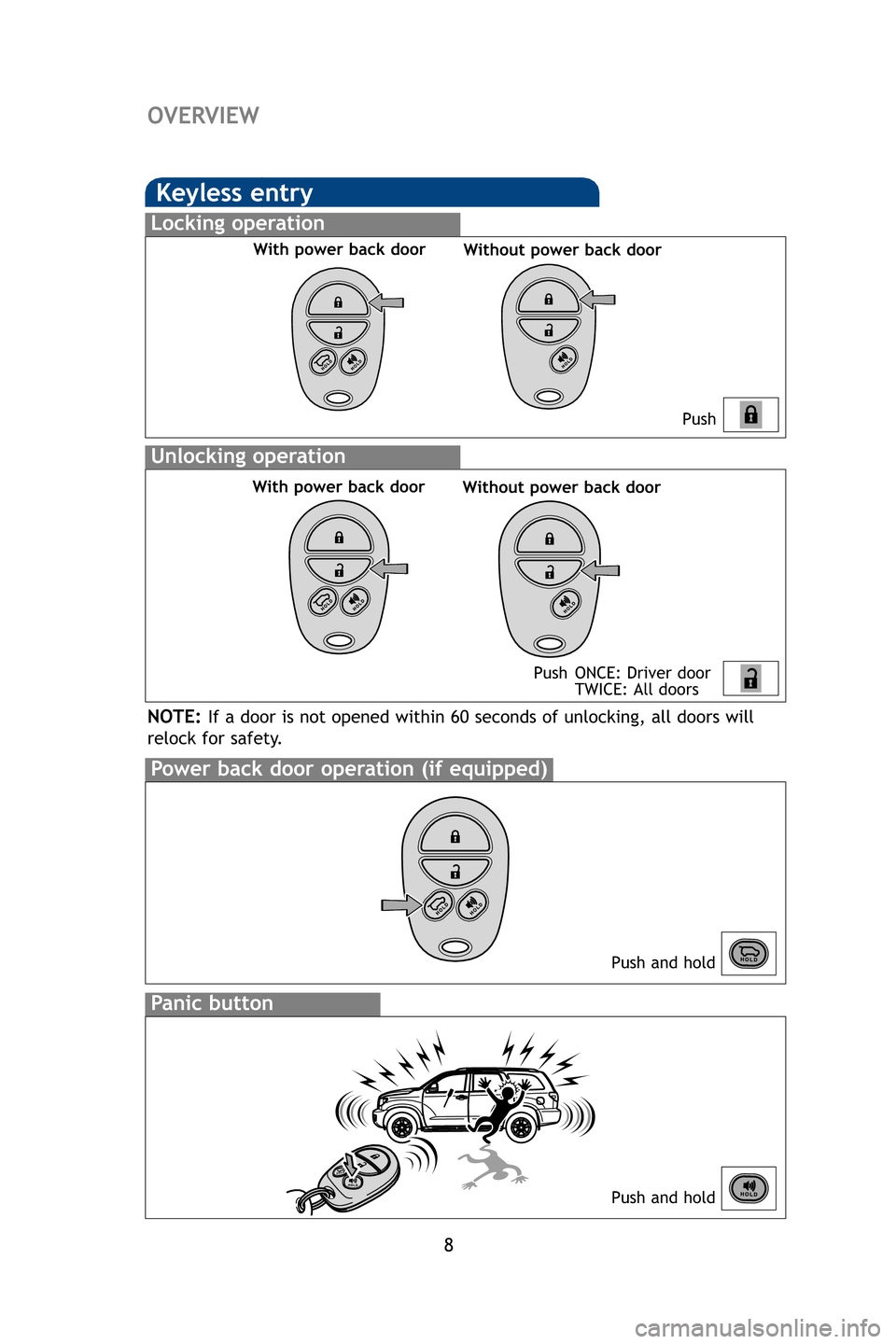

Push
Push ONCE: Driver door TWICE: All doors
Locking operation
Unlocking operation
Power back door operation (if equipped)
Push and hold
NOTE:If a door is not opened within 60 seconds of unlocking, all doors will
relock for safety.
With power back door Without power back door
With power back door Without power back door
Panic button
Push and hold
412xxxM2.qxd 7/16/08 4:14 PM Page 8
