ECU TOYOTA SEQUOIA 2009 2.G Navigation Manual

OTHER FUNCTIONS
132
An antenna for the Bluetooth connec-
tion is built in the display. The indica-
tion of the Bluetooth
 connection may
turn yellow and the system may not
function when you use the Bluetooth

phone in the following conditions and
places.
Your cellular phone is hiding behind the
display (behind the seat or in the glove
box and console box).
Your cellular phone touches or is
covered with metal materials.
Leave the Bluetooth
 phone on the place
where “Blue” indication is displayed.
Bluetooth is a registered trademark of
Bluetooth SIG. Inc.
When you release your car:
A lot of personal data is registered
when you use the Handsfree system.
When you release your car, initialize
your data.
If you initialize it, the former state will never
come back again. Pay much attention
when initializing the data.
You can initialize the following data in the
system.
Phone book data
Dialed numbers and received calls
Speed dial
Bluetooth phone data
Security code
FCC ID: HYQDNNS016
IC ID: 1551ADNNS016
MADE IN JAPAN
This device complies with Part 15 of the
FCC Rules and RSS −210. Operation is
subject to the following two conditions:
(1) This device may not cause harmful
interference, and (2) This device must
accept any interference received, in-
cluding interference that may cause un-
desired operation.
CAUTION
FCC Warning:
Changes or modifications not ex-
pressly approved by the party re-
sponsible for compliance could void
the user’s authority to operate the
equipment.

OTHER FUNCTIONS
167
(f) Setting the security
When you set the security, you can pre-
vent people from using some functions
of the Handsfree system. It is useful
when you leave your car with the hotel
or you don’t want others to see the data
you registered.
When you set or unlock the security, you
have to input the security code. Be sure to
change the default code when you use the
security for the first time.Changing the security code
The security code is 4 digits and the de-
fault is “0000”.
Change a new code that is hard for other
people to know.
When you change the security code, don’t
forget the code. The dealers cannot unlock
the security when you forget it.
If you forget the security code, initialize
your personal data. When you initialize it,
not only the phone book data but also the
memory points in the navigation system,
etc. will be deleted. (See “Delete personal
data” on page 183.)
5U5157F
1. Touch “Phone Book Lock”.
5U5158F
2. Touch “Change”.

OTHER FUNCTIONS
168
5U5159F
3. Input the current security code.
Each time you touch , an inputted digit is
deleted.
5U5160F
4. Input the new code.
5U5161F
5. Touch “Yes”.
Phone Book Lock
When you set the phone book lock, you
can have the following functions
locked.
Display of the phone book screen and transferring, registering, editing,
deleting the phone book data.
Display of speed dial screen, registering, deleting the speed dial
and speed dialing.
Display of the other party’s name for
calls being received or made.
Display of dialed numbers screen and received calls screen, deleting
dialed numbers and received
numbers.
Display of phone information screen.
Changing the security code.
When you set this function, the speed dial
screen is not displayed while you are driv-
ing.
5U5162F
1. Touch “ON”.
5U5163F
2. Input the security code and touch
“OK”.

OTHER FUNCTIONS
169

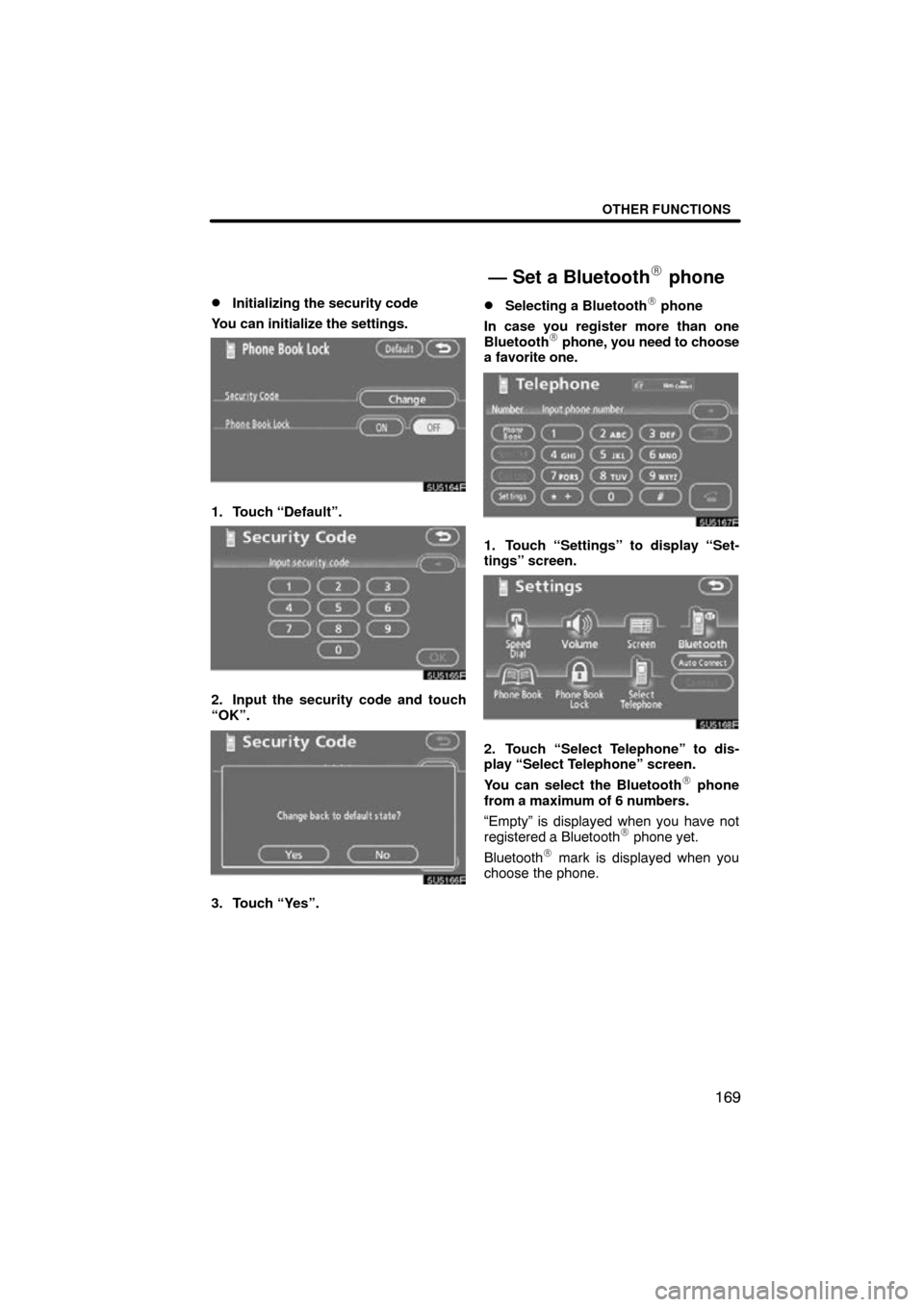

Initializing the security code
You can initialize the settings.
5U5164F
1. Touch “Default”.
5U5165F
2. Input the security code and touch
“OK”.
5U5166F
3. Touch “Yes”.
Selecting a Bluetooth phone
In case you register more than one
Bluetooth
 phone, you need to choose
a favorite one.
5U5167F
1. Touch “Settings” to display “Set-
tings” screen.
5U5168F
2. Touch “Select Telephone” to dis-
play “Select Telephone” screen.
You can select the Bluetooth
 phone
from a maximum of 6 numbers.
“Empty” is displayed when you have not
registered a Bluetooth
 phone yet.
Bluetooth
 mark is displayed when you
choose the phone.
— Set a Bluetooth phone

OTHER FUNCTIONS
171

Displaying Bluetooth information
You can see or set the information of the
Bluetooth
 phone on the system.
Device Name The name of Bluetooth
 phone
. . .
which is displayed on the screen.
You can change it into a desired
name.
Bluetooth
∗ Device Address
The address peculiar to the system.
. . .
You cannot change it.
∗: Bluetooth is a registered trademark of
Bluetooth SIG. Inc.
5U5173F
1. Select the desired phone and touch
“Information”.
5U5174F
2. Touch “Change”.
5U5175F
3. When you complete the setting,
touch
.

OTHER FUNCTIONS
172

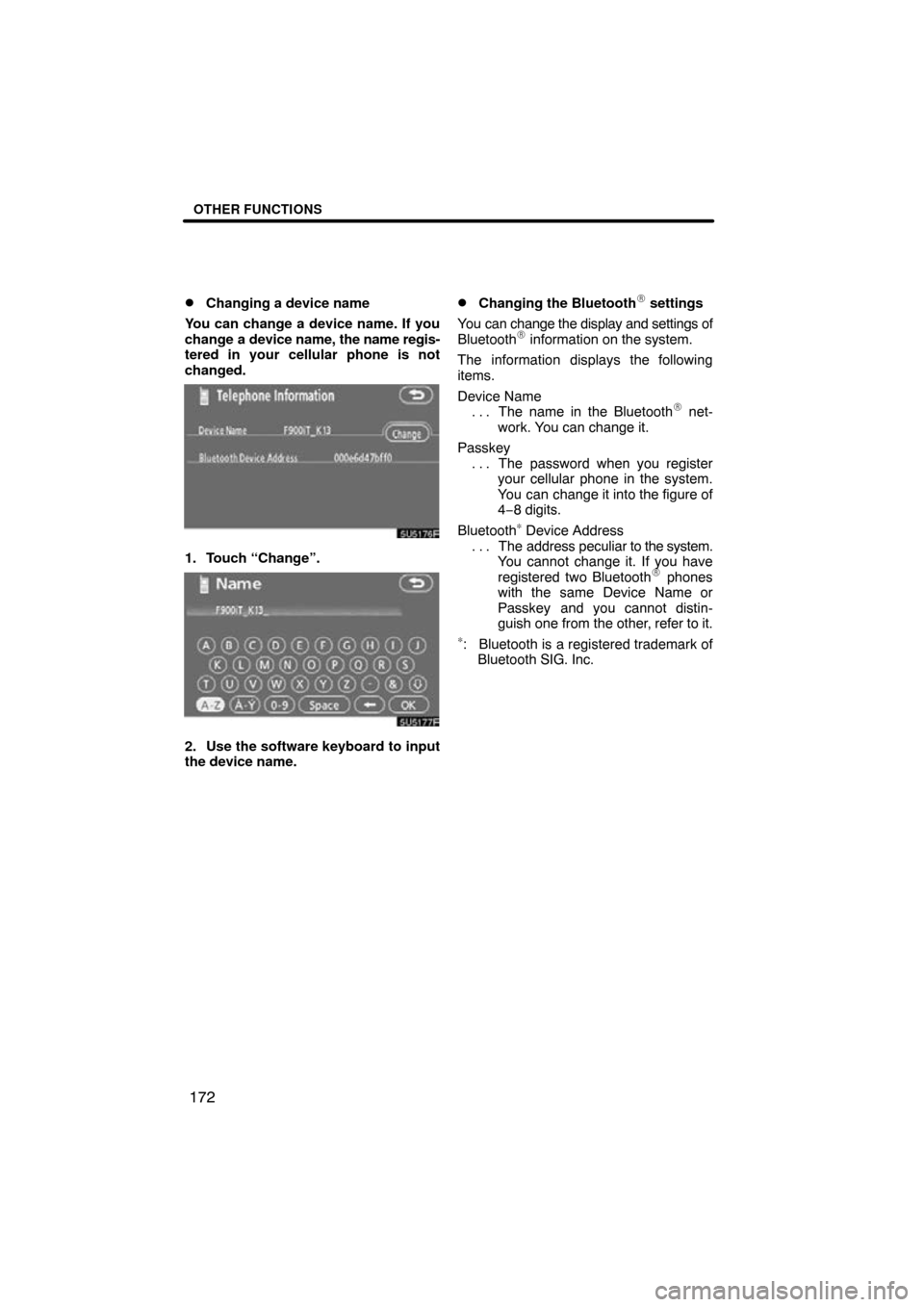

Changing a device name
You can change a device name. If you
change a device name, the name regis-
tered in your cellular phone is not
changed.
5U5176F
1. Touch “Change”.
5U5177F
2. Use the software keyboard to input
the device name.
Changing the Bluetooth settings
You can change the display and settings of
Bluetooth
 information on the system.
The information displays the following
items.
Device Name The name in the Bluetooth
 net-
. . .
work. You can change it.
Passkey The password when you register
. . .
your cellular phone in the system.
You can change it into the figure of
4− 8 digits.
Bluetooth
∗ Device Address
The address peculiar to the system.
. . .
You cannot change it. If you have
registered two Bluetooth
 phones
with the same Device Name or
Passkey and you cannot distin-
guish one from the other, refer to it.
∗: Bluetooth is a registered trademark of
Bluetooth SIG. Inc.

OTHER FUNCTIONS
183
If the vehicle is equipped with the rear
seat entertainment system, the rear
seat entertainment system can be
locked to prevent rear passengers from
operating the entertainment system.
5U5202F
Select “ON” or “OFF” and then touch
“OK”.
“ON”:The rear passengers cannot op-
erate the rear seat entertainment
system. Only front passengers
can operate the system.
“OFF”: Both the front and rear passen-
gers can operate the rear seat en-
tertainment system. The following personal data can be de-
leted or returned to their default set-
tings:
Information
Maintenance conditions
Maintenance information “off” set-
ting
Navigation system
Memory points
Areas to avoid
Previous points
Route trace
User selection settings
Handsfree system
Phone book data
Dialed numbers and received calls
Speed dial
Bluetooth phone data
Security code
This function is available only when the
vehicle is not moving.
(c) Rear system lock
(with rear seat
entertainment system)
Delete personal data

AUDIO/VIDEO SYSTEM
203
(h) If the satellite radio tuner malfunctions
When problems occur with the XM
 tuner, a message will appear on the display. Refer-
ring to the table below to identify the problem, take the suggested corr\
ective action.
ANTENNA
The XM antenna is not connected. Check whether the
XM antenna cable is attached securely.
A short circuit occurs in the antenna or the surrounding
antenna cable. See a Toyota certified dealer for assis-
tance.
UPDATING
You have not subscribed to the XM Satellite Radio.
The radio is being updated with the latest encryption
code. Contact the XM
 Satellite Radio for subscription
information. When a contract is canceled, you can
choose the “CH000” and all free −to− air channels.
The premium channel you selected is not authorized.
Wait for about 2 seconds until the radio returns to the
previous channel or “CH001”. If it does not change au-
tomatically, select another channel. If you want to listen
to the premium channel, contact the XM
 Satellite Ra-
dio.
NO SIGNAL
The XM signal is too weak at the current location. Wait
until your vehicle reaches a location with a stronger sig-
nal.
LOADINGThe unit is acquiring audio or program information. Wait
until the unit has received the information.
OFF AIRThe channel you selected is not broadcasting any pro-
gramming. Select another channel.
−−−−−
There is no song/program title or artist name/feature
associated with the channel at that time. No action
needed.
−−−
The channel you selected is no longer available. Wait
for about 2 seconds until the radio returns to the pre-
vious channel or “CH001”. If it does not change auto-
matically, select another channel.
Contact the XM Listener Care Center at 1 −800−967−2346 (U.S.A.) or
1−877−438−9677 (Canada).

REAR VIEW MONITOR SYSTEM
254

The rear view monitor system cam-
era
XS00325a
The rear view monitor system camera is lo-
cated on the back door
as shown in the il-
lustration. The camera uses a special lens.
The distance of the image that appears on
the screen differs from the actual distance.
In the following cases, it may become diffi-
cult to see the images on the screen, even
when the system is functioning.
In the dark (for example, at night)
When the temperature near the lens is
high or low
When water droplets are adhering to
the camera, or when humidity is high
(for example, when it rains)
When foreign matter (for example,
snow or mud) is adhering to the camera
When the camera has scratches or dirt
on it
When the sun or the beam of head-
lights is shining directly into the camera
lens
8U5070X
If a bright light (for example, sunlight re-
flected off the vehicle body) is picked up by
the camera, the smear effect
∗ peculiar to
the camera may occur.
∗: Smear effect—A phenomenon that oc-
curs when a bright light (for example, sun-
light reflected off the vehicle body) is
picked up by the camera; when trans-
mitted by the camera, the light source ap-
pears to have a vertical streak above and
below it.

INDEX
270
Numbers/Symbols
? button
30,42,88,89
. . . . . . . . . . . . . . . . . .
3 Routes selection 65
. . . . . . . . . . . . . . . . . .
A
Adaptive volume control 152
. . . . . . . . . . .
Adding a memo 126
. . . . . . . . . . . . . . . . . . .
Adding destinations 74
. . . . . . . . . . . . . . . .
Address button 42,47
. . . . . . . . . . . . . . . . . .
Alphabet key 26
. . . . . . . . . . . . . . . . . . . . . . .
AM·SAT button 188,191,195,200 . . . . . . . .
Angle mark 230
. . . . . . . . . . . . . . . . . . . . . . .
Area to avoid 103
. . . . . . . . . . . . . . . . . . . . . .
Arrow screen 35,70
. . . . . . . . . . . . . . . . . . . .
ASL 192
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Audio/video remote controls 240 . . . . . . .
Audio/video system operating hints 241
. . . . . . . . . . . . . . . . . . . . . . . . . . .
AUDIO button 188,190
. . . . . . . . . . . . . . . . .
Audio input 194
. . . . . . . . . . . . . . . . . . . . . . .
Audio language 231
. . . . . . . . . . . . . . . . . . .
Auto answer 154
. . . . . . . . . . . . . . . . . . . . . .
Auto Voice Guidance 89,115
. . . . . . . . . . .
Automatic sound levelizer 192
. . . . . . . . . .
Automatic transition 182
. . . . . . . . . . . . . . .
Automatic volume settings for high speed 152
. . . . . . . . . . . . . . . . . . . . . .
AUX adapter 194
. . . . . . . . . . . . . . . . . . . . . .
B
BASS 192
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Beep setting 184
. . . . . . . . . . . . . . . . . . . . . .
Bluetooth
129
. . . . . . . . . . . . . . . . . . . . . . . .
Bluetooth information 171
. . . . . . . . . . . . .
Brightness 179
. . . . . . . . . . . . . . . . . . . . . . . .
Building information 38
. . . . . . . . . . . . . . . .
C
Calendar with memo 124
. . . . . . . . . . . . . . .
Calibration 89,117
. . . . . . . . . . . . . . . . . . . . .
Call back 139
. . . . . . . . . . . . . . . . . . . . . . . . .
Call by dial 137
. . . . . . . . . . . . . . . . . . . . . . . .
Call by dialed numbers 138
. . . . . . . . . . . . .
Call by phone book 137
. . . . . . . . . . . . . . . .
Call by POI 143
. . . . . . . . . . . . . . . . . . . . . . .
Call by received calls 139
. . . . . . . . . . . . . .
Call by speed dial 140
. . . . . . . . . . . . . . . . .
Call by voice recognition 140
. . . . . . . . . . .
Call on the Bluetooth
 phone 137 . . . . . . .
Categories 54 . . . . . . . . . . . . . . . . . . . . . . . . . CAUTION screen 24
. . . . . . . . . . . . . . . . . . .
CD changer operation 205 . . . . . . . . . . . . .
Cellular phone 129 . . . . . . . . . . . . . . . . . . . .
Change “Area Size” 107 . . . . . . . . . . . . . . .
Change “Icon” 97 . . . . . . . . . . . . . . . . . . . . . .
Change “Location” 100,106 . . . . . . . . . . . .
Change “Name” 99,105 . . . . . . . . . . . . . . . .
Change “Phone #” 101 . . . . . . . . . . . . . . . . .
Change “Quick Access” 98 . . . . . . . . . . . . .
Change button 42,44 . . . . . . . . . . . . . . . . . .
Change the route 64 . . . . . . . . . . . . . . . . . . .
Change the settings of the
Bluetooth
 phone 146
. . . . . . . . . . . . . . . .
Changing a “Device name” 172
. . . . . . . . .
Changing the angle 230
. . . . . . . . . . . . . . . .
Changing the audio language 230 . . . . . .
Changing the Bluetooth

settings 172 . . . . . . . . . . . . . . . . . . . . . . . .
Changing the map DVD −ROM 267 . . . . . .
Changing the security code 167 . . . . . . . .
Changing the subtitle language 229 . . . . .
Chapter 239 . . . . . . . . . . . . . . . . . . . . . . . . . .
City center 55 . . . . . . . . . . . . . . . . . . . . . . . . .
City name 52 . . . . . . . . . . . . . . . . . . . . . . . . . .
City to search 49,52 . . . . . . . . . . . . . . . . . . .
Color 179 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Command list 178 . . . . . . . . . . . . . . . . . . . . .
Compass mode 37 . . . . . . . . . . . . . . . . . . . .
Compass mode screen 35 . . . . . . . . . . . . .
Connecting a Bluetooth
 phone 135 . . . . .
Contrast 179 . . . . . . . . . . . . . . . . . . . . . . . . . .
Coordinates button 42,62 . . . . . . . . . . . . . .
Current position as the search
point 55 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Current position display 30 . . . . . . . . . . . . .
Current position/tire change
calibration 117 . . . . . . . . . . . . . . . . . . . . . .
Cursor position as a destination 32 . . . . .
Cursor position as a memory
point 32 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
D
Daylight saving time 111
. . . . . . . . . . . . . . .
Dealer setting 122
. . . . . . . . . . . . . . . . . . . . .
Default 89,108
. . . . . . . . . . . . . . . . . . . . . . . .
Delete personal data 183
. . . . . . . . . . . . . .
Deleting “Quick Access” 99
. . . . . . . . . . . .
Deleting a Bluetooth
 phone 174 . . . . . . . .
Deleting a group name 165 . . . . . . . . . . . . .
Deleting all of the speed dial 148 . . . . . . .
Deleting all the group name 165 . . . . . . . .
Deleting all the phone data 162 . . . . . . . . .
Deleting all the speed tone 151 . . . . . . . . .
Deleting area to avoid 107 . . . . . . . . . . . . .
