CD player TOYOTA SEQUOIA 2009 2.G Owner's Manual

317
3-3. Using the rear audio/video system
3
Interior features
Turning on/off the control icon screen
Press or to turn on the control icon screen.
Press or once again or select to turn off the control
icon screen.
Turning on the title selection screenPress or select to turn on the title selection screen. For
the operation of the title selectio n screen, see the separate manual
for the DVD disc.
Turning on the menu screen
Press or select to turn on the menu screen. For the oper-
ation of the menu screen, see the separate manual for the DVD disc.
NOTICE
■Cleaning the screen
Wipe the screen with a dry soft cloth.
If the screen is wiped with a rough cloth, the surface of the screen may be
scratched.
■ To prevent damage to the remote controller
●Keep the remote controller away from direct sunlight, heat and high
humidity.
● Do not drop or knock the remote controller against hard objects.
● Do not sit on or place heavy objects on the remote controller.
■ DVD player
Never try to disassemble or oil any part of the DVD player. Do not insert any-
thing other than a disc into the slot.

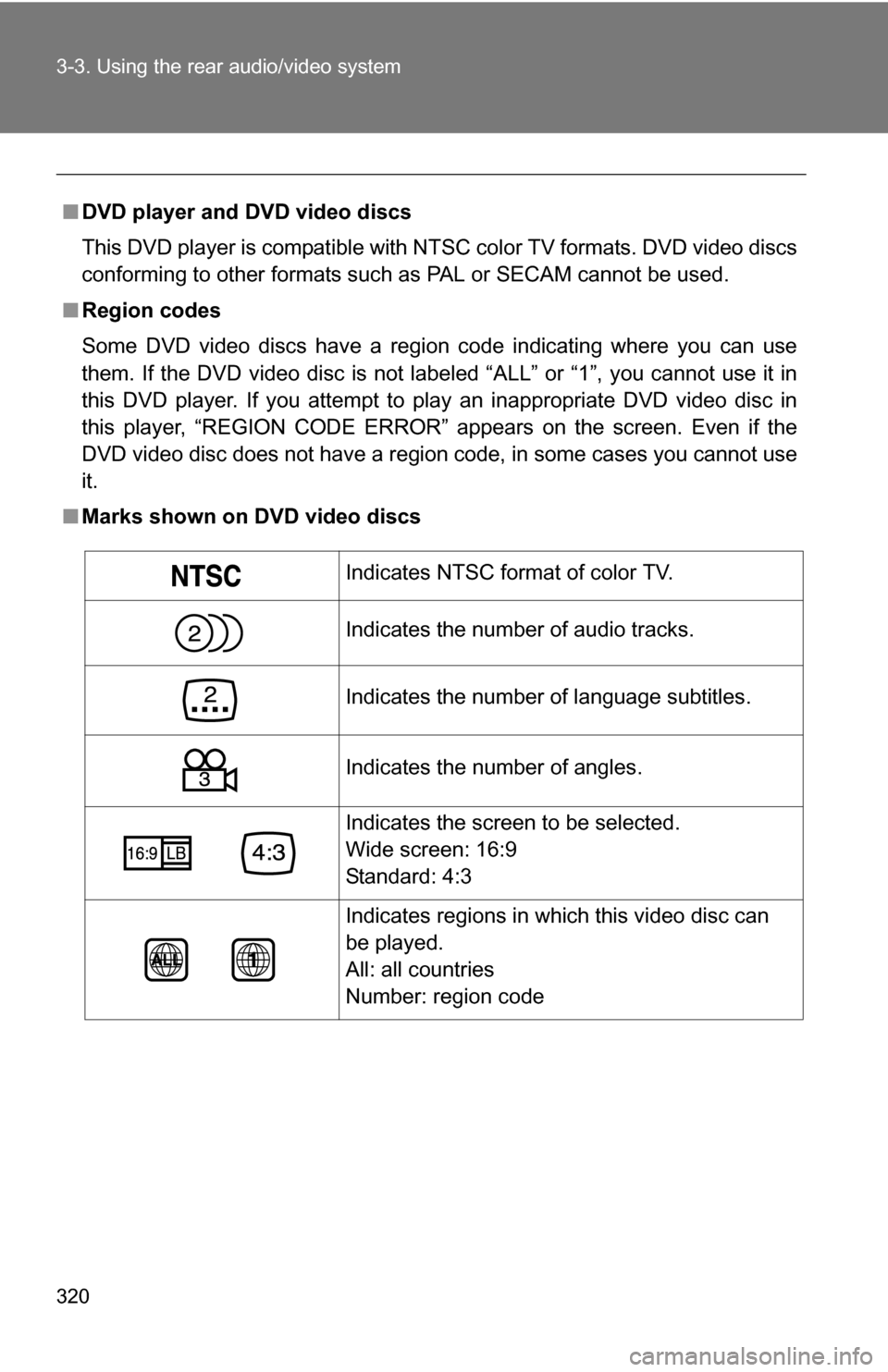

320 3-3. Using the rear audio/video system
■DVD player and DVD video discs
This DVD player is compatible with NTSC color TV formats. DVD video discs
conforming to other formats such as PAL or SECAM cannot be used.
■ Region codes
Some DVD video discs have a region code indicating where you can use
them. If the DVD video disc is not labeled “ALL” or “1”, you cannot use it in
this DVD player. If you attempt to play an inappropriate DVD video disc in
this player, “REGION CODE ERROR” appears on the screen. Even if the
DVD video disc does not have a region code, in some cases you cannot use
it.
■ Marks shown on DVD video discs
Indicates NTSC format of color TV.
Indicates the number of audio tracks.
Indicates the number of language subtitles.
Indicates the number of angles.
Indicates the screen to be selected.
Wide screen: 16:9
Standard: 4:3
Indicates regions in which this video disc can
be played.
All: all countries
Number: region code

321
3-3. Using the rear audio/video system
3
Interior features
■
DVD video disc glossary
●DVD video discs: Digital Versatile Discs that hold world’s standard video.
DVD video discs have adopted “MPEG2”, one of the world standards of
digital compression technologies. The picture data is compressed by 1/
40 on average and stored. Variable rate encoded technology has been
adopted in which the volume of data assigned to the picture is changed
depending on the picture format. Audio data is stored using PCM and
Dolby digital, which enables higher sound. Furthermore, multi-angle and
multi-language features will also help you enjoy the more advanced tech-
nology of DVD video.
● Viewer restrictions: This feature limits what can be viewed in conformity
with the level of restrictions of the country. The level of restrictions varies
depending on the DVD video disc. Some DVD video discs cannot be
played at all, or violent scenes are skipped or replaced with other scenes.
• Level 1: DVD video discs for children can be played.
• Level 2 - 7: DVD video discs for children and G-rated movies can be
played.
• Level 8: All types of DVD video discs can be played.
● Multi-angle feature: Allows you to enjoy the same scene at different
angles.
● Multi-language feature: Allows you to select the language of the subtitles
and audio.
● Region codes: Region codes are provided on DVD players and DVD
discs. If the DVD video disc does not have the same region code as the
DVD player, you cannot play the disc on the DVD player.
● Audio: This DVD player can play li ner PCM, Dolby digital, dts and MPEG
audio format DVD. Other decoded type cannot be played.
● Title and chapter: Video and audio programs stored on DVD video discs
are divided into sections by title and chapter.
● Title: The largest unit of the video and audio programs stored on DVD
video discs. Usually, one piece of a movie, one album, or one audio pro-
gram is assigned as a title.
● Chapter: A unit smaller than a title. A title comprises multiple chapters.

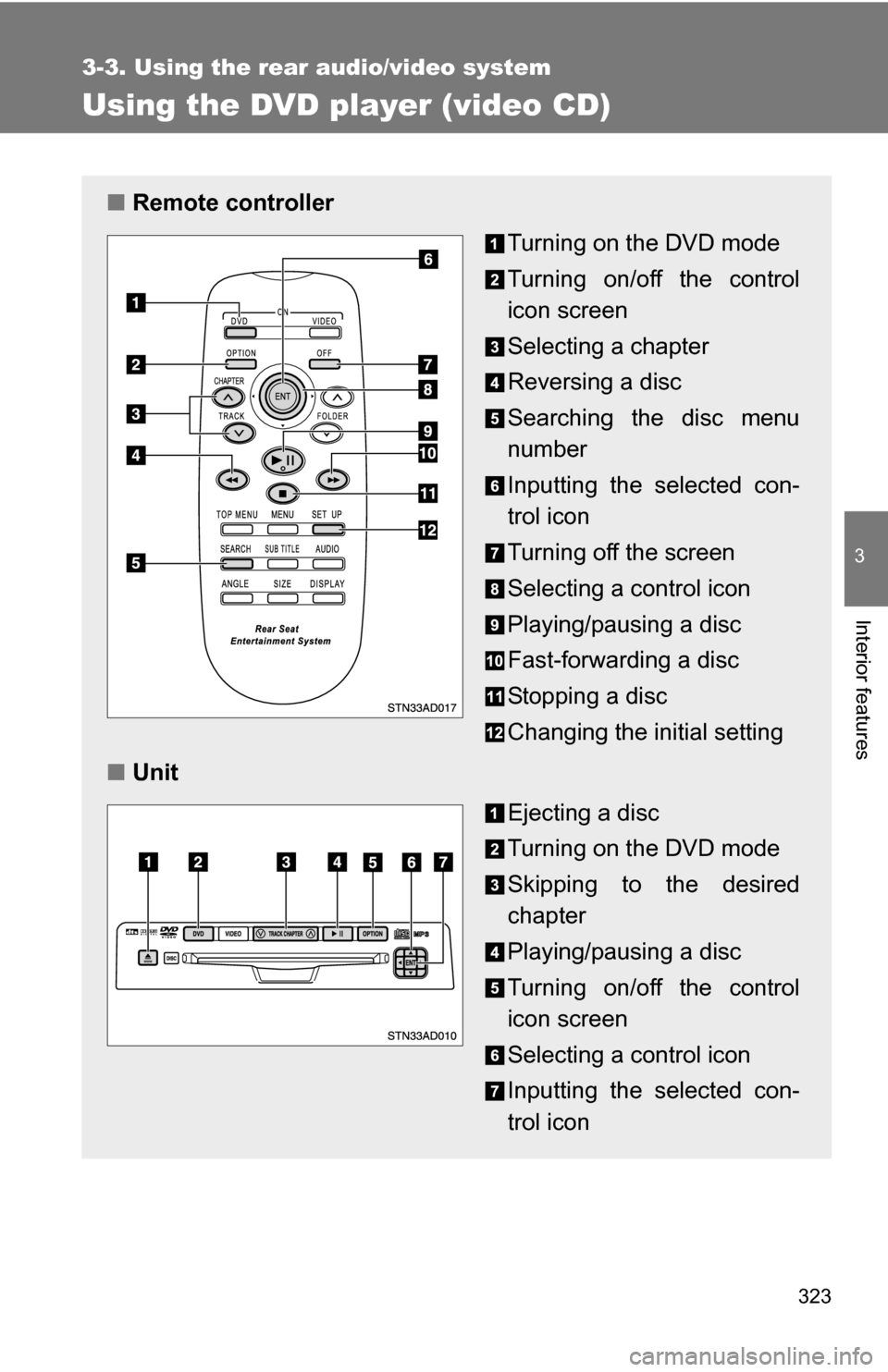

323
3-3. Using the rear audio/video system
3
Interior features
Using the DVD player (video CD)
■Remote controller
Turning on the DVD mode
Turning on/off the control
icon screen
Selecting a chapter
Reversing a disc
Searching the disc menu
number
Inputting the selected con-
trol icon
Turning off the screen
Selecting a control icon
Playing/pausing a disc
Fast-forwarding a disc
Stopping a disc
Changing the initial setting
■ Unit
Ejecting a disc
Turning on the DVD mode
Skipping to the desired
chapter
Playing/pausing a disc
Turning on/off the control
icon screen
Selecting a control icon
Inputting the selected con-
trol icon

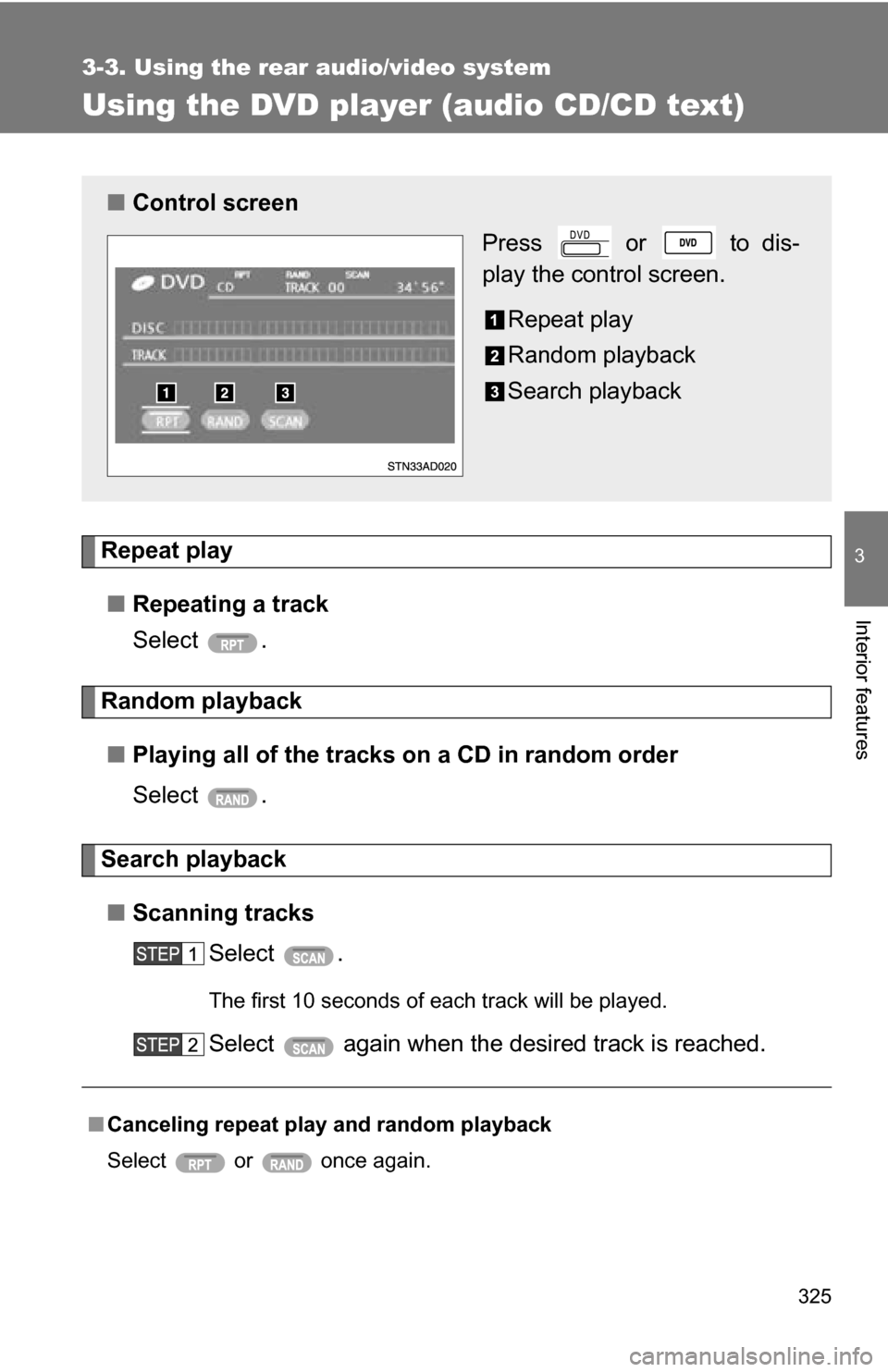

325
3-3. Using the rear audio/video system
3
Interior features
Using the DVD player (audio CD/CD text)
Repeat play■ Repeating a track
Select .
Random playback
■ Playing all of the tracks on a CD in random order
Select .
Search playback
■ Scanning tracks
Select .
The first 10 seconds of each track will be played.
Select again when the desired track is reached.
■Canceling repeat play and random playback
Select or once again.
■ Control screen
Press or to dis-
play the control screen.
Repeat play
Random playback
Search playback

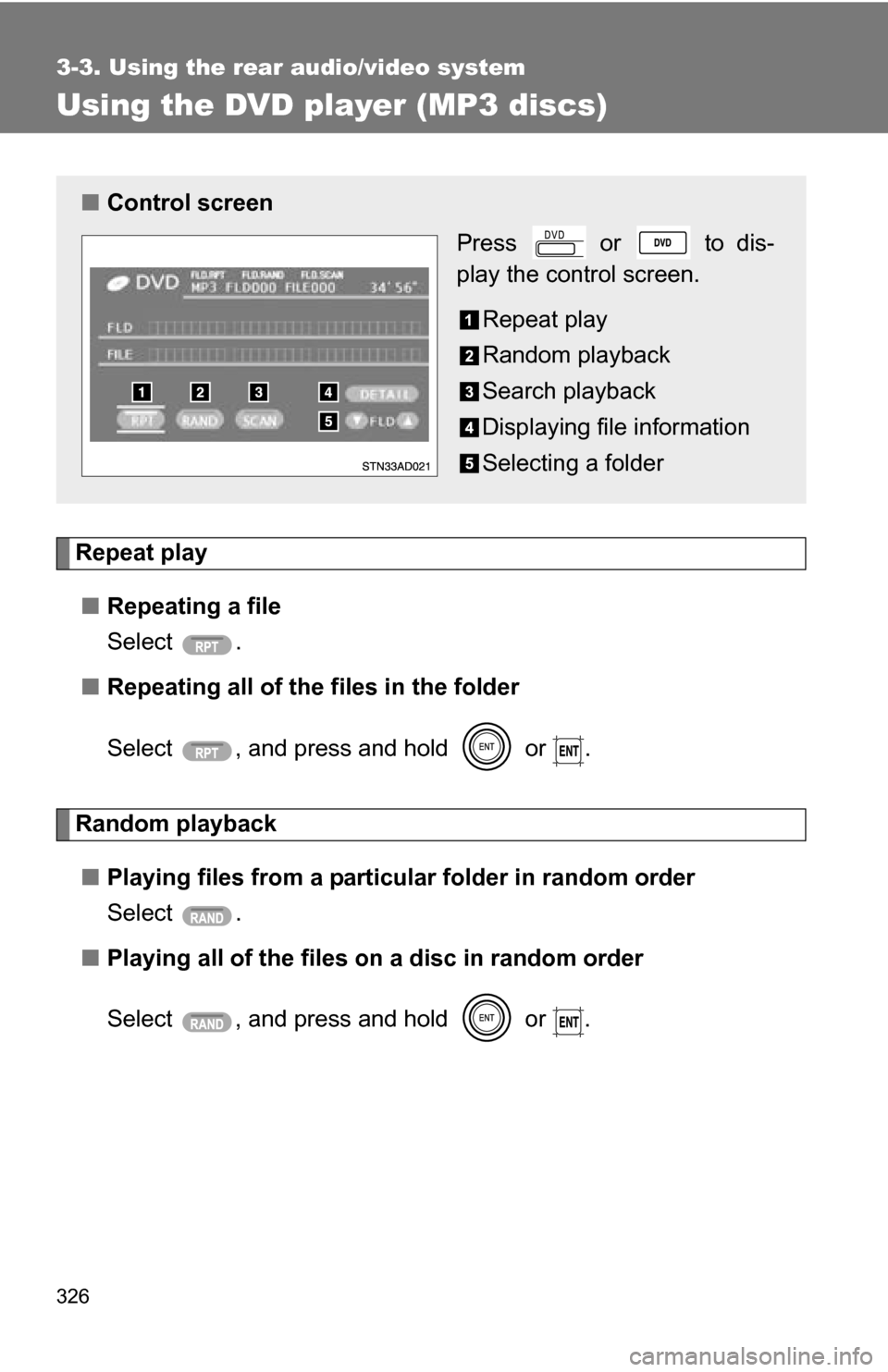

326
3-3. Using the rear audio/video system
Using the DVD player (MP3 discs)
Repeat play■ Repeating a file
Select .
■ Repeating all of the files in the folder
Select , and press and hold or .
Random playback
■ Playing files from a particular folder in random order
Select .
■ Playing all of the files on a disc in random order
Select , and press and hold or .
■Control screen
Press or to dis-
play the control screen.
Repeat play
Random playback
Search playback
Displaying file information
Selecting a folder

598
Alphabetical index
Alphabetical index
A/C ..................................... 260, 268
ABS ........................................... 221
Active traction control ............. 221
Adaptive variable suspension system .................................... 213
Air conditioning filter............... 479
Air conditioning system Air conditioning filter .............. 479
Front air conditioning system ................................ 260
Rear air conditioning system ................................ 268
Airbags
Airbag operating conditions............................ 110
Airbag precautions for your
child .................................... 114
Airbag warning light............... 519
Curtain shield airbag operating conditions............................ 110
Curtain shield airbag precautions ......................... 114
Front passenger occupant classification system ........... 120
General airbag
precautions ......................... 114
Locations of airbags .............. 107
Modification and disposal of airbags ................................ 118
Proper driving posture ........................ 105, 114
Side airbag operating conditions............................ 110
Side airbag precautions ........ 114
SRS airbags .......................... 107
Alarm ......................................... 102
Antenna..................................... 282
Anti-lock brake system............ 221
Armrest ..................................... 413
Ashtrays.................................... 399
A-TRAC ..................................... 221
Audio input ............................... 303 Audio system
A/V input adapter .................. 328
Antenna................................. 282
Audio input ............................ 303
Audio visual input .................. 328
AUX adapter ......................... 303
CD player/changer ................ 285
DVD player............................ 314
MP3/WMA disc ..................... 292
Optimal use ........................... 301
Portable music player ........... 303
Radio..................................... 279
Rear seat entertainment system ................................ 307
Steering wheel audio switch.................................. 305
Type ...................................... 276
Audio visual input.................... 328
AUTO LSD system ................... 219
Automatic light control system .................................... 181
Automatic
transmission .......................... 154
AUX adapter ............................. 303
Auxiliary box ........................... 392
A/V input adapter ..................... 328
AVS ........................................... 213
Back-up lights Replacing light bulbs ............. 495
Wattage................................. 568
Back door Back door ................................ 42
Wireless remote control .......... 33
Back window ........................... 90
Battery Checking ............................... 462
If the vehicle has discharged
battery................................. 546
Preparing and checking before
winter .................................. 237
Bluetooth
................................ 342
Bottle holder............................. 391
A
B

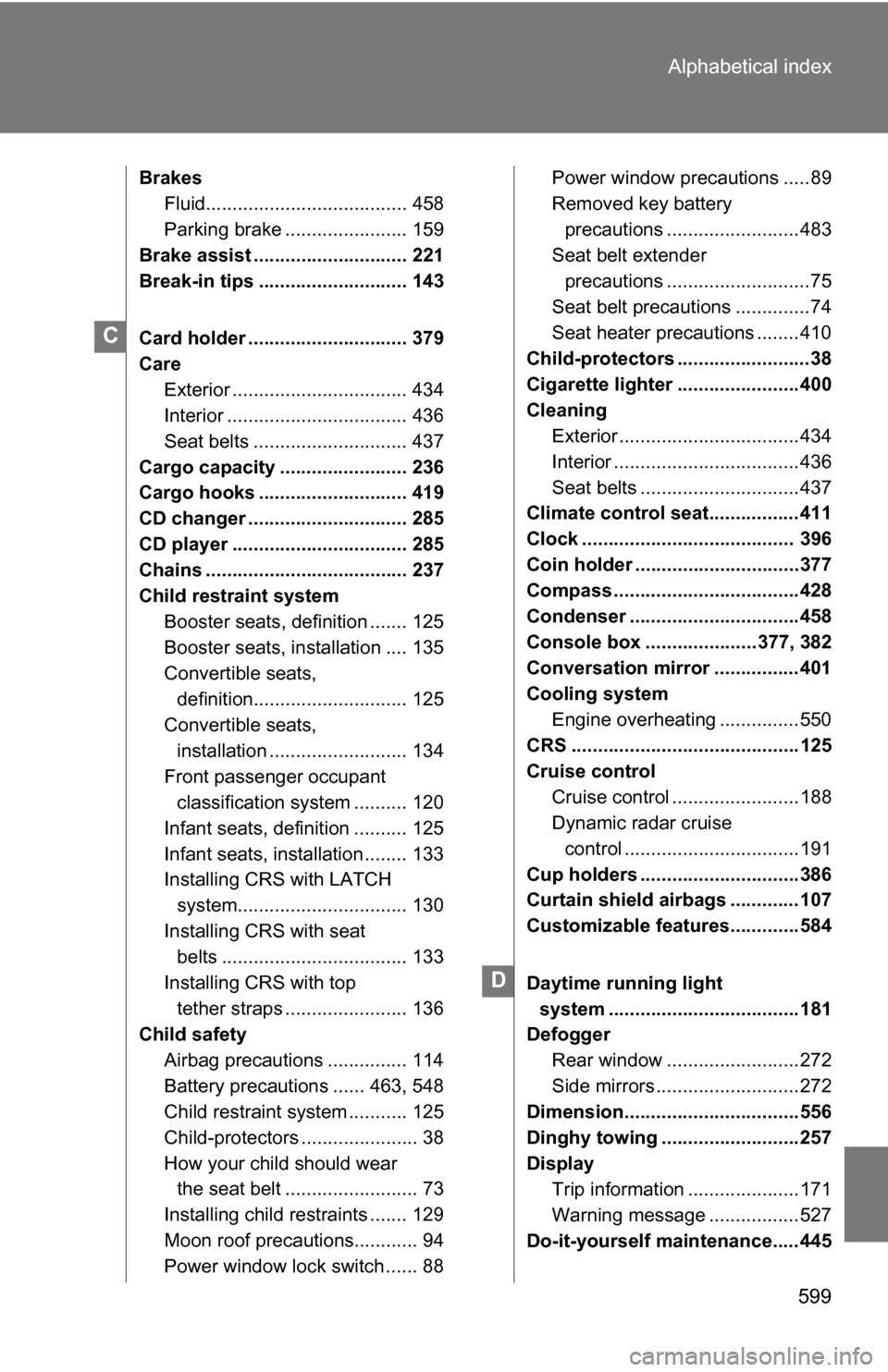

599
Alphabetical index
Brakes
Fluid...................................... 458
Parking brake ....................... 159
Brake assist ............................. 221
Break-in tips ............................ 143
Card holder .............................. 379
Care Exterior ................................. 434
Interior .................................. 436
Seat belts ............................. 437
Cargo capacity ........................ 236
Cargo hooks ............................ 419
CD changer .............................. 285
CD player ................................. 285
Chains ...................................... 237
Child restraint system Booster seats, definition ....... 125
Booster seats, installation .... 135
Convertible seats, definition............................. 125
Convertible seats,
installation .......................... 134
Front passenger occupant classification system .......... 120
Infant seats, definition .......... 125
Infant seats, installation ........ 133
Installing CRS with LATCH system................................ 130
Installing CRS with seat belts ................................... 133
Installing CRS with top tether straps ....................... 136
Child safety
Airbag precautions ............... 114
Battery precautions ...... 463, 548
Child restraint system ........... 125
Child-protectors ...................... 38
How your child should wear the seat belt ......................... 73
Installing child restraints ....... 129
Moon roof precautions............ 94
Power window lock switch ...... 88 Power window precautions .....89
Removed key battery
precautions .........................483
Seat belt extender precautions ...........................75
Seat belt precautions ..............74
Seat heater precautions ........410
Child-protectors .........................38
Cigarette lighter .......................400
Cleaning Exterior ..................................434
Interior ...................................436
Seat belts ..............................437
Climate control seat.................411
Clock ........................................ 396
Coin holder ...............................377
Compass ...................................428
Condenser ................................458
Console box .....................377, 382
Conversation mirror ................401
Cooling system
Engine overheating ...............550
CRS ...........................................125
Cruise control
Cruise control ........................188
Dynamic radar cruise control .................................191
Cup holders ..............................386
Curtain shield airbags .............107
Customizable features.............584
Daytime running light system ....................................181
Defogger
Rear window .........................272
Side mirrors ...........................272
Dimension.................................556
Dinghy towing ..........................257
Display Trip information .....................171
Warning message .................527
Do-it-yourself main tenance.....445
C
D

600 Alphabetical index
Door courtesy lightsDoor courtesy lights .............. 371
Wattage ................................. 568
Doors Back door ................................42
Door glasses ...........................88
Door lock ...........................33, 37
Side doors ...............................37
Side mirrors .............................82
Driver's seat belt reminder light ......................................... 520
Driving Break-in tips .......................... 143
Correct posture ..................... 105
Procedures ............................ 142
Winter driving tips.................. 237
Driving position memory...........61
DVD player ................................ 314
Electronically modulated air
suspension............................. 208
Emergency flashers
Switch.................................... 508
Emergency, in case of If the engine will not start ...... 542
If the shift lever cannot be
shifted ................................. 544
If the vehicle has discharged
battery ................................. 546
If the warning buzzer sounds ................................ 518
If the warning light turns on ........................................ 518
If the warning message is
displayed............................. 527
If you have a flat tire ............. 532
If you lose your keys ............. 545
If you think something is wrong .................................. 514
If your vehicle becomes
stuck ................................... 553
If your vehicle needs to be towed .................................. 509 If your vehicle overheats ....... 550
Engine
Compartment ........................ 450
Engine switch ........................ 151
Hood ..................................... 449
How to start the engine ................................. 151
Identification number............. 558
If the engine will not start ...... 542
Ignition switch ...................... 151
Overheating .......................... 550
Engine coolant Capacity ................................ 563
Checking ............................... 457
Preparing and checking before winter .................................. 237
Engine coolan t temperature
gauge ...................................... 161
Engine immobilizer system .... 100
Engine oil Capacity ................................ 561
Checking ............................... 452
Preparing and checking before winter .................................. 237
Engine oil maintenance data ......................................... 455
Engine switch........................... 151
Event data recorder ................. 516
FFV ...................................... 95, 569
Flex-fuel .............................. 95, 569
Flexible fuel vehicle ........... 95, 569
Floor mat .................................. 417
Fluid Brake..................................... 458
Washer.................................. 464
Fog lights
Replacing light bulbs ............. 495
Switch ................................... 183
Wattage................................. 568
Four-wheel drive system......... 214
Front air conditioning system .................................... 260
E
F
