change time TOYOTA SEQUOIA 2009 2.G Quick Reference Guide

2009
Sequoia
!A word about safe vehicle operations
This
Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for
the Owner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review the Owner’s Manual and
supplementary manuals so you will have a better understanding
of your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales,
U.S.A., Inc. wish you many years of satisfied driving in your
new Sequoia.
This Quick Reference Guide is not a full description of
Sequoia operations. Every Sequoia owner should review the
Owner’s Manual that accompanies this vehicle.
Pay special attention to the boxed information highlighted in
color throughout the Owner’s Manual. Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guide is current at
the time of printing. Toyota reserves the right to make
changes at any time without notice.
412xxxM1.qxd 7/16/08 4:15 PM Page 2

17
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Lights & turn signals
Turn signals
Headlights
High beamLow beam
Front fog lights (if equipped)
-Daytime Running Light system (DRL)
Automatically turns on the turn
signal lights at a reduced intensity.
-Automatic light cut off system Automatically turns lights off after a
delay of 30 seconds, or the lock switch on remote may be pushed
after locking.
Front fog lights come on only when the headlights are on low beam.
Right turn
Lane change
Lane change Left turn High beam flasher
Auto
Headlights
Parking lights
Tu r n
412700M2_r1.qxd 7/18/08 5:34 PM Page 17

28
FEATURES/OPERATIONS
Door locks
Lock
Unlock
Multi-information display (if equipped)
Push “INFO” to change information in the following:
(1) Zoom display of odometer and trip meter
(2) Average gas mileage
(3) Current gas mileage
(4) Miles left on remaining fuel
(5) Running time from engine start
(6) Average vehicle speed
Push “SETUP US/M” to customize to the following settings:
(1) UNIT
(2) KEYLESS ENTRY FEEDBACK
(3) KEYLESS ENTRY RELOCK TIMER
(4) KEYLESS ENTRY ALL DOORS UNLOCK
(5) DOOR AUTO LOCKING
(6) DOOR AUTO UNLOCKING
(7) HEADLAMPS AUTO OFF TIMER
(8) COURTESY LAMPS OFF TIMER
(9) DEFAULT SETTING
412xxxM2.qxd 7/16/08 4:14 PM Page 28

32

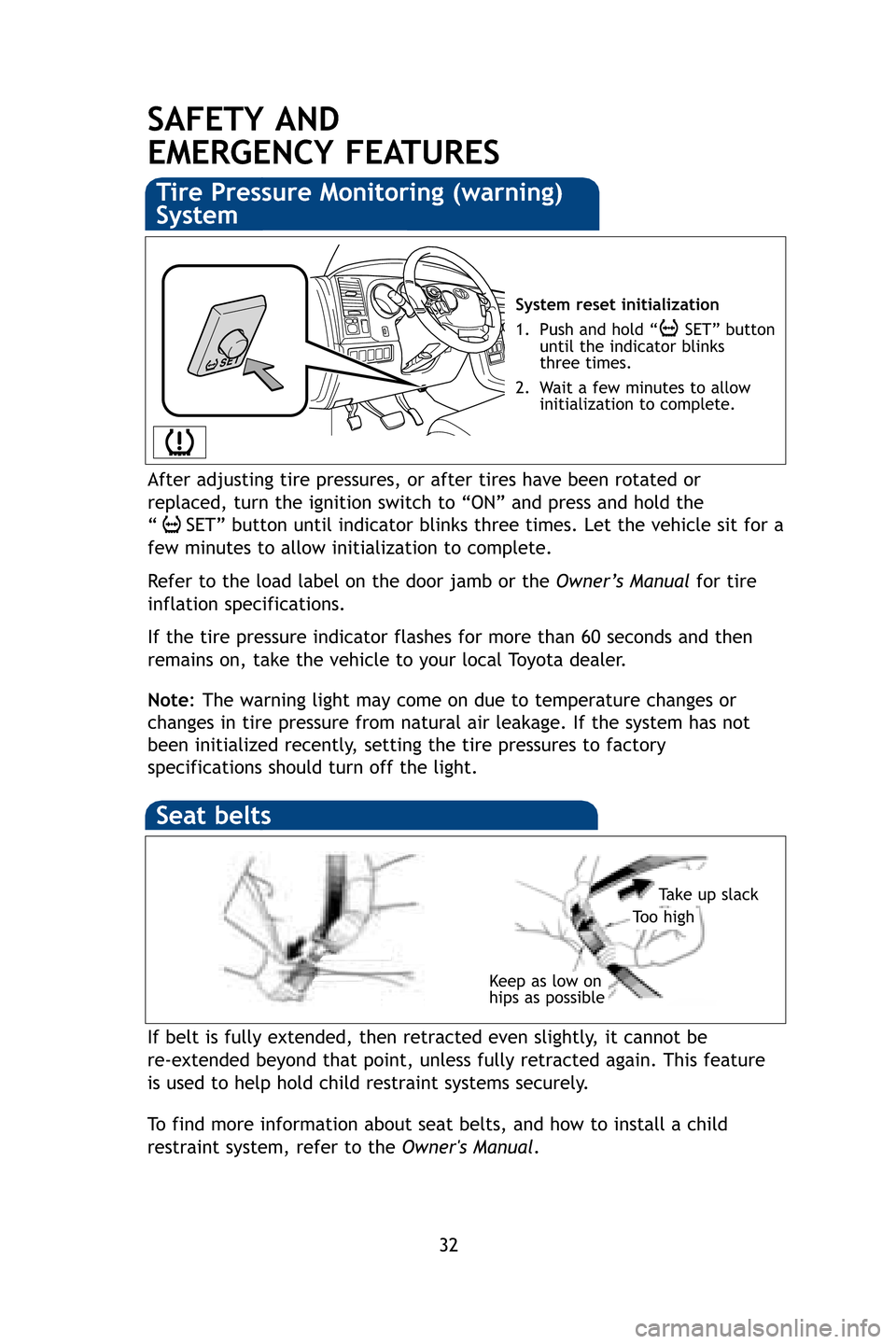

SAFETY AND
EMERGENCY FEATURES
If belt is fully extended, then retracted even slightly, it cannot be
re-extended beyond that point, unless fully retracted again. This featur\
e
is used to help hold child restraint systems securely.
To find more information about seat belts, and how to install a child
restraint system, refer to the Owner's Manual.
Keep as low on
hips as possible
Take up slack
Too high
Seat belts
System reset initialization
1. Push and hold “ SET” button
until the indicator blinks
three times.
2. Wait a few minutes to allow initialization to complete.
Tire Pressure Monitoring (warning)
System
After adjusting tire pressures, or after tires have been rotated or
replaced, turn the ignition switch to “ON” and press and hold the \
“ SET” button until indicator blinks three times. Let the vehicle sit f\
or a
few minutes to allow initialization to complete.
Refer to the load label on the door jamb or the Owner’s Manualfor tire
inflation specifications.
If the tire pressure indicator flashes for more than 60 seconds and then\
remains on, take the vehicle to your local Toyota dealer.
Note : The warning light may come on due to temperature changes or
changes in tire pressure from natural air leakage. If the system has not\
been initialized recently, setting the tire pressures to factory
specifications should turn off the light.
412xxxM2.qxd 7/16/08 4:14 PM Page 32
