1
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Engine maintenance10Fuel tank door release and cap9Hood release 9Indicator symbols6-7Instrument cluster 5Instrument panel2-4Keyless entry18
Light control-Instrument panel 10
Accessory meter 31Air Conditioning/Heating22-23Audio24-25Auto lock functions112Automatic Transmission 11Cruise control 20Cup holders31Door locks 28Door-Power back19Dynamic Laser Cruise Control27Four-wheel drive 12Garage door opener (HomeLink®)326Lights1& turn signals17Moonroof 20Multi-information display228Parking brake15Power outlets-12V DC 30Power outlets-115V AC30Rear seat entertainment system25Seat adjustments-Front 13Seat adjustments-Rear14Seat ventilators/Heaters 23Seats-Folding second row seats15Seats-Folding third row seats16Seats-Head restraints 13Steering wheel switches26Te l e p h o n e controls (Bluetooth®)29Tilt and telescopic steering wheel 21“TOW/HAUL” switch 11VSC OFF button 21Window-Back19Windows 18
Windshield wipers & washers 18
Doors-Child safety locks 33Seat belts32Seat belts-Shoulder belt anchor33Spare tire & tools33
Tire Pressure Monitoring (warning) System 32
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
1Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and
more information.
3HomeLink®is a registered trademark of Johnson Controls, Inc.
2009 Sequoia Quick Reference Guide
412xxxM2.qxd 7/16/08 4:14 PM Page 1

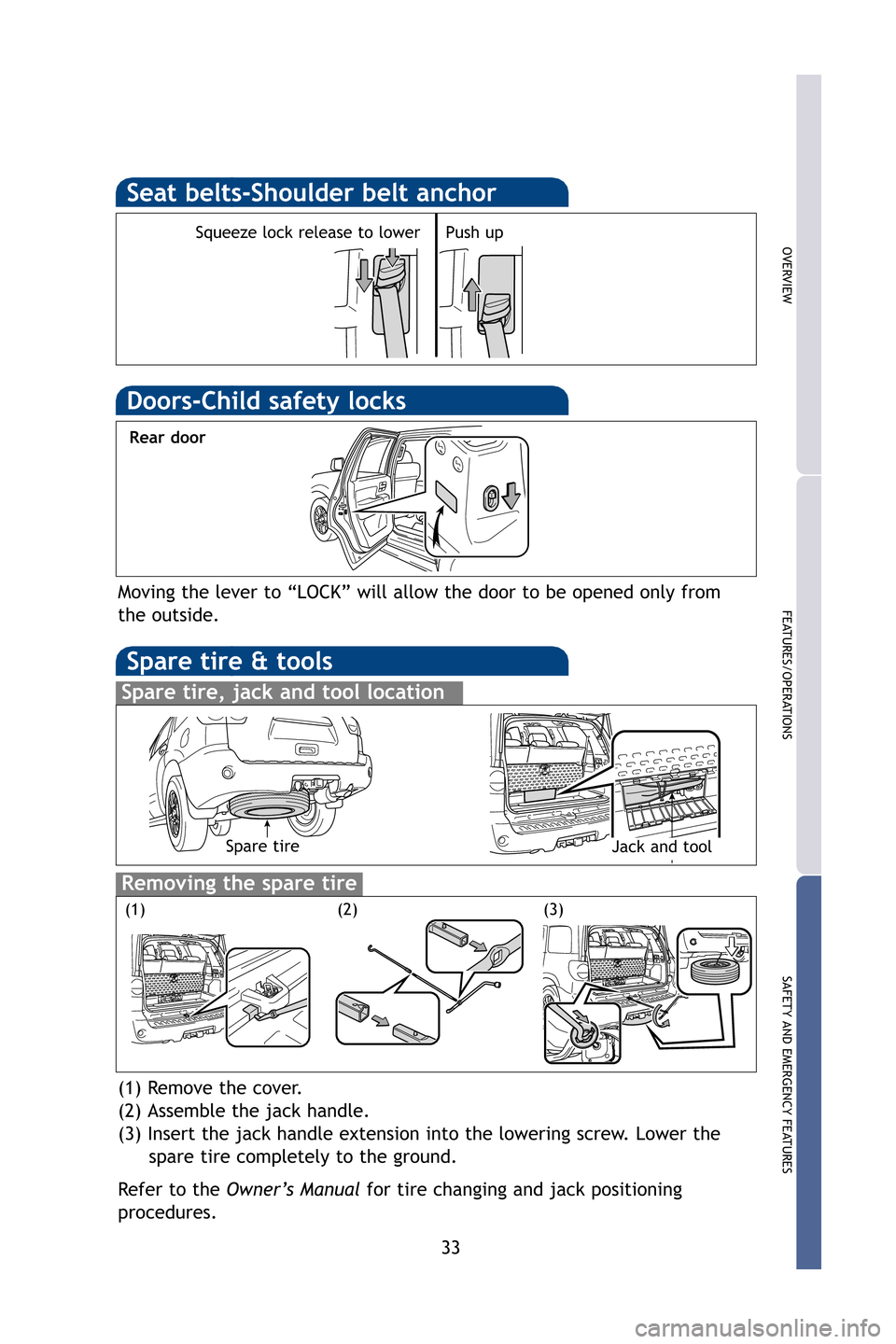

33
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Push up
Seat belts-Shoulder belt anchor
Squeeze lock release to lower
Spare tire & tools
Spare tire, jack and tool location
Removing the spare tire
(1) Remove the cover.
(2) Assemble the jack handle.
(3) Insert the jack handle extension into the lowering screw. Lower the spare tire completely to the ground.
Refer to the Owner’s Manual for tire changing and jack positioning
procedures.
Moving the lever to “LOCK” will allow the door to be opened only f\
rom
the outside.
Rear door
Doors-Child safety locks
(1)(2)(3)
Spare tireJack and tool
