OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Engine maintenance10Fuel tank door release and cap9Hood release 9Indicator symbols6-7Instrument cluster 5Instrument panel2-4Keyless entry18
Light control-Instrument panel 10
Accessory meter 31Air Conditioning/Heating22-23Audio24-25Auto lock functions112Automatic Transmission 11Cruise control 20Cup holders31Door locks 28Door-Power back19Dynamic Laser Cruise Control27Four-wheel drive 12Garage door opener (HomeLink®)326Lights1& turn signals17Moonroof 20Multi-information display228Parking brake15Power outlets-12V DC 30Power outlets-115V AC30Rear seat entertainment system25Seat adjustments-Front 13Seat adjustments-Rear14Seat ventilators/Heaters 23Seats-Folding second row seats15Seats-Folding third row seats16Seats-Head restraints 13Steering wheel switches26Te l e p h o n e controls (Bluetooth®)29Tilt and telescopic steering wheel 21“TOW/HAUL” switch 11VSC OFF button 21Window-Back19Windows 18
Windshield wipers & washers 18
Doors-Child safety locks 33Seat belts32Seat belts-Shoulder belt anchor33Spare tire & tools33
Tire Pressure Monitoring (warning) System 32
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
1Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and
more information.
3HomeLink®is a registered trademark of Johnson Controls, Inc.
2009 Sequoia Quick Reference Guide
412xxxM2.qxd 7/16/08 4:14 PM Page 1

4
Accessory meter
Theft deterrent system/Engine immobilizer indicator
Audio system
2
Air Conditioning controls
Outside rearview mirrors1/Back window defogger/Windshield wiper
de-icer1button
12V DC Power outlet
Seat heater
1and ventilator1controls
Cigarette lighter
AUX audio jack
Height control switch
1
AVS button1
“TOW/HAUL” button1
Center differential lock/unlock switch1
Four-wheel drive control switch1
Intuitive parking assist button1
Multi-information display control button1 and/or accessory meter
control button1
Emergency flasher button
1If equipped2Vehicles with navigation system: for details, refer to the “ Navigation
System Owner’s Manual .”
OVERVIEW
Center panel area
412xxxM2.qxd 7/16/08 4:14 PM Page 4

5
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Instrument cluster
Tachometer
Speedometer
Service indicator and reminder
Fuel gauge
Vo l t m e t e r
Engine oil pressure gauge
Engine coolant temperature
Odometer/Trip meter and trip meter reset button
Multi-information display
Odometer and two trip meters
Automatic Transmission shift position indicator
Automatic Transmission shift range display
Automatic Transmission fluid temperature gauge
With multi-information display
Without multi-information display
412xxxM2.qxd 7/16/08 4:14 PM Page 5

Front Air Conditioning
Fan speed
Automatic climate control ON
Adjusting the temperature setting will cause the airflow vents, air
intake and fan to adjust automatically.
Air Conditioning ON/OFF
Temperature selector (driver side)
Windshield defogger (fresh air only)
Airflow vent
In “ ” mode, use fresh air (“ ” indicator “OFF”) to reduce window fogging.
Temperature selector (front passenger side)
“SYNC” button
Indicator ON: Synchronize temperature settings for driver, front
passenger and rear seats.
Indicator OFF: Separate temperature settings for driver, front
passenger and rear seats.
Outside rearview mirror/Back window defogger or windshield wiper
de-icer (if equipped)
Rear Air Conditioning ON/OFF
Temperature selector (rear passenger area*)
Fresh or recirculated cabin air
Climate control OFF
* To change the rear seat setting, press the “REAR” button.
22
FEATURES/OPERATIONS
Air Conditioning/Heating
Control panel
Display
412xxxM2.qxd 7/16/08 4:14 PM Page 22

23
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Rear Air Conditioning
Automatic climate control ON
Display
Airflow vent
Fan speed
Temperature selector
Climate control OFF
Seat ventilators/Heaters (if equipped)
Front seats
Second seats
Ventilator
Driver’s seat
Front passenger’s seat
Heater
Ventilator
Heater
Tu r n
Driver’s seat
Front passenger’s seat
ON
Tu r n
ON
Heater onlyWith ventilators
Push
Push
Driver side
Passenger side
412xxxM2.qxd 7/16/08 4:14 PM Page 23

28
FEATURES/OPERATIONS
Door locks
Lock
Unlock
Multi-information display (if equipped)
Push “INFO” to change information in the following:
(1) Zoom display of odometer and trip meter
(2) Average gas mileage
(3) Current gas mileage
(4) Miles left on remaining fuel
(5) Running time from engine start
(6) Average vehicle speed
Push “SETUP US/M” to customize to the following settings:
(1) UNIT
(2) KEYLESS ENTRY FEEDBACK
(3) KEYLESS ENTRY RELOCK TIMER
(4) KEYLESS ENTRY ALL DOORS UNLOCK
(5) DOOR AUTO LOCKING
(6) DOOR AUTO UNLOCKING
(7) HEADLAMPS AUTO OFF TIMER
(8) COURTESY LAMPS OFF TIMER
(9) DEFAULT SETTING
412xxxM2.qxd 7/16/08 4:14 PM Page 28

31
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

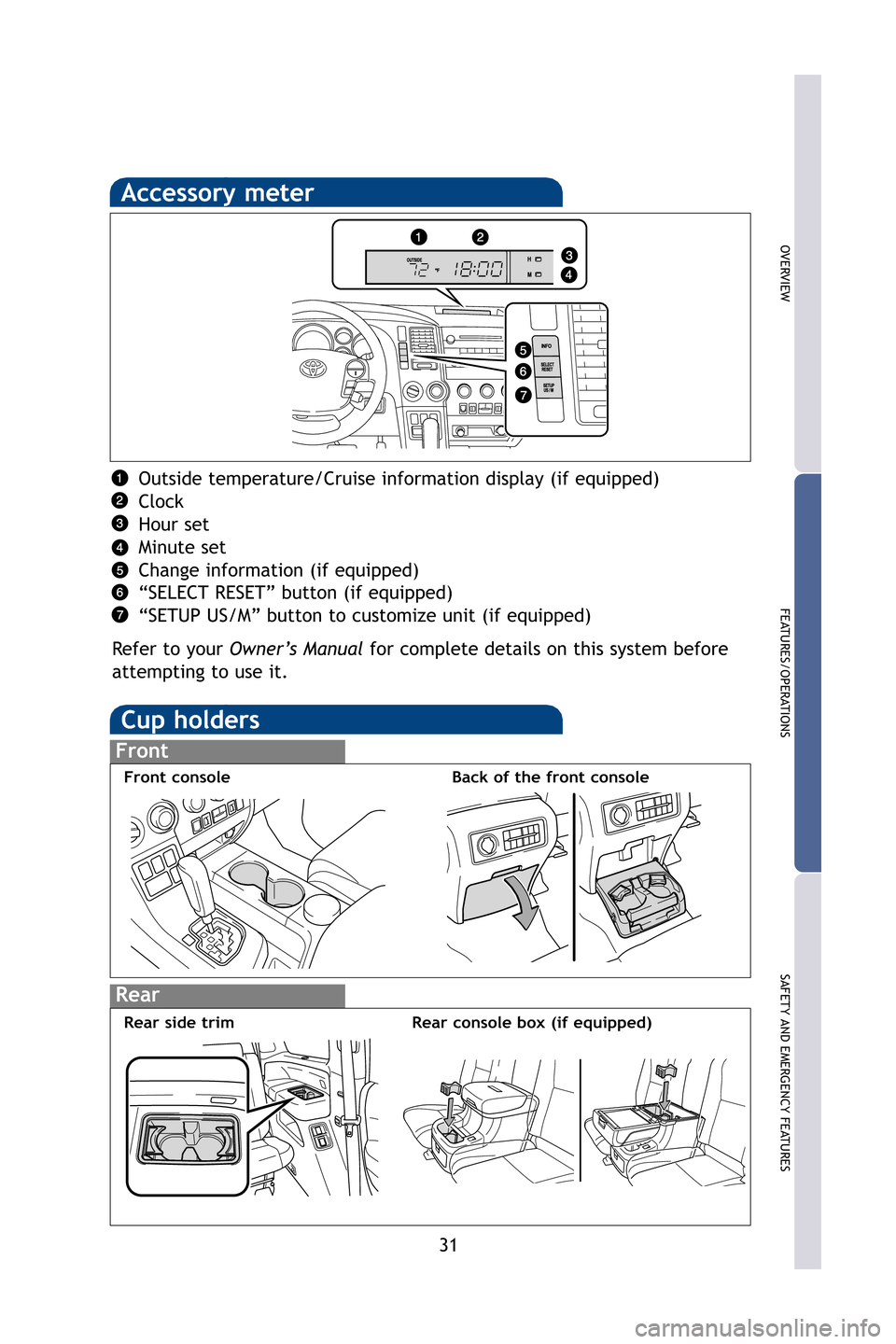

Cup holders
Front
Rear
Front consoleBack of the front console
Rear side trimRear console box (if equipped)
Accessory meter
Outside temperature/Cruise information display (if equipped)
Clock
Hour set
Minute set
Change information (if equipped)
“SELECT RESET” button (if equipped)
“SETUP US/M” button to customize unit (if equipped)
Refer to your Owner’s Manual for complete details on this system before
attempting to use it.
412xxxM2.qxd 7/16/08 4:14 PM Page 31
