steering wheel TOYOTA SEQUOIA 2009 2.G Quick Reference Guide

1
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Engine maintenance10Fuel tank door release and cap9Hood release 9Indicator symbols6-7Instrument cluster 5Instrument panel2-4Keyless entry18
Light control-Instrument panel 10
Accessory meter 31Air Conditioning/Heating22-23Audio24-25Auto lock functions112Automatic Transmission 11Cruise control 20Cup holders31Door locks 28Door-Power back19Dynamic Laser Cruise Control27Four-wheel drive 12Garage door opener (HomeLink®)326Lights1& turn signals17Moonroof 20Multi-information display228Parking brake15Power outlets-12V DC 30Power outlets-115V AC30Rear seat entertainment system25Seat adjustments-Front 13Seat adjustments-Rear14Seat ventilators/Heaters 23Seats-Folding second row seats15Seats-Folding third row seats16Seats-Head restraints 13Steering wheel switches26Te l e p h o n e controls (Bluetooth®)29Tilt and telescopic steering wheel 21“TOW/HAUL” switch 11VSC OFF button 21Window-Back19Windows 18
Windshield wipers & washers 18
Doors-Child safety locks 33Seat belts32Seat belts-Shoulder belt anchor33Spare tire & tools33
Tire Pressure Monitoring (warning) System 32
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
1Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and
more information.
3HomeLink®is a registered trademark of Johnson Controls, Inc.
2009 Sequoia Quick Reference Guide
412xxxM2.qxd 7/16/08 4:14 PM Page 1

2
OVERVIEW
Instrument panel
Steering wheel audio controls1
Voice command button1
Steering wheel climate controls1
Cruise control
Dynamic Laser Cruise Control distance switch1
Telephone controls1,2
Headlight, turn signal and front fog light1 controls
Gauges and meters
Wiper and washer controls
115V AC Power outlet main switch
1
Power back window switch
VSC OFF switch
Engine (ignition) switch
Tire Pressure Warning System reset
Personal/Interior light main switch
Steering wheel controls
(if equipped)
412xxxM2.qxd 7/16/08 4:14 PM Page 2

21
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Tilt and telescopic steering wheel
Hold wheel, push lever down, set angle and length, and return lever.
Manual
Lock release leverAngle
Toggle the control switch to set angle and length.
Note: Do not attempt to adjust while the vehicle is in motion.
Power
UpControl switch
Away from
the driver Length
To w a r d t h e
driver
Down
The VSC OFF button is used to switch between modes related to the TRAC,
VSC and Auto LSD functions.
Refer to Section 2-4 of the Owner’s Manualfor more information.
VSC OFF button
VSC OFF button
412xxxM2.qxd 7/16/08 4:14 PM Page 21

26
FEATURES/OPERATIONS
Garage door openers manufactured under license from HomeLink®* can
be programmed to operate garage doors, estate gates, security lighting, \
etc.
Refer to “Garage door opener,” Section 3-7 in the Owner’s Manualfor
more details.
* HomeLink®is a registered trademark of Johnson Controls, Inc.
Steering wheel switches (if equipped)
Volume control
A/C control
Audio control
Temperature
selector
Auto A/C ON
A/C OFF
“”
-In radio mode Push to select a preset station; push and hold to seek
the next strong station.
-In CD mode Push to skip up or down to next/previous track.
“MODE”
Push to turn audio ON and select an audio mode. Push and hold to turn
the audio system OFF.vv
Garage door opener (HomeLink®)*
(if equipped)
412xxxM2.qxd 7/16/08 4:14 PM Page 26

29
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

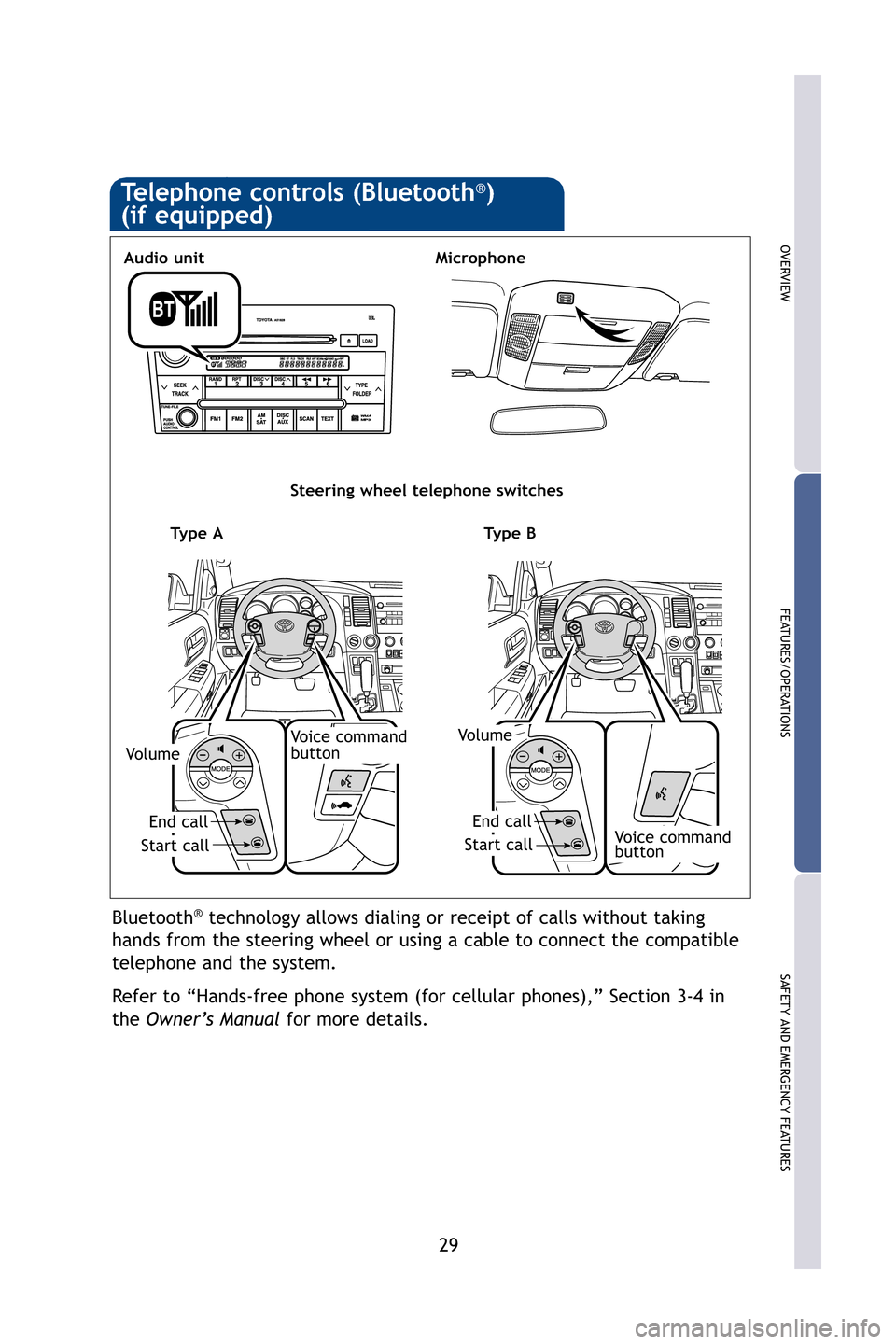

Telephone controls (Bluetooth®)
(if equipped)
Bluetooth®technology allows dialing or receipt of calls without taking
hands from the steering wheel or using a cable to connect the compatible\
telephone and the system.
Refer to “Hands-free phone system (for cellular phones),” Section\
3-4 in
the Owner’s Manual for more details.
MicrophoneAudio unit
Steering wheel telephone switches
Vo l u m e
Voice command
buttonEnd call
Start call
End call
Start call
Vo l u m eVoice command
button
Ty p e BTy p e A
