lock TOYOTA SEQUOIA 2011 2.G Quick Reference Guide

2011
Sequoia
!A word about safe vehicle operations
This
Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for
the Owner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review the Owner’s Manual and
supplementary manuals so you will have a better understanding
of your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales,
U.S.A., Inc. wish you many years of satisfied driving in your
new Sequoia.
This Quick Reference Guide is not a full description of
Sequoia operations. Every Sequoia owner should review the
Owner’s Manual that accompanies this vehicle.
Pay special attention to the boxed information highlighted in
color throughout the Owner’s Manual. Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guide is current at
the time of printing. Toyota reserves the right to make
changes at any time without notice.
122363M1.qxd:Sequoia_11 7/16/10 7:59 PM Page COV2
33
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Push upSqueeze lock release to lower
Moving the lever to “LOCK” will allow the door to be opened only f\
rom
the outside.
Rear door
(1)(2)(3)
Spare tireJack and tool
122363M1.qxd:Sequoia_11 7/16/10 7:57 PM Page 33

1
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Engine maintenance10Fuel tank door release and cap9Hood release 10Indicator symbols6-7Instrument cluster 5Instrument panel2-4Keyless entry18
Light control-Instrument panel 9
Accessory meter20Air Conditioning/Heating22-23Audio24-25Auto lock functions112Automatic Transmission 11Cruise control 26Cup holders31Door locks 28Door-Power back19Dynamic Laser Cruise Control27Four-wheel drive 12Garage door opener (HomeLink®)326Lights1& turn signals17Moonroof 20Multi-information display228Parking brake15Power outlets-12V DC 30Power outlets-115V AC30Rear seat entertainment system31Seat adjustments-Front13Seat adjustments-Rear14Seat ventilators/heaters 23Seats-Folding second row seats15Seats-Folding third row seats16Seats-Head restraints 13Steering wheel switches25Telephone controls (Bluetooth®)29Tilt and telescopic steering wheel21“TOW/HAUL” switch 11VSC OFF button 21Window-Back19Windows 18
Windshield wipers & washers 18
Doors-Child safety locks 33Seat belts32Seat belts-Shoulder belt anchor33Spare tire & tools33
Tire Pressure Monitoring (warning) System 32
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
1Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and
more information.
3HomeLink®is a registered trademark of Johnson Controls, Inc.
INDEX
122363M1.qxd:Sequoia_11 7/16/10 10:21 PM Page 1

3
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Tilt and telescopic steering control switch1
Tilt and telescopic steering lock release lever1
Roll Sensing of Curtain shield Airbag OFF switch1
Headlight cleaner1
“REVERSE TILT” (side mirrors) switch1
Power back door button1
Power rearview mirror controls
1If equipped2Vehicles with navigation system: for details, refer to the “Navigation
System Owner’s Manual .”
Details on the center panel
area on next page
122363M1.qxd:Sequoia_11 7/16/10 10:21 PM Page 3

4
Accessory meter
Theft deterrent/Engine immobilizer system indicator
Audio system or navigation system
1,2
Air Conditioning controls
Outside rearview mirrors/Back window defogger/Windshield wiper
de-icer button
1
12V DC Power outlet
Seat heater1and ventilator1controls
Cigarette lighter
AUX audio jack/USB port
1
Height control switch1
AVS switch1
“TOW/HAUL” button1
Center differential lock/unlock switch1
Front-wheel drive control switch1
Intuitive parking assist button1
Multi-information display control buttons1 and/or accessory meter
control buttons1
Emergency flasher button
1If equipped2Vehicles with navigation system: for details, refer to the “ Navigation
System Owner’s Manual .”
OVERVIEW
122363M1.qxd:Sequoia_11 7/16/10 10:21 PM Page 4

7
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Anti-lock Brake System warning1
Slip indicator1
High/Low speed four-wheel drive indicator
Center differential lock indicator
Cruise control indicator AUTO Limited Slip Differential indicator
1
TOW/HAUL mode indicator
Height control indicator1
Height control/MANUAL indicator1
1If indicator does not turn off within a few seconds of starting engine, \
there may
be a malfunction. Have vehicle inspected by your Toyota dealer.
Automatic Transmission fluid temperature warning1
122363M1.qxd:Sequoia_11 7/16/10 10:21 PM Page 7

8
OVERVIEW
Push and hold
NOTE:If a door is not opened within 60 seconds of unlocking, all doors will
relock for safety.
With power back door Without power back door
With power back door Without power back door
Push and hold
122363M1.qxd:Sequoia_11 7/16/10 10:21 PM Page 8

12
FEATURES/OPERATIONS
Automatic door locks can be programmed to operate in four different
modes, or turned OFF.
-Doors lock when shifting from Park.
-Doors lock when the vehicle speed is approximately 12 mph or higher.
-Doors unlock when shifting into Park.
-Doors unlock when the driver’s door is opened within 10 seconds afterturning the engine switch to the “ACC” or “LOCK” position.
Refer to the Owner’s Manual for more details.
Lock the center differential if the vehicle’s wheels get stuck in a ditch or
when driving on a slippery or bumpy surface.
High speed (2WD)
High speed (4WD)
Turn to “4H” with speed below 62 mph.
Low speed (4WD)
Shift to “N” position when stopped, then push and turn to “4L.”\
WD
For best fuel economy and performance under normal driving conditions,
keep in “2WD” position.
Push
and turn
Turn
Turn
Push
122363M1.qxd:Sequoia_11 7/16/10 10:21 PM Page 12

13
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Manual seat
Power seat
FrontThird row
Lock release buttonLock release button
Height
Second row
Height
Height
Lock release button Height
122363M1.qxd:Sequoia_11 7/16/10 10:21 PM Page 13

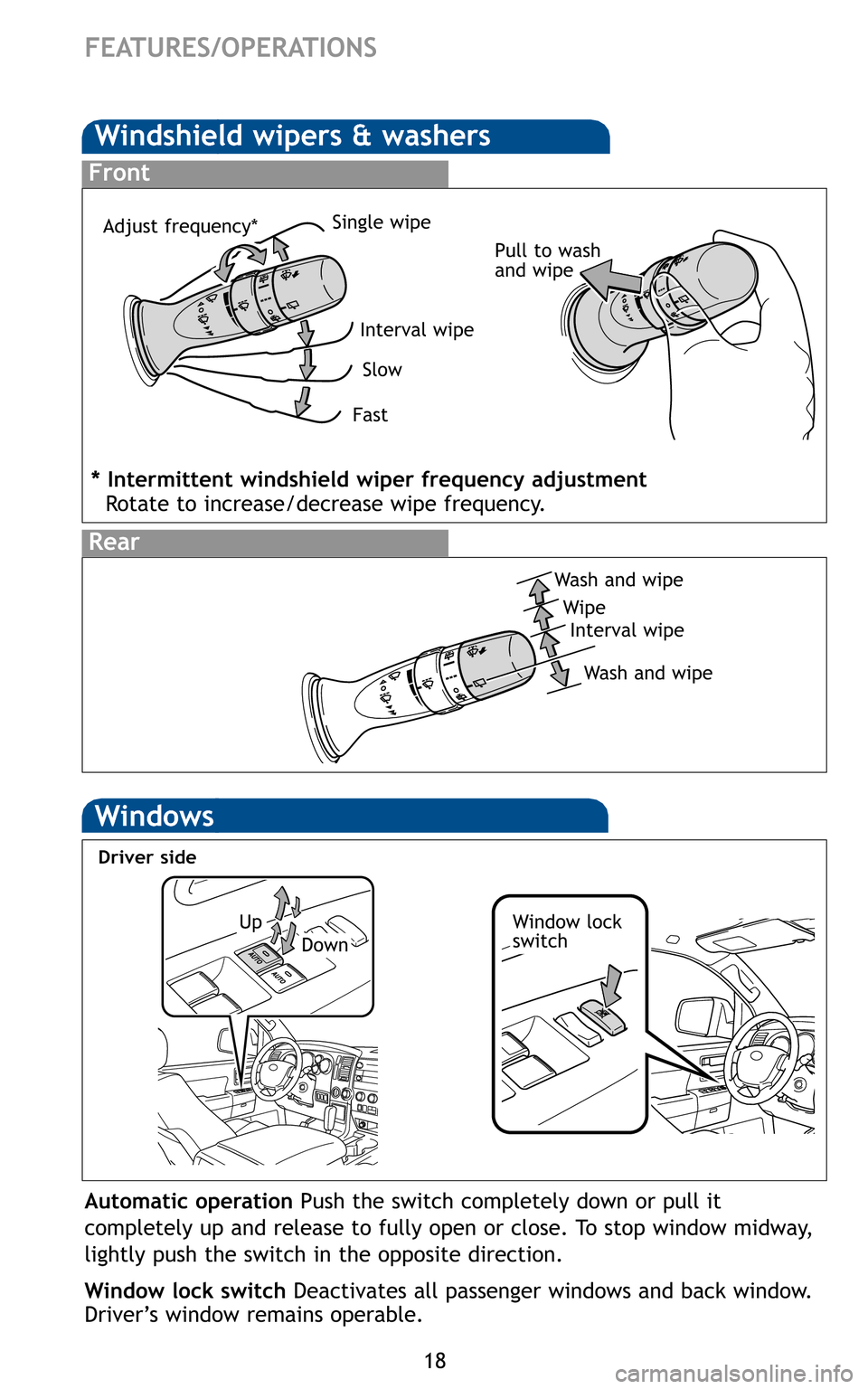

18
Wash and wipe
WipeInterval wipe
Wash and wipe
FEATURES/OPERATIONS
Window lock
switch
Automatic operation Push the switch completely down or pull it
completely up and release to fully open or close. To stop window midway,
lightly push the switch in the opposite direction.
Window lock switch Deactivates all passenger windows and back window.
Driver’s window remains operable.
UpDown
Driver side
Adjust frequency*
* Intermittent windshield wiper frequency adjustment Rotate to increase/decrease wipe frequency.
122363M1.qxd:Sequoia_11 7/16/10 10:21 PM Page 18

20
OpenTilt
CloseClose
FEATURES/OPERATIONS
Push once to open/close completely. To stop partway, press the switch
lightly.
Outside temperature/Cruise information display (if equipped)
Clock
Hour set
Minute set
Change information (if equipped)
“SELECT RESET” button (if equipped)
“SETUP” button to customize unit (if equipped)
Refer to your Owner’s Manual for complete details on this system before
attempting to use it.
122363M1.qxd:Sequoia_11 7/16/10 10:21 PM Page 20
