286 2-5. Driving information
Connecting and disconnecting a trailer (vehicles with
electronically modulated air suspension)
If a height control system is installed in your vehicle, you have to con-
nect and disconnect your trailer more carefully.
● Connecting
Set the height control of elec tronically modulated air suspen-
sion system to N mode.
Turn off the engine, or set the electronically modulated air
suspension system to MAN. (manual).
Connect the trailer.
Turn the engine switch to the START position and start the
engine.
Press the height control mode select switch to cancel the
MAN. (manual) condition that was set on .
Check that the MAN. indicator turns off.
Set the height control of elec tronically modulated air suspen-
sion system to N mode.
■ Service connector for towing br ake controller (with towing package)
Your vehicle is equipped with a service
connector for the trailer brake controller
as shown.
Access the service connector.
Remove the scuff plate.
Remove the clip (screw type) and trim
board.

528

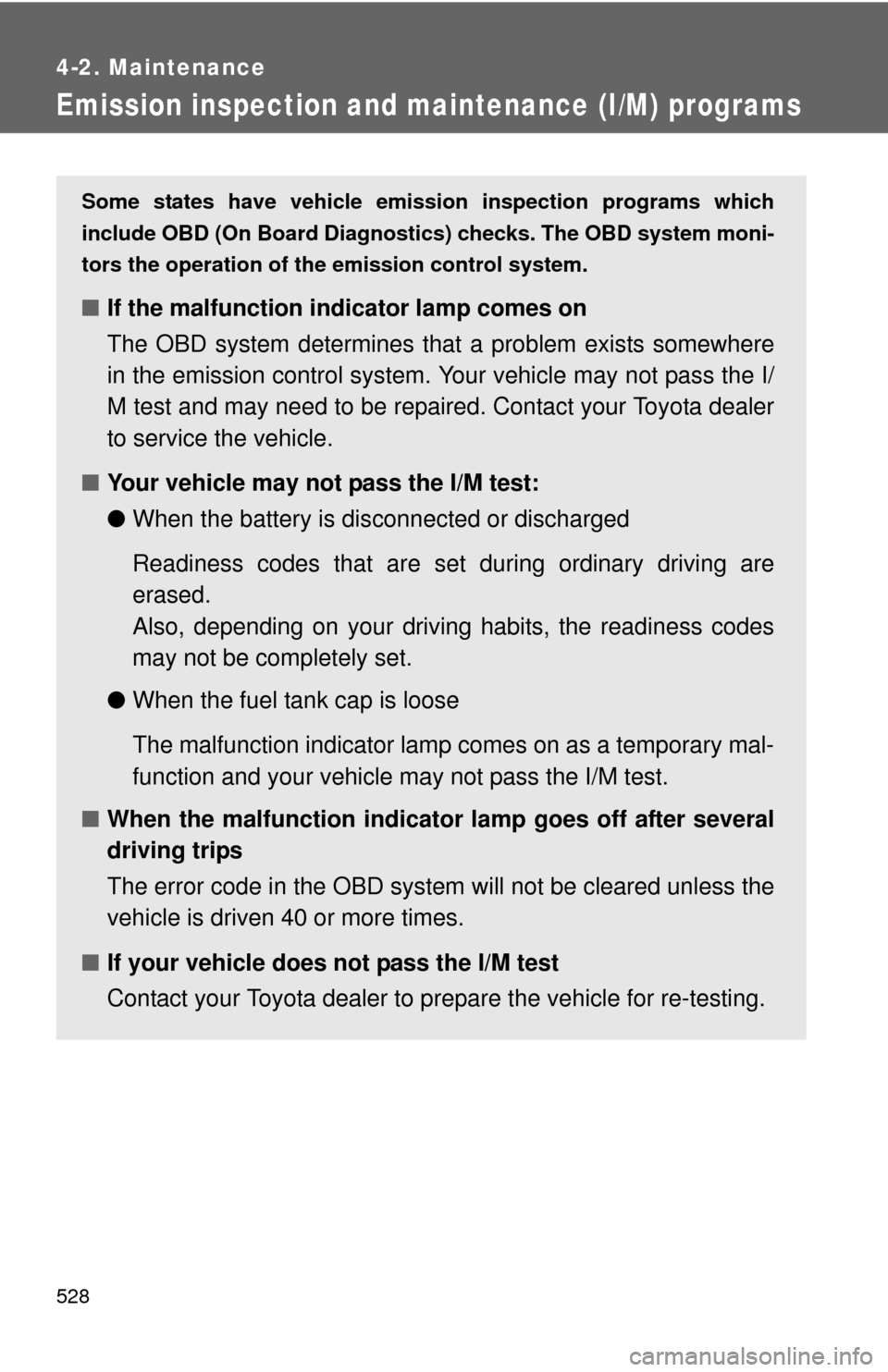

4-2. Maintenance
Emission inspection and maintenance (I/M) programs
Some states have vehicle emission inspection programs which
include OBD (On Board Diagnostics) checks. The OBD system moni-
tors the operation of th e emission control system.
■If the malfunction indicator lamp comes on
The OBD system determines that a problem exists somewhere
in the emission control system. Your vehicle may not pass the I/
M test and may need to be repaired. Contact your Toyota dealer
to service the vehicle.
■ Your vehicle may not pass the I/M test:
●When the battery is disconnected or discharged
Readiness codes that are se t during ordinary driving are
erased.
Also, depending on your driving habits, the readiness codes
may not be completely set.
● When the fuel tank cap is loose
The malfunction indicator lamp comes on as a temporary mal-
function and your vehicle may not pass the I/M test.
■ When the malfunction indicator lamp goes off after several
driving trips
The error code in the OBD system will not be cleared unless the
vehicle is driven 40 or more times.
■ If your vehicle does not pass the I/M test
Contact your Toyota dealer to prepare the vehicle for re-testing.

659
6-1. Specifications
6
Vehicle specifications
■
Toyota does not recommend gasoline containing MMT
Some gasoline contains octane enhancing additive called MMT (Methylcy-
clopentadienyl Manganese Tricarbonyl).
Toyota does not recommend the use of gasoline that contains MMT. If fuel
containing MMT is used, your emission control system may be adversely
affected.
The malfunction indicator lamp on the instrument cluster may come on. If
this happens, contact your Toyota dealer for service.
■ Toyota does not recommend blended gasoline (Flex-fuel engine)
Do not use non-specified fuels such as the following.
• Fuels containing methanol.
• Fuels with more than 85% ethanol.
■ Toyota does not recommend the use of after-market fuel additives
(Flex-fuel engine)
Do not use any after-market fuel additives when repeatedly refueling with
E85, as some after-market fuel additives are not compatible with E85.
NOTICE
■ Notice on fuel quality
●Do not use improper fuels.
If improper fuels are used, the engine will be damaged.
● Do not use leaded gasoline.
Leaded gasoline can cause damage to your vehicle’s three-way catalytic
converters causing the emission control system to malfunction.
● Gasoline engine: Do not use gasohol other than that stated here.
Other gasohol may cause fuel system damage or vehicle performance
problems.
● Use of unleaded gasoline with an octane rating lower than 87 may result in
engine knocking. Persistent knocking can lead to engine damage and
should be corrected by refueling with higher octane unleaded gasoline.

702 Alphabetical index
Seat heaters.............................. 489
Seating capacity....................... 270
SeatsAdjustment ........................50, 54
Adjustment precaution ......53, 64
Child seats/child restraint system installation .............. 136
Cleaning ................................ 520
Climate control seat .............. 492
Driver’s seat position memory .................................65
Head restraint..........................68
Properly sitting in the seat ..... 112
Seat heaters .................. 489, 492
Seat heaters and ventilators ........................... 492
Service reminder
indicators .............................. 174
Shift lever Automatic
transmission........................ 162
If the shift lever cannot be shifted ............................ 632
Shift lock system ..................... 632
Shopping bag hooks ............... 502
Side airbags.............................. 114
Side marker lights Replacing .............................. 580
Switch.................................... 188
Wattage ................................. 655
Side mirrors Adjusting and folding ...............87
Spare tire Inflation pressure................... 654
Storage location .................... 619
Spark plug ................................ 651
Specifications........................... 644
Speedometer ............................ 169 Steering
Column lock release ............. 160
Steering wheel Adjustment ........................ 82, 83
Audio switches ...................... 365
Climate remote control switches .............................. 315
Steering wheel memory .......... 65
Telephone switches .............. 424
Stop lights Replacing light bulbs ............. 580
Wattage................................. 655
Storage feature ........................ 453
Storage precautions ................ 268
Stuck If your vehicle becomes stuck ................................... 640
Sun visors ................................ 475
Sunshade.................................. 495
Switch BSM main switch .................. 236
Emergency flasher switch ..... 594
Engine switch ........................ 159
Fog light switch ..................... 194
Hazard light switch ................ 594
Ignition switch ....................... 159
Light switches ....................... 188
Power back door switch .... 33, 43
Power back window switch ..... 96
Power door lock switch ........... 37
Power window switch .............. 93
Rear window wiper and washer switch ..................... 200
Seatback folding/returning switch.............................. 57, 63
Window lock switch ................. 93
Wiper and washer switch.......................... 196, 200
