ignition TOYOTA SEQUOIA 2012 2.G Quick Reference Guide

2

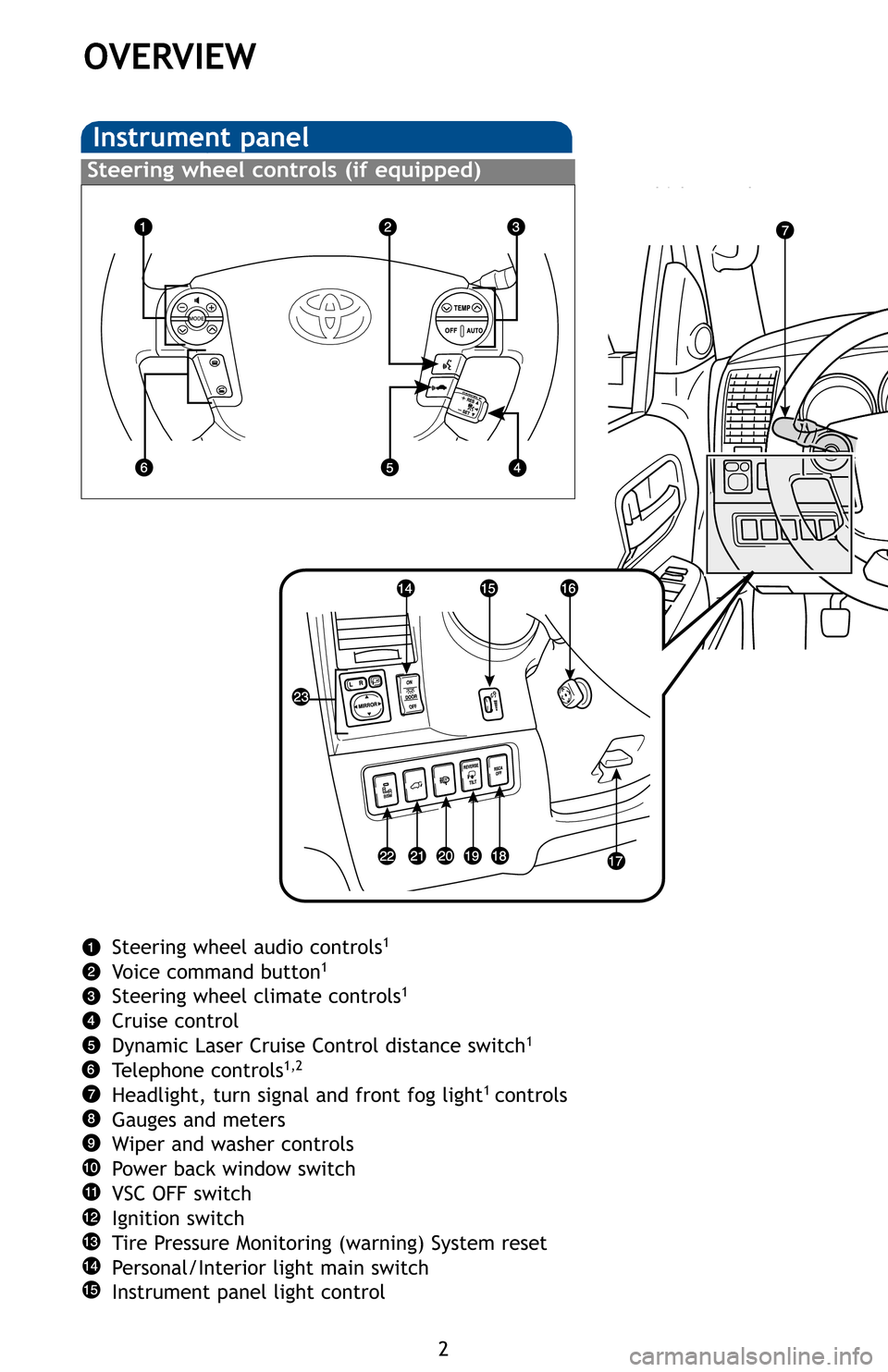

OVERVIEW
Instrument panel
Steering wheel audio controls1
Voice command button1
Steering wheel climate controls1
Cruise control
Dynamic Laser Cruise Control distance switch1
Telephone controls1,2
Headlight, turn signal and front fog light1 controls
Gauges and meters
Wiper and washer controls
Power back window switch
VSC OFF switch
Ignition switch
Tire Pressure Monitoring (warning) System reset
Personal/Interior light main switch
Instrument panel light control
T
T
R
“
H
P
B
P
1
2
Steering wheel controls (if equipped)
2012-Sequoia-QRG.qxd 8/16/11 7:37 PM Page 2

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
11
fer
FEATURES/OPERATIONS
Automatic Transmission
* The ignition switch must be “ON” and the brake pedal depressed to \
shift from Park.
Shift the shift lever to “S” position from “D” position.
+: Upshift (push and release)
-: Downshift (pull and release)
Downshifting increases power going uphill, or provides engine braking do\
wnhill.
For best fuel economy during normal driving conditions, always drive wit\
h the
shift lever in the “D” position.
“S” (Sequential) mode
Park*
Reverse
Neutral
Drive
“S” mode
“S”“D”
“TOW/HAUL” switch (if equipped)
“TOW/HAUL” mode can be used when carrying heavy loads. As fuel economy is
reduced while in “TOW/HAUL” mode, deactivating when driving without a load is
recommended.
Refer to the Owner‘s Manual for more details on this system before attempting
to use it.
System ON/OFF
Auto lock/unlock
Automatic door locks can be programmed to operate in four different mode\
s, or
turned OFF.
-Doors lock when shifting from Park.
-Doors lock when the vehicle speed is approximately 12 mph or higher.
-Doors unlock when shifting into Park.
-Doors unlock when the driver’s door is opened within 10 seconds after turning the iginition switch to the “ACC” or “LOCK” position.
Refer to the Owner’s Manual for more details.
2012-Sequoia-QRG.qxd 8/16/11 7:43 PM Page 11

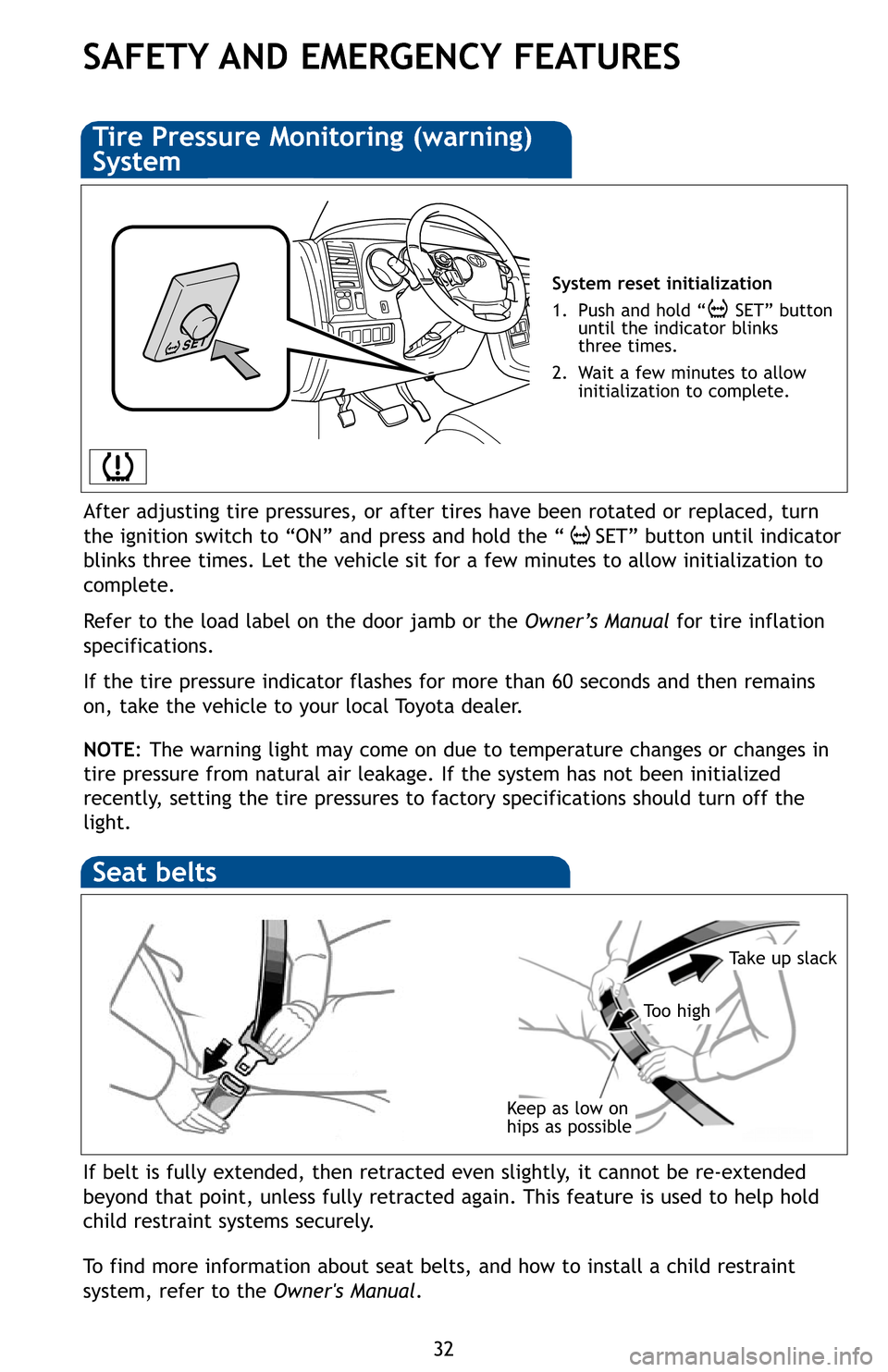

32
SAFETY AND EMERGENCY FEATURES
If belt is fully extended, then retracted even slightly, it cannot be re-extended
beyond that point, unless fully retracted again. This feature is used to help hold
child restraint systems securely.
To find more information about seat belts, and how to install a child res\
traint
system, refer to the Owner's Manual.
Keep as low on
hips as possible
Take up slack
Too high
Seat belts
System reset initialization
1. Push and hold “ SET” button
until the indicator blinks
three times.
2. Wait a few minutes to allow initialization to complete.
Tire Pressure Monitoring (warning)
System
After adjusting tire pressures, or after tires have been rotated or repl\
aced, turn
the ignition switch to “ON” and press and hold the “ SET” button until indicator
blinks three times. Let the vehicle sit for a few minutes to allow initi\
alization to
complete.
Refer to the load label on the door jamb or the Owner’s Manualfor tire inflation
specifications.
If the tire pressure indicator flashes for more than 60 seconds and then\
remains
on, take the vehicle to your local Toyota dealer.
NOTE : The warning light may come on due to temperature changes or changes in
tire pressure from natural air leakage. If the system has not been initi\
alized
recently, setting the tire pressures to factory specifications should turn off t\
he
light.
Se
Sp
Spa
Rem
(1) R
(2) A
(3) I
c
Refe
Movi
Rea
Do
(1)
2012-Sequoia-QRG.qxd 8/16/11 7:59 PM Page 32
