522 3-8. Other interior features
CAUTION
■Burns
●Use caution when seating the following persons in a seat with the seat
heater on to avoid the possibility of burns:
• Babies, small children, the elderly, the sick and the disabled
• Persons with sensitive skin
• Persons who are fatigued
• Persons who have taken alcohol or drugs that induce sleep (sleeping
drugs, cold remedies, etc.)
● Do not cover the seat with anything when using the seat heater.
Using the seat heater with a blanket or cushion increases the temperature
of the seat and may lead to overheating.
NOTICE
■To prevent seat heater damage
Do not put unevenly weighted objects on the seat and do not stick sharp
objects (needles, nails, etc.) into the seat.
■ To prevent battery discharge
Turn the switches off when the engine is not running.

552 4-1. Maintenance and care
NOTICE
■Cleaning detergents
●Do not use organic substances such as benzene or gasoline, acidic or
alkaline solutions, dye, bleach or other detergent. Doing so may discolor
the vehicle interior or cause streaks or damage to painted surfaces.
● Do not use polish wax or polish cleaner. The instrument panel’s or other
interior part’s painted surface may be damaged.
■ Preventing damage to leather surfaces
Observe the following precautions to avoid damage to and deterioration o\
f
leather surfaces.
●Remove any dust or dirt on leather surfaces immediately.
● Do not expose the vehicle to direct sunlight for extended periods of time.
Park the vehicle in the shade, especially during summer.
● Do not place items made of vinyl or plastic, or that contain wax on the
upholstery, as they may stick to the leather surface if the vehicle interior
heats up significantly.
■ Water on the floor
Do not wash the vehicle floor with water.
Vehicle systems such as the audio system may be damaged if water comes
into contact with electrical components under the floor of the vehicle, and
may also cause the body to rust.
■ Cleaning the inside of the back window and the rear quarter windows
●Do not use glass cleaner to clean the back window and the rear quarter
windows, as this may cause damage to the rear window defogger heater
wires or antennas. Use a cloth dampened with lukewarm water to gently
wipe the window clean. Wipe the window in strokes running parallel to the
heater wires.
● Be careful not to scratch or damage the heater wires or antennas.

603
4-3. Do-it-yourself maintenance
4
Maintenance and care
13 POWER NO.4 25 A Power windows
14 FOG 15 A Front fog lights
15 STOP 15 A
Stop lights, high mounted stop-
light, vehicle stability control sys-
tem, anti-lock brake system, shift
lock system, multiport fuel injection
system/sequential multiport fuel
injection system, towing converter
16 TOW BRK 30 A Trailer brake controller
17 IMB 7.5 A Multiport fuel injection system/
sequential multiport fuel injection
system
18 AM2 7.5 A Starting system
19 TOWING 30 A Towing converter
20 AI-HTR 10 A Air injection pump heaters
21 ALT-S 5 A Charging system
22 TURN-HAZ 15 A Turn signal lights, emergency
flashers, towing converter
23 F/PMP 25 A Fuel pump
24 ETCS 10 A Multiport fuel injection system/
sequential multiport fuel injection
system, electric throttle control sys-
tem
25 MET-B 5 A Gauges and meters
26 AMP 30 A Audio system, rear view monitor,
navigation system, rear seat enter-
tainment system
27 RAD NO.1 15 A Audio system, rear view monitor,
navigation system, rear seat enter-
tainment system
FuseAmpereCircuit

607
4-3. Do-it-yourself maintenance
4
Maintenance and care
■
Under the instrument panel
FuseAmpereCircuit
1 INVERTER 15 A Power outlet (120 V)
2 FR P/SEAT LH 30 A Power front driver’s seat
3 DR/LCK 25 A Multiplex communication system
4 POWER No.5 30 A Power back door
5 OBD 7.5 A On-board diagnosis system
6 PWR OUTLET 15 A Power outlets
7 AM1 7.5 A Shift lock system, starting system,
seat heaters
8 A/C 7.5 A Air conditioning system
9 MIR 15 A Outside rear view mirror control,
outside rear view mirror heaters
10 POWER No.3 20 A Power windows 11 FR P/SEAT RH 30 A Power front passenger seat
12 TI&TE 15 A Power tilt and power telescopic
13 S/ROOF 25 A Electric moon roof
14 RR SEAT-HTR
RH 10 A Seat heaters

608 4-3. Do-it-yourself maintenance
15 ECU-IG No.1 7.5 AAnti-lock brake system, vehicle sta-
bility control system, multiplex com-
munication system, intuitive
parking assist system, power front
driver’s seat, power tilt and power
telescopic, shift lock, tire pressure
warning system, accessory meter,
trailer towing, power outlet, electric
moon roof, power back door, head
light cleaner, Blind Spot Monitor
system, BSM main switch
16 AIR SUS IG 20 A Electronically modulated air sus-
pension system
17 LH-IG 7.5 A Back-up lights, charging system,
gauge and meters, turn signal
lights, air conditioning system, seat
heaters, rear window defogger
18 4WD 20 A Four-wheel drive control system
19 RR SEAT-HTR
LH 10 A Seat heaters
20 WSH 20 A Window washer
21 WIPER 30 A Wiper and washer
22 ECU-IG No.2 7.5 A Multiplex communication system,
power steering, gateway ECU
23 TAIL 15 A Tail lights, trailer lights (tail lights),
parking lights
24 A/C IG 10 A Air conditioning system
25 SEAT-HTR 20 A Seat heater or Heated and venti-
lated seats
FuseAmpereCircuit

609
4-3. Do-it-yourself maintenance
4
Maintenance and care
26 PANEL
7.5 AInstrument panel lights, glove box
light, ashtray, accessory meter,
audio system, rear view monitor,
navigation system, rear seat enter-
tainment system, gauges and
meters, air conditioning system,
seat heater or heated and venti-
lated switches, BSM main switch
27 ACC 7.5 AAccessory meter, audio system,
rear seat entertainment system,
rear view monitor, navigation sys-
tem, back-up lights, trailer lights
(back-up lights), multiplex commu-
nication system, power outlet, out-
side rear view mirror
28 BK/UP LP 10 A Back-up light, gauges and meters
29 CIG 15 A Cigarette lighter
30 POWER No.1 30 A Power windows, power back win-
dow
■ After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacement. ( P. 611)
● If the replaced fuse blows again, have the vehicle inspected by your
Toyota dealer.
■ If there is an overload in the circuits
The fuses are designed to blow, protecting the wiring harness from damage.
FuseAmpereCircuit

697
6-1. Specifications
6
Vehicle specifications
Warning: The temperature grades for this tire are established for a
tire that is properly inflated and not overloaded.
Excessive speed, underinflation, or
excessive loading, either sepa-
rately or in combination, can caus e heat buildup and possible tire fail-
ure.

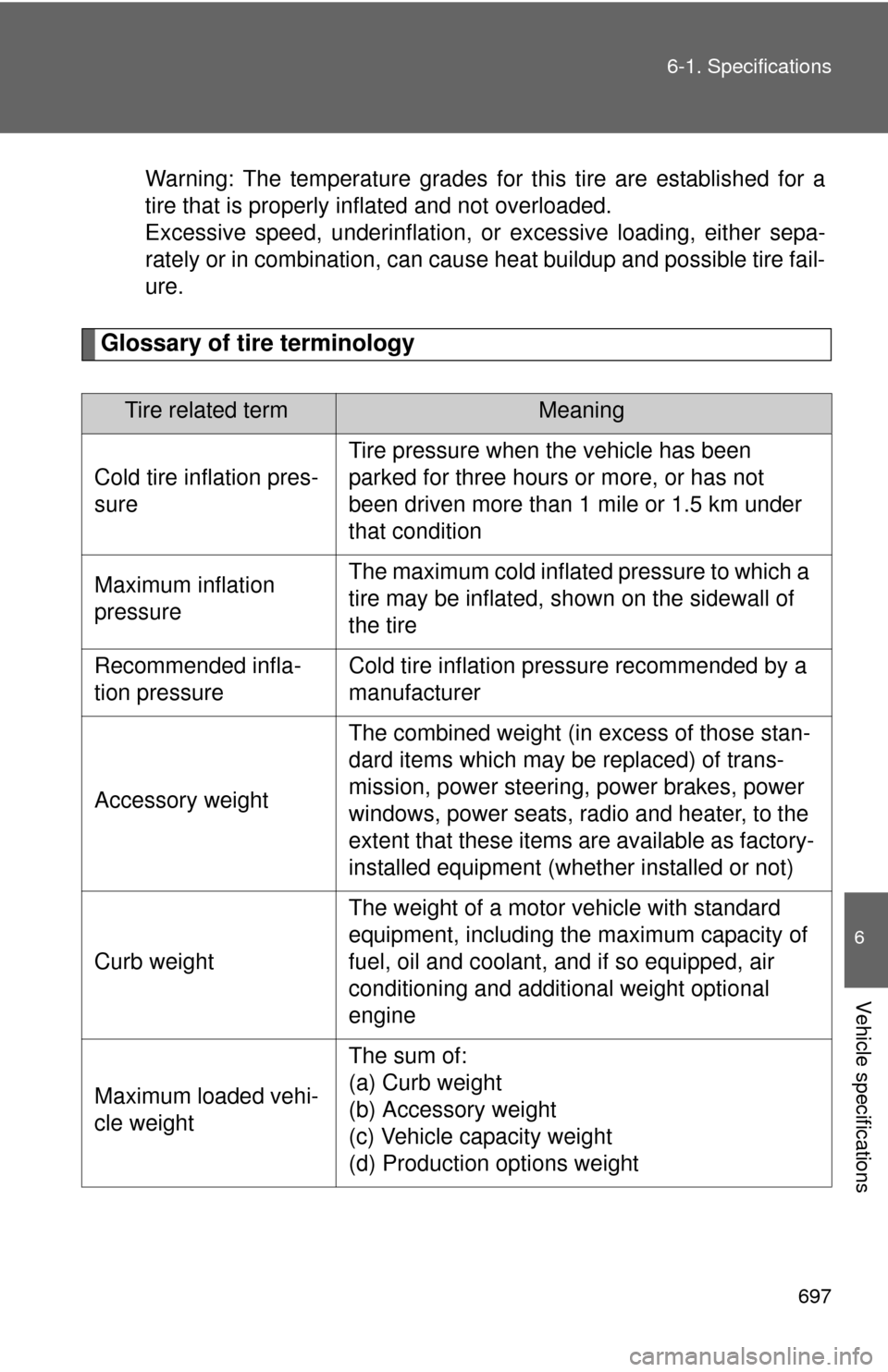

Glossary of tire terminology
Tire related termMeaning
Cold tire inflation pres-
sure
Tire pressure when the vehicle has been
parked for three hours or more, or has not
been driven more than 1 mile or 1.5 km under
that condition
Maximum inflation
pressureThe maximum cold inflated pressure to which a
tire may be inflated, s hown on the sidewall of
the tire
Recommended infla-
tion pressureCold tire inflation pressure recommended by a
manufacturer
Accessory weight
The combined weight (in excess of those stan-
dard items which may be replaced) of trans-
mission, power steering, power brakes, power
windows, power seats, radio and heater, to the
extent that these items are available as factory-
installed equipment (whether installed or not)
Curb weight
The weight of a motor vehicle with standard
equipment, including the maximum capacity of
fuel, oil and coolant, and if so equipped, air
conditioning and additional weight optional
engine
Maximum loaded vehi-
cle weight
The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight

729
Alphabetical index
Back-up lights
Replacing light bulbs ............ 611
Wattage ................................ 686
Back door Back door ............................... 42
Wireless remote control.......... 33
Back window .......................... 96
Battery
Checking .............................. 575
If the vehicle has discharged battery ................................ 665
Preparing and checking before winter ...................... 275
Blind Spot Monitor .................. 236
Bluetooth
® audio..................... 371
Bluetooth® phone ................... 448
Bottle holder ............................ 501
Brakes
Fluid...................................... 572
Parking brake ....................... 167
Brake assist ............................. 255
Break-in tips ............................ 151
BSM .......................................... 236
Card holder .............................. 487
Care Exterior ................................. 548
Interior .................................. 550
Seat belts ............................. 551
Cargo capacity ........................ 268
Cargo hooks ............................ 531
CD changer CD ........................................ 331
MP3 ...................................... 340
WMA disc ............................. 340
CD player ................................. 331
Chains ...................................... 275 Child restraint system
Booster seats, definition ........132
Booster seats, installation .....143
Convertible seats, definition .............................132
Convertible seats, installation ...........................142
Front passenger occupant
classification system ........... 127
Infant seats, definition ...........132
Infant seats, installation.........141
Installing CRS with LATCH system ................................138
Installing CRS with seat
belts ....................................141
Installing CRS with top tether straps ........................144
Child safety Airbag precautions ................121
Battery precautions .......576, 667
Child restraint system............132
Child-protectors .......................39
How your child should wear the seat belt ..........................78
Installing child restraints ........136
Moon roof precautions ..........101
Power window lock switch.......93
Power window precautions .....95
Removed key battery precautions .........................598
Seat belt extender precautions ...........................81
Seat belt precautions ..............78
Seat heater precautions ........520
Child-protectors .........................39
Cigarette lighter .......................510
Cleaning Exterior ..................................548
Interior ...................................550
Seat belts ..............................551
B
C

731
Alphabetical index
Engine
Compartment........................ 565
Engine switch ....................... 159
Hood ..................................... 564
How to start the
engine ................................ 159
Identification number ............ 678
If the engine will not start...... 661
Ignition switch ...................... 159
Overheating .......................... 668
Engine coolant
Capacity ............................... 681
Checking .............................. 570
Preparing and checking before winter ...................... 275
Engine coolan t temperature
gauge ..................................... 169
Engine immobilizer system .... 107
Engine oil Capacity ............................... 679
Checking .............................. 566
Preparing and checking before winter ...................... 275
Engine switch .......................... 159
Event data recorder .................. 27
FFV ................................... 102, 687
Flex-fuel ........................... 102, 687
Flexible fuel vehicle ........ 102, 687
Floor mat .................................. 528
Fluid Brake .................................... 572
Washer ................................. 578
Fog lights
Replacing light bulbs ............ 611
Switch ................................... 194
Wattage ................................ 686
Four-wheel drive system ........ 248
Front air conditioning system ................................... 302
Front passenger occupant classification system............ 127 Front passenger’s seat belt
reminder light.........................635
Front seats Adjustment ..............................50
Front side marker lights
Replacing light bulbs .............611
Switch....................................188
Wattage .................................686
Front turn signal lights Replacing light bulbs .............611
Wattage .................................686
Fuel Capacity ................................679
Fuel gauge ............................169
Fuel pump shut off system ....632
Gas station information .........740
Information ............................687
Refueling ...............................102
Type ......................................679
Fuel filler door ..........................102
Fuel pump shut off system .....632
Fuses.........................................599
Garage door opener.................535
Gas station information...........740
Gauges ......................................169
Glove box..................................483
Hands-free system (for cellular phone) ................448
Hazard lights Switch....................................624
Head restraints
Adjusting ................................68
Headlight cleaner .....................202
Headlights Replacing light bulbs .............611
Switch....................................188
Wattage .................................686
Heaters Seat heaters ..................518, 521
Side mirror.............................314
F
G
H

733
Alphabetical index
Mirrors
Conversation mirror .............. 511
Inside rear view mirror ............ 84
Side mirror heaters ............... 314
Side mirrors ............................ 87
Vanity mirrors ....................... 505
Moon roof................................... 99
MP3 disc................................... 340
Multi-information display ................................... 179
Noise from under vehicle ......... 25
Odometer ................................. 169
Off-road precautions............... 263
Oil Engine oil.............................. 566
Opener
Back door ............................... 42
Fuel filler door....................... 102
Hood ..................................... 564
Outside rear view mirrors Adjusting and folding .............. 87
Indicator................................ 236
Outside rear view mirror indicator................................. 236
Outside temperature
display ................................... 507
Overhead console ................... 495
Overheating, Engine ............... 668 Parking assist...........................221
Parking brake ...........................167
Parking lights
Replacing light bulbs .............611
Switch....................................188
Wattage .................................686
Pen holder ................................490
Personal lights Switch....................................480
Wattage .................................686
Power back door ........................43
Power back window ...................96
Power outlet .............................512
Power windows ..........................93
Radiator ....................................572
Radio .........................................323
Rear air conditioning system ....................................310
Rear console box .....................492
Rear seat Adjustment ..............................54
Folding down second
seatback ...............................58
Folding down third
seatback ...............................60
Rear seat entertainment system ....................................387
Rear seat entertainment system controller battery......398
Rear side sunshade .................524
Rear turn signal lights
Replacing light bulbs .............611
Wattage .................................686
N
O
P
R
