heater TOYOTA SEQUOIA 2013 2.G Owners Manual

1
2
3
4
5
6
7
5
3-8. Other interior featuresSun visors ........................... 504
Vanity mirrors ...................... 505
Clock ................................... 506
Outside temperature display............................... 507
Portable ashtray .................. 509
Cigarette lighter................... 510
Conversation mirror ............ 511
Power outlets ...................... 512
Seat heaters........................ 518
Seat heaters and ventilators ......................... 521
Armrests.............................. 523
Rear side sunshades .......... 524
Seatback table .................... 526
Assist grips.......................... 527
Floor mat ............................. 528
Luggage compartment features ............................. 530
Garage door opener............ 535
Compass ............................. 541 4-1. Maintenance and care
Cleaning and protecting the vehicle exterior ........... 548
Cleaning and protecting the vehicle interior ............ 550
4-2. Maintenance Maintenance requirements .................... 553
General maintenance ......... 556
Emission inspection and maintenance (I/M)
programs .......................... 559
4-3. Do-it-yourself maintenance Do-it-yourself service precautions....................... 560
Hood ................................... 564
Engine compartment .......... 565
Tires ................................... 580
Tire inflation pressure ......... 587
Wheels ............................... 591
Air conditioning filter ........... 594
Wireless remote control battery .............................. 597
Checking and replacing fuses................................. 599
Light bulbs .......................... 611
4Maintenance and care

17
Vehicles with rear console box
Cup holders P. 497
Auxiliary box P. 502Seat heater switches
P. 519
Rear console box P. 492
Cup holders P. 497

19
*: Refer to “Navigation System Owner’s Manual”
Seat heater switches
Seat heater and ventilator
switches

P. 518
P. 521
Air conditioning
system
P. 302
Power outlet P. 512
Audio system
Navigation system
*
P. 319Rear window defogger switch/
Rear window defogger and outside rear
view mirror defogger switch

Windshield wiper de-icer

P. 314
P. 316Security indicator
P. 107, 109Accessory meter
P. 185
Cigarette lighter P. 510
AUX port
AUX port/USB port

P. 366
P. 348, 355, 366
: If equipped

Interior features3
301

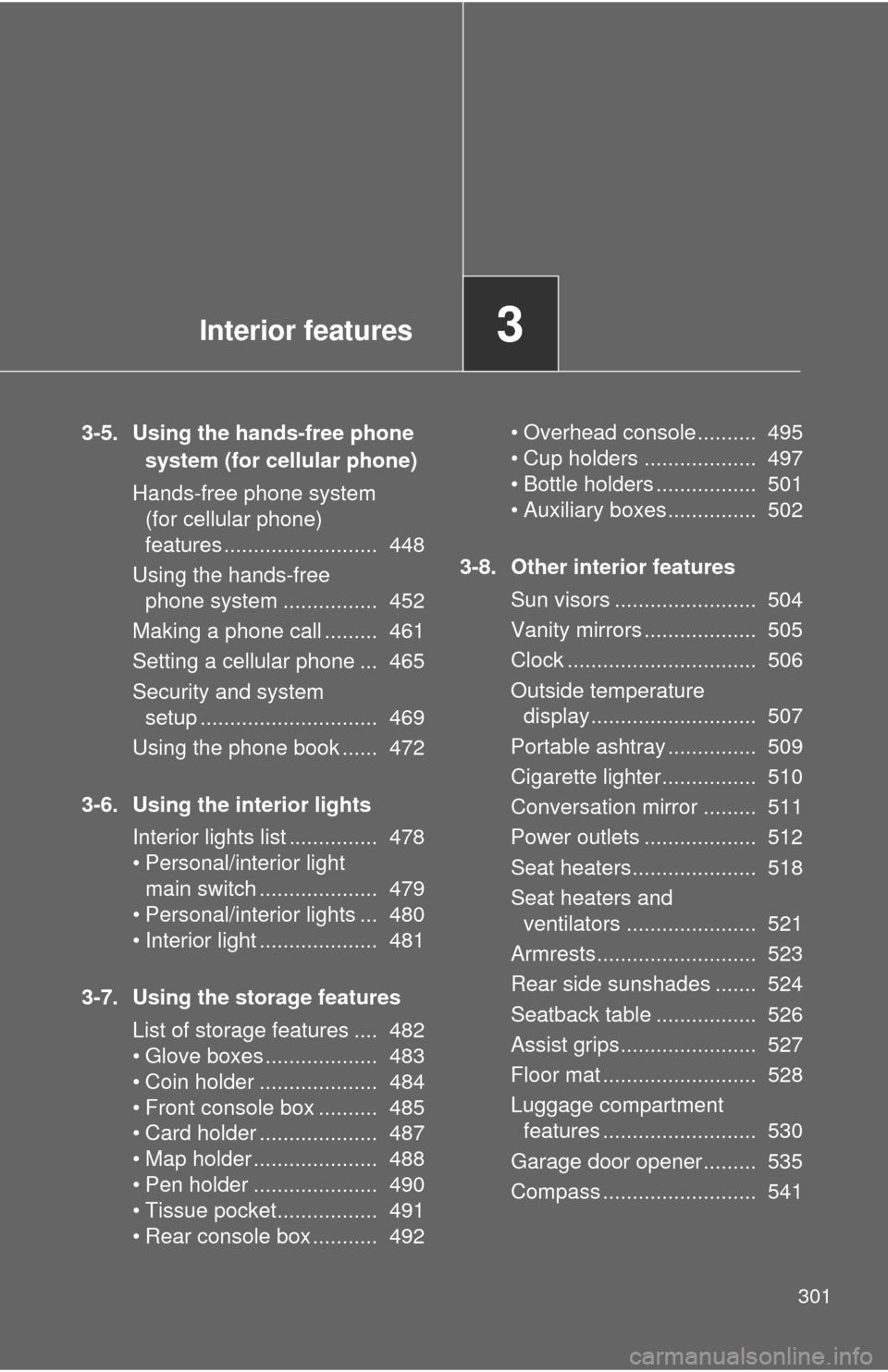

3-5. Using the hands-free phone system (for cellular phone)
Hands-free phone system (for cellular phone)
features .......................... 448
Using the hands-free phone system ................ 452
Making a phone call ......... 461
Setting a cellular phone ... 465
Security and system setup .............................. 469
Using the phone book ...... 472
3-6. Using the interior lights Interior lights list ............... 478
• Personal/interior light main switch .................... 479
• Personal/interior lights ... 480
• Interior light .................... 481
3-7. Using the storage features List of storage features .... 482
• Glove boxes ................... 483
• Coin holder .................... 484
• Front console box .......... 485
• Card holder .................... 487
• Map holder ..................... 488
• Pen holder ..................... 490
• Tissue pocket................. 491
• Rear console box ........... 492 • Overhead console .......... 495
• Cup holders ................... 497
• Bottle holders ................. 501
• Auxiliary boxes ............... 502
3-8. Other interior features Sun visors ........................ 504
Vanity mirrors ................... 505
Clock ................................ 506
Outside temperature display............................ 507
Portable ashtray ............... 509
Cigarette lighter................ 510
Conversation mirror ......... 511
Power outlets ................... 512
Seat heaters..................... 518
Seat heaters and ventilators ...................... 521
Armrests........................... 523
Rear side sunshades ....... 524
Seatback table ................. 526
Assist grips....................... 527
Floor mat .......................... 528
Luggage compartment features .......................... 530
Garage door opener......... 535
Compass .......................... 541

308 3-1. Using the air conditioning system and defogger
Passenger side outlets
Direct air flow to the left or
right, up or down.
Turn the knob to open or close
the vent.
■Using the automatic mode
Fan speed is adjusted automatically in accordance with the temperature set-
ting and ambient conditions. As a result, the following may occur.
●Immediately after the switch is pressed, the fan may stop for a while until
warm or cool air is ready to flow.
● Cool air may flow to the area around the upper body when the heater is
on.
■ Using the system in recirculated air mode
The windows will fog up more easily if the recirculated air mode is used for
an extended period.
■ Switching between outside air and recirculated air modes
Recirculated air mode or outside air mode may be automatically switched to
in accordance with the temperature setting and the inside temperature.
■ Window defogger feature
Recirculated air mode may automatically switch to outside air mode in situa-
tions where the windows need to be defogged.

515
3-8. Other interior features
3
Interior features
CAUTION
■
Using a power outlet
Observe the following precautions to reduce the risk of injury.
●Use of the power outlet when it is wet with drinks or snow may result in
electrical shocks and is extremel y dangerous. The power outlet must be
thoroughly dried before use.
● Do not allow children to use or play with the power outlet.
● Be careful not to get any part of your body caught in the power outlet lid.
● When using electrical appliances, strictly follow any cautions and notices
written on their labels and in the manufacturers’ instruction manuals.
● Do not modify, disassemble or repair the power outlet or its inverter, in any
way. Doing so may result in unexpected malfunctions or accidents, which
could cause serious damage or injuries. Contact a Toyota dealer for any
necessary repairs.
■ To prevent injuries and accidents, secu rely fix all electric appliances
before use and do not use any app liances that may do any of the fol-
lowing:
● Distract the driver while driving, or hamper safe driving.
● Result in a fire or burn injuries due to the appliance rolling, falling or over-
heating while driving.
● Emit steam, while the windows of the cabin are closed.
■ To prevent unexpected accidents, such as electric shocks, do not per-
form any of the following.
●Using the power outlet for electric heaters while sleeping.
● Contaminating the power outlet with liquid substances or mud.
● Handling electrical appliance plugs at the power outlet with wet hands or
feet.
● Inserting foreign objects into the power outlet.
● Using malfunctioning electric appliances.
● Inserting inappropriate or badly fitting plugs into the power outlet.

518
3-8. Other interior features

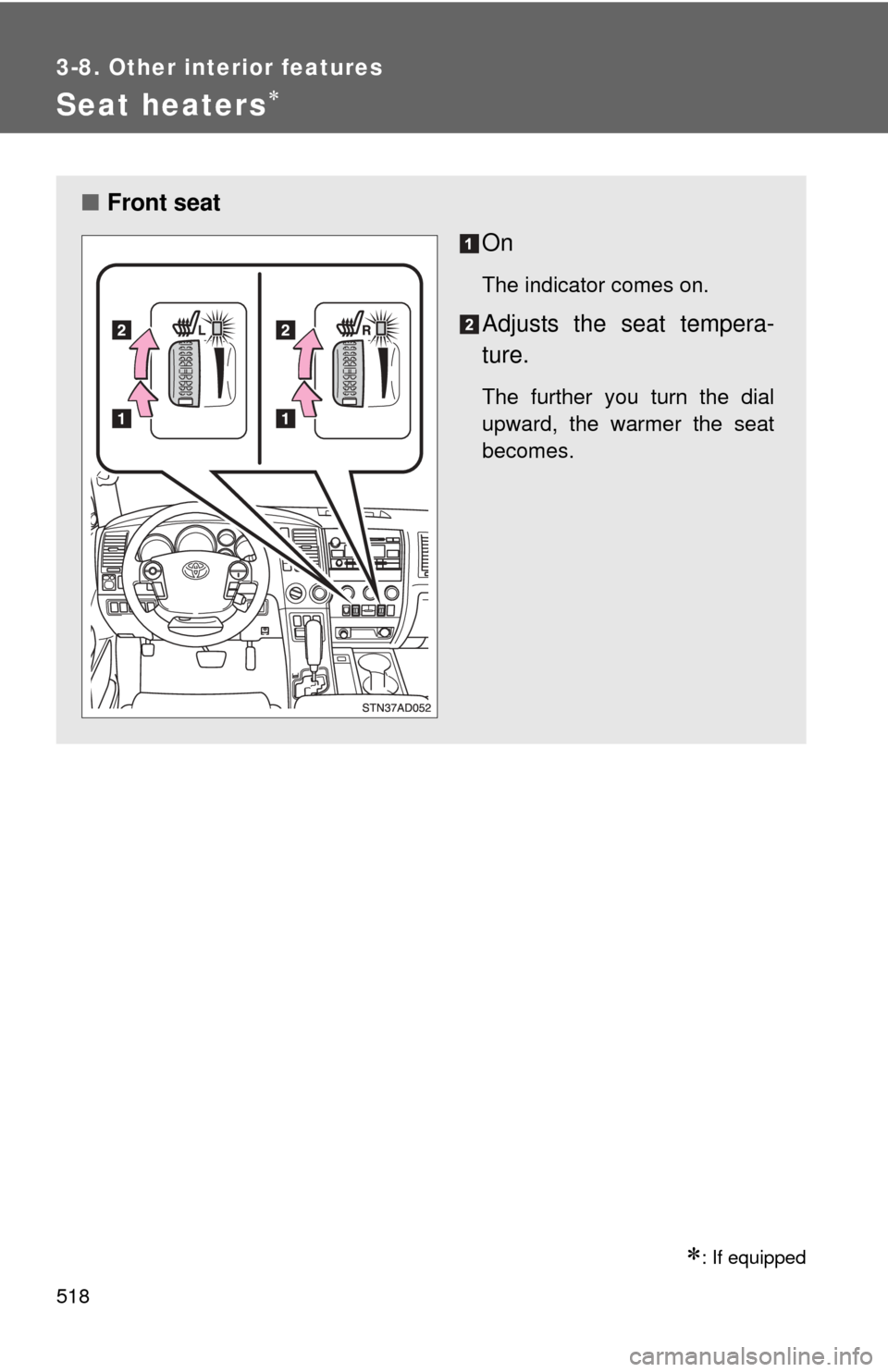

Seat heaters
: If equipped
■Front seat
On
The indicator comes on.
Adjusts the seat tempera-
ture.
The further you turn the dial
upward, the warmer the seat
becomes.

519
3-8. Other interior features
3
Interior features
■
The seat heaters can be used when
The engine switch is in the ON position.
■ When not in use
Front seat: Turn the dial fully downward. The indicator turns off.
Rear seat (vehicles with rear console box): Push lightly on the opposite side.
The indicator turns off.

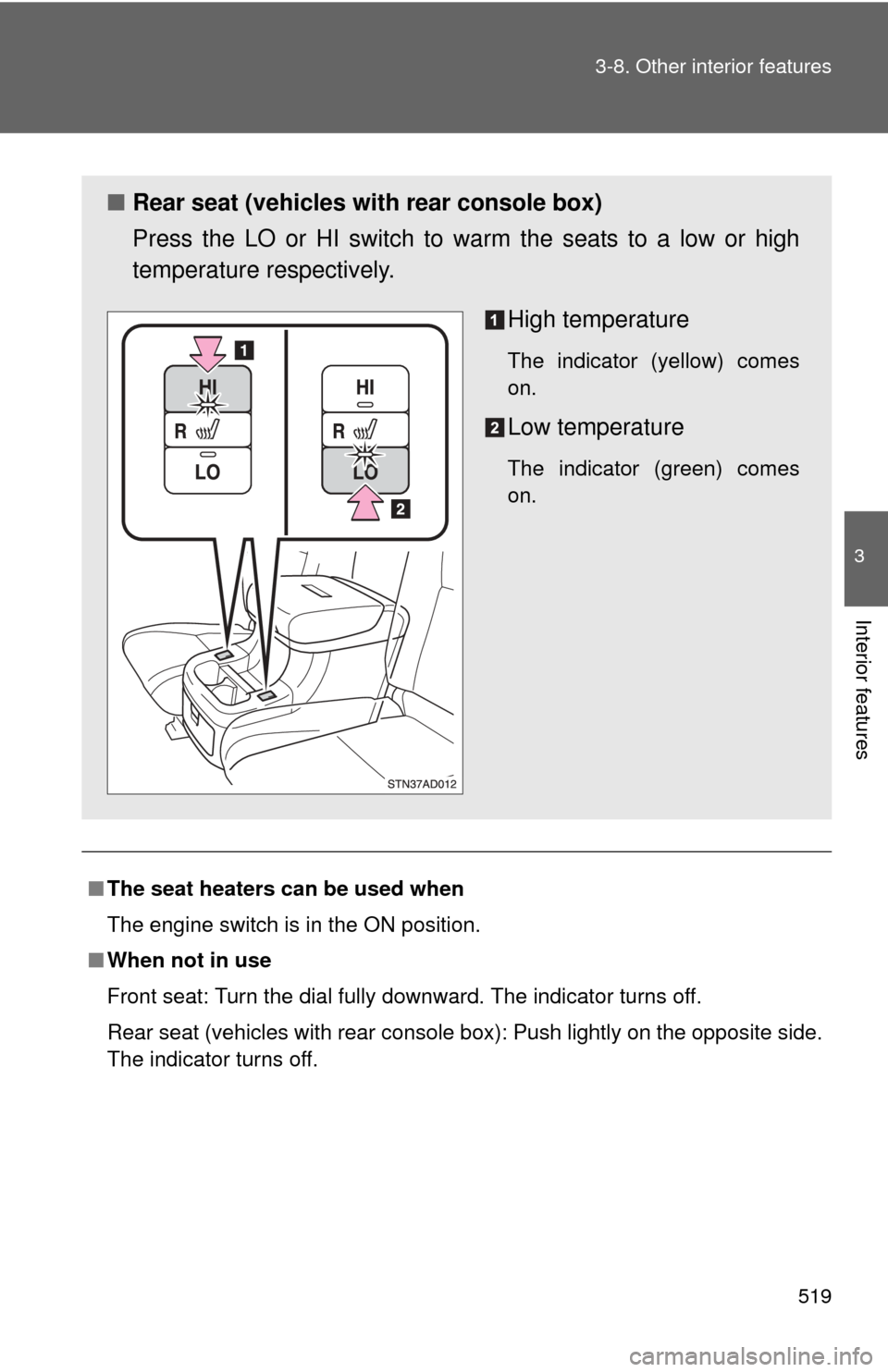

■ Rear seat (vehicles with rear console box)
Press the LO or HI switch to warm the seats to a low or high
temperature respectively.
High temperature
The indicator (yellow) comes
on.
Low temperature
The indicator (green) comes
on.

520 3-8. Other interior features
CAUTION
■Burns
●Use caution when seating the following persons in a seat with the seat
heater on to avoid the possibility of burns:
• Babies, small children, the elderly, the sick and the disabled
• Persons with sensitive skin
• Persons who are fatigued
• Persons who have taken alcohol or drugs that induce sleep (sleeping
drugs, cold remedies, etc.)
● Do not cover the seat with anything when using the seat heater.
Using the seat heater with a blanket or cushion increases the temperature
of the seat and may lead to overheating.
NOTICE
■To prevent seat heater damage
Do not put unevenly weighted objects on the seat and do not stick sharp
objects (needles, nails, etc.) into the seat.
■ To prevent battery discharge
Turn the switches off when the engine is not running.

521
3-8. Other interior features
3
Interior features

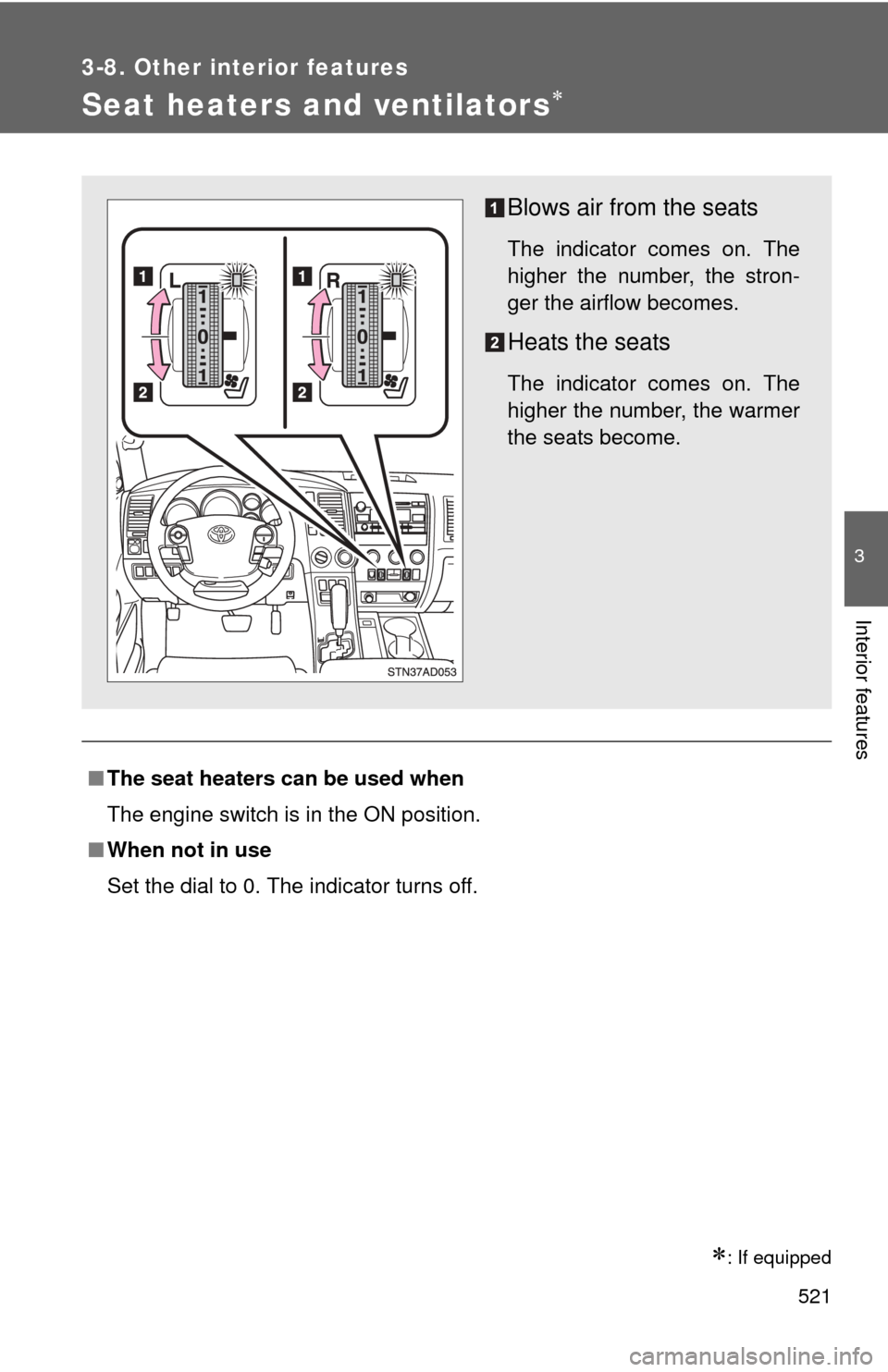

Seat heaters and ventilators
: If equipped
■The seat heaters can be used when
The engine switch is in the ON position.
■ When not in use
Set the dial to 0. The indicator turns off.
Blows air from the seats
The indicator comes on. The
higher the number, the stron-
ger the airflow becomes.
Heats the seats
The indicator comes on. The
higher the number, the warmer
the seats become.
