TOYOTA SEQUOIA 2013 2.G Quick Reference Guide

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
19
Automatic operation Push the switch completely down or pull it completely
up and release to fully open or close. To stop window partway, lightly push the
switch in the opposite direction.
Window lock switch Deactivates all passenger windows and back window. Driver’s
window remains operable.

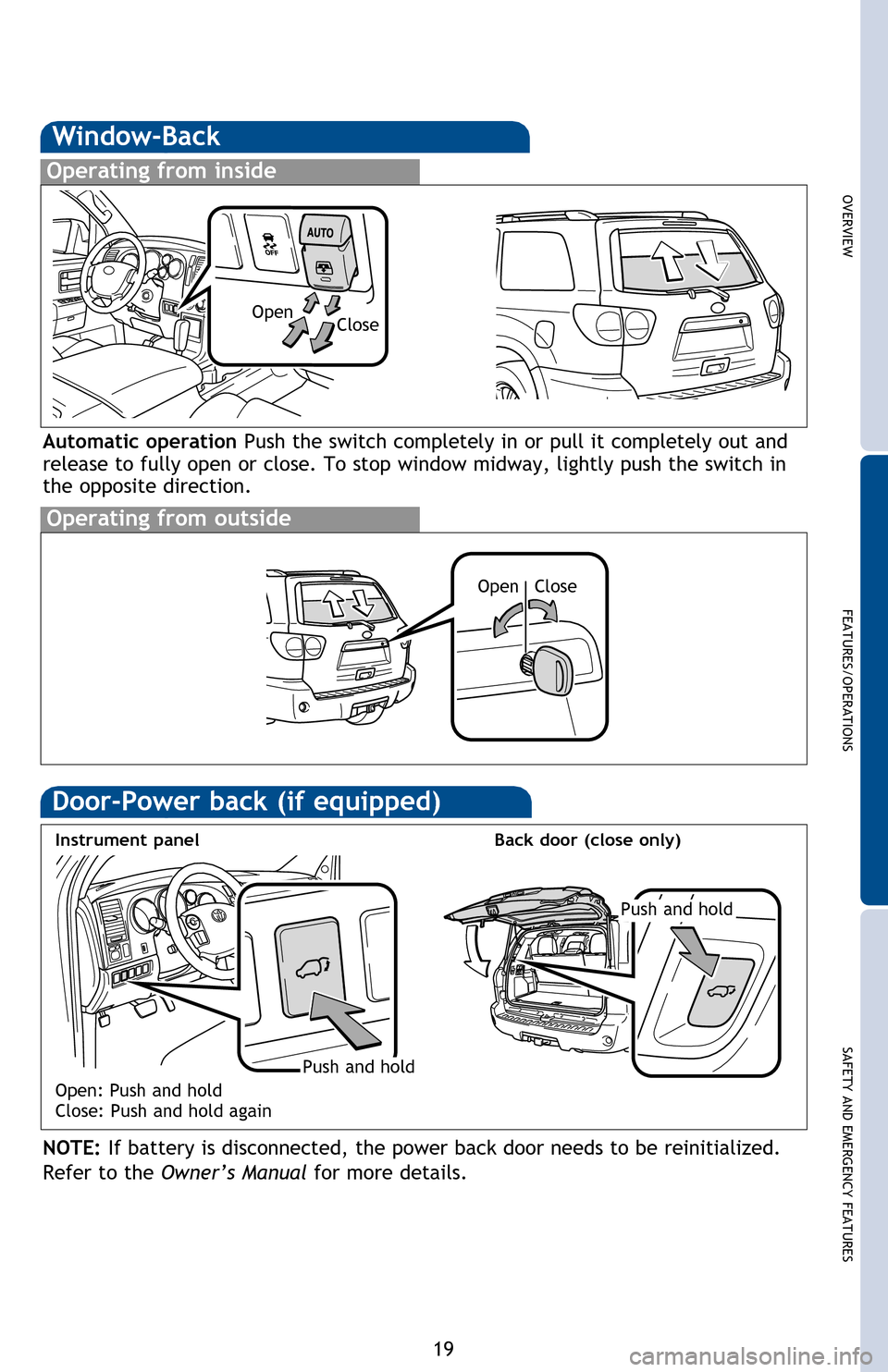

Window-Back
Operating from inside
Operating from outside
Automatic operation Push the switch completely in or pull it completely out and
release to fully open or close. To stop window midway, lightly push the switch in
the opposite direction.
Open Close
Open Close
Door-Power back (if equipped)
Push and hold
Push and hold
Back door (close only)
Open: Push and hold
Close: Push and hold again
NOTE: If battery is disconnected, the power back door needs to be reinitialized.
Refer to the Owner’s Manual for more details.
Instrument panel
* Intermittent windshield wiper frequency adjustment
Rotate to increase/decrease wipe frequency.
Interval wipe
Wash and wipe Wipe Interval wipe
Wash and wipe
2013Sequoia.indd 198/13/12 10:42 PM

20

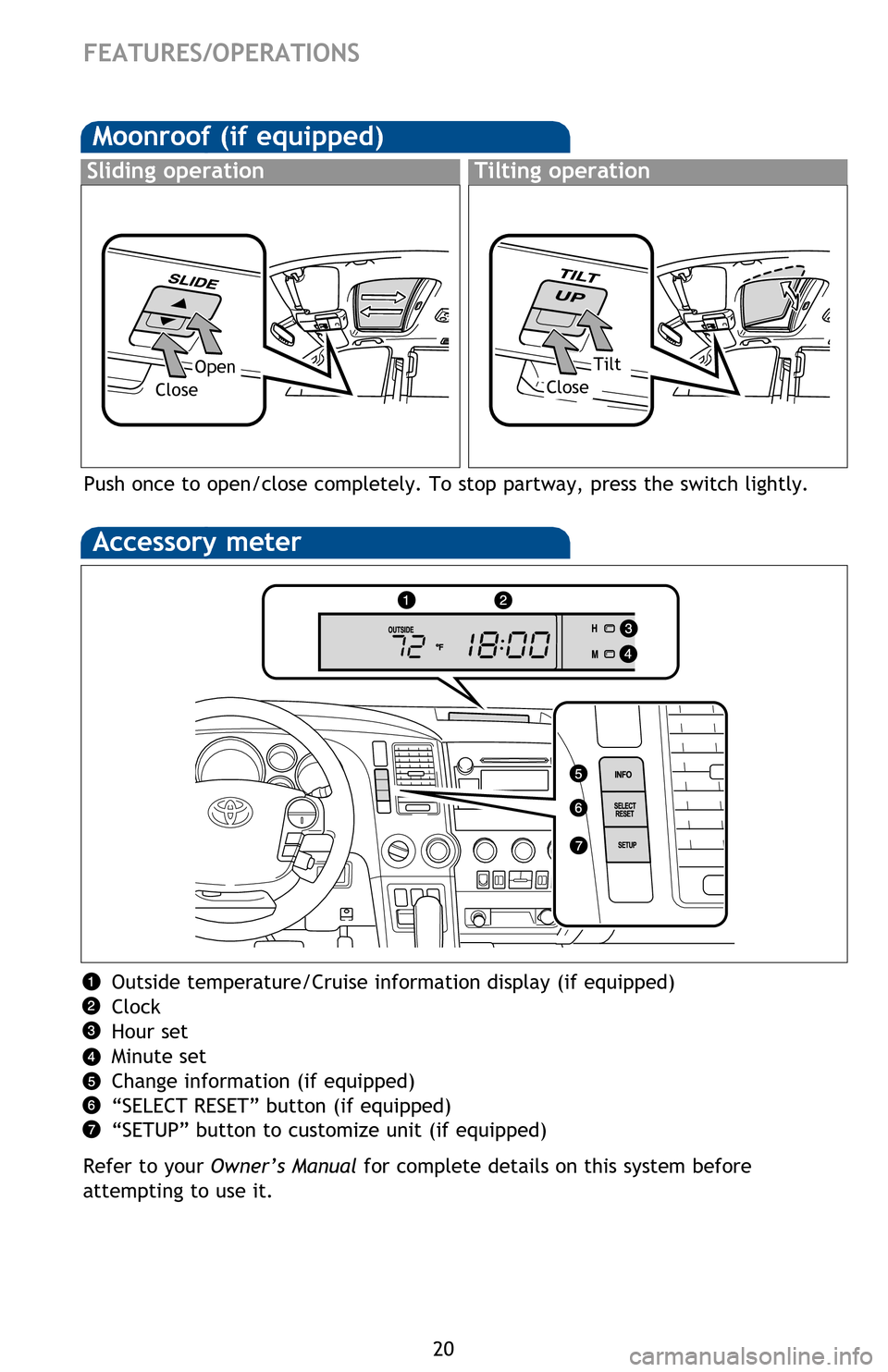

Moonroof (if equipped)
Sliding operationTilting operation
OpenTilt
CloseClose
FEATURES/OPERATIONS
Tilt and telescopic steering wheel
Hold wheel, push lever down, set angle and length and return lever.
Manual
Toggle the control switch to set angle and length.
NOTE: Do not attempt to adjust while the vehicle is in motion.
Power
The VSC OFF button is used to switch between modes related to the TRAC, VSC
and Auto LSD functions.
Refer to Section 2-4 of the Owner’s Manual for more information.
VSC OFF button
Push once to open/close completely. To stop partway, press the switch lightly.
Accessory meter
Outside temperature/Cruise information display (if equipped)
Clock
Hour set
Minute set
Change information (if equipped)
“SELECT RESET” button (if equipped)
“SETUP” button to customize unit (if equipped)
Refer to your Owner’s Manual for complete details on this system before
attempting to use it.
2013Sequoia.indd 208/13/12 10:42 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
21
Tilting operation
Tilt and telescopic steering wheel
Hold wheel, push lever down, set angle and length and return lever.
Manual
Lock release leverAngle
Toggle the control switch to set angle and length.
NOTE: Do not attempt to adjust while the vehicle is in motion.
Power
UpControl switch
Away from
the driver Length
Toward the
driver
Down
The VSC OFF button is used to switch between modes related to the TRAC, VSC
and Auto LSD functions.
Refer to Section 2-4 of the Owner’s Manual for more information.
VSC OFF button
VSC OFF button
Push once to open/close completely. To stop partway, press the switch lightly.
Outside temperature/Cruise information display (if equipped)
Clock
Hour set
Minute set
Change information (if equipped)
“SELECT RESET” button (if equipped)
“SETUP” button to customize unit (if equipped)
Refer to your Owner’s Manual for complete details on this system before
attempting to use it.
2013Sequoia.indd 218/13/12 10:42 PM

22

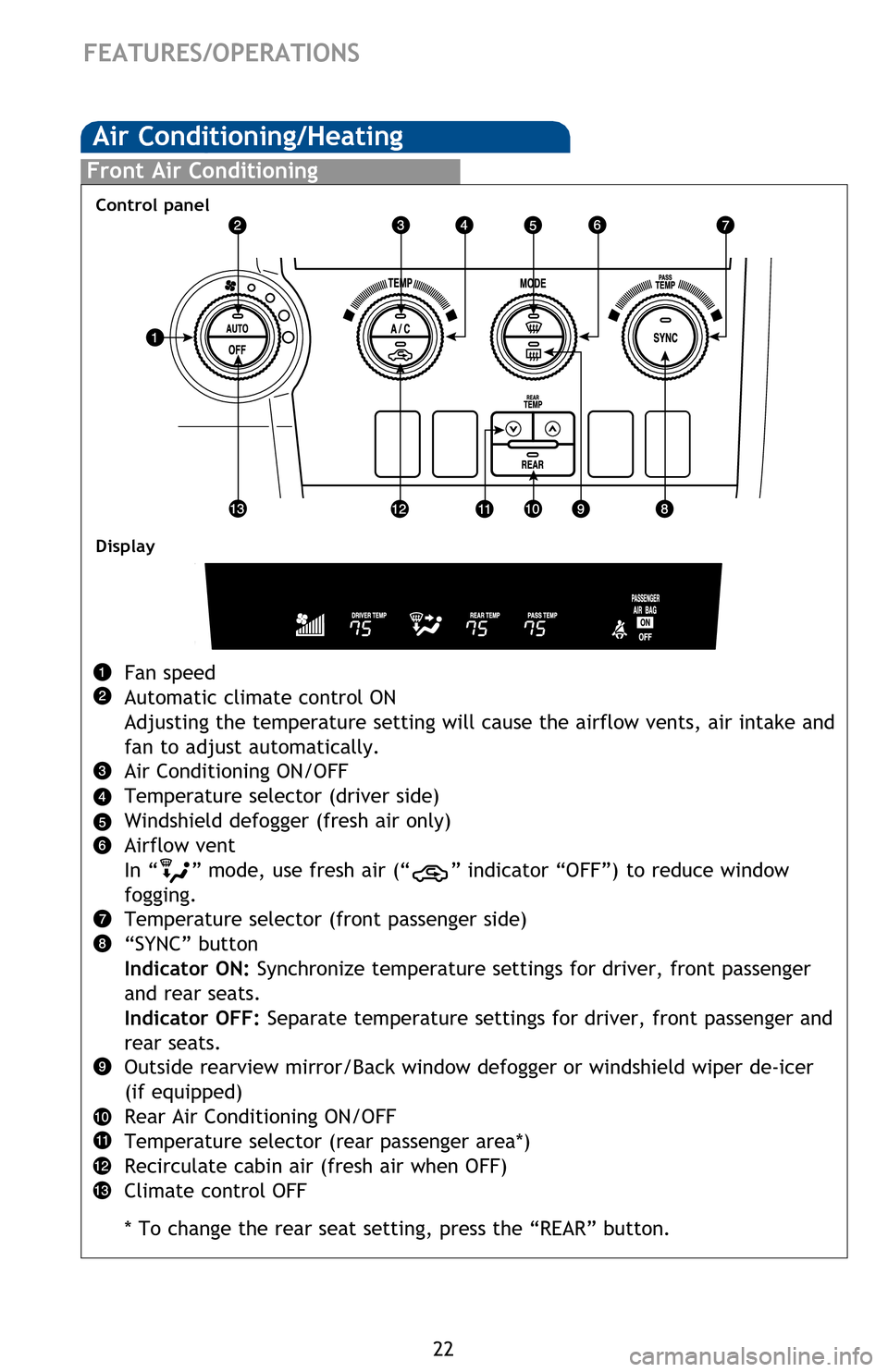

Front Air Conditioning
Fan speed
Automatic climate control ON
Adjusting the temperature setting will cause the airflow vents, air intake and
fan to adjust automatically.
Air Conditioning ON/OFF
Temperature selector (driver side)
Windshield defogger (fresh air only)
Airflow vent


In “
” mode, use fresh air (“” indicator “OFF”) to reduce window
fogging.

Temperature

selector (front passenger side)
“SYNC” button
Indicator ON: Synchronize temperature settings for driver, front passenger
and rear seats.
Indicator OFF: Separate temperature settings for driver, front passenger and
rear seats.
Outside rearview mirror/Back window defogger or windshield wiper de-icer
(if equipped)
Rear Air Conditioning ON/OFF
Temperature selector (rear passenger area*)
Recirculate cabin air (fresh air when OFF)
Climate control OFF
* To change the rear seat setting, press the “REAR” button.
FEATURES/OPERATIONS
Air Conditioning/HeatingRear Air Conditioning
Automatic climate control ON
Display
Airflow vent
Fan speed
Temperature selector
Climate control OFF
Seat ventilators/heaters (if equipped)
Front seats
Second seats
Ventilator
With ventilators
Control panel
Display
High heat
setting
Push lightly in the opposite direction to turn off.
2013Sequoia.indd 228/13/12 10:42 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
23
Fan speed
Automatic climate control ON
Adjusting the temperature setting will cause the airflow vents, air intake and
fan to adjust automatically.
Air Conditioning ON/OFF
Temperature selector (driver side)
Windshield defogger (fresh air only)
Airflow vent
In “
” mode, use fresh air (“” indicator “OFF”) to reduce window
fogging.
Temperature selector (front passenger side)
“SYNC” button
Indicator ON: Synchronize temperature settings for driver, front passenger
and rear seats.
Indicator OFF: Separate temperature settings for driver, front passenger and
rear seats.
Outside rearview mirror/Back window defogger or windshield wiper de-icer
(if equipped)
Rear Air Conditioning ON/OFF
Temperature selector (rear passenger area*)
Recirculate cabin air (fresh air when OFF)
Climate control OFF
* To change the rear seat setting, press the “REAR” button.

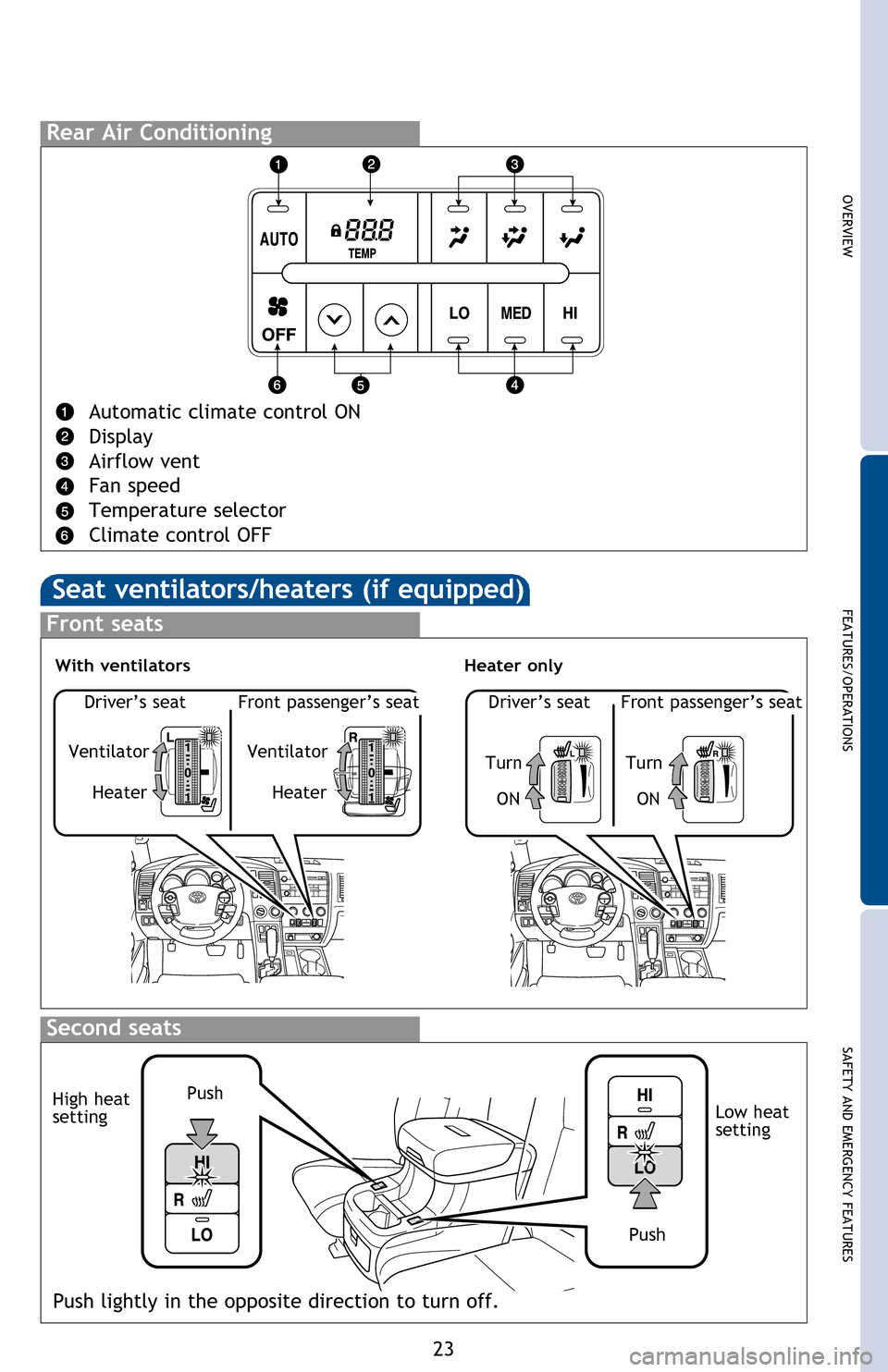

Rear Air Conditioning
Automatic climate control ON
Display
Airflow vent
Fan speed
Temperature selector
Climate control OFF
Seat ventilators/heaters (if equipped)
Front seats
Second seats
Ventilator
Driver’s seat
Front passenger’s seat
Heater
Ventilator
Heater
Turn
Driver’s seat
Front passenger’s seat
ON
Turn
ON
Heater onlyWith ventilators
Push
Push
Low heat
setting
High heat
setting
Push lightly in the opposite direction to turn off.
2013Sequoia.indd 238/13/12 10:42 PM

24
FEATURES/OPERATIONS

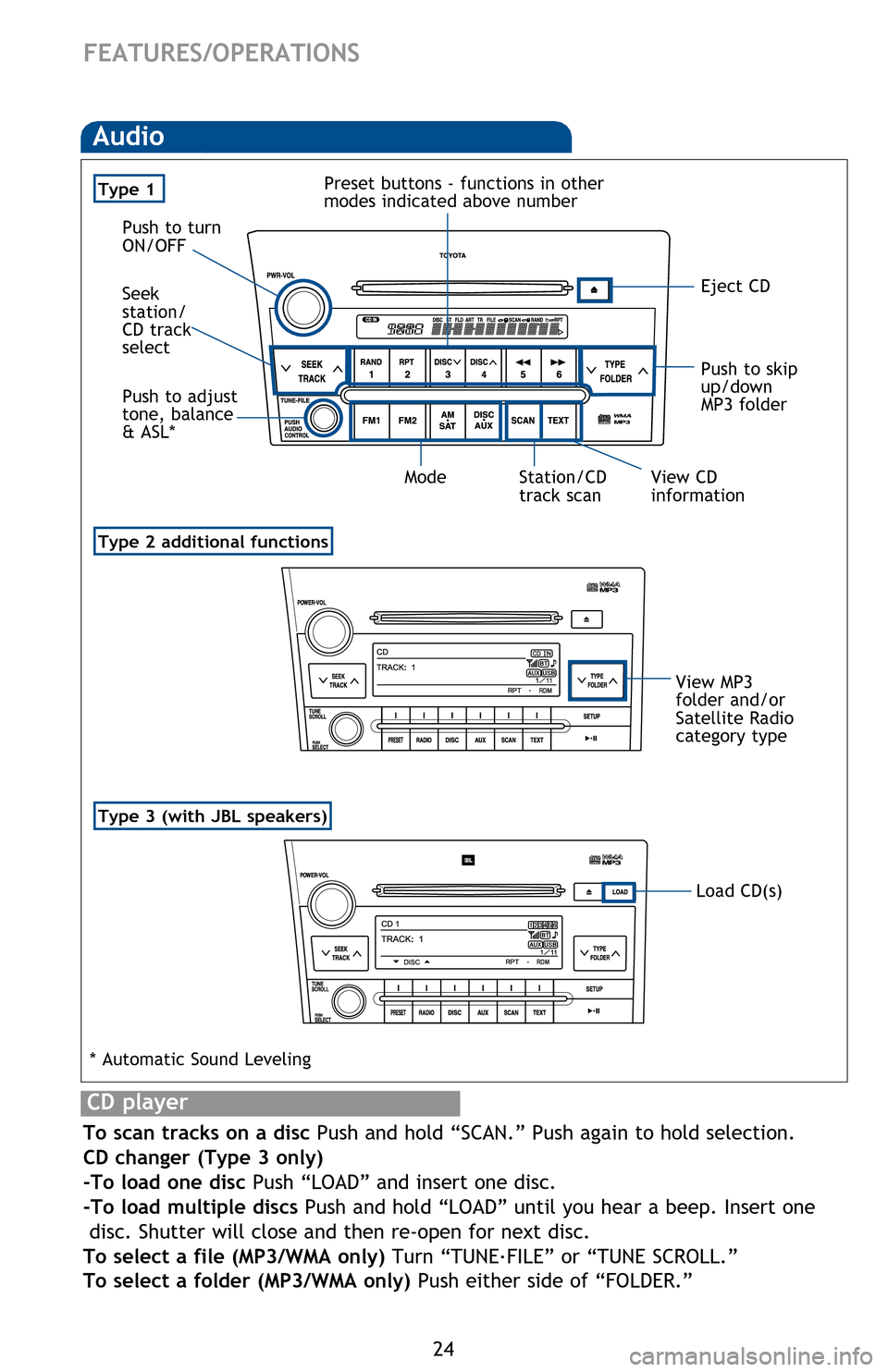

Audio
Type 2 additional functions
Type 3 (with JBL speakers)
Eject CD
Push to turn
ON/OFF
View CD
information
Push to adjust
tone, balance
& ASL* Seek
station/
CD track
select
Station/CD
track scan
Mode
View MP3
folder and/or
Satellite Radio
category type
Preset buttons - functions in other
modes indicated above number
Load CD(s)
Type 1
Push to skip
up/down
MP3 folder
CD player
To scan
tracks on a disc Push and hold “SCAN.” Push again to hold selection.
CD changer (Type 3 only)
-To load one disc Push “LOAD” and insert one disc.
-To load multiple discs Push and hold “LOAD” until you hear a beep. Insert one
disc. Shutter will close and then re-open for next disc.
To select a file (MP3/WMA only) Turn “TUNE .
FILE” or “TUNE
SCROLL.”
To select a folder (MP3/WMA only) Push either side of “FOLDER.”
* Automatic Sound Leveling
Radio
To preset stations Tune in the desired station and hold down a preset button (1-6
or one of ) until you hear a beep. Push desired preset button to select.
To scan stations Push and hold “SCAN” to scan preset stations. Push again to hold
selection.

USB port (if equipped)/AUX port
AUX port
By inserting a mini plug into the AUX port, you can listen to music from a portable
audio device through the vehicle’s speaker system while in AUX mode.
USB port
By connecting a USB-compatible portable audio device or USB memory to the
USB port, you can listen to music from the portable audio device or USB memory
through the vehicle’s speaker system while in USB mode.
Steering wheel switches (if equipped)
Volume control
“ ”
Use to search within the selected audio medium (radio, CD, iPod®, etc.).
“MODE”
Push to turn audio ON and select an audio mode. Push and hold to turn the
audio system OFF.
Type 1
2013Sequoia.indd 248/13/12 10:42 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
25
To scan tracks on a disc Push and hold “SCAN.” Push again to hold selection.
CD changer (Type 3 only)
-To load one disc Push “LOAD” and insert one disc.
-To load multiple discs Push and hold “LOAD” until you hear a beep. Insert one
disc. Shutter will close and then re-open for next disc.
To select a file (MP3/WMA only) Turn “TUNE .
FILE” or “TUNE
SCROLL.”
To select a folder (MP3/WMA only) Push either side of “FOLDER.”

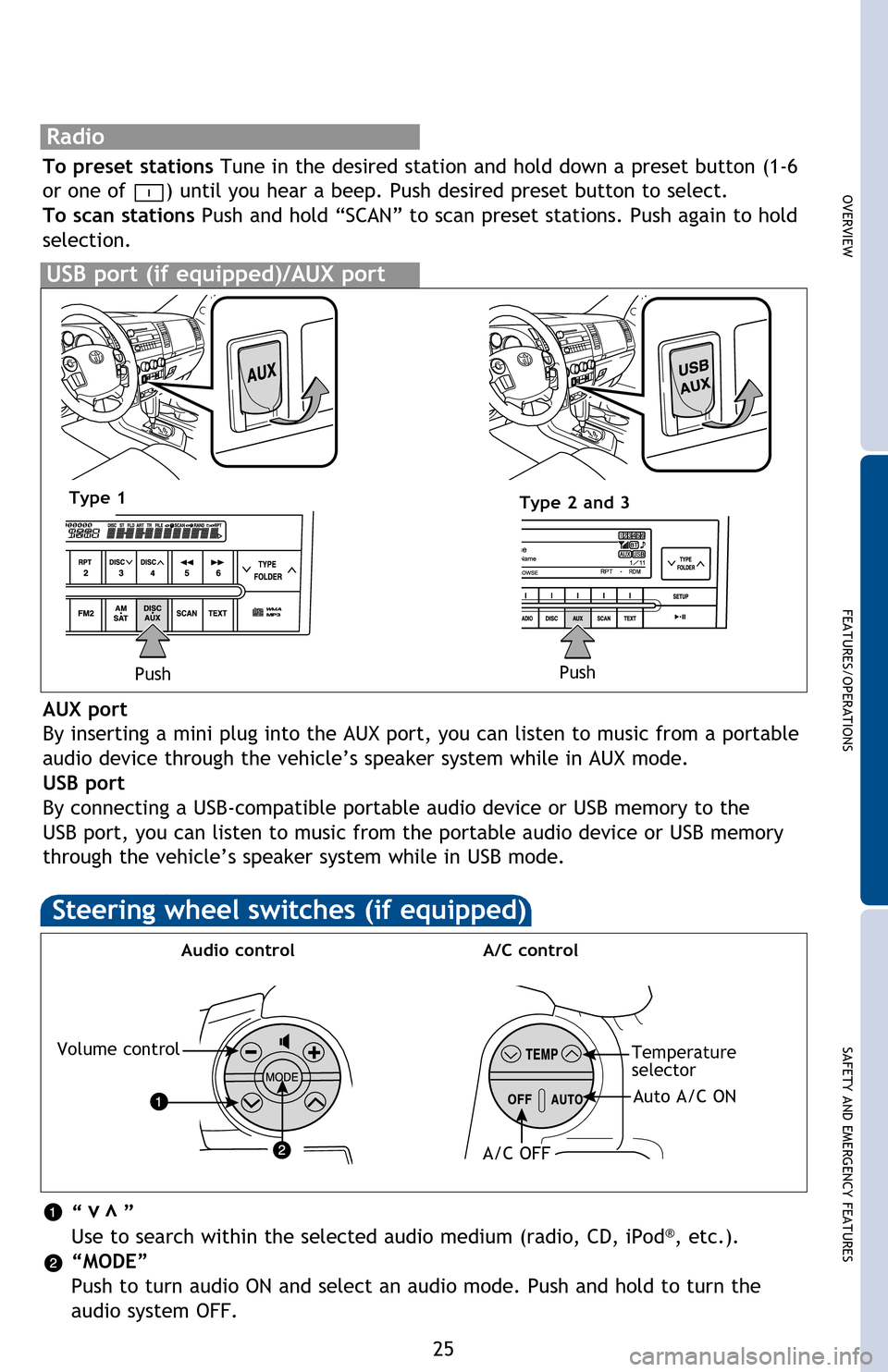

Radio
To preset stations Tune in the desired station and hold down a preset button (1-6
or one of
) until you hear a beep. Push desired preset button to select.
To scan stations Push and hold “SCAN” to scan preset stations. Push again to hold
selection.

USB port (if equipped)/AUX port
Push
AUX port
By inserting a mini plug into the AUX port, you can listen to music from a portable
audio device through the vehicle’s speaker system while in AUX mode.
USB port
By connecting a USB-compatible portable audio device or USB memory to the
USB port, you can listen to music from the portable audio device or USB memory
through the vehicle’s speaker system while in USB mode.
Steering wheel switches (if equipped)
Volume control
A/C control
Audio control
Temperature
selector
Auto A/C ON
A/C OFF
“ ”
Use to search within the selected audio medium (radio, CD, iPod®, etc.).
“MODE”
Push to turn audio ON and select an audio mode. Push and hold to turn the
audio system OFF.
vv
Type 1 Type 2 and 3
Push
2013Sequoia.indd 258/13/12 10:42 PM

26
FEATURES/OPERATIONS
Distance control mode will cruise at a set speed, decelerate to maintain selected
distance from a slower vehicle traveling in front of you, and accelerate back up
to the selected speed if the vehicle traveling in front of you changes lanes or
speeds up.
(1) To select distance control mode Push the ON-OFF button. The “CRUISE”
indicator will come on.
(2) To set, cancel and resume a speed Refer to instructions for Cruise Control in
this guide.
NOTE: Once vehicle speed is set, pushing lever up toward “+ RES” will increase
speed to the nearest 5 mph, and then in 5 mph increments. Pushing lever down
toward “- SET” will reduce speed in the same way.
(3) To change the vehicle-to-vehicle distance
Push the distance button to cycle through the settings, which will change
progressively from LONG to MIDDLE to SHORT.

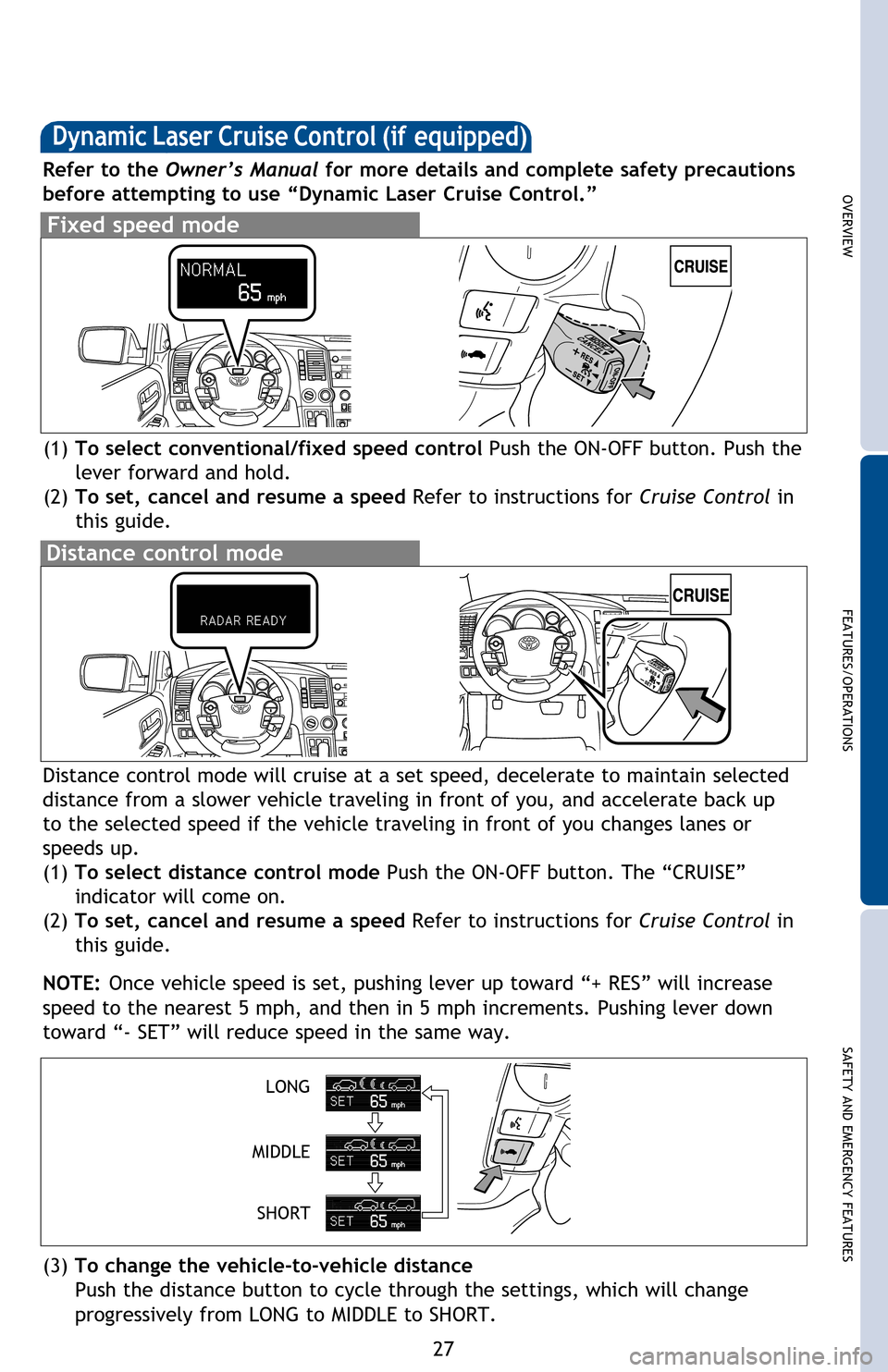

Dynamic Laser Cruise Control (if equipped)
(1) To select conventional/fixed speed control Push the ON-OFF button. Push the
lever forward and hold.
(2) To set, cancel and resume a speed Refer to instructions for Cruise Control in
this guide.
Fixed speed mode
Refer to the Owner’s Manual for more details and complete safety precautions
before attempting to use “Dynamic Laser Cruise Control.”
Distance control mode
Garage door openers manufactured under license from HomeLink®* can be
programmed to operate garage doors, estate gates, security lighting, etc\
.
Refer to “Garage door opener,” Section 3-8 in the Owner’s Manual for more
details.
For programming assistance, contact HomeLink
® at 1-800-355-3515, or visit
http://www.homelink.com.
* HomeLink® is a registered trademark of Johnson Controls, Inc.
Garage door opener (HomeLink®)*
(if equipped)
Cruise control
1 The set speed may also be cancelled by depressing the brake pedal.2 The set speed may be resumed once vehicle speed exceeds 25 mph.
Turning system ON/OFF
Functions
Increase speed
Decrease speed
Cancel1
Resume2
Set
System ON/OFF
2013Sequoia.indd 268/13/12 10:42 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
27
Distance control mode will cruise at a set speed, decelerate to maintain selected
distance from a slower vehicle traveling in front of you, and accelerate back up
to the selected speed if the vehicle traveling in front of you changes lanes or
speeds up.
(1) To select distance control mode Push the ON-OFF button. The “CRUISE”
indicator will come on.
(2) To set, cancel and resume a speed Refer to instructions for Cruise Control in
this guide.
NOTE:

Once
vehicle speed is set, pushing lever up toward “+ RES” will increase
speed to the nearest 5 mph, and then in 5 mph increments. Pushing lever down
toward “- SET” will reduce speed in the same way.
(3) To change the vehicle-to-vehicle distance
Push the distance button to cycle through the settings, which will change
progressively from LONG to MIDDLE to SHORT.
Dynamic Laser Cruise Control (if equipped)
(1) To select conventional/fixed speed control Push the ON-OFF button. Push the
lever forward and hold.
(2) To set, cancel and resume a speed Refer to instructions for Cruise Control in
this guide.
Fixed speed mode
Refer to the Owner’s Manual for more details and complete safety precautions
before attempting to use “Dynamic Laser Cruise Control.”
Distance control mode
LONG
MIDDLE SHORT
Garage door openers manufactured under license from HomeLink®* can be
programmed to operate garage doors, estate gates, security lighting, etc\
.
Refer to “Garage door opener,” Section 3-8 in the Owner’s Manual for more
details.
For programming assistance, contact HomeLink
® at 1-800-355-3515, or visit
http://www.homelink.com.
* HomeLink® is a registered trademark of Johnson Controls, Inc.
1 The set speed may also be cancelled by depressing the brake pedal.2 The set speed may be resumed once vehicle speed exceeds 25 mph.
Increase speed
2013Sequoia.indd 278/13/12 10:42 PM

28
FEATURES/OPERATIONS
Telephone controls (Bluetooth®)
(if equipped)
Door locks
Lock
Unlock
Multi-Information Display (if equipped)
Push “INFO” to change information in the following:
(1) Zoom display of odometer and trip meter
(2) Average gas mileage
(3) Current gas mileage
(4) Miles left on remaining fuel
(5) Running time from engine start
(6) Average vehicle speed
Push “SETUP”
to customize to the following settings:
(1)

UNIT
(2)


KEYLESS ENTRY FEEDBACK
(3)


KEYLESS ENTRY RELOCK TIMER
(4)


KEYLESS ENTRY ALL
DOORS UNLOCK
(5)

DOOR AUTO LOCKING
(6)


DOOR AUTO UNLOCKING
(7)


HEADLAMPS
AUTO OFF TIMER
(8)

COURTESY LAMPS
OFF TIMER
(9)

LANGUAGE
(10)


DEFAULT
SETTING
Bluetooth® technology allows dialing or receipt of calls without taking hands
from the steering wheel or using a cable to connect the compatible telephone
and the system.
Refer to “Using the hands-free phone system (for cellular phone),” Section 3-5 in
the Owner’s Manual , for more details.
Audio unit
Volume
End call
Start call
2013Sequoia.indd 288/13/12 10:42 PM
