TOYOTA SEQUOIA 2014 2.G Owners Manual

301
2-5. Driving information
2
When driving
Dinghy towing
NOTICE
■To avoid serious damage to your vehicle
Do not tow your vehicle with four wheels on the ground.
Your vehicle is not designed to be dinghy towed (with 4 wheels on
the ground) behind a motor home.

302
3-1. Using the air conditioning system and defogger
Front air conditioning system ........................... 304
Rear air conditioning system ........................... 313
Rear window and outside rear view
mirror defoggers ............ 317
Windshield wiper de-icer ............................ 319
3-2. Using the multimedia system Multimedia system types .............................. 320
Entune Audio ................... 322
USB port/AUX port ........... 326
Setup menu...................... 327
Basic audio operations..... 331
Using the radio ................. 336
Playing an audio CD and MP3/WMA/AAC discs .... 338
Listening to an iPod ......... 345
Listening to a USB memory device .............. 351
Using the AUX port .......... 356
Connecting Bluetooth
®..... 357
Listening to Bluetooth®
audio .............................. 379
Using a Bluetooth
®
phone ............................. 380

Interior features3
303
3-3. Using the interior lightsInterior lights list ............... 406
• Personal/interior light main switch .................... 407
• Personal/interior lights ... 408
• Interior light .................... 409
3-4. Using the storage features List of storage features .... 410
• Glove boxes ................... 411
• Coin holder .................... 412
• Front console box .......... 413
• Card holder .................... 416
• Map holder ..................... 417
• Pen holder ..................... 419
• Tissue pocket................. 420
• Rear console box ........... 421
• Overhead console.......... 424
• Cup holders ................... 426
• Bottle holders ................. 430
• Auxiliary boxes............... 431 3-5. Other interior features
Sun visors ........................ 433
Vanity mirrors ................... 434
Clock ................................ 435
Outside temperature display............................ 436
Portable ashtray ............... 438
Cigarette lighter................ 439
Conversation mirror ......... 440
Power outlets ................... 441
Seat heaters..................... 447
Seat heaters and ventilators ...................... 450
Armrests........................... 452
Rear side sunshades ....... 453
Seatback table ................. 455
Assist grips....................... 456
Floor mat .......................... 457
Luggage compartment features .......................... 459
Garage door opener......... 464
Compass .......................... 470

304
3-1. Using the air conditioning system and defogger

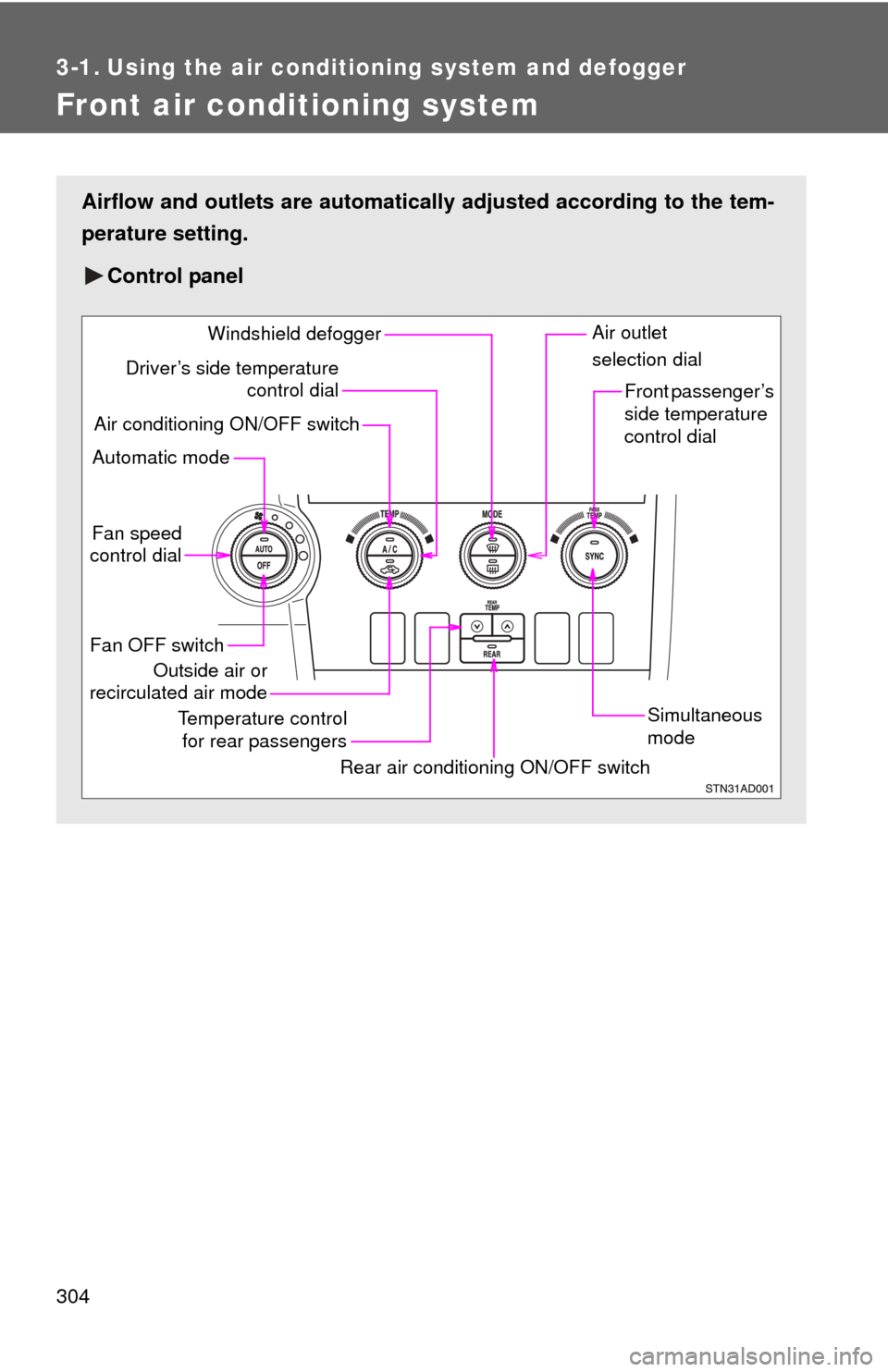

Front air conditioning system
Airflow and outlets are automatically adjusted according to the tem-
perature setting.
Control panel
Fan speed
control dial
Outside air or
recirculated air mode Front passenger’s
side temperature
control dial
Air conditioning ON/OFF switch
Simultaneous
mode
Rear air conditioning ON/OFF switch
Temperature control
for rear passengers Air outlet
selection dial
Driver’s side temperature
control dial
Automatic mode Windshield defogger
Fan OFF switch

305
3-1. Using the air conditioning system
and defogger
3
Interior features
Using the automatic mode
Press .
The air conditioning system will begin to operate. Air outlets and fan
speed are automatically adjusted according to the temperature set-
ting.
Turn the temperature control dial clockwise (warm) or coun-
terclockwise (cool).
The temperature for the driver and passenger seat can be set sepa-
rately.
Display
Front passenger’s side
temperature setting display
Fan speed display
Airflow display
Driver’s side temperature
setting display Temperature setting
display for rear passengers

306 3-1. Using the air conditioning system and defogger
Adjusting the settings
■ Adjusting the temperature setting
Turn the temperature control dial clockwise (warm) or counter-
clockwise (cool).
The air conditioning system sw itches between individual and
simultaneous modes each time is pressed.
● Simultaneous mode (the indicator on is on)
The driver’s side temperature control dial can be used to adjust
the temperature for all seats.
● Individual mode (the indicator on is off)
The temperature for the driver’s, front passenger’s and rear
seats ( P. 313) can be adjusted separately. Operate the pas-
senger’s side or rear temperature controls to enter individual
mode.
■ Adjusting the fan speed
Turn the fan speed control dial clockwise (increase) or counter-
clockwise (decrease).
The fan speed is shown on the display. (7 levels)
Press to turn the fan off.

307
3-1. Using the air conditioning system
and defogger
3
Interior features
■Changing the air outlets
Turn the air outlet selection dial.
The air outlets switch each time
either side of air outlet selection
dial is turned.
Air flow as shown according to the mode selected.
When the dial is set to , air
flows to the upper body.
When the dial is set to , air
flows to the upper body and feet.

308 3-1. Using the air conditioning system and defogger
When the dial is set to , air
flows to the feet.
When the dial is set to , air
flows to the feet and the wind-
shield defogger operates.
Recirculated air mode will auto-
matically switch to outside air
mode.
■Switching between outside air and recirculated air modes
Press .
The mode switches between (outside air mode) and
(recirculated air mode) each time the switch is pressed.
Changing the rear seat settings
■ Adjusting the temperature setting
Press to increase the tem perature and to decrease it.
The air conditioning system sw itches between individual and
simultaneous modes each time is pressed.

309
3-1. Using the air conditioning system
and defogger
3
Interior features
Defogging the windshield
Press
.
The indicator comes on.
The air conditioning system con-
trol operates automatically.
Recirculated air mode will auto-
matically switch to outside air
mode.
Adjusting the position and opening and closing the air outlets
Driver side outlets Direct air flow to the left or
right, up or down.
Turn the knob to open or close
the vent.

310 3-1. Using the air conditioning system and defogger
Passenger side outlets
Direct air flow to the left or
right, up or down.
Turn the knob to open or close
the vent.
■Using the automatic mode
Fan speed is adjusted automatically in accordance with the temperature set-
ting and ambient conditions. As a result, the following may occur.
●Immediately after the switch is pressed, the fan may stop for a while until
warm or cool air is ready to flow.
● Cool air may flow to the area around the upper body when the heater is
on.
■ Using the system in recirculated air mode
The windows will fog up more easily if the recirculated air mode is used for
an extended period.
■ Switching between outside air and recirculated air modes
Recirculated air mode or outside air mode may be automatically switched in
accordance with the temperature setting and the inside temperature.
