TOYOTA SEQUOIA 2014 2.G Workshop Manual

51
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
CAUTION
■Seat adjustment
●Be careful that the seat does not hit passengers or luggage.
● Do not recline the seat more than necessary when the vehicle is in motion
to reduce the risk of sliding under the lap belt.
If the seat is too reclined, the lap belt may slide past the hips and apply
restraint forces directly to the abdomen or your neck may contact the
shoulder belt, increasing the risk of death or serious injury in the event of
an accident.
● Manual seat only: After adjusting the seat, make sure that the seat is
locked in position.
■ After folding a seat (vehicles with seatback table)
Observe the following precautions. Failure to do so may result in death or
serious injury.
●Make sure that the seat and seatback are securely locked in position by
lightly rocking the seat back and forth.
● Do not sit on the folded seatback.
■ Caution while driving ( vehicles with seatback table)
Do not fold the seatback forward to set up the seatback table while the vehi-
cle is moving.

52
1-3. Adjustable components (seats, mirrors, steering wheel)

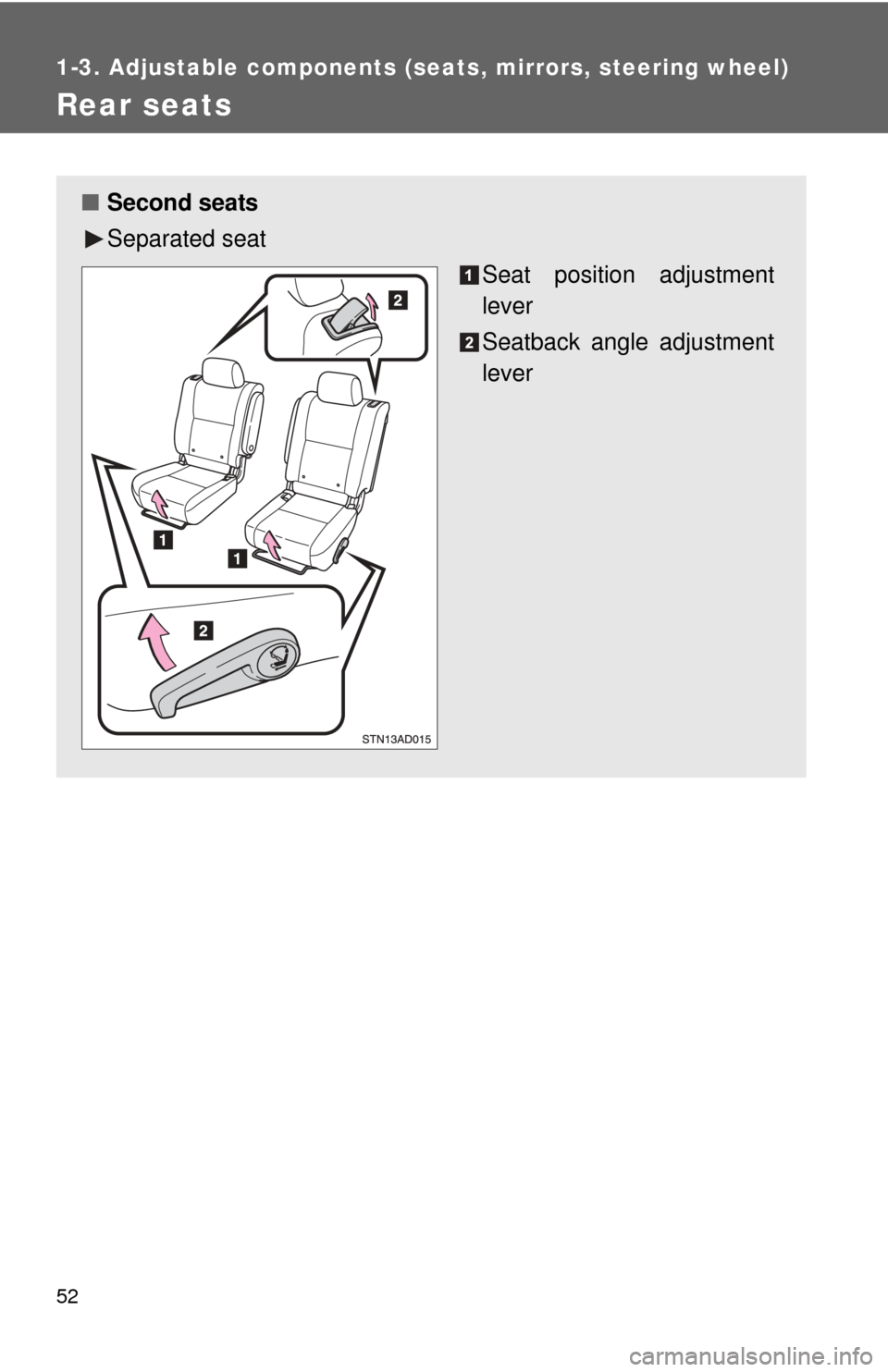

Rear seats
■Second seats
Separated seat
Seat position adjustment
lever
Seatback angle adjustment
lever

53
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
Bench seat
Seat position adjustment
lever
*
Seatback angle adjustment
lever
*:The second center seat can bemoved forward further than side
seats.

54 1-3. Adjustable components (seats, mirrors, steering wheel)

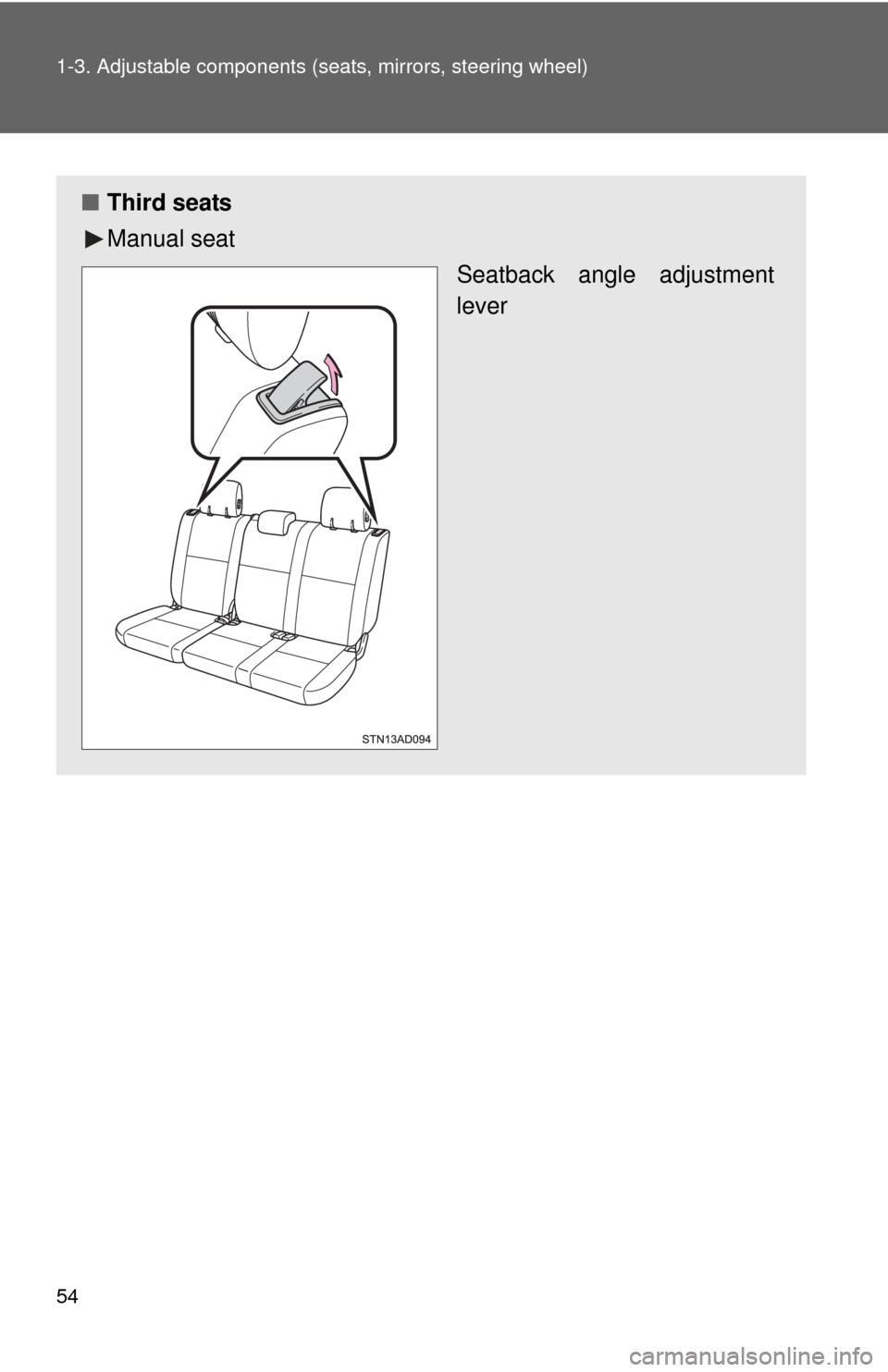

■Third seats
Manual seat
Seatback angle adjustment
lever

55
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
Moving a second seat for third seat access
■Getting in the vehicle
Pull up the lever and fold down
the seatback. The seat will slide
forward.
Move the seat to the front-most
position
Power seat Seatback angle adjustment
switch
Seatback folding/returning
switch

56 1-3. Adjustable components (seats, mirrors, steering wheel)
■Getting out of the vehicle
Depress the release pedal and
fold down the seatback. The seat
will slide forward.
Move the seat to the front-most
position
Make sure that no passenger is
seated on the second seat before
depressing the release pedal.
■After passengers have entered/exited the vehicle
Lift up the seatback and slide the seat backward until it locks.
Folding down the second seat
■ Before folding down the second seat
Adjust the head restraint to the
downmost position.
Stow the rear seat belt buckle.

57
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
■Folding down the second seat
Separated seat
Pull the lever to unlock the seat-
back and then fold the seatback
down.
Bench seat Pull the lever to unlock the seat-
back and then fold the seatback
down.
■ After folding down the second seat (if equipped)
Fold out the board from the seat-
back.

58 1-3. Adjustable components (seats, mirrors, steering wheel)
Folding down the third seat
■ Before folding down the third seat
To release the hooked end tab,
insert the key or concaved end
tab into the hole on the buckle.
Retract the belt slowly when
releasing and stowing the seat
belt.
Stow the seat belt tabs in the
cover set in the roof as shown.

59
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
Adjust the center head restraint
to the downmost position.
Stow the third seat belt buckles.

60 1-3. Adjustable components (seats, mirrors, steering wheel)
■Folding down the third seat (manual seat)
Pull the head restraint lock
release lever to fold the head
restraint.
Pull the lever to unlock the seatback and then fold the seat-
back down.
From rear door side
From back door side
