TOYOTA SEQUOIA 2016 2.G Owners Manual

181
2-2. Instrument cluster
2
When driving
Feature customization
The vehicle can be customized while the vehicle is stopped.
Press the SETUP button to select the item you want to cus-
tomize unit.
Press the SELECT RESET butt on to customize the items.
ItemsScreen textSelect in this order
To select Unit A
or Unit B
(P. 186)
UNITS
Door lock/
unlock warning
functionKEYLESS ENTRY
FEEDBACK
Time for auto-
matic door lock
functionKEYLESS ENTRY
RELOCK TIMER
UNITS
KEYLESS ENTRY FEEDBACK
KEYLESS ENTRY RELOCK TIMER
KEYLESS ENTRY ALL DOORS UNLOCK
DOOR AUTO LOCKING
DOOR AUTO UNLOCKING
HEADLAMPS AUTO OFF TIMER
COURTESY LAMPS OFF TIMER
LANGUAGE
DEFAULT SETTING
Unit B
Unit A
LAMPS + TONE*LAMPS
TONE
OFF
60 SECONDS*120 SECONDS
30 SECONDS OFF

182 2-2. Instrument cluster
*: Default setting
After customize is complete, press the SETUP button to set
the selected item.
If the customization fails, the previously setting will be displayed.
If no button is pressed for 10 seconds, the display change to normal
display.
Double switch
operation to
unlock all the
doors
KEYLESS ENTRY
ALL DOORS
UNLOCK
Automatic door
locking functionDOOR AUTO
LOCKING
Automatic door
unlocking func-
tionDOOR AUTO
UNLOCKING
Time period
before lights
turn off (if a door
is opened and
closed, and
engine switch is
in ACC or
LOCK)
HEADLAMPS AUTO
OFF TIMER
Time period
before lights
turn offCOURTESY LAMPS
OFF TIMER
Selecting the
languageLANGUAGE
Reset to default
settingHOLD RESET
TO RESTORE
DEFAULT SETTINGS
ItemsScreen textSelect in this order
2 PRESSES*1 PRESS
SHIFT OUT
OF PARK
ABOVE 12 MPH*
(20 km/h)
OFF
SHIFT TO PARK*DRIVER DOOR
OPEN
OFF
30 SECONDS*60 SECONDS
90 SECONDS
0 SECONDS
15 SECONDS*30 SECONDS
8 SECONDS
ENGLISH*FRENCH
SPANISH

183
2-2. Instrument cluster
2
When driving
■
To select the unit A (English/U.S. customary system) or unit B (metric
unit)
Press the SETUP button to display UNITS on the multi-information
display.
Press the SELECT RESET button to change the units.
Press the INFO or SETUP button and complete the unit change.
■ Feature customization error
• If SYSTEM ERROR message is indicated, turn the engine switch off and
then on again.
• If SYSTEM ERROR message is indicated again, contact your Toyota dealer.
CAUTION
■Caution while driving
Do not adjust the display.
Doing so may cause the driver to mishandle the vehicle and an accident,
resulting in death or serious injury.
NOTICE
■The multi-information disp lay at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.
InformationUnit AUnit B
Average Fuel Economy and
Current Fuel Economy MPG L/100 Km
Driving Range MILES Km
Average Speed MPH Km/h
Outside temperature display
on the accessory meter °F °C

184
2-2. Instrument cluster
Accessor y meter
Outside temperature display
Displays the outside air temperature. (P. 343)
Outside temperature and trip information display (if equipped)
Displays the outside temperature and trip information.
(P. 1 7 1 343)
Clock
(P. 342)
H (Hour) button (P. 3 4 2)
M (Minute) button (P. 342)
INFO button (if equipped)
SELECT RESET button (if equipped)
SETUP button (if equipped)

185
2-2. Instrument cluster
2
When driving
Outside temperature and trip in
formation display (if equipped)
Every time the INFO button is pushed, the display toggles through
these information.
● OUTSIDE (outside temperature display)
● AVG (average fuel consumption after refueling)
● INST (current fu el consumption)
● RANGE (driving range)
Displays the outside air temperature.
Displays the average fuel consumption since the vehi-
cle was last refueled.
• The function can be reset by pushing theSELECT RESET button for more than 2 sec-
onds.
• Use the displayed average fuel consumption as a reference.
Displays the current rate of fuel consumption.
Displays the estimated maximum distance that can be
driven with the quantity of fuel remaining.
• This distance is computed based on your aver-age fuel consumption. As a result, the actual dis-
tance that can be driven may differ from that
displayed.
• When only a small amount of fuel is added to the tank, the display may not be updated.

186 2-2. Instrument cluster
●Display off
■The accessory meter can be operated when
The engine switch must be in the ON position.
■ To select the unit A (English/U.S. customary system) or unit B (metric
unit) (vehicles without mu lti-information display)
Press the SETUP button to change the units.
CAUTION
■ Caution while driving
Do not adjust the display.
Doing so may cause the driver to mishandle the vehicle and cause an acci-
dent, resulting in death or serious injury.
InformationUnit AUnit B
Average fuel consumption and
current fuel consumption MPG L/100 Km
Driving range MILES Km
Outside temperature °F °C

187
2
When driving
2-3. Operating the lights and wipers

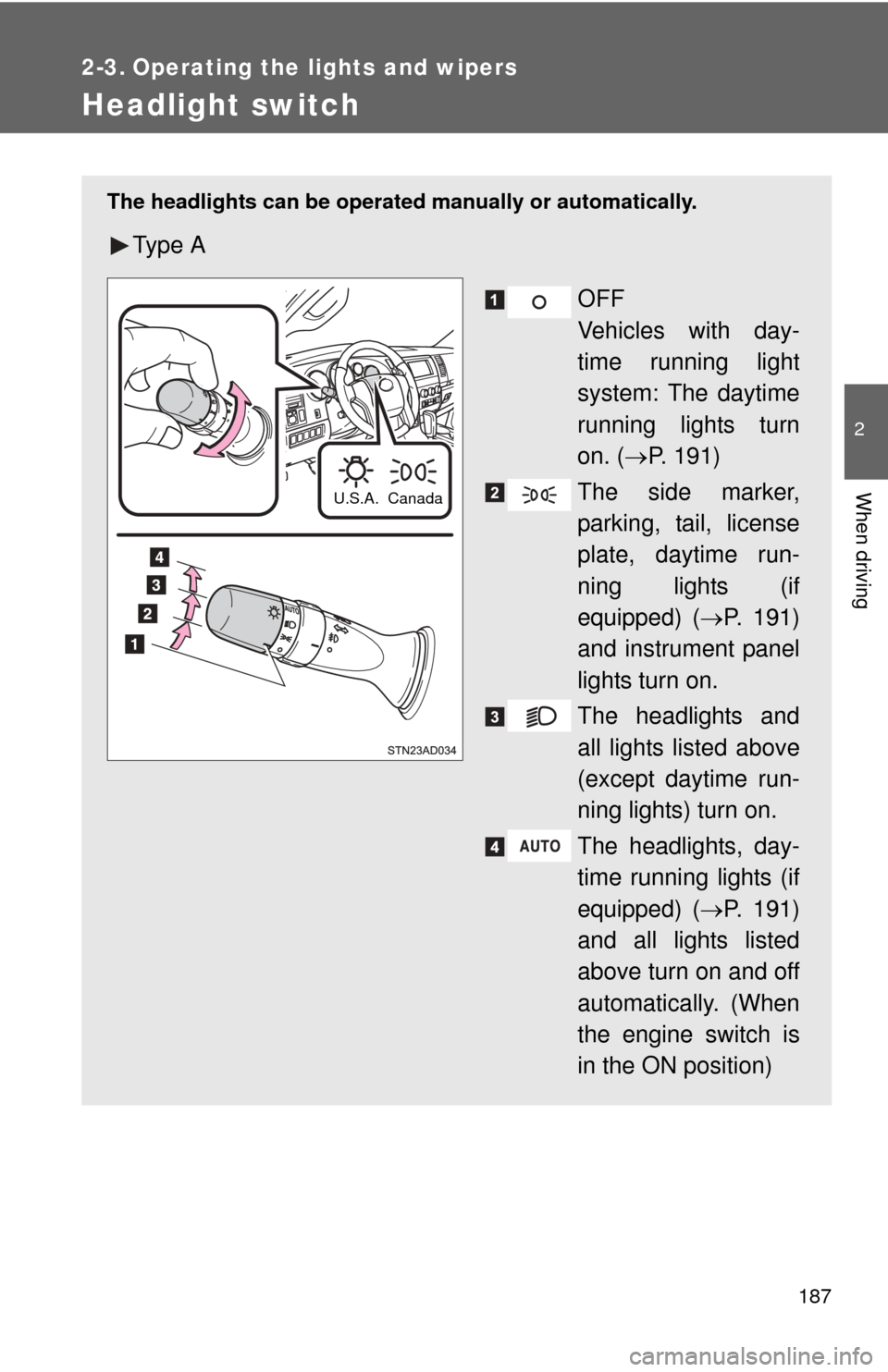

Headlight switch

The headlights can be operated manually or automatically.
Ty p e AOFF
Vehicles with day-
time running light
system: The daytime
running lights turn
on. (P. 191)
The side marker,
parking, tail, license
plate, daytime run-
ning lights (if
equipped) ( P. 191)
and instrument panel
lights turn on.
The headlights and
all lights listed above
(except daytime run-
ning lights) turn on.
The headlights, day-
time running lights (if
equipped) ( P. 191)
and all lights listed
above turn on and off
automatically. (When
the engine switch is
in the ON position)
Canada
U.S.A.

188 2-3. Operating the lights and wipers

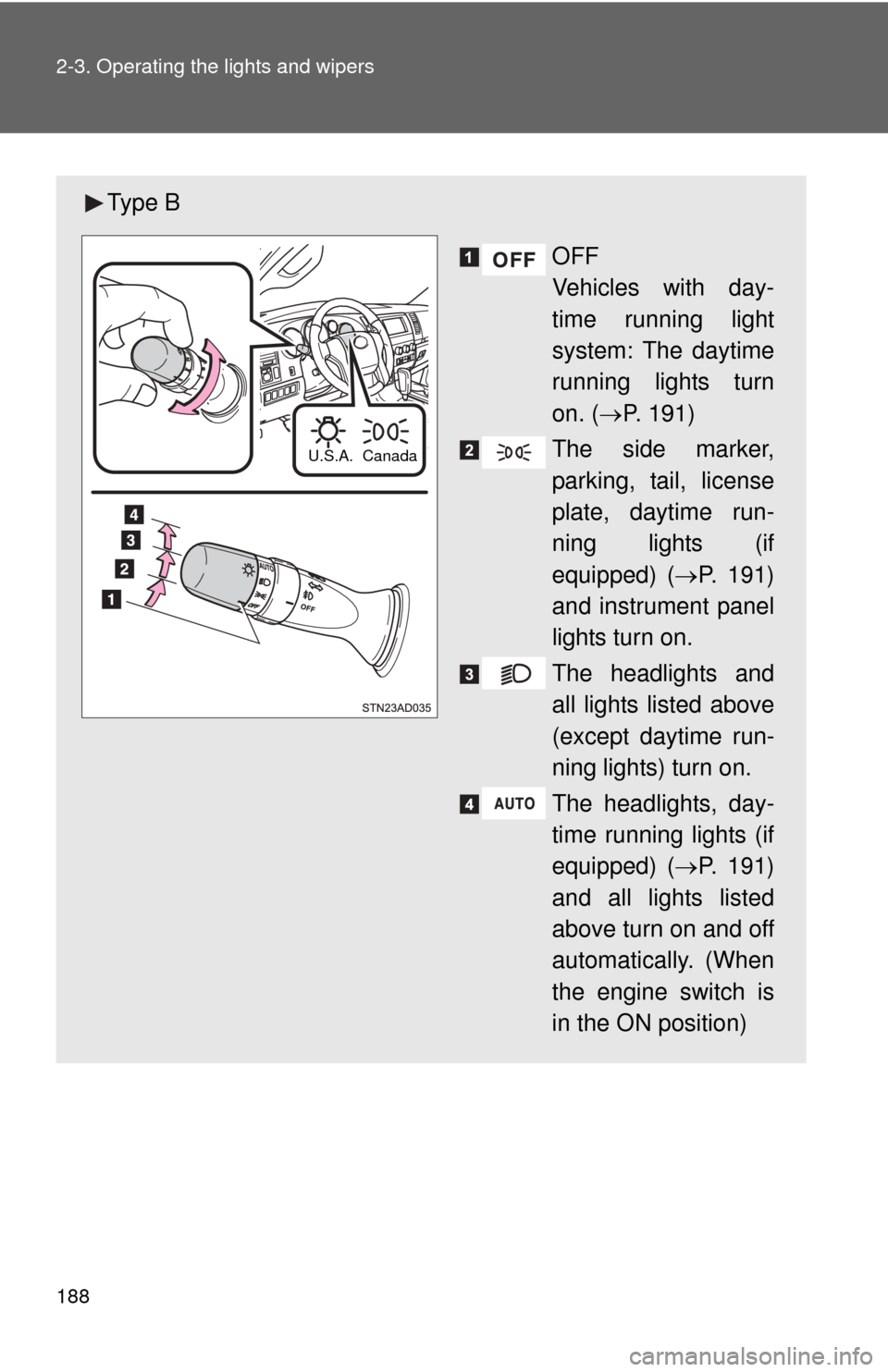

Ty p e BOFF
Vehicles with day-
time running light
system: The daytime
running lights turn
on. (P. 191)
The side marker,
parking, tail, license
plate, daytime run-
ning lights (if
equipped) ( P. 191)
and instrument panel
lights turn on.
The headlights and
all lights listed above
(except daytime run-
ning lights) turn on.
The headlights, day-
time running lights (if
equipped) ( P. 191)
and all lights listed
above turn on and off
automatically. (When
the engine switch is
in the ON position)
Canada
U.S.A.

189
2-3. Operating the lights and wipers
2
When driving

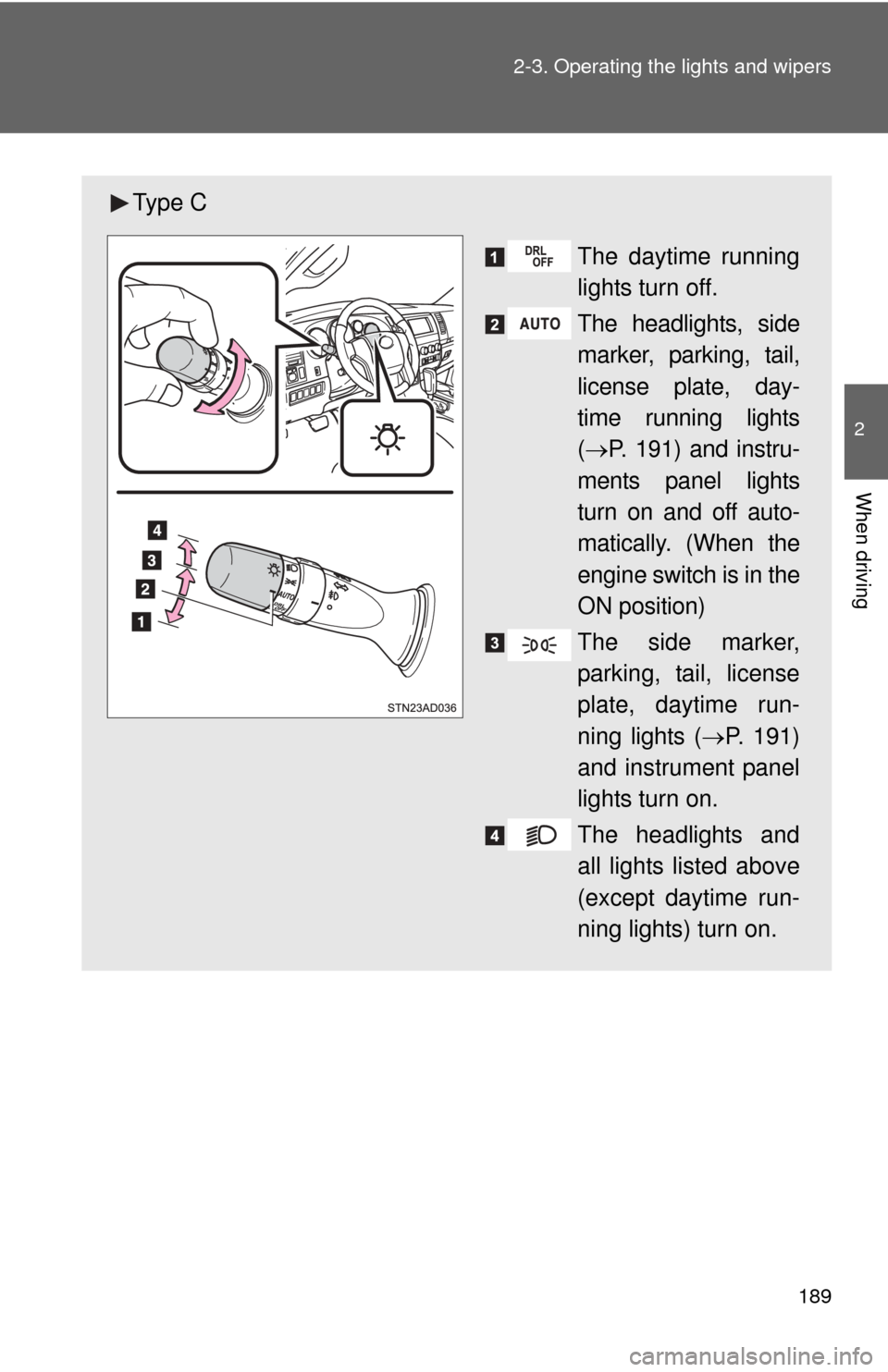

Ty p e C
The daytime running
lights turn off.
The headlights, side
marker, parking, tail,
license plate, day-
time running lights
( P. 191) and instru-
ments panel lights
turn on and off auto-
matically. (When the
engine switch is in the
ON position)
The side marker,
parking, tail, license
plate, daytime run-
ning lights ( P. 191)
and instrument panel
lights turn on.
The headlights and
all lights listed above
(except daytime run-
ning lights) turn on.

190 2-3. Operating the lights and wipers

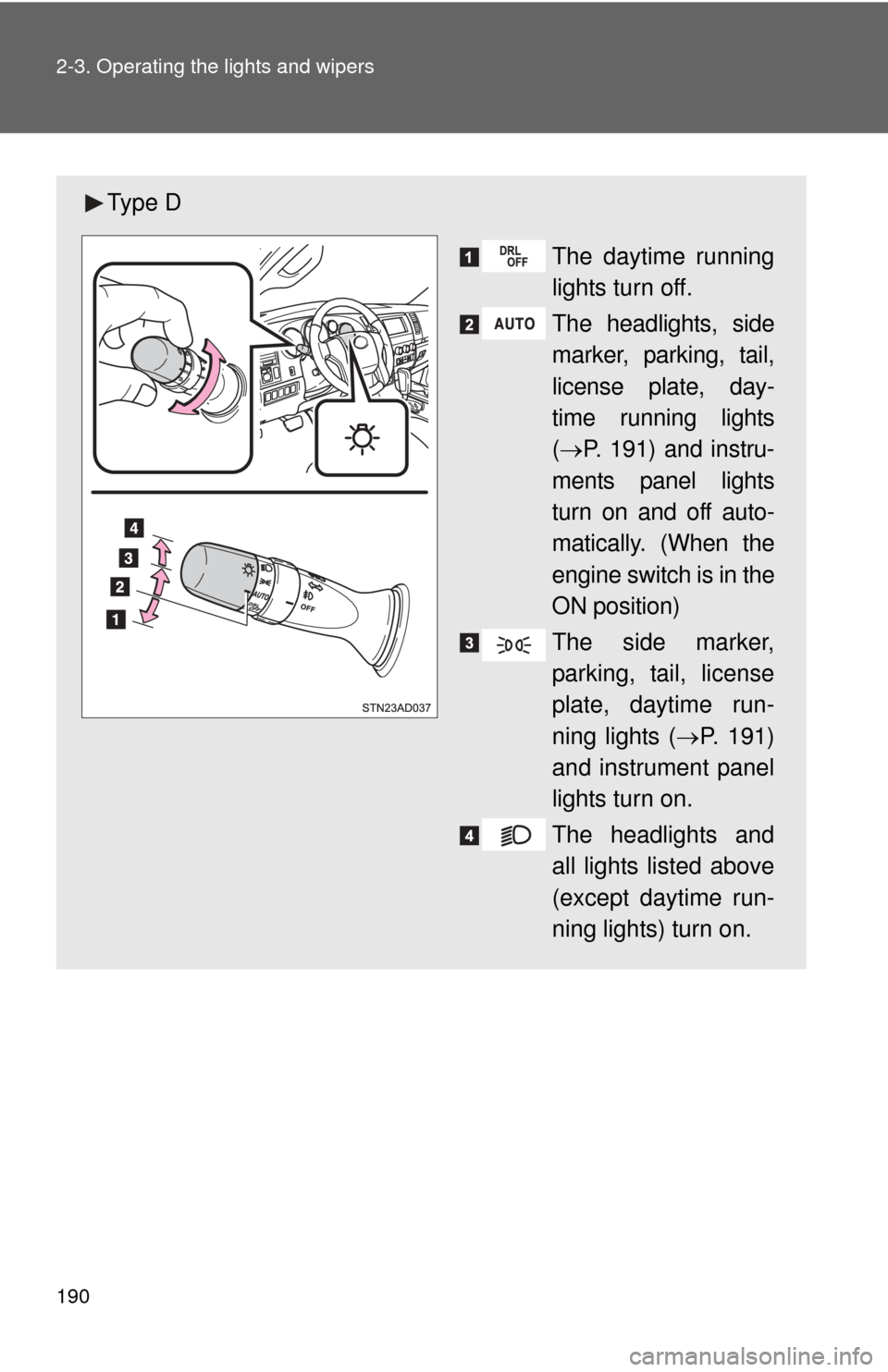

Ty p e DThe daytime running
lights turn off.
The headlights, side
marker, parking, tail,
license plate, day-
time running lights
( P. 191) and instru-
ments panel lights
turn on and off auto-
matically. (When the
engine switch is in the
ON position)
The side marker,
parking, tail, license
plate, daytime run-
ning lights ( P. 191)
and instrument panel
lights turn on.
The headlights and
all lights listed above
(except daytime run-
ning lights) turn on.
