bulb TOYOTA SEQUOIA 2019 Owners Manual (in English)

5
1
8 7
6
5
4
3
2
9
SEQUOIA_OM_USA_OM0C013U_19MY6-1. Maintenance and care
Cleaning and protecting the vehicle exterior .......... 378
Cleaning and protecting the vehicle interior ........... 381
6-2. Maintenance Maintenance requirements ................... 384
General maintenance ........ 386
Emission inspection and maintenance (I/M)
programs ......................... 389
6-3. Do-it-yourself maintenance
Do-it-yourself service precautions ..................... 390
Hood.................................. 393
Engine compartment ......... 394
Tires .................................. 405
Tire inflation pressure........ 416
Wheels .............................. 419
Air conditioning filter .......... 422
Wireless remote control battery ............................. 424
Checking and replacing fuses ............................... 426
Light bulbs ......................... 429 7-1. Essential information
Emergency flashers ........... 438
If your vehicle has to be stopped in an
emergency....................... 439
7-2. Steps to take in an emergency
If your vehicle needs to be towed .......................... 441
If you think something is wrong............................... 446
Fuel pump shut off system ............................. 447
If a warning light turns on or a warning buzzer
sounds ............................. 448
If a warning message is displayed ......................... 457
If you have a flat tire .......... 465
If the engine will not start ................................. 479
If the vehicle battery is discharged ....................... 480
If your vehicle overheats.... 484
If the vehicle becomes stuck ................................ 487
6Maintenance and care7When trouble arises

15Pictorial index
SEQUOIA_OM_USA_OM0C013U_19MYFuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 225
Refueling method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 225
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 493
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 405
Tire size/inflation pressure . . . . . . . . . . . . . . . . . .
. . . . . . . . . . P. 499
Winter tires/tire chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 314
Checking/rotation/tire pressure warning system . . . . . . . . . . . P. 405
Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 465
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 393
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 393
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 494
Coping with overheat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 484
Camera
*2
Headlights/parking lights/front side marker lights/
daytime running lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 208
Front turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 206
Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 217
Stop/tail lights/rear side marker lights . . . . . . . . . . . . . . . . P. 208
Hill-start assist control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 302
Rear turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 206
Tail lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 208
Back-up lights
Shifting the shift lever to R . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 201
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 208
Light bulbs of the exterior lights for driving
(Replacing method: P. 429, Wattages: P. 500)
*1: If equipped
*2: Refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”

2064-2. Driving procedures
SEQUOIA_OM_USA_OM0C013U_19MY
Turn signal lever
The lever will return to its original position after operation.
Right turn
Lane change to the right (move
the lever partway and release
it)
The right hand signals will flash 3
times.
Lane change to the left (move
the lever partway and release
it)
The left hand signals will flash 3
times.
Left turn
■ Turn signals can be operated when
The engine switch is in the “ON” position.
■ If the indicator flashes faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned
out.
Operating instructions

377
Maintenance and care6
SEQUOIA_OM_USA_OM0C013U_19MY6-1. Maintenance and care
Cleaning and protecting the vehicle exterior .......... 378
Cleaning and protecting the vehicle interior ........... 381
6-2. Maintenance Maintenance requirements ................... 384
General maintenance........ 386
Emission inspection and maintenance (I/M)
programs......................... 389
6-3. Do-it-yourself maintenance
Do-it-yourself service precautions ..................... 390
Hood ................................. 393
Engine compartment ......... 394
Tires .................................. 405
Tire inflation pressure ....... 416
Wheels .............................. 419
Air conditioning filter.......... 422
Wireless remote control battery ............................. 424
Checking and replacing fuses ............................... 426
Light bulbs......................... 429

3916-3. Do-it-yourself maintenance
6
Maintenance and care
SEQUOIA_OM_USA_OM0C013U_19MY

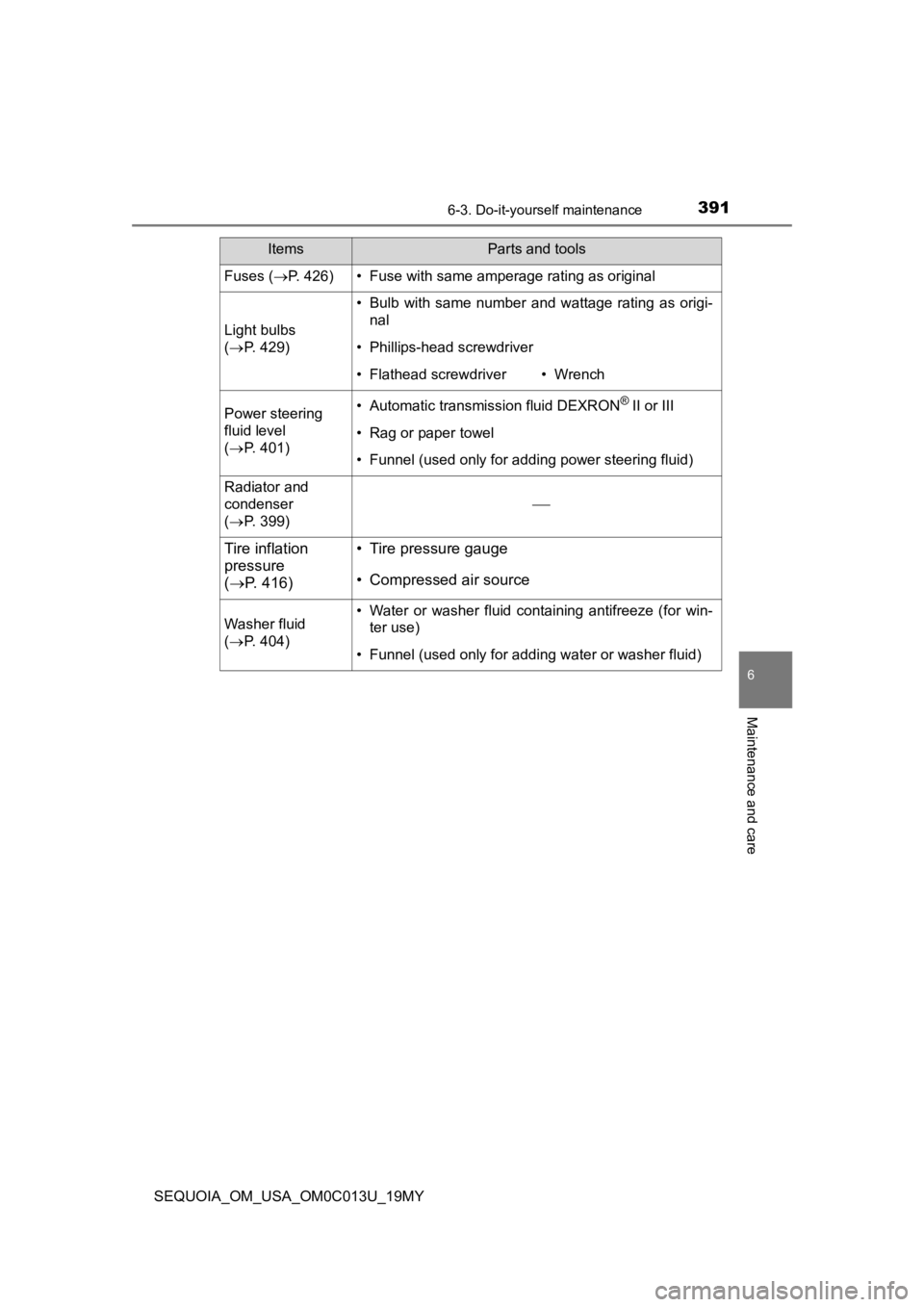

ItemsParts and tools
Fuses (P. 426)• Fuse with same amperage rating as original
Light bulbs
( P. 4 2 9 )
• Bulb with same number and wattage rating as origi-
nal
• Phillips-head screwdriver
• Flathead screwdriver• Wrench
Power steering
fluid level
( P. 4 0 1 )• Automatic transmission fluid DEXRON® II or III
• Rag or paper towel
• Funnel (used only for adding power steering fluid)
Radiator and
condenser
( P. 3 9 9 )

Tire inflation
pressure
( P. 416)• Tire pressure gauge
• Compressed air source
Washer fluid
( P. 4 0 4 )• Water or washer fluid containing antifreeze (for win-
ter use)
• Funnel (used only for adding water or washer fluid)

4286-3. Do-it-yourself maintenance
SEQUOIA_OM_USA_OM0C013U_19MY
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been repla ced, a bulb may
need replacement. ( P. 429)
● If the replaced fuse blows again, have the vehicle inspected by your Toyota
dealer.
■ If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness f rom damage.
■ When replacing light bulbs
Toyota recommends that you use genuine Toyota products designed for this
vehicle. Because certain bulbs are connected to circuits designed to prevent
overload, non-genuine parts or parts not designed for this vehicle may be
unusable.
WARNING
■ To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or
injury.
● Never use a fuse of a higher amperage rating than that indicated, or use
any other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
● Do not modify the fuses or fuse boxes.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired b y your
Toyota dealer as soon as possible.

4296-3. Do-it-yourself maintenance
6
Maintenance and care
SEQUOIA_OM_USA_OM0C013U_19MY
Light bulbs
Check the wattage of the light bulb to be replaced. ( P. 500)
■Rear
You may replace the following bulbs by yourself. The difficulty
level of replacement varies depending on the bulb. If necessary
bulb replacement seems diffic ult to perform, contact your
Toyota dealer.
For more information about replacing other light bulbs, contact
your Toyota dealer.
Preparing for light bulb replacement
Bulb locations
Stop/tail and rear side marker
lights
Rear turn signal lights
Back-up lights Tail lights
License plate light

4306-3. Do-it-yourself maintenance
SEQUOIA_OM_USA_OM0C013U_19MY■
Stop/tail, rear side marker light
s and rear turn signal lights
Open the back door and remove the cover.
To protect the cover, place a rag between the flathead screwdri ver or
equivalent and cover as shown in the illustrations.
Left side (vehicles without speaker in the luggage)
Replacing light bulbs
1
Right sideLeft side (vehicles with
speaker in the luggage)

4316-3. Do-it-yourself maintenance
6
Maintenance and care
SEQUOIA_OM_USA_OM0C013U_19MY
Turn the bulb bases counter-
clockwise.Stop/tail and rear side
marker light
Rear turn signal light
Remove the light bulb. Stop/tail and rear side
marker light
Rear turn signal light
When installing, reverse the steps listed.2
3
4

4336-3. Do-it-yourself maintenance
6
Maintenance and care
SEQUOIA_OM_USA_OM0C013U_19MY
Turn the bulb base counter-
clockwise.Tail light
Back-up light
Remove the light bulb. Tail light
Back-up light
When installing, reverse the steps listed.4
5
6
