00505QRG19SEQ
2 0 19www.toyota.com/owners
CUSTOMER EXPERIENCE CENTER
1- 8 0 0 - 3 31- 4 3 31
Printed in U.S.A. 07/18
18 - M K G -1 2 0 4 8
QUICK REFERENCE GUIDE
SEQUOIA
49195a_18-MKG-12048 - MY19 SEQUOIA QRG_1_TG.indd 17/31/18 10:02 PM

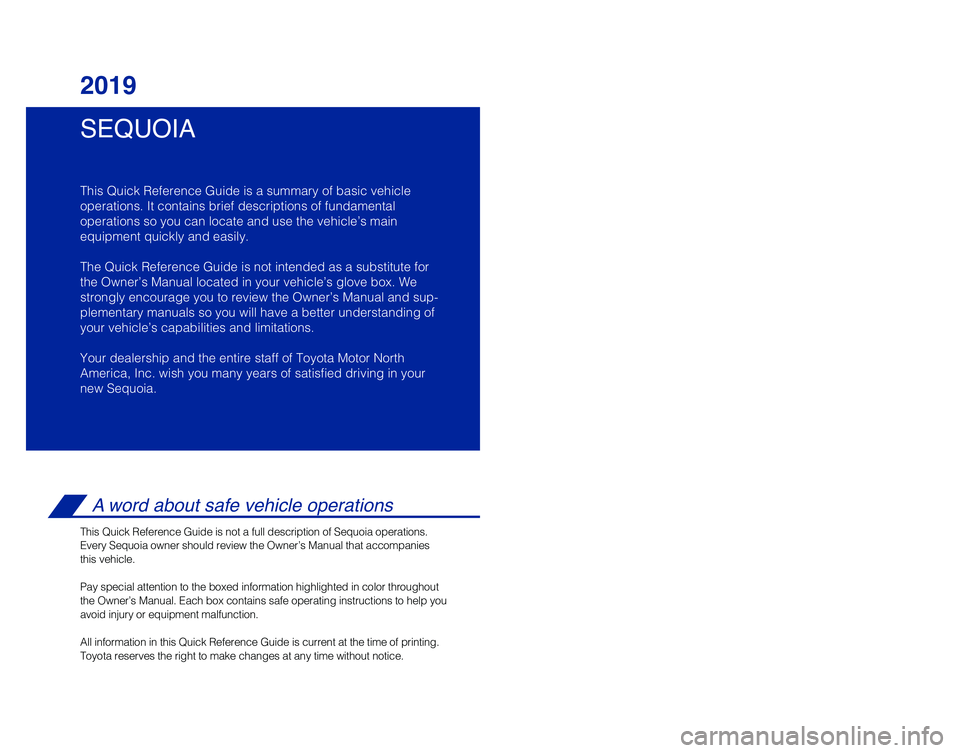

Page 2 of 60
SEQUOIA
2019
This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for
the Owner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review the Owner’s Manual and sup-
plementary manuals so you will have a better understanding of
your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor North
America, Inc. wish you many years of satisfied driving in your
new Sequoia.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of Sequoia operatio\
ns.
Every Sequoia owner should review the Owner’s Manual that accompanies\
this vehicle.
Pay special attention to the boxed information highlighted in color throughout
the Owner’s Manual. Each box contains safe operating instructions to \
help you
avoid injury or equipment malfunction.
All information in this Quick Reference Guide is current at the time of \
printing.
Toyota reserves the right to make changes at any time without notice.
57
49195a_18-MKG-12048 - MY19 SEQUOIA QRG_1_TG.indd 27/31/18 10:02 PM
Page 3 of 60
1
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructio\
ns and more information.3 HomeLink® is a registered trademark of Gentex Corporation.
INDEX
Engine maintenance 10
Fuel tank door release & cap
9
Hood release
9
Indicator symbols
6-7
Instrument cluster
5
Instrument panel
2-4
Instrument panel light control
10
Keyless entry1,28-9
OVERVIEW
FEATURES & OPERATIONS
Air conditioning/heating 22-23
Audio 24
Auto lock/unlock
111
Automatic transmission
11
AVS (Adaptive Variable
Suspension System)
31
Blind Spot Monitor with Rear Cross
Traffic Alert (BSM w/RCTA)
14
Cup holders
28
Door locks
21
Driving position memory
21
Electronically modulated air
suspension
30
Four-wheel drive
13
Garage door opener (HomeLink®)3 28
Intelligent parking assist
31
Lights1 & turn signals 18
Moonroof 21
Multi-Information Display (MID)
2 27
Parking brake
11
Power back door
20
Power outlets-12V DC
26
Power outlets-120V AC
25
Rear seat entertainment system
26
Rear view monitor system
29
Seat adjustments-Front
14
Seat adjustments-Rear
15
Seat ventilators/heaters
23
Seats-Folding 2nd row seats
16
SAFETY & EMERGENCY FEATURES FEATURES & OPERATIONS (continued)
Seats-Folding 3rd row seats 17
Seats-Head restraints
16
Steering lock release
12
Steering wheel switches &
telephone controls (Bluetooth
®) 25
Tilt & telescopic steering wheel
12
TOW/HAUL switch
29
USB media/AUX port
24
VSC OFF switch
27
Window-Back door
20
Windows-Power
19
Windshield wipers & washers
19
BLUETOOTH® DEVICE
PAIRING SECTION46-55
Floor mat installation
45
Rear door child safety locks
43
Seat belts
42
Seat belts-Shoulder belt anchor
43
Spare tire & tools
43
Star Safety SystemTM44-45
Tire Pressure Monitoring
(warning) System (TPMS)
42
TOYOTA SAFETY SENSE™ P (TSS-P)
Automatic High Beams (AHB) 41
Dynamic Radar
Cruise Control (DRCC)
38-40
Lane Departure Alert (LDA)
35-37
Pre-Collision System with
Pedestrian Detection (PCS w/PD)
33-35
Quick overview-
Toyota Safety Sense
™ P (TSS-P) 32
Sensors
32
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
49195b_MY19_Sequoia_QRG_V1_ML_0718.indd 17/31/18 10:04 PM
Page 4 of 60
2
OVERVIEWInstrument panel
Meter control switches
Ignition switch
Steering wheel controls
Windshield wiper and
washer switch
Voice command switch
2
Tire pressure monitor
(warning) system
(TPMS) reset switch
Outside rear view
mirror controls Audio controls
2
and telephone
controls2 switches Dynamic Radar
Cruise Control
(DRCC) or cruise
control switch
Vehicle-to-vehicle
distance switch
and
Lane Departure Alert
(LDA) switch
Power tilt and telescopic
steering control switch
1
Parking brake
Hood lock release lever
Personal/interior
light main switch
Power back door button
1
Automatic High Beam (AHB) switch Tilt and telescopic
steering lock release lever
1
(below the steering wheel)
Headlights, turn signals/
fog light controls Meters and
Multi-information display
(MID)
49195b_MY19_Sequoia_QRG_V1_ML_0718.indd 27/31/18 10:04 PM
Page 5 of 60
3
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Intelligent Parking
Assist (IPA)
switchVehicle Stability Control
“VSC OFF” switch Power back
window switch
See next page for details on
the center panel area.
Tire pressure monitor
(warning) system
(TPMS) reset switch
1 If equipped
2 For details, refer to the “Navigation and Multimedia System Owner’\
s Manual” or the “2019
Entune™ Audio Quick Reference Guide.”
49195b_MY19_Sequoia_QRG_V1_ML_0718.indd 37/31/18 10:04 PM
Page 6 of 60
4

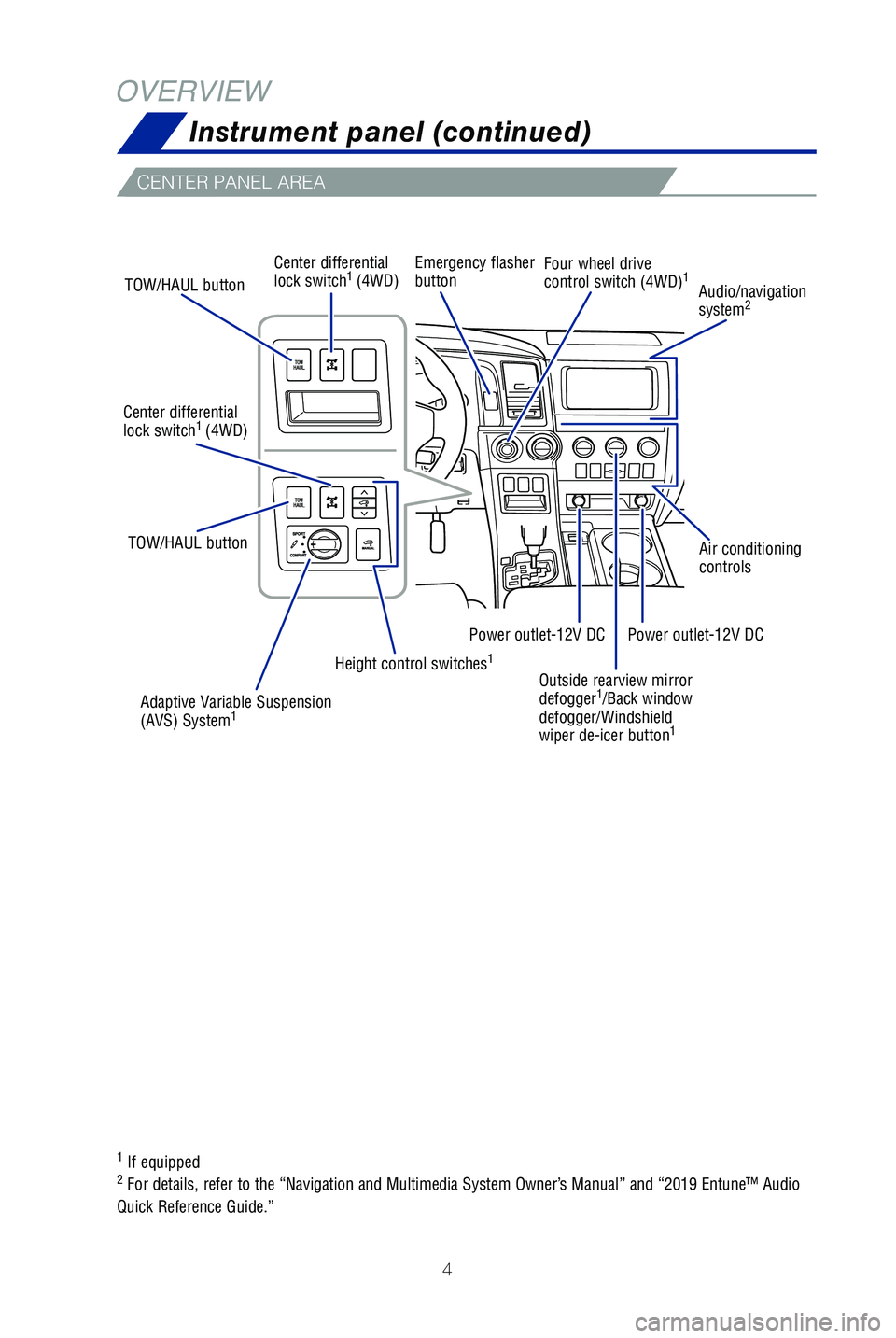

CENTER PANEL AREA
OVERVIEW
1 If equipped
2 For details, refer to the “Navigation and Multimedia System Owner’\
s Manual” and “2019 Entune™ Audio
Quick Reference Guide.”
Instrument panel (continued)
Outside rearview mirror
defogger1/Back window
defogger/Windshield
wiper de-icer button
1
Air conditioning
controls
Height control switches
1
Adaptive Variable Suspension
(AVS) System1
Four wheel drive
control switch (4WD)1Audio/navigation
system2TOW/HAUL button
Center differential
lock switch1 (4WD)Emergency flasher
button
Power outlet-12V DC Power outlet-12V DC
TOW/HAUL button
Center differential
lock switch1 (4WD)
49195b_MY19_Sequoia_QRG_V1_ML_0718.indd 47/31/18 10:04 PM
Page 7 of 60
5

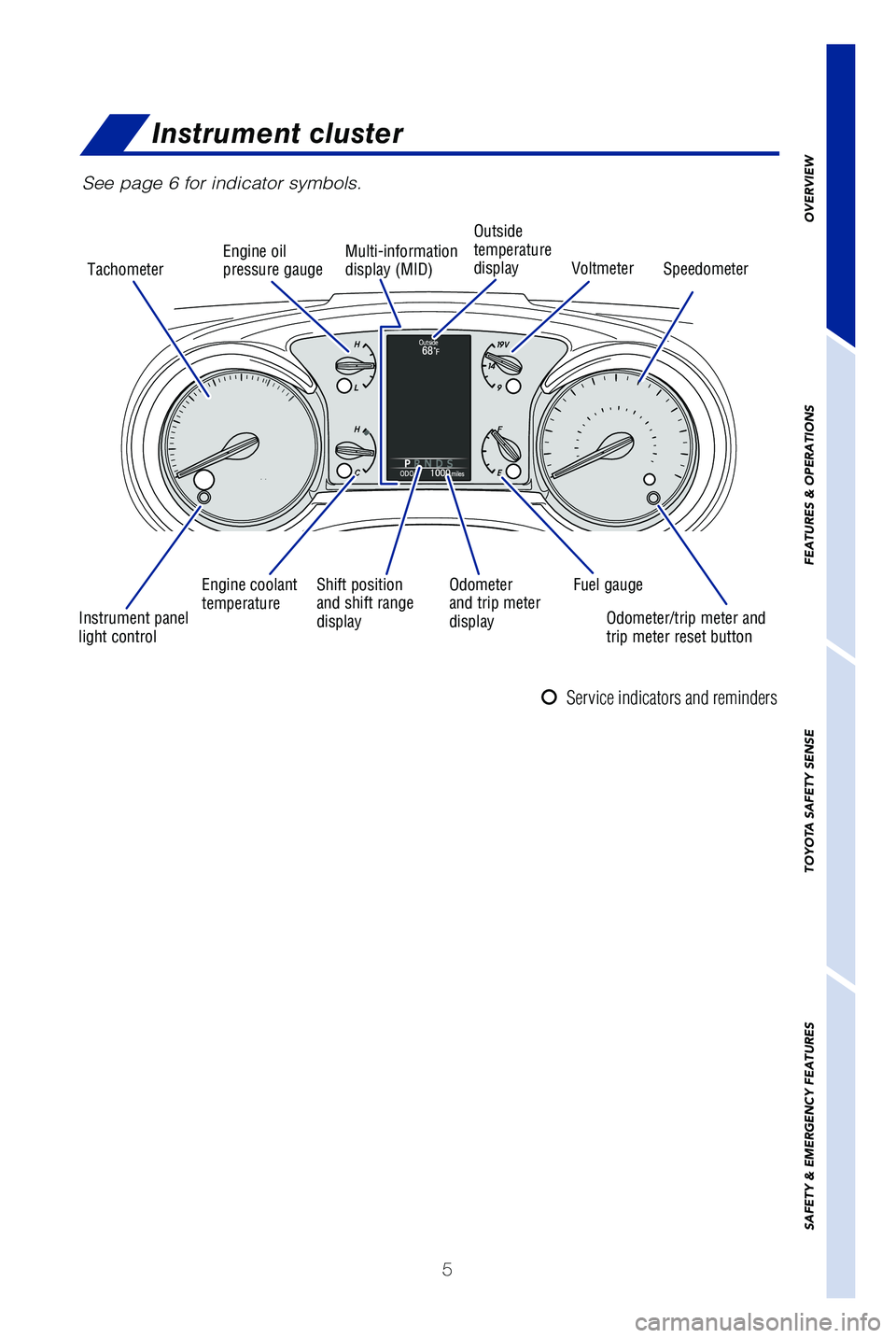

Instrument cluster
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
See page 6 for indicator symbols.
Multi-information
display (MID) Outside
temperature
display Speedometer
Fuel gauge
Odometer
and trip meter
display
Shift position
and shift range
display Voltmeter
Engine oil
pressure gauge
Engine coolant
temperature Odometer/trip meter and
trip meter reset button
Instrument panel
light control Tachometer
Service indicators and reminders
49195b_MY19_Sequoia_QRG_V1_ML_0718.indd 57/31/18 10:04 PM
Page 8 of 60
6

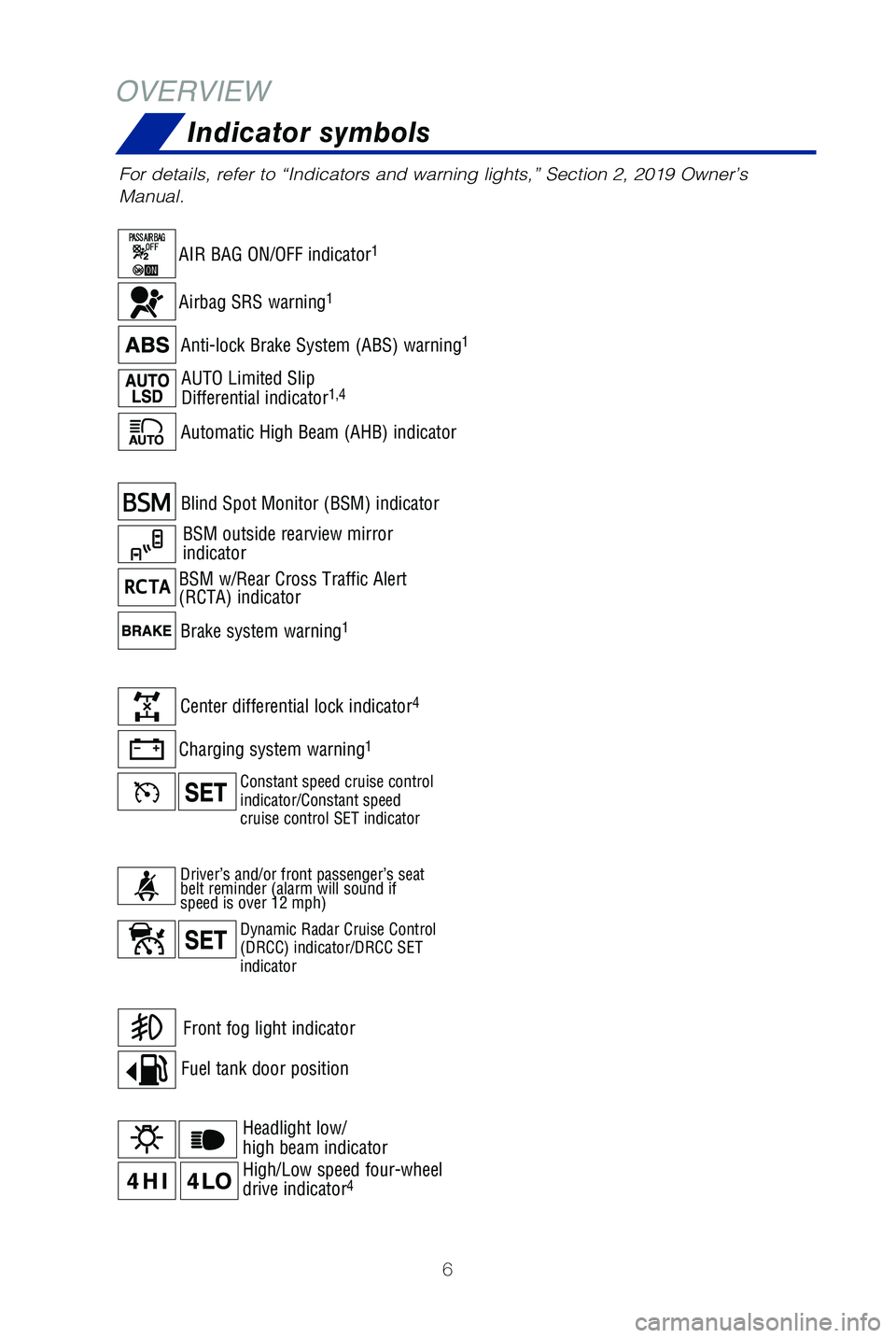

Indicator symbols
For details, refer to “Indicators and warning lights,” Section 2, \
2019 Owner’s
Manual.
Charging system warning1
Center differential lock indicator4
BSM w/Rear Cross Traffic Alert
(RCTA) indicator
AIR BAG ON/OFF indicator1
Anti-lock Brake System (ABS) warning1
Airbag SRS warning1
Automatic High Beam (AHB) indicator
Blind Spot Monitor (BSM) indicator
OVERVIEW
Fuel tank door position Front fog light indicator
Brake system warning1
BSM outside rearview mirror
indicator
High/Low speed four-wheel
drive indicator
4
Headlight low/
high beam indicator
AUTO Limited Slip
Differential indicator
1,4
Constant speed cruise control
indicator/Constant speed
cruise control SET indicator
Driver’s and/or front passenger’s seat
belt reminder (alarm will sound if
speed is over 12 mph)
Dynamic Radar Cruise Control
(DRCC) indicator/DRCC SET
indicator
49195b_MY19_Sequoia_QRG_V1_ML_0718.indd 67/31/18 10:04 PM
Page 9 of 60
7

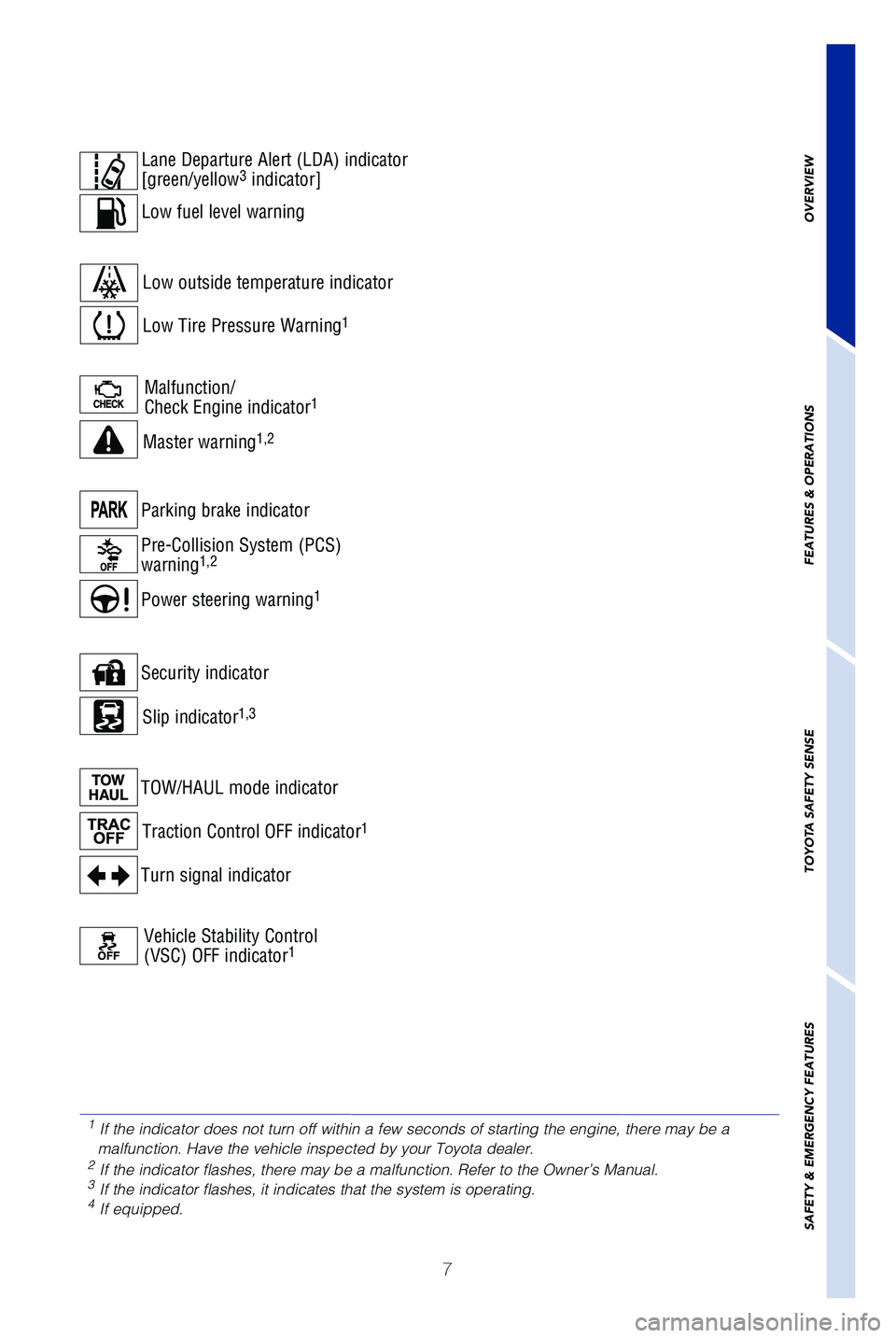

Parking brake indicator
Pre-Collision System (PCS)
warning
1,2
Power steering warning1
Malfunction/
Check Engine indicator1
Master warning1,2
Slip indicator1,3
Turn signal indicator
Security indicator
TOW/HAUL mode indicator
Traction Control OFF indicator
1
Low fuel level warning
Lane Departure Alert (LDA) indicator
[green/yellow
3 indicator]
Vehicle Stability Control
(VSC) OFF indicator
1
Low outside temperature indicator
Low Tire Pressure Warning
1
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
1
If the indicator does not turn off within a few seconds of starting the \
engine, there may be a
malfunction. Have the vehicle inspected by your Toyota dealer.
2 If the indicator flashes, there may be a malfunction. Refer to the Owner\
’s Manual.3 If the indicator flashes, it indicates that the system is operating.4 If equipped.
49195b_MY19_Sequoia_QRG_V1_ML_0718.indd 77/31/18 10:04 PM
Page 10 of 60
8

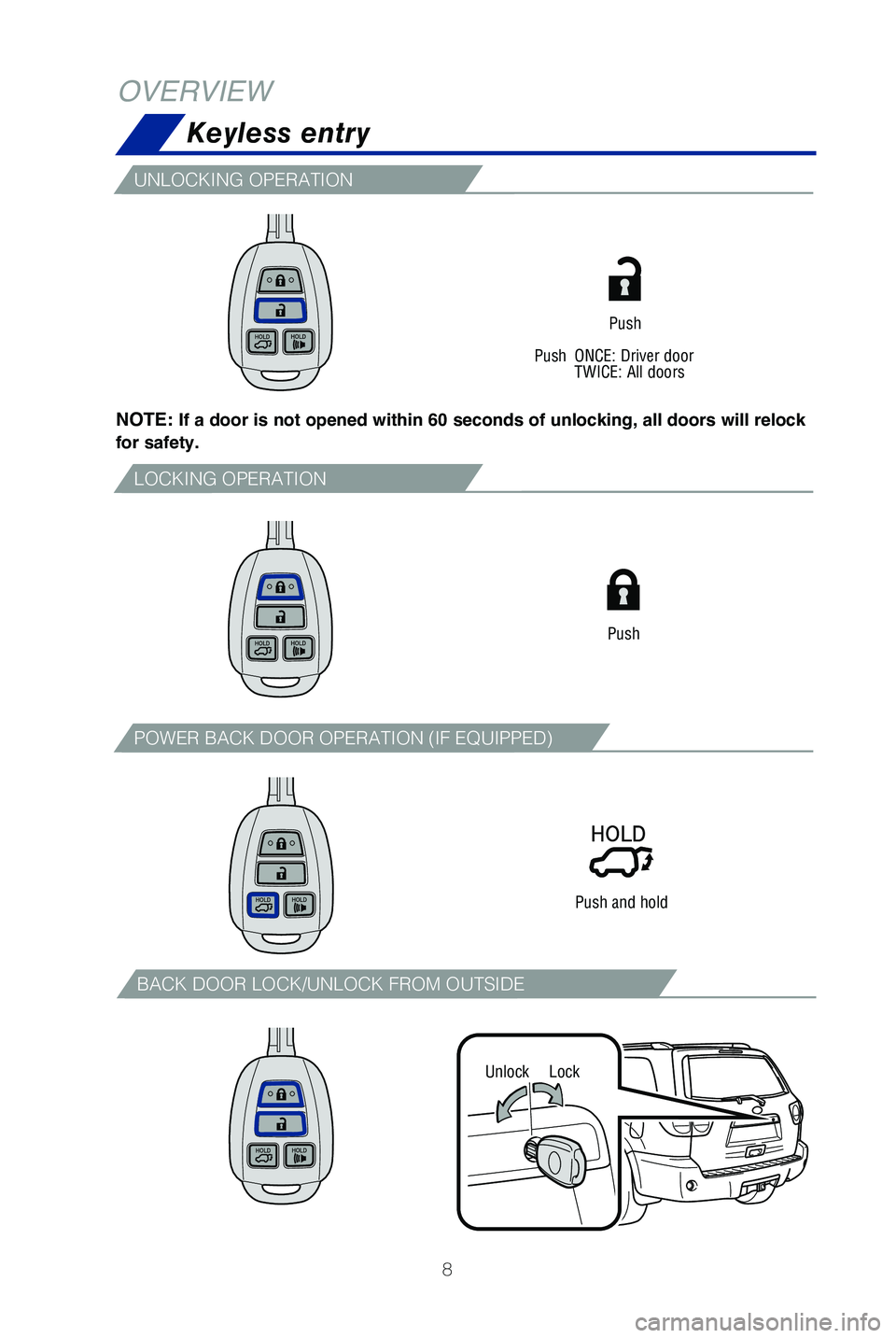

OVERVIEWKeyless entry
Push
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will relock
for safety.
Push and hold
UNLOCKING OPERATION
POWER BACK DOOR OPERATION (IF EQUIPPED)
LOCKING OPERATION
Push
Push ONCE: Driver door
TWICE: All doors
UnlockLock
BACK DOOR LOCK/UNLOCK FROM OUTSIDE
