Page 394 of 560

3946-3. Do-it-yourself maintenance
SEQUOIA_OM_USA_OM0C013U_19MY

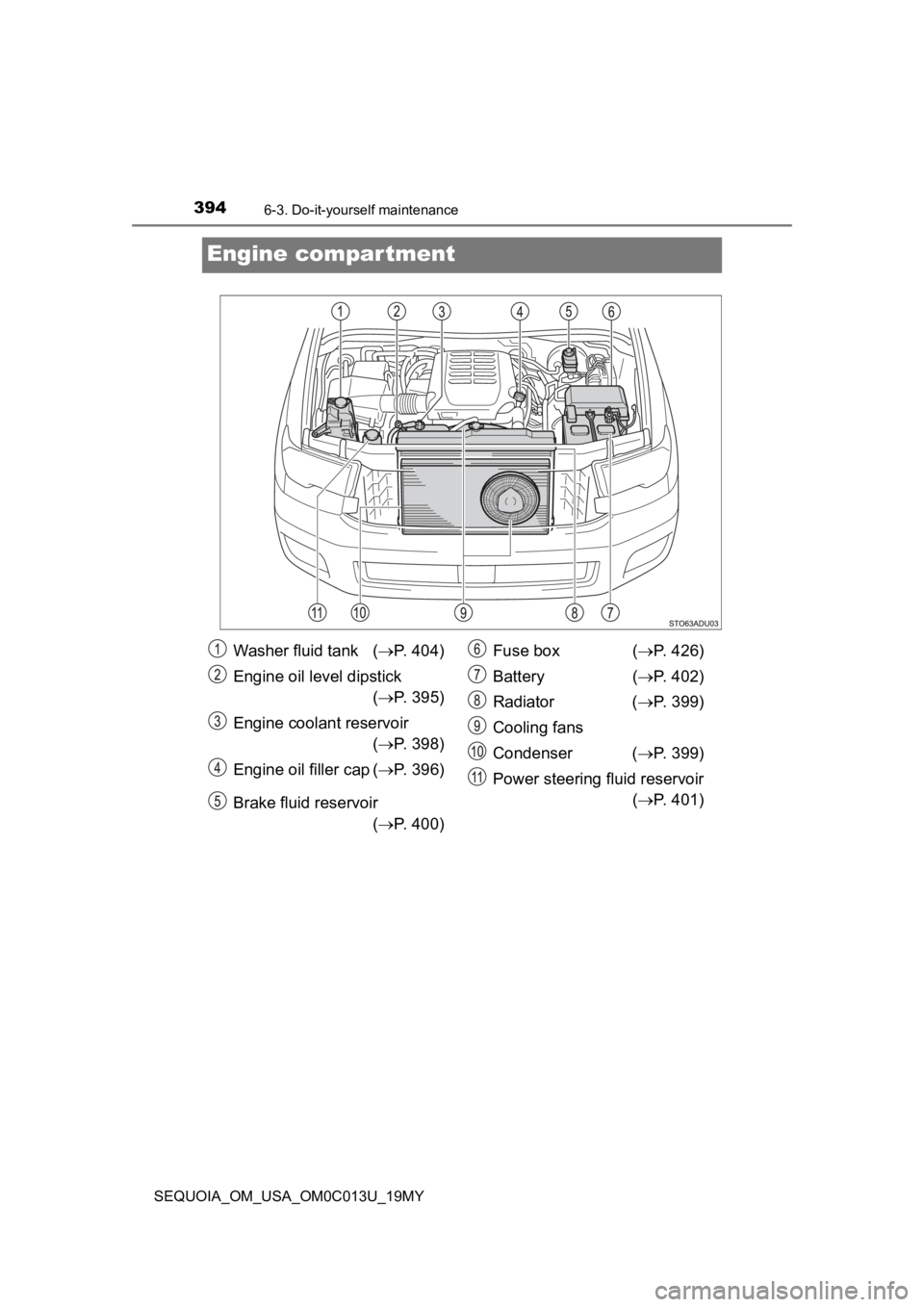

Engine compartment
Washer fluid tank (P. 404)
Engine oil level dipstick ( P. 395)
Engine coolant reservoir ( P. 398)
Engine oil filler cap ( P. 396)
Brake fluid reservoir ( P. 400) Fuse box (
P. 426)
Battery ( P. 402)
Radiator ( P. 399)
Cooling fans
Condenser ( P. 399)
Power steering fluid reservoir ( P. 401)
Page 426 of 560

4266-3. Do-it-yourself maintenance
SEQUOIA_OM_USA_OM0C013U_19MY

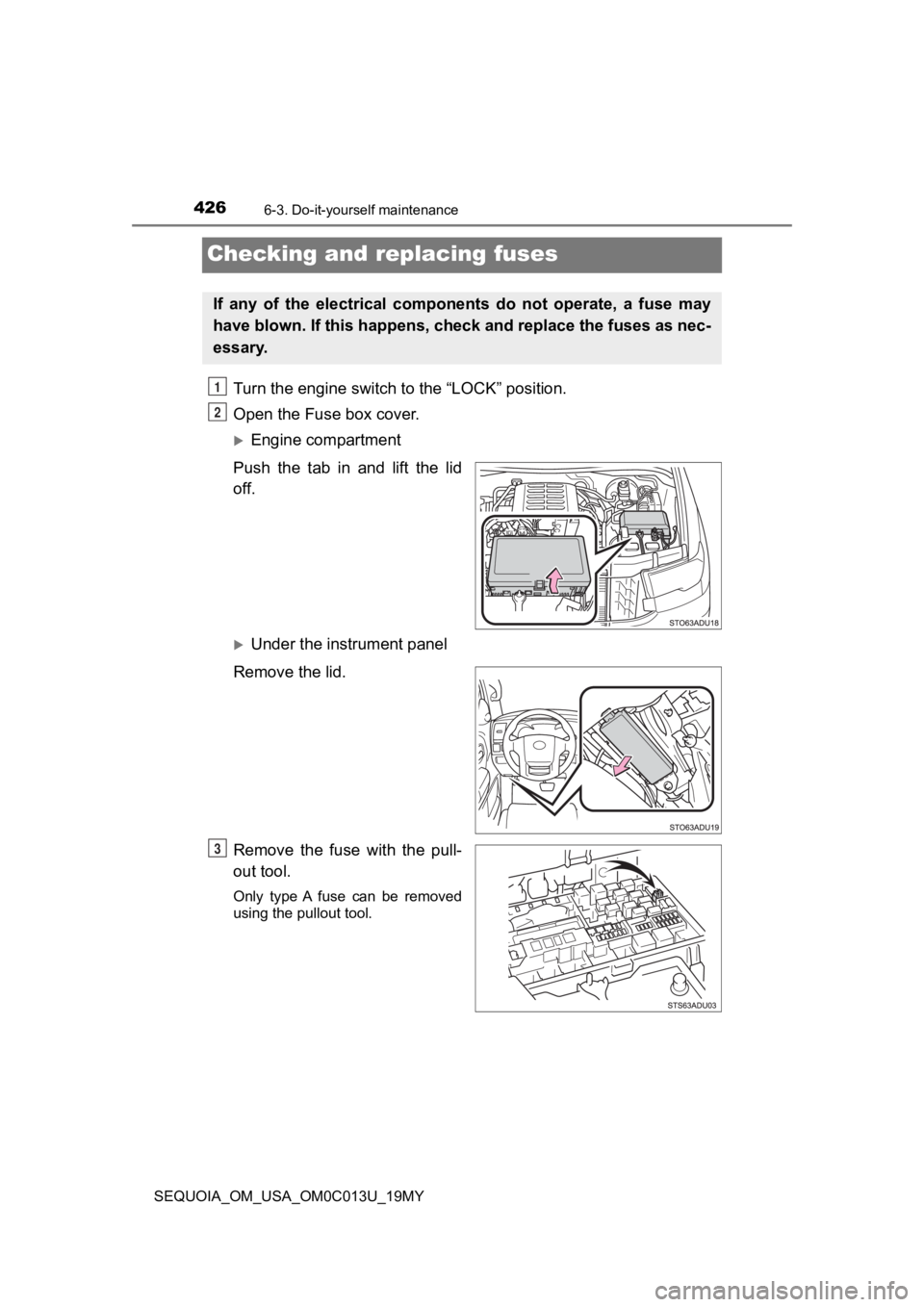

Checking and replacing fuses
Turn the engine switch to the “LOCK” position.
Open the Fuse box cover.
Engine compartment
Push the tab in and lift the lid
off.
Under the instrument panel
Remove the lid.
Remove the fuse with the pull-
out tool.
Only type A fuse can be removed
using the pullout tool.
If any of the electrical components do not operate, a fuse may
have blown. If this happens, che ck and replace the fuses as nec-
essary.
1
2
3
Page 427 of 560

4276-3. Do-it-yourself maintenance
6
Maintenance and care
SEQUOIA_OM_USA_OM0C013U_19MY

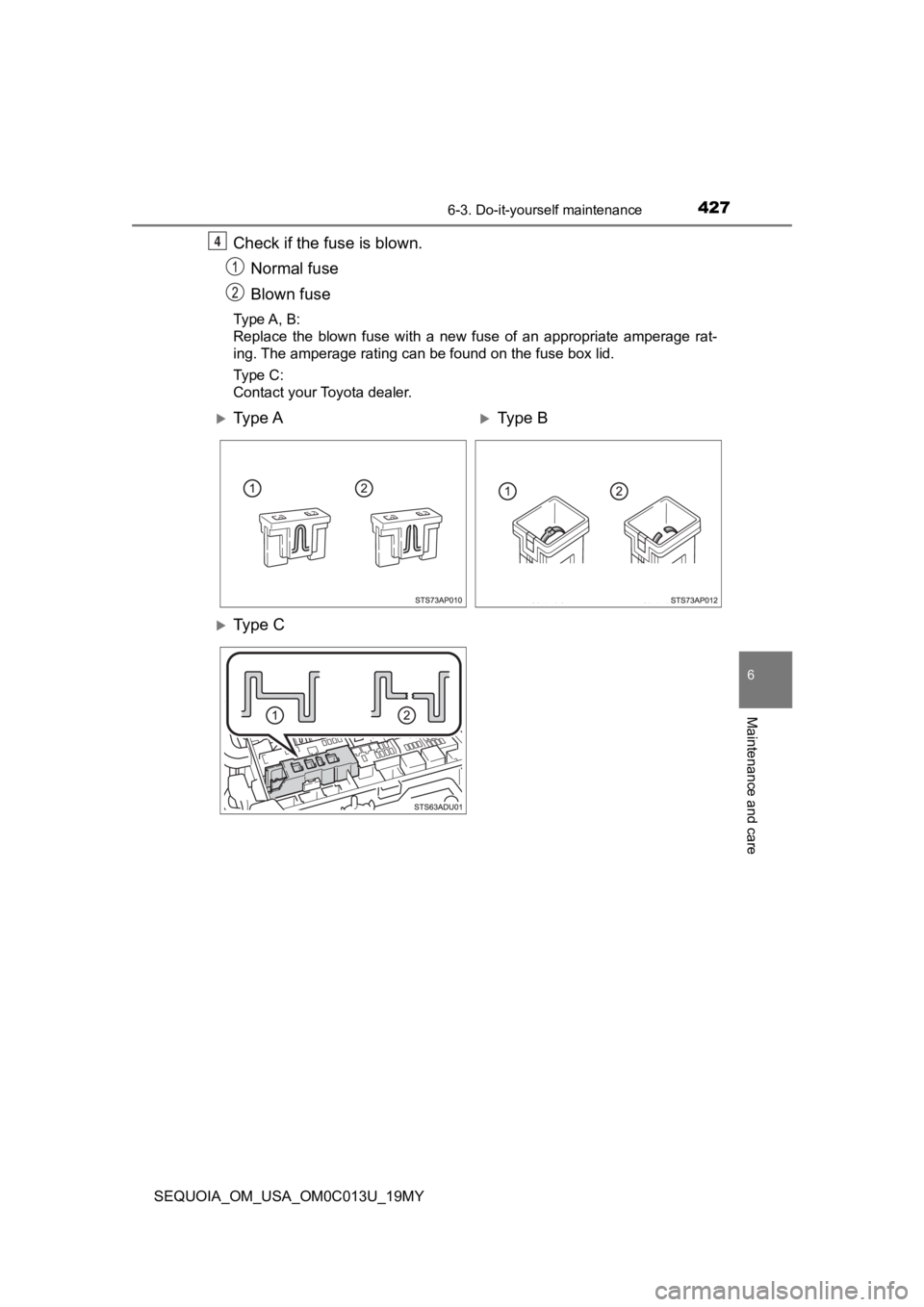

Check if the fuse is blown.Normal fuse
Blown fuse
Type A, B:
Replace the blown fuse with a new fuse of an appropriate ampera ge rat-
ing. The amperage rating can be found on the fuse box lid.
Type C:
Contact your Toyota dealer.
4
Ty p e AType B
Ty p e C
Page 428 of 560

4286-3. Do-it-yourself maintenance
SEQUOIA_OM_USA_OM0C013U_19MY
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been repla ced, a bulb may
need replacement. ( P. 429)
● If the replaced fuse blows again, have the vehicle inspected by your Toyota
dealer.
■ If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness f rom damage.
■ When replacing light bulbs
Toyota recommends that you use genuine Toyota products designed for this
vehicle. Because certain bulbs are connected to circuits designed to prevent
overload, non-genuine parts or parts not designed for this vehicle may be
unusable.
WARNING
■ To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or
injury.
● Never use a fuse of a higher amperage rating than that indicated, or use
any other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
● Do not modify the fuses or fuse boxes.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired b y your
Toyota dealer as soon as possible.
